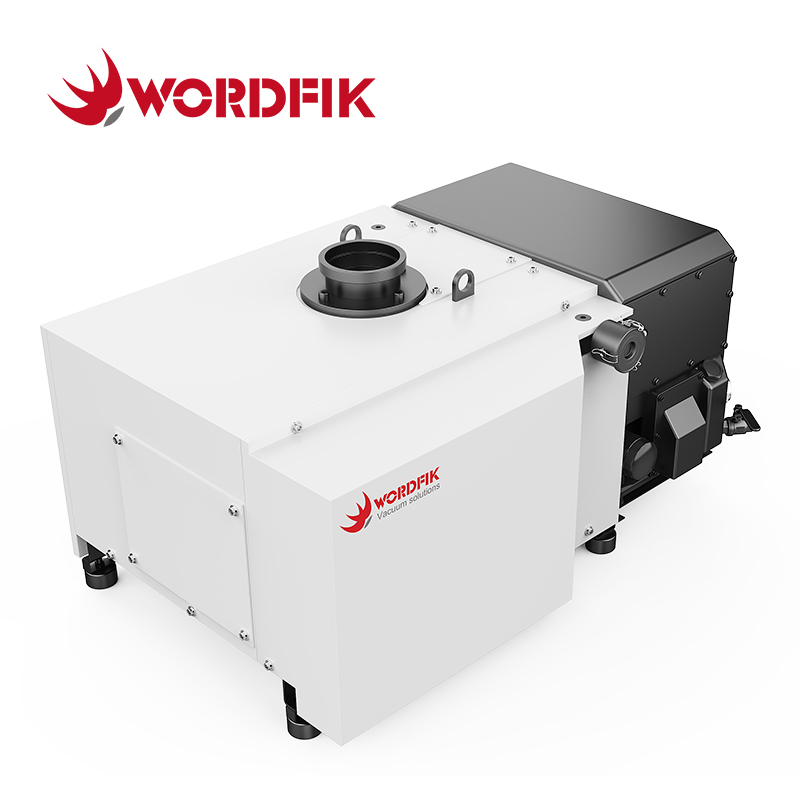

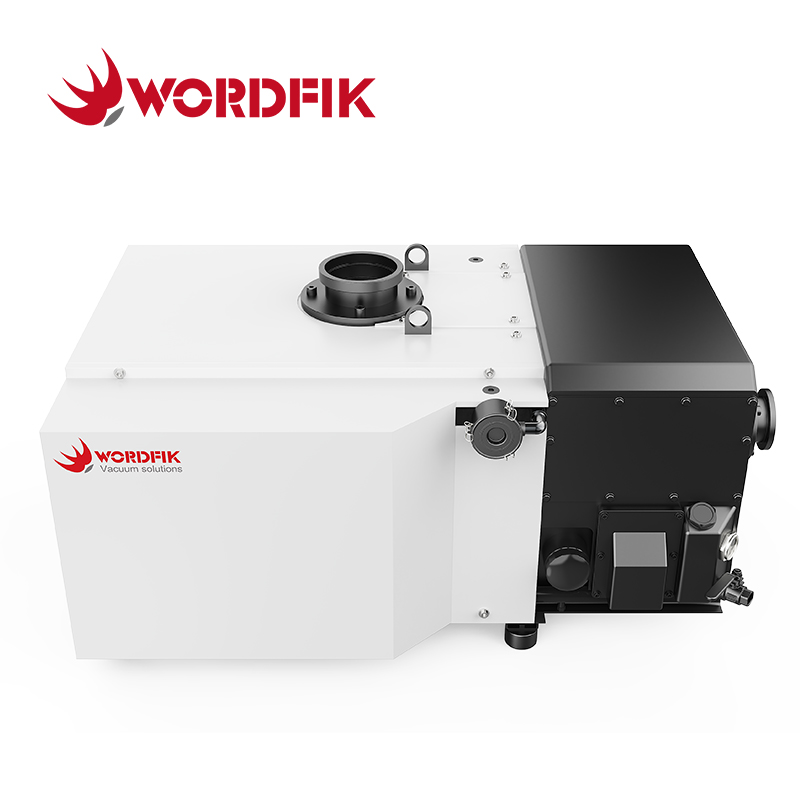

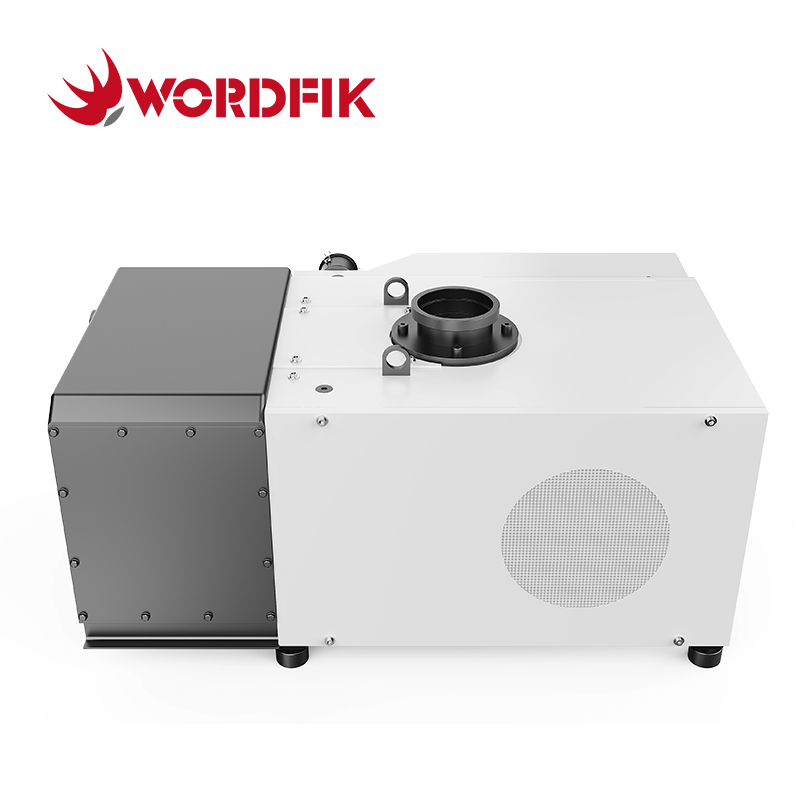

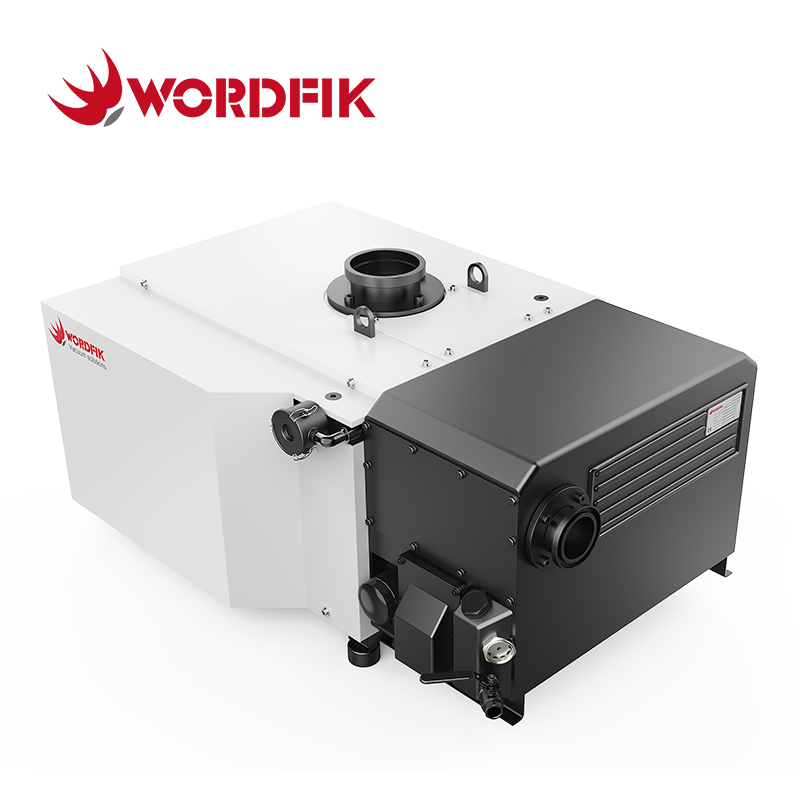

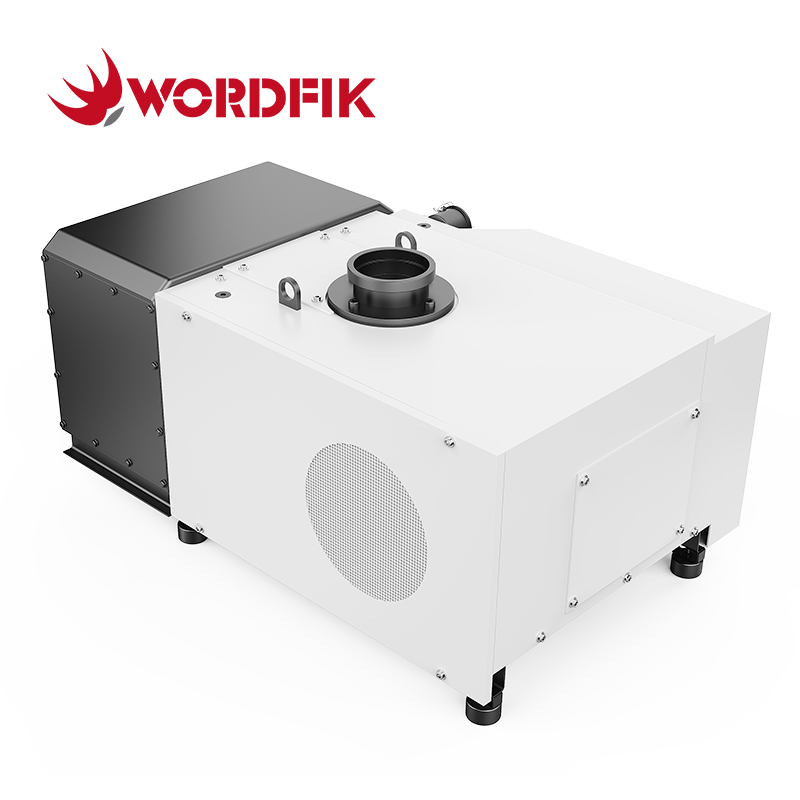

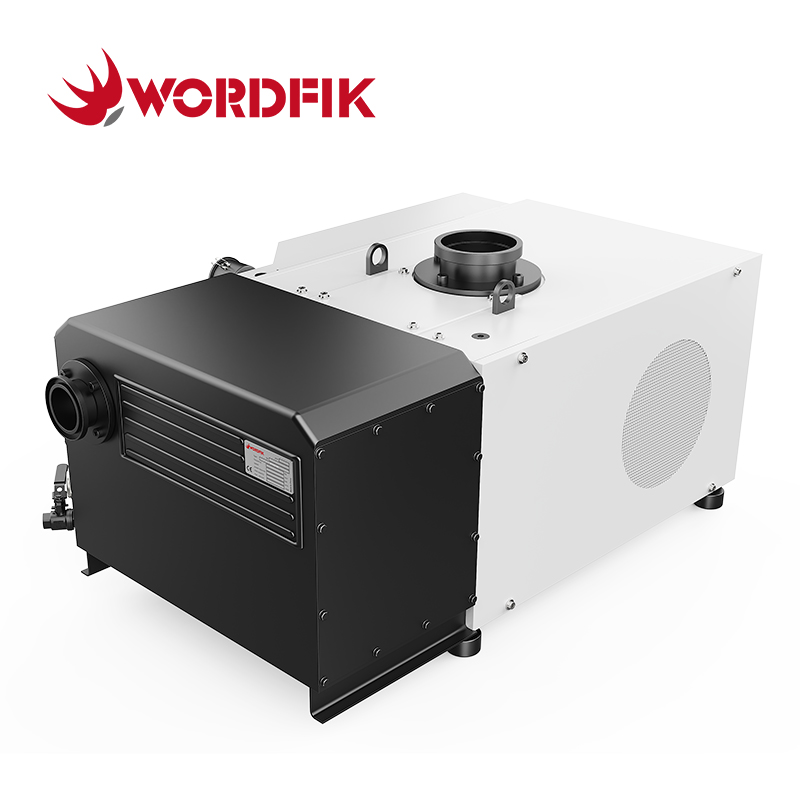

The Wordfik PVX750 is a high-capacity, industrial-grade oil-lubricated rotary vane vacuum pump engineered for demanding applications requiring large-flow performance, precision vacuum control, and continuous operation. With a pumping speed of 750 m³/h (50Hz) and an ultimate vacuum of 0.1 mbar, it delivers exceptional efficiency in large-scale industrial processes. The pump incorporates a water-cooling system to maintain optimal thermal stability under heavy loads, ensuring consistent performance and extended service life.
Constructed with a heavy-duty cast-iron body and precision-machined components, the PVX750 minimizes internal leakage and vibration. Its copper-wound motor (18.5 kW for 50Hz operation) provides reliable power output, while the advanced oil-sealing system and integrated gas ballast valve effectively handle condensable vapors. The water-cooling design reduces operational temperatures, enhancing oil life and reducing maintenance frequency.
Ideal for applications such as industrial drying, vacuum furnaces, chemical processing, and large-scale packaging systems, the PVX750 combines high flow rates with deep vacuum capabilities.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX750 Technical Specifications | |
| Pumping Speed | 750 m³/h |
| Ultimate Pressure (gas ballast valve close) | 0.1 mbar |
| Ultimate Pressure (single gas ballast valve open) | 0.3 mbar |
| Ultimate Pressure (two gas ballast valve open) | 1.5 mbar |
| Motor Power | 18.5 kW |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) |
| Motor Speed | 1450 rpm |
| Noise Level | 76 dB(A) |
| Gas Inlet Connection | DN 100 |
| Gas Outlet Connection | DN 80 |
| Water Vapor Tolerance | 24 kg/h |
| Oil Capacity | 22 L |
| Cooling Method | Water Cooled |
| Operating Fluid Capacity | 20 L |
| Weight | 680 kg |
| Dimensions | 1600*900*754 mm |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

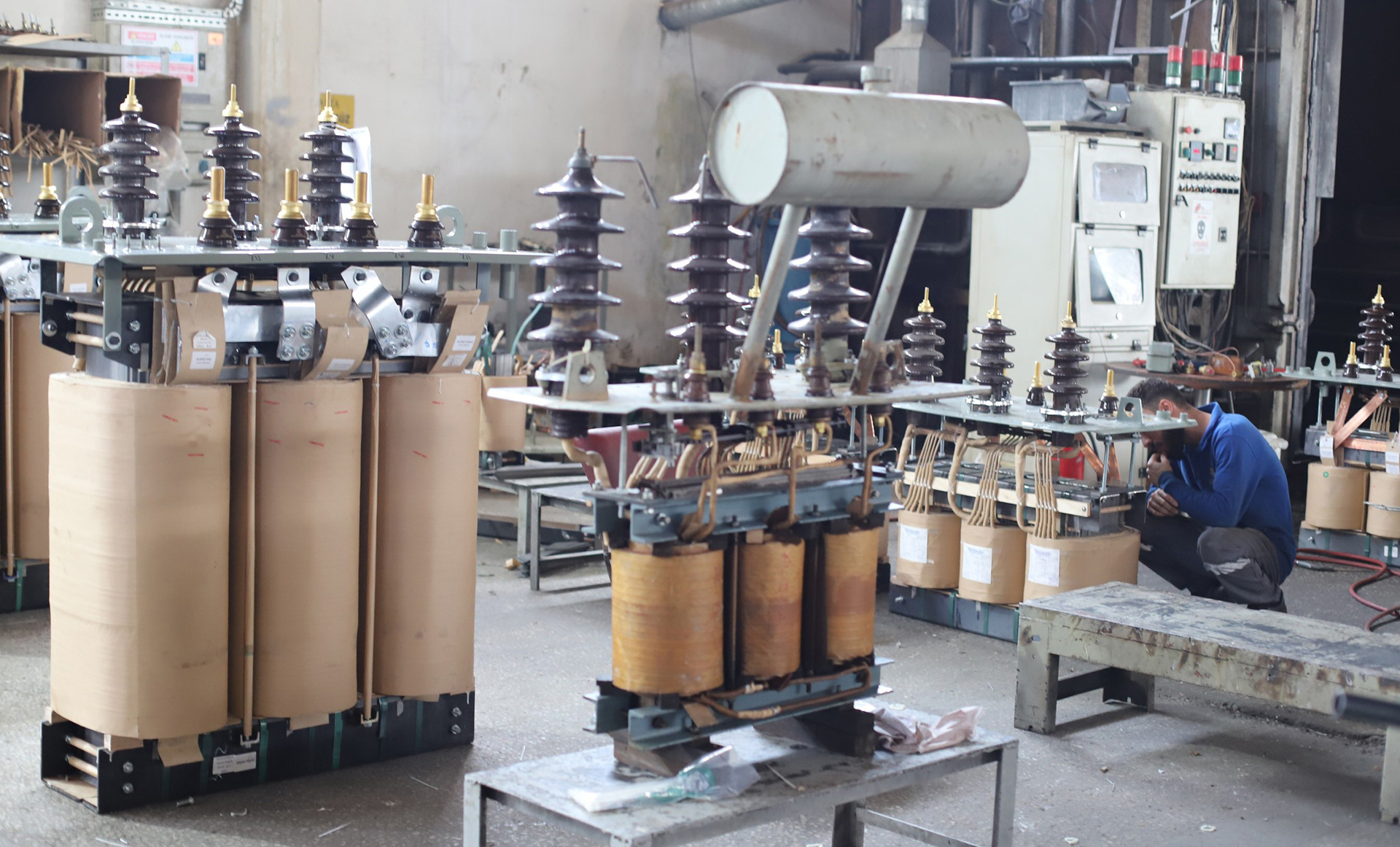

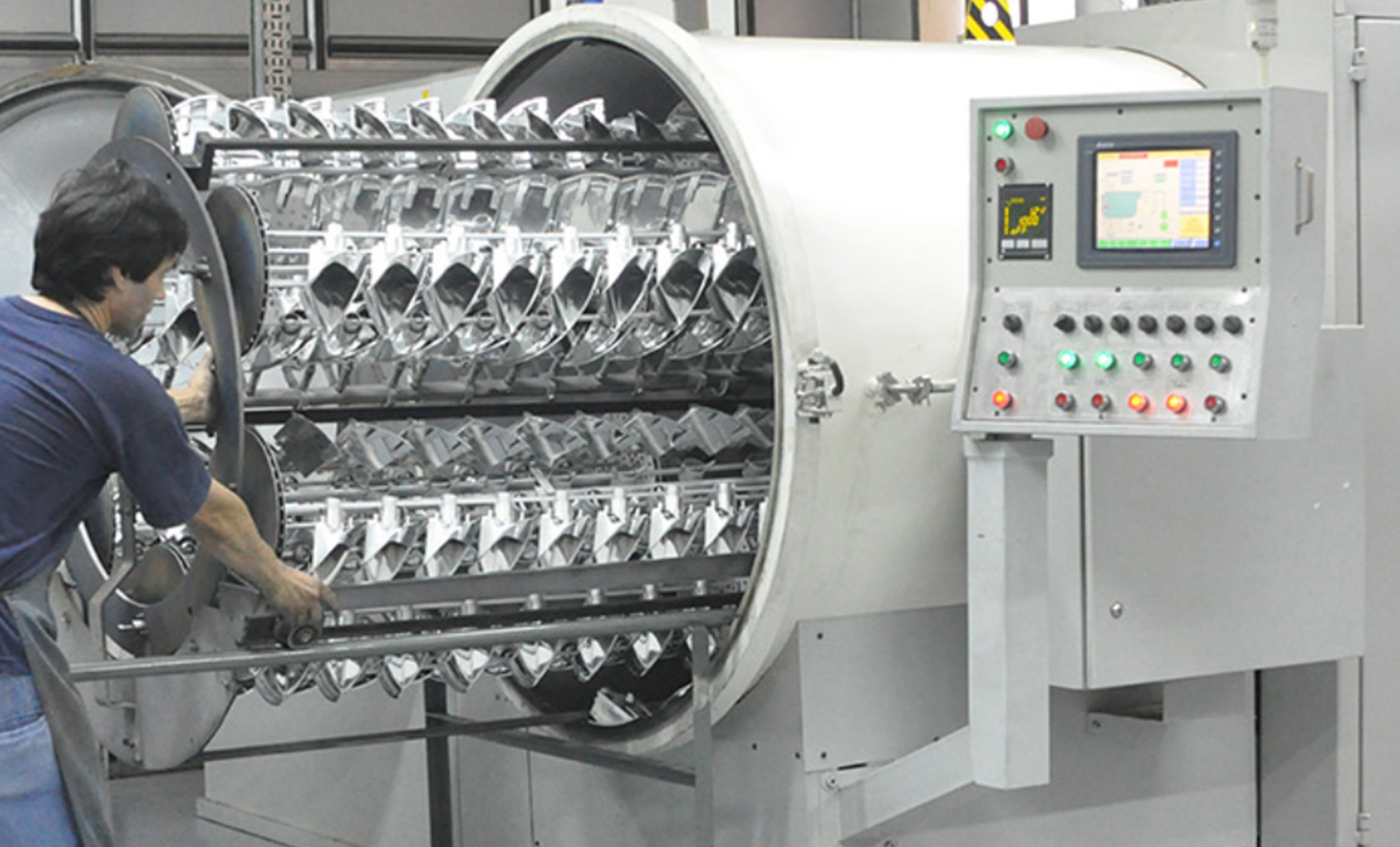

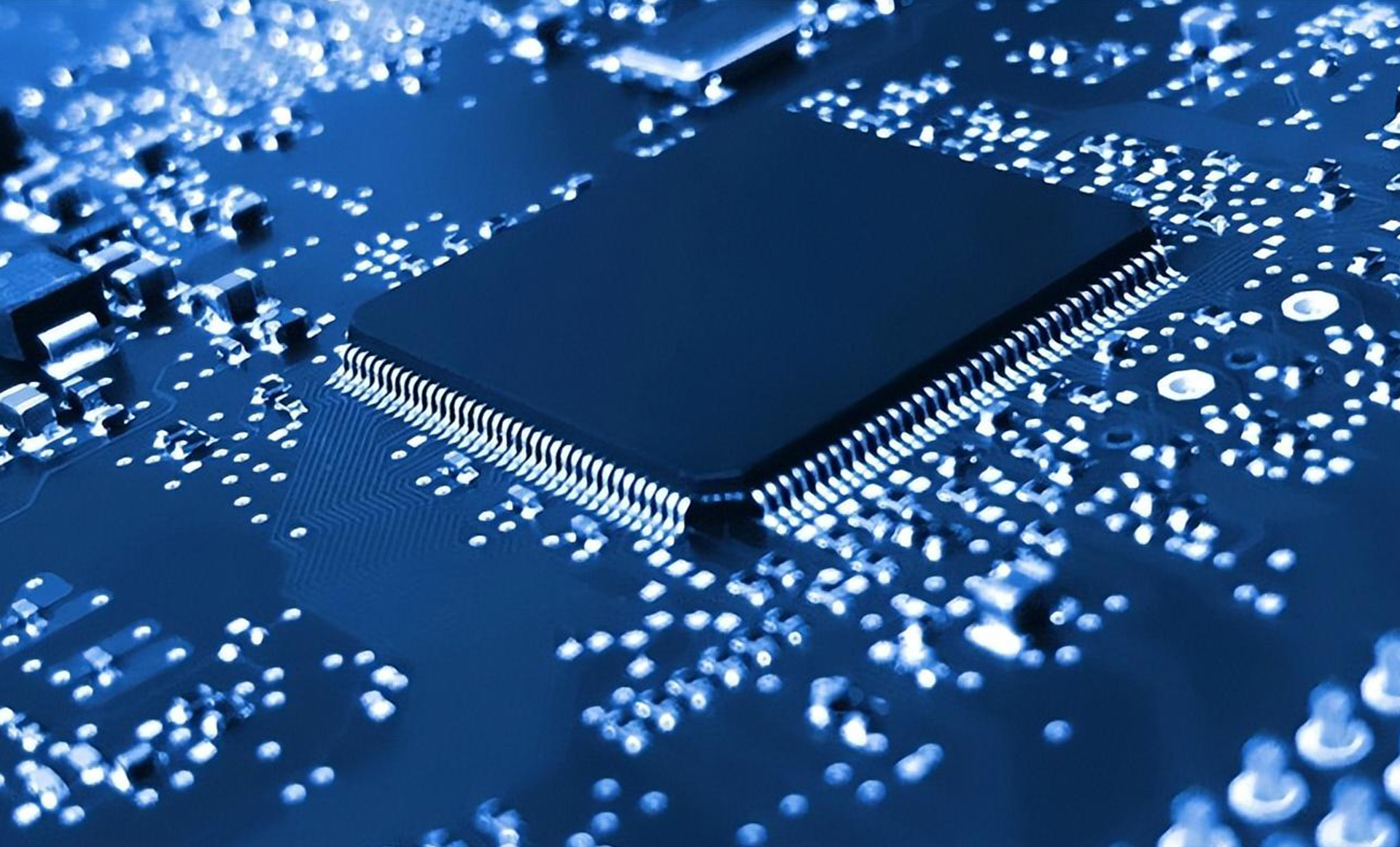

| Transformer Manufacturing | Semiconductor Manufacturing | Vacuum Coating System |
 |  |  |

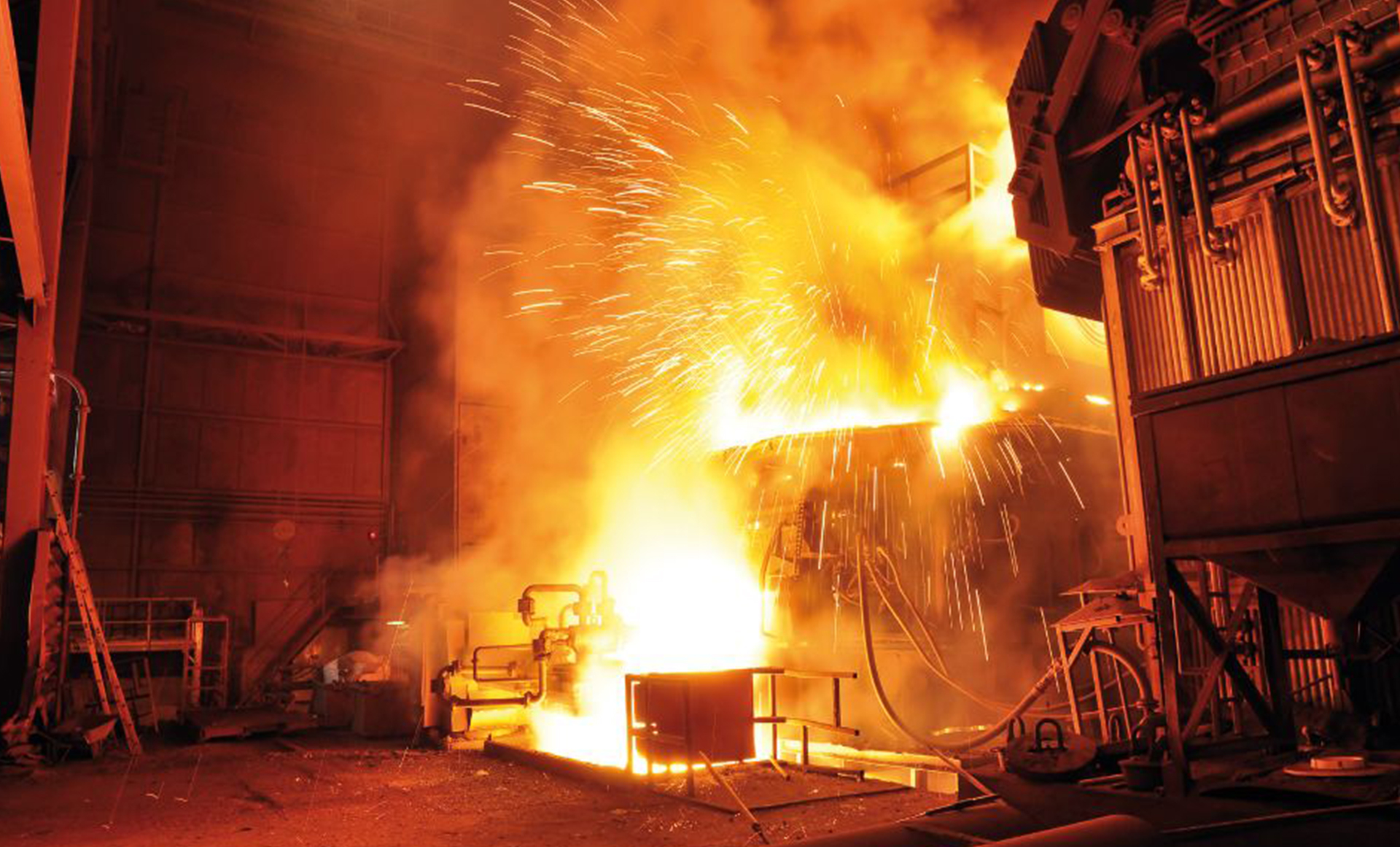

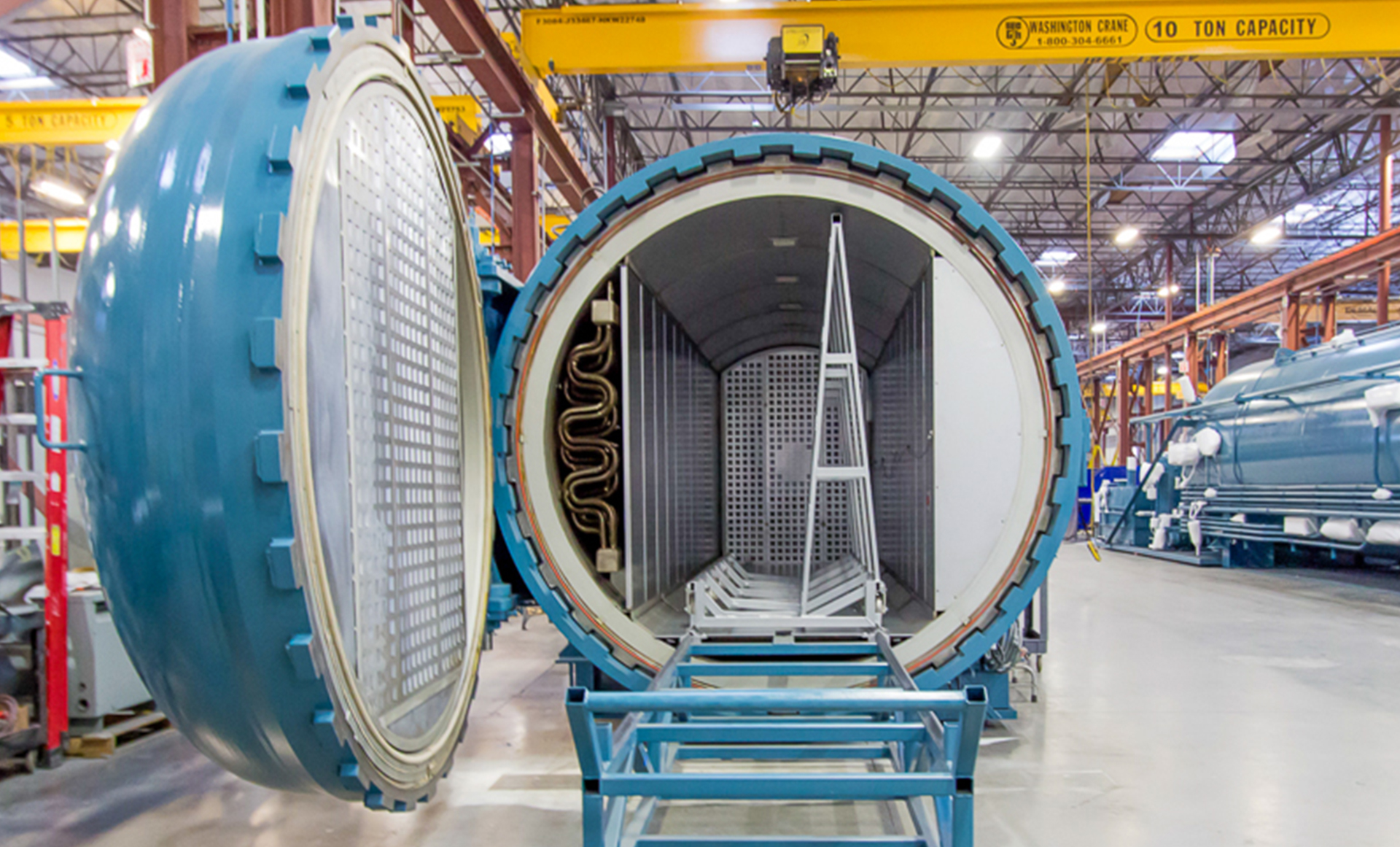

| Pharmaceutical | Metal Smelting Degassing | Glass Lamination Autoclaves |

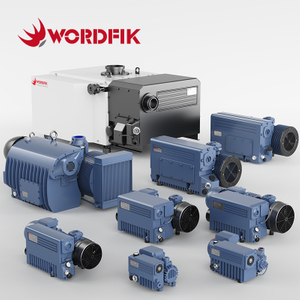

| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||

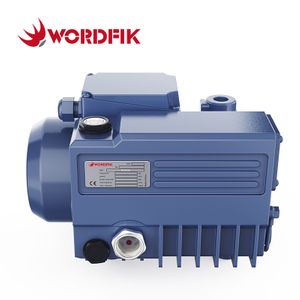

| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |

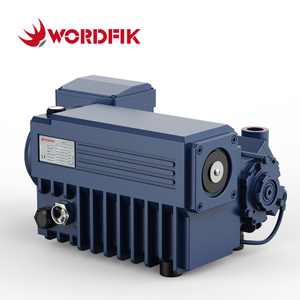

| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |

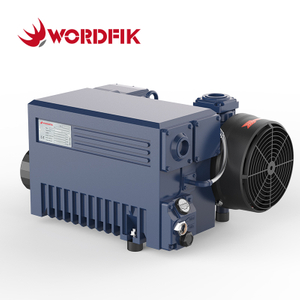

| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |

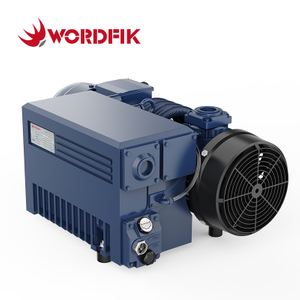

| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |

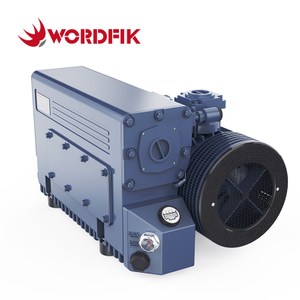

| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |

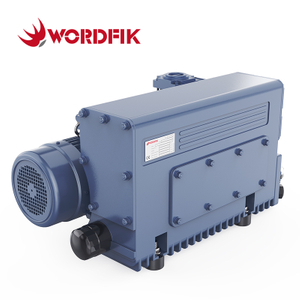

| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |

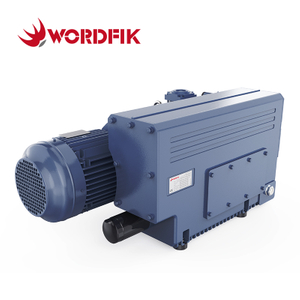

| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |

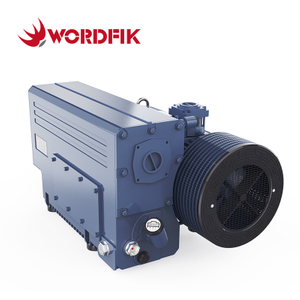

| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |

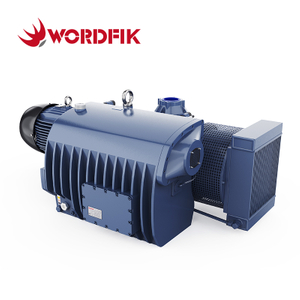

| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
