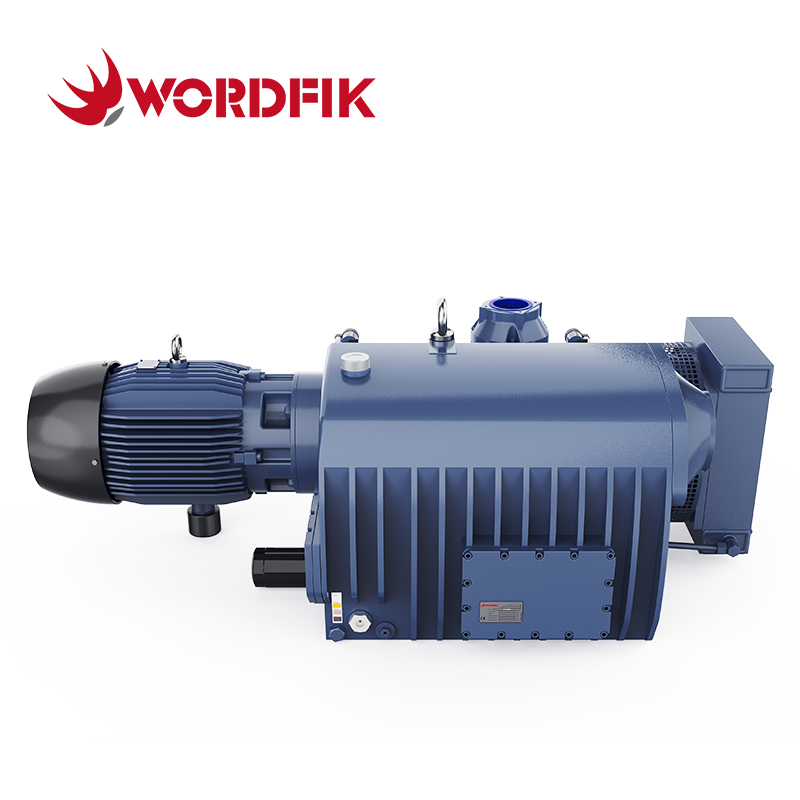

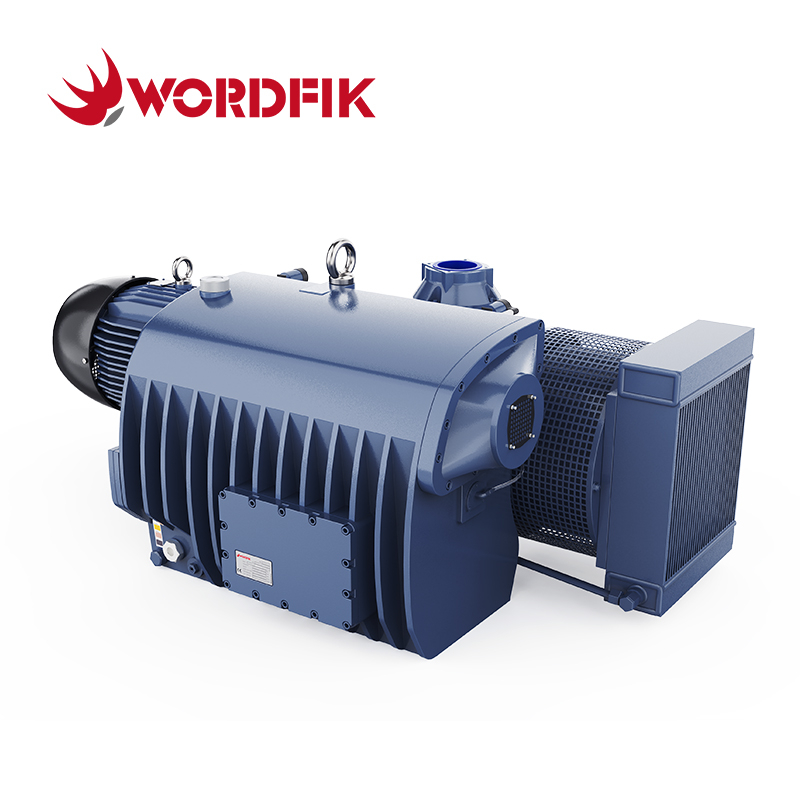

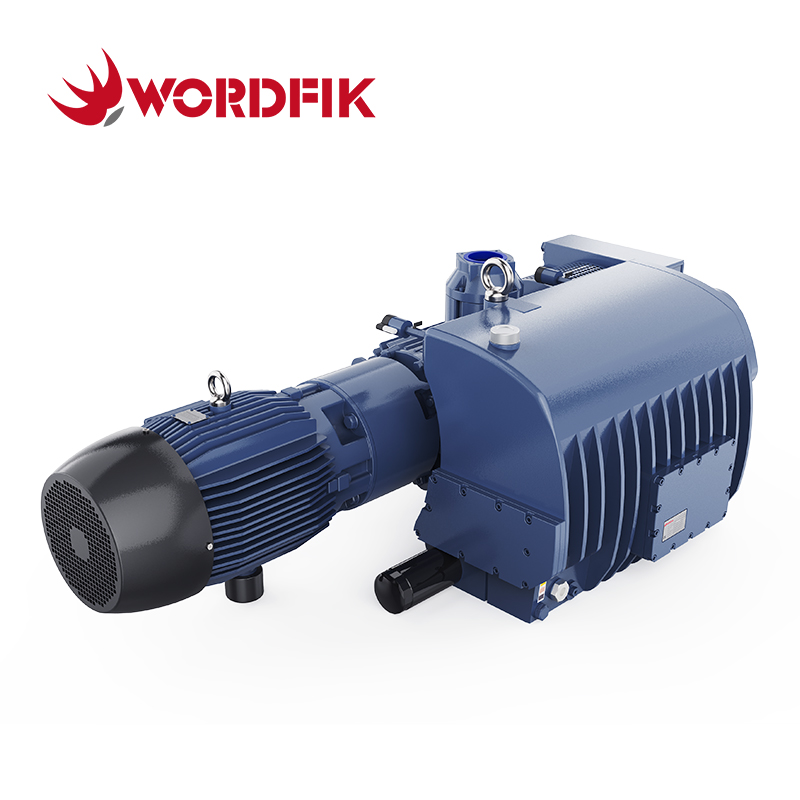

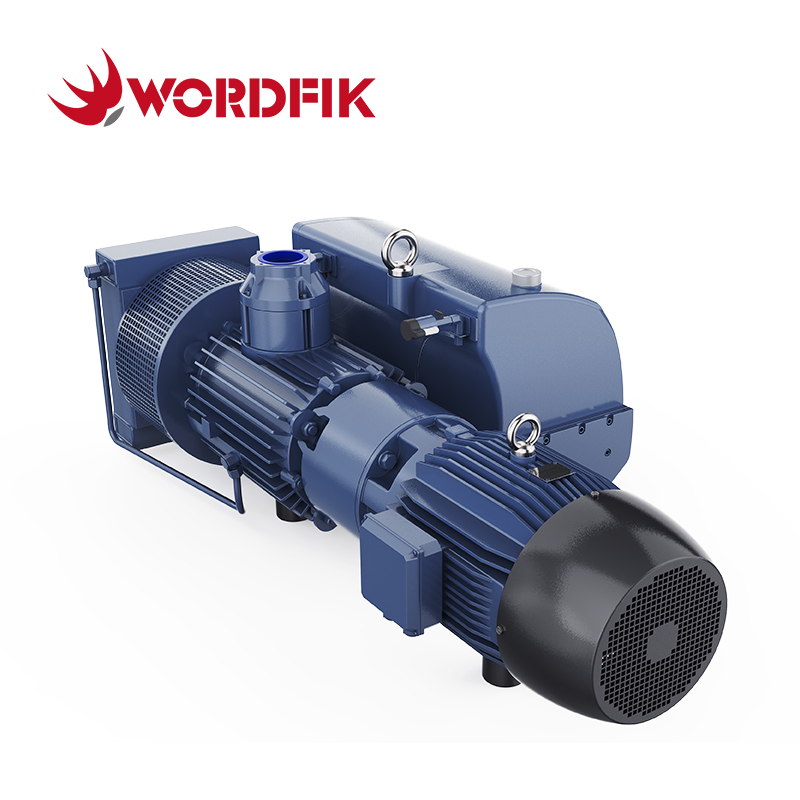

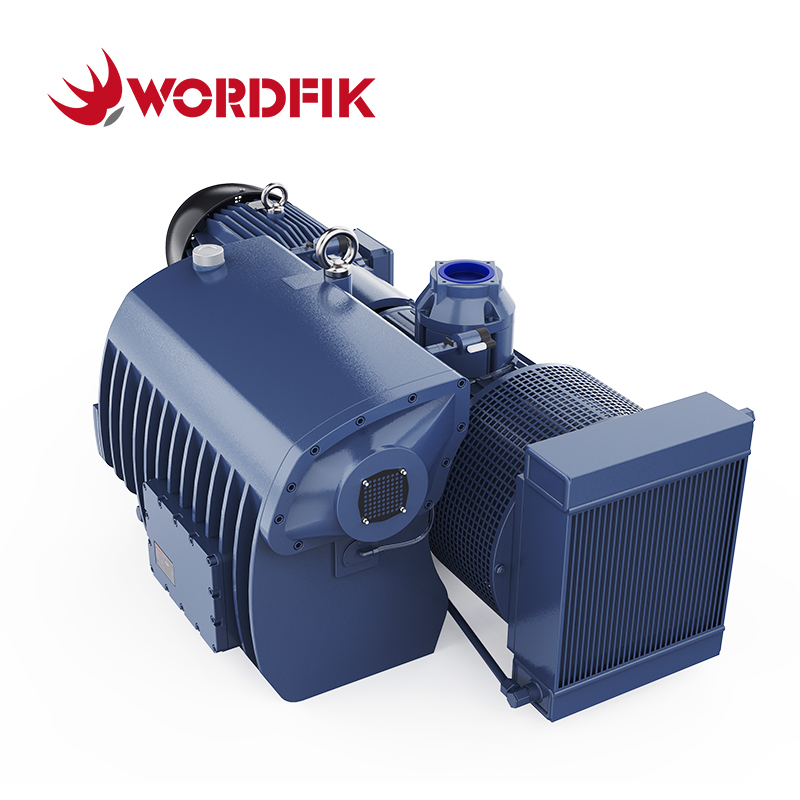

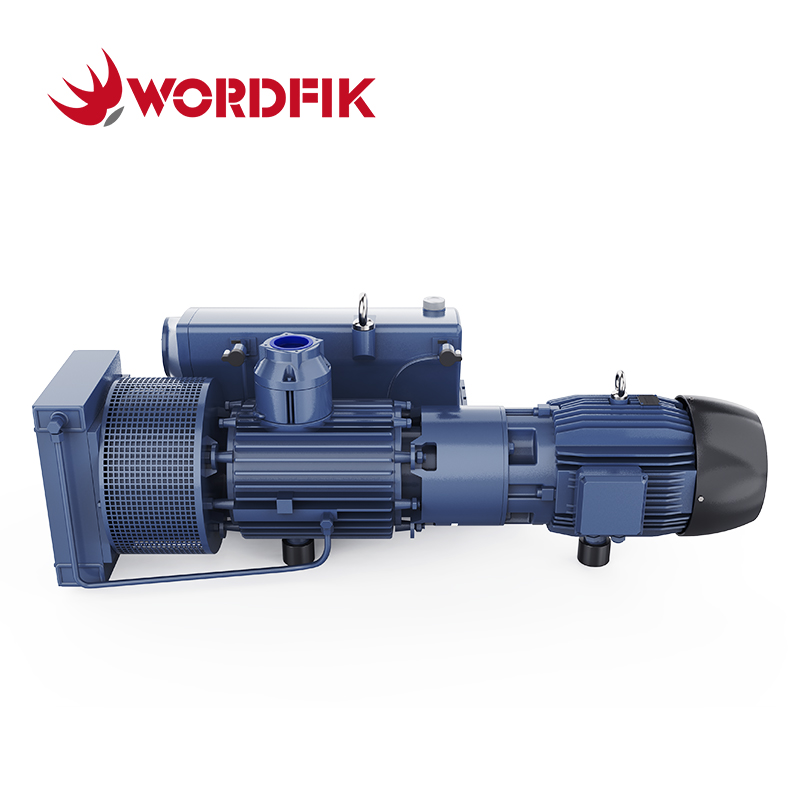

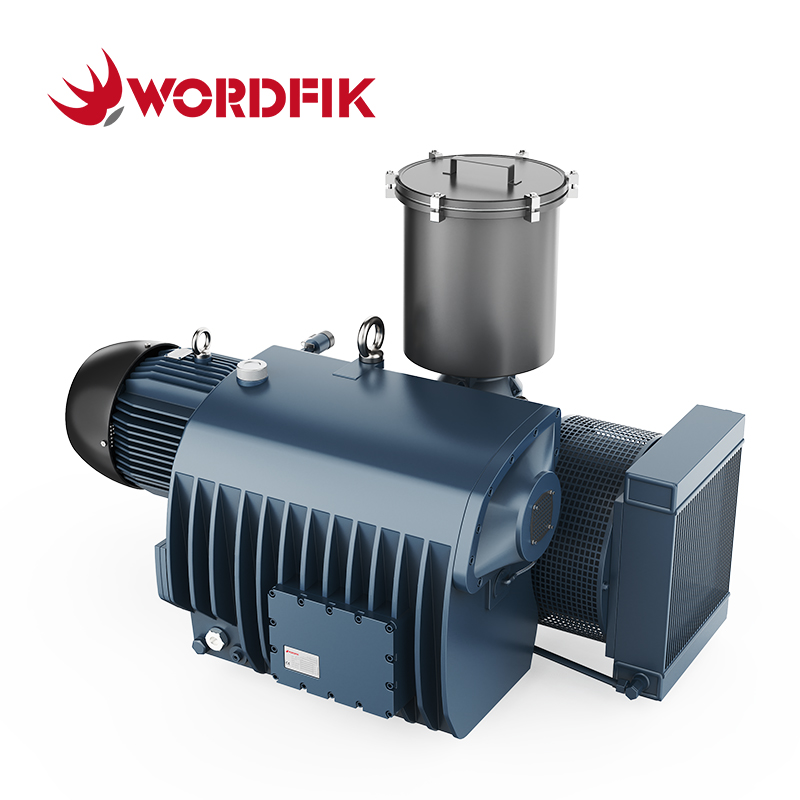

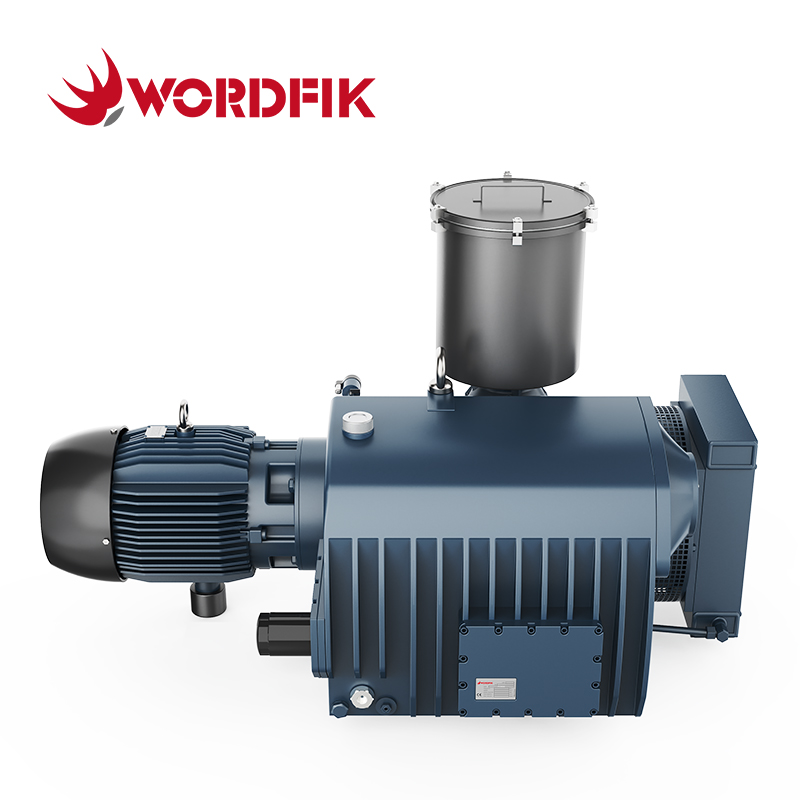

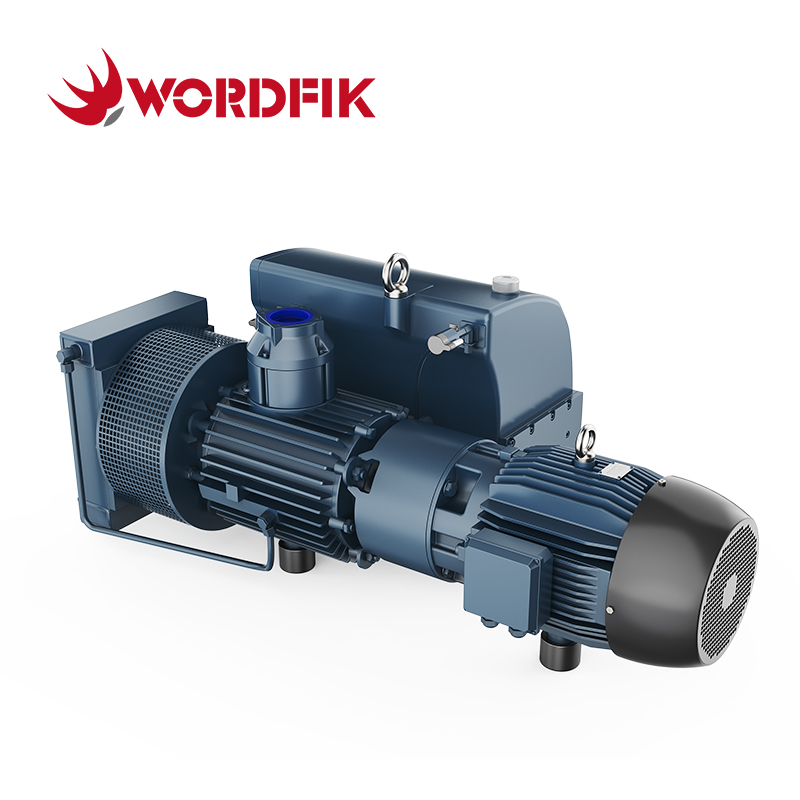

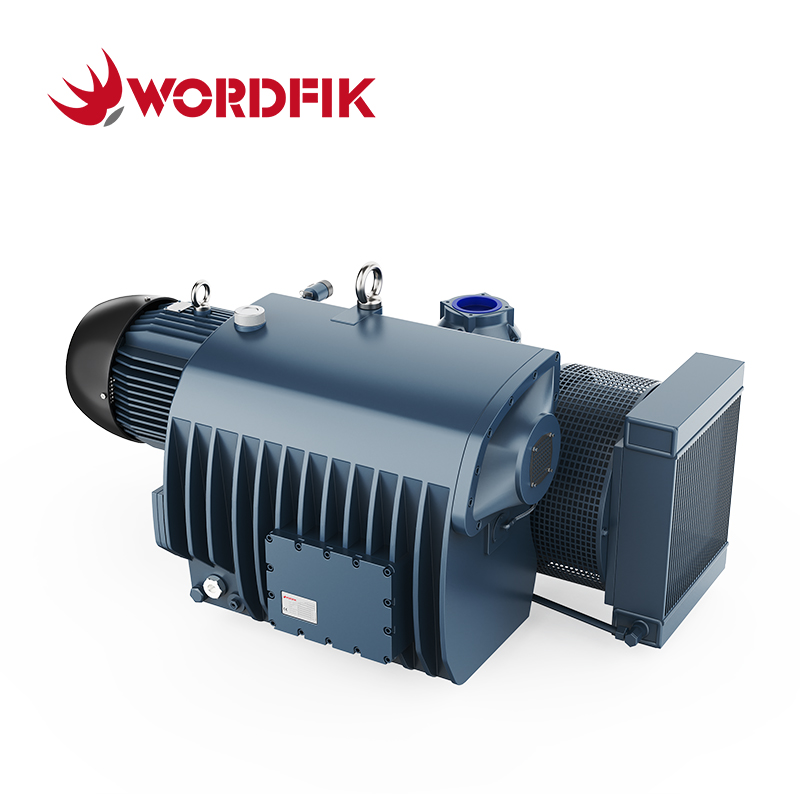

The Wordfik PVX630 is a flagship large-capacity oil-lubricated rotary vane vacuum pump engineered for high-vacuum, heavy-duty industrial operations. As a direct drop-in replacement for Busch R5 RA 0630 oil-sealed vane pumps, it delivers 630 m³/h (371 SCFM) at 50Hz and 760 m³/h (447 SCFM) at 60Hz pumping speed, achieving an ultimate vacuum of 0.1 mbar (0.075 torr) with the gas ballast valve closed.
Featuring an advanced air-cooling system as standard with optional water cooling, it maintains optimal operating temperatures during extended continuous operation, eliminating the need for complex water cooling infrastructure for most applications. Its heavy-duty cast iron construction and precision-machined low-speed rotor assembly ensure exceptional reliability and long service life under full-load 24/7 operation. An enhanced gas ballast system delivers industry-leading 7.5 kg/h water vapor tolerance, making it highly suitable for high-moisture processes such as transformer drying and vacuum degassing.
Powered by a 18.5 kW (25 HP) high-torque full-copper motor running at 970–980 rpm low speed, the PVX630 combines massive pumping capacity with precision vacuum performance. It supports wide three-phase voltage inputs, comes standard with CE certification, and is the premium solution for transformer manufacturing, vacuum coating systems, packaging lines, large central vacuum networks and glass lamination production. Standard units are fully stocked for fast global delivery.
Features:
0.1mbar ultra-high vacuum, 630–760m³/h massive pumping capacity
Direct drop-in replacement for Busch R5 RA 0630C oil-sealed vacuum pumps
Air-cooled standard, water-cooled optional, no cooling water infrastructure needed
7.5 kg/h industry-leading water vapor tolerance
Low-speed 970rpm heavy-duty design, extended service life
Rugged cast iron build, engineered for 24/7 full-load continuous operation
Ideal for vacuum coating, packaging lines, transformer drying & central systems
| PVX630 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 630 m³/h | 760 m³/h |
| Ultimate Pressure (gas ballast valve close) | 0.1-0.5 mbar | |
| Ultimate Pressure (gas ballast valve open) | 0.5-1 mbar | |
| Motor Power | 18.5 kW | |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) | Δ 460V (3ph) |
| Motor Speed | 970-980 rpm | 1175 rpm |
| Noise Level | 80 dB(A) | |
| Gas Inlet Connection | DN 80 | |
| Gas Outlet Connection | DN 80 | |
| Water Vapor Tolerance | 7.5 kg/h | |
| Oil Capacity | 25 L | |
| Cooling Method | Air / Water Cooled | |
| Weight | 550 kg | |
| Dimensions | 1780*880*730 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Transformer Manufacturing | Central Vacuum System | Vacuum Packaging Lines |
 |  |  |
| Vacuum Coating | Metal Smelting Degassing | Glass Lamination Autoclaves |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25D | 0.75 kW | 0.75 kW | 20 m³/h | 24 m³/h | |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX140 | 3 kW | 4 kW | 132 m³/h | 158 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 5.5 kW | 200 m³/h | 240 m³/h | ||
| PVX250 | 7.5 kW | 250 m³/h | 300 m³/h | ||
| PVX302 | 7.5 kW | 300 m³/h | 360 m³/h | ||
| PVX630 | 18.5 kW | 18.5 kW | 630 m³/h | 760 m³/h | 0.1-0.5 mbar |
