| Quantity: | |
|---|---|

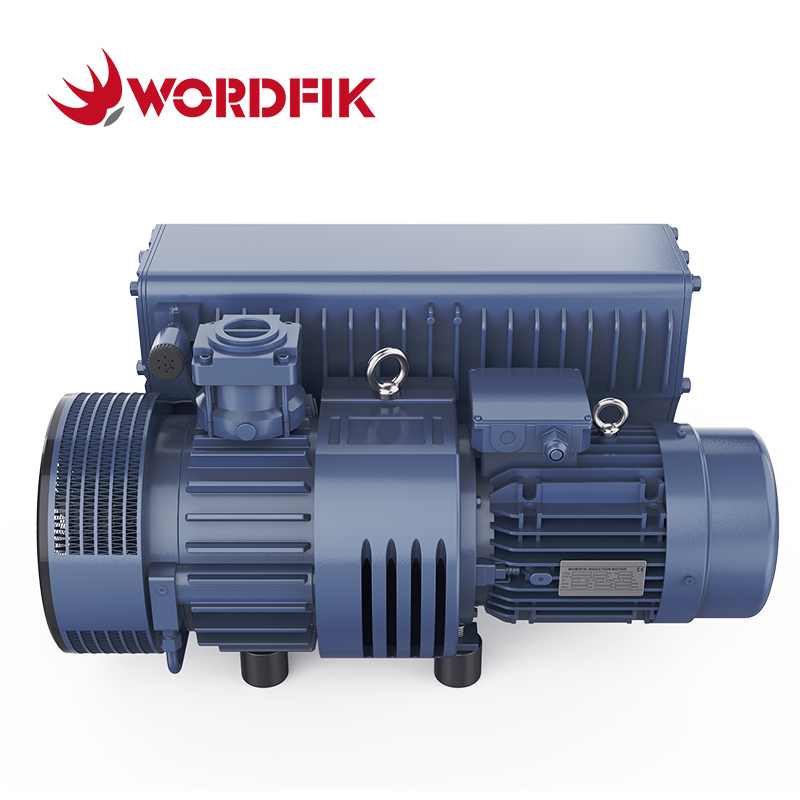

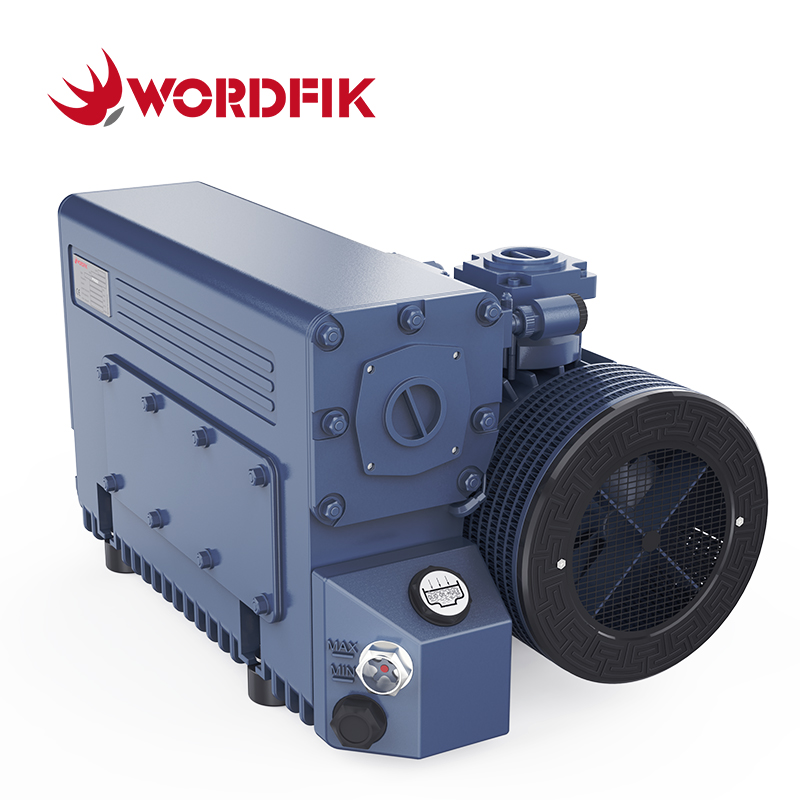

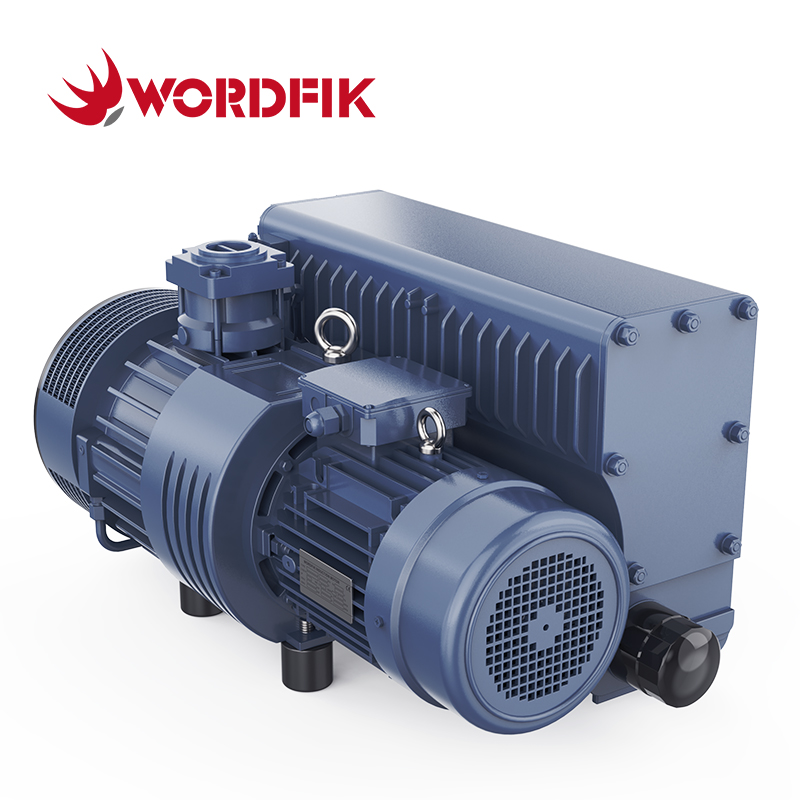

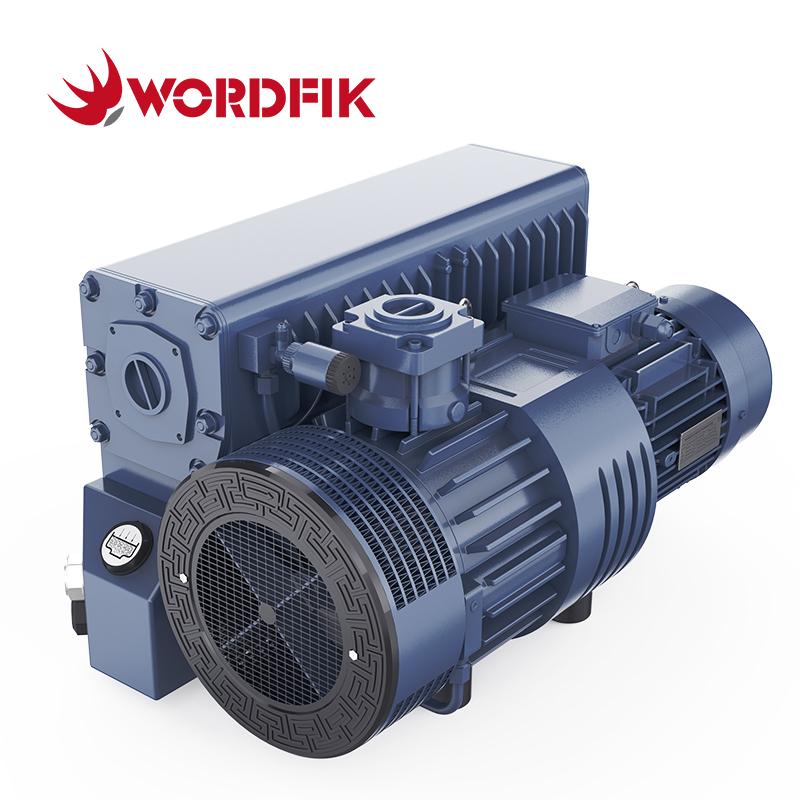

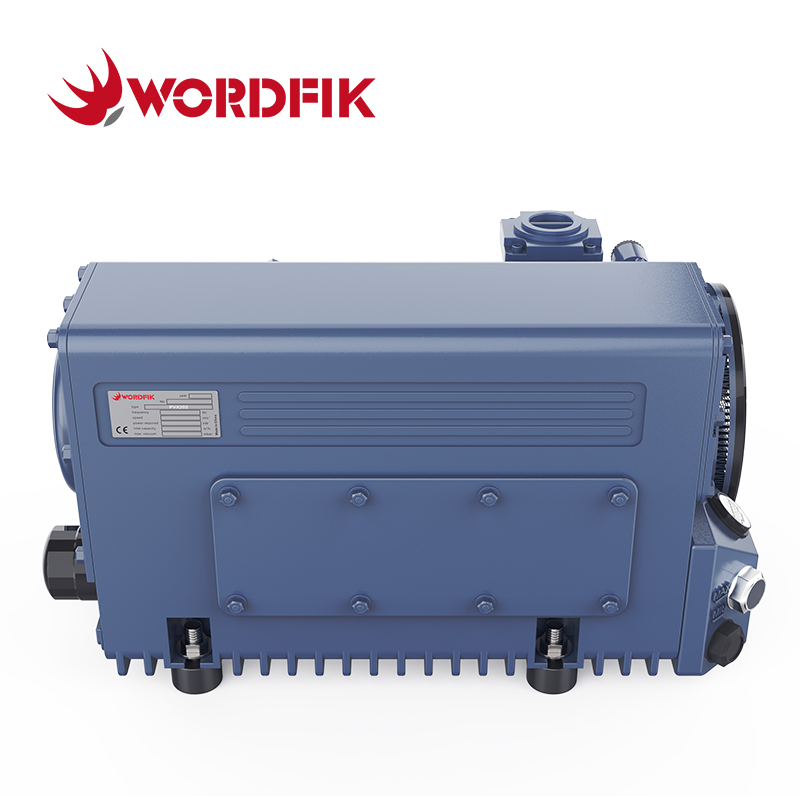

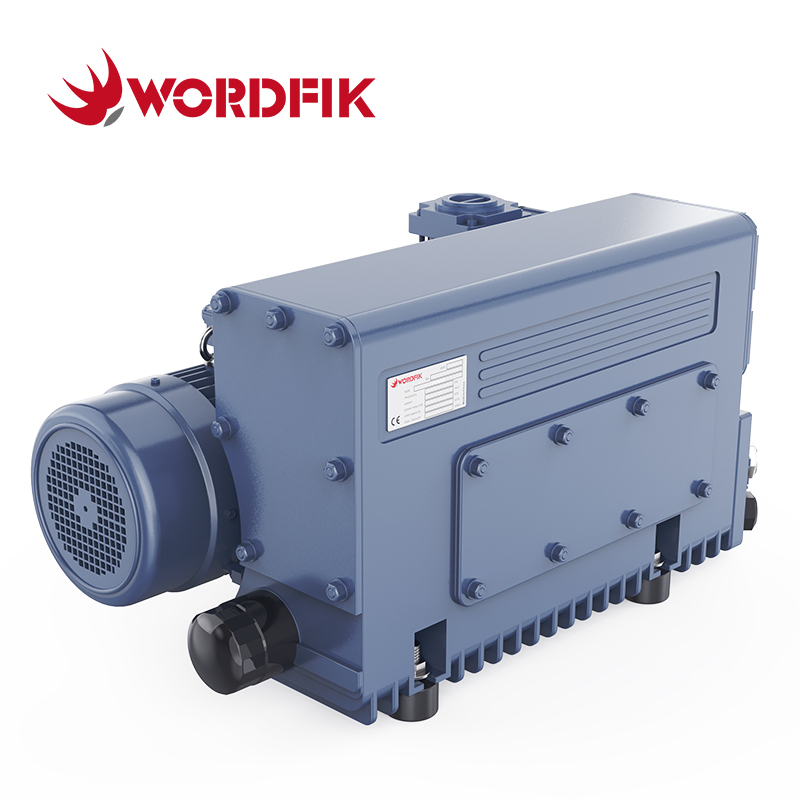

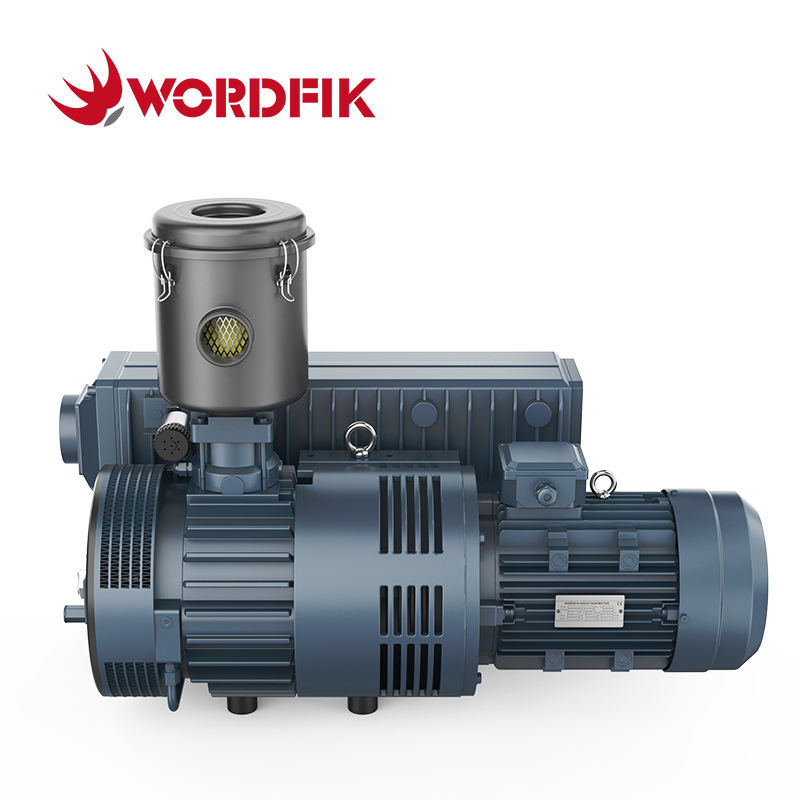

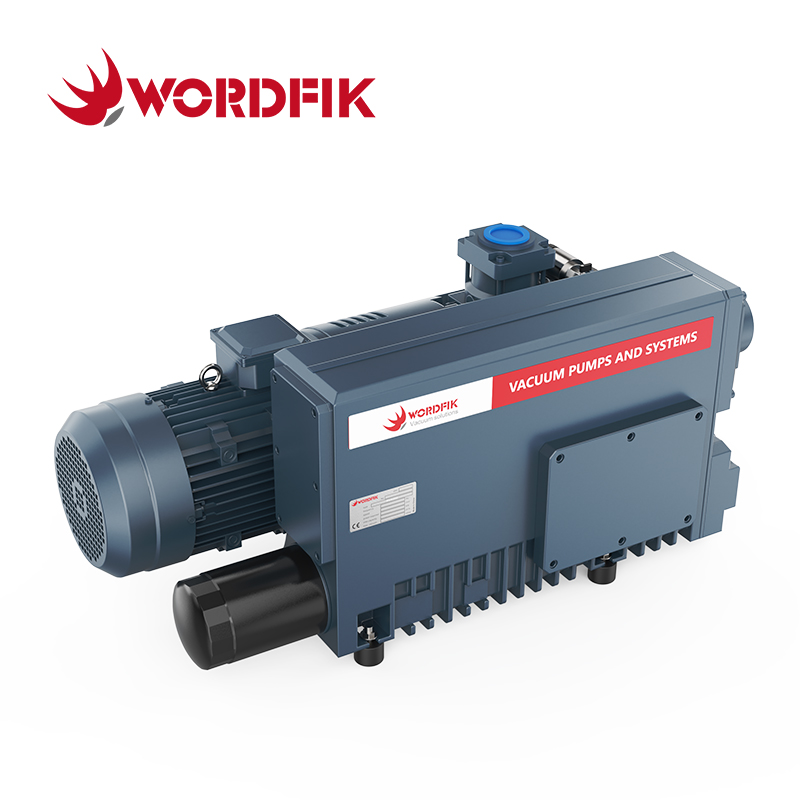

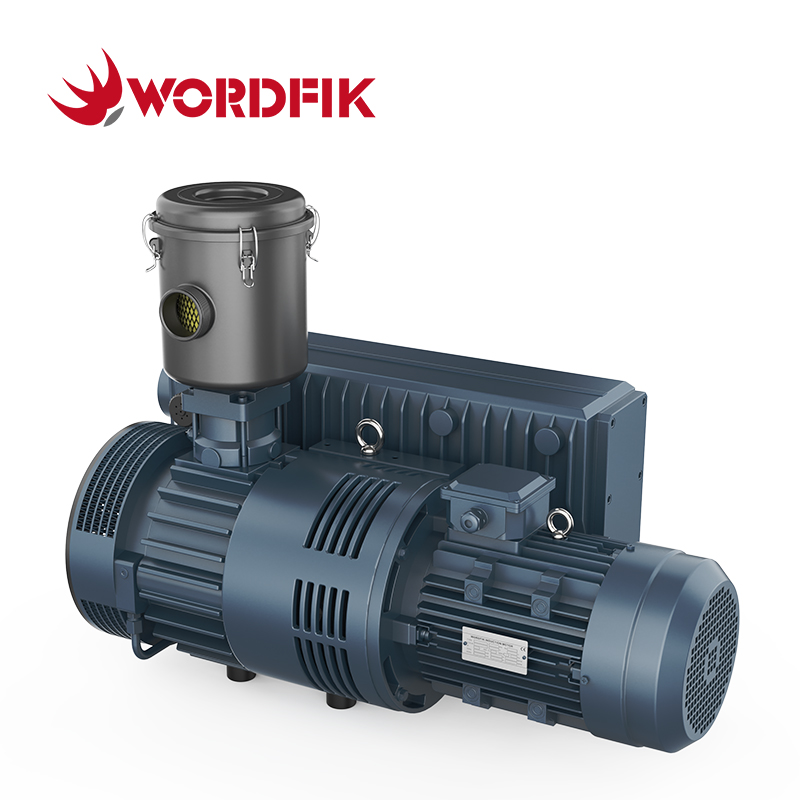

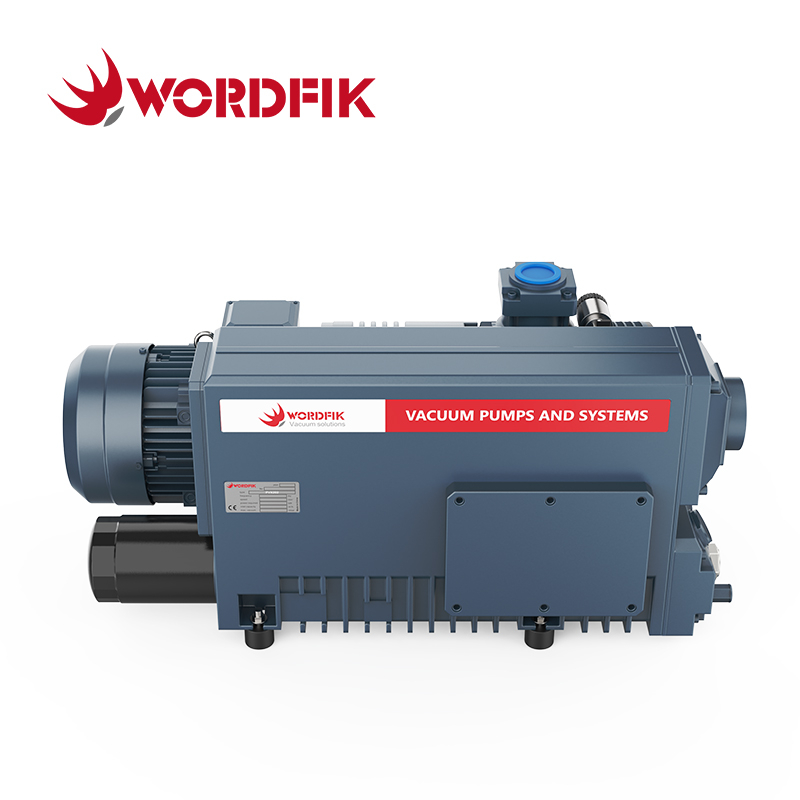

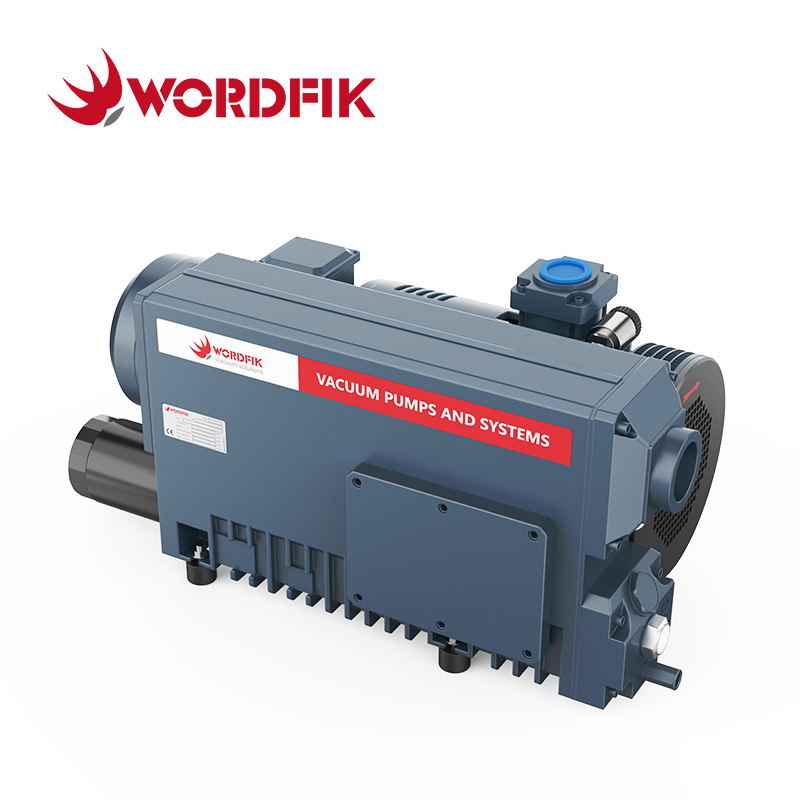

The Wordfik PVX202 is an industrial oil-lubricated rotary vane vacuum pump engineered for reliable performance in demanding applications. It delivers a pumping speed of 200 m³/h (50Hz) or 240 m³/h (60Hz) with an ultimate vacuum of 0.5 mbar. The pump incorporates a gas ballast valve to handle condensable vapors effectively during operation, with a water vapor handling capacity of 4 kg/h, ensuring stable vacuum performance under varying conditions.
Constructed with a heavy-duty cast-iron body and precision-machined components, the PVX202 offers exceptional durability and thermal stability. Its copper-wound motor provides consistent power output and overload protection, while the optimized vane design minimizes internal friction, resulting in low noise levels (≤74 dB(A)) and reduced vibration.
Ideal for a wide range of industrial applications, including chemical processing, pharmaceutical manufacturing, industrial drying, and large-scale packaging systems
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX202 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 200 m³/h | 240 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 4/5.5 kW | 5.5 kW |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 73 dB(A) | 74 dB(A) |
| Gas Inlet Connection | 2 inch | |
| Gas Outlet Connection | 2 inch | |
| Water Vapor Tolerance | 4 kg/h | |
| Oil Capacity | 8 L | |
| Weight | 142/145 kg | 160 kg |
| Dimensions | 795*500*411 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

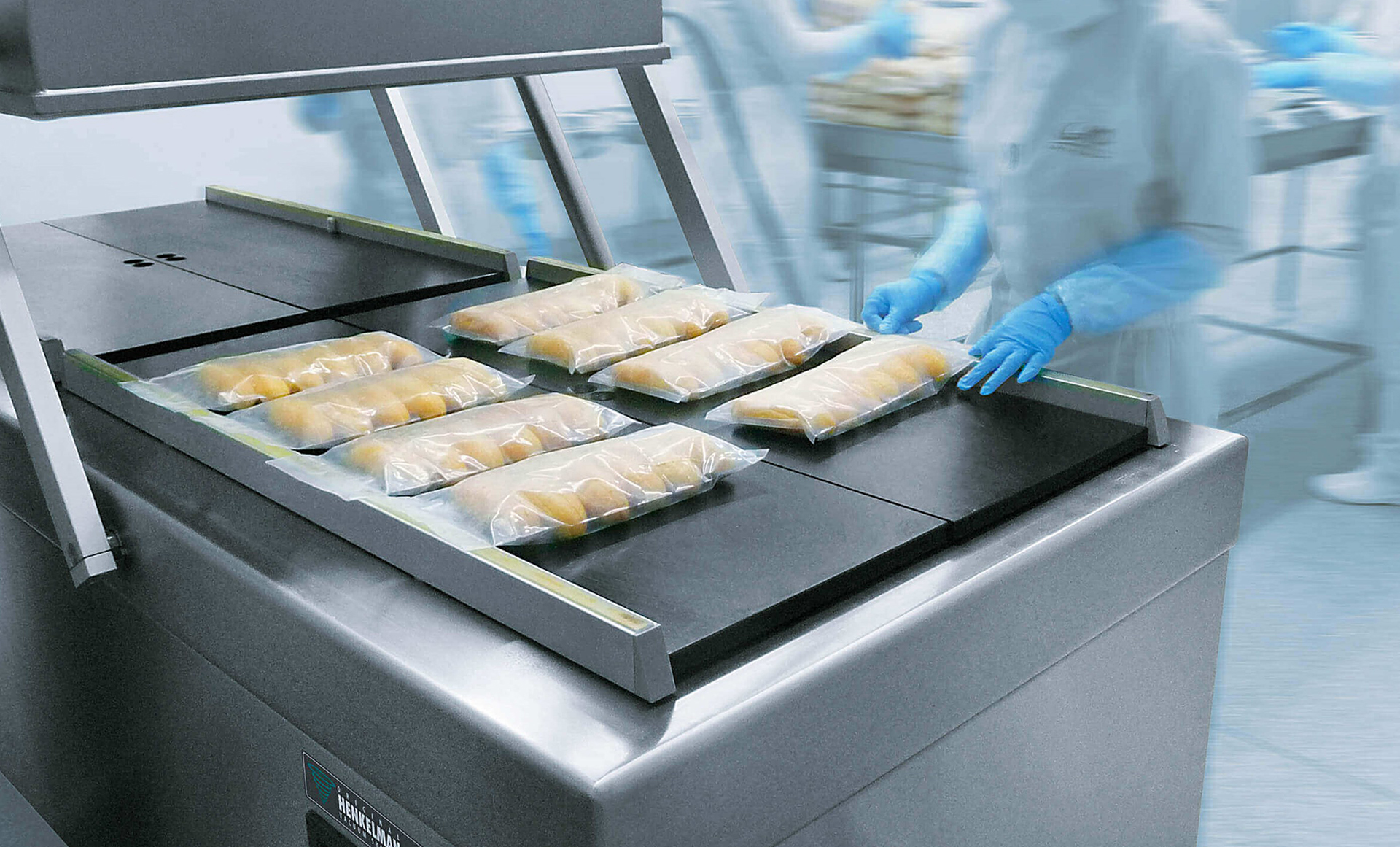

| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Metal Smelting Degassing | Vacuum Distillation |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
