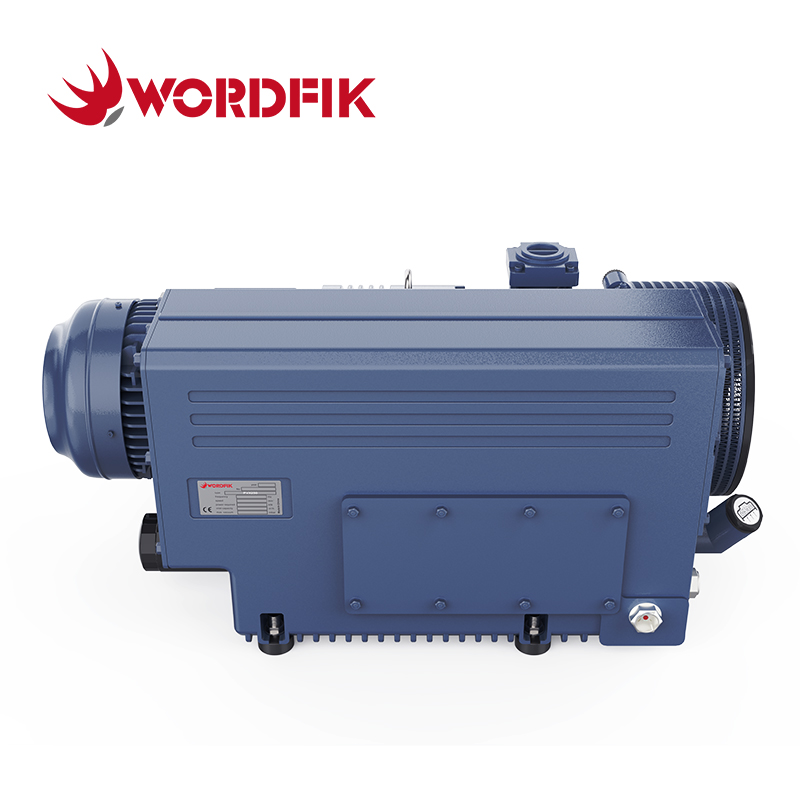

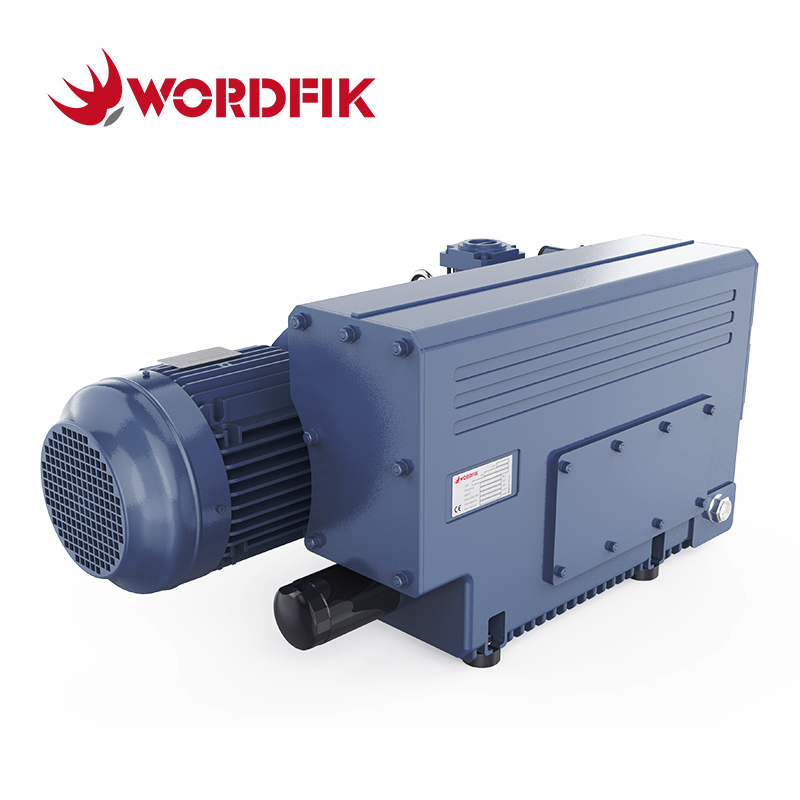

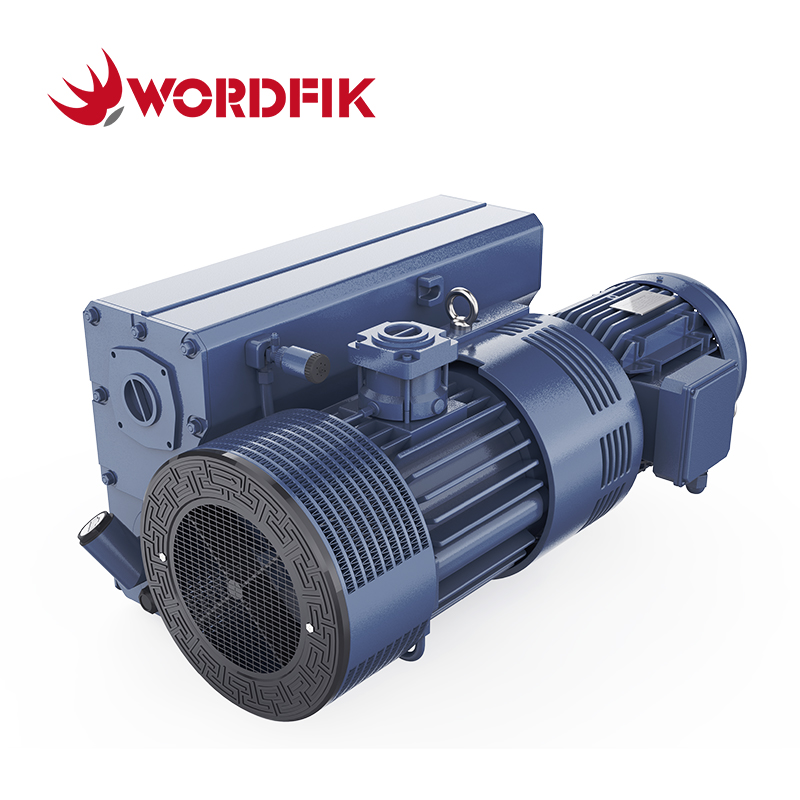

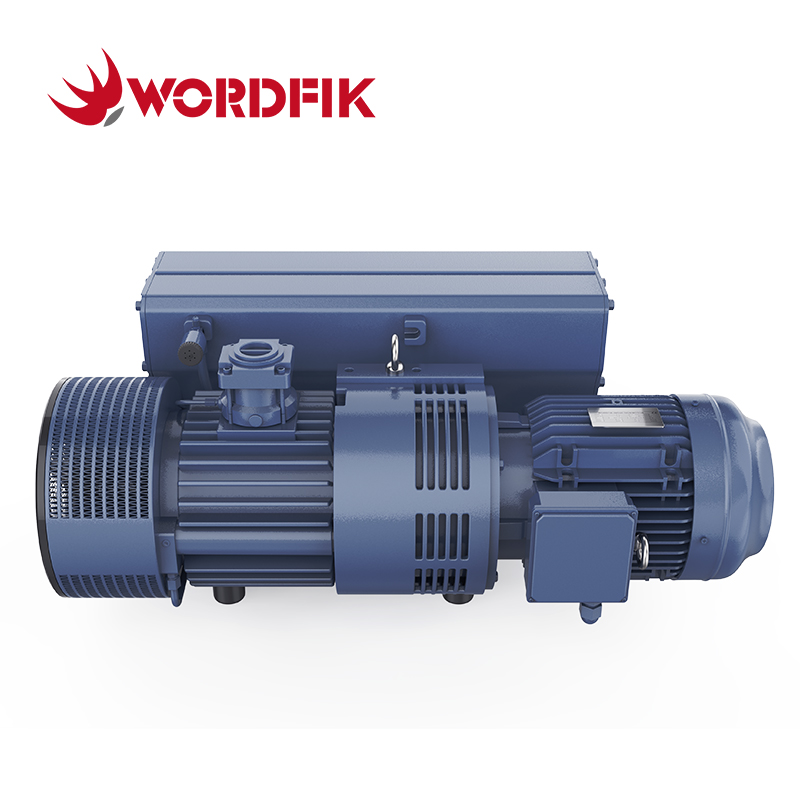

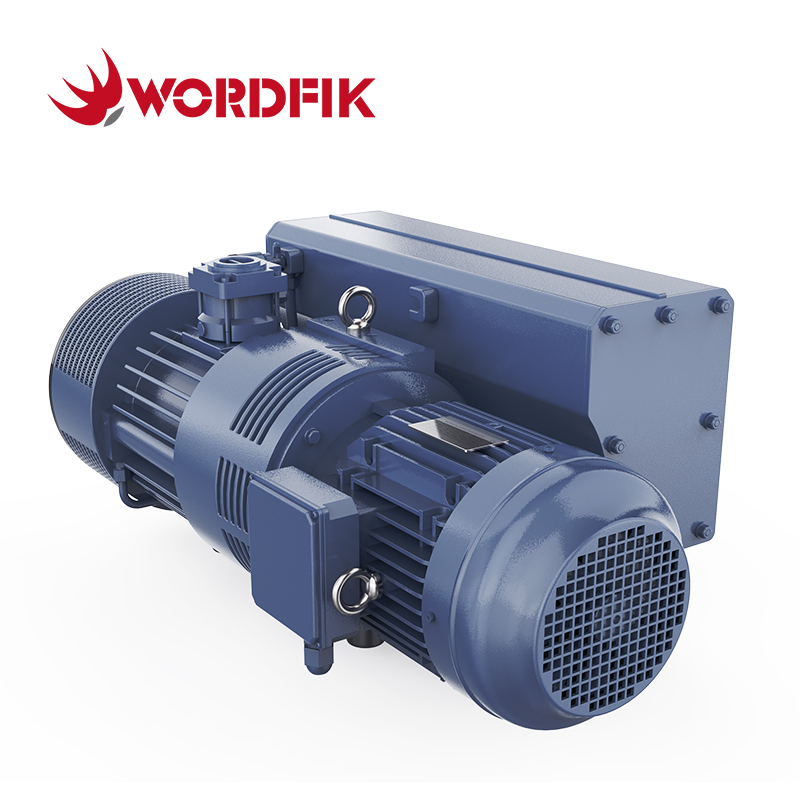

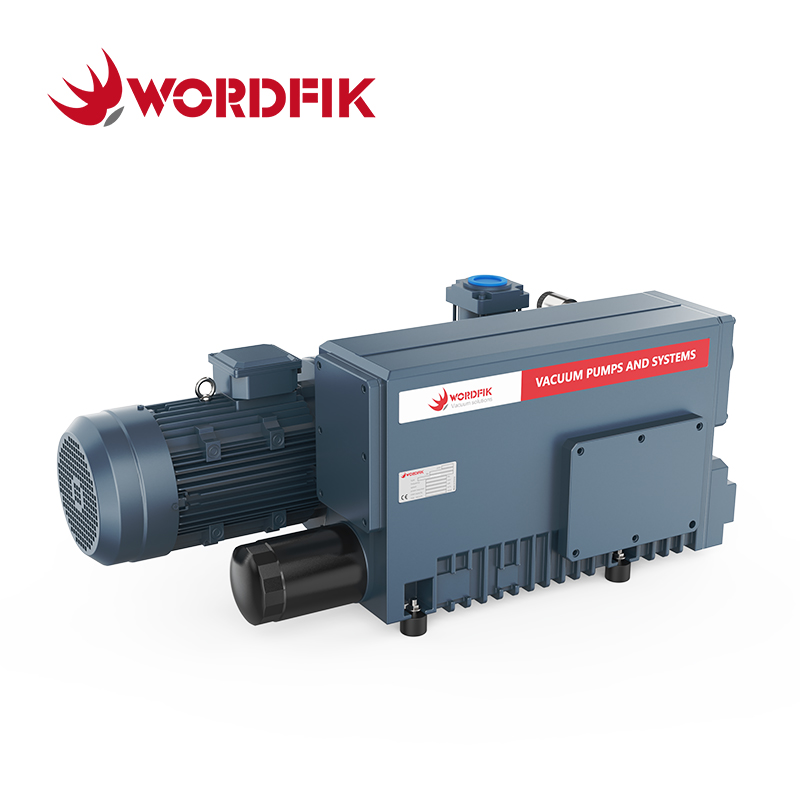

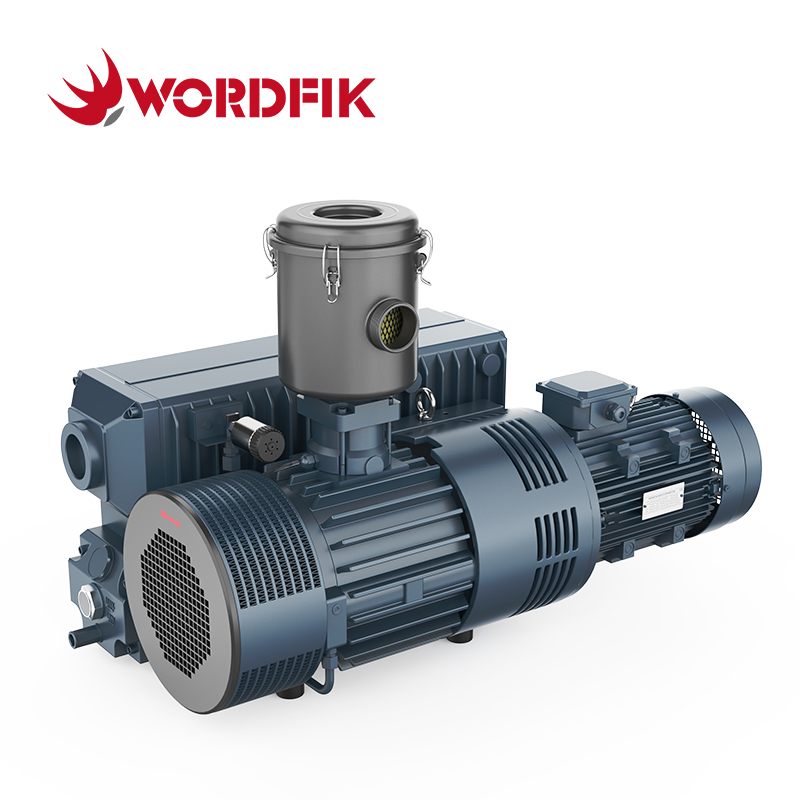

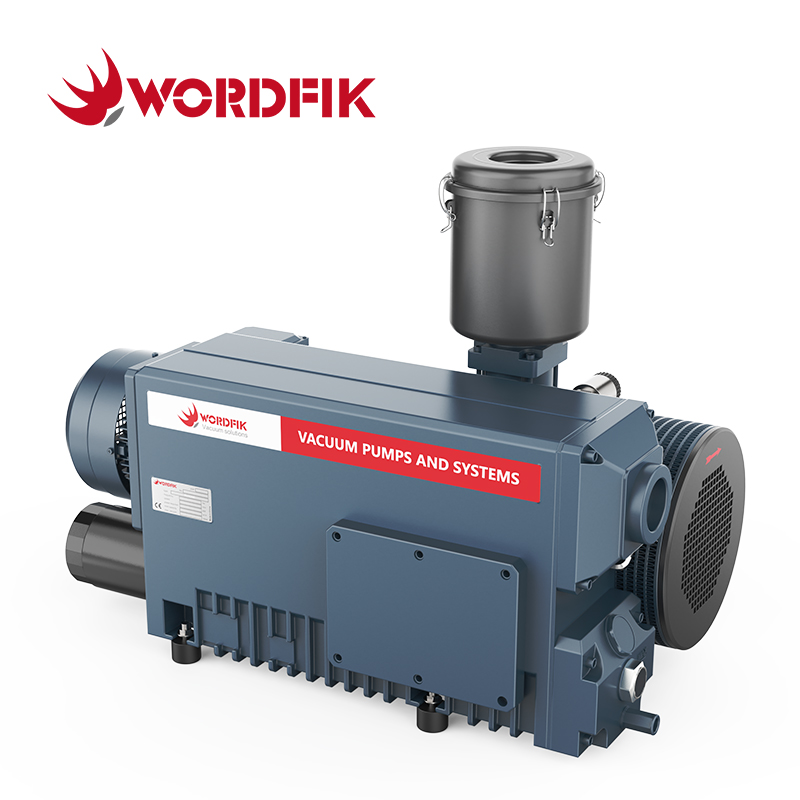

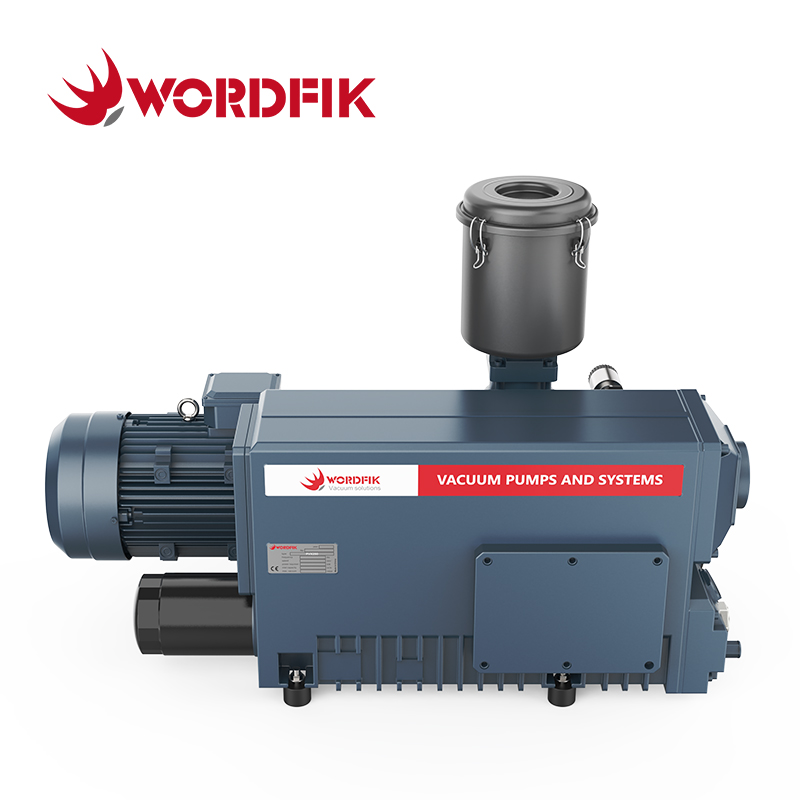

The Wordfik PVX250 is a heavy-duty oil-lubricated rotary vane vacuum pump designed for industrial applications requiring high pumping capacity and reliable performance. With a pumping speed of 250 m³/h (50Hz) or 300 m³/h (60Hz), it delivers an ultimate vacuum of 0.5 mbar, ensuring efficient operation in demanding environments.
The pump features a robust cast-iron construction that provides exceptional durability and thermal stability. Its precision-engineered vanes and advanced sealing system minimize internal leakage while maintaining consistent vacuum performance. The integrated gas ballast valve effectively handles condensable vapors during operation.
Powered by a high-efficiency copper motor (5.5 kW/50Hz, 7.5 kW/60Hz), the PVX250 operates at low noise levels (≤73 dB(A)) with minimal vibration.
Backed by a comprehensive two-year warranty, the PVX250 is ideal for applications in chemical processing, industrial manufacturing, and large-scale production facilities where dependable vacuum performance is essential.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX250 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 250 m³/h | 300 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 5.5/7.5 kW | 7.5 kW |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 72 dB(A) | 73 dB(A) |
| Gas Inlet Connection | 2 inch | |
| Gas Outlet Connection | 2 inch | |
| Water Vapor Tolerance | 3.5 kg/h | |
| Oil Capacity | 10 L | |
| Weight | 192 kg | |
| Dimensions | 976*605*411 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

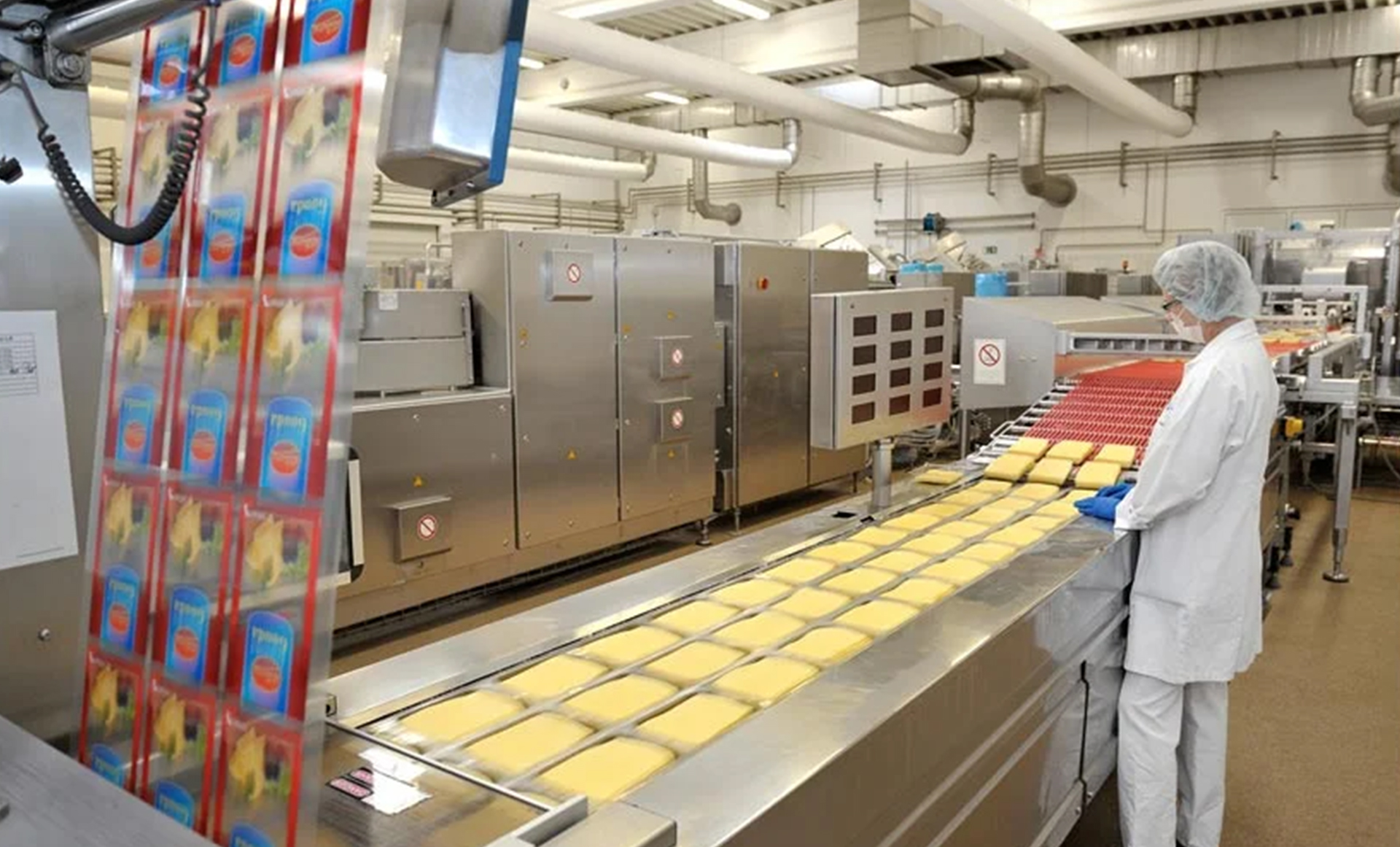

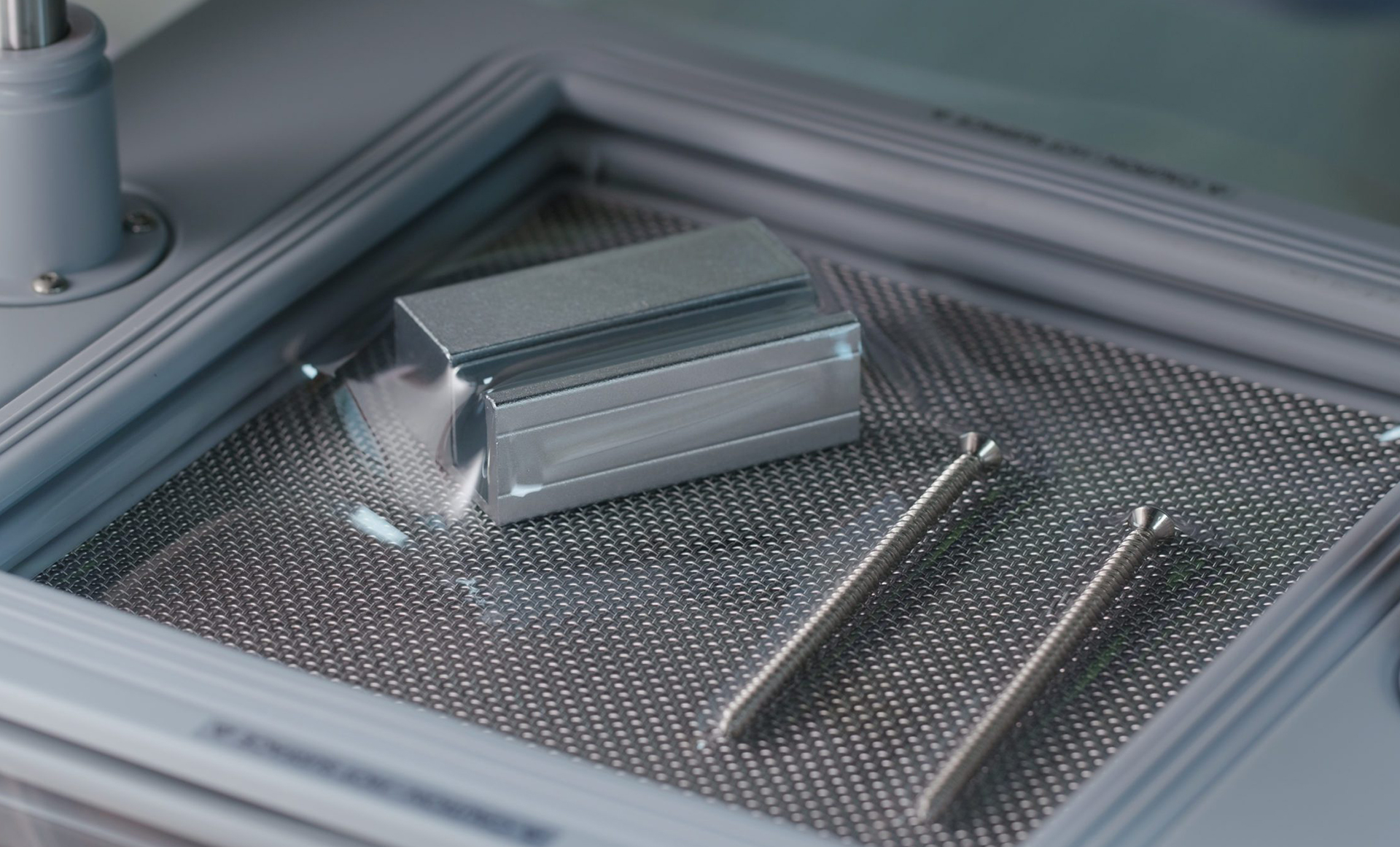

| Food Packaging System | Vacuum Drying | Vacuum Forming |
 |  |  |

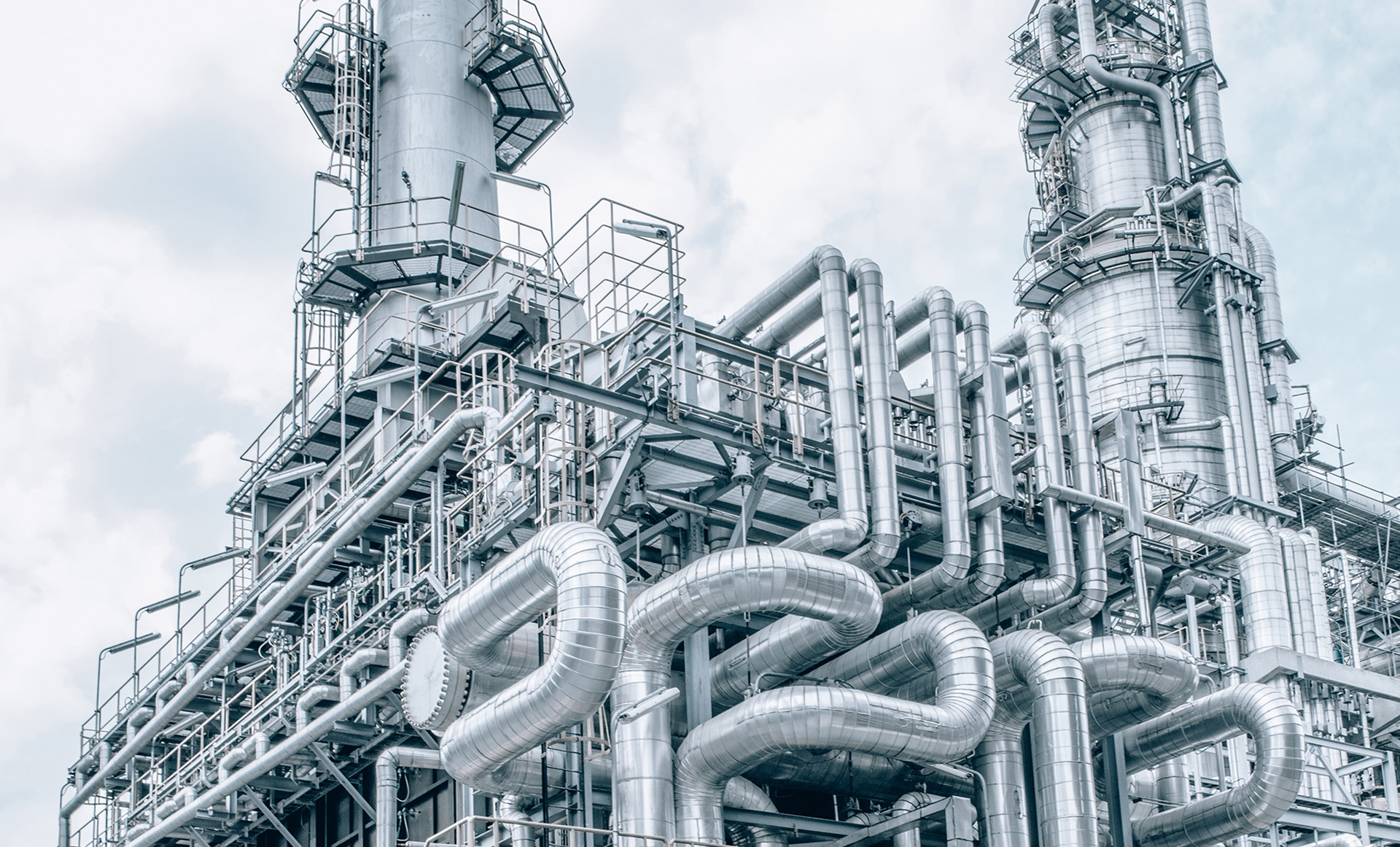

| Hospital Negative Pressure System | Metal Smelting Degassing | Vacuum Distillation |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |

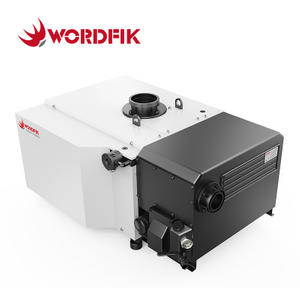

| PVX750 | 18.5 kW | / | 750 m³/h | / | |
