| Quantity: | |
|---|---|

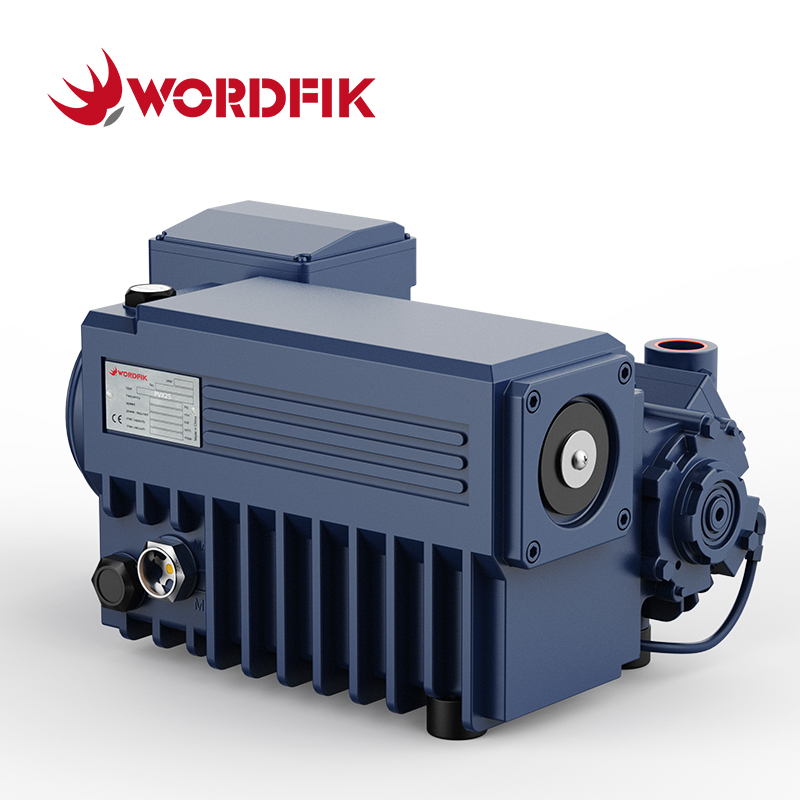

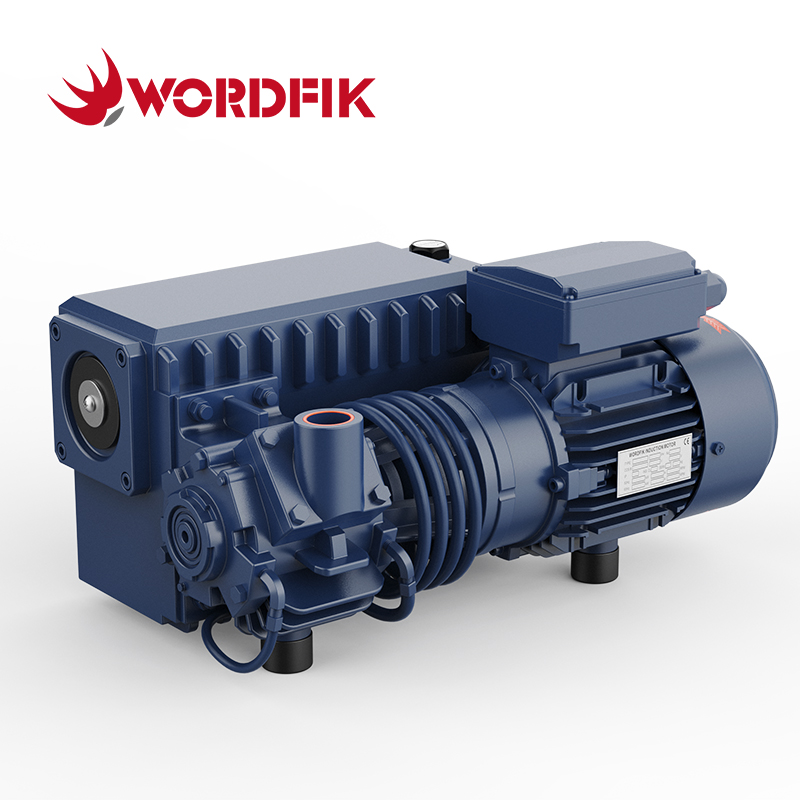

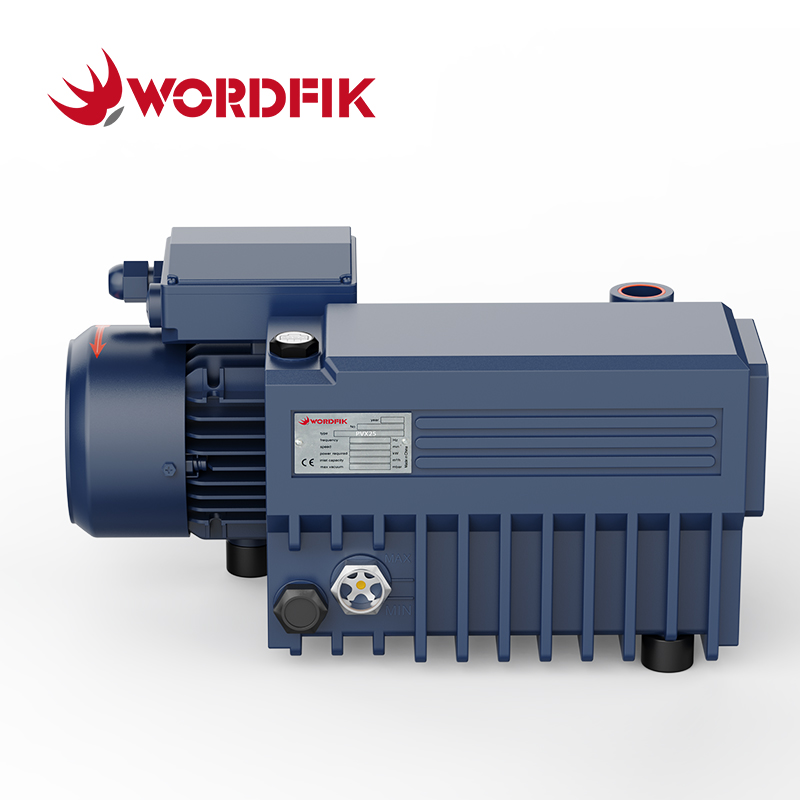

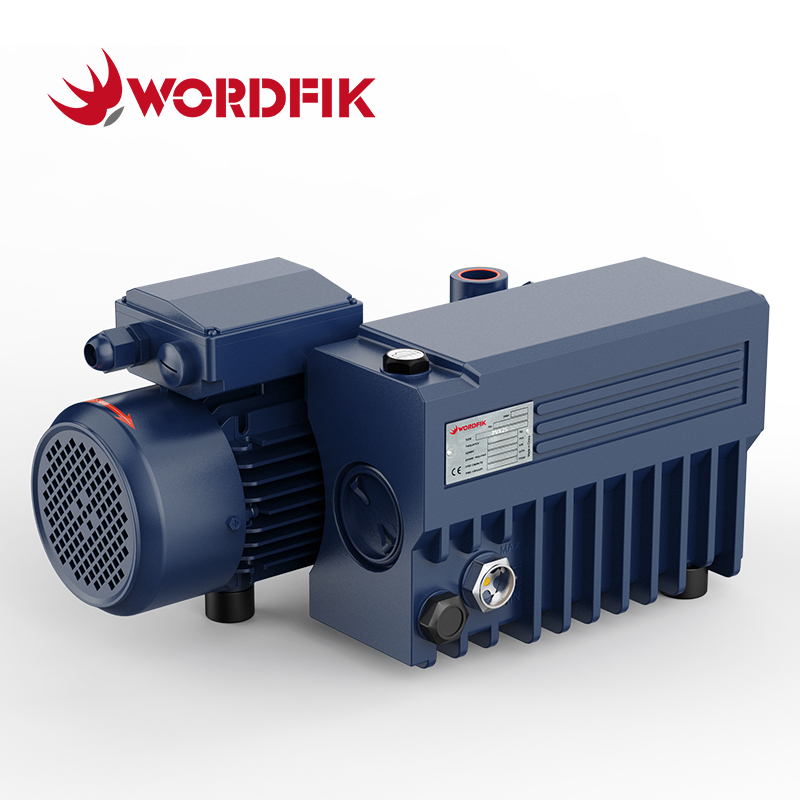

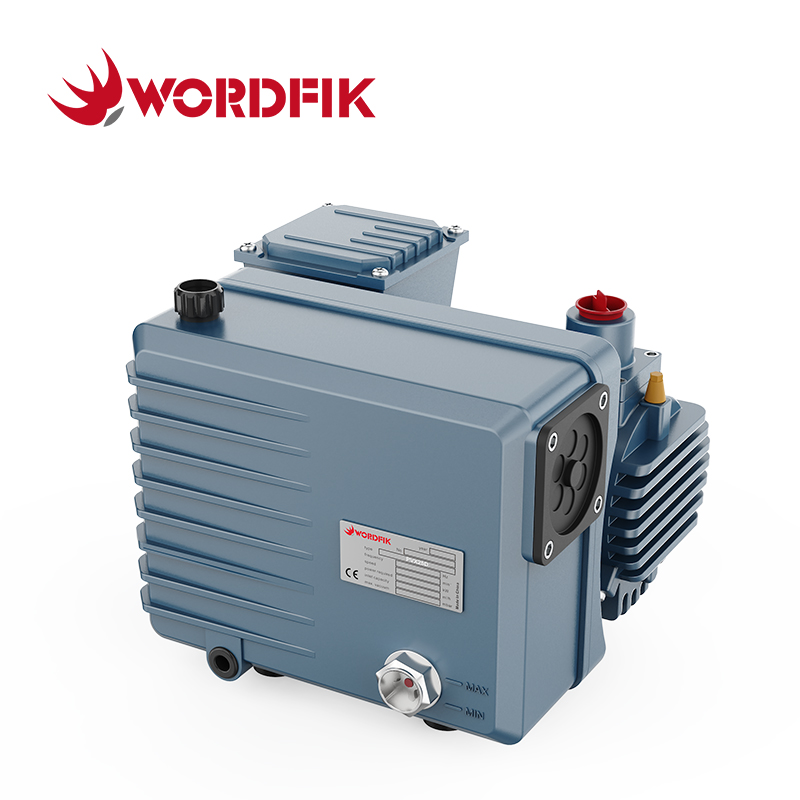

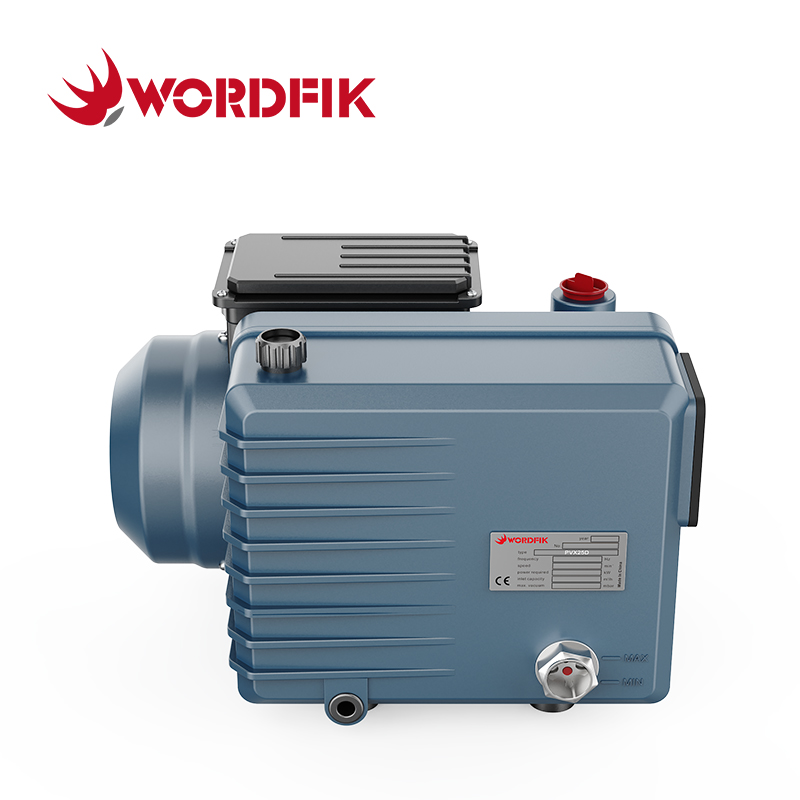

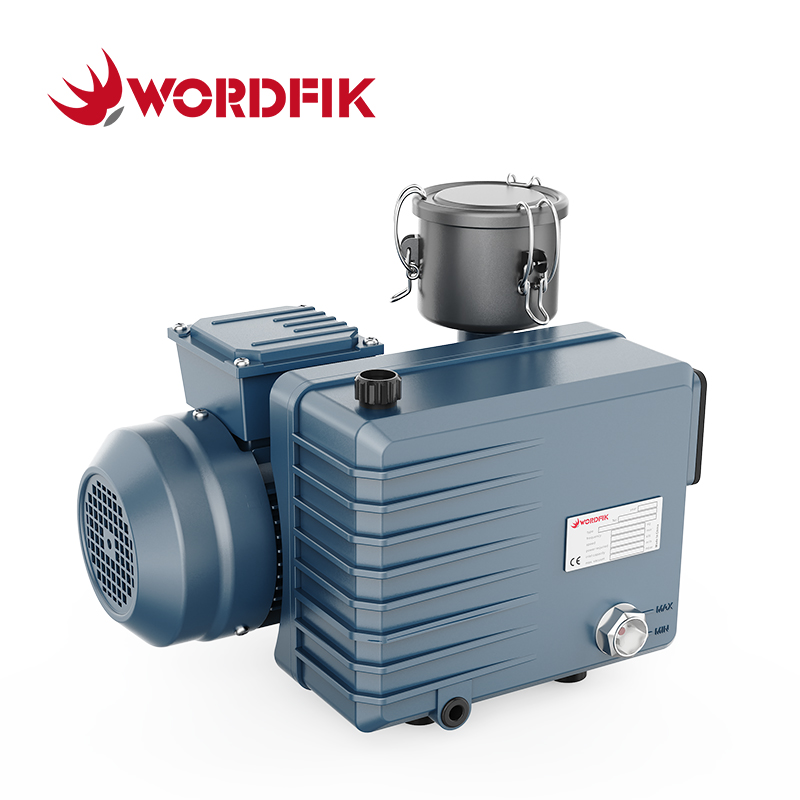

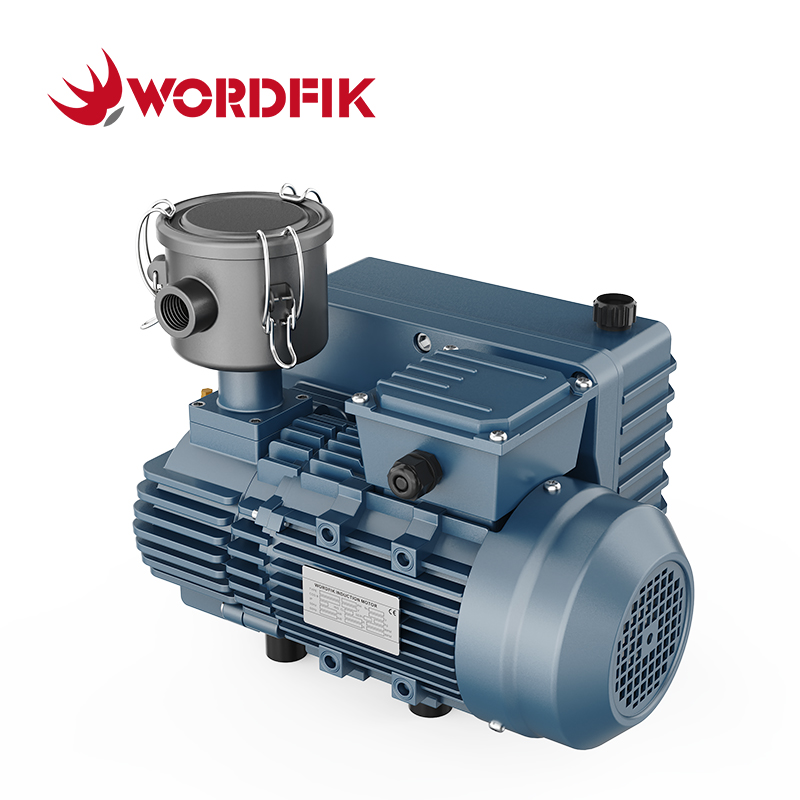

The Wordfik PVX25 is a robust oil-lubricated rotary vane vacuum pump engineered for industrial applications requiring reliable vacuum performance. With a pumping speed of 24 m³/h (50Hz) or 28 m³/h (60Hz), it delivers a stable ultimate vacuum of 0.5 mbar for continuous operation. The pump features a precision-engineered vane mechanism and high-quality synthetic oil lubrication, ensuring smooth operation and protection against wear.
Constructed with a durable cast-iron body and an all-copper motor, the PVX25 offers efficient heat dissipation and consistent power output. Its optimized design results in low noise levels (≤66 dB(A)) and minimal vibration. Maintenance is simplified with extended service intervals of 5,000 hours for oil and filter changes.
Ideal for applications in plastic molding, packaging, printing, and industrial automation, the PVX25 provides dependable vacuum solutions with high efficiency and operational economy.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX25 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 24 m³/h | 28 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 0.75 kW | 0.9 kW |
| Motor Voltage | Δ 200-230V ; Y 380-415V (3ph) | |
| 220V±10% (1ph) | ||
| Motor Speed | 2800 rpm | 3300 rpm |
| Noise Level | 65 dB(A) | 66 dB(A) |
| Gas Inlet Connection | ½ inch or ¾ inch | |
| Gas Outlet Connection | / | |
| Water Vapor Tolerance | 0.5 kg/h | |
| Oil Capacity | 0.75 L | |
| Weight | 22 kg | |
| Dimensions | 431*245*218 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Laboratory | Medical Industry |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
