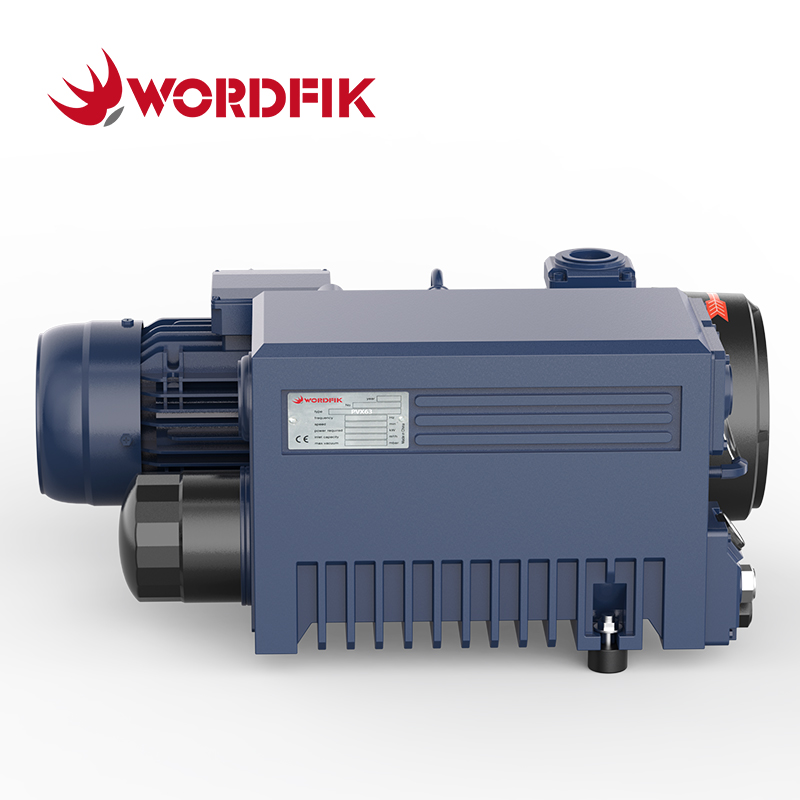

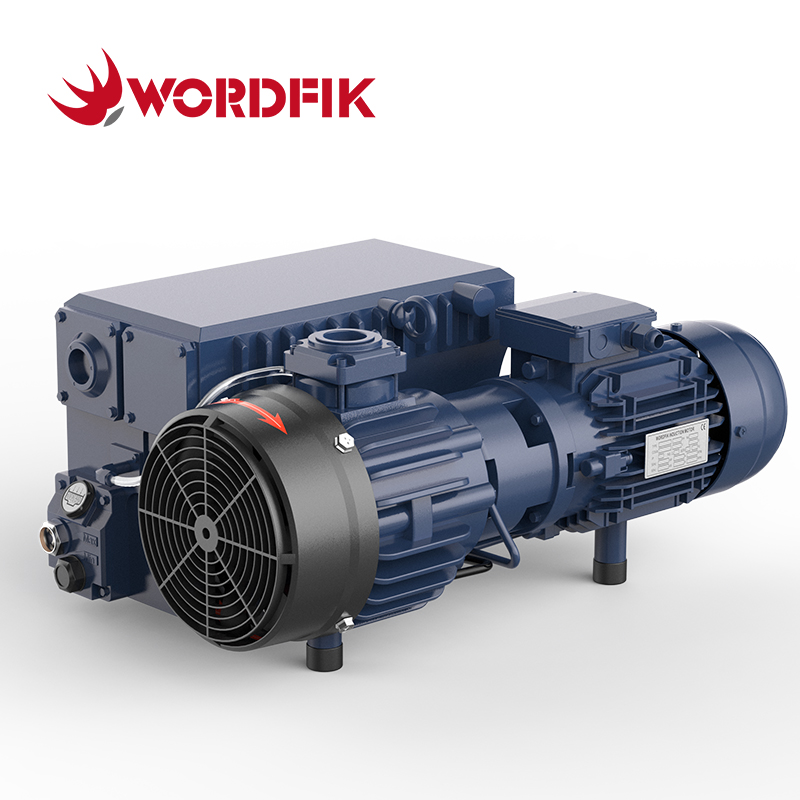

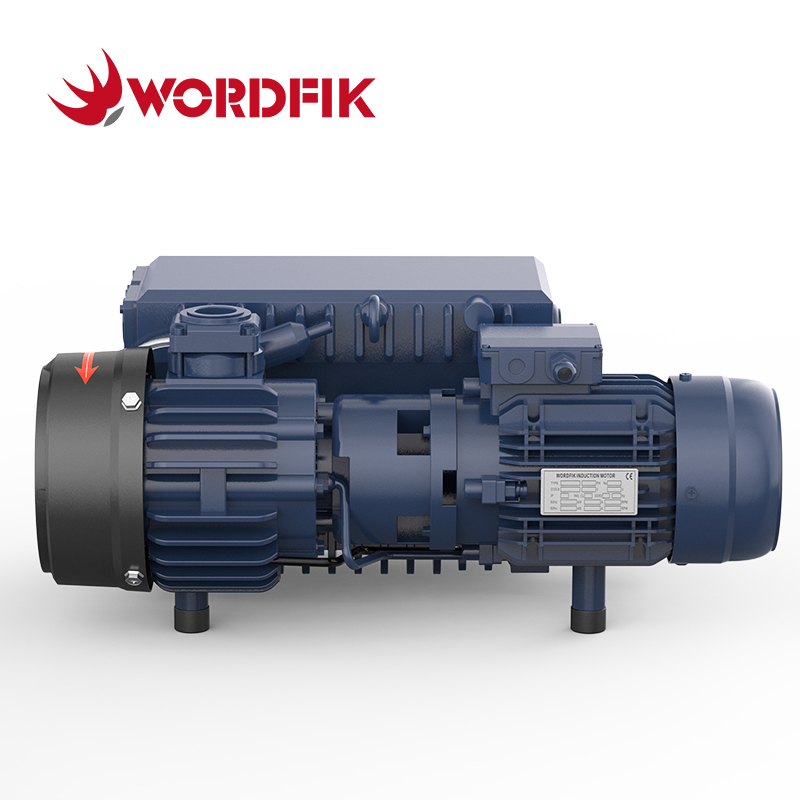

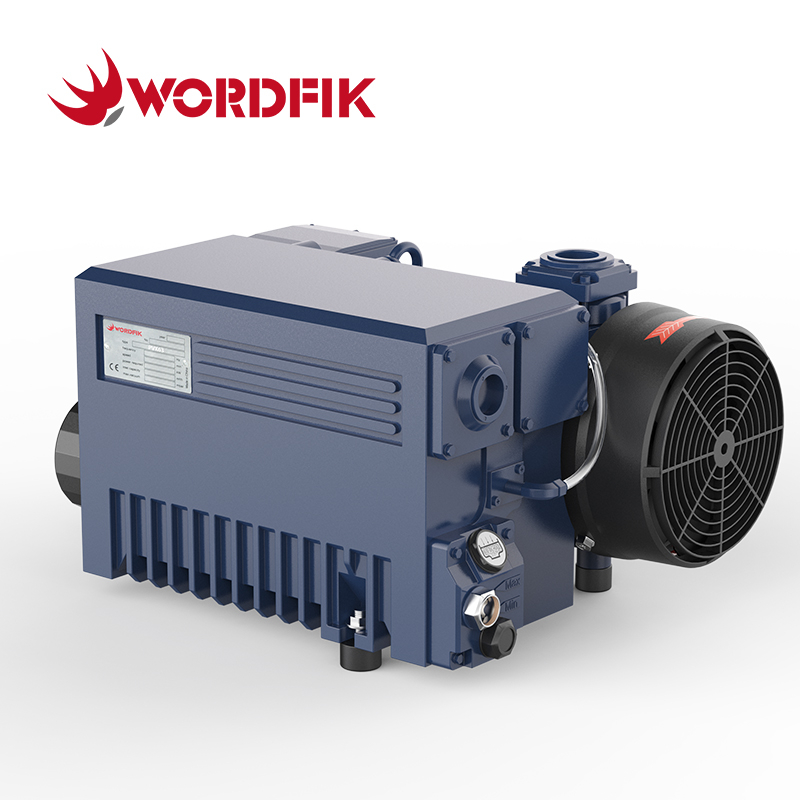

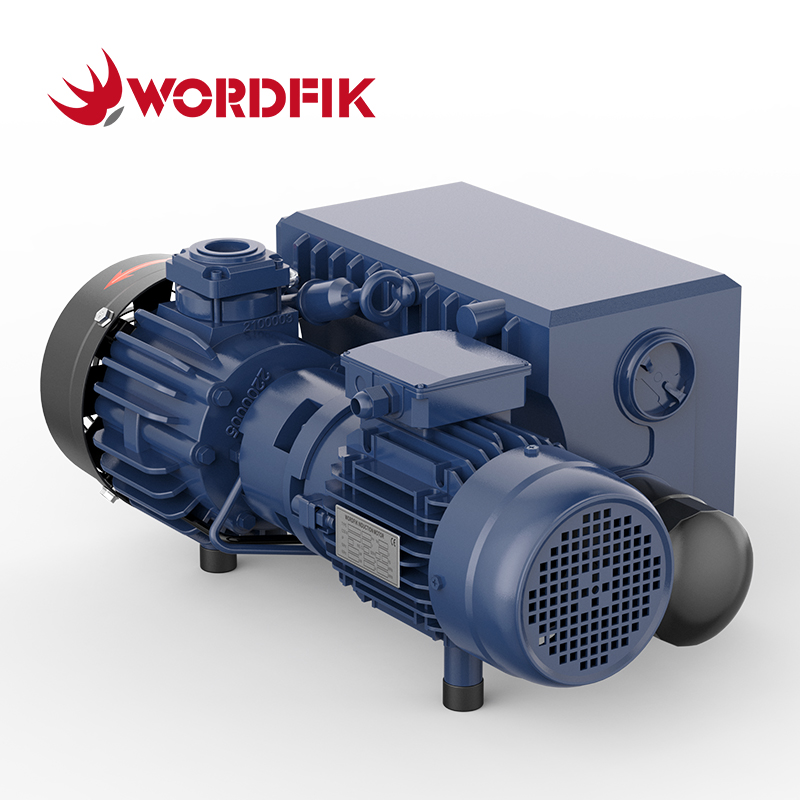

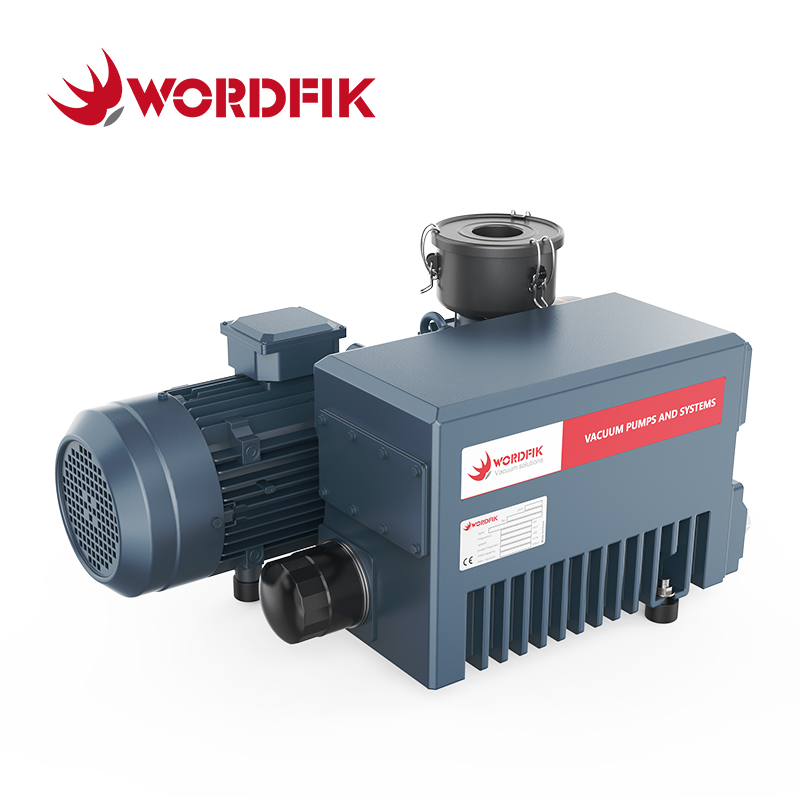

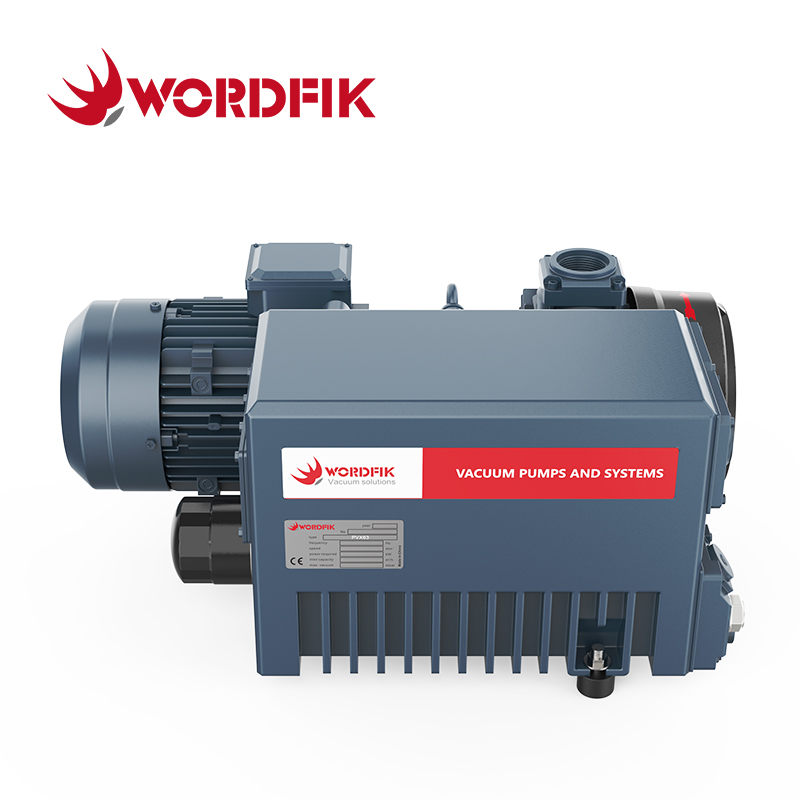

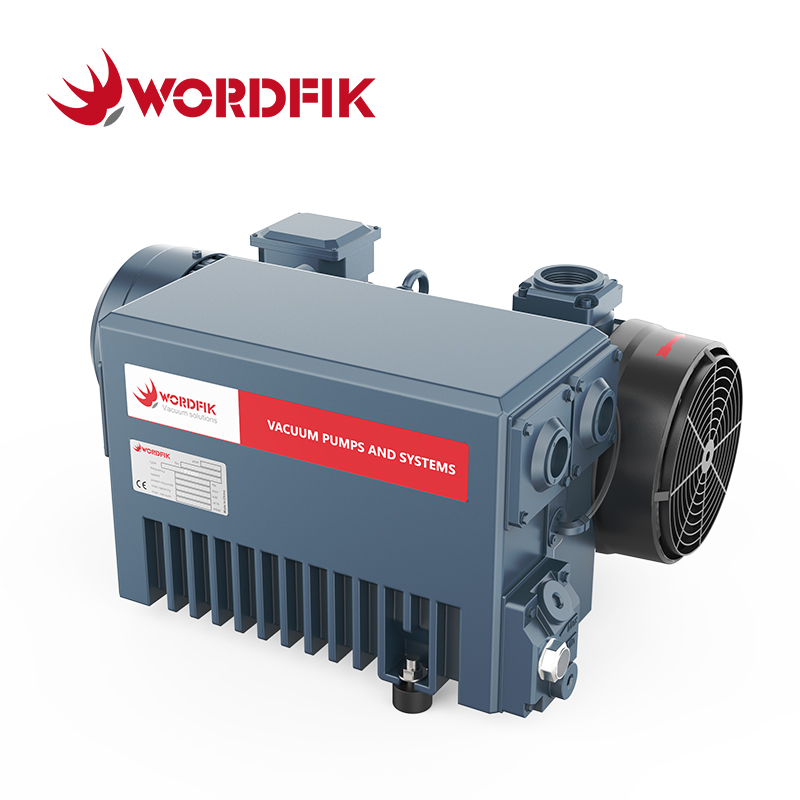

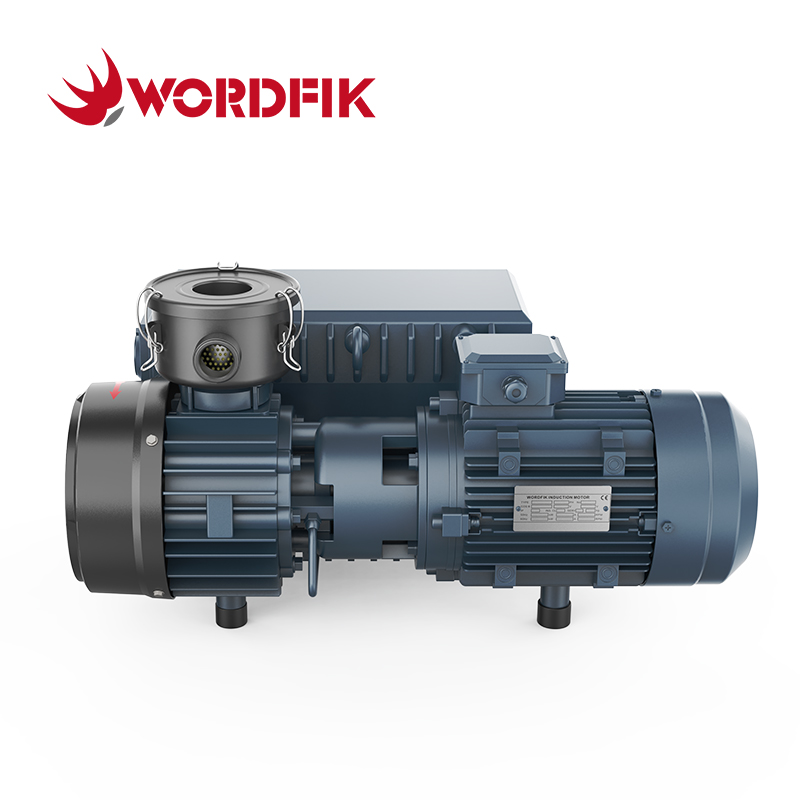

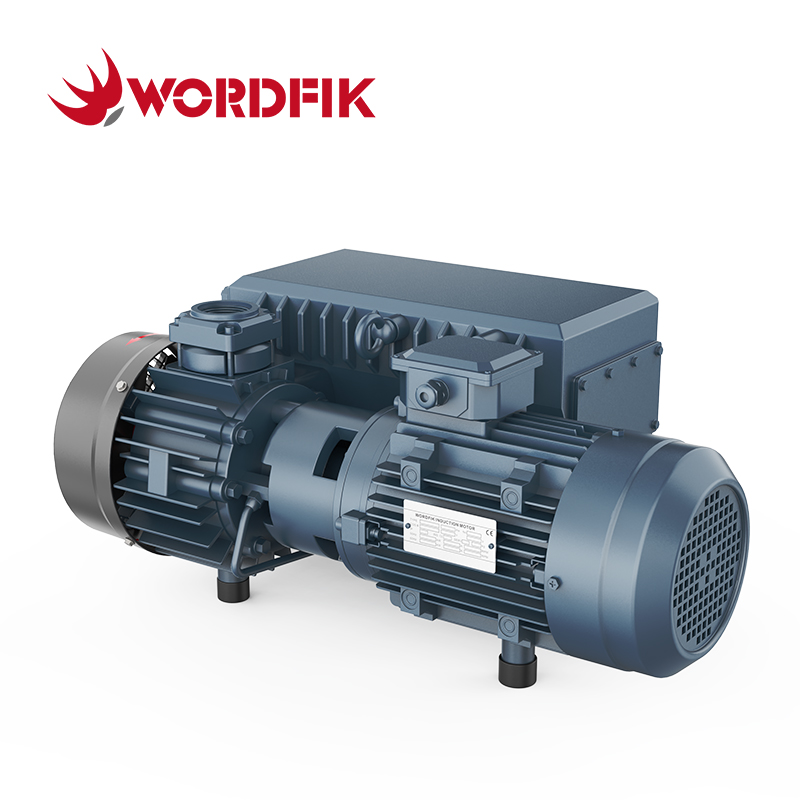

The Wordfik PVX63 is an industrial oil-lubricated rotary vane vacuum pump designed for reliable performance in demanding applications. It delivers a pumping speed of 63 m³/h (50Hz) or 78 m³/h (60Hz) with an ultimate vacuum of 0.5 mbar.
The pump incorporates a gas ballast valve for handling condensable vapors and maintaining stable vacuum performance. Its heavy-duty cast-iron construction ensures durability and effective heat dissipation during continuous operation. The PVX63 operates at a noise level of ≤66 dB(A) and features a copper-wound motor for consistent power delivery.
With an extended oil change interval of 5,000 hours using synthetic oil, the pump requires minimal maintenance. The PVX63 is suitable for various industrial applications including plastic molding, food processing, and industrial packaging systems.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX63 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 63 m³/h | 78 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 1.5 kW | 2.2 kW |
| Motor Voltage | Δ 200-230V ; Y 380-415V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 65 dB(A) | 66 dB(A) |
| Gas Inlet Connection | 1¼ inch | |
| Gas Outlet Connection | 1¼ inch | |
| Water Vapor Tolerance | 1 kg/h | |
| Oil Capacity | 2 L | |
| Weight | 54 kg | 59 kg |
| Dimensions | 640*405*290 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Vacuum Impregnation | Plastic Degassing |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |

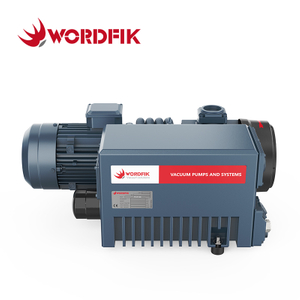

| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
