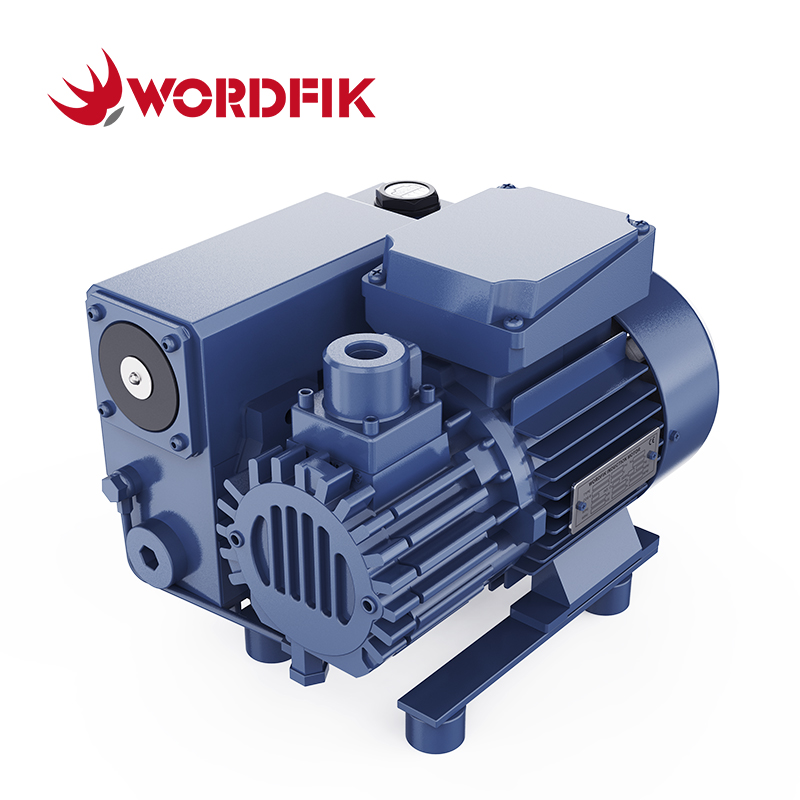

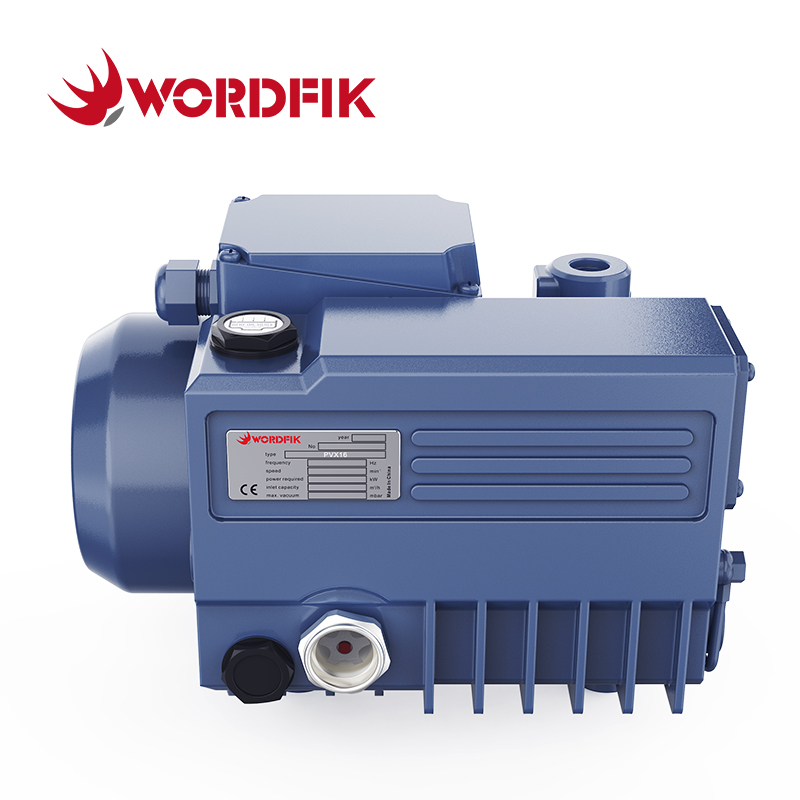

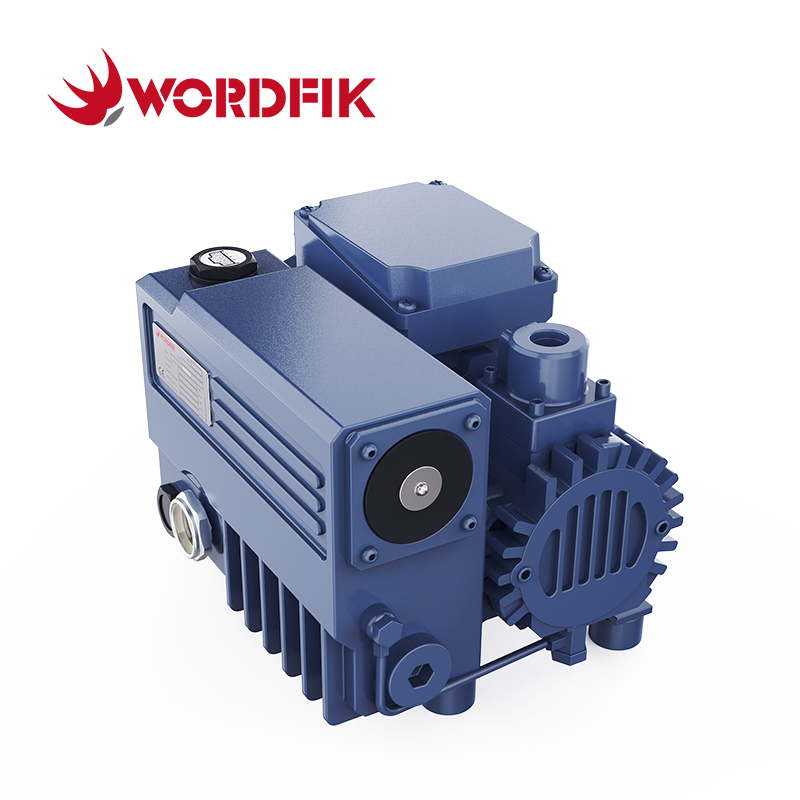

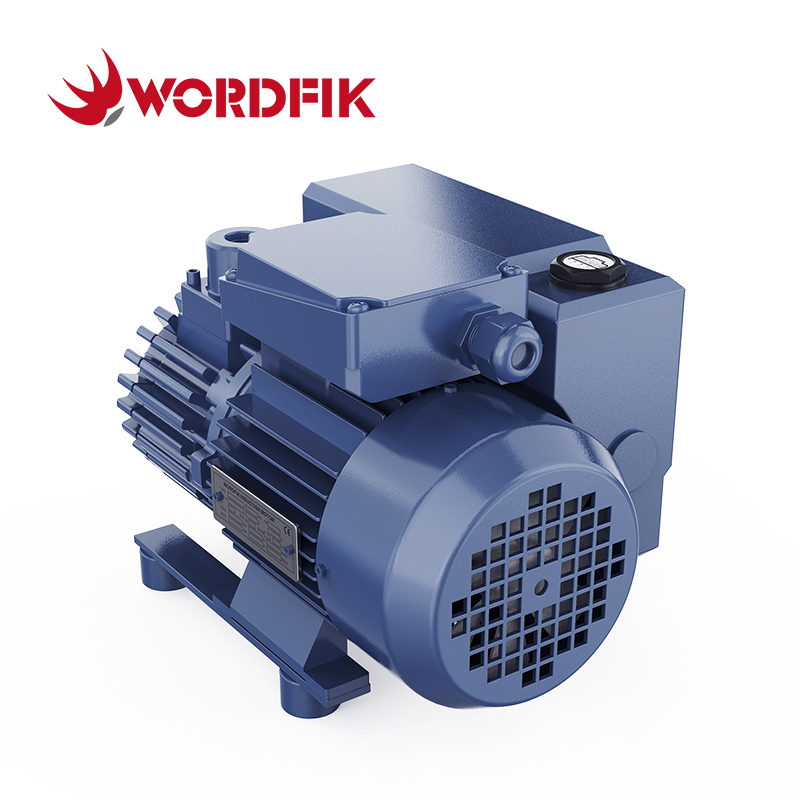

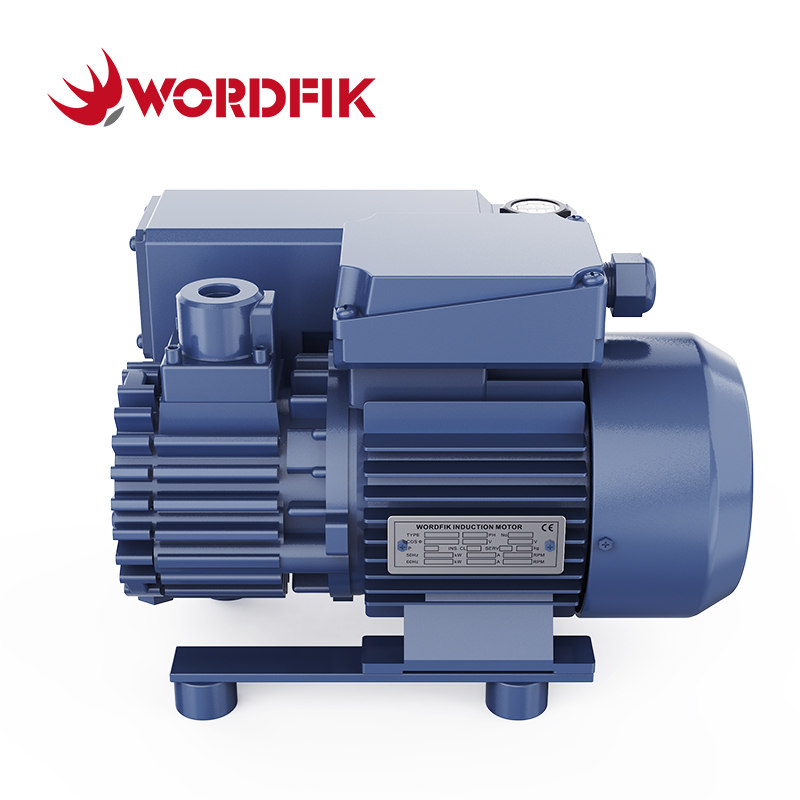

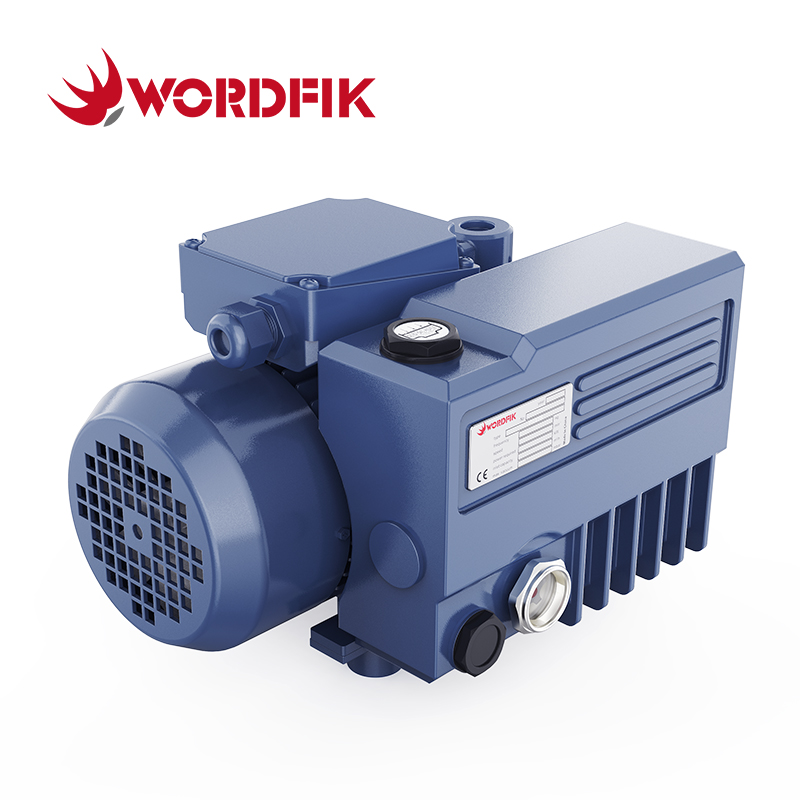

The Wordfik PVX16 is an industrial-grade oil-lubricated rotary vane vacuum pump designed for reliable and efficient performance in demanding applications. With a pumping speed of 16 m³/h (50Hz) or 19 m³/h (60Hz), it achieves an ultimate vacuum of 1 mbar, ensuring robust suction capabilities for continuous operation. The pump incorporates high-quality synthetic oil for enhanced lubrication, thermal stability, and contaminant resistance, extending service intervals and reducing maintenance costs. Its optimized vane design and precision-machined components minimize internal friction, resulting in low noise levels (≤64 dB(A)) and high energy efficiency.
Engineered for durability, the PVX16 features a cast-iron body for superior heat dissipation and mechanical strength, along with an all-copper motor for stable power output and overload protection. The pump requires only routine oil and filter changes every 3,000–5,000 hours, making it ideal for industries prioritizing minimal downtime and operational economy. Common applications include plastic molding, packaging, printing, and LED manufacturing, where consistent vacuum performance is critical.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX16 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 16 m³/h | 19 m³/h |
| Ultimate Pressure | 1 mbar | |
| Motor Power | 0.55 kW | |
| Motor Voltage | Δ 200-230V ; Y 380-415V (3ph) | |
| 220V±10% (1ph) | ||
| Motor Speed | 2800 rpm | 3300 rpm |
| Noise Level | 64 dB(A) | |
| Gas Inlet Connection | ½ inch | |
| Gas Outlet Connection | / | |
| Oil Capacity | 0.4 L | |
| Weight | 16 kg | |
| Dimensions | 308*218*207 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Laboratory | Medical Industry |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
