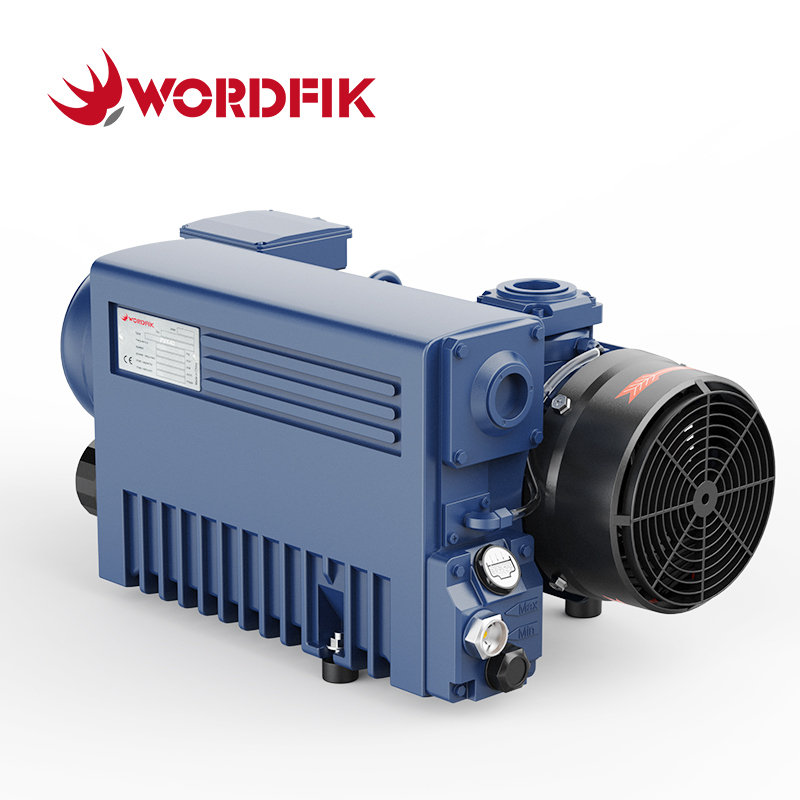

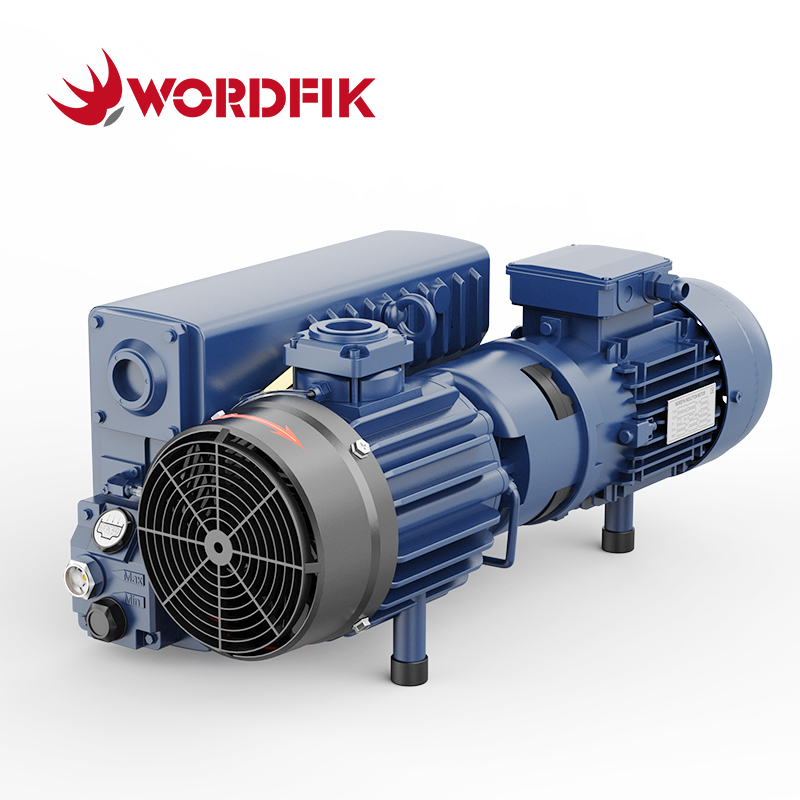

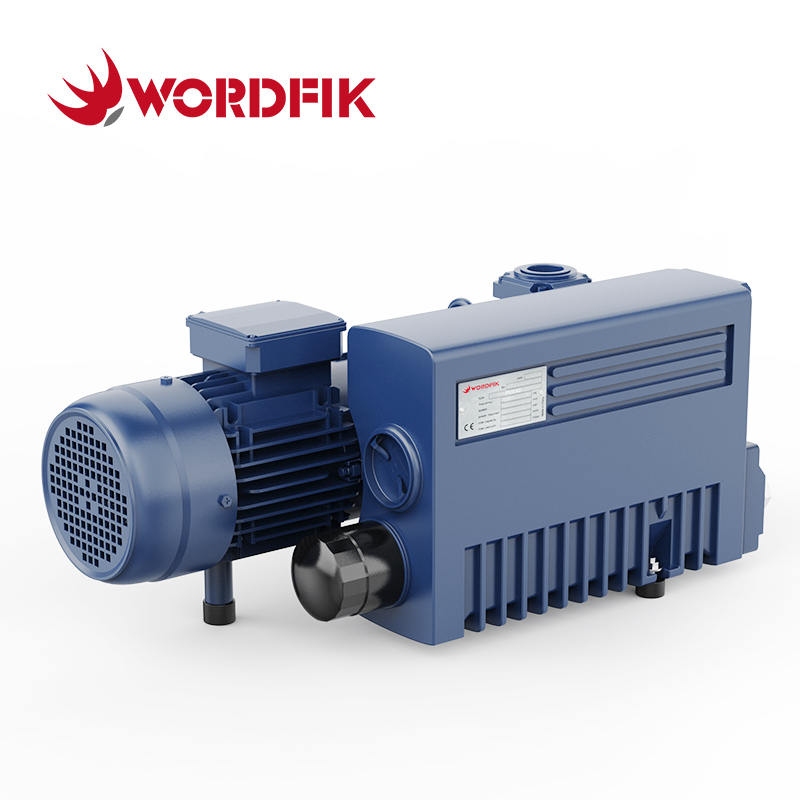

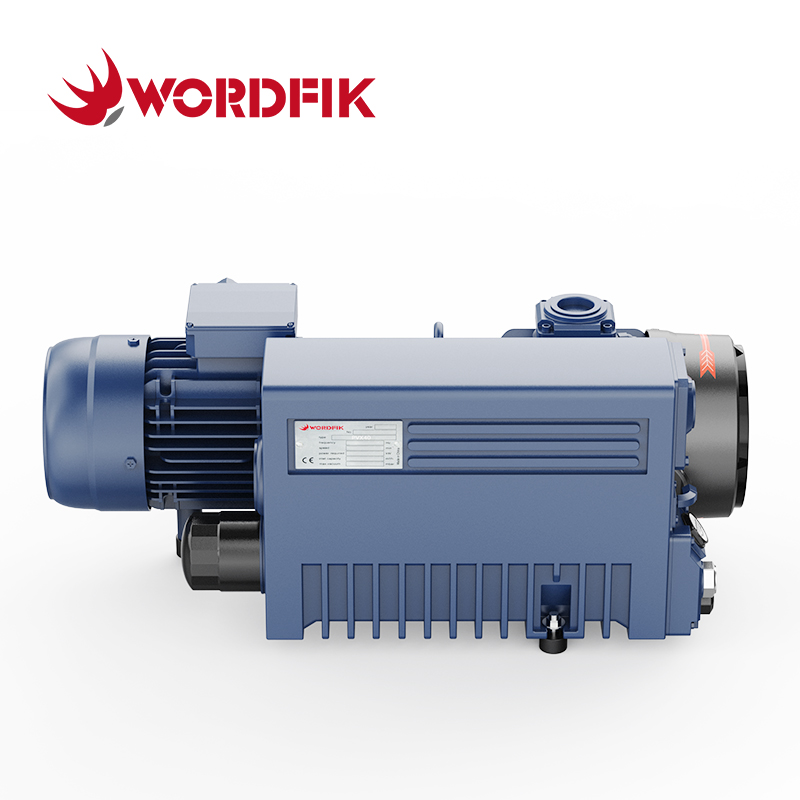

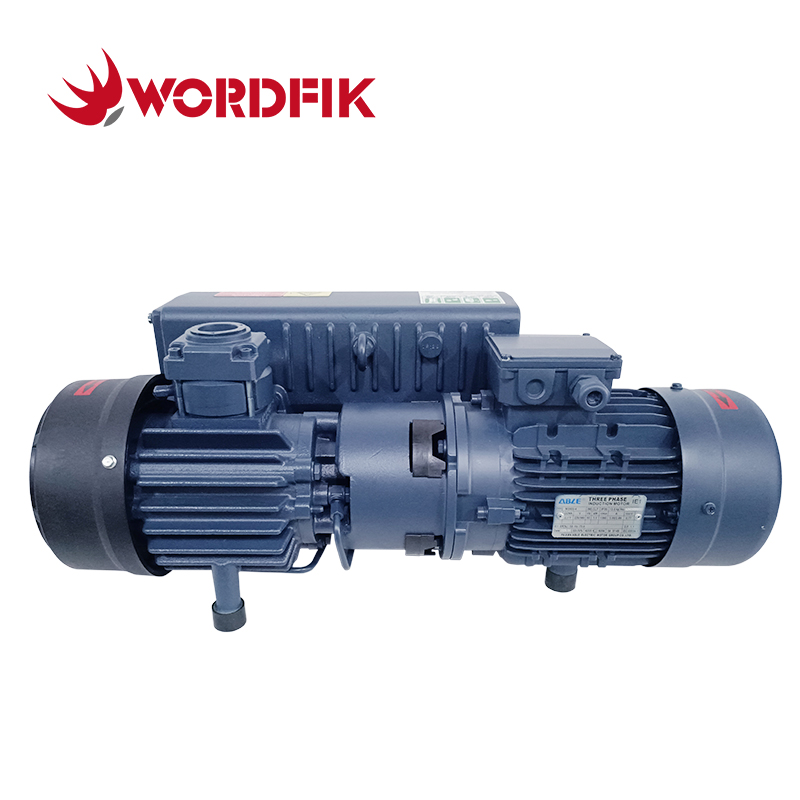

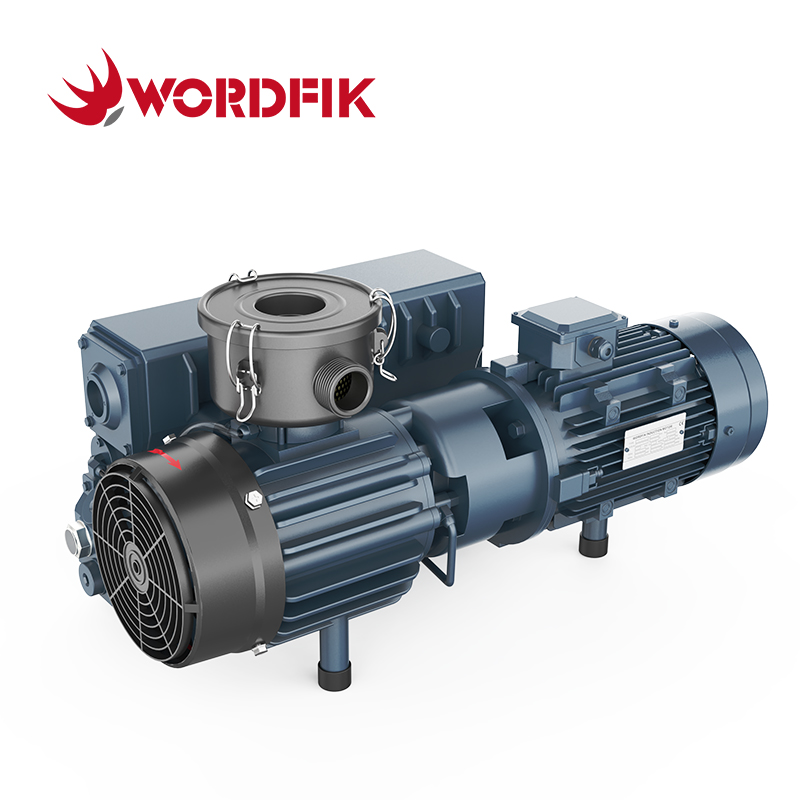

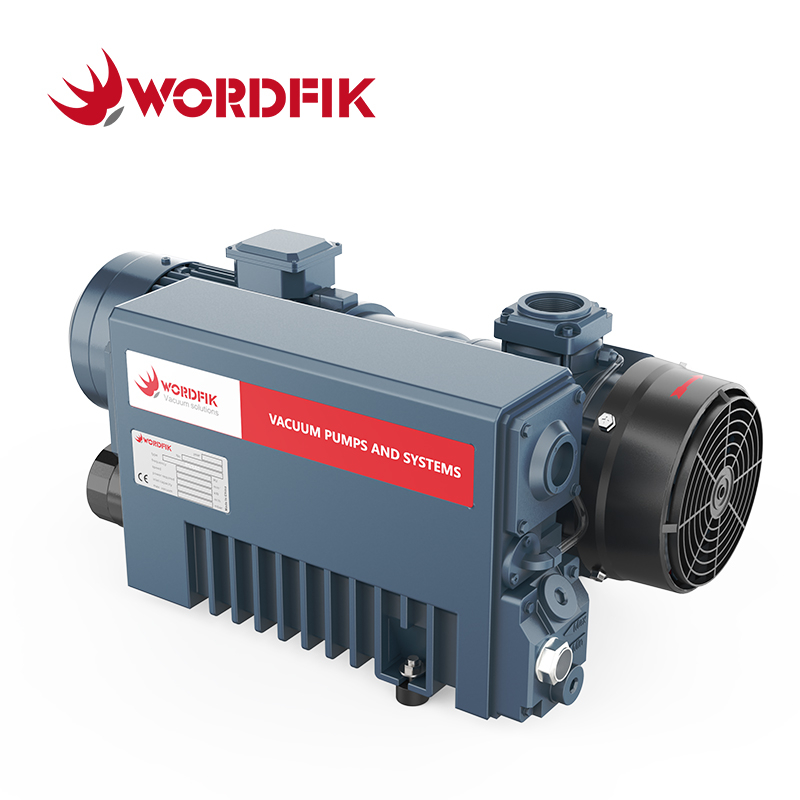

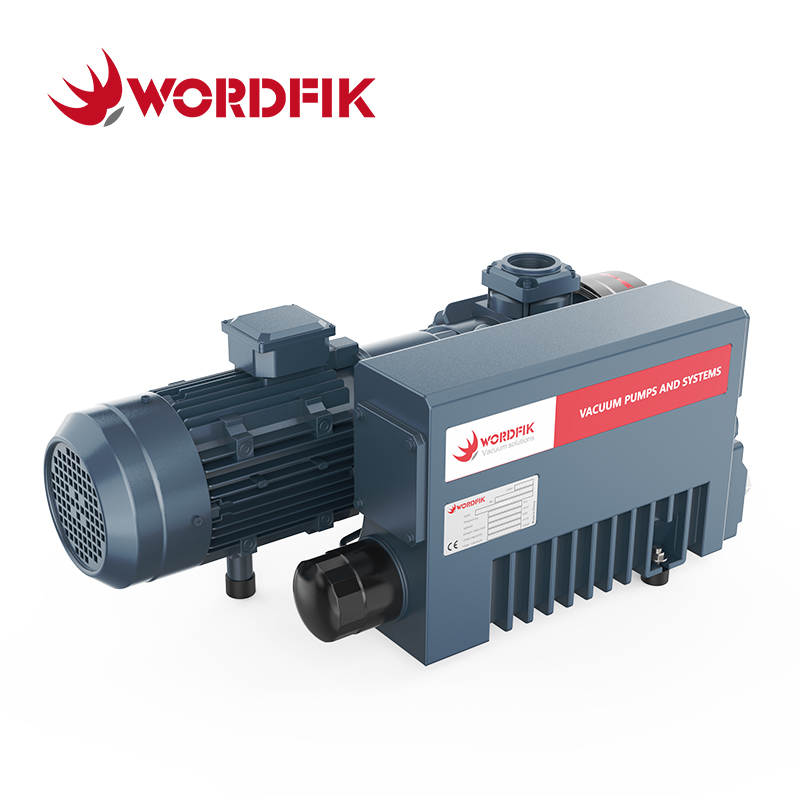

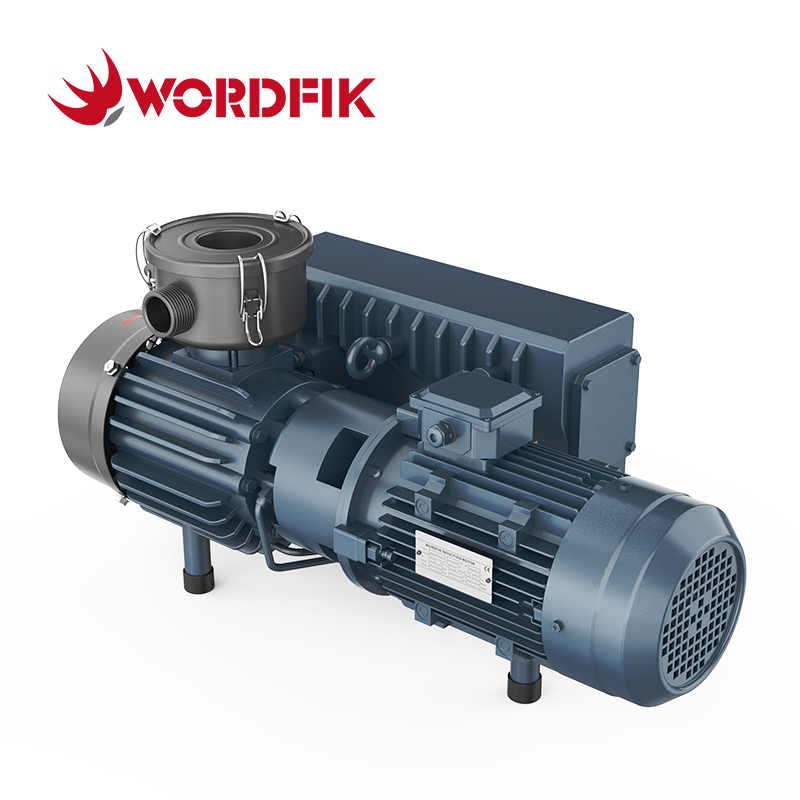

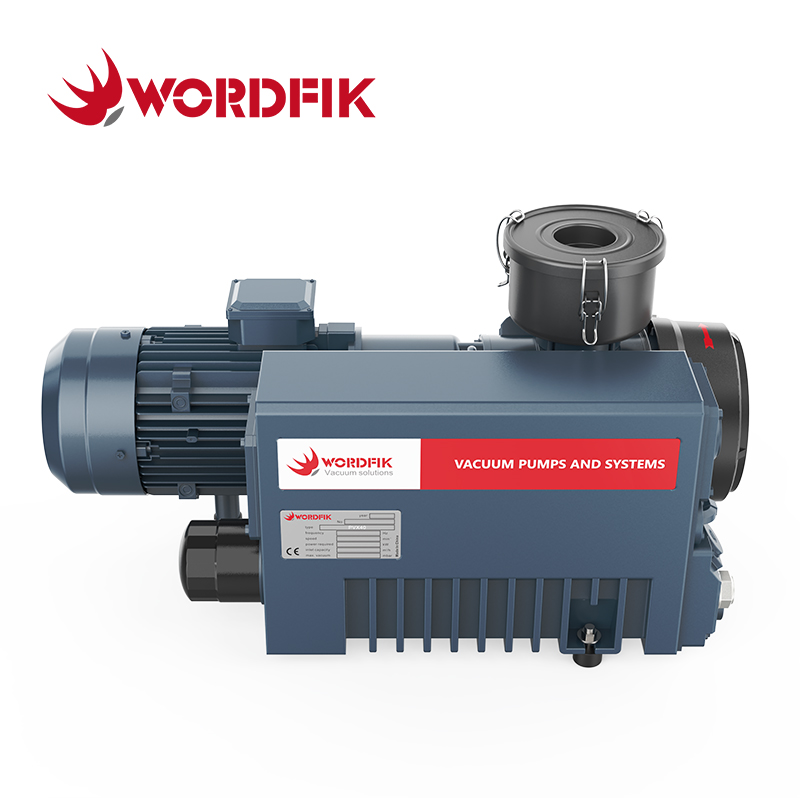

The Wordfik PVX40 is an industrial oil-lubricated rotary vane vacuum pump designed for reliable performance in various industrial applications. It delivers a pumping speed of 40 m³/h (50Hz) or 48 m³/h (60Hz) with an ultimate vacuum of 0.5 mbar, ensuring efficient evacuation for continuous industrial processes.
Equipped with a high quality ballast valve, the PVX40 effectively handles condensable vapors and maintains stable vacuum levels under varying operating conditions. Its reinforced cast-iron construction and precision-fitted vanes provide durability and minimize internal leakage. The pump operates at a low noise level of ≤65 dB(A) and is powered by a heavy-duty copper motor for reliable performance in demanding environments.
The PVX40 has long service intervals and extremely low maintenance costs. It is suitable for industrial drying, vacuum impregnation, packaging applications and composite material processing.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX40 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 40 m³/h | 48 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 1.1 kW | 1.5 kW |
| Motor Voltage | Δ 200-230V ; Y 380-415V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 64 dB(A) | 65 dB(A) |
| Gas Inlet Connection | 1¼ inch | |
| Gas Outlet Connection | 1¼ inch | |
| Water Vapor Tolerance | 0.7 kg/h | |
| Oil Capacity | 1.5 L | |
| Weight | 44 kg | 46 kg |
| Dimensions | 647*307*270 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Laboratory | Medical Industry |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
