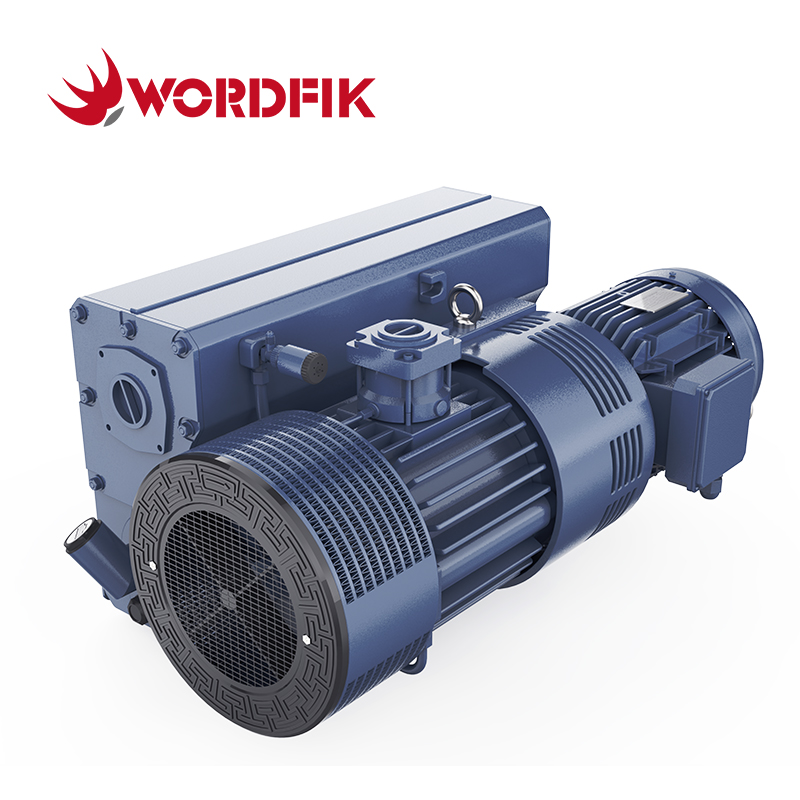

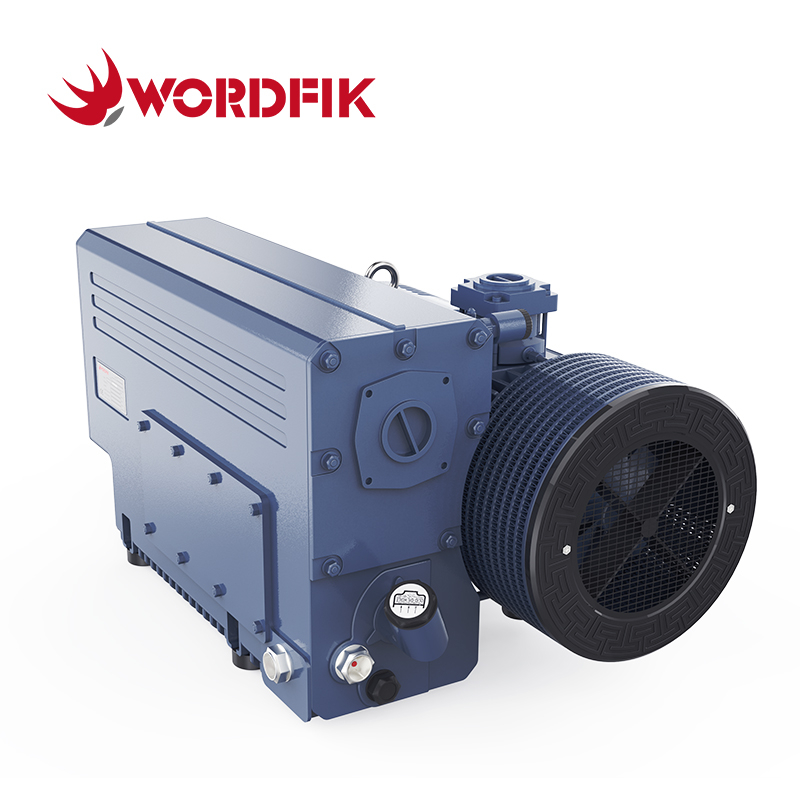

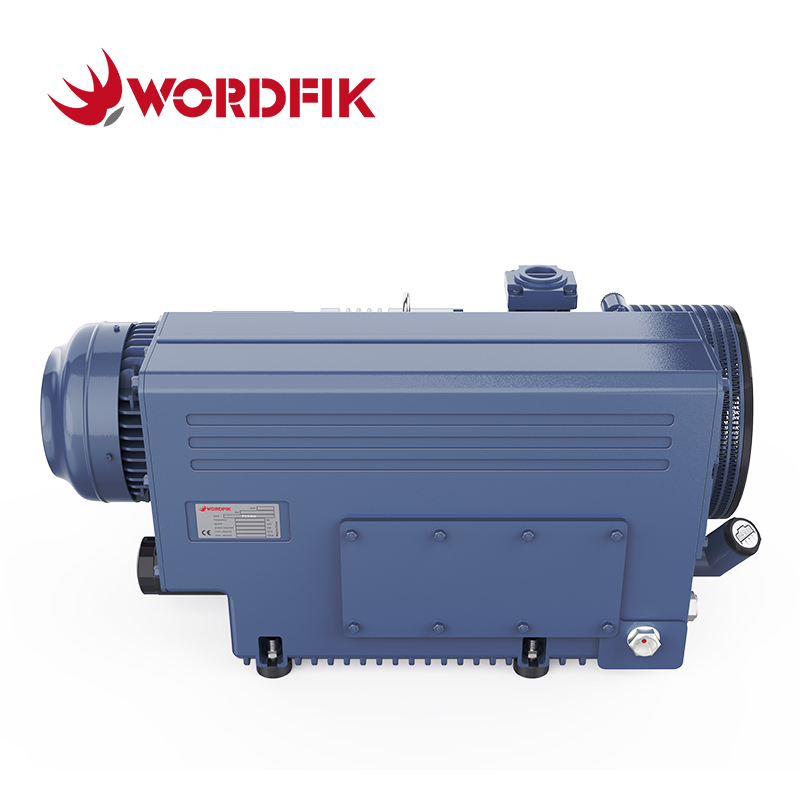

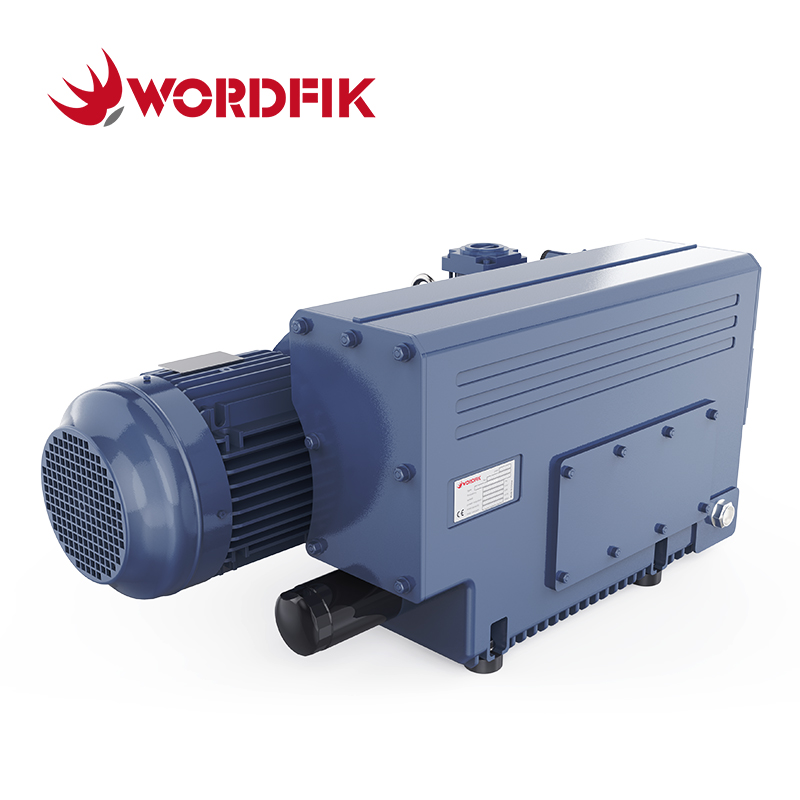

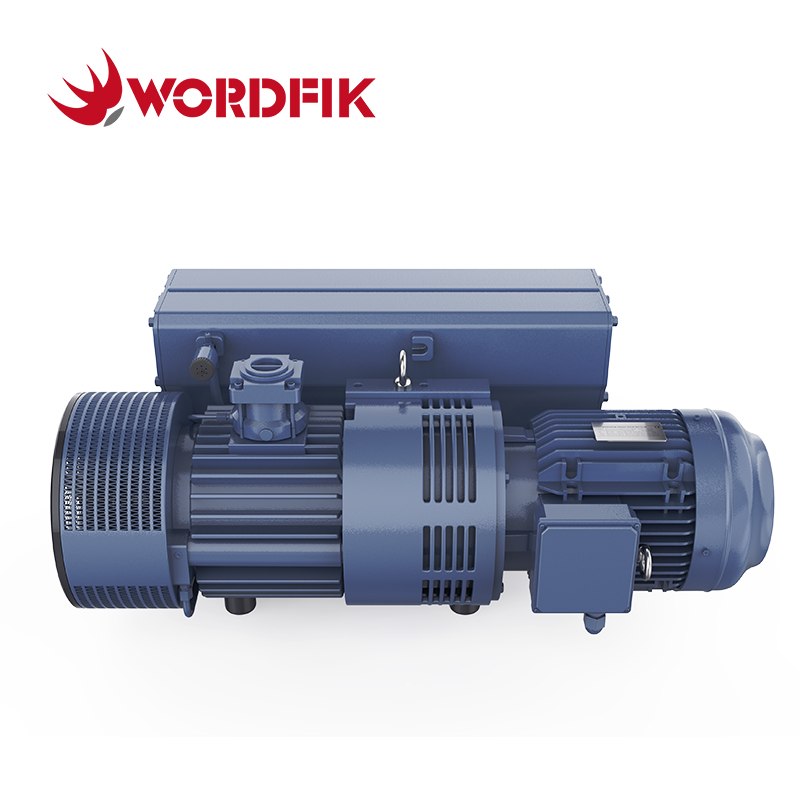

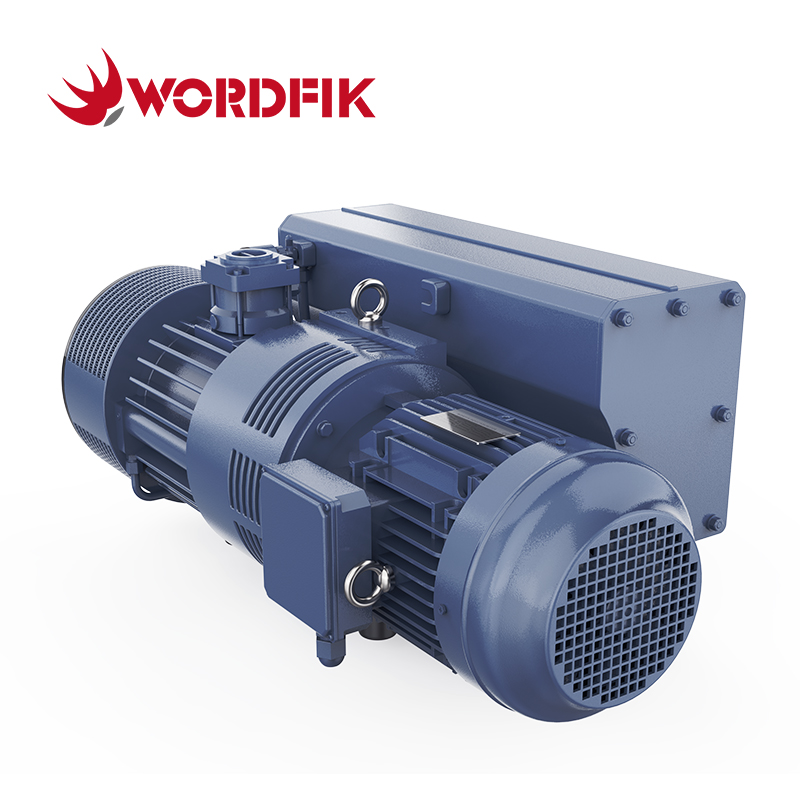

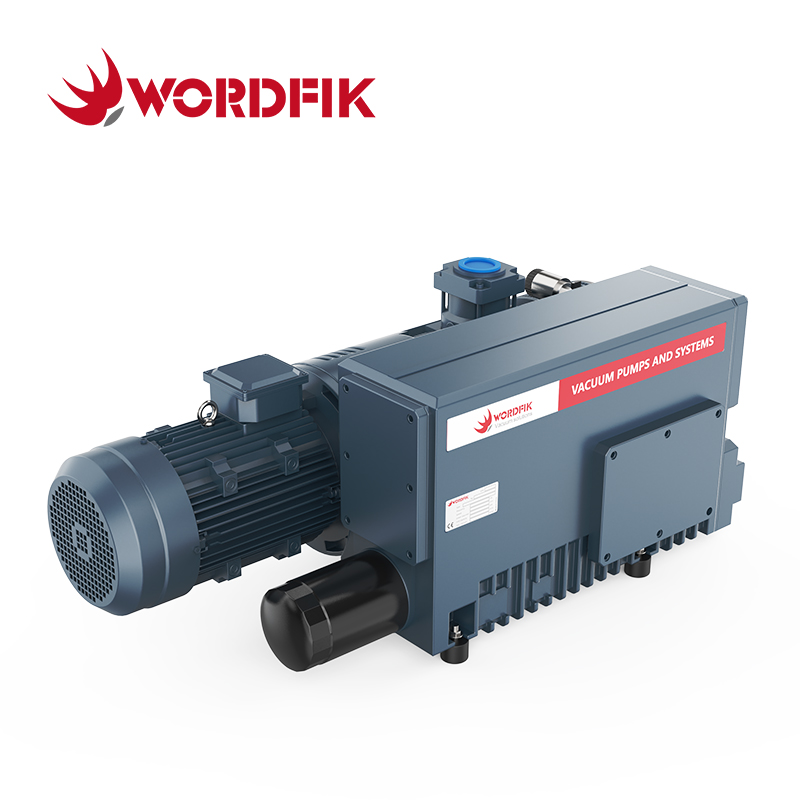

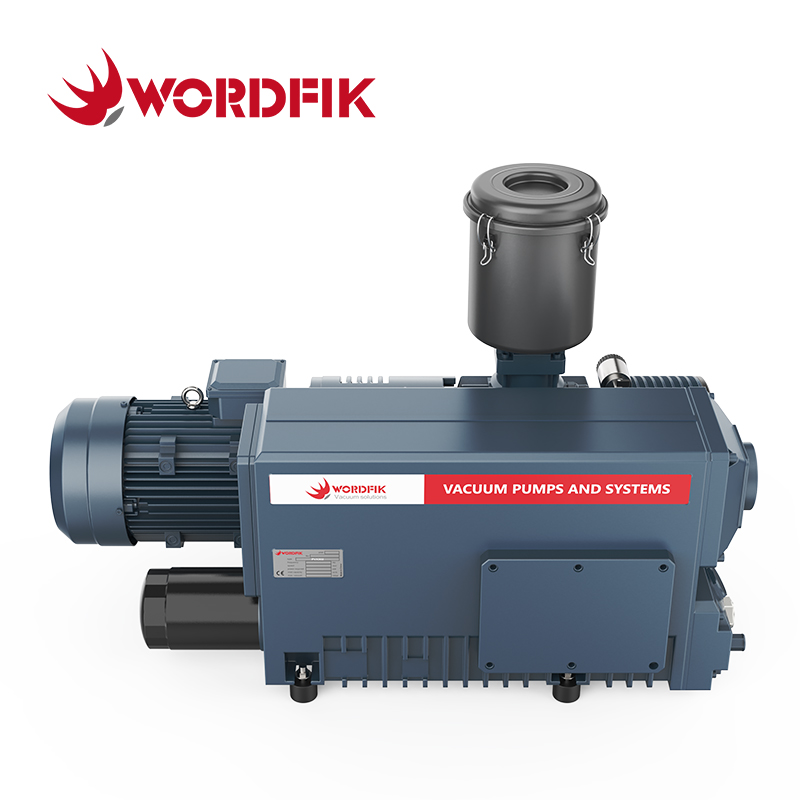

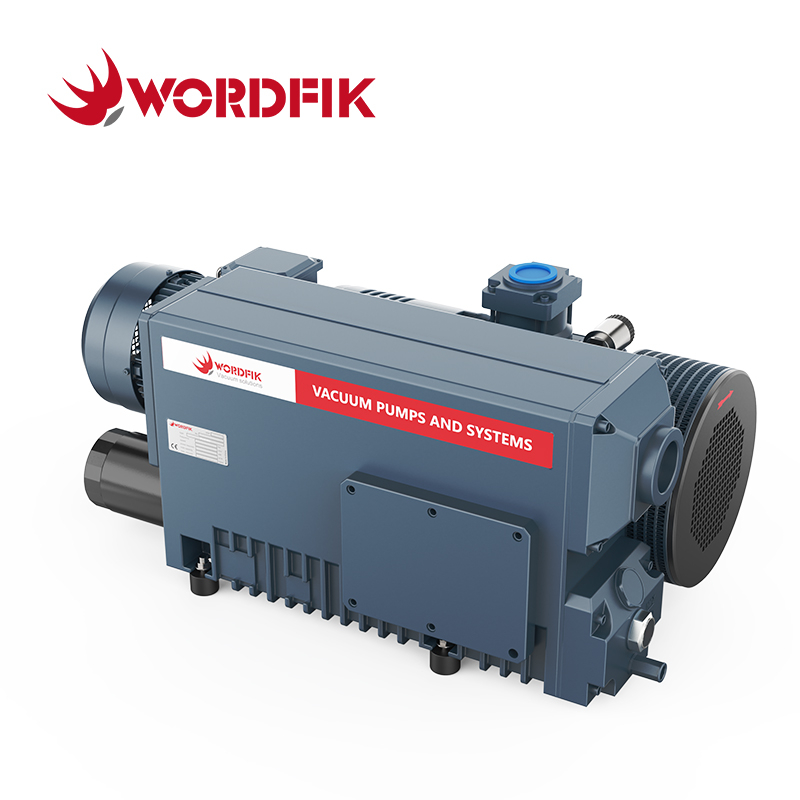

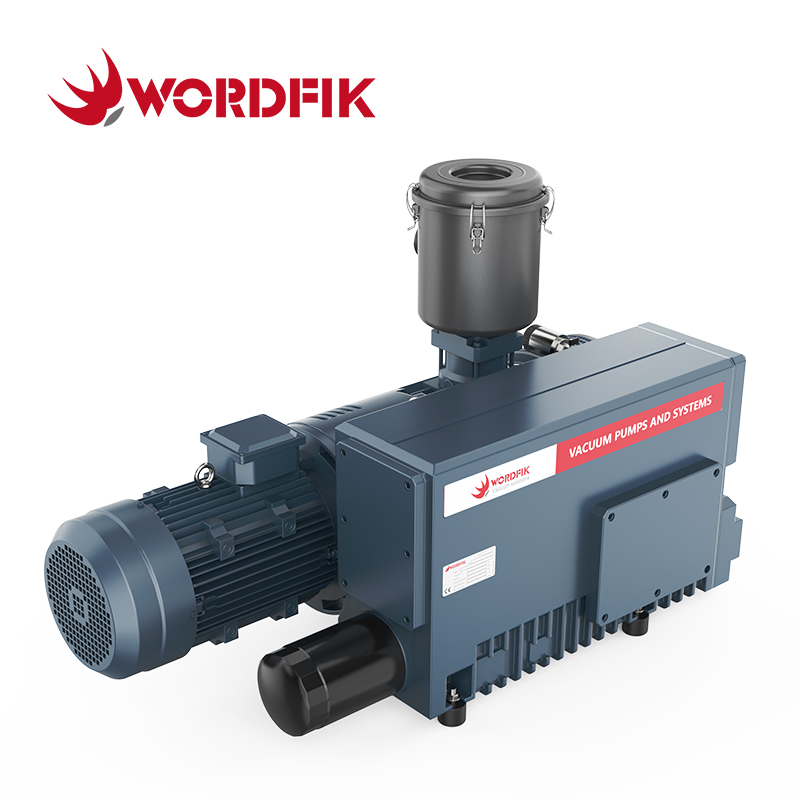

The Wordfik PVX302 is a heavy-duty industrial vacuum pump designed for high-capacity applications requiring reliable performance. It delivers a pumping speed of 300 m³/h (50Hz) or 360 m³/h (60Hz) with an ultimate vacuum level of 0.5 mbar.
Engineered with robust cast-iron construction, the PVX302 ensures durability and thermal stability in continuous operation. The pump features advanced sealing technology and precision-machined components that minimize internal leakage while maintaining consistent vacuum performance. Its integrated gas ballast system effectively handles condensable vapors during operation.
The PVX302 is designed for precision industry and is ideally suited for semiconductor manufacturing, medical device production, pharmaceutical processing, electronic component manufacturing, and precision optical component production.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX302 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 300 m³/h | 360 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 7.5 kW | |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 73 dB(A) | 74 dB(A) |
| Gas Inlet Connection | 2 inch | |
| Gas Outlet Connection | 2 inch | |
| Water Vapor Tolerance | 4.5 kg/h | |
| Oil Capacity | 10 L | |
| Weight | 198 kg | |
| Dimensions | 1006*605*411 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

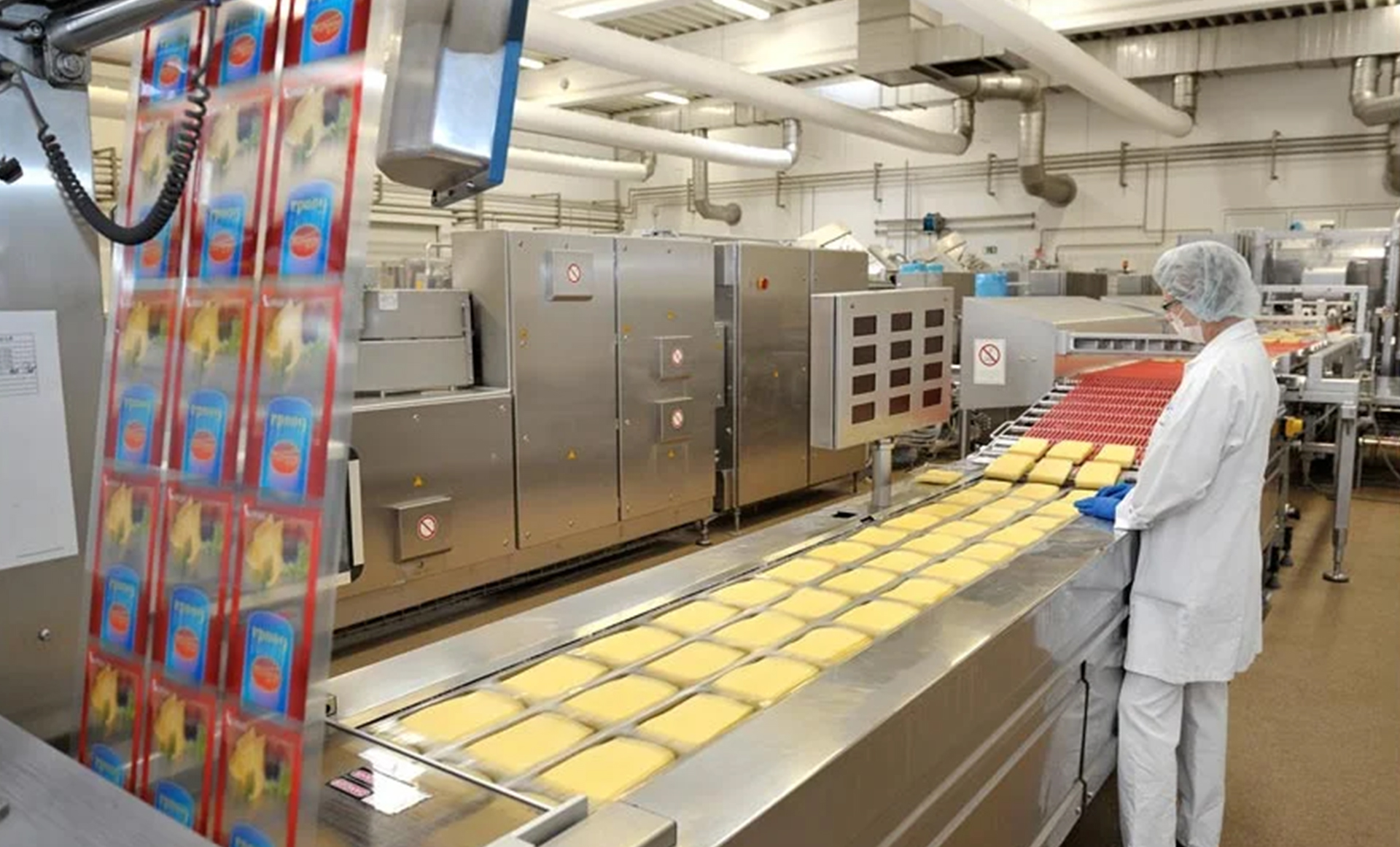

| Food Packaging System | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital Negative Pressure System | Metal Smelting Degassing | Vacuum Distillation |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
