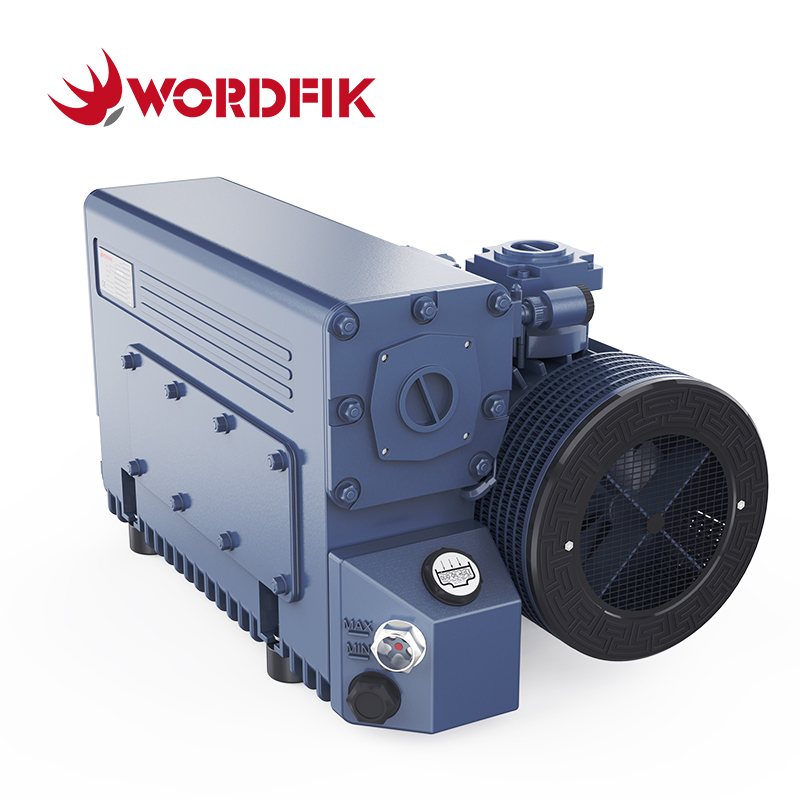

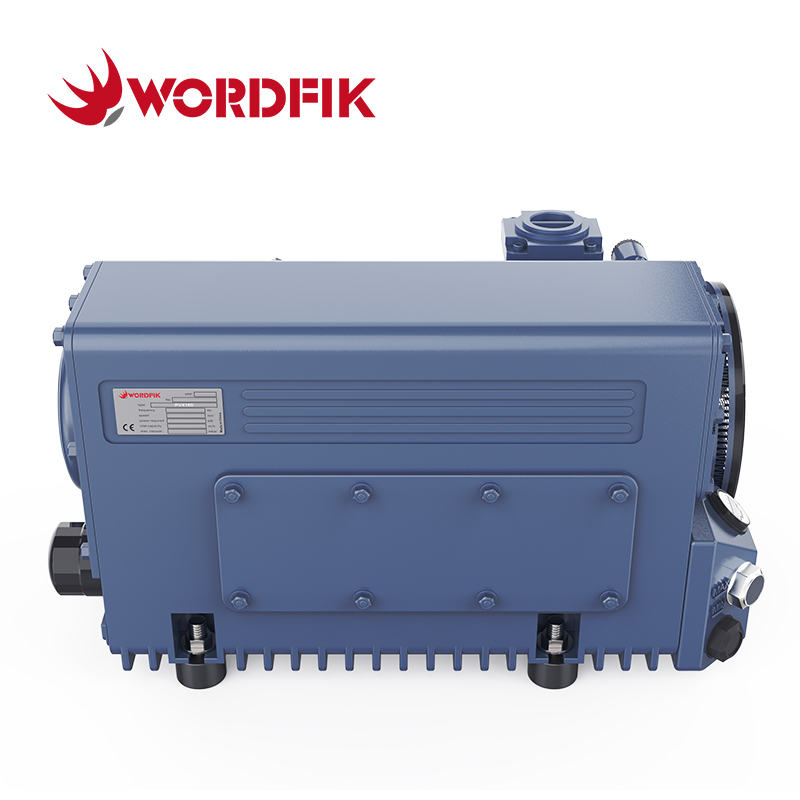

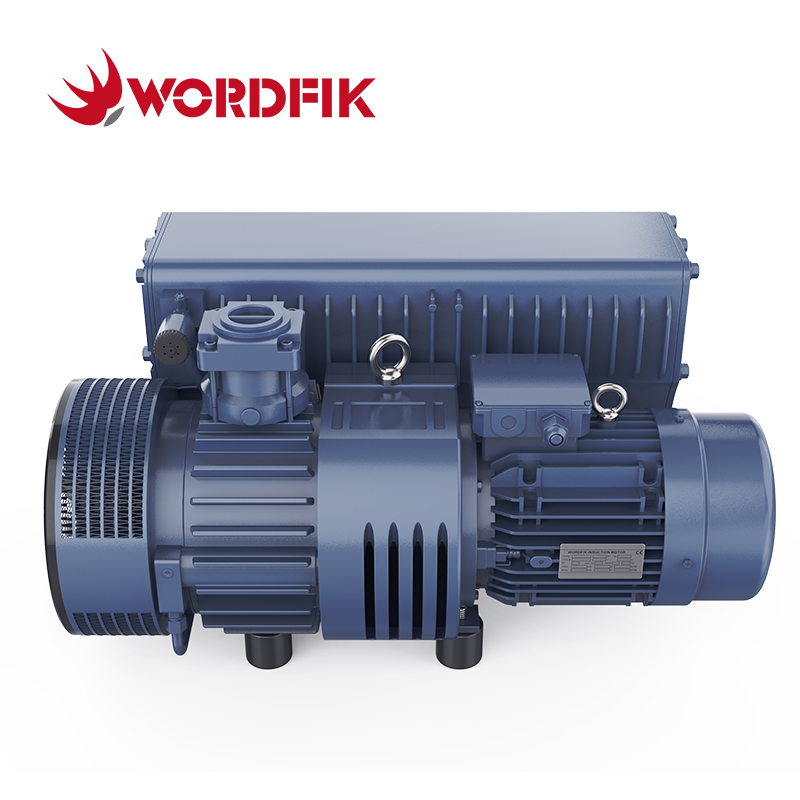

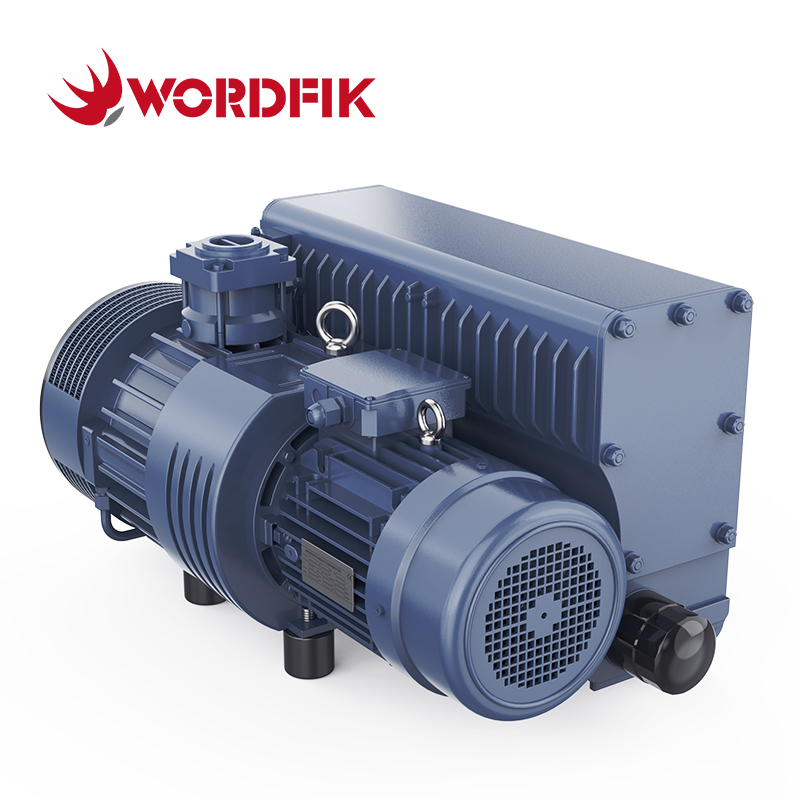

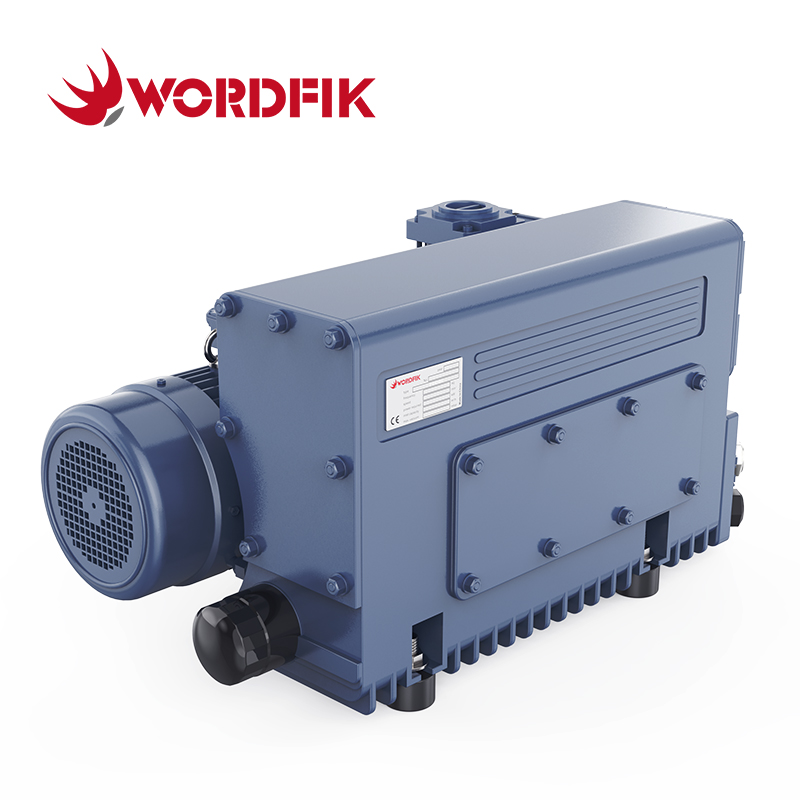

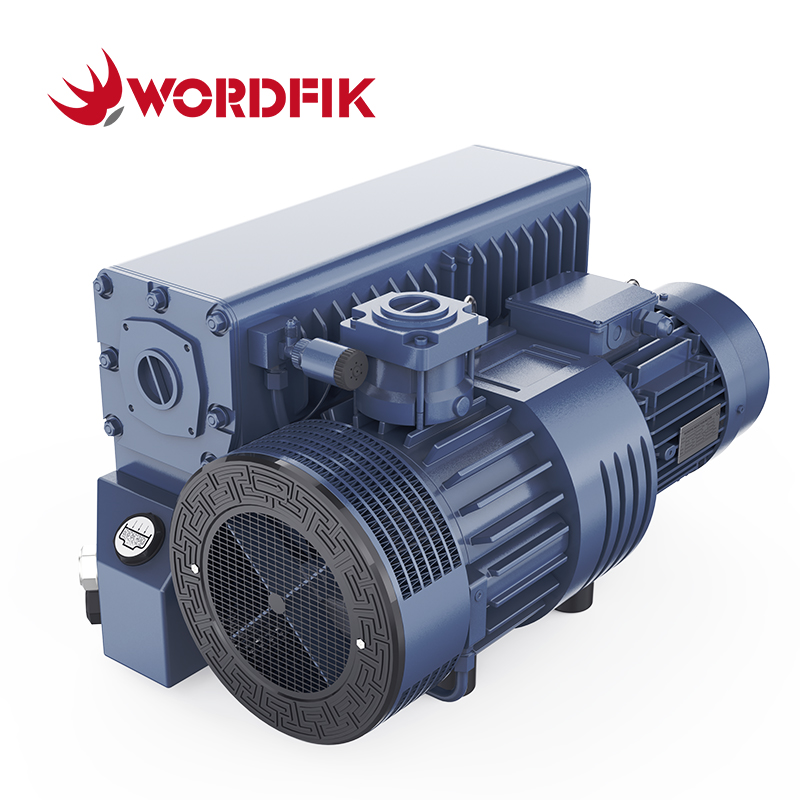

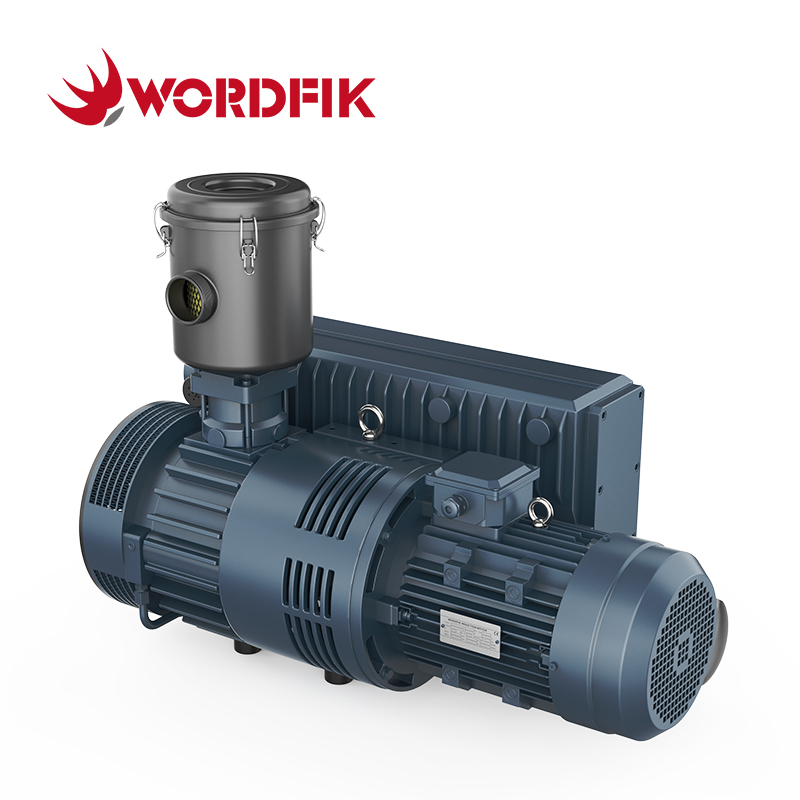

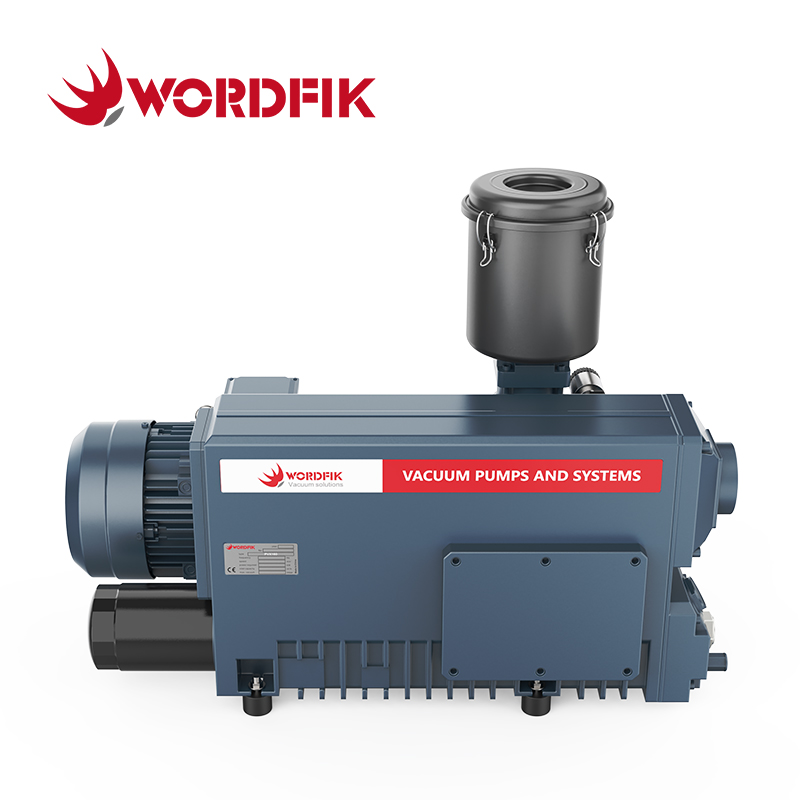

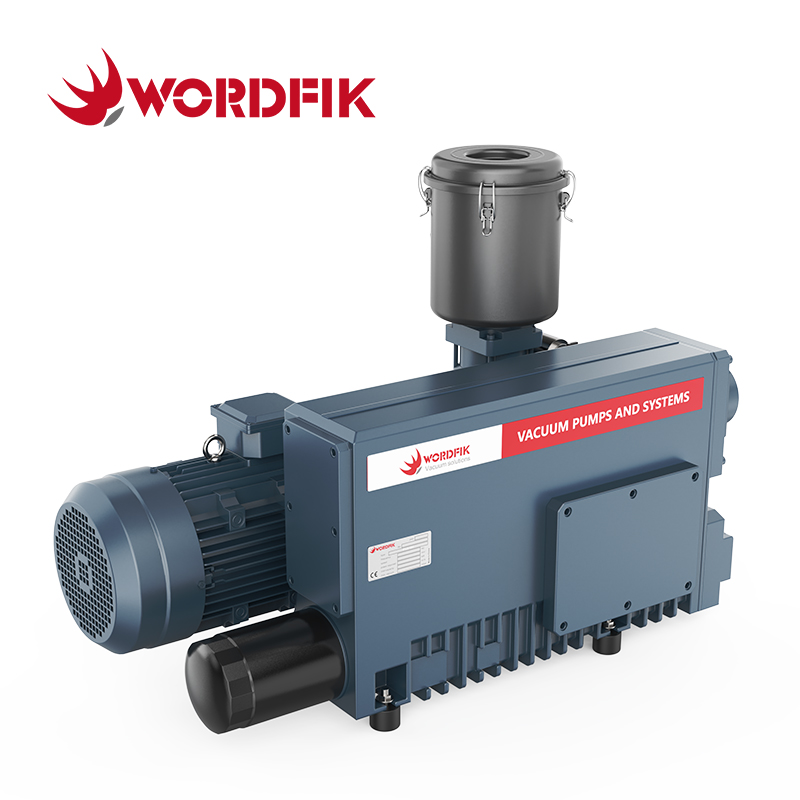

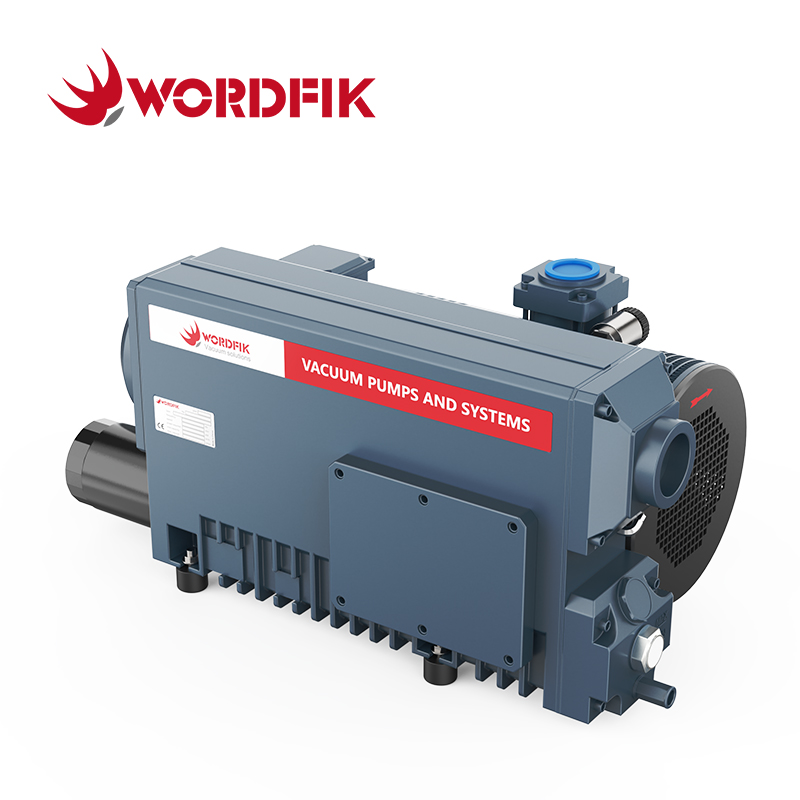

The Wordfik PVX160 represents advanced oil-lubricated rotary vane technology for heavy-duty industrial applications. This robust vacuum solution delivers exceptional performance with a pumping capacity of 160 m³/h (50Hz) or 192 m³/h (60Hz), achieving an ultimate vacuum of 0.5 mbar.
Engineered for continuous operation, the PVX160 features a heavy-duty cast iron construction with reinforced bearing systems for extended service life. The pump incorporates advanced oil filtration and cooling systems, maintaining stable thermal conditions during prolonged operation.
PVX160 oil-sealed rotary vane vacuum pump operates with a 4 kW (50Hz) or 5.5 kW (60Hz) high-efficiency copper motor, delivering reliable power while minimizing energy consumption. The maintenance interval extends to 6,000 operating hours, supported by accessible service points and simplified maintenance procedures.
Designed for demanding applications in chemical processing, pharmaceutical manufacturing, and industrial research facilities, the PVX160 meets stringent requirements for reliability and performance consistency.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVX160 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 160 m³/h | 192 m³/h |
| Ultimate Pressure | 0.5 mbar | |
| Motor Power | 4 kW | 5.5 kW |
| Motor Voltage | Δ 380-415V ; Y 660-690V (3ph) | 440-460V (3ph) |
| Motor Speed | 1450 rpm | 1700 rpm |
| Noise Level | 72 dB(A) | 73 dB(A) |
| Gas Inlet Connection | 2 inch | |
| Gas Outlet Connection | 2 inch | |
| Water Vapor Tolerance | 2.5 kg/h | |
| Oil Capacity | 8 L | |
| Weight | 142 kg | 155 kg |
| Dimensions | 760*500*411 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Metal Smelting Degassing | Vacuum Distillation |
| Wordfik PVX Series Oil-Lubricated Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PVX16 | 0.55 kW | 0.55 kW | 16 m³/h | 19 m³/h | 1 mbar |
| PVX25 | 0.75 kW | 0.9 kW | 24 m³/h | 28 m³/h | 0.5 mbar |
| PVX40 | 1.1 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| PVX63 | 1.5 kW | 2.2 kW | 63 m³/h | 78 m³/h | |
| PVX100 | 2.2 kW | 3 kW | 100 m³/h | 120 m³/h | |
| PVX160 | 4 kW | 5.5 kW | 160 m³/h | 192 m³/h | |
| PVX202 | 4/5.5 kW | 5.5 kW | 200 m³/h | 240 m³/h | |
| PVX250 | 5.5/7.5 kW | 7.5 kW | 250 m³/h | 300 m³/h | |
| PVX302 | 7.5 kW | 7.5 kW | 300 m³/h | 360 m³/h | |
| PVX630 | 15 kW | 18 kW | 640 m³/h | 750 m³/h | 0.1 mbar |
| PVX750 | 18.5 kW | / | 750 m³/h | / | |
