The Wordfik PVT60 is a heavy-duty industrial-grade oil-free dry rotary vane combined pump built for medium-scale industrial dual-function applications. As a direct drop-in replacement for Becker DVT 3.60 and Elmo V-KTA60 oil-free combined pumps, it delivers 60 m³/h (35.3 CFM) at 50Hz and 72 m³/h (42.4 CFM) at 60Hz airflow, with a consistent -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a rugged three-phase direct-drive architecture with enhanced graphite vanes, it operates with zero internal metal contact, self-compensates for wear, and delivers 8000 hours of maintenance-free operation. Its 100% oil-free design delivers clean, pulse-free air on both sides, making it suitable for demanding industrial processes including flexible packaging & bagging machines and printing.
Powered by a 3 kW (4.0 HP) industrial motor at 50Hz and 3.6 kW (4.8 HP) at 60Hz, the PVT60 is engineered for continuous heavy-duty operation. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is the workhorse choice for medium printing lines, woodworking machinery and energy transmission systems.
Features:
Industrial-grade three-phase build, designed for 24/7 continuous operation
100% oil-free dry vane technology, zero process contamination
Direct drop-in replacement for Becker DVT 3.60 / Elmo V-KTA60
60–72 m³/h (35–42 CFM) flow, ±600mbar (17.7inHg / 8.7PSIG)
Enhanced graphite vanes, 8000-hour maintenance-free operation
Wide three-phase voltage, stable pulse-free output, CE certified
| PVT60 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 60 m³/h | 72 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 3 kW | 3.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1420 rpm | 1710 rpm |
| Noise Level | 75 dB(A) | |
| Inlet Connection | 1 inch | |
| Pressure Connection | 1 inch | |
| Weight | 74 kg | |
| Dimensions | 731*340*340 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

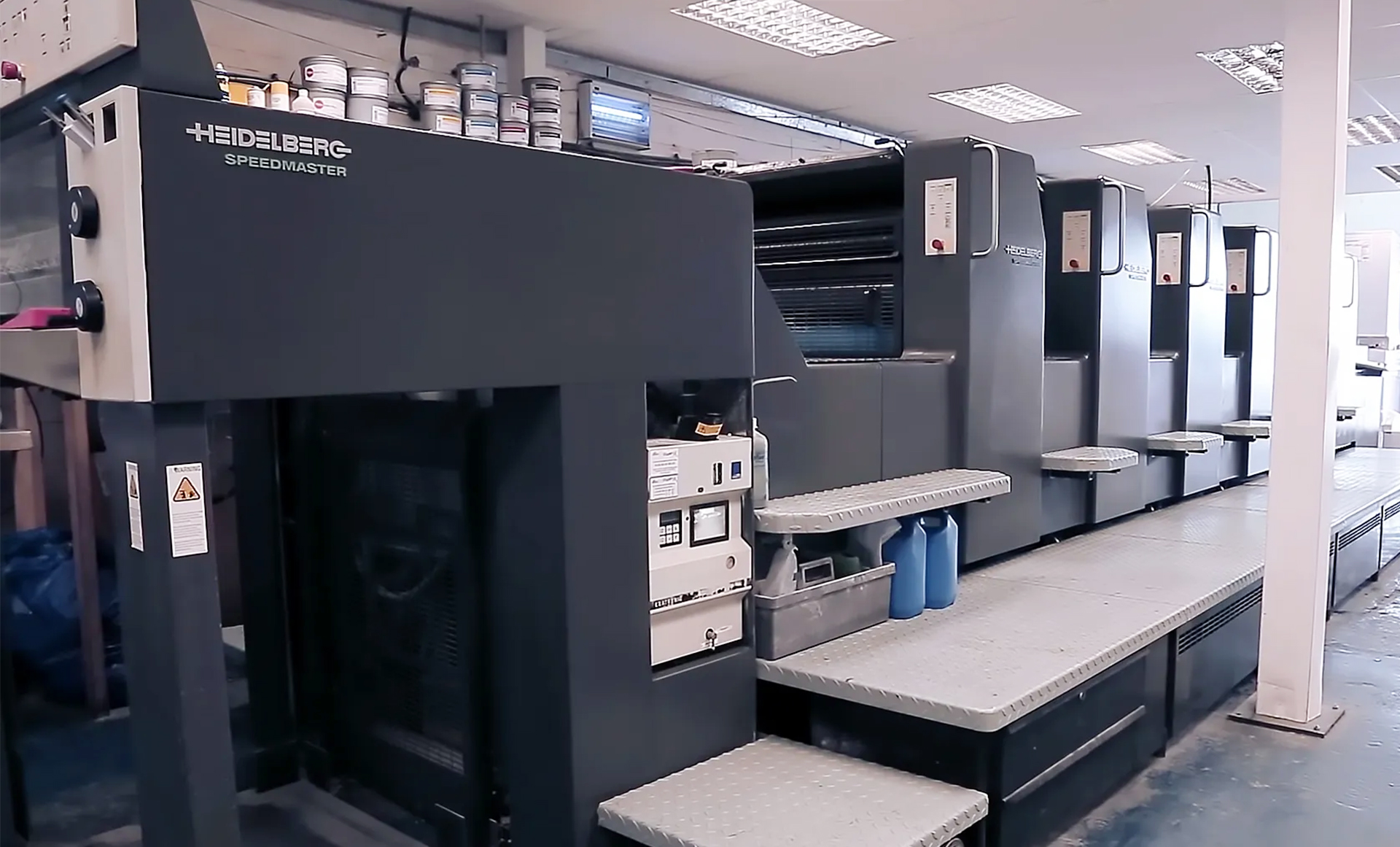

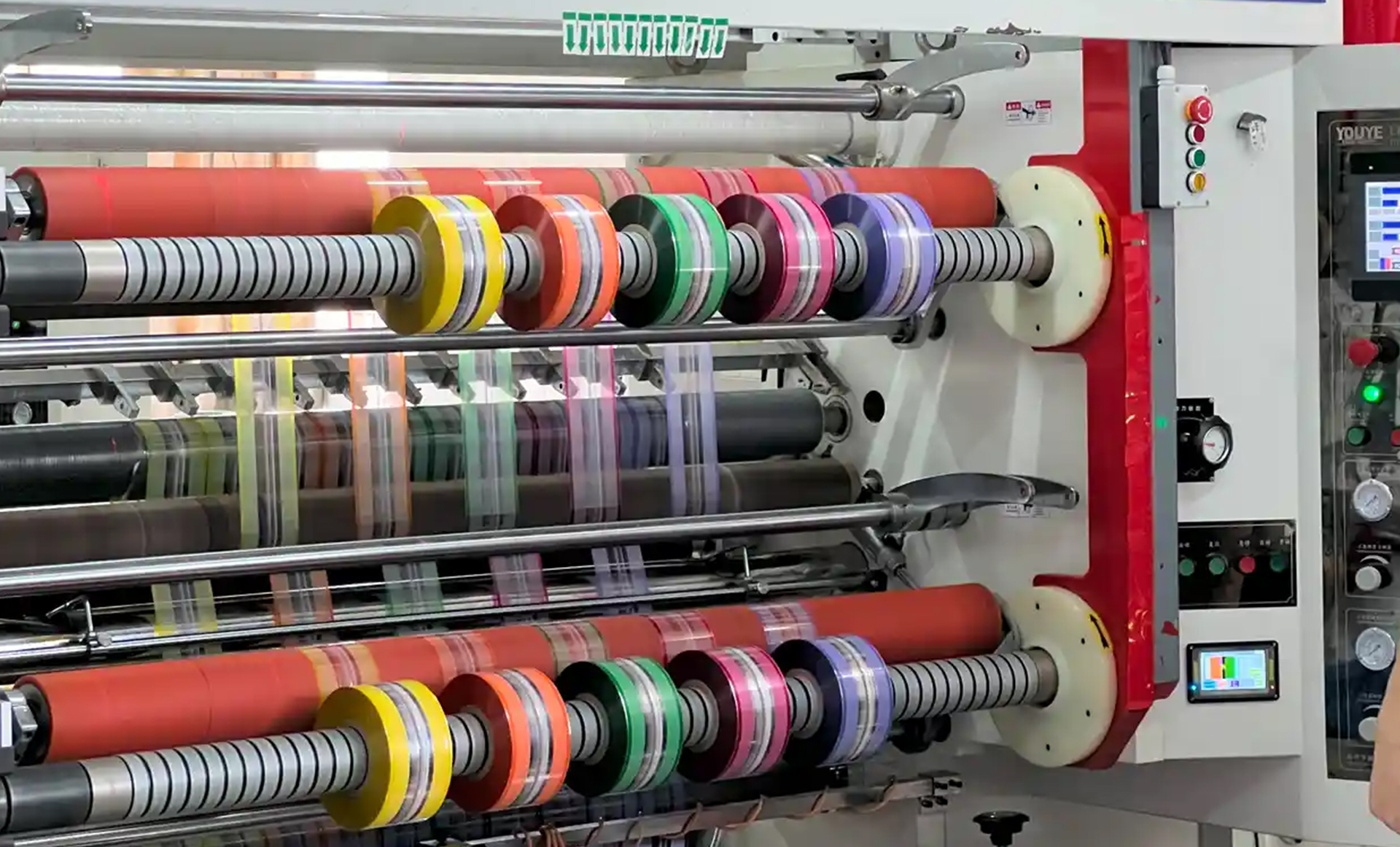

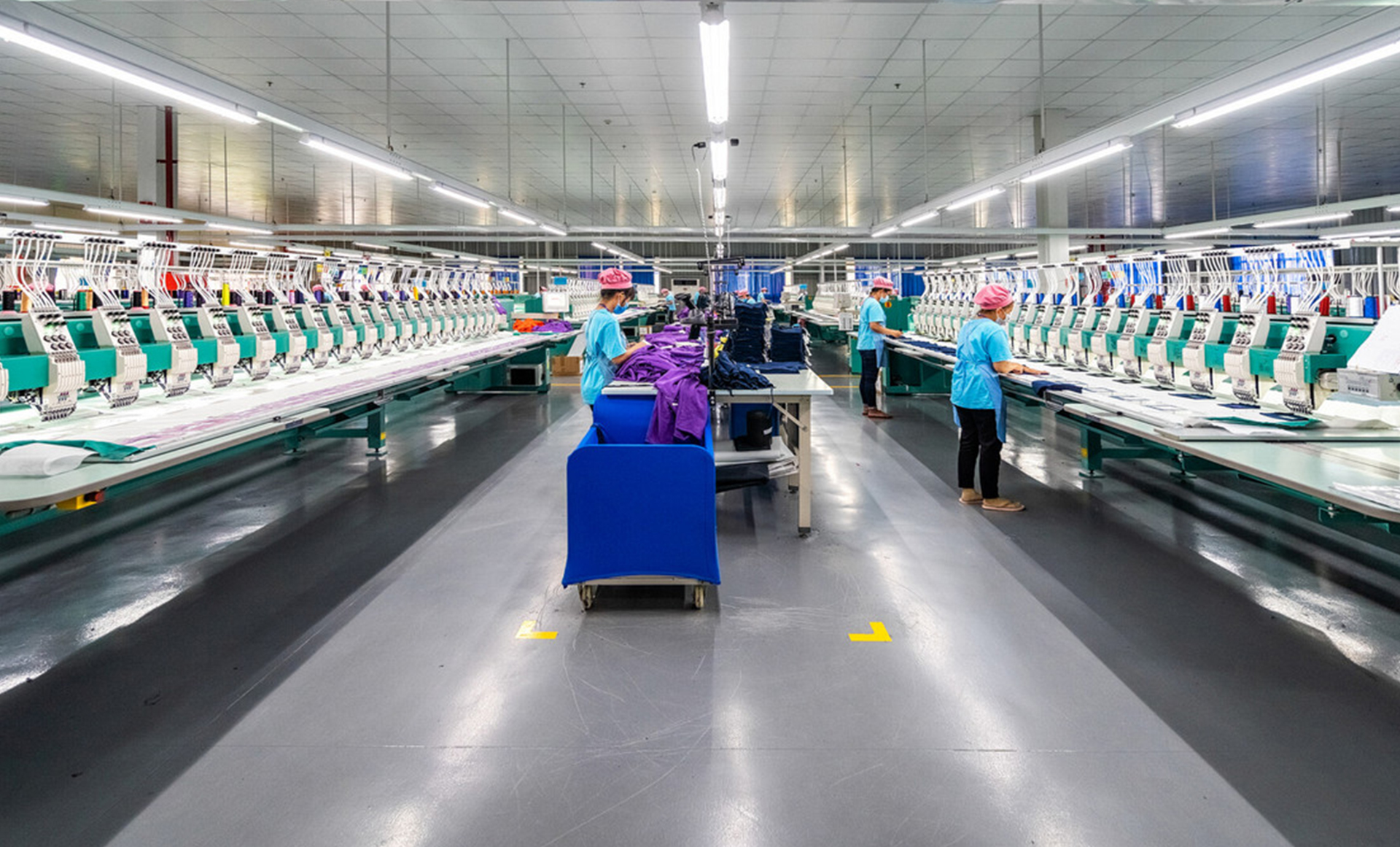

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

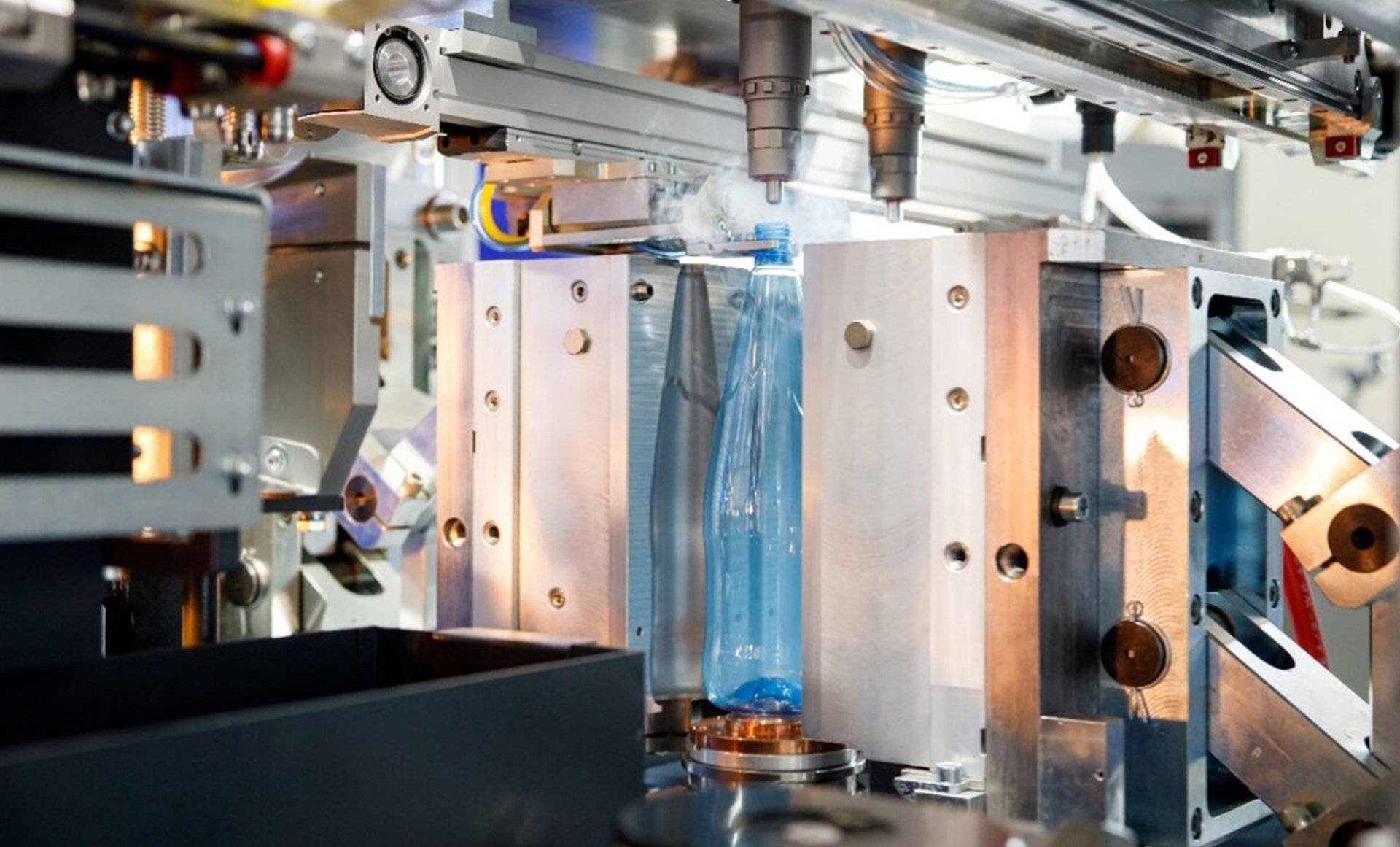

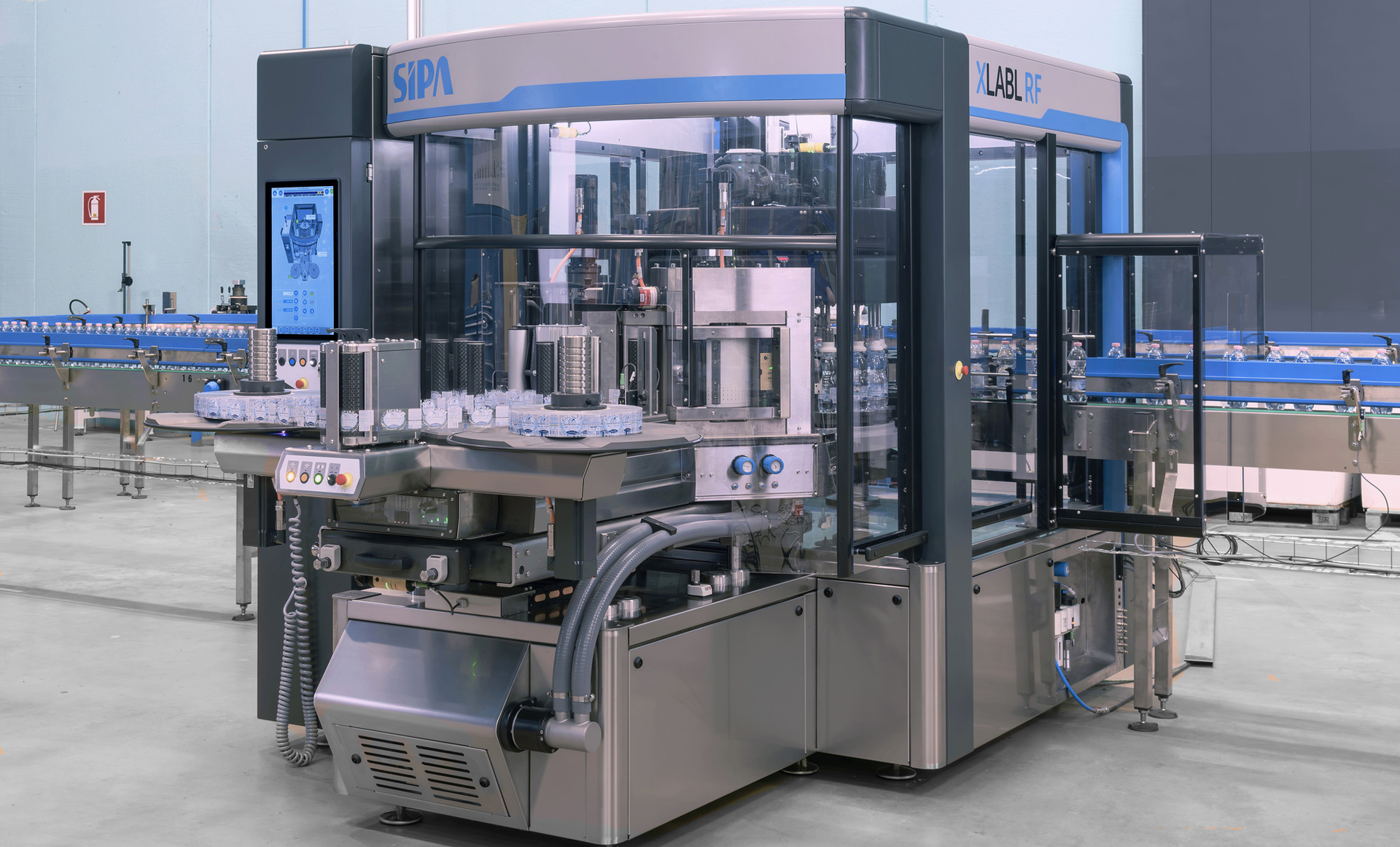

| Pneumatic Controls | Blow Molding & Thermoforming | Labeling Machines |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
