The Wordfik PVT25 is a versatile, general-purpose oil-free dry rotary vane combined pump that delivers simultaneous vacuum and positive pressure in a single compact unit. As a direct drop-in replacement for Becker T4.25DV T4.25DSK and Elmo V-VTN 26 oil-free combined pumps, it provides 25 m³/h (14.7 CFM) at 50Hz and 30 m³/h (17.7 CFM) at 60Hz airflow, with a matched -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a proven single-shaft direct-drive platform with self-lubricating graphite vanes, it operates with zero internal metal-to-metal contact, enabling self-wear compensation, minimal maintenance and long service life. Its 100% oil-free design delivers clean, contaminant-free air on both suction and discharge sides, eliminating oil pollution to workpieces and production environments across multiple industries.
Powered by a 1.25 kW (1.7 HP) motor at 50Hz and 1.5 kW (2.0 HP) at 60Hz, the PVT25 balances performance, footprint and operating cost — making it the most cost-effective dual-function pump for standard industrial equipment. It supports both single-phase and three-phase wide voltage inputs, comes standard with CE certification, and is widely used in printing, packaging, plastics and textile machinery.
Features:
Single unit delivers both vacuum and pressure, replaces two separate pumps
100% oil-free dry vane technology, zero air contamination
Direct drop-in replacement for Becker T 1.25 / Elmo V-VTN 26 combined pumps
25–30 m³/h (14.7–17.7 CFM) flow, ±600mbar (17.7inHg / 8.7PSIG)
General-purpose workhorse model, best cost-performance ratio
Wide single/three-phase voltage, 50/60Hz dual frequency, CE certified
| PVT25 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 25 m³/h | 30 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 1.25 kW | 1.5 kW |
| Motor Voltage | Δ 195-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 69 dB(A) | |
| Inlet Connection | ¾ inch | |
| Pressure Connection | ¾ inch | |
| Weight | 36 kg | |
| Dimensions | 545*328*290 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

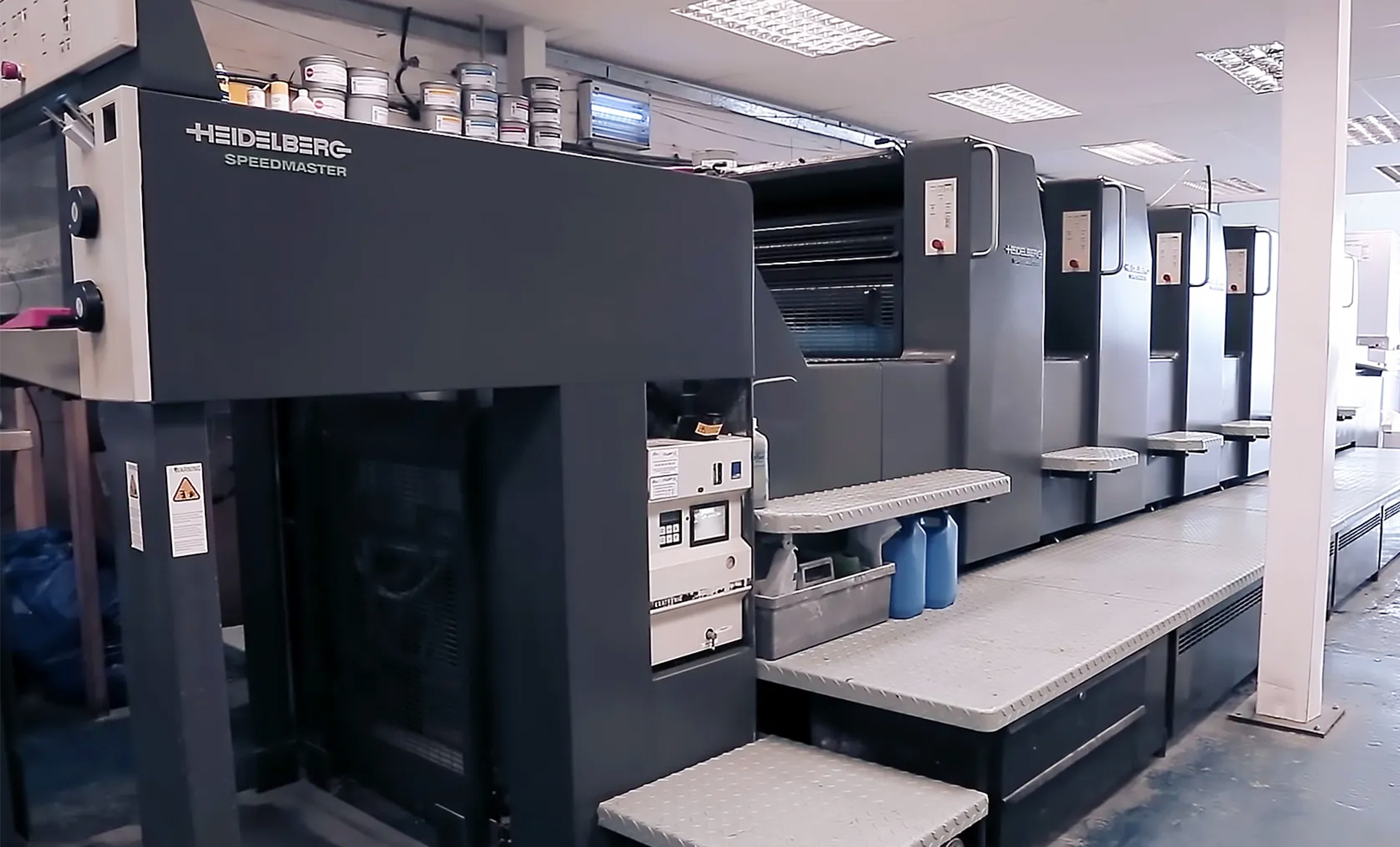

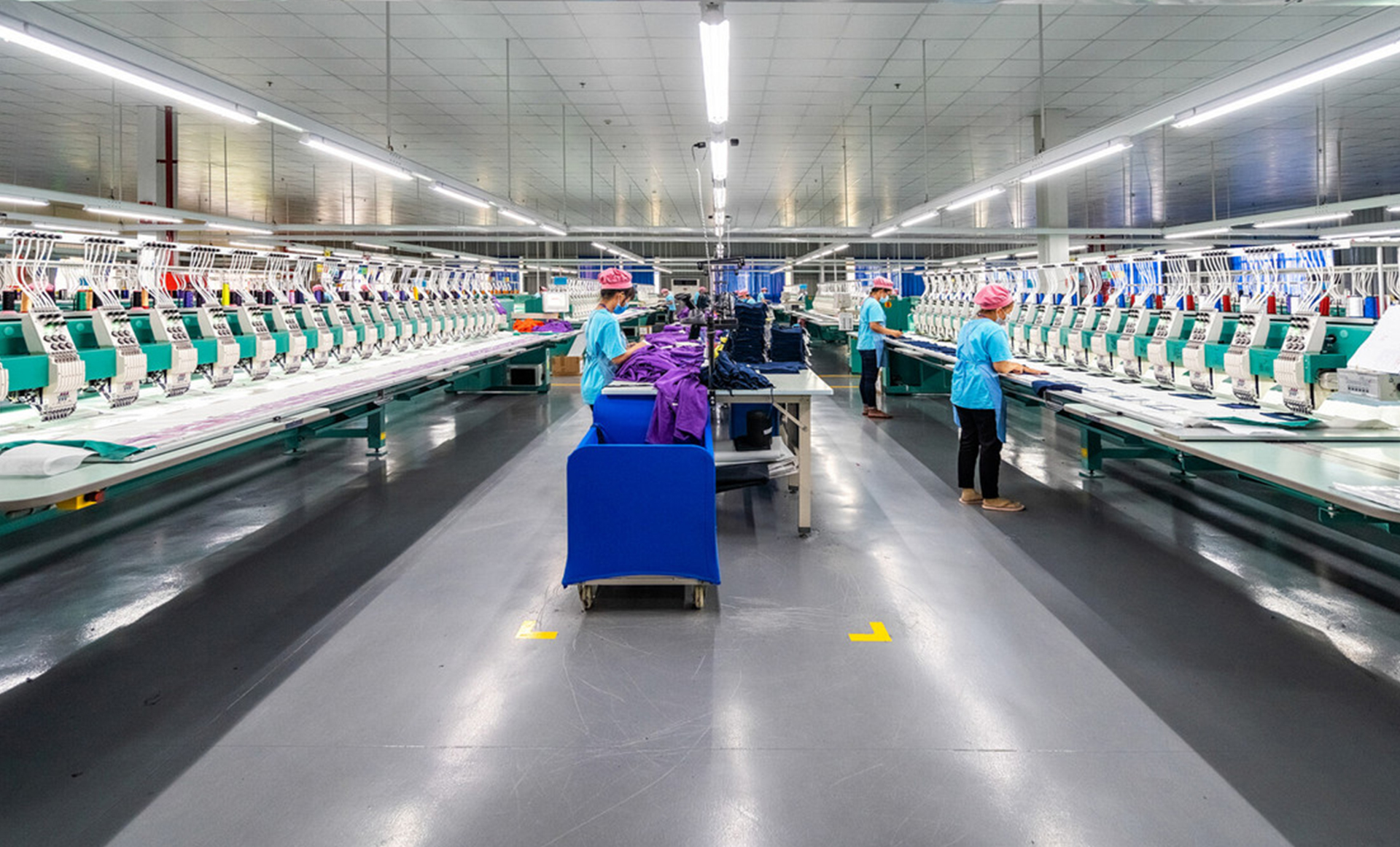

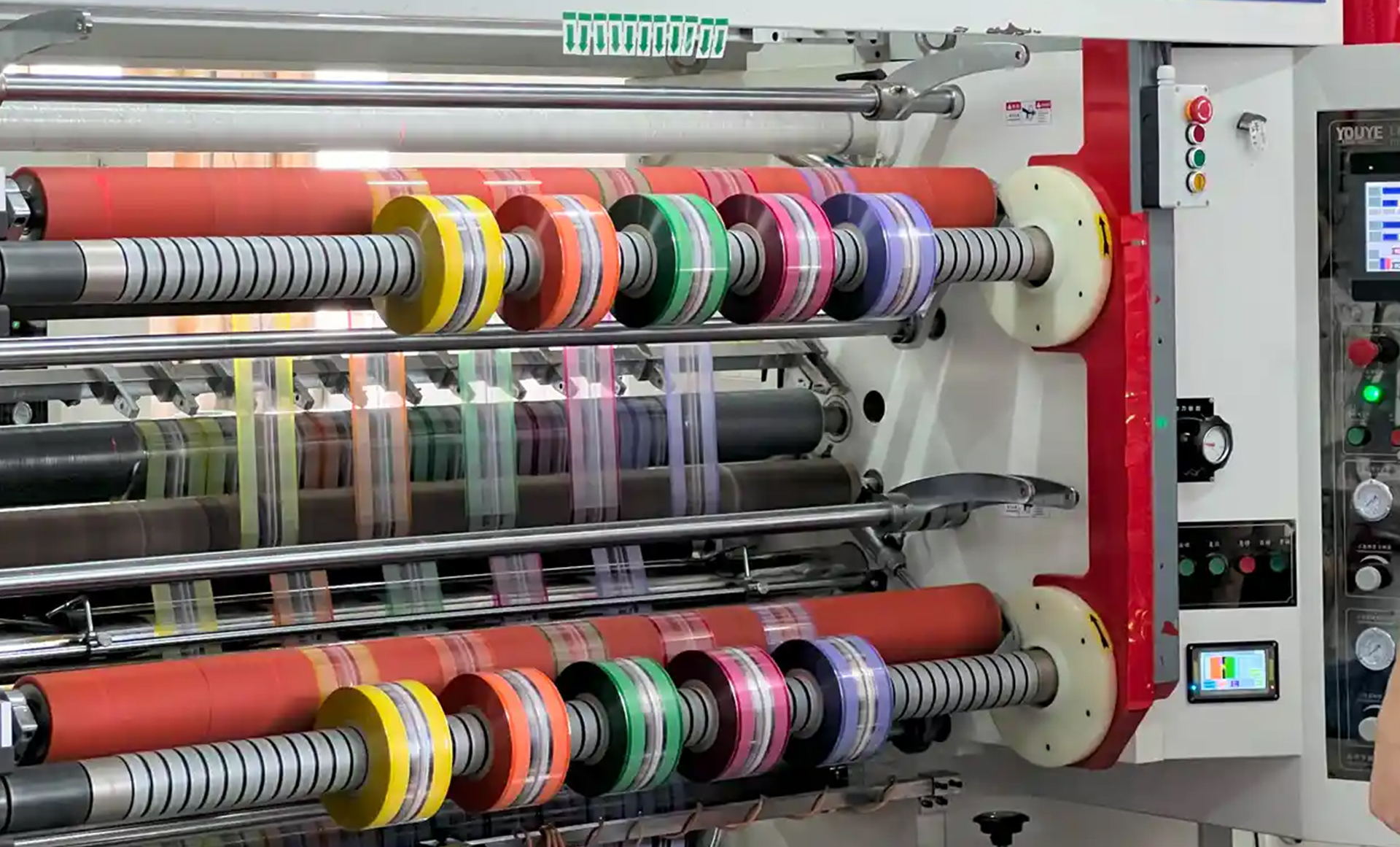

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

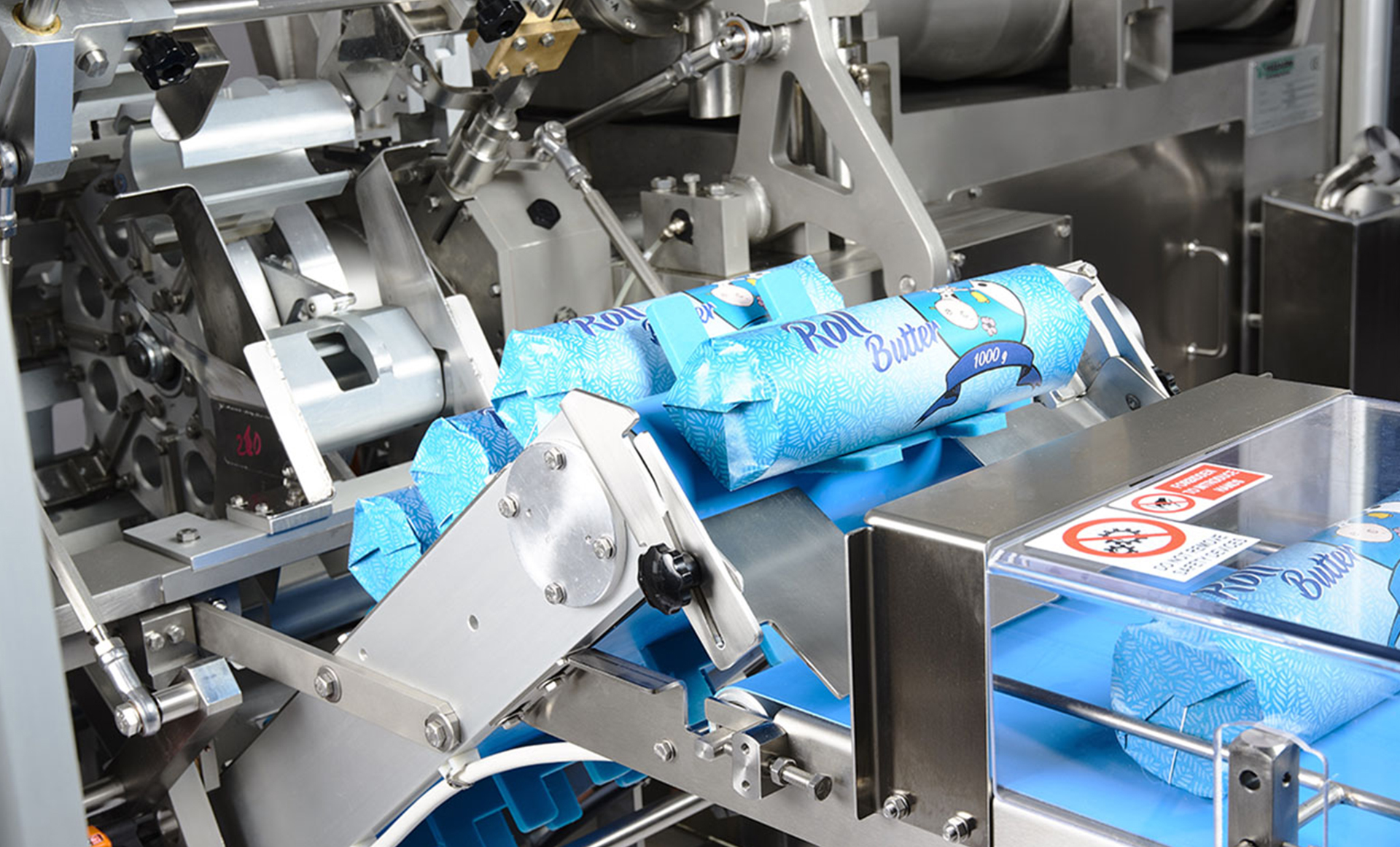

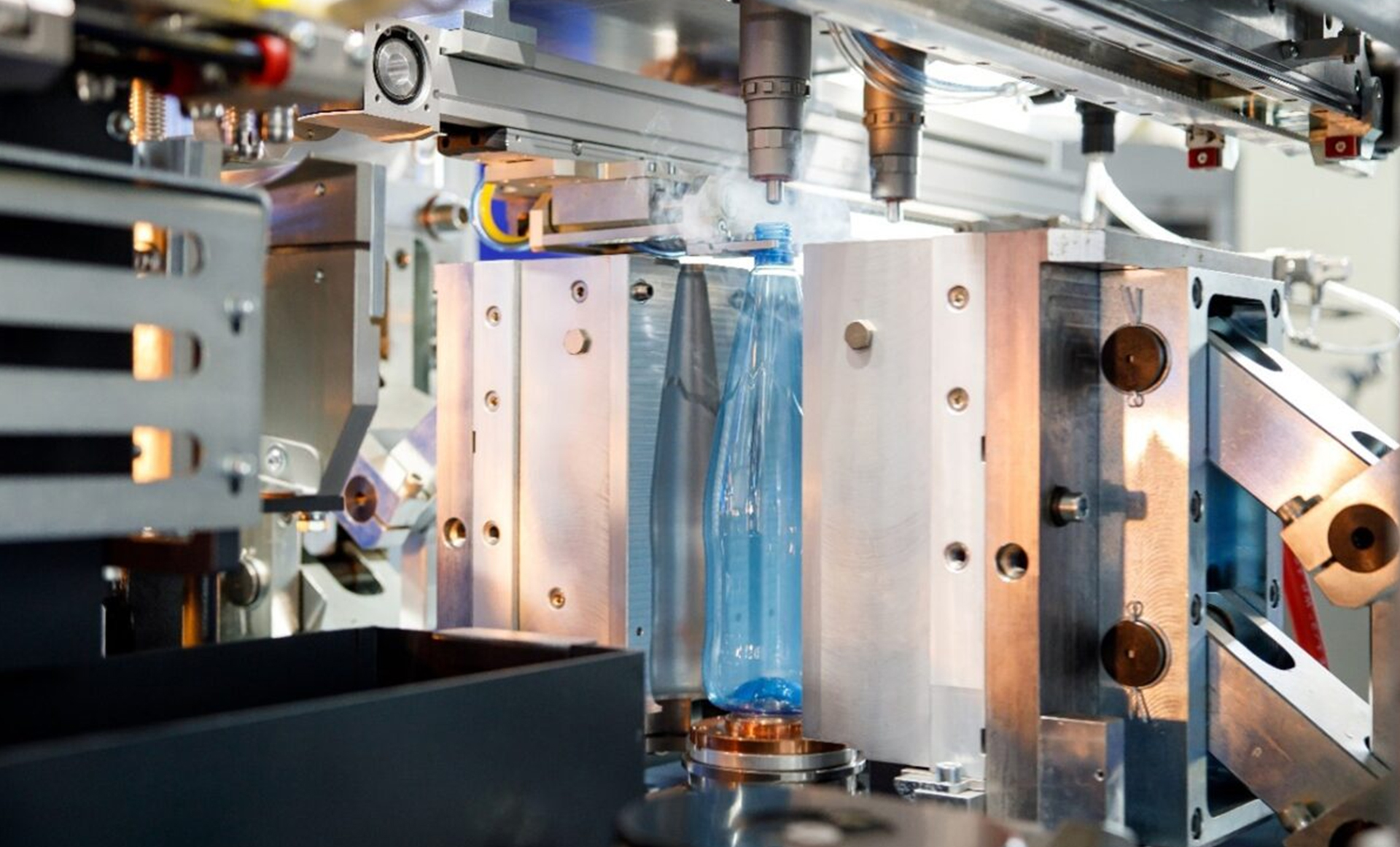

Pneumatic Controls | Blow Molding & Thermoforming | Packaging Machinery |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
