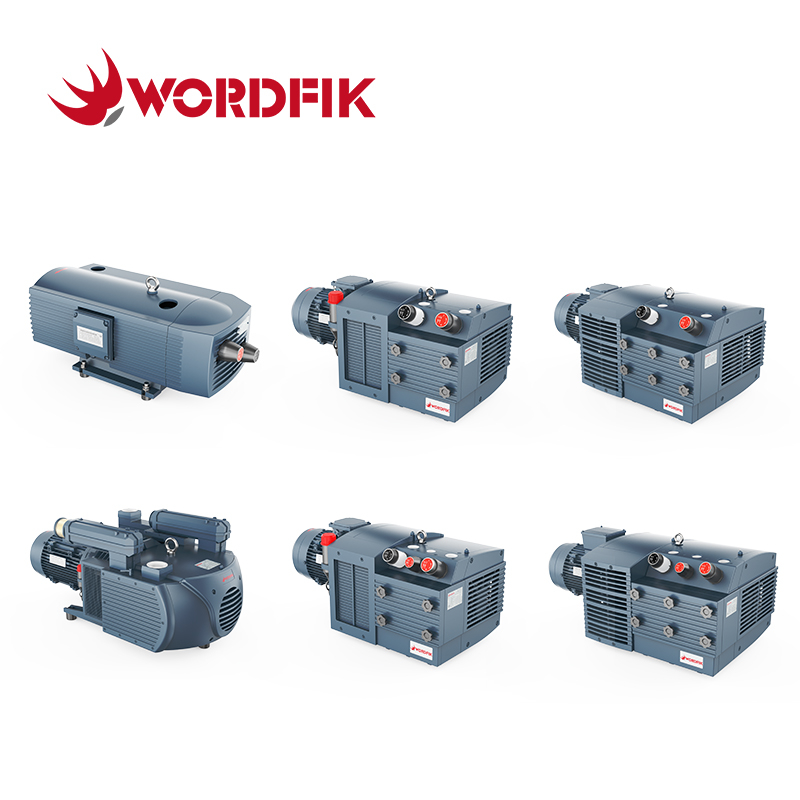

The Wordfik PVT & PVDT series is a complete portfolio of oil-free dry rotary vane combined pumps, delivering simultaneous vacuum and positive pressure in a single unit. The lineup spans from compact 16 m³/h (9.4 CFM) OEM models to heavy-duty 250 m³/h (147 CFM) industrial units, available in standard single-suction (PVT) and dual-suction (PVDT) configurations, with pressure ratings from ±500 mbar (7.3 PSIG) up to ±600 mbar (8.7 PSIG).
Designed as direct drop-in replacements for the full Becker T, DVT and DVTLF oil-free combined pump portfolios, every unit shares a proven single-shaft direct-drive architecture with self-lubricating graphite vanes. All PVT/PVDT pumps operate 100% oil-free, delivering clean, contaminant-free air on both vacuum and pressure sides with zero oil mist pollution. The entire range adheres to a unified premium build standard – including high-grade carbon vanes and industrial-grade bearings – ensuring consistent reliability, minimal maintenance and long service life across every size.
With broad global voltage compatibility and standard CE certification, the series serves over 80 countries across printing, packaging, pneumatic controls, textile and garment manufacturing sectors.
Features:
Full Lineup with Two Configurations
12 models covering 16–250 m³/h flow range, available in single-suction (PVT) and dual-suction (PVDT) designs, with two pressure tiers. Precise sizing for every application from compact OEM equipment to factory-wide central systems.
Single & Dual Suction Options
Standard single-port models for general dual-function use; dual-port models with two independent suction inlets for powering two separate vacuum circuits simultaneously — replacing two pumps and cutting equipment cost by nearly 50%.
100% Oil-Free Clean Air Standard
Every model delivers completely oil-free vacuum and pressure with zero oil carryover. Eliminates workpiece contamination, oil mist emissions and pipeline residue, fully compliant with printing, packaging and food-grade process standards.
Uniform Premium Build Quality
High-precision machined rotors, genuine industrial bearings and high-grade EK60 self-lubricating carbon vanes are standard across the entire range. Guarantees consistent performance, low wear and extended service life regardless of pump size.
Full Becker Equivalent Replacement Range
Every PVT/PVDT model matches mounting dimensions, port sizes and performance parameters of corresponding Becker T, DVT and DVTLF combined pumps. Enables direct drop-in replacement across the entire Becker lineup with no system modifications.
Global Certification & In-Stock Support
Broad single-phase and three-phase voltage options, with dual 50/60Hz support on most models. All standard units are fully stocked for fast global shipping, backed by 1-year warranty and lifetime technical support.
| Frequency | Pumping Speed | Vacuum | Pressure | Motor Power | Motor Voltage | Motor Speed | Noise Level | Inlet Connection | Pressure Connection | Weight | Dimensions | ||
| 3ph | 1ph | ||||||||||||
| PVT16 | 50Hz | 16 m³/h | -600 mbar | +600 mbar | 0.75 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 69 dB(A) | ½ inch | ½ inch | 36 kg | 511*283*225 mm |
| 60Hz | 20 m³/h | 0.9 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT25 | 50Hz | 25 m³/h | -600 mbar | +600 mbar | 1.25 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 69 dB(A) | ¾ inch | ¾ inch | 36 kg | 545*328*290 mm |
| 60Hz | 30 m³/h | 1.5 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT40 | 50Hz | 40 m³/h | -600 mbar | +600 mbar | 1.85 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 68 dB(A) | ¾ inch | ¾ inch | 45 kg | 617*321*295 mm |
| 60Hz | 48 m³/h | 2.2 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT60 | 50Hz | 60 m³/h | -600 mbar | +600 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB(A) | 1 inch | 1 inch | 74 kg | 731*340*340 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1710 rpm | ||||||||||
| PVT80 | 50Hz | 80 m³/h | -600 mbar | +600 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB(A) | 1 inch | 1 inch | 79 kg | 731*340*340 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1710 rpm | ||||||||||
| PVT100 | 50Hz | 100 m³/h | -600 mbar | +600 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 77 dB(A) | 1½ inch | 1½ inch | 129 kg | 925*460*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1720 rpm | ||||||||||
| PVT140 | 50Hz | 140 m³/h | -600 mbar | +600 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 78 dB(A) | 1½ inch | 1½ inch | 140 kg | 925*460*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1720 rpm | ||||||||||
| PVT200 | 50Hz | 178 m³/h | -500 mbar | +500 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 960 rpm | 75 dB(A) | 2½ inch | 2½ inch | 280 kg | 1210*612*527 mm |
| 60Hz | 218 m³/h | 6.6 kW | 1150 rpm | 77 dB(A) | |||||||||
| PVT250 | 50Hz | 250 m³/h | -500 mbar | +500 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 960 rpm | 81 dB(A) | 2½ inch | 2½ inch | 312 kg | 1210*612*527 mm |
| 60Hz | 300 m³/h | 9 kW | 1150 rpm | ||||||||||
| PVDT60 | 50Hz | 60 m³/h | -600 mbar | +600 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB(A) | 1 inch ¾ inch | 1 inch | 74 kg | 731*340*340 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1710 rpm | ||||||||||
| PVDT80 | 50Hz | 80 m³/h | -600 mbar | +600 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB(A) | 1 inch ¾ inch | 1 inch | 79 kg | 731*340*340 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1710 rpm | ||||||||||
| PVDT100 | 50Hz | 100 m³/h | -600 mbar | +600 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 77 dB(A) | 1½ inch 1 inch | 1½ inch | 129 kg | 925*460*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1720 rpm | ||||||||||
| PVDT140 | 50Hz | 140 m³/h | -600 mbar | +600 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 78 dB(A) | 1½ inch 1 inch | 1½ inch | 140 kg | 925*460*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1720 rpm | ||||||||||
Application:
 |  |  |

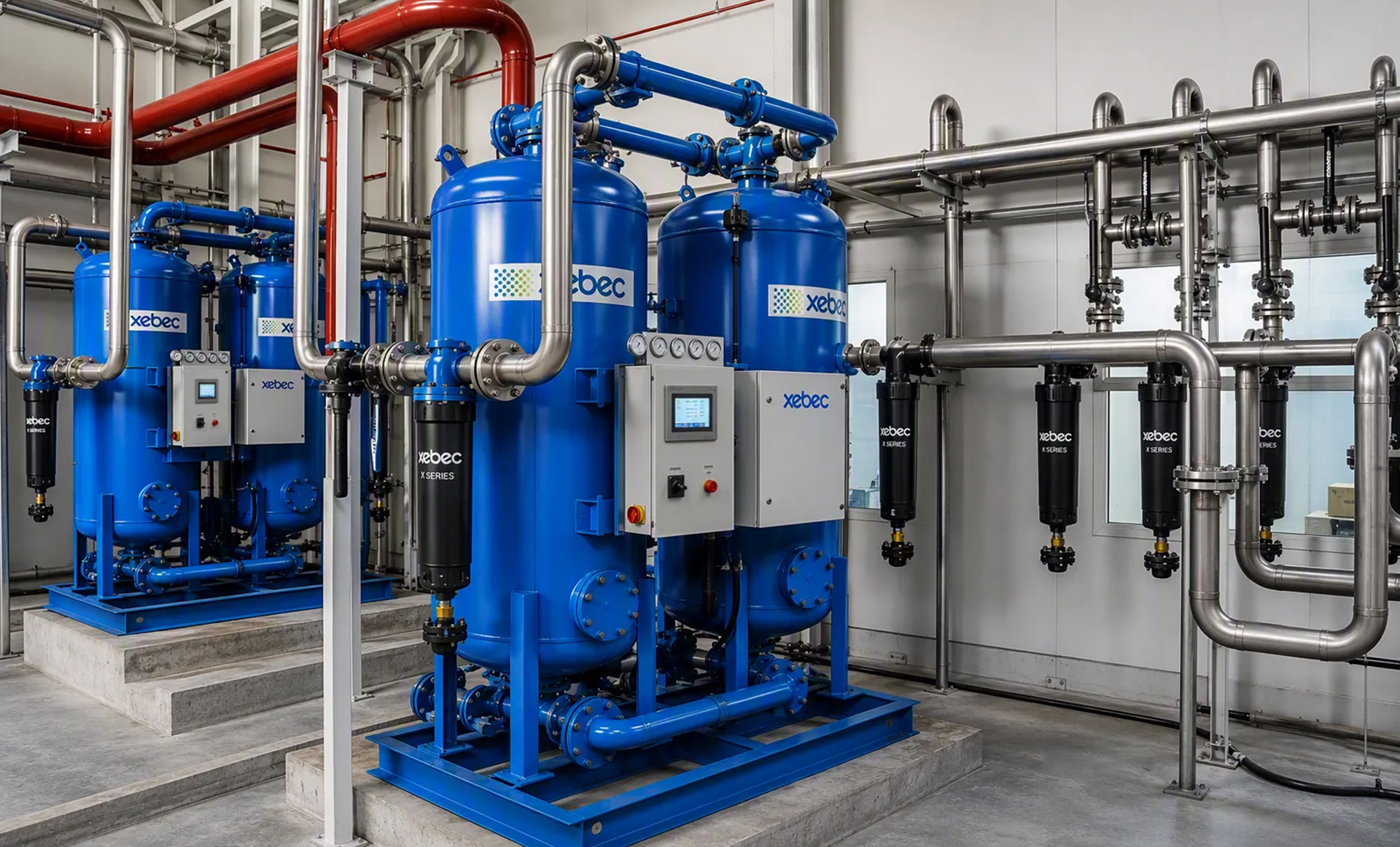

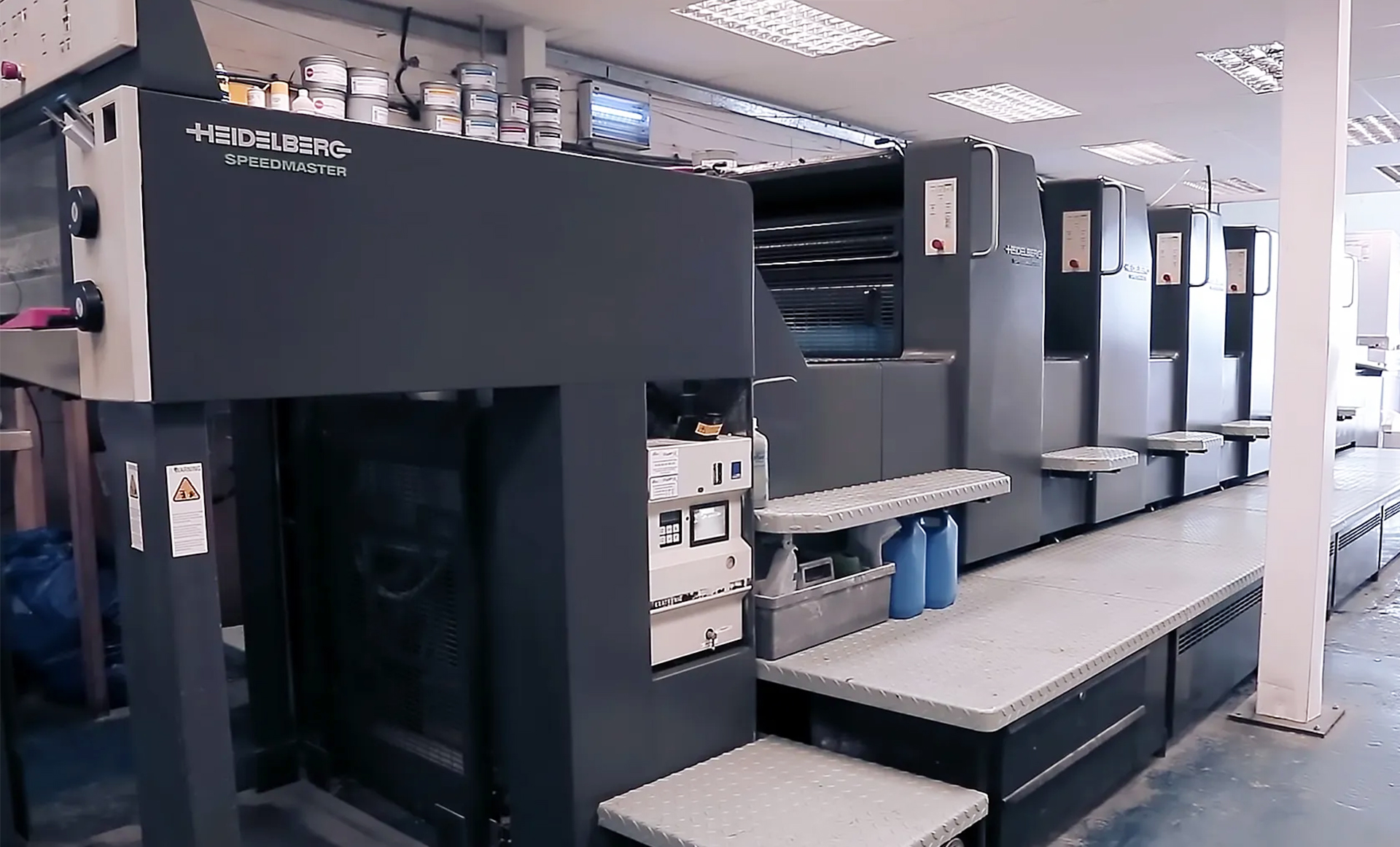

| Printing Machines | Pneumatic Controls | Central Air System |
 |  |  |

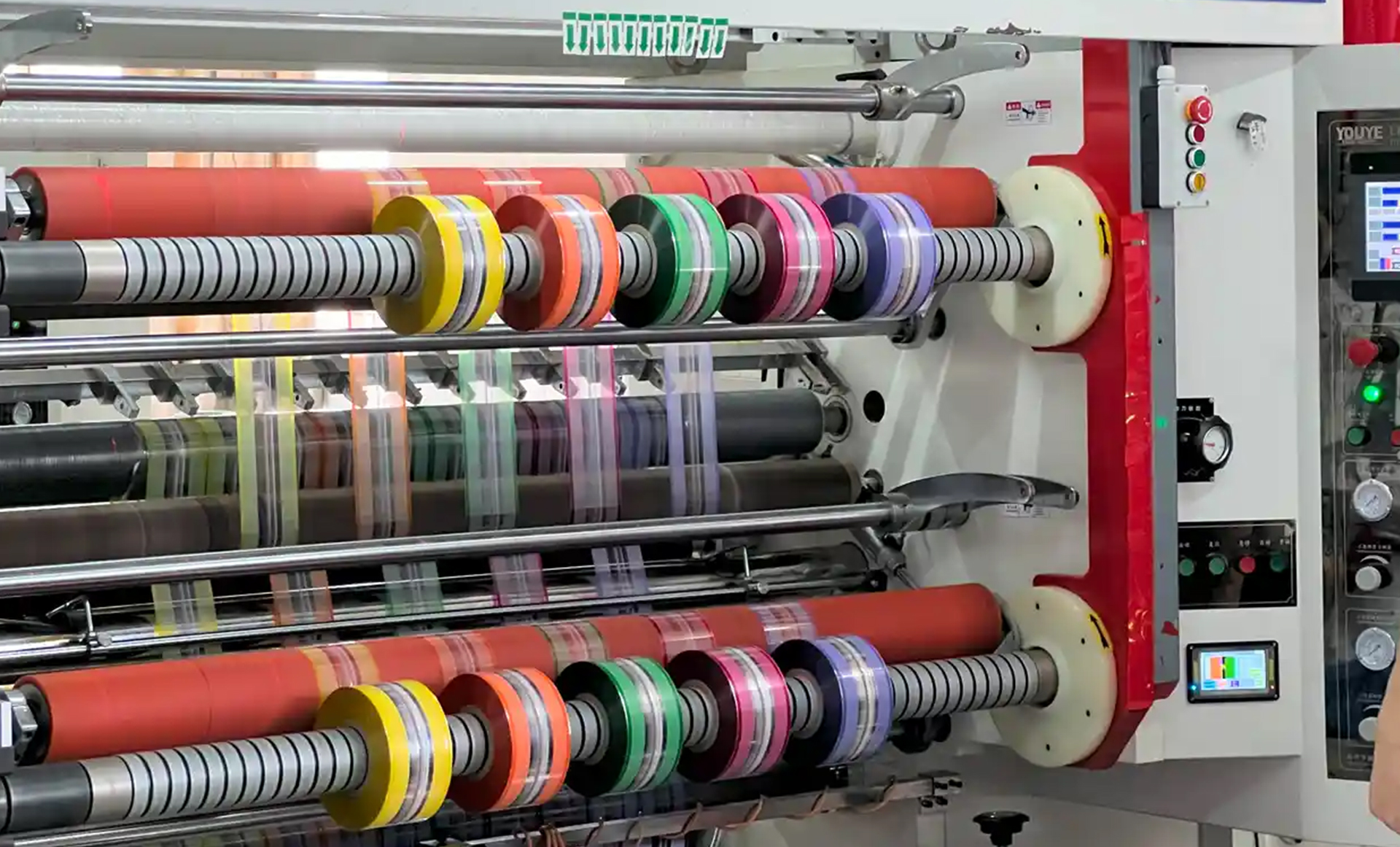

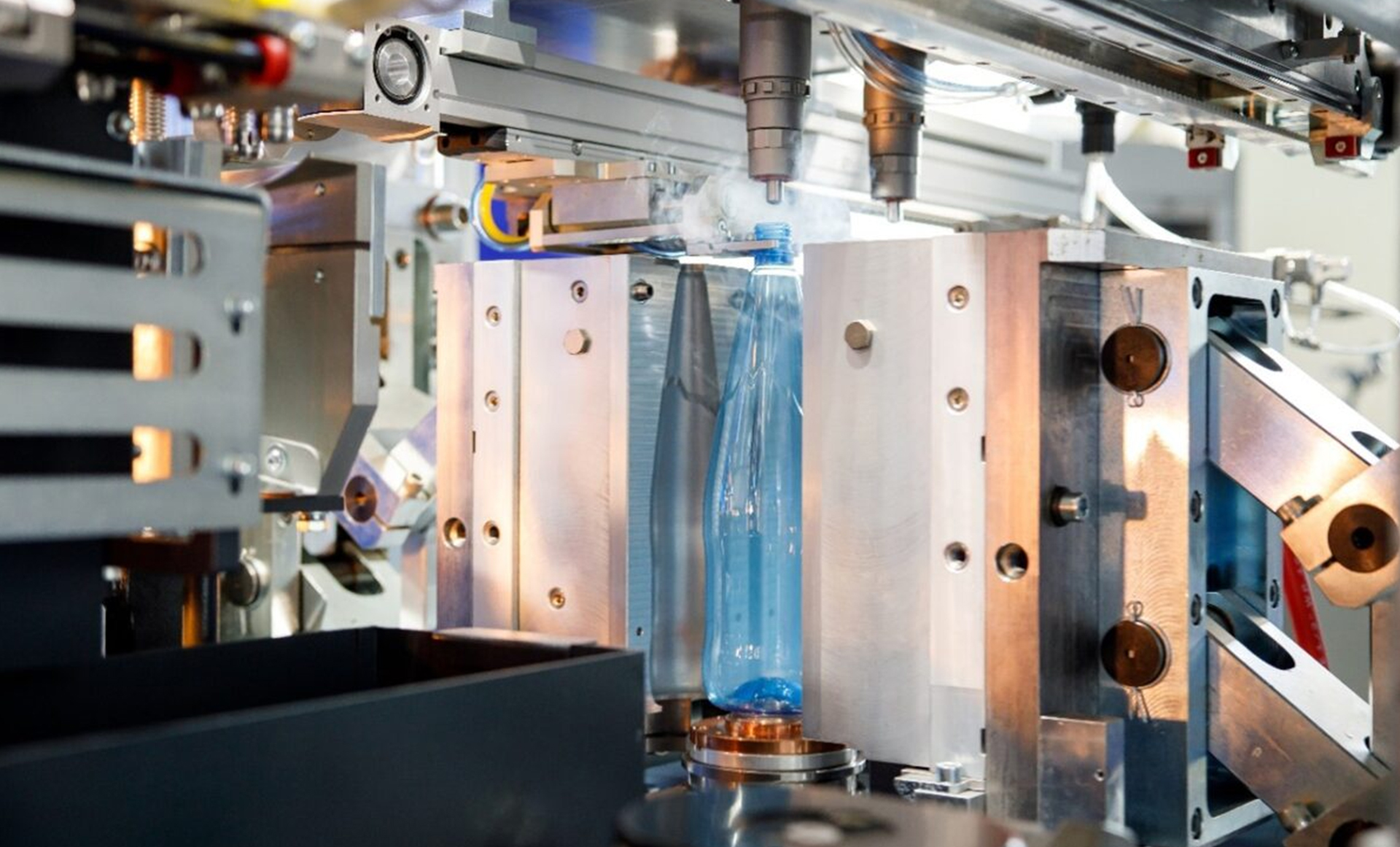

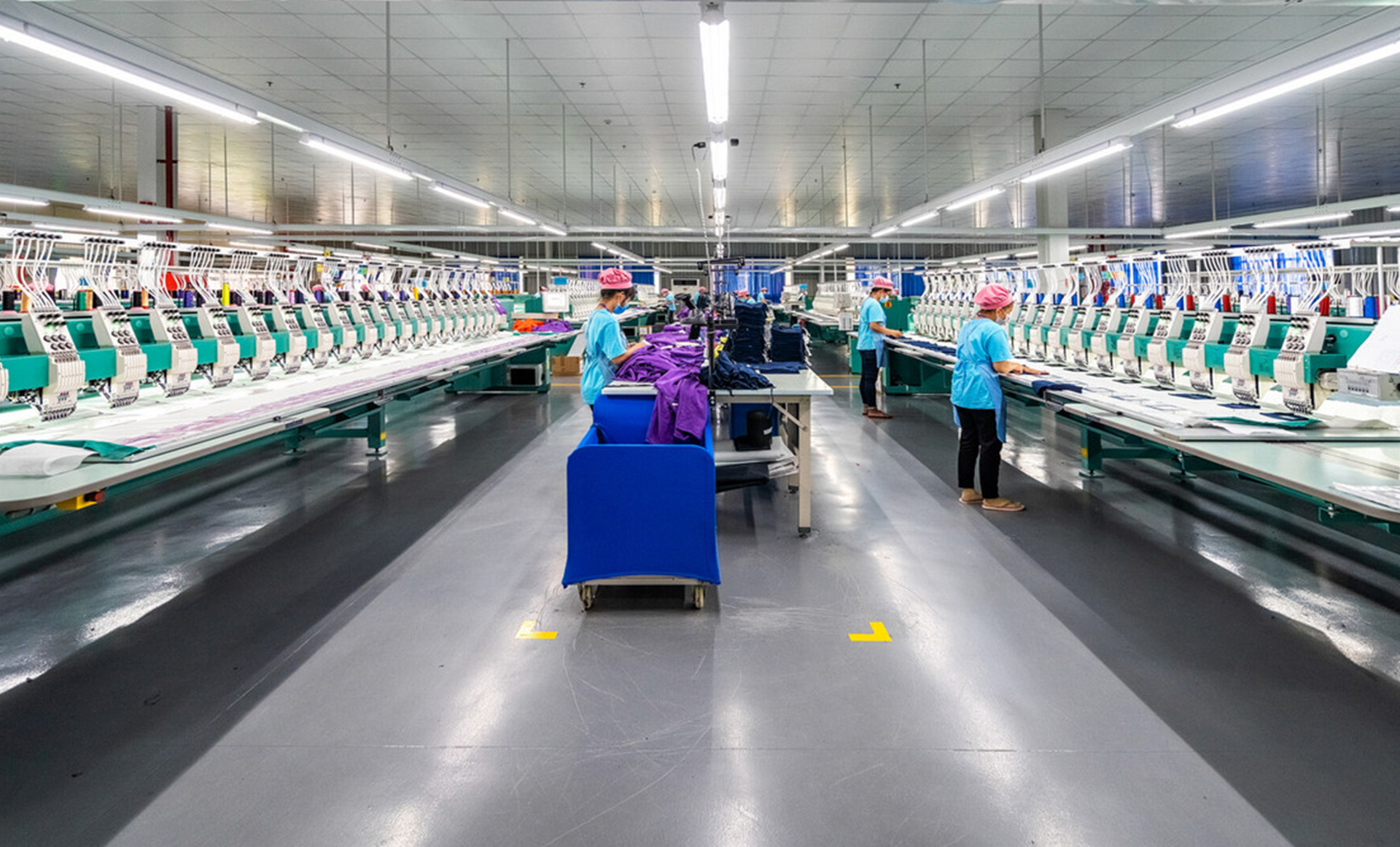

Flexible Packaging & Bagging | Textile & Garment Manufacturing | Blow Molding & Thermoforming |
