The Wordfik PVT40 is a compact, energy-efficient oil-free dry rotary vane combined pump that delivers simultaneous vacuum and positive pressure with ultra-low noise performance. As a direct drop-in replacement for Becker T 1.40 and Elmo V-VTN 41 oil-free combined pumps, it provides 40 m³/h (23.5 CFM) at 50Hz and 48 m³/h (28.3 CFM) at 60Hz airflow, with a matched -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a precision single-shaft direct-drive platform with self-lubricating graphite vanes, it operates with zero internal metal-to-metal contact, enabling self-wear compensation and an 8000-hour maintenance cycle. Its 100% oil-free design delivers clean, contaminant-free air on both sides, eliminating oil pollution to sensitive workpieces and production environments.
Powered by a 1.85 kW (2.5 HP) motor at 50Hz and 2.2 kW (3.0 HP) at 60Hz, the PVT40 features optimized noise reduction to just 68 dB(A), making it ideal for noise-sensitive workshop environments. It supports both single-phase and three-phase wide voltage inputs, comes standard with CE certification, and is widely used in precision printing, LED manufacturing and light food packaging.
Features:
Precision digital printing presses and small offset printing machines
Small form-fill-seal packaging lines and flexible bagging equipment
LED encapsulation and electronics manufacturing processes
Compact thermoforming and vacuum forming machines
Small textile cutting tables and garment production equipment
Light industrial pneumatic control and automation systems
| PVT40 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 40 m³/h | 48 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 1.85 kW | 2.2 kW |
| Motor Voltage | Δ 195-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 68 dB(A) | |
| Inlet Connection | ¾ inch | |
| Pressure Connection | ¾ inch | |
| Weight | 45 kg | |
| Dimensions | 617*321*295 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

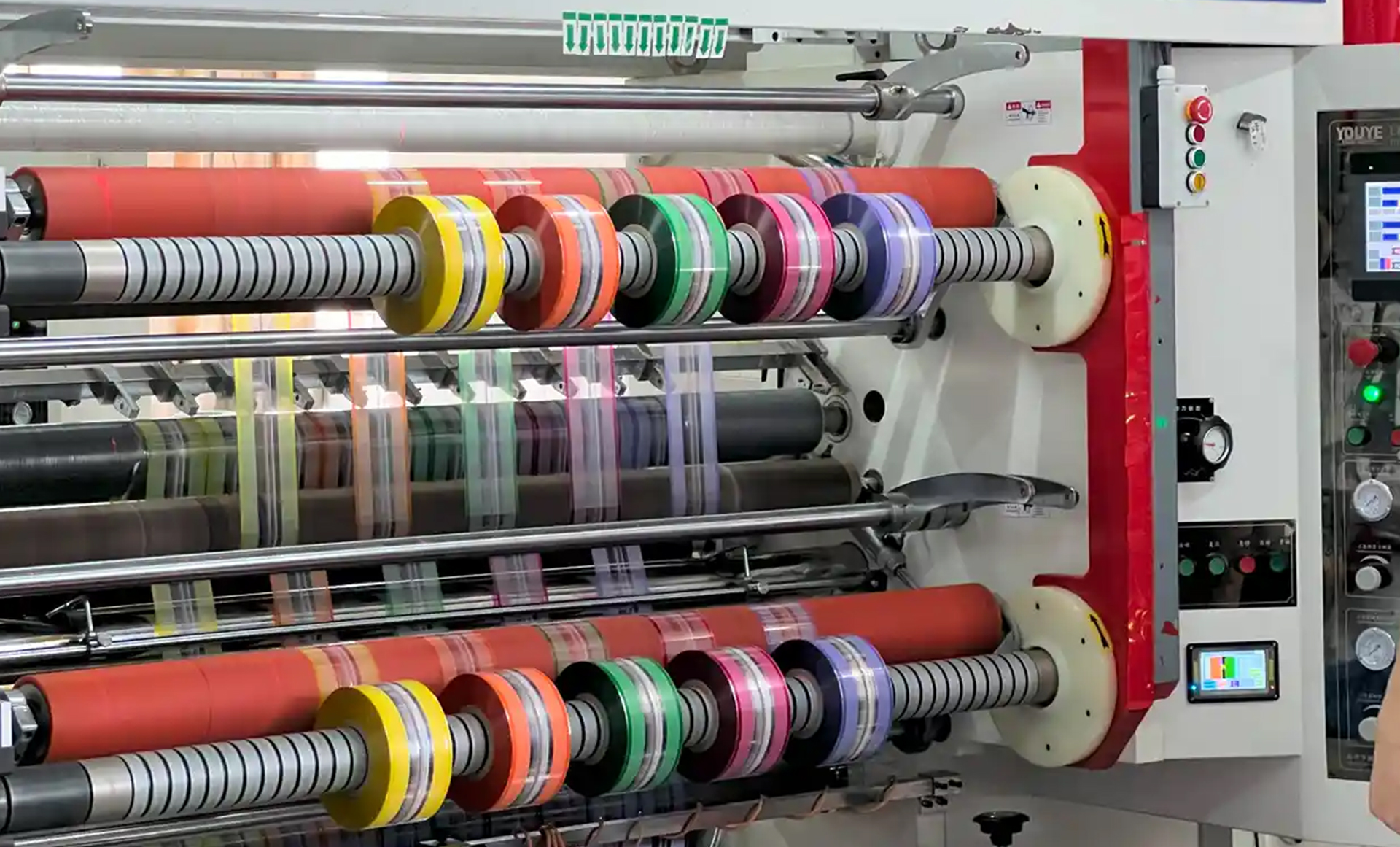

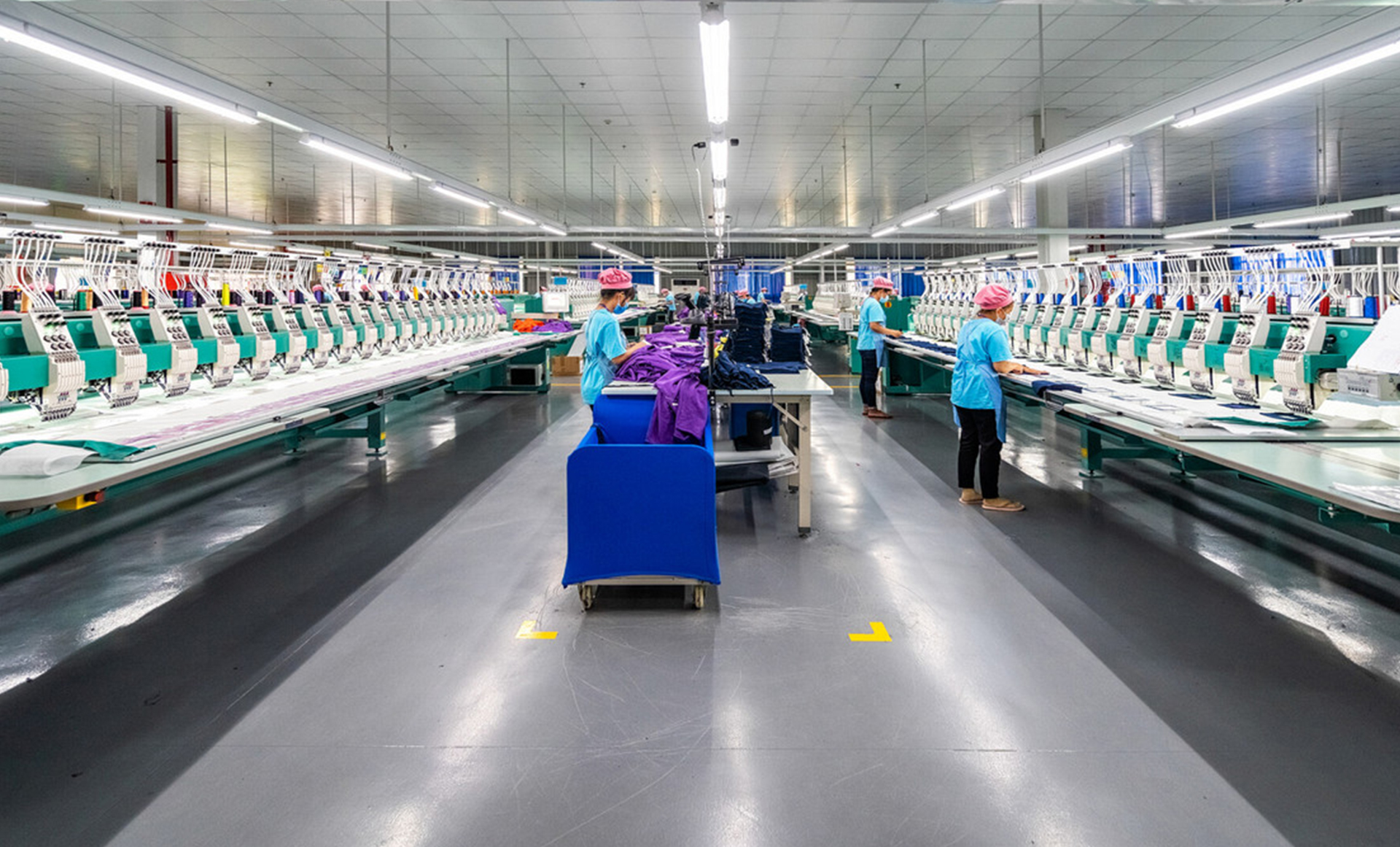

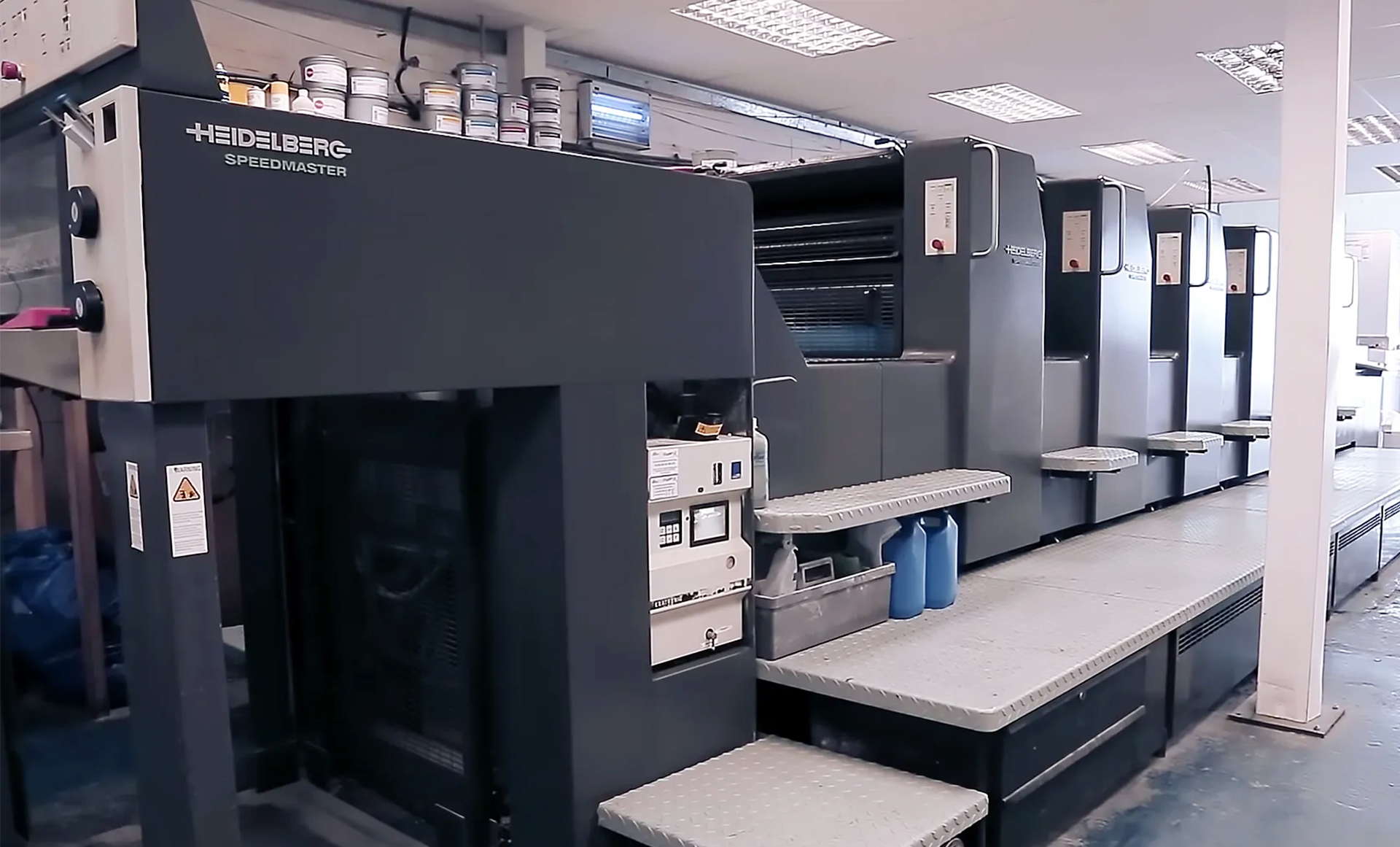

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

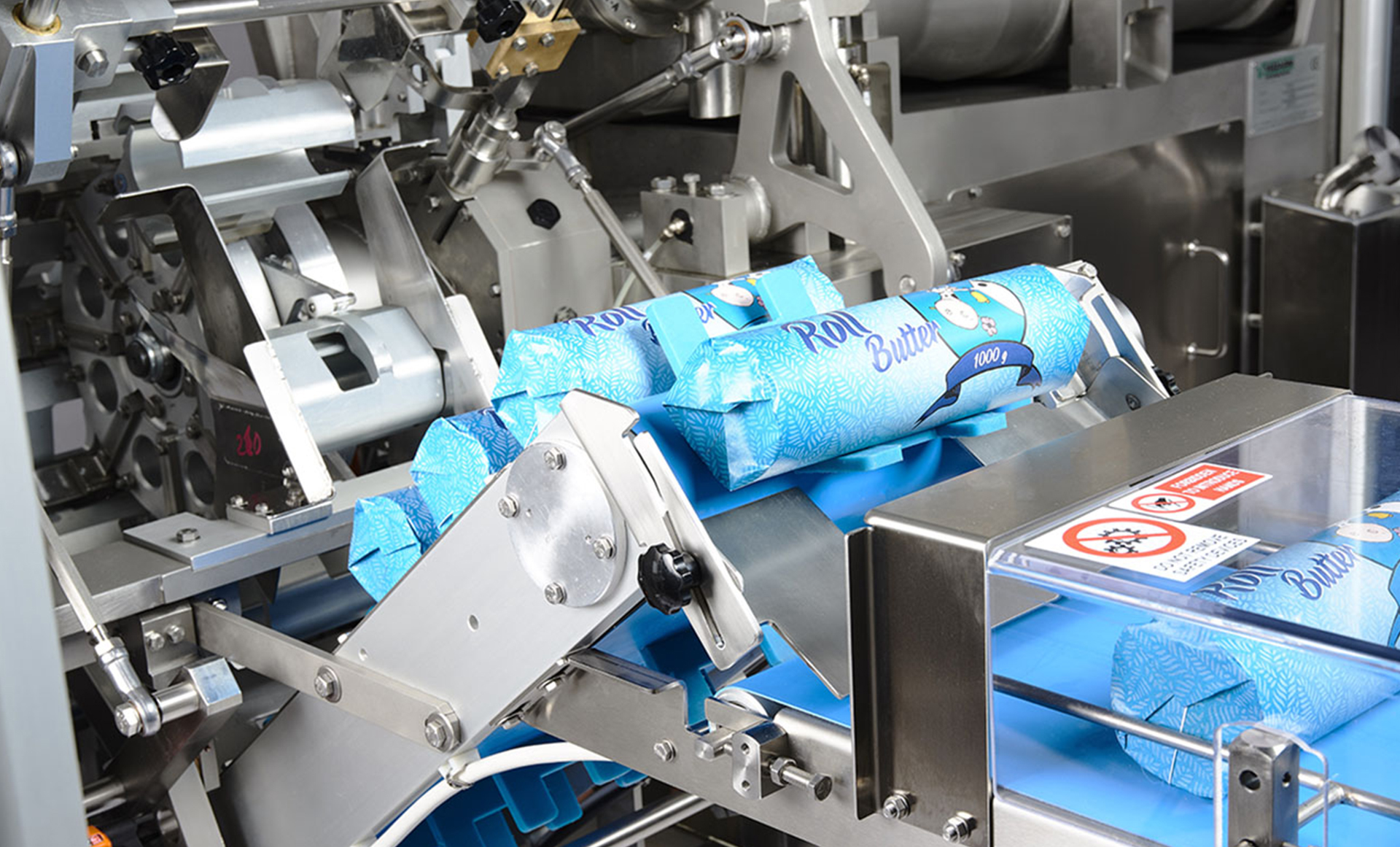

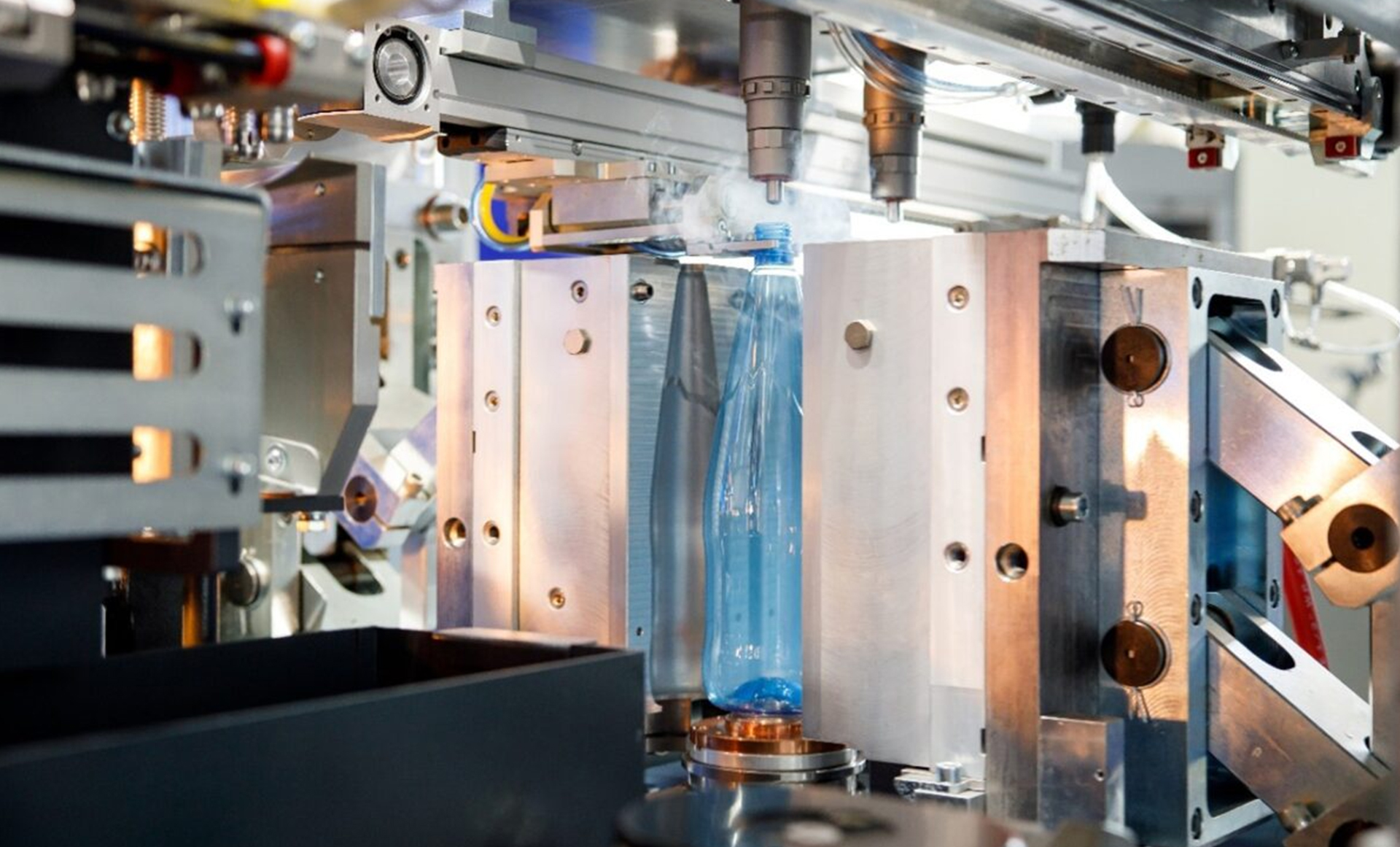

Pneumatic Controls | Blow Molding & Thermoforming | Packaging Machinery |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
