The Wordfik PVT80 is the industry-standard workhorse oil-free dry rotary vane combined pump, purpose-engineered for printing and packaging production lines. As a direct drop-in replacement for Becker DVT 3.80 oil-free combined pumps, it delivers 80 m³/h (47.1 CFM) at 50Hz and 96 m³/h (56.5 CFM) at 60Hz airflow, with a precise -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a proven heavy-duty direct-drive platform with premium graphite vanes, it operates with zero internal metal-to-metal contact, self-compensates for wear, and delivers consistent performance over thousands of operating hours. Its 100% oil-free design ensures zero oil contamination to printed substrates and packaging materials, protecting product quality and reducing waste.
Powered by a 4 kW (5.4 HP) industrial motor at 50Hz and 4.8 kW (6.4 HP) at 60Hz, the PVT80 is optimized for continuous high-duty cycles. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is the preferred choice for large-format printing, high-speed packaging and labeling machines.
Features:
Printing industry workhorse, optimized for sheet hold-down & blast air
100% oil-free dry vane technology, protects print & packaging quality
Direct drop-in replacement for Becker DVT 3.80 combined pumps
80–96 m³/h (47–57 CFM) flow, ±600mbar (17.7inHg / 8.7PSIG)
Heavy-duty build for 24/7 multi-shift continuous production
Wide three-phase voltage, long-life vanes, CE certified
| PVT80 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 80 m³/h | 96 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 4 kW | 4.8 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1420 rpm | 1710 rpm |
| Noise Level | 75 dB(A) | |
| Inlet Connection | 1 inch | |
| Pressure Connection | 1 inch | |
| Weight | 79 kg | |
| Dimensions | 731*340*340 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

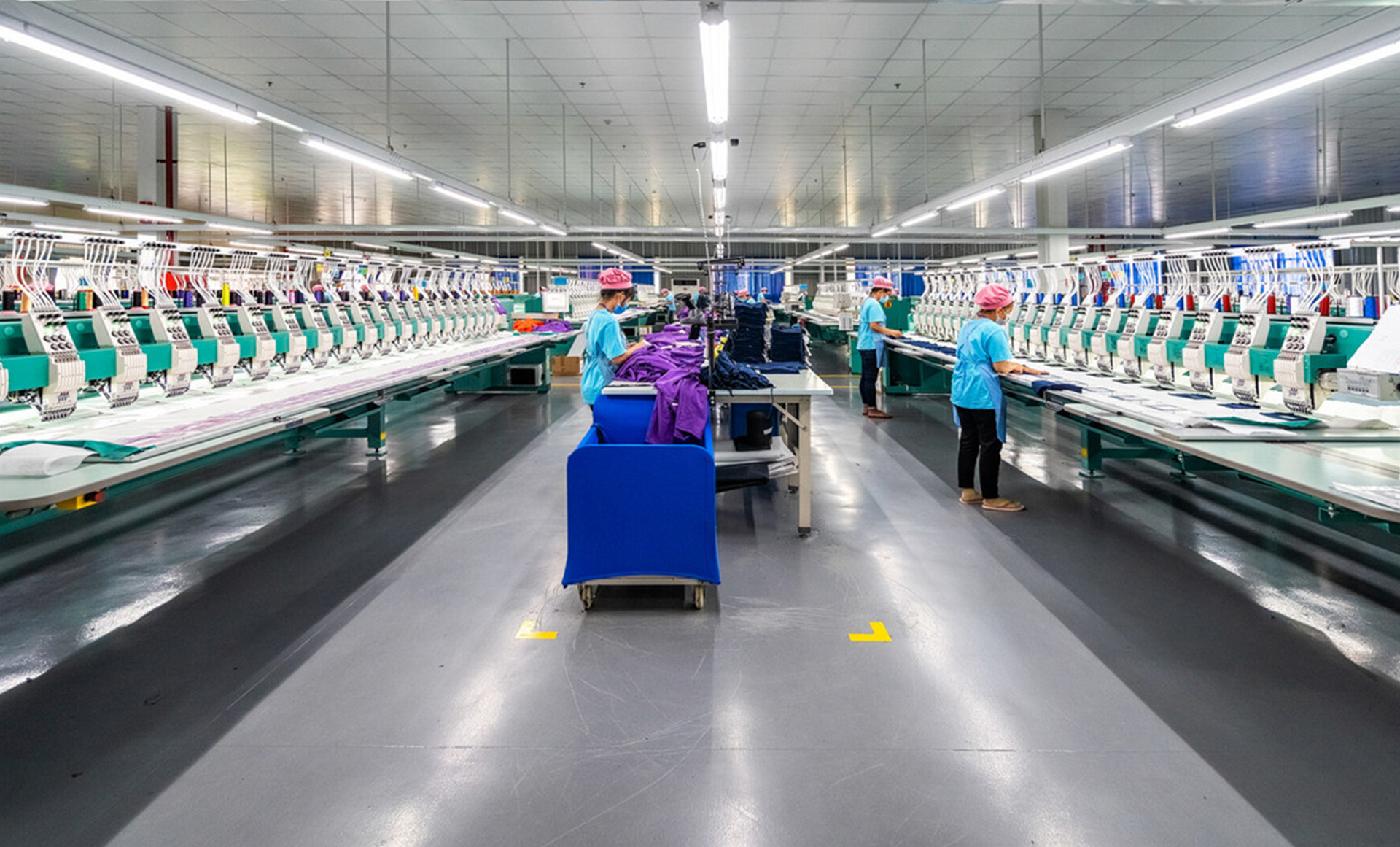

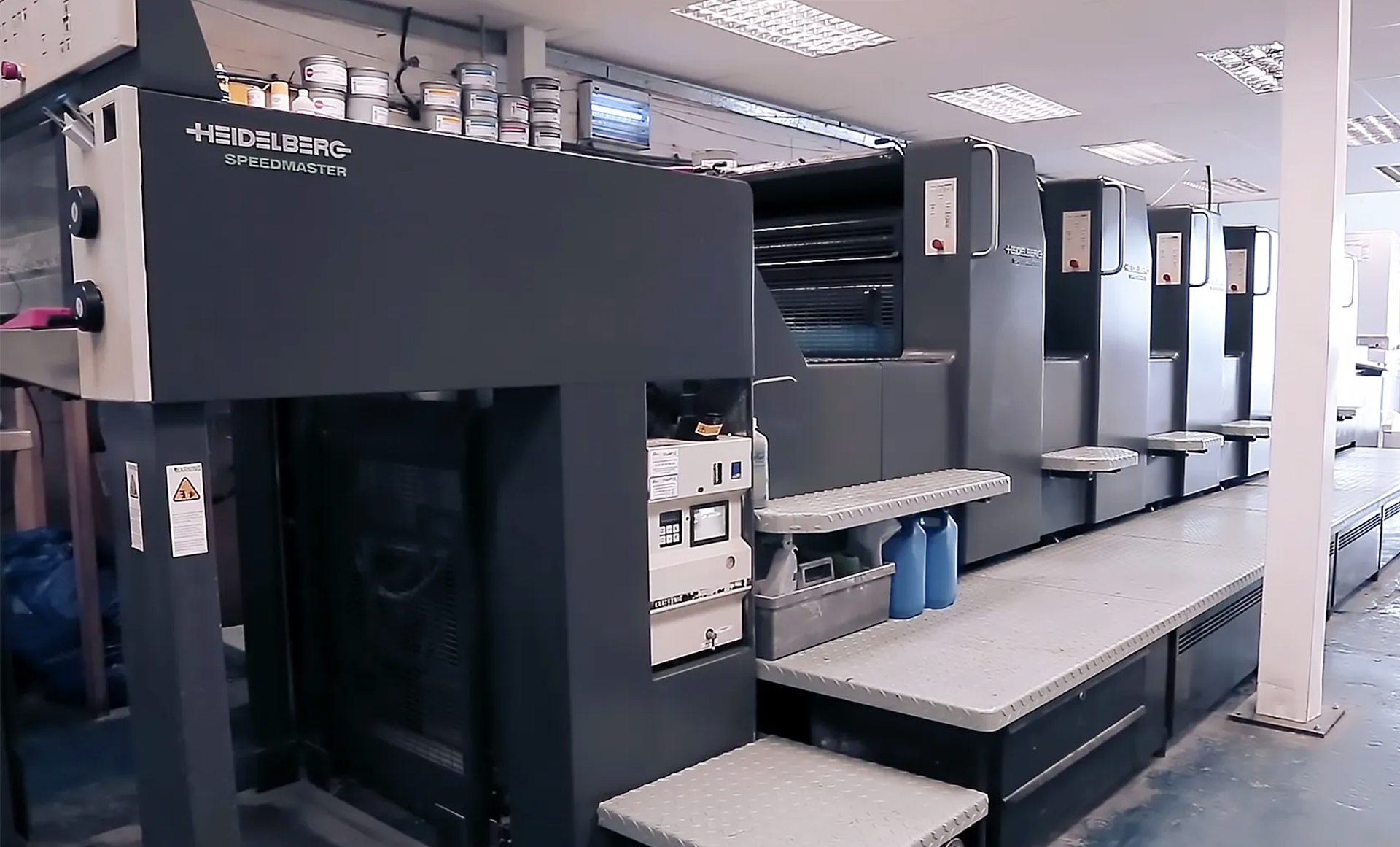

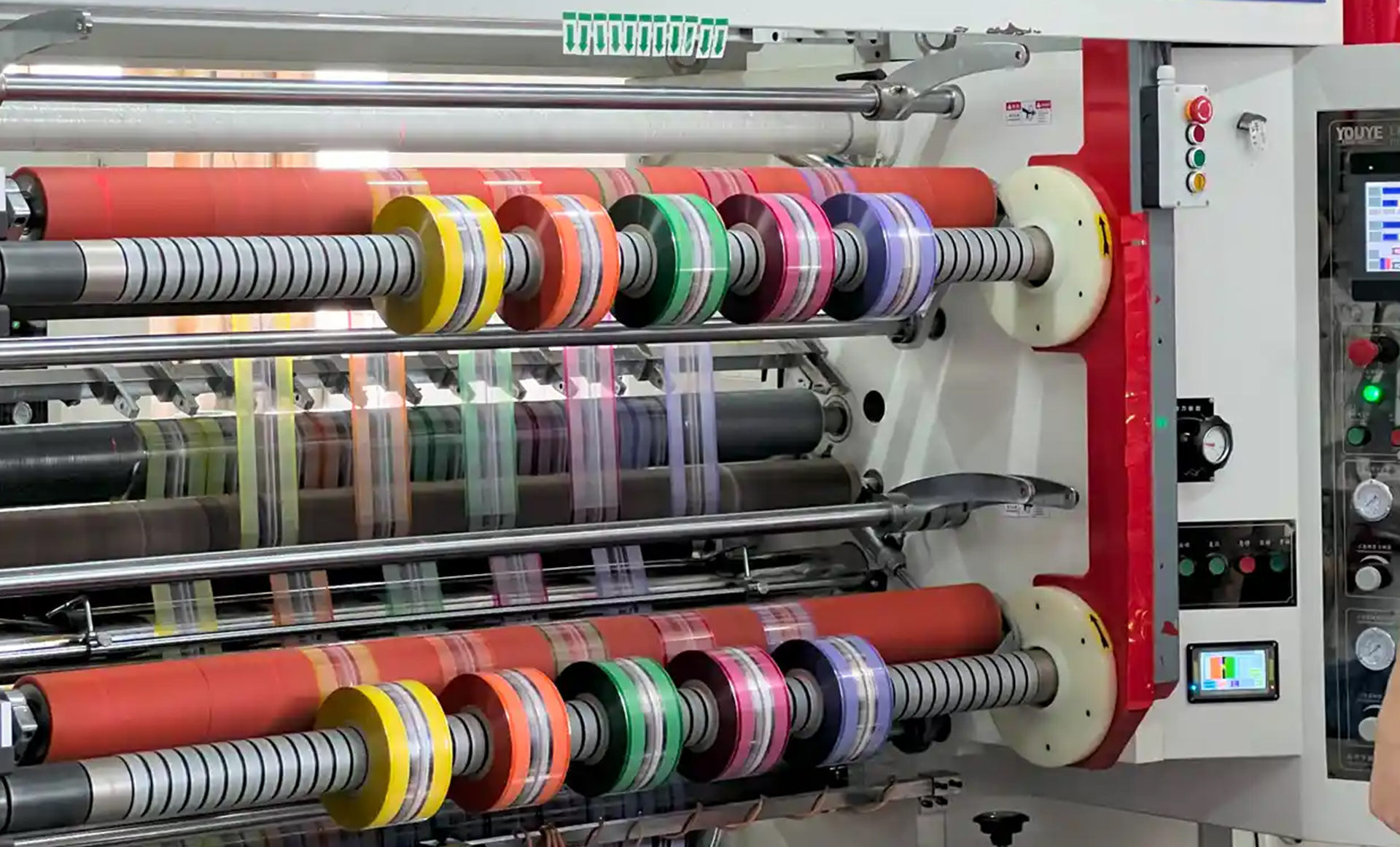

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

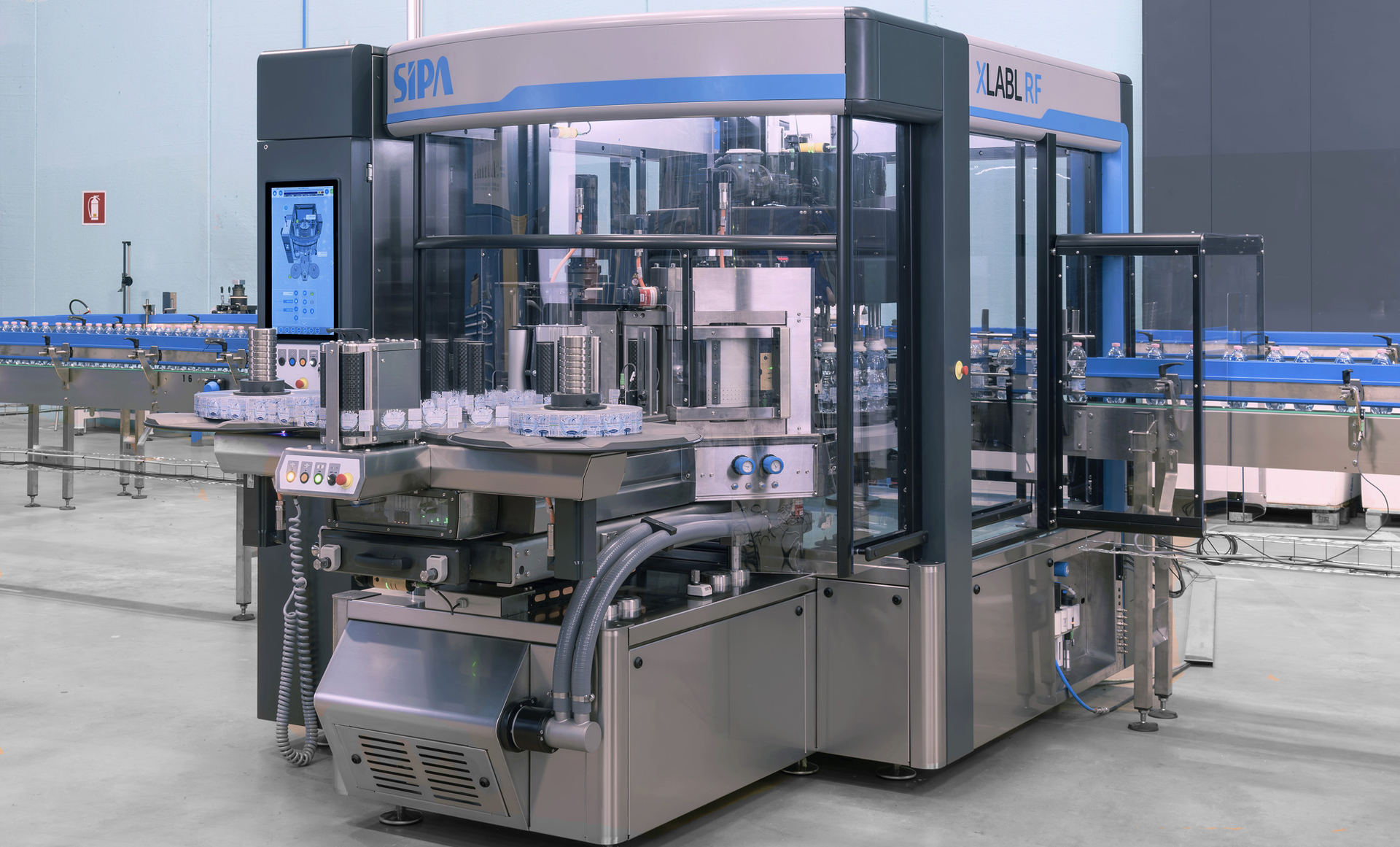

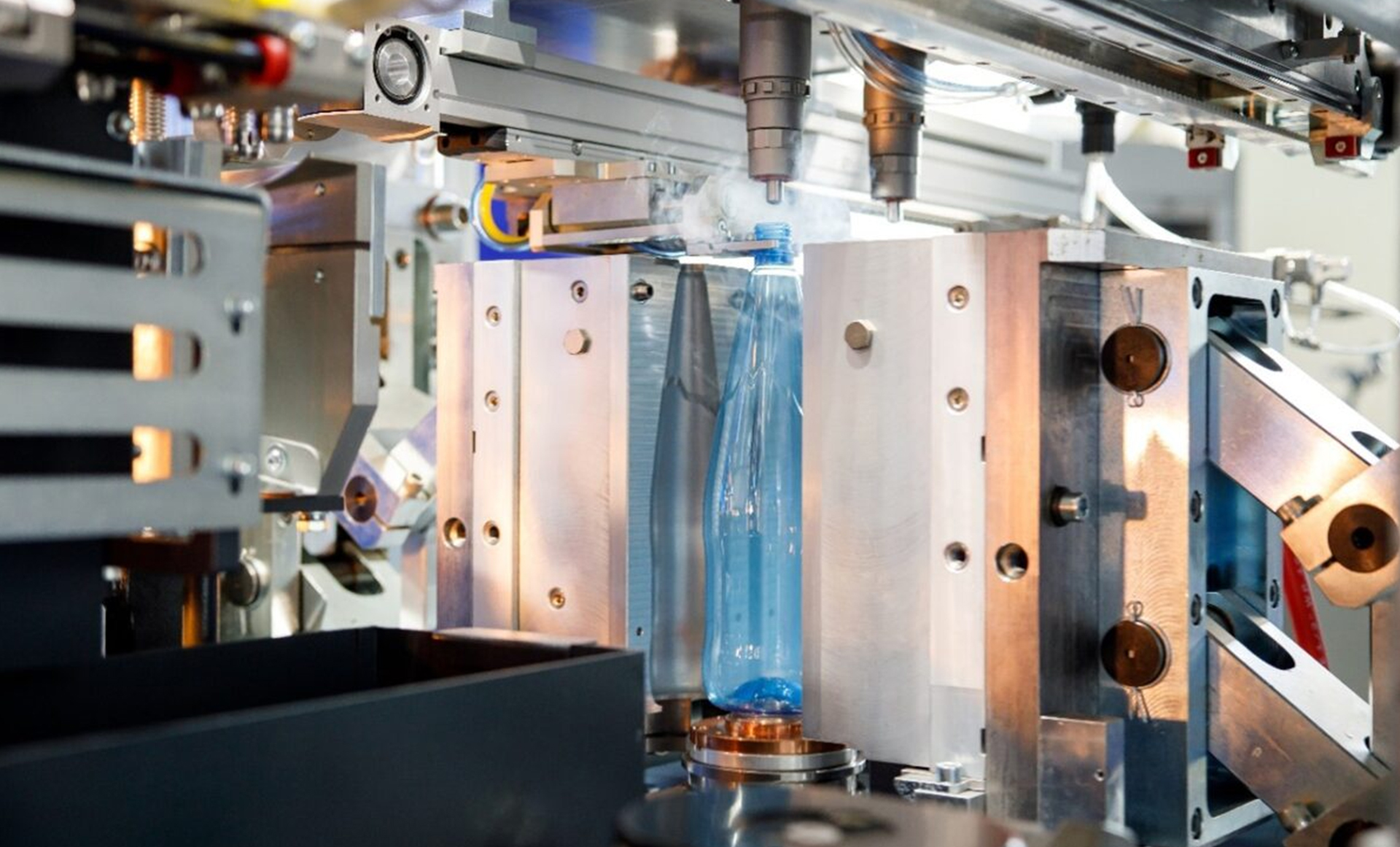

| Pneumatic Controls | Blow Molding & Thermoforming | Labeling Machines |

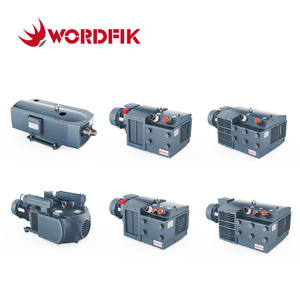

| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
