The Wordfik PVT100 is a high-capacity oil-free dry rotary vane combined pump engineered for multi-machine production lines and factory central systems. As a direct drop-in replacement for Becker DVT 3.100 and Elmo KTR 100 oil-free combined pumps, it delivers 100 m³/h (58.9 CFM) at 50Hz and 120 m³/h (70.6 CFM) at 60Hz airflow, with a stable -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a rugged heavy-duty direct-drive structure with premium self-lubricating carbon vanes, it operates with zero internal metal contact, self-compensates for wear, and maintains consistent performance under sustained full-load operation. Its 100% oil-free design delivers clean, contaminant-free air for plant-wide distribution, protecting equipment and finished products across multiple processes.
Powered by a 5.5 kW (7.5 HP) industrial motor at 50Hz and 6.6 kW (9 HP) at 60Hz, the PVT100 provides robust dual-function airflow for entire production workcells. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is ideal for large printing lines, central vacuum-pressure systems and high-capacity packaging.
Features:
High-flow dual-function design, powers multiple machines simultaneously
100% oil-free dry vane technology, plant-wide clean air supply
Direct drop-in replacement for Becker DVT 3.100 / Elmo KTR 100
100–120 m³/h (59–71 CFM) flow, ±600mbar (17.7inHg / 8.7PSIG)
Heavy-duty industrial build, designed for central system applications
Wide three-phase voltage, long-life vanes, CE certified
| PVT100 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 100 m³/h | 120 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 5.5 kW | 6.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1430 rpm | 1720 rpm |
| Noise Level | 77 dB(A) | |
| Inlet Connection | 1½ inch | |
| Pressure Connection | 1½ inch | |
| Weight | 129 kg | |
| Dimensions | 925*460*382 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

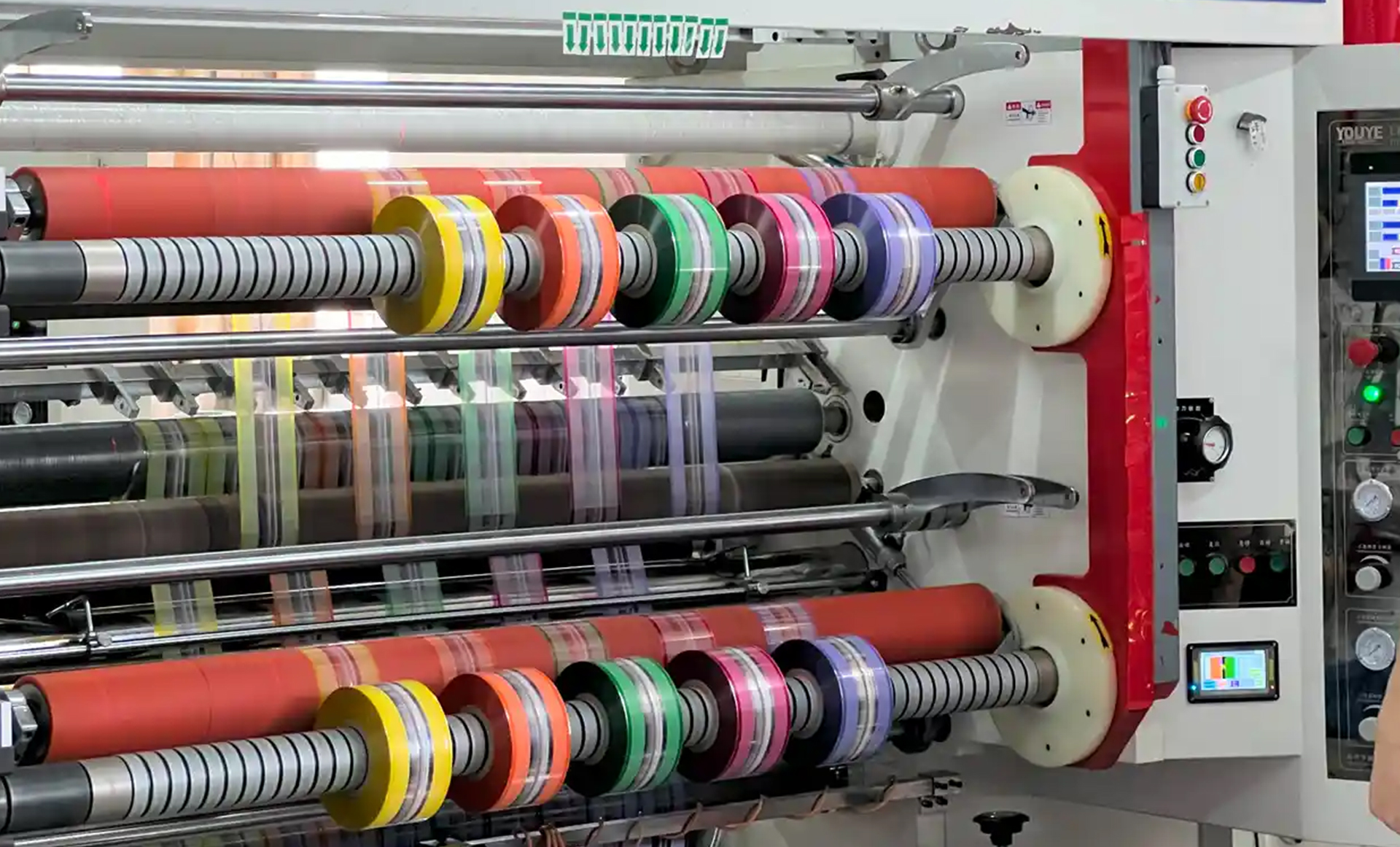

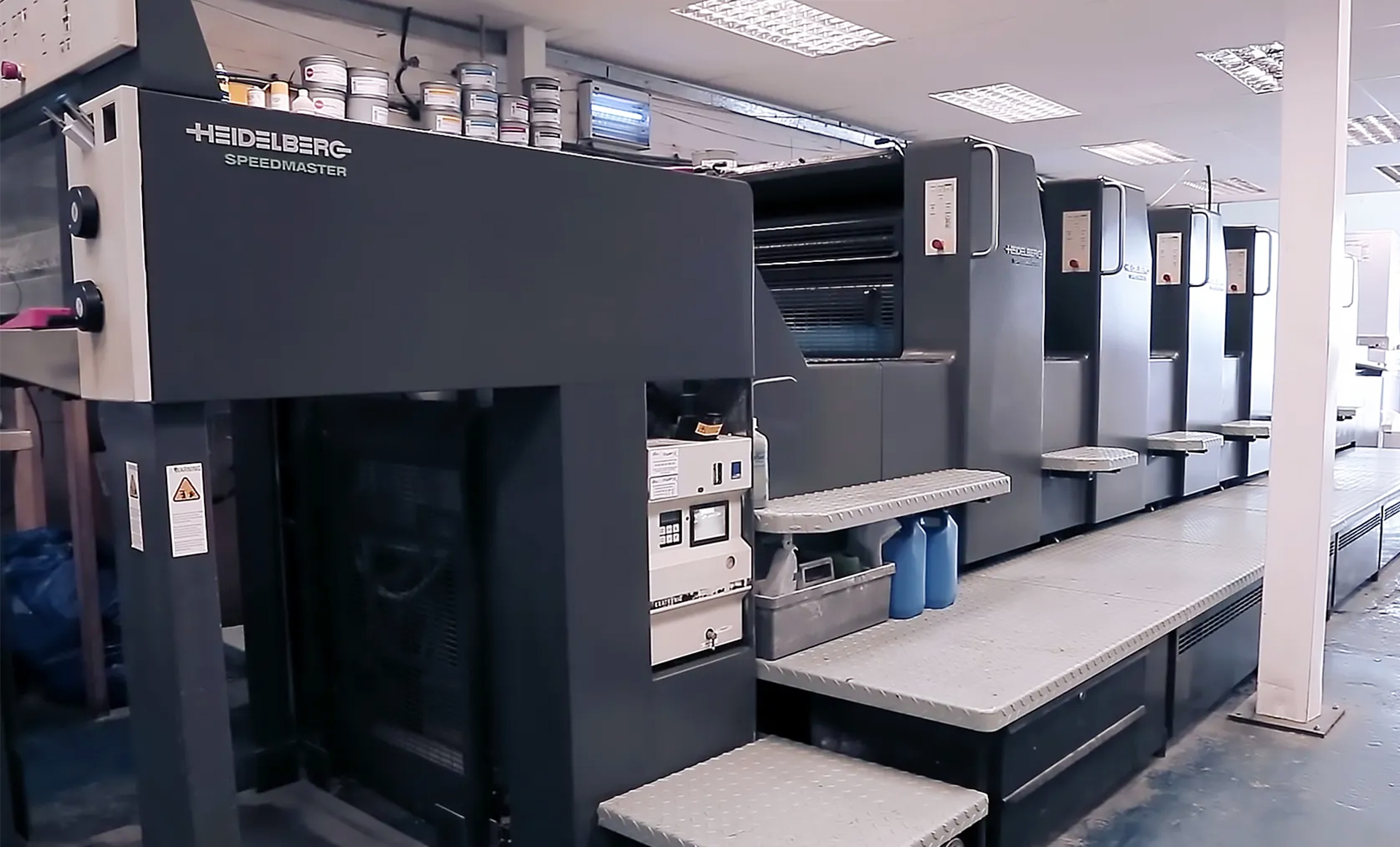

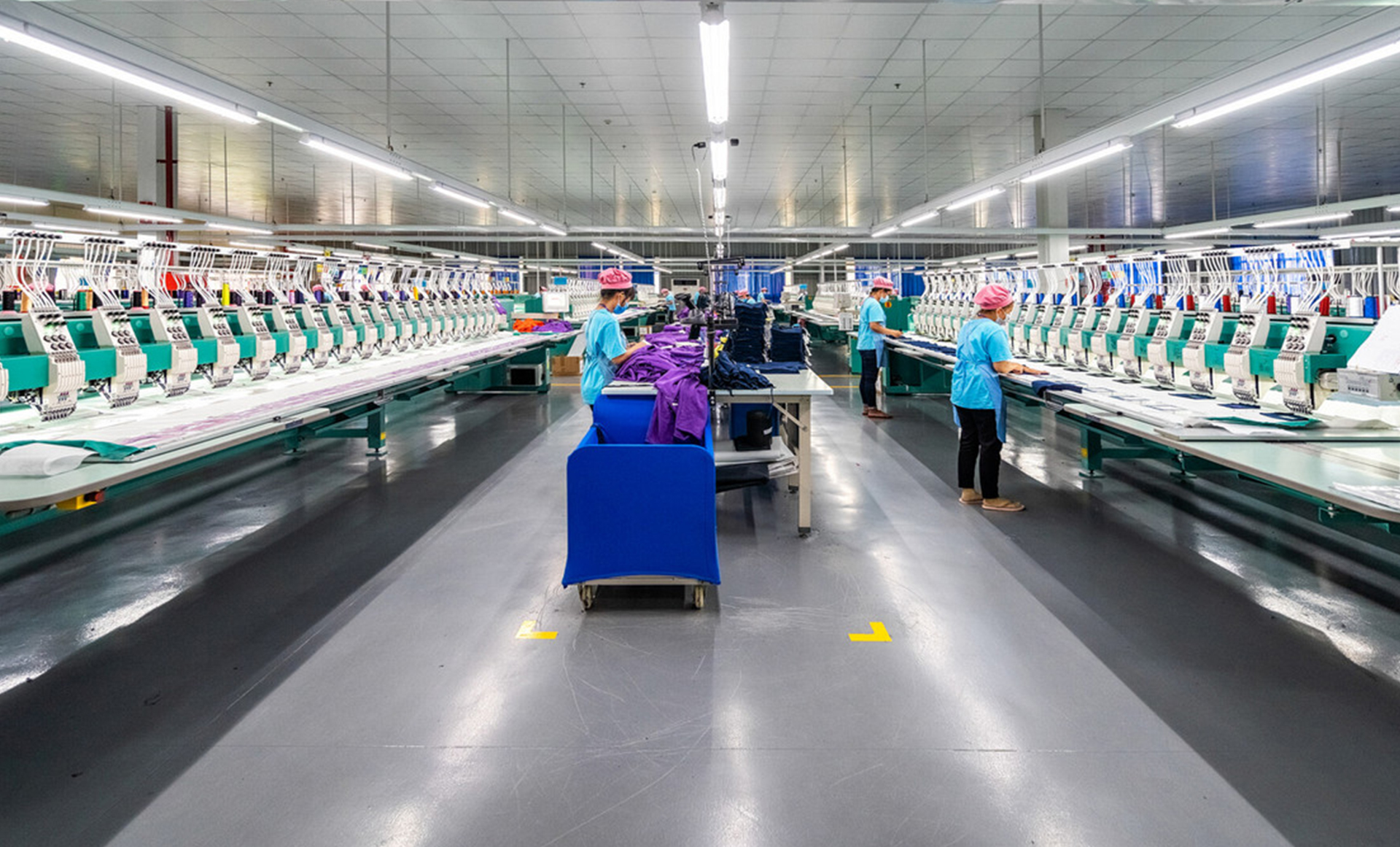

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

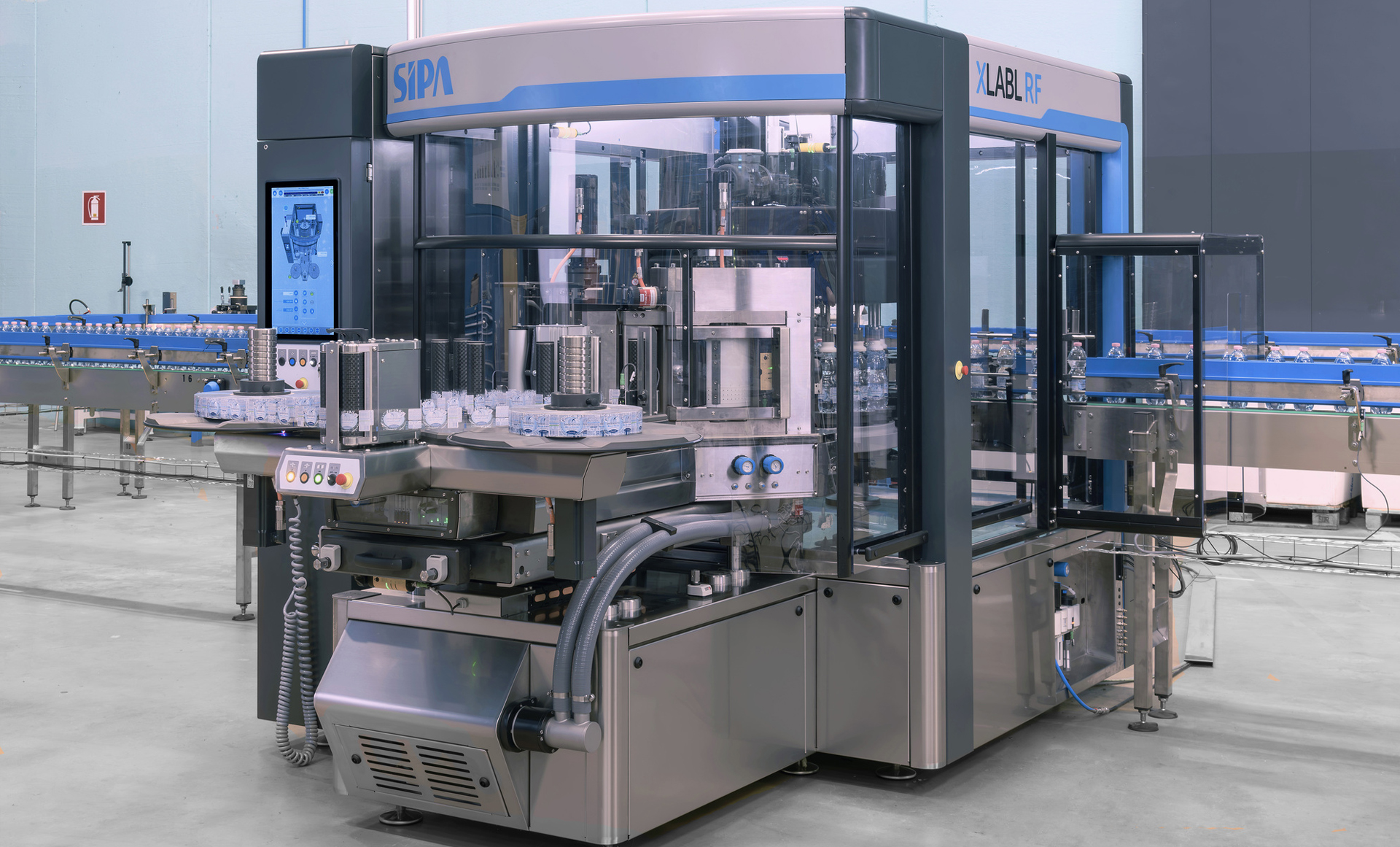

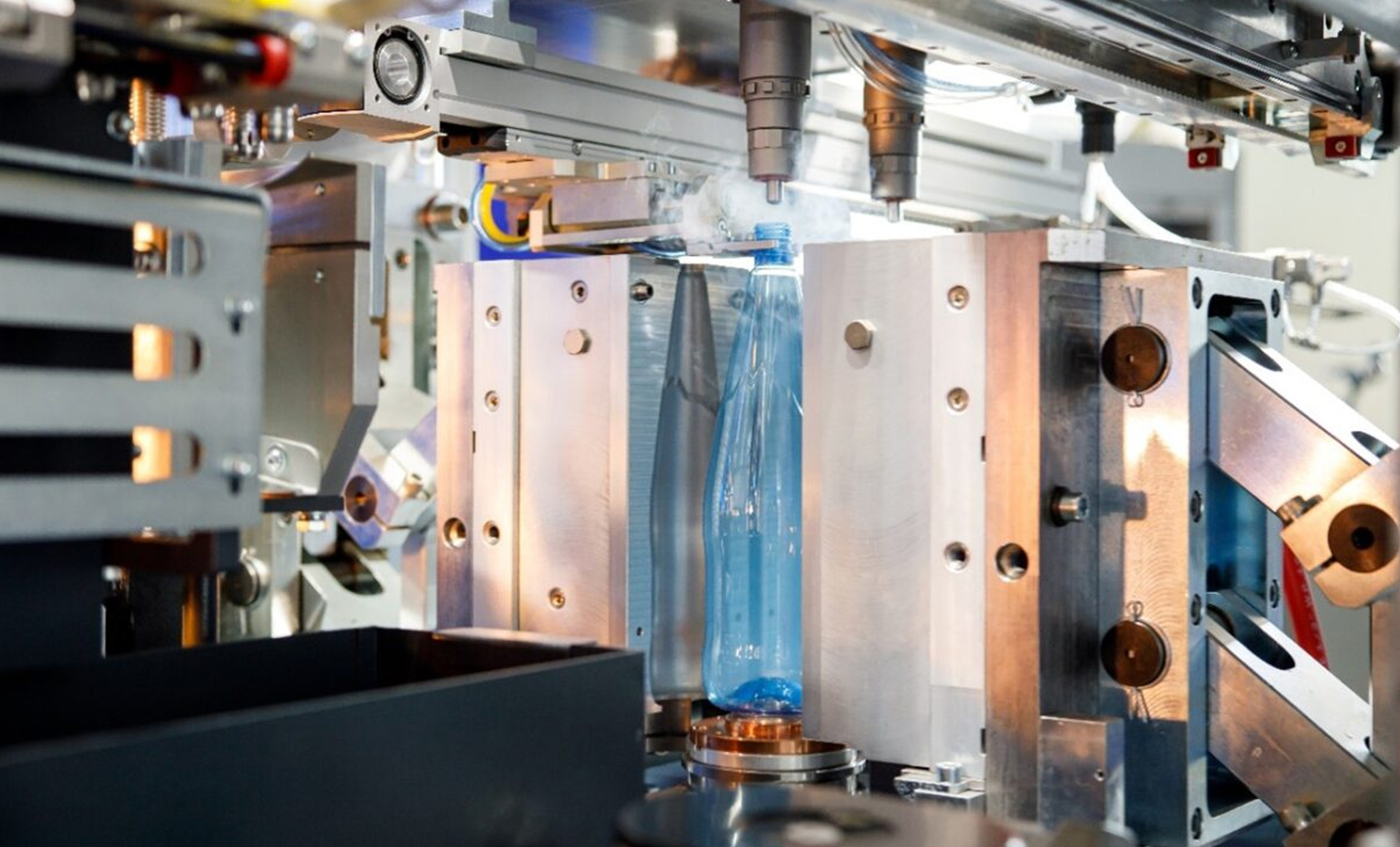

| Blow Molding & Thermoforming | Pneumatic Controls | Labeling Machines |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
