The Wordfik PVT200 is a medium-pressure, high-flow oil-free dry rotary vane combined pump engineered with a low-speed direct-drive design for extended service life. As a direct drop-in replacement for Becker large-flow combined pumps, it delivers 178 m³/h (104.7 CFM) at 50Hz and 218 m³/h (128.3 CFM) at 60Hz airflow, with a balanced -500 mbar (14.8 inHg) ultimate vacuum and +500 mbar (7.3 PSIG) maximum pressure.
Built on a rugged 960rpm low-speed platform with premium graphite vanes, it operates with zero internal metal-to-metal contact, reducing wear dramatically and enabling an 8000-hour maintenance-free cycle. Its 100% oil-free design delivers clean, contaminant-free air on both vacuum and pressure sides, eliminating oil pollution to workpieces and production environments.
Powered by a 5.5 kW (7.5 HP) full-copper motor at 50Hz and 6.6 kW (9 HP) at 60Hz, the PVT200 balances high flow output with energy efficiency and stable continuous operation. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is ideal for medium factory central systems, multi-station woodworking and mid-size printing lines.
Features:
Low-speed 960rpm design, 8000-hour extended maintenance cycle
100% oil-free dry vane technology, zero process contamination
Direct drop-in replacement for Becker brand large-flow combined pumps
200–240 m³/h (118–141 CFM) flow, ±500mbar (14.8inHg / 7.3PSIG)
Full-copper industrial motor, stable 24/7 continuous operation
Heavy-duty build, wide three-phase voltage, CE certified
| PVT200 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 178 m³/h | 218 m³/h |
| Vacuum | -500 mbar | |
| Pressure | +500 mbar | |
| Motor Power | 5.5 kW | 6.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 960 rpm | 1150 rpm |
| Noise Level | 75 dB(A) | 77 dB(A) |
| Inlet Connection | 2½ inch | |
| Pressure Connection | 2½ inch | |
| Weight | 280 kg | |
| Dimensions | 1210*612*527 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

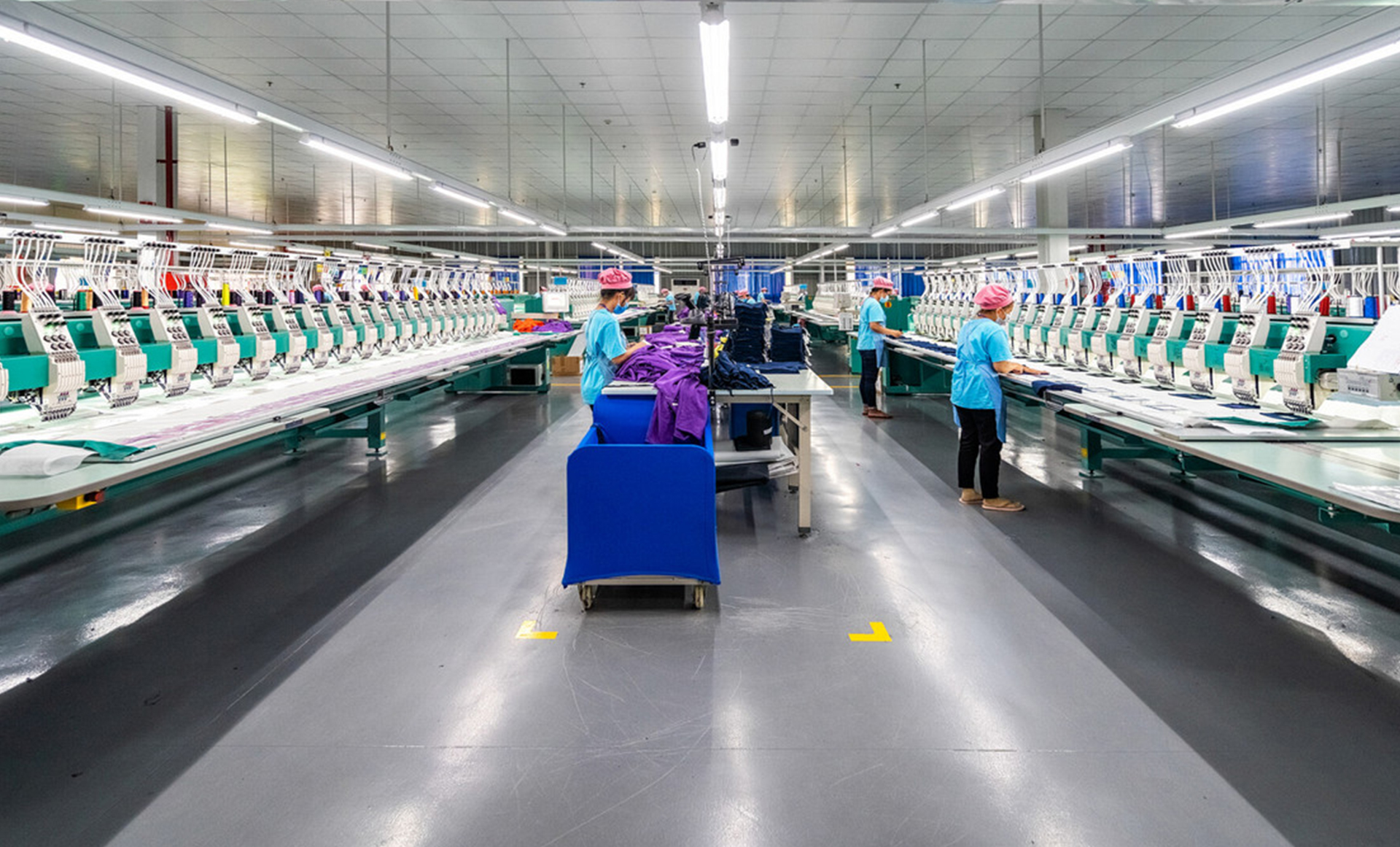

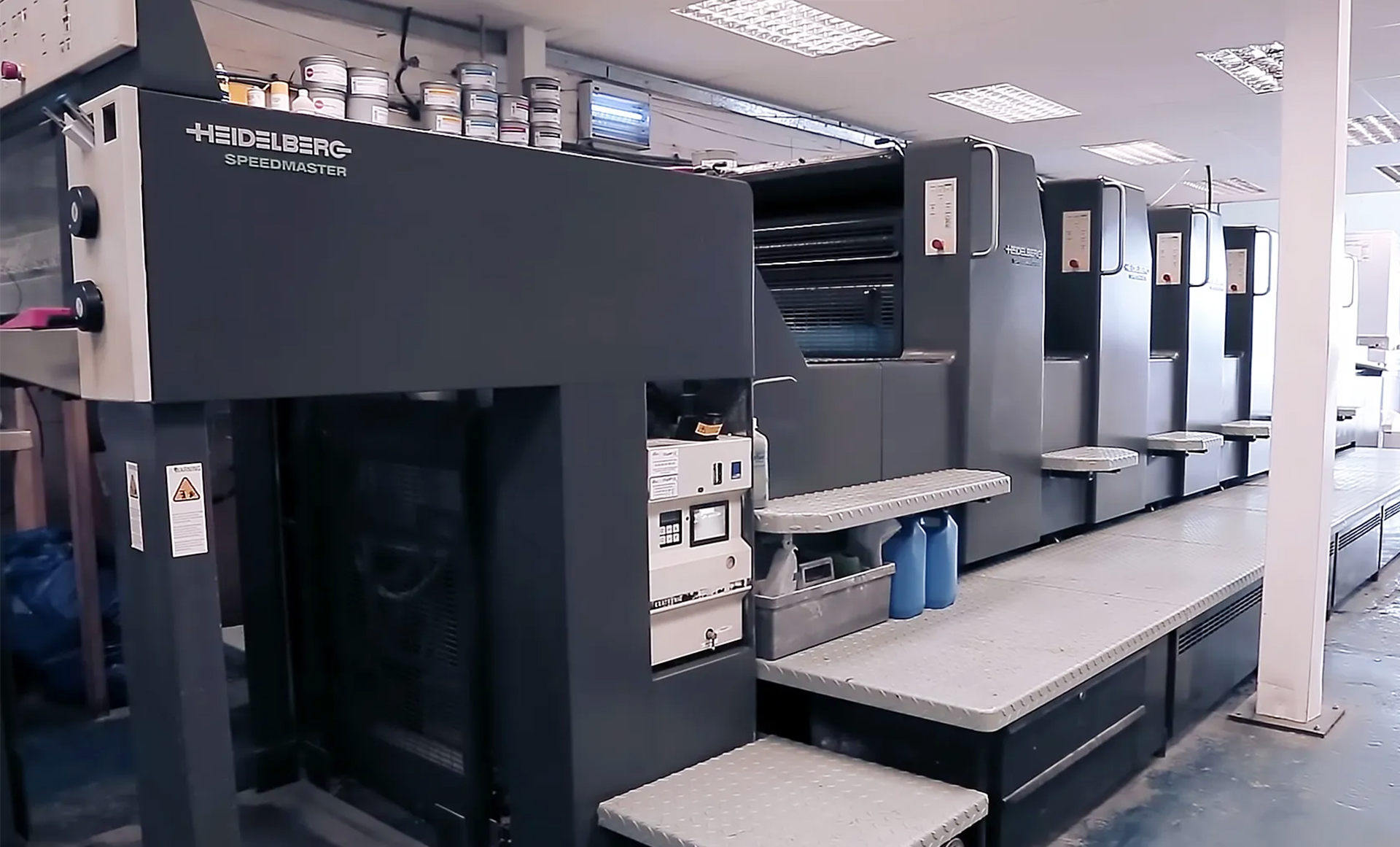

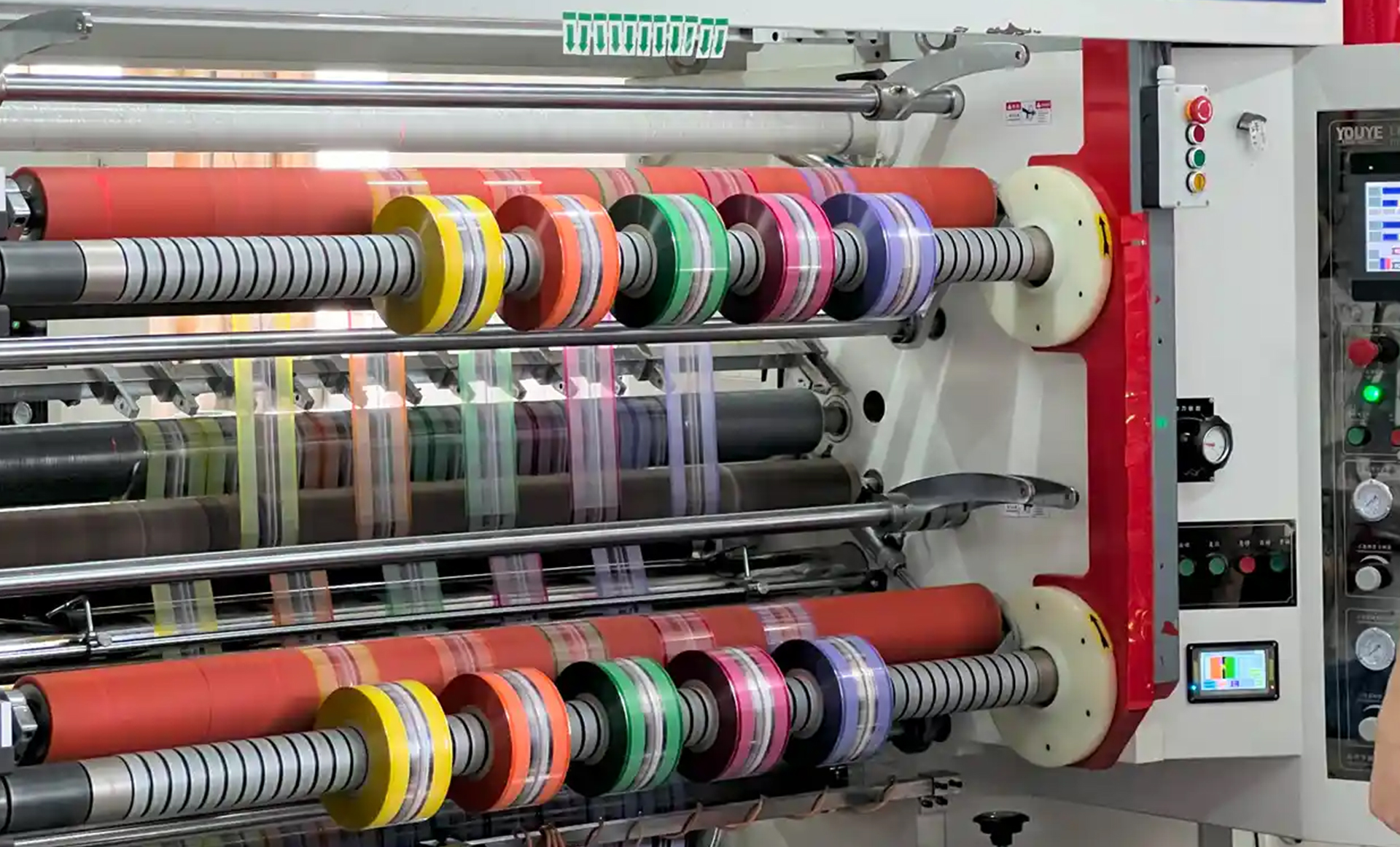

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

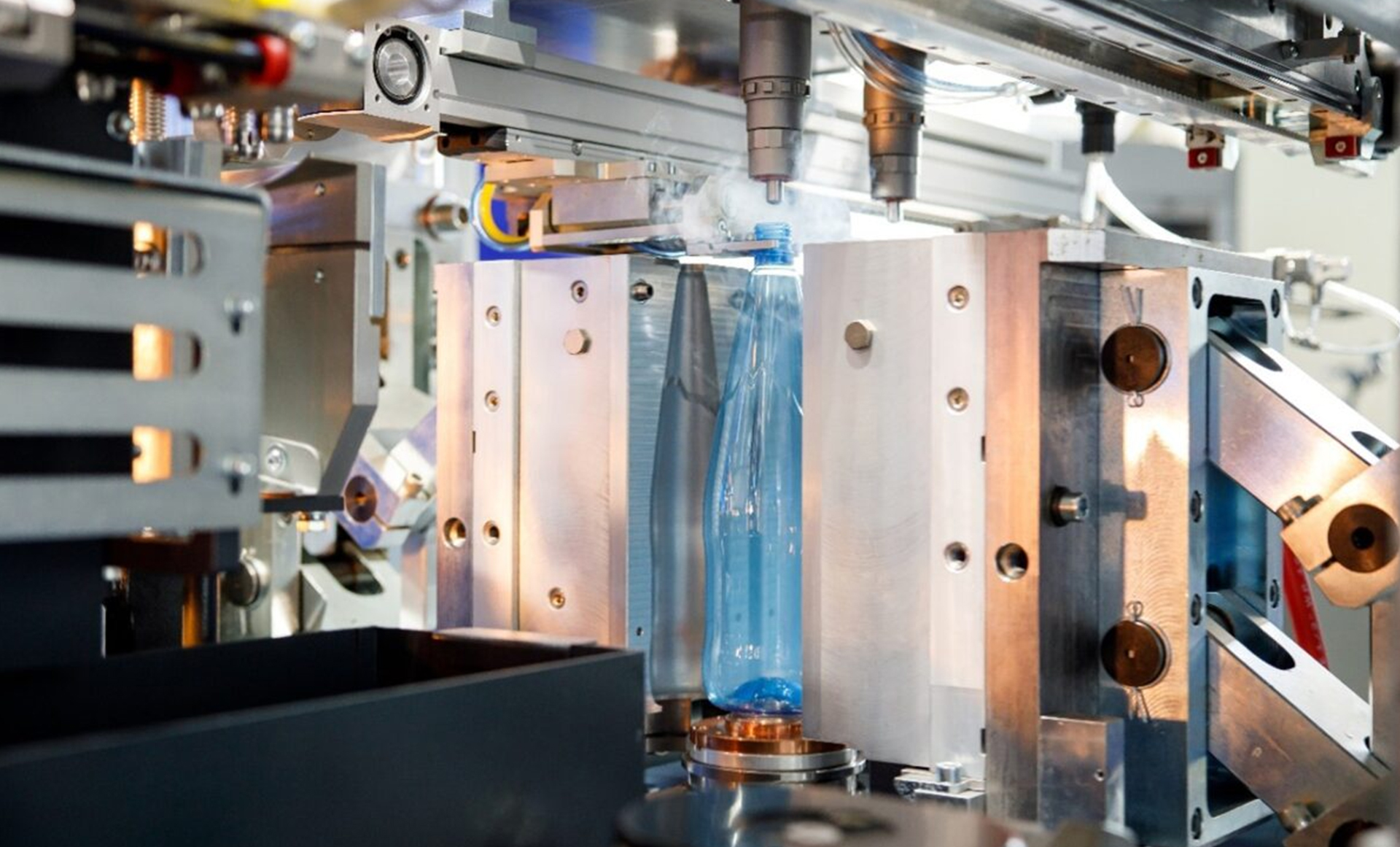

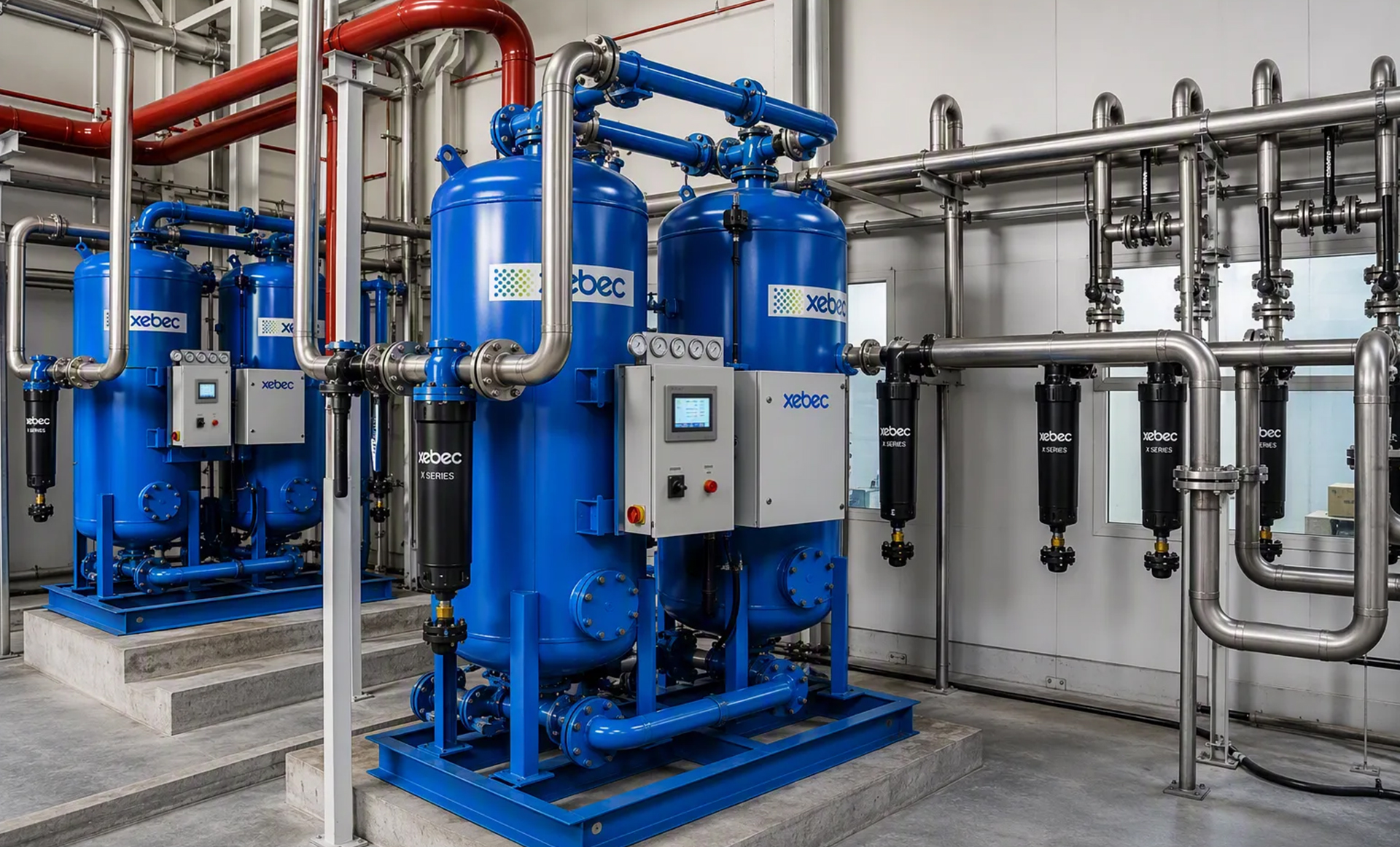

| Pneumatic Controls | Blow Molding & Thermoforming | Central Air System |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
