The Wordfik PVT16 is a compact, oil-free dry rotary vane combined pump that delivers both vacuum and positive pressure in a single unit. As a direct drop-in replacement for Becker T4.16DV and Elmo V-VTN 16 oil-free combined pumps, it provides 16 m³/h (9.4 CFM) at 50Hz and 20 m³/h (11.8 CFM) at 60Hz airflow, with a simultaneous -600 mbar (17.7 inHg) ultimate vacuum and +600 mbar (8.7 PSIG) maximum pressure.
Built on a proven single-shaft direct-drive architecture with self-lubricating graphite vanes, it operates with zero internal metal-to-metal contact, enabling self-wear compensation, minimal maintenance and long service life. Its 100% oil-free design delivers clean, contaminant-free air on both vacuum and pressure sides, eliminating oil pollution to workpieces and production environments.
Powered by a 0.75 kW (1.0 HP) motor at 50Hz and 0.9 kW (1.2 HP) at 60Hz, the PVT16 features an ultra-compact footprint for easy integration into small equipment and confined spaces. It supports both single-phase and three-phase wide voltage inputs, comes standard with CE certification, and is ideal for printing, packaging, thermoforming and textile machinery.
Features:
Single unit delivers both vacuum and pressure, replaces two separate pumps
100% oil-free dry vane technology, zero air contamination
Direct drop-in replacement for Becker T4.16DV / Elmo V-VTN 16 combined pumps
16–20 m³/h (9.4–11.8 CFM) flow, ±600mbar (17.7inHg / 8.7PSIG)
Ultra-compact lightweight design, ideal for OEM equipment integration
Wide single/three-phase voltage, 50/60Hz dual frequency, CE certified
| PVT16 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 16 m³/h | 20 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 0.75 kW | 0.9 kW |
| Motor Voltage | Δ 195-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 69 dB(A) | |
| Inlet Connection | ½ inch | |
| Pressure Connection | ½ inch | |
| Weight | 36 kg | |
| Dimensions | 511*283*225 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

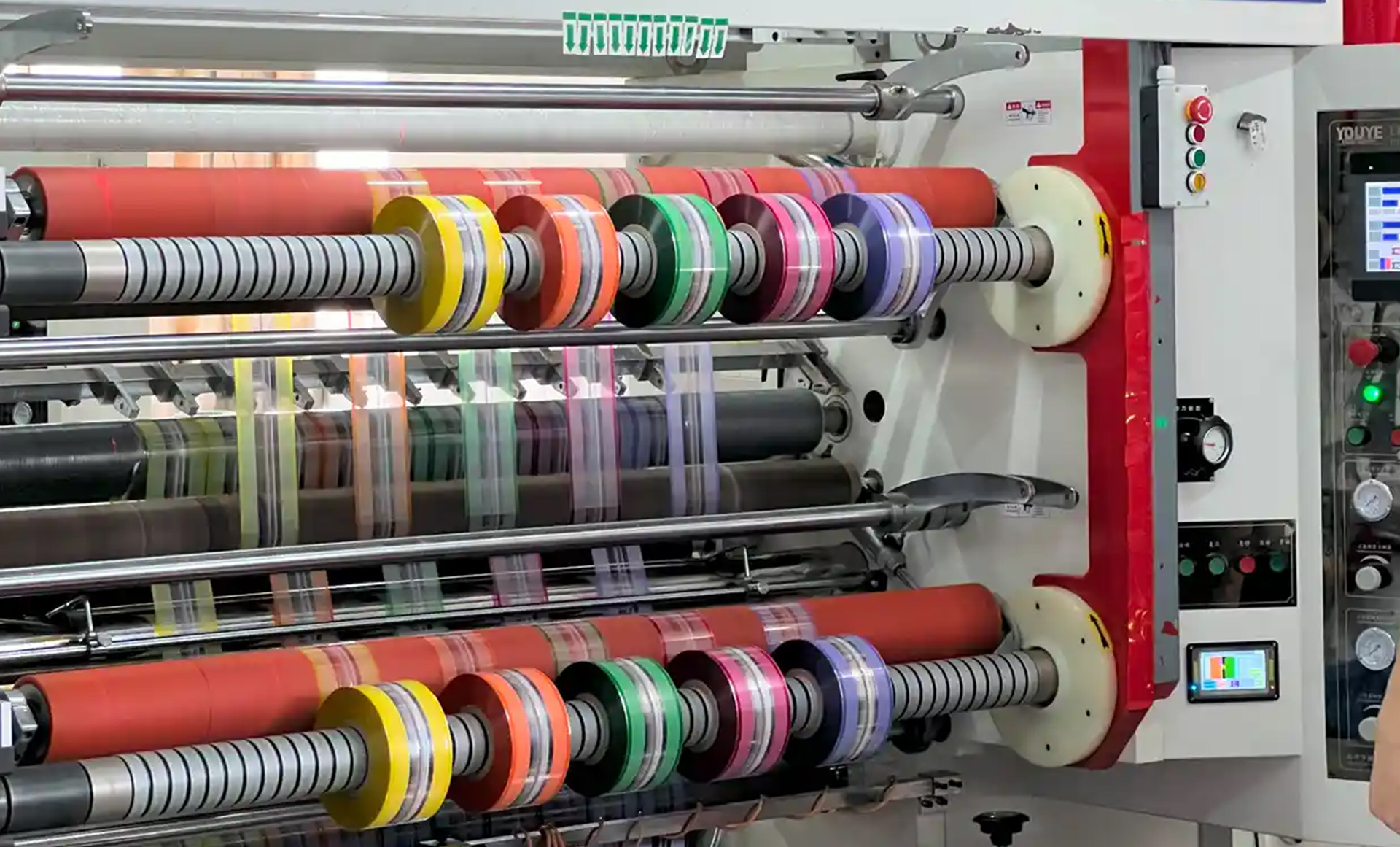

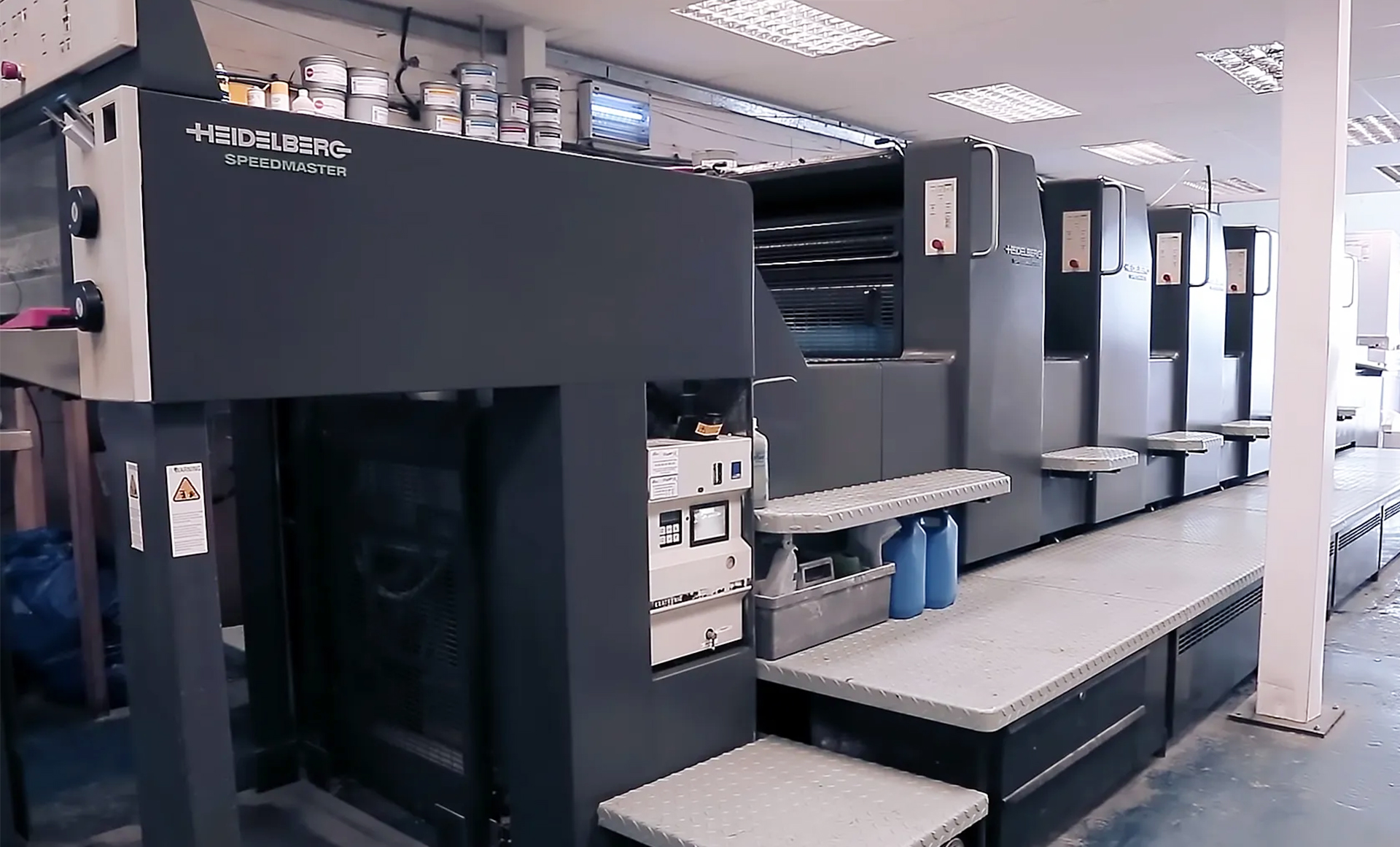

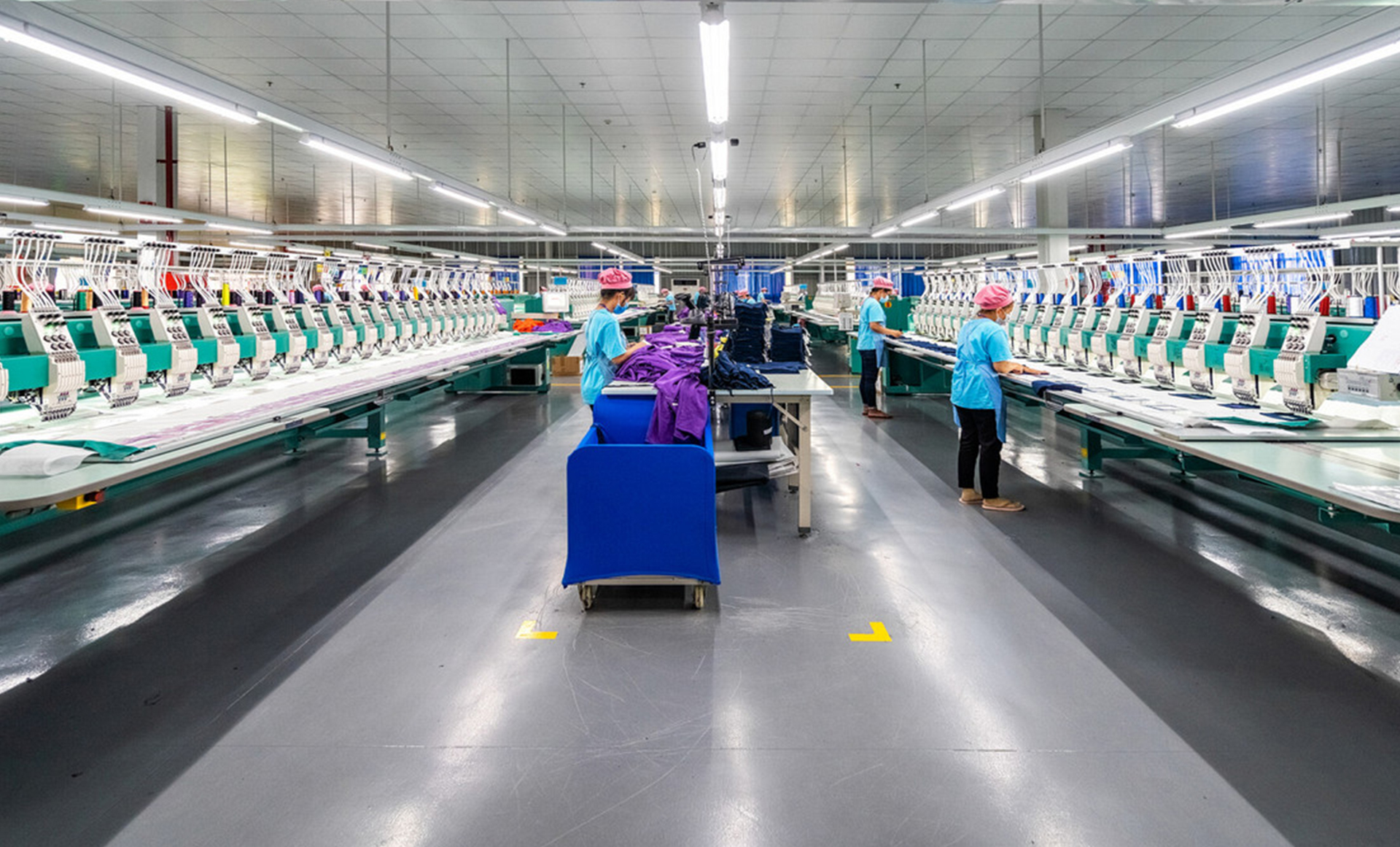

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

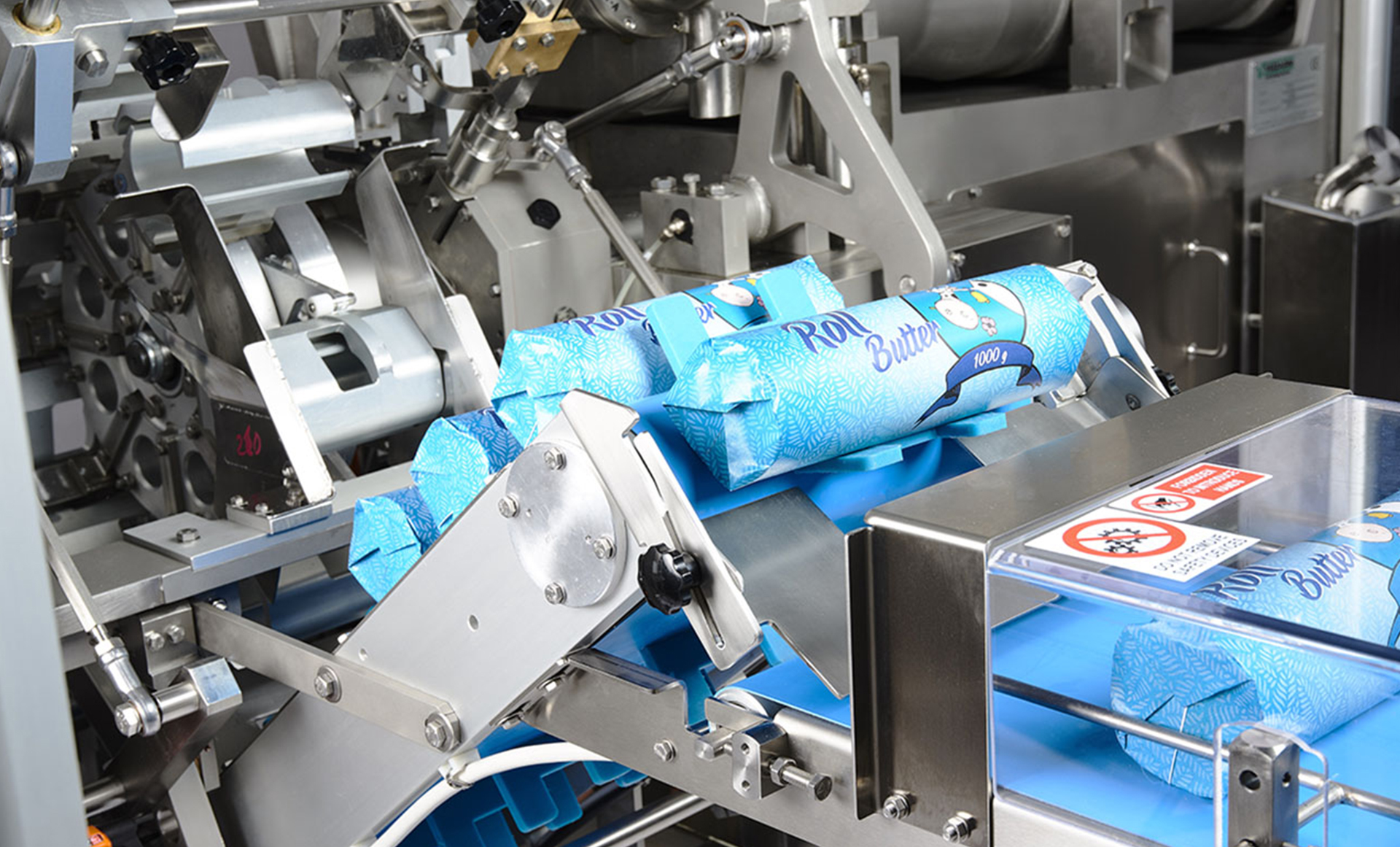

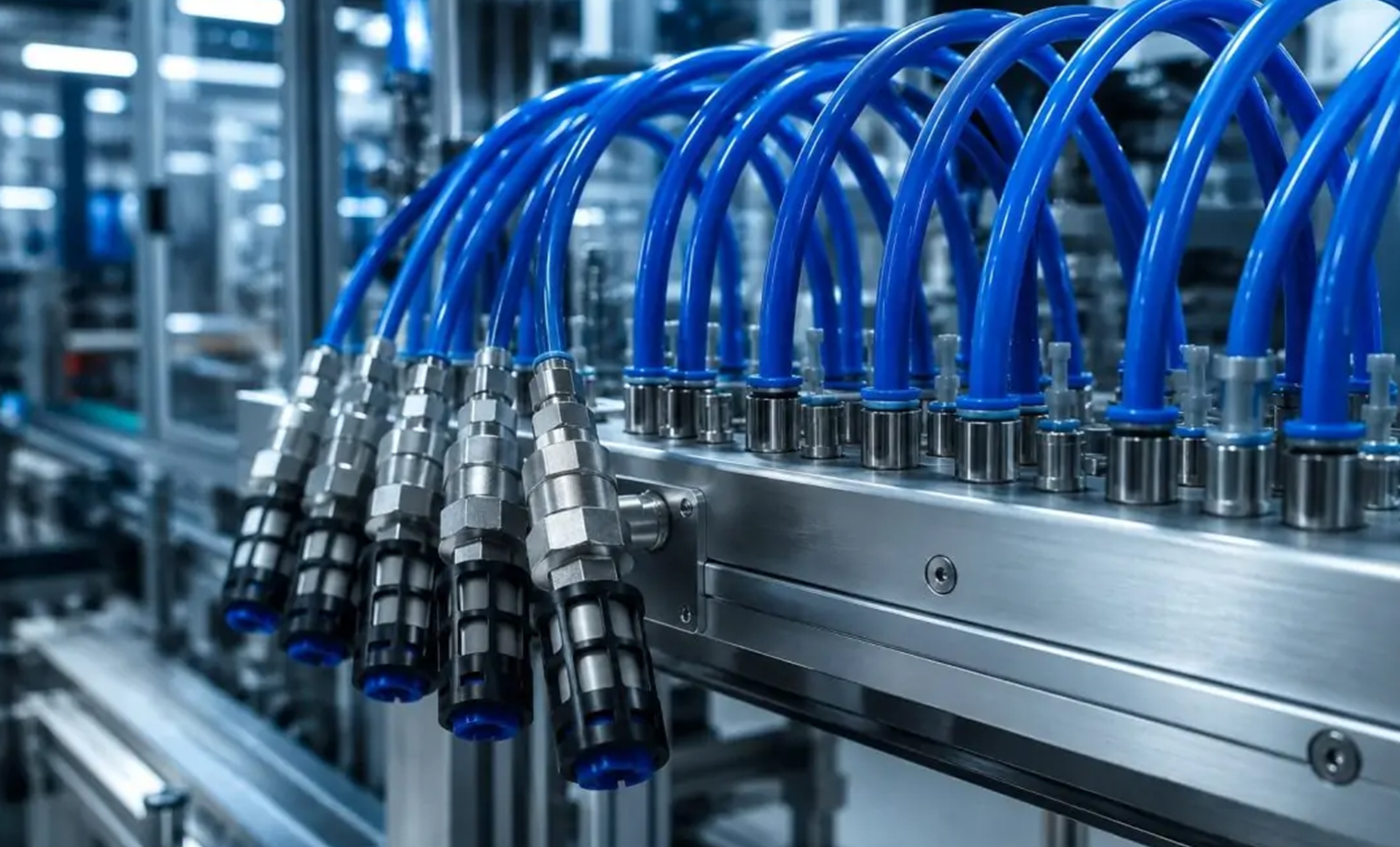

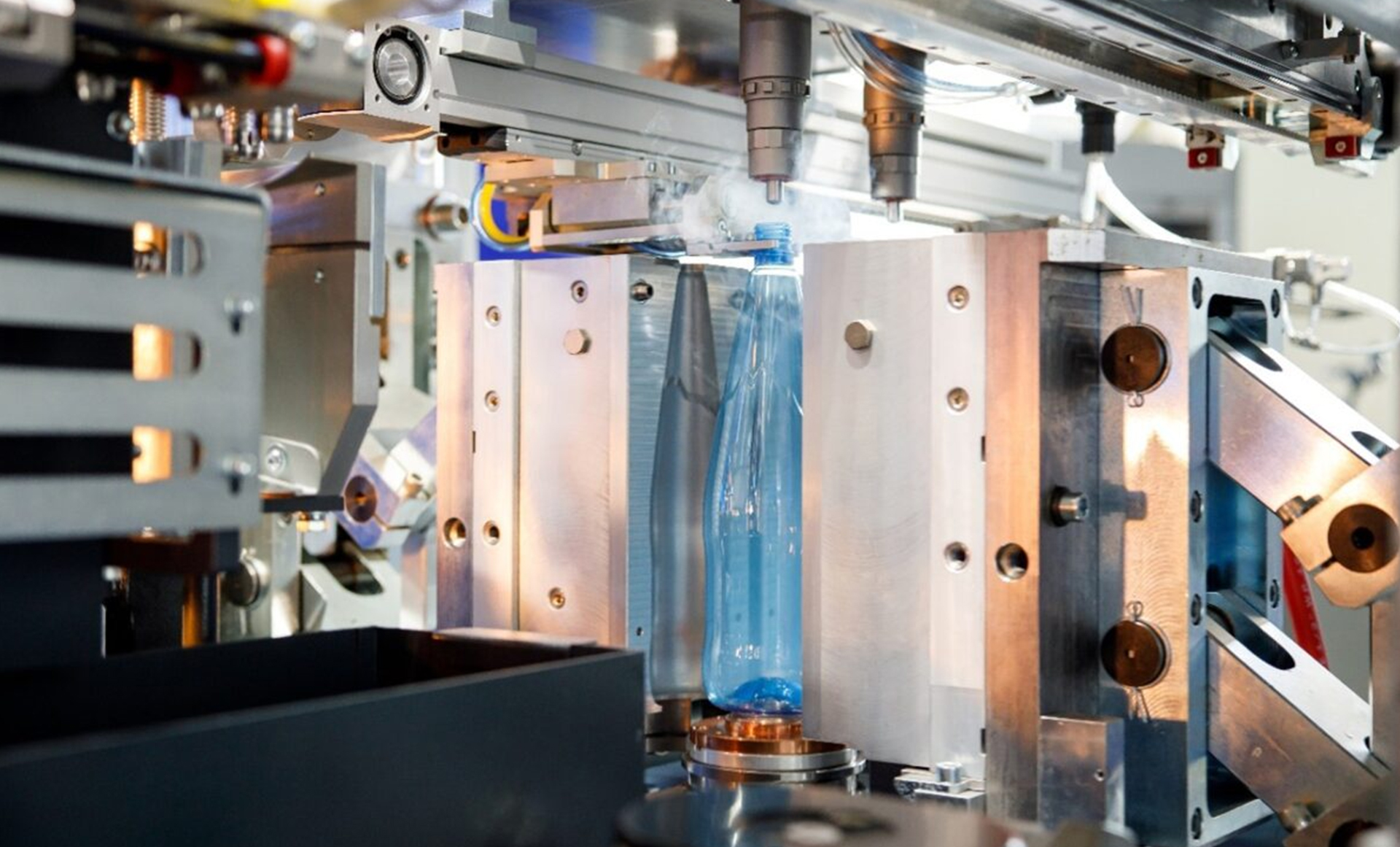

Blow Molding & Thermoforming | Pneumatic Controls | Packaging Machinery |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
