The Wordfik PVT250 is the flagship heavy-duty oil-free dry rotary vane combined pump in the PVT medium-pressure series, engineered for factory-wide central systems and demanding high-flow industrial applications. As a direct drop-in replacement for the largest Becker DVTLF2.250 combined pumps, it delivers 250 m³/h (147.1 CFM) at 50Hz and 300 m³/h (176.6 CFM) at 60Hz airflow, with a robust -500 mbar (14.8 inHg) ultimate vacuum and +500 mbar (7.3 PSIG) maximum pressure.
Built with an ultra-rugged low-speed direct-drive structure and high-performance reinforced graphite vanes, it operates with zero internal metal contact, self-compensates for wear, and delivers an industry-leading 10000-hour maintenance interval. Its 100% oil-free design ensures clean, contaminant-free air for plant-wide distribution, meeting the strictest demands of heavy-duty manufacturing environments.
Powered by a 7.5 kW (10 HP) heavy-duty full-copper motor at 50Hz and 9 kW (12 HP) at 60Hz, the PVT250 delivers massive dual-function airflow for entire production facilities. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is the premium solution for large woodworking factories, full-scale printing plants and industrial central vacuum-pressure networks.
Features:
Flagship largest flow in PVT series combined pump range
960rpm low-speed design, 10000-hour ultra-long maintenance cycle
100% oil-free dry vane technology, factory-grade air purity
Direct drop-in replacement for largest Becker DVTLF2.250 combined pumps
250–300 m³/h (147–177 CFM) flow, ±500mbar (14.8inHg / 7.3PSIG)
Heavy-duty full-copper motor, built for 24/7 full-load continuous operation
| PVT250 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 250 m³/h | 300 m³/h |
| Vacuum | -500 mbar | |
| Pressure | +500 mbar | |
| Motor Power | 7.5 kW | 9 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 960 rpm | 1150 rpm |
| Noise Level | 81 dB(A) | |
| Inlet Connection | 2½ inch | |
| Pressure Connection | 2½ inch | |
| Weight | 312 kg | |
| Dimensions | 1210*612*527 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

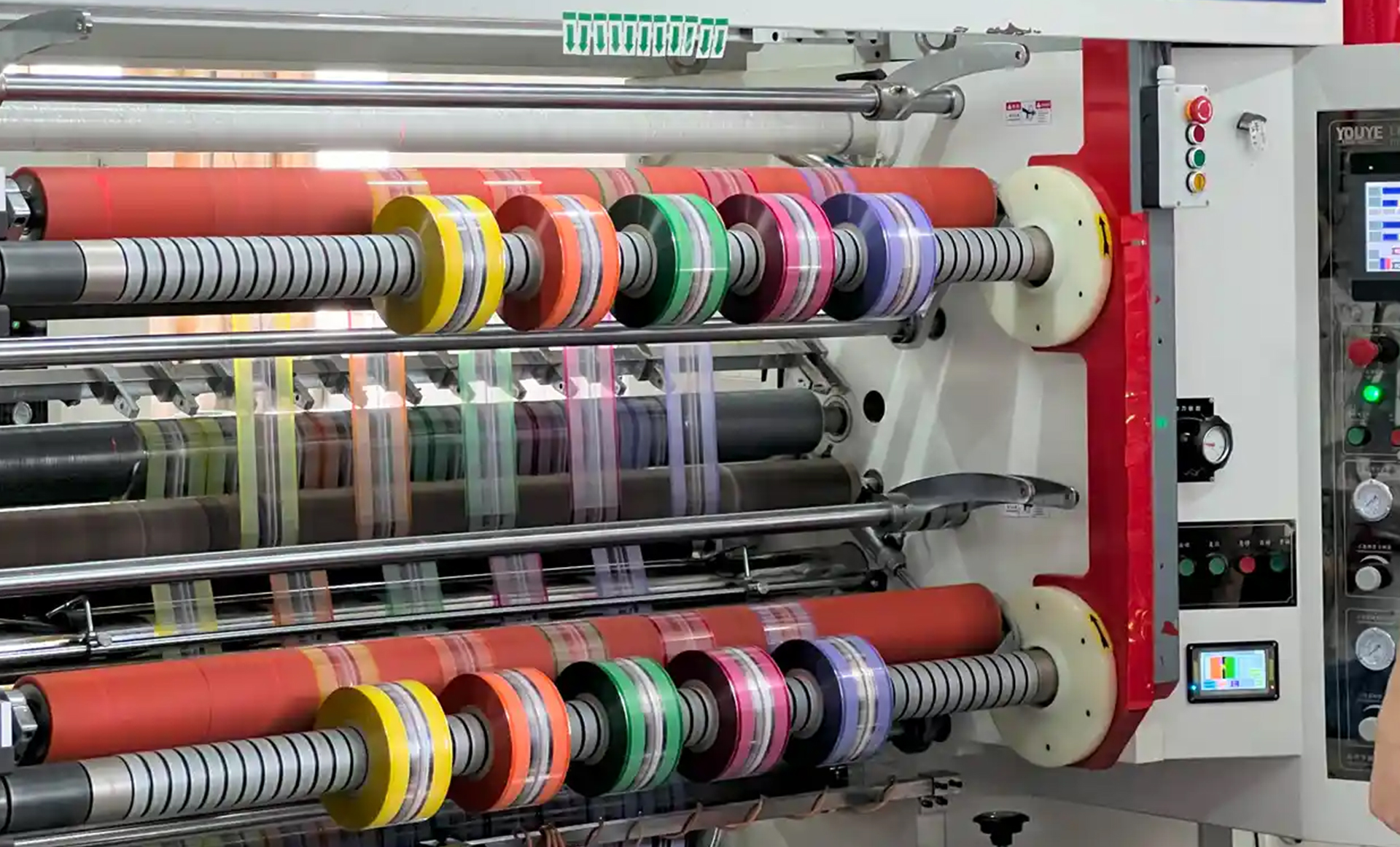

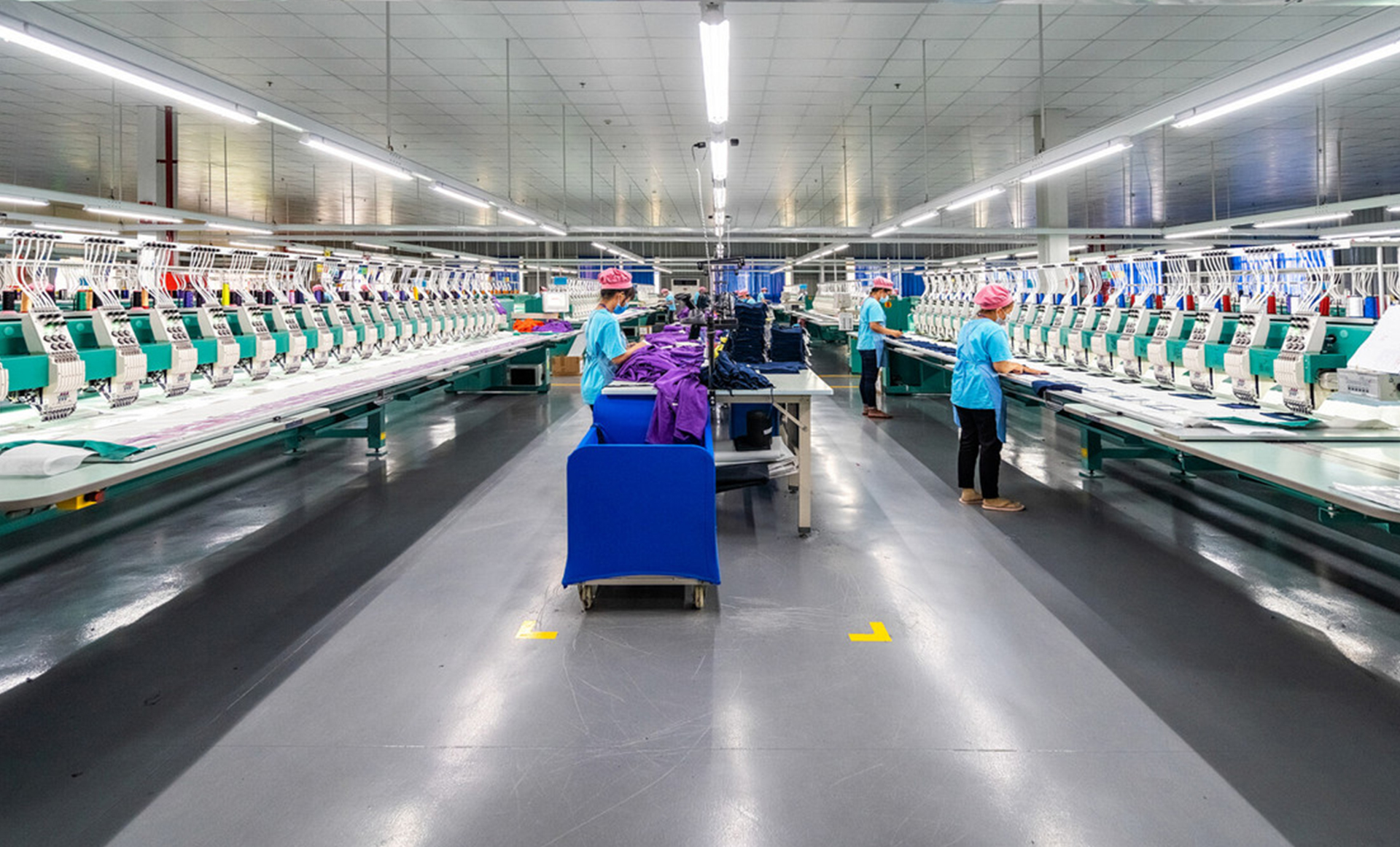

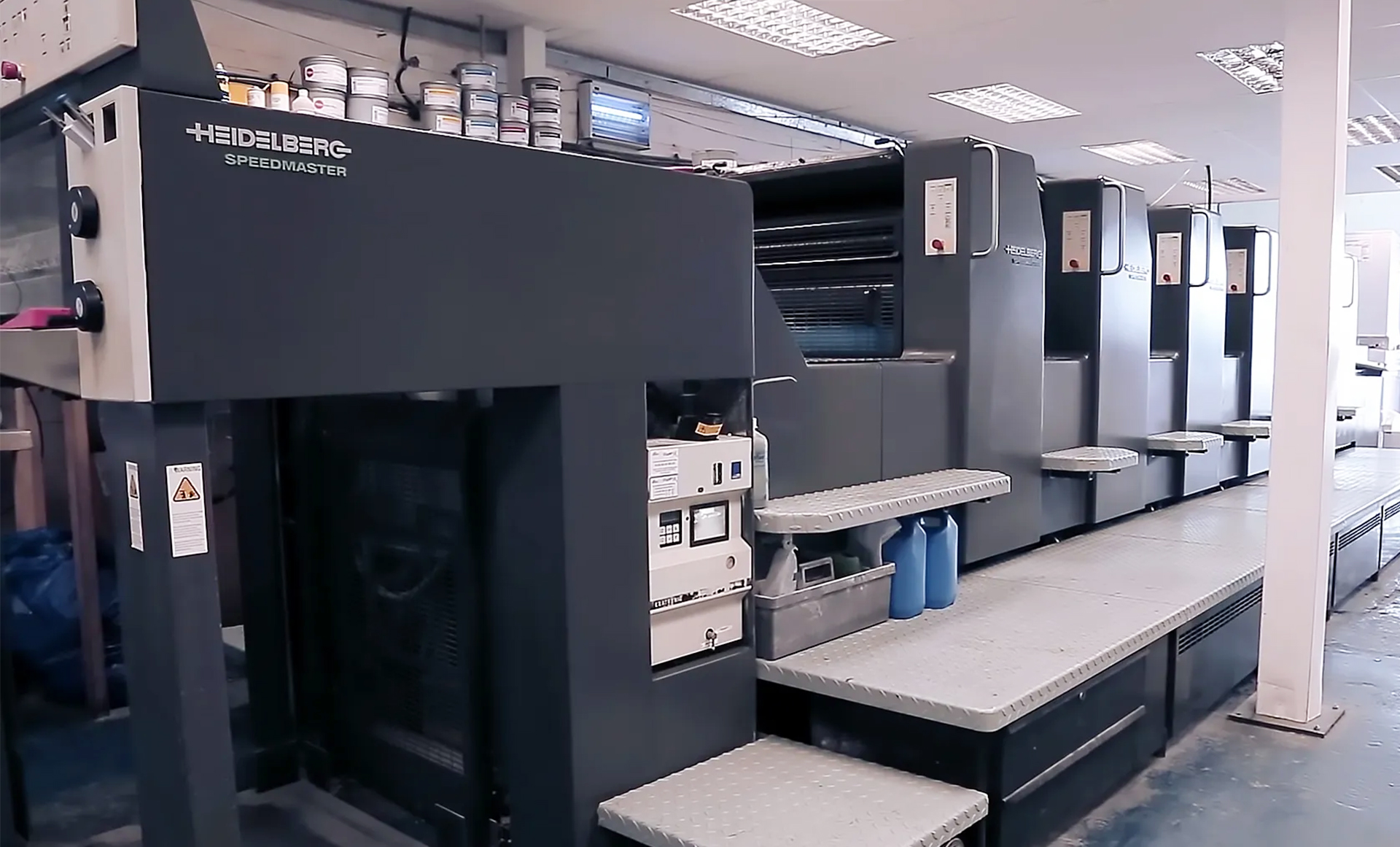

| Printing Machines | Flexible Packaging & Bagging | Textile & Garment Manufacturing |
 |  |  |

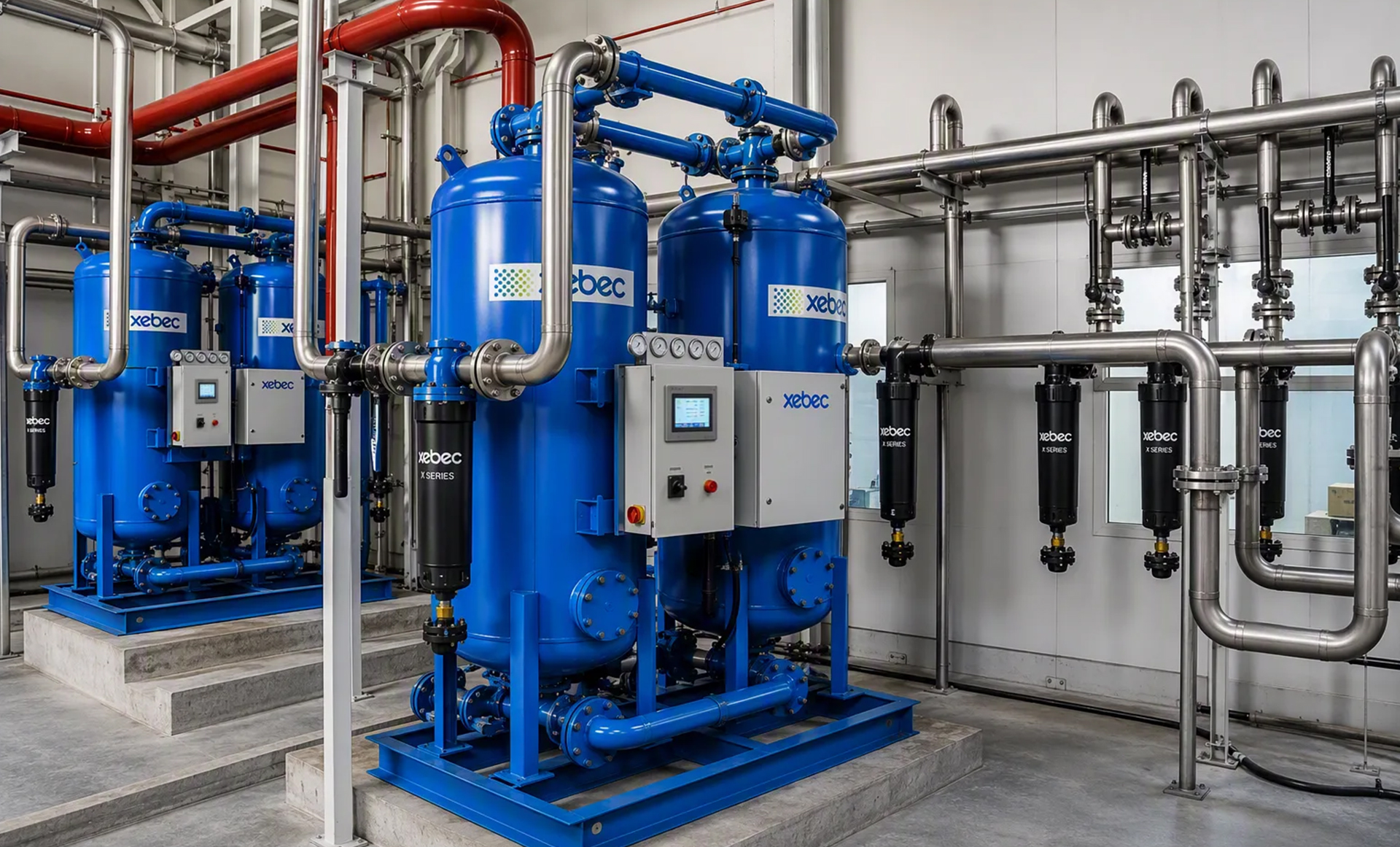

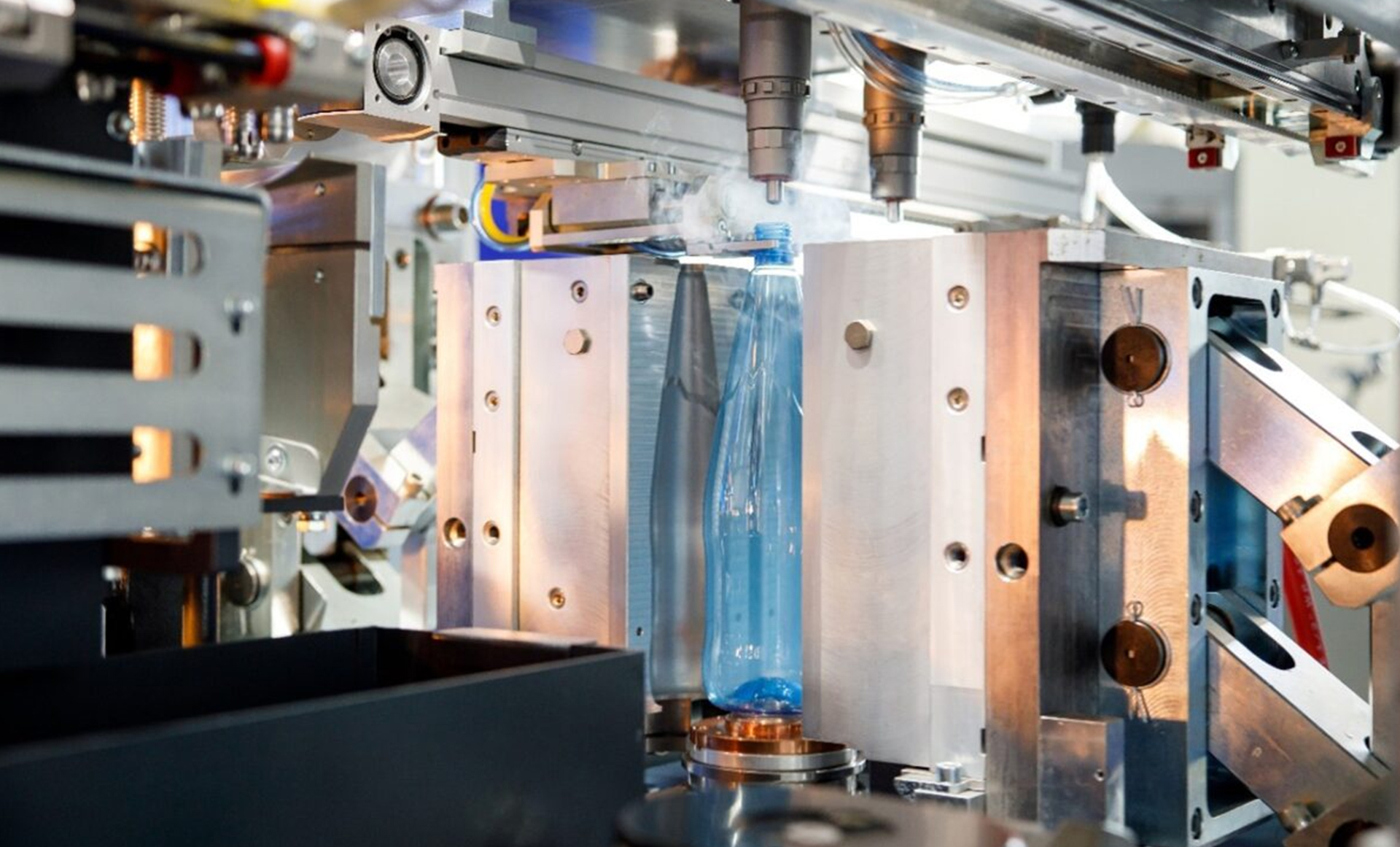

| Pneumatic Controls | Blow Molding & Thermoforming | Central Air System |
| Wordfik PVT Series Dry Rotary Vane Pressure Vacuum Combined Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 178 m³/h | 218 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
