The Wordfik TD10 is a compact, oil-free dry rotary vane compressor engineered for clean, reliable positive pressure air supply in small-scale industrial and OEM applications. As a direct drop-in replacement for Becker DT series oil-less rotary vane compressors, it delivers 10 m³/h (5.9 CFM) at 50Hz and 12 m³/h (7.1 CFM) at 60Hz airflow, with a steady maximum pressure of +1000 mbar (14.5 PSIG).
Built on a single-shaft direct-drive architecture with self-lubricating carbon vanes, this compressor operates with zero internal metal-to-metal contact, enabling self-compensation for wear, minimal maintenance and long service life. Its 100% oil-free design delivers completely clean compressed air with no oil contamination, making it suitable for environmental, food, medical and printing applications where air purity is critical.
Powered by a 0.37 kW (0.5 HP) motor at 50Hz and 0.44 kW (0.6 HP) at 60Hz, the TD10 features an ultra-compact footprint and light weight for easy integration into equipment and confined spaces. It supports both single-phase and three-phase wide voltage inputs, comes standard with CE certification, and is globally deployable across 80+ countries.
Features:
100% oil-free dry rotary vane technology, zero air contamination
Direct drop-in replacement for Becker DT 4.10 oil-less compressors
10–12 m³/h (5.9–7.1 CFM) flow, 14.5 PSIG maximum pressure
Ultra-compact lightweight design, ideal for OEM equipment integration
Wide single/three-phase voltage, 50/60Hz dual frequency, CE certified
Self-lubricating carbon vanes, low noise, minimal maintenance, long service life
| TD10 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 10 m³/h | 12 m³/h |
| Pressure | +1000 mbar | |
| Motor Power | 0.37 kW | 0.44 kW |
| Motor Voltage | Δ 175-260 V ; Y 300-450 V (3ph) | Δ 202-300 V ; Y 350-520 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 62 dB(A) | |
| Inlet Connection | ½ inch | |
| Weight | 16 kg | |
| Dimensions | 430*206*215 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

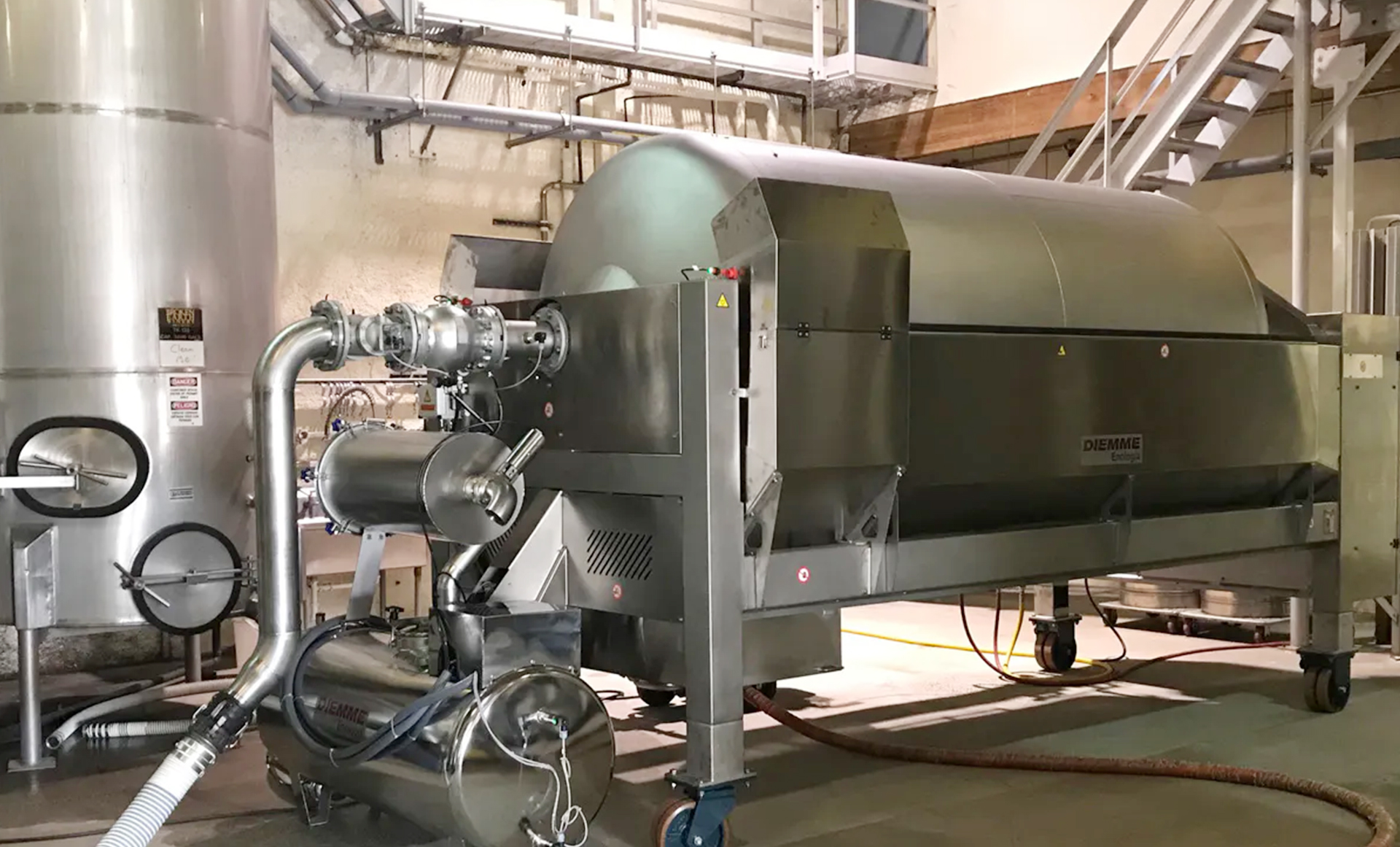

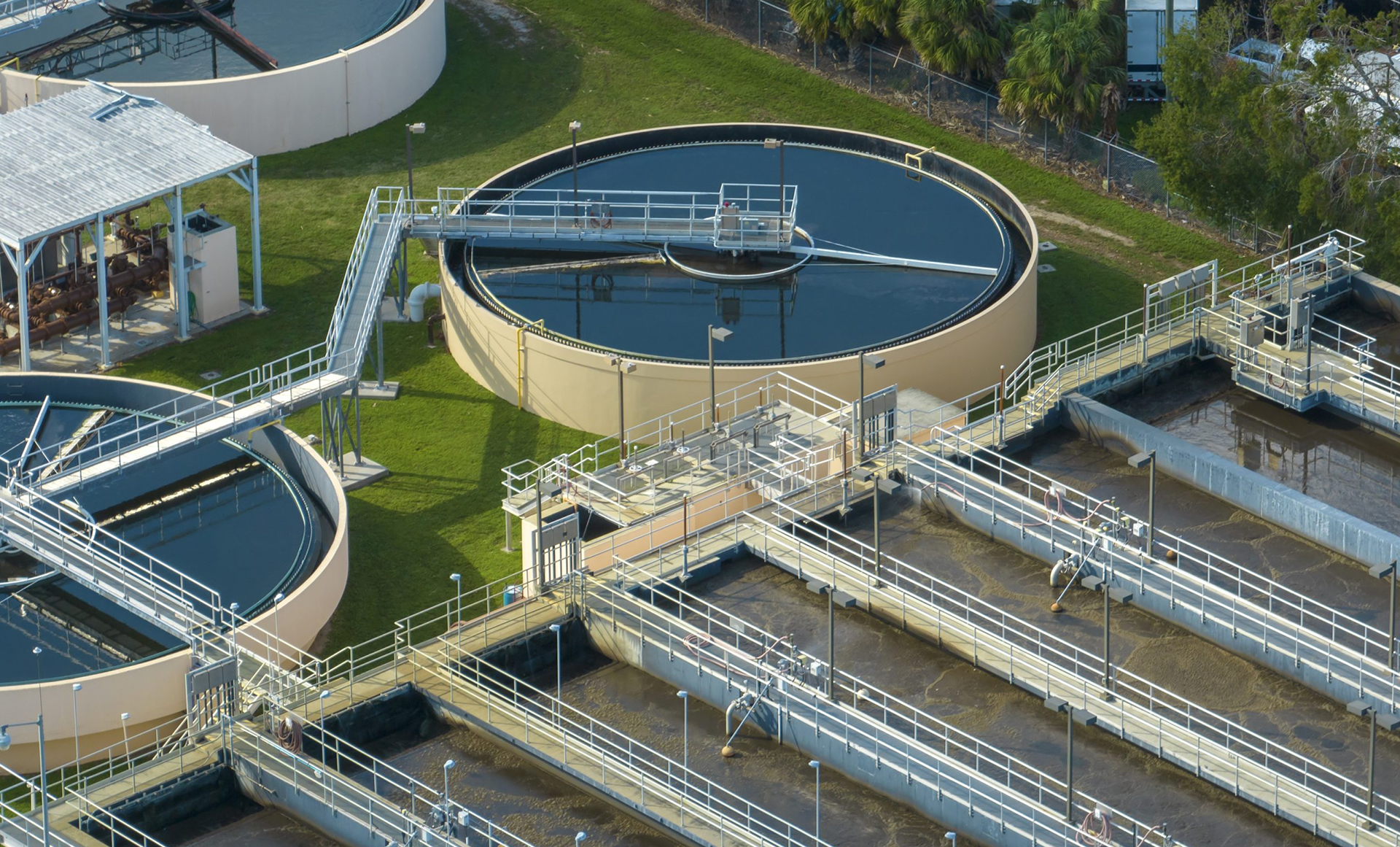

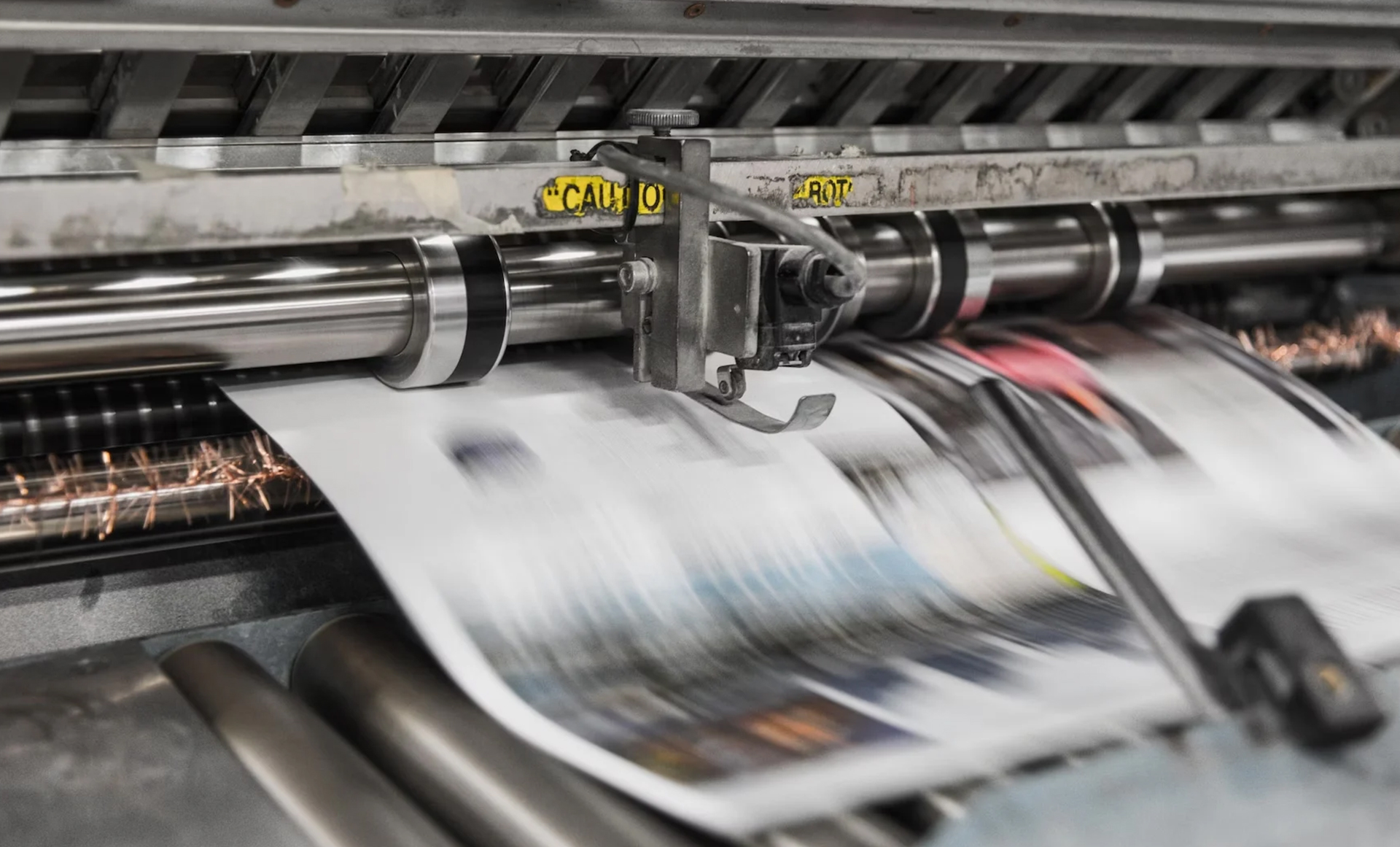

| Wastewater Aeration | Wine Press | Printing & Paper Machine |
 |  |  |

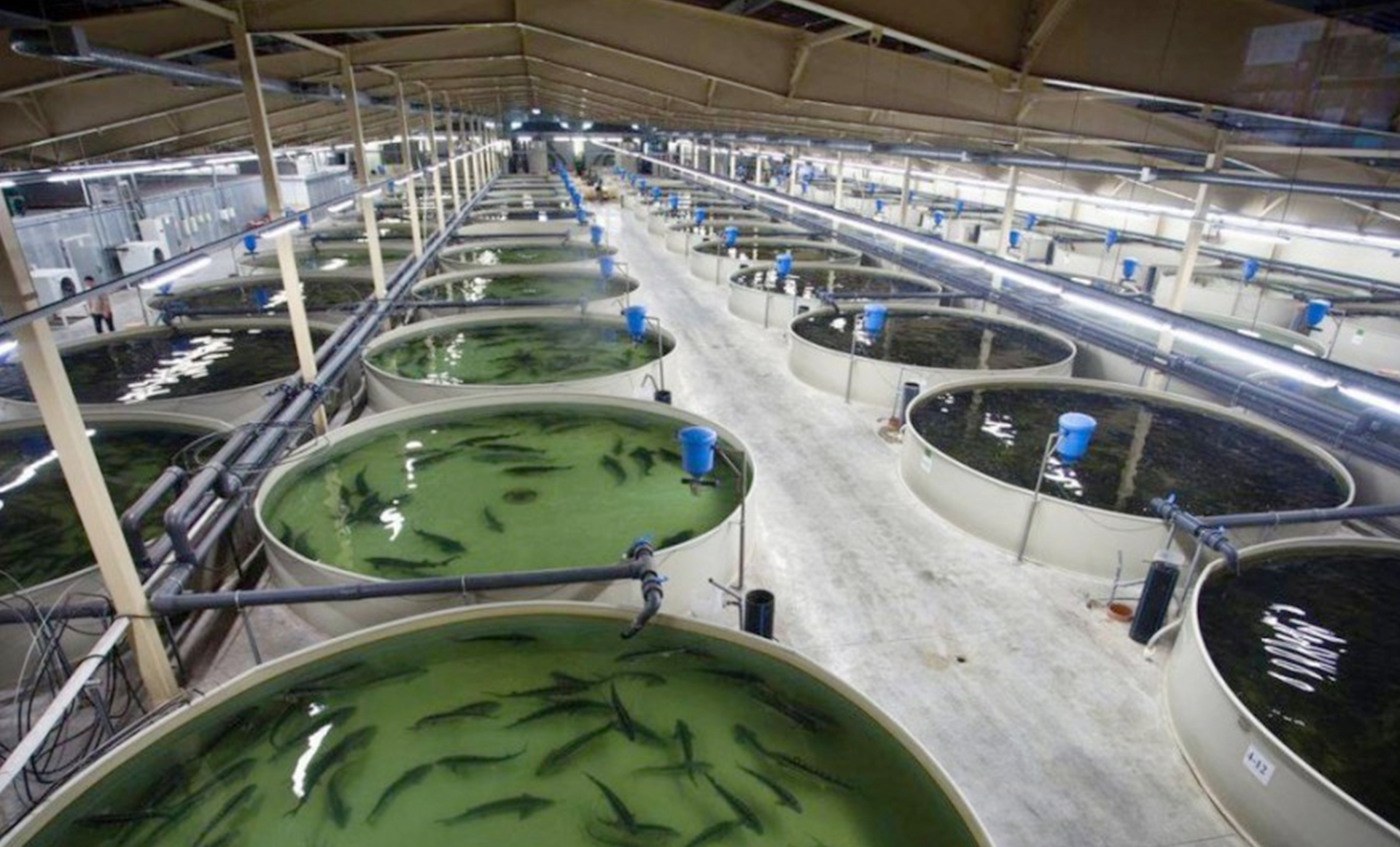

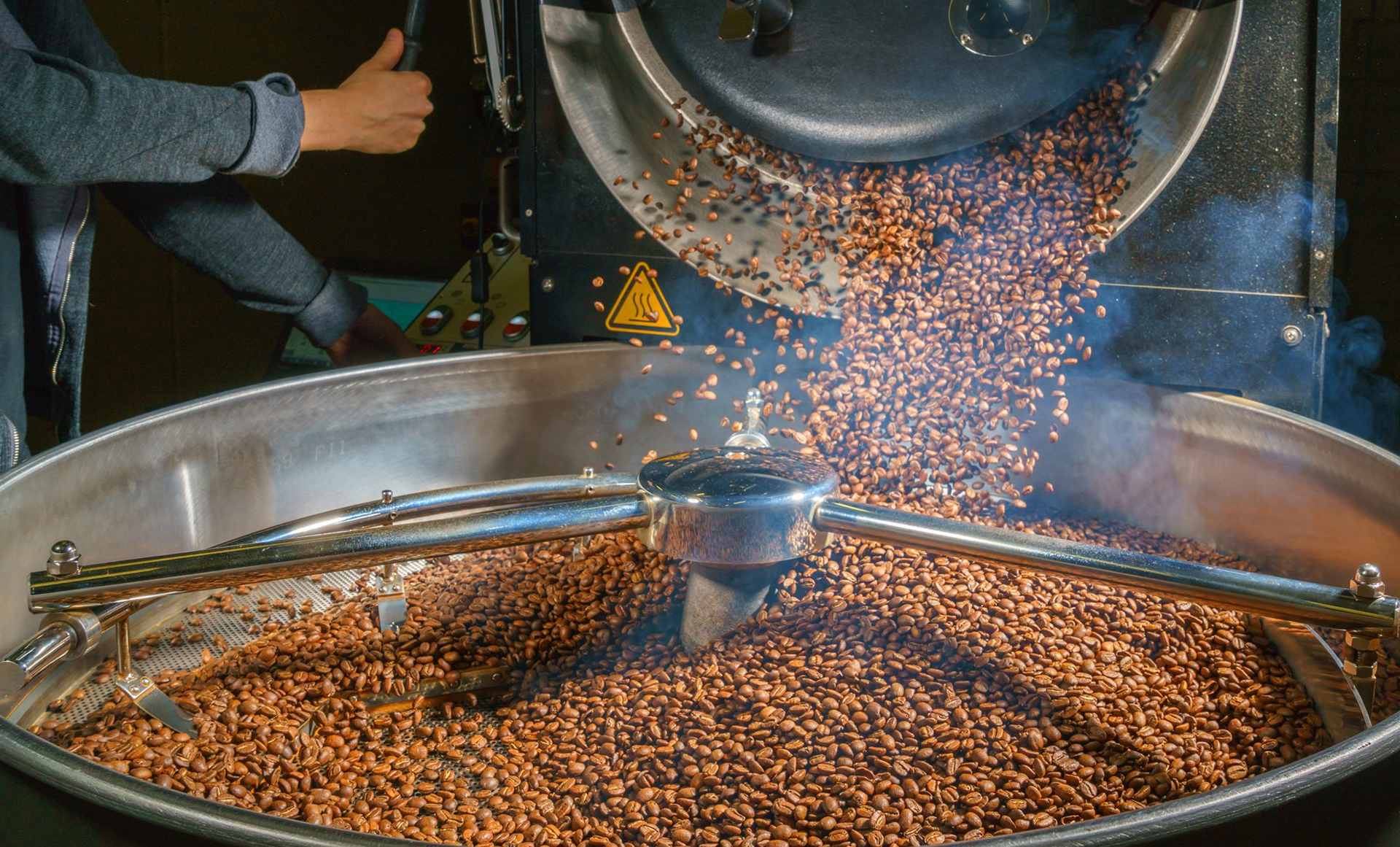

| Pneumatic Controls | Aquaculture & Fish Farming | Coffee Roasting |
| Wordfik TD Series Dry Rotary Vane Compressors ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |

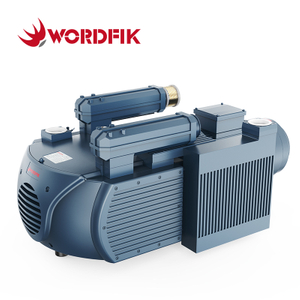

| KTD250 | 7.5-15 kW | 9-18 kW | 250 m³/h | 300 m³/h | +800 / +1500 / +1800 mbar |
