The Wordfik KTD60 is a compact, high-pressure oil-free dry rotary vane compressor engineered for medium-flow industrial positive pressure applications. As a direct drop-in replacement for Becker KDT 3.60 oil-less compressors, it delivers 60 m³/h (35.3 CFM) at 50Hz and 72 m³/h (42.4 CFM) at 60Hz airflow, with a steady maximum pressure of +1500 mbar (21.8 PSIG).
Built on a robust single-shaft direct-drive architecture with premium self-lubricating graphite vanes, it operates with zero internal metal-to-metal contact, enabling self-wear compensation, minimal maintenance and long service life. Its 100% oil-free design delivers completely clean compressed air with zero contamination, suitable for printing, environmental treatment and precision pneumatic systems.
Powered by a 3 kW (4.0 HP) motor at 50Hz and 3.6 kW (4.8 HP) at 60Hz, the KTD60 features a space-saving footprint for easy integration into confined equipment bays. It supports standard three-phase wide voltage inputs, comes with CE certification, and is globally deployable across 80+ countries.
Features:
100% oil-free dry vane technology, 21.8 PSIG high pressure output
Direct drop-in replacement for Becker KDT 3.60 oil-less compressors
60–72 m³/h (35–42 CFM) flow, 3–3.6 kW (4.0–4.8 HP) power
Compact footprint, ideal for equipment integration and confined spaces
Wide three-phase voltage, 50/60Hz dual frequency, CE certified
Self-lubricating carbon vanes, low noise, minimal maintenance
| KTD60 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 60 m³/h | 72 m³/h |
| Pressure | +1500 mbar | |
| Motor Power | 3 kW | 3.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1450 rpm | 1740 rpm |
| Noise Level | 72 dB(A) | |
| Inlet Connection | 1 inch | |
| Weight | 69 kg | |
| Dimensions | 731*340*340 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

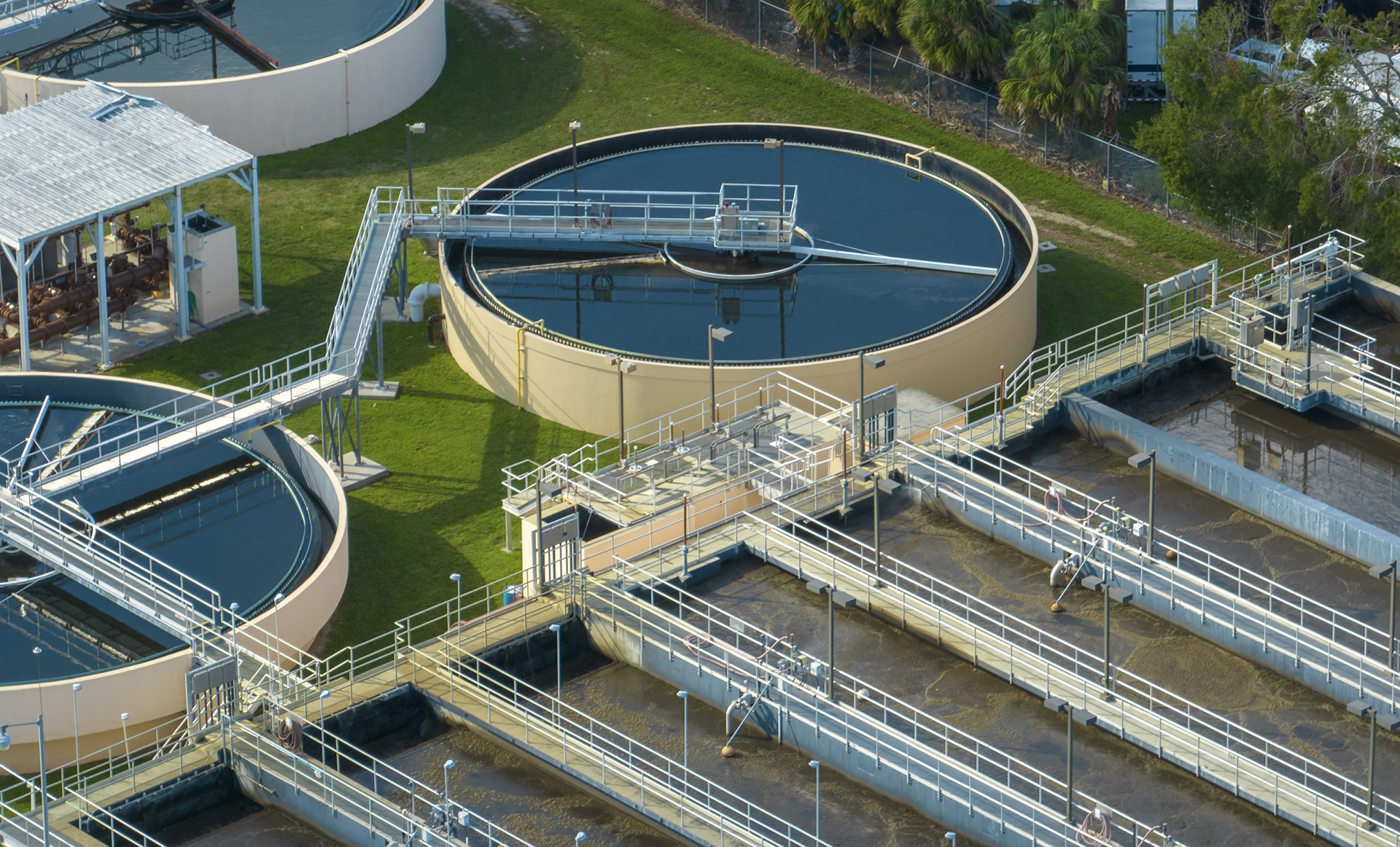

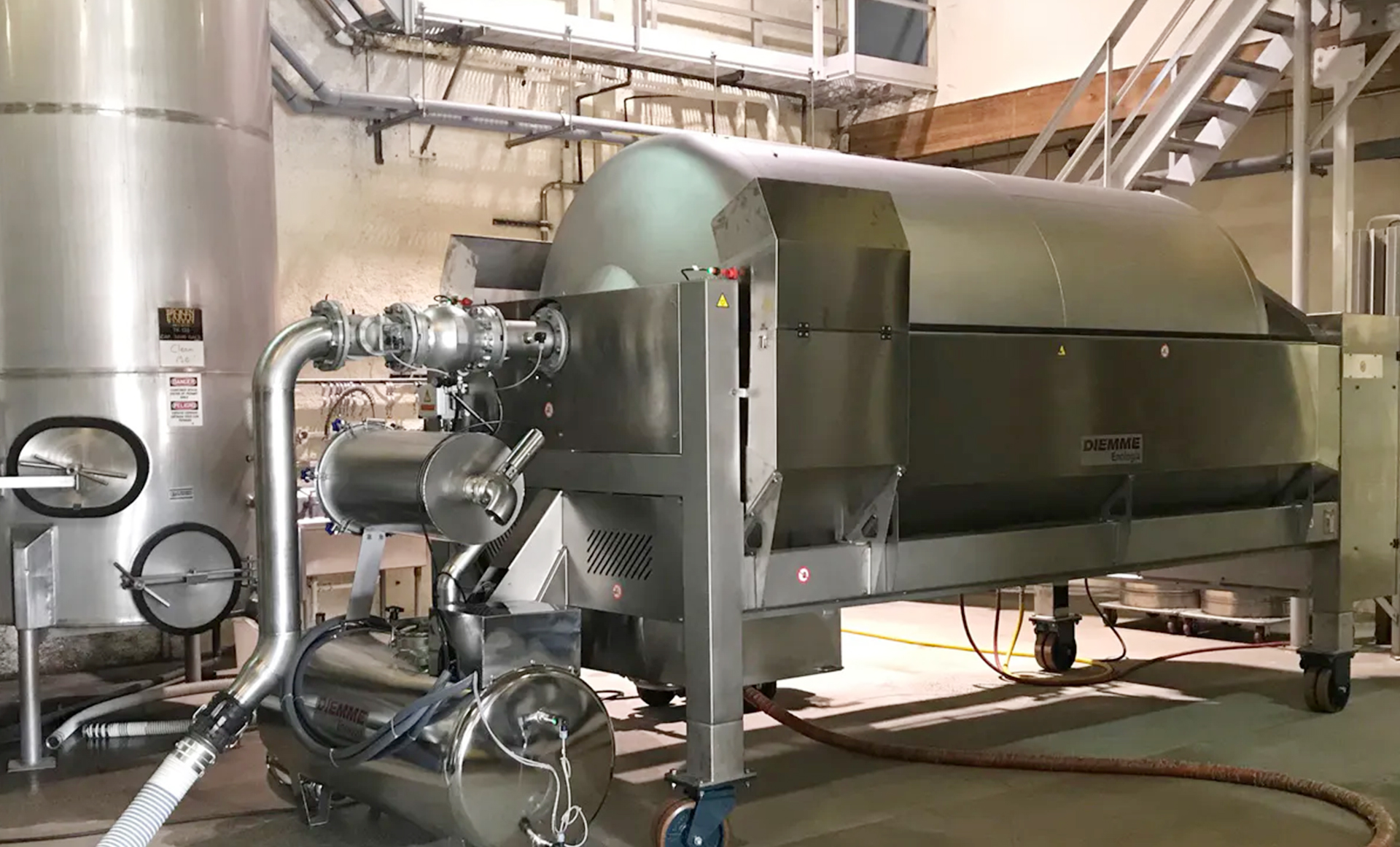

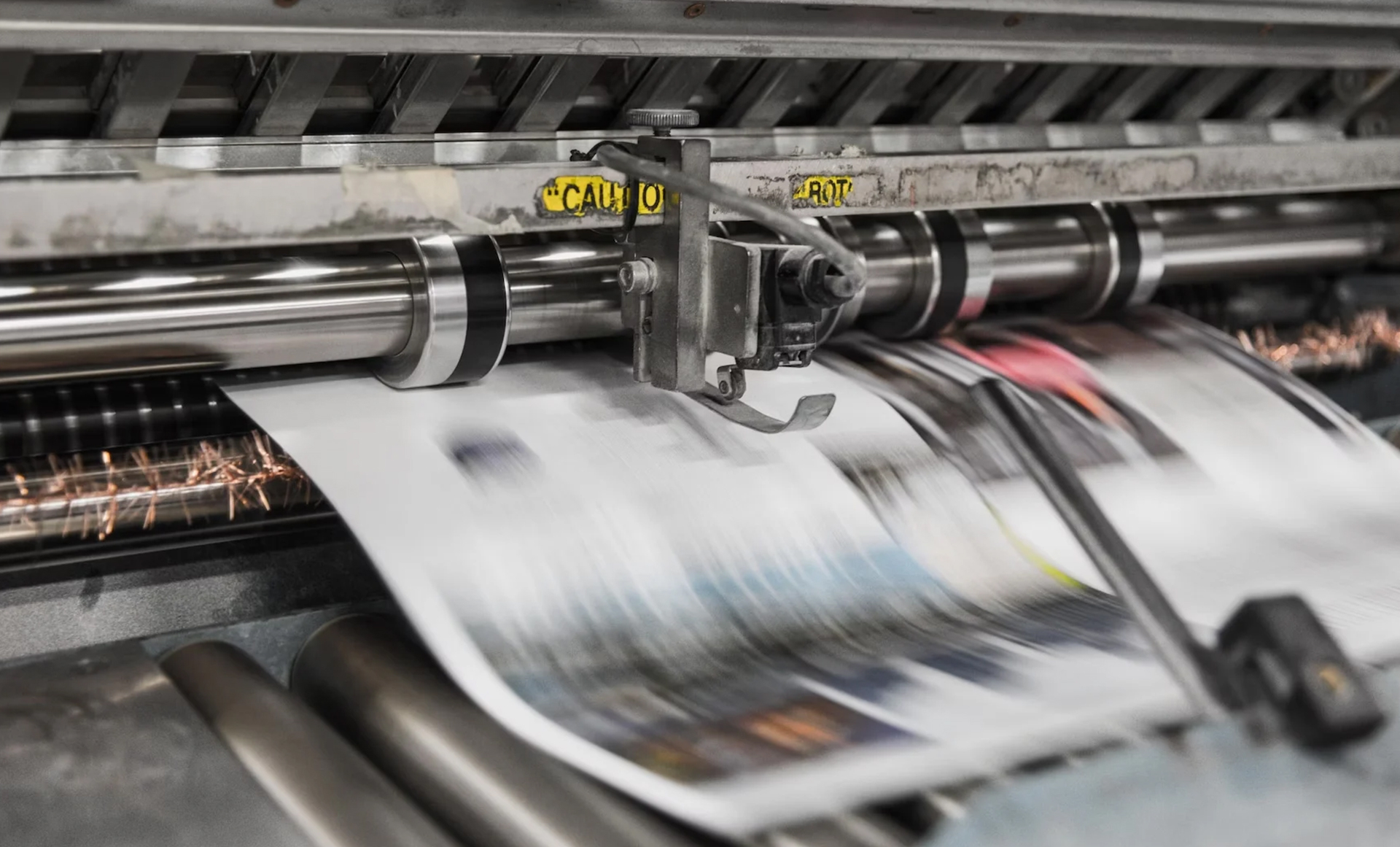

| Wastewater Aeration | Wine Press | Printing & Paper Machine |
 |  |  |

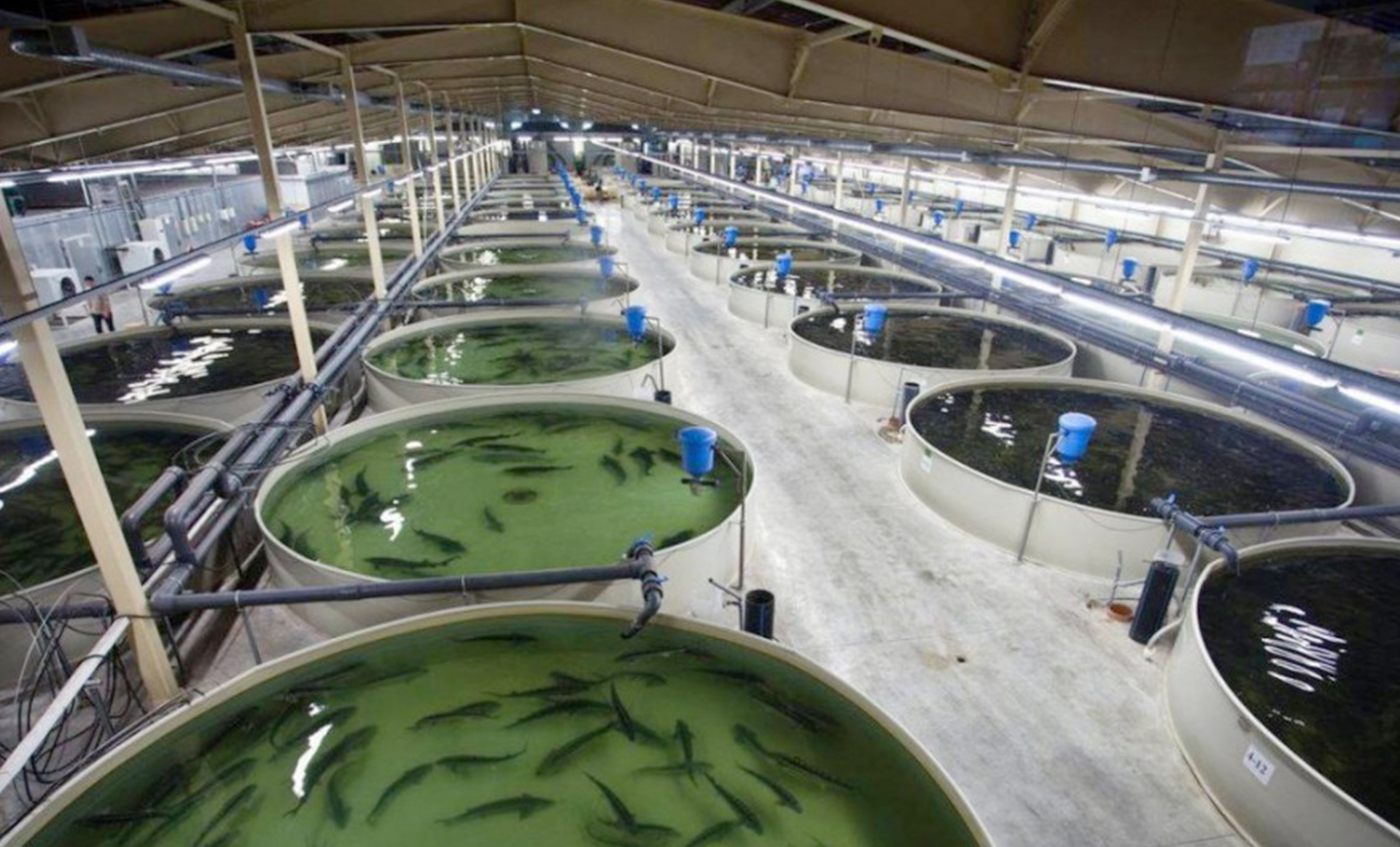

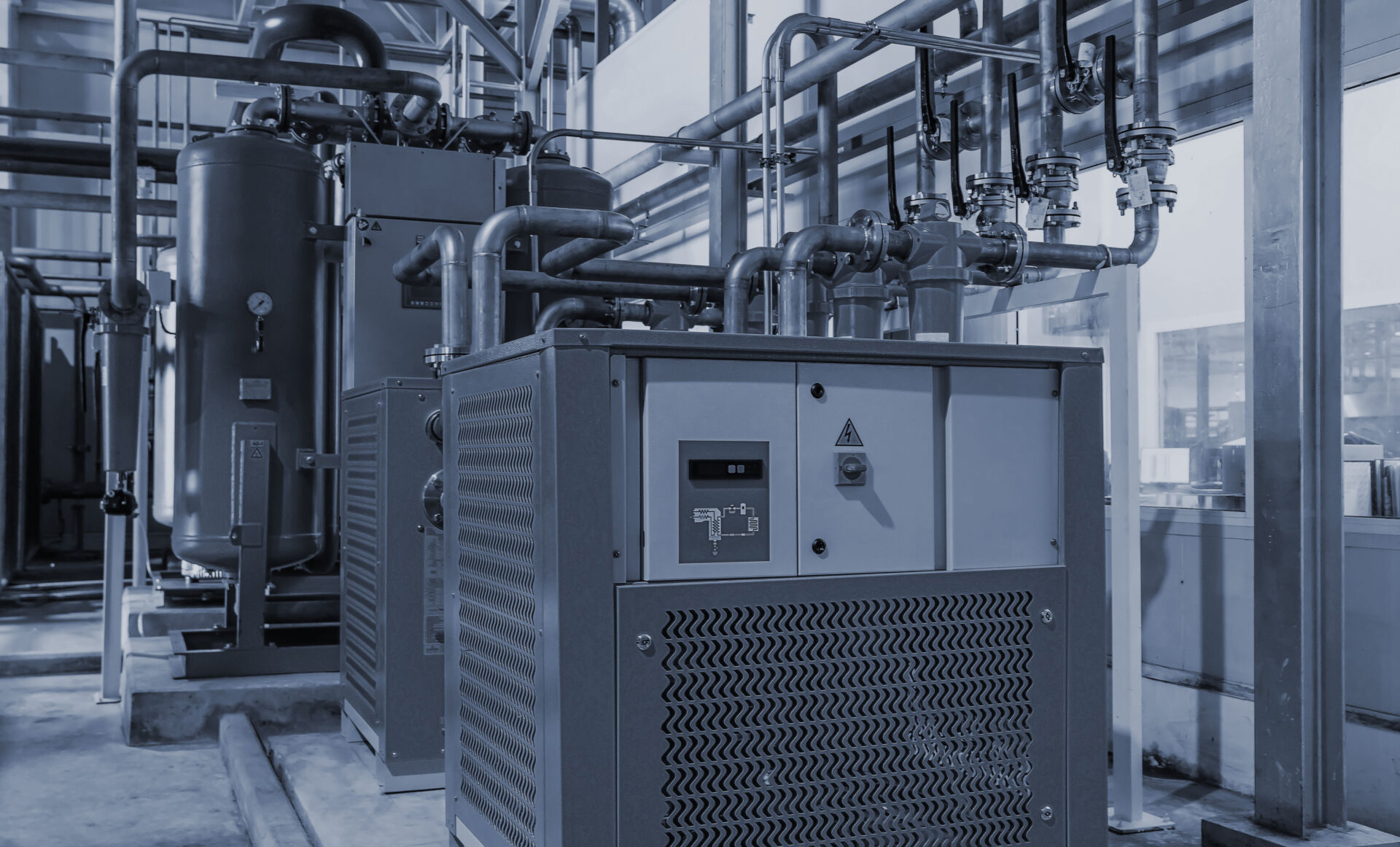

| Pneumatic Controls | Aquaculture & Fish Farming | Central Air System |
| Wordfik TD Series Dry Rotary Vane Compressors ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5-15 kW | 9-18 kW | 250 m³/h | 300 m³/h | +800 / +1500 / +1800 mbar |
