The Wordfik KTD100 is a high-flow, heavy-duty oil-free dry rotary vane compressor built for large-scale industrial positive pressure systems. As a direct drop-in replacement for Becker KDT 3.100 oil-less compressors, it delivers 100 m³/h (58.9 CFM) at 50Hz and 120 m³/h (70.6 CFM) at 60Hz airflow, with a reliable maximum pressure of +1500 mbar (21.8 PSIG).
Engineered with a rugged single-shaft direct-drive structure and high-performance self-lubricating carbon vanes, it operates with zero internal metal contact, self-compensates for wear, and maintains stable performance under sustained full-load operation. Its 100% oil-free design eliminates oil contamination, making it suitable for central air systems, large printing lines and environmental treatment projects.
Powered by a 5.5 kW (7.5 HP) motor at 50Hz and 6.6 kW (9 HP) at 60Hz, the KTD100 delivers robust airflow for multi-station production lines and central pneumatic networks. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is ideal for factory-wide compressed air systems.
Features:
High-flow oil-free dry vane compressor, 21.8 PSIG stable high pressure
Direct drop-in replacement for Becker KDT 3.100 oil-less compressors
100–120 m³/h (59–71 CFM) flow, 5.5–6.6 kW (7.4–8.8 HP) power
Heavy-duty industrial build, designed for multi-station central systems
Wide three-phase voltage, 50/60Hz dual frequency, CE certified
Wear-resistant carbon vanes, long service intervals, low operating cost
| KTD100 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 100 m³/h | 120 m³/h |
| Pressure | +1500 mbar | |
| Motor Power | 5.5 kW | 6.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1450 rpm | 1740 rpm |
| Noise Level | 76 dB(A) | |
| Inlet Connection | 1½ inch | |
| Weight | 127 kg | |
| Dimensions | 925*460*382 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

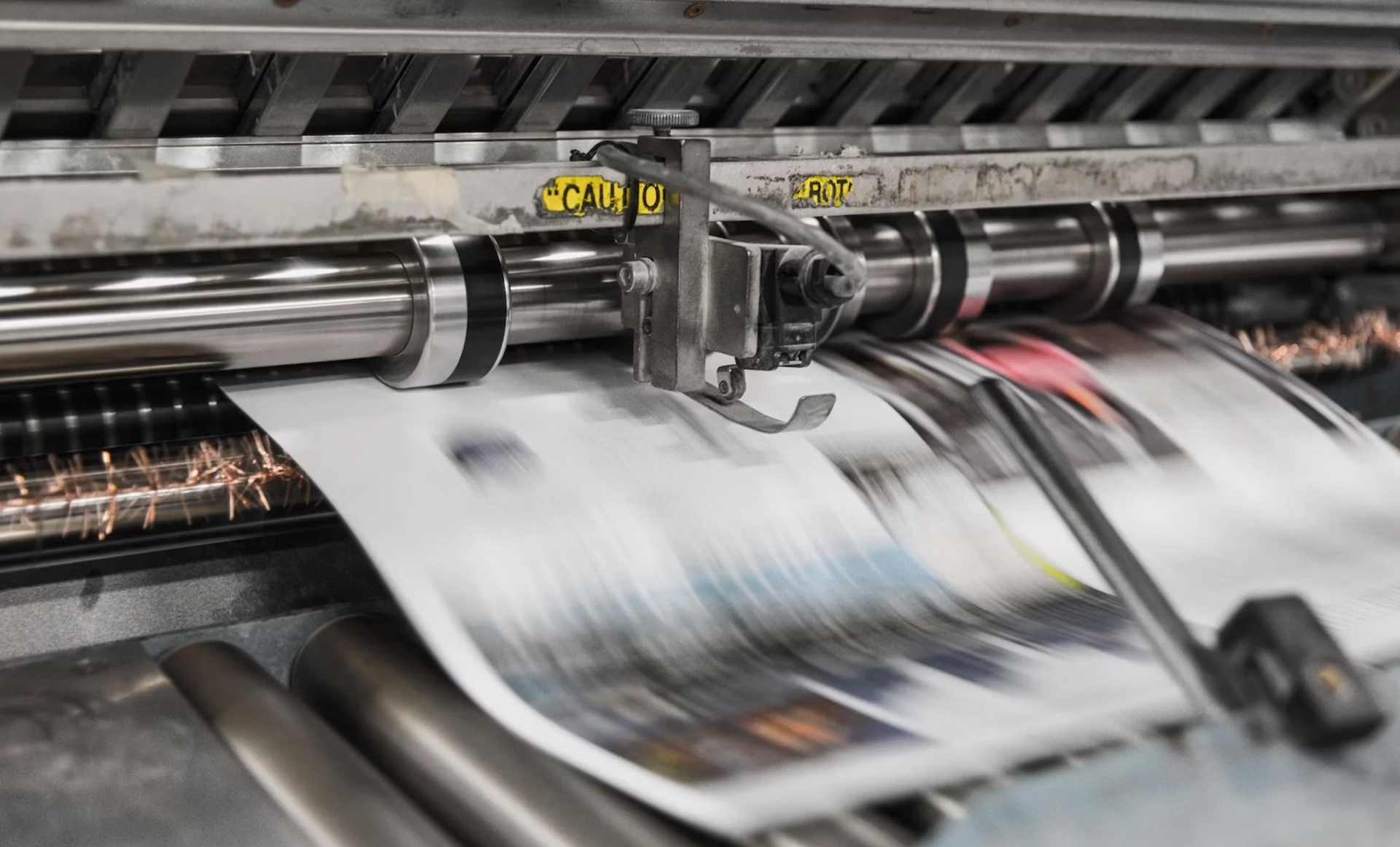

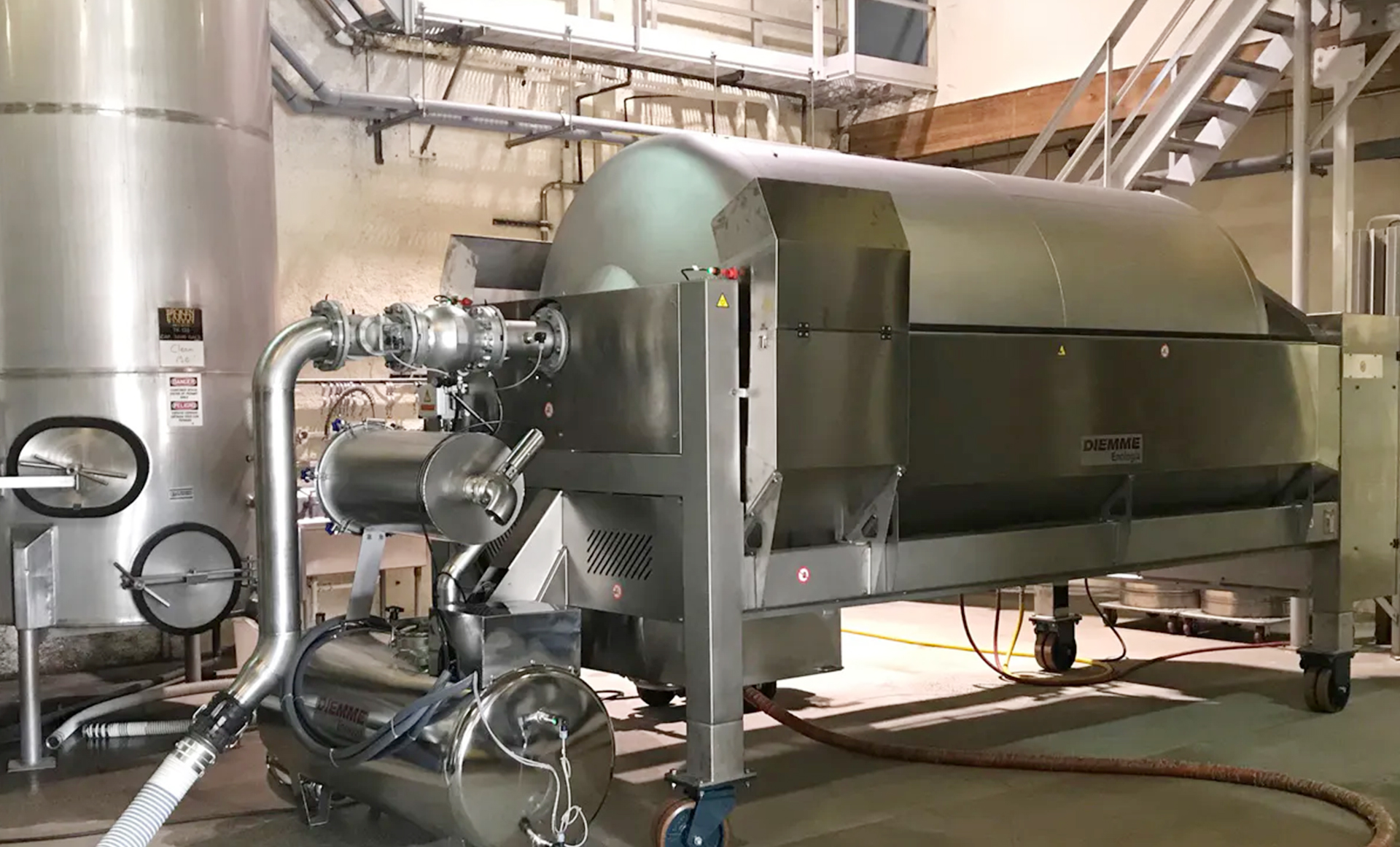

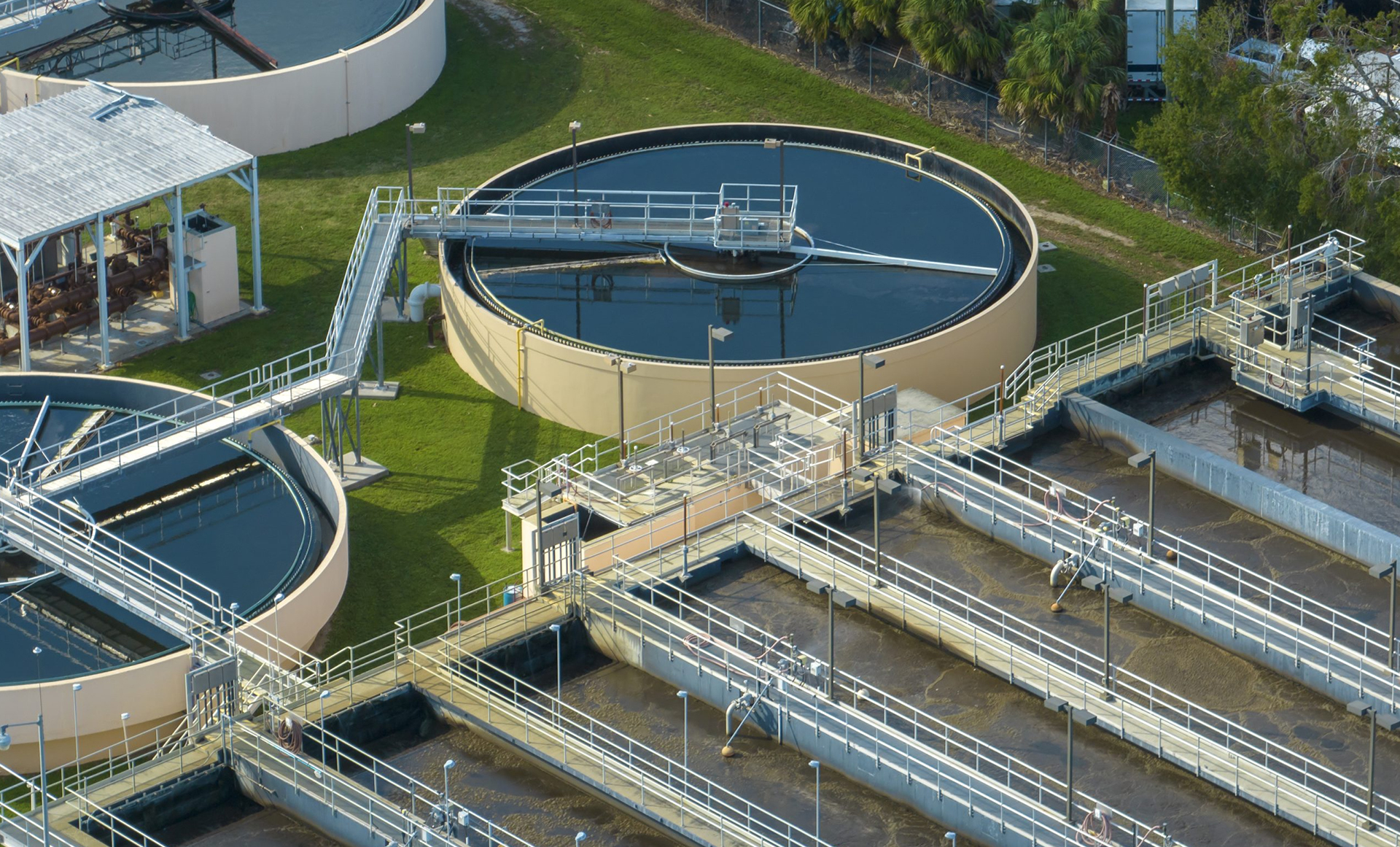

| Wastewater Aeration | Wine Press | Printing & Paper Machine |
 |  |  |

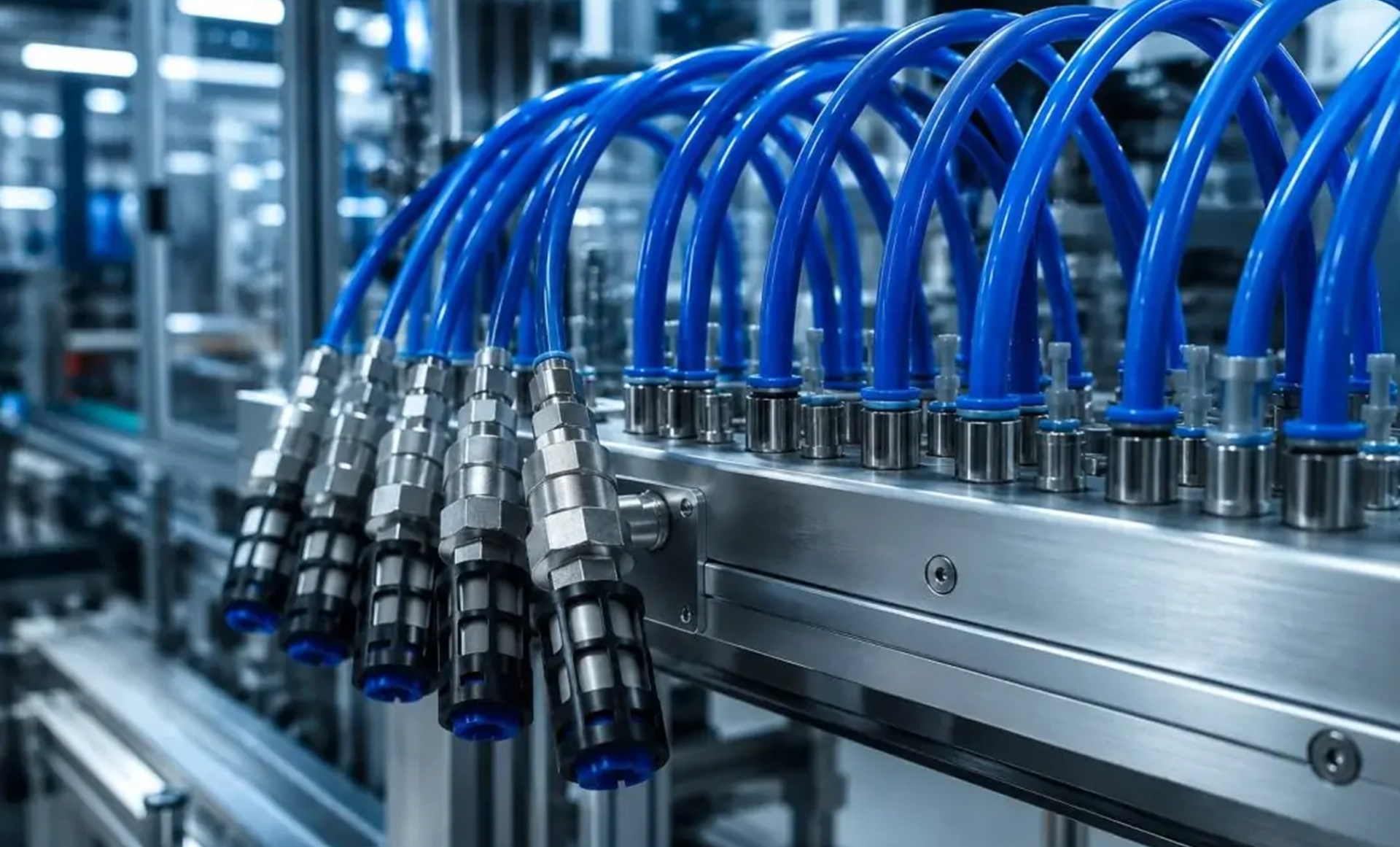

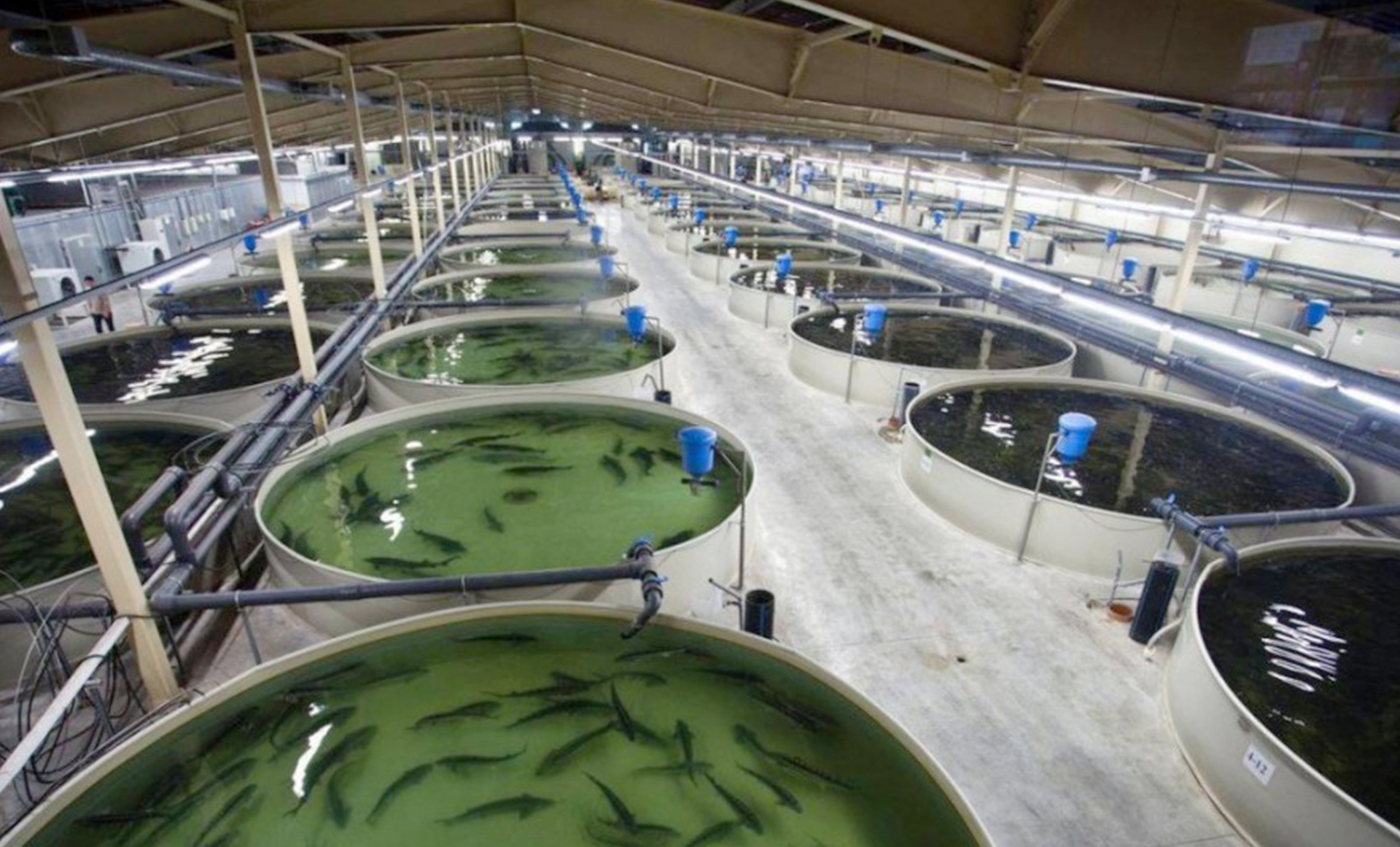

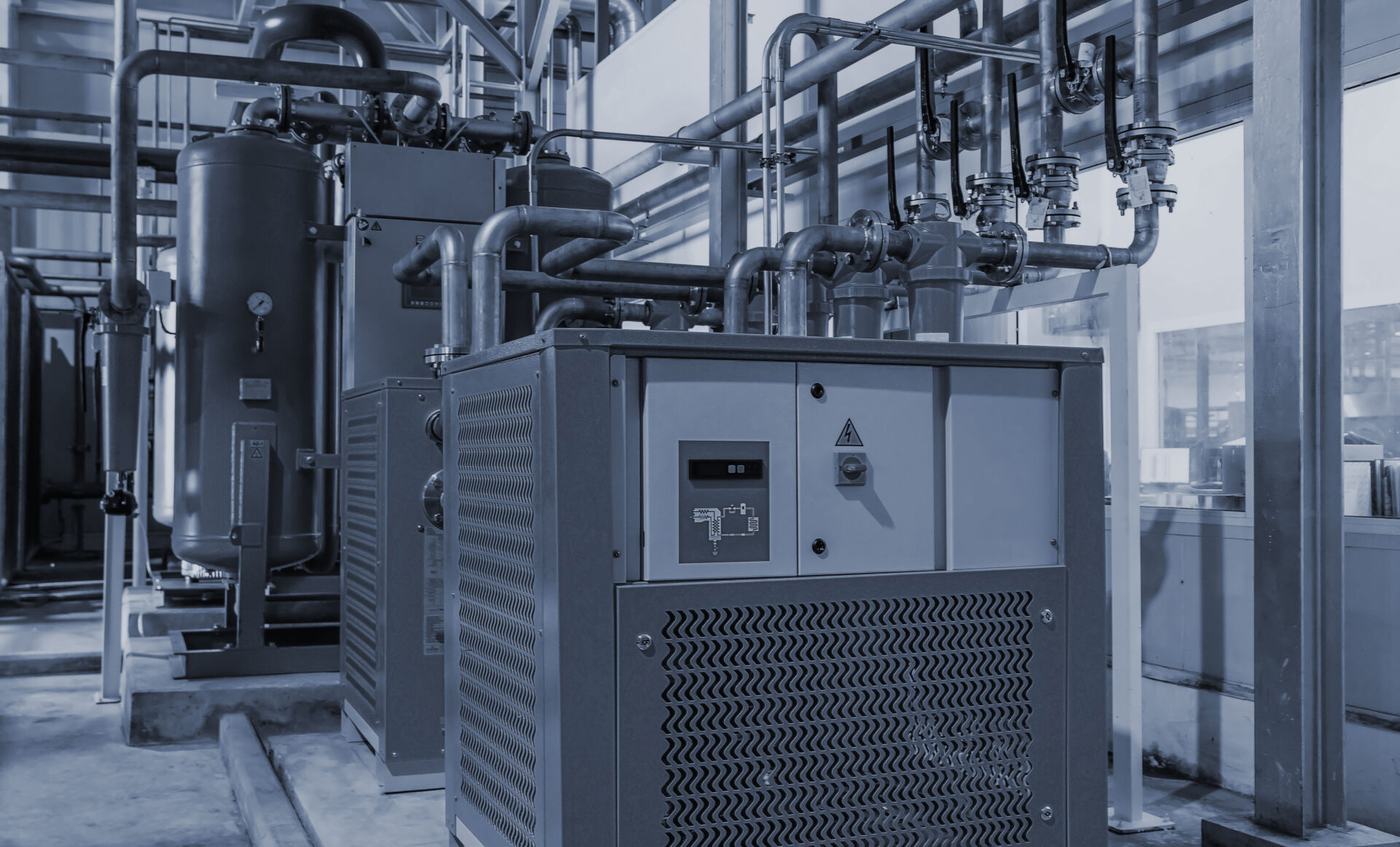

| Pneumatic Controls | Aquaculture & Fish Farming | Central Air System |
| Wordfik TD Series Dry Rotary Vane Compressors ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5-15 kW | 9-18 kW | 250 m³/h | 300 m³/h | +800 / +1500 / +1800 mbar |
