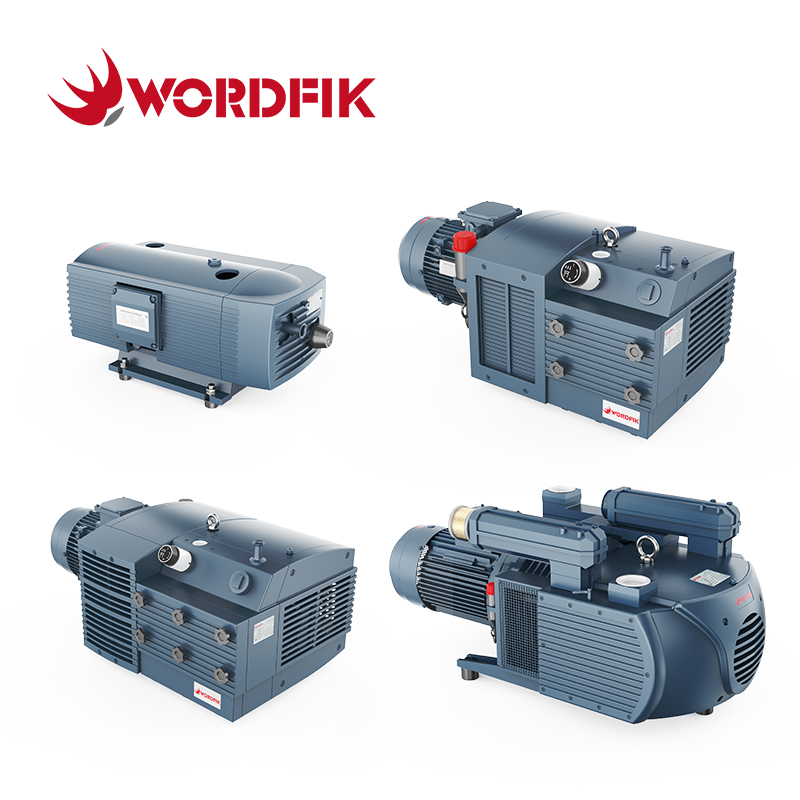

The Wordfik TD series is a complete portfolio of oil-free dry rotary vane compressors, spanning from compact 10 m³/h (5.9 CFM) OEM units to heavy-duty 300 m³/h (177 CFM) industrial models, with pressure ratings from +1000 mbar (14.5 PSIG) up to +1800 mbar (26.1 PSIG). Designed as direct drop-in replacements for the full Becker DT, KDT and DTLF oil-less compressor portfolios, every unit shares a proven single-shaft direct-drive architecture with self-lubricating graphite vanes.
All TD series compressors operate 100% oil-free, delivering clean, contaminant-free compressed air with zero oil mist pollution. The entire range adheres to a unified premium build standard – including high-grade carbon vanes and industrial-grade bearings – ensuring consistent reliability, minimal maintenance and long service life across every size. With broad global voltage compatibility and standard CE certification, the series serves over 80 countries across printing, environmental treatment, aquaculture, medical and industrial automation sectors.
Features:
Full Lineup with Two Pressure Tiers
9 models covering 10–250 m³/h flow range, available in standard pressure (+1000 mbar) and high pressure (+1500–1800 mbar) configurations. Precise sizing for every application from compact OEM equipment to factory-wide central systems.
100% Oil-Free Clean Air Standard
Every model delivers completely oil-free compressed air with zero oil carryover. Eliminates workpiece contamination, oil mist emissions and pipeline residue, fully compliant with medical, food and environmental process standards.
Uniform Premium Build Quality
High-precision machined rotors, genuine industrial bearings and high-grade EK60 self-lubricating carbon vanes are standard across the entire range. Guarantees consistent performance, low wear and extended service life regardless of pump size.
Full Becker Equivalent Replacement Range
Every TD/KTD model matches mounting dimensions, port sizes and performance parameters of corresponding Becker DT, KDT and DTLF compressors. Enables direct drop-in replacement across the entire Becker lineup with no system modifications.
Global Voltage & Industrial Certification
Broad single-phase and three-phase voltage options, with dual 50/60Hz support on most models. Standard CE certification ensures seamless global deployment and OEM equipment export integration.
In-Stock Availability & Unified Support
All standard models are fully stocked for fast global shipping. Backed by 1-year product warranty, lifetime after-sales service and 7/24 technical support for the entire product family.
| Frequency | Pumping Speed | Pressure | Motor Power | Motor Voltage | Motor Speed | Noise Level | Inlet Connection | Weight | Dimensions | ||
| 3ph | 1ph | ||||||||||
| TD10 | 50Hz | 10 m³/h | +1000 mbar | 0.37 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 62 dB(A) | ½ inch | 16 kg | 430*206*215 mm |
| 60Hz | 12 m³/h | 0.44 kW | Δ202-300 V Y350-520 V | 1700 rpm | |||||||
| TD16K | 50Hz | 16 m³/h | +1000 mbar | 0.75 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 64 dB(A) | ½ inch | 23.5 kg | 475*286*230 mm |
| 60Hz | 19.2 m³/h | 0.9 kW | Δ202-300 V Y350-520 V | 1700 rpm | |||||||
| TD25K | 50Hz | 25 m³/h | +1000 mbar | 1.25 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 65 dB(A) | ¾ inch | 36.5 kg | 535*320*295 mm |
| 60Hz | 30 m³/h | 1.5 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||
| TD40K | 50Hz | 40 m³/h | +1000 mbar | 1.85 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 67 dB(A) | ¾ inch | 46 kg | 620*320*295 mm |
| 60Hz | 48 m³/h | 2.2 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||
| KTD60 | 50Hz | 60 m³/h | +1500 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 72 dB(A) | 1 inch | 69 kg | 731*340*340 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1740 rpm | ||||||||
| KTD80 | 50Hz | 80 m³/h | +1500 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 74 dB(A) | 1 inch | 77 kg | 731*340*340 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1740 rpm | ||||||||
| KTD100 | 50Hz | 100 m³/h | +1500 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 76 dB(A) | 1½ inch | 127 kg | 925*460*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1740 rpm | ||||||||
| KTD140 | 50Hz | 140 m³/h | +1500 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 82 dB(A) | 1½ inch | 127 kg | 925*460*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1740 rpm | ||||||||
| KTD250 | 50Hz | 250 m³/h | +800 / +1500 / +1800 mbar | 7.5-15 kW | Δ230V±10% Y400V±10% | / | 960 rpm | 81 dB(A) | 2½ inch | 280 kg | 1260*612*527 mm |
| 60Hz | 300 m³/h | 9-18 kW | 1150 rpm | ||||||||
Application:
 |  |  |

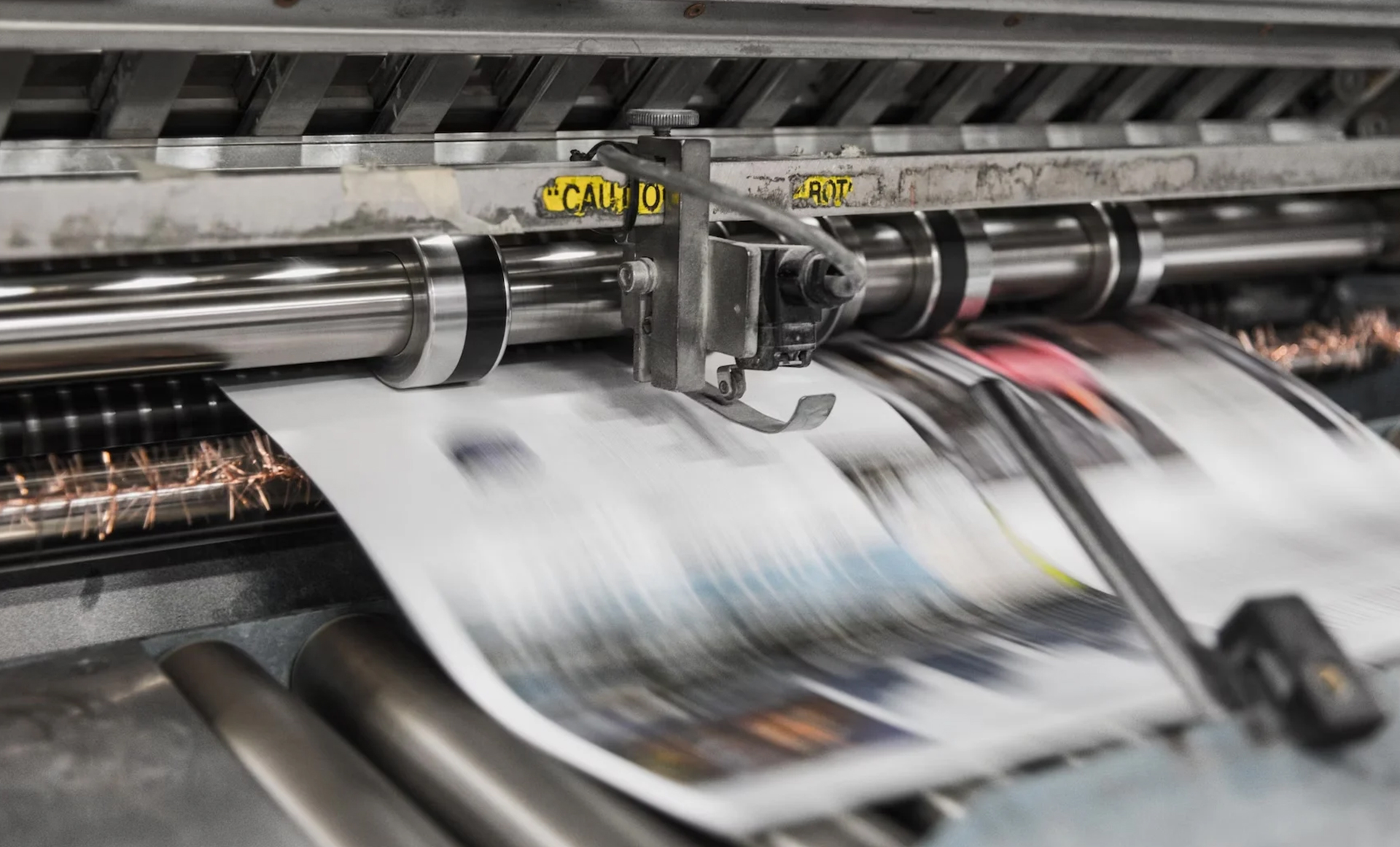

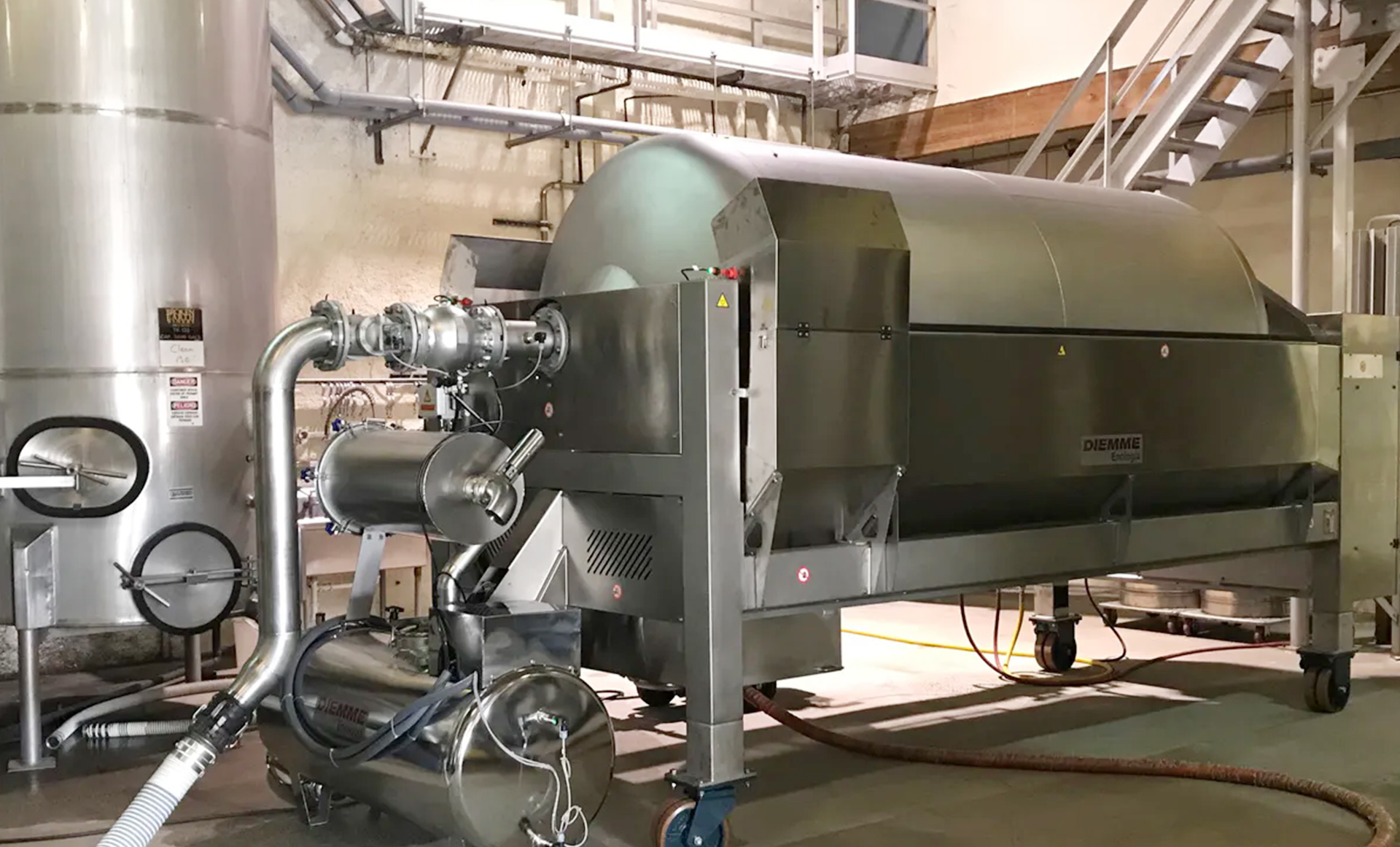

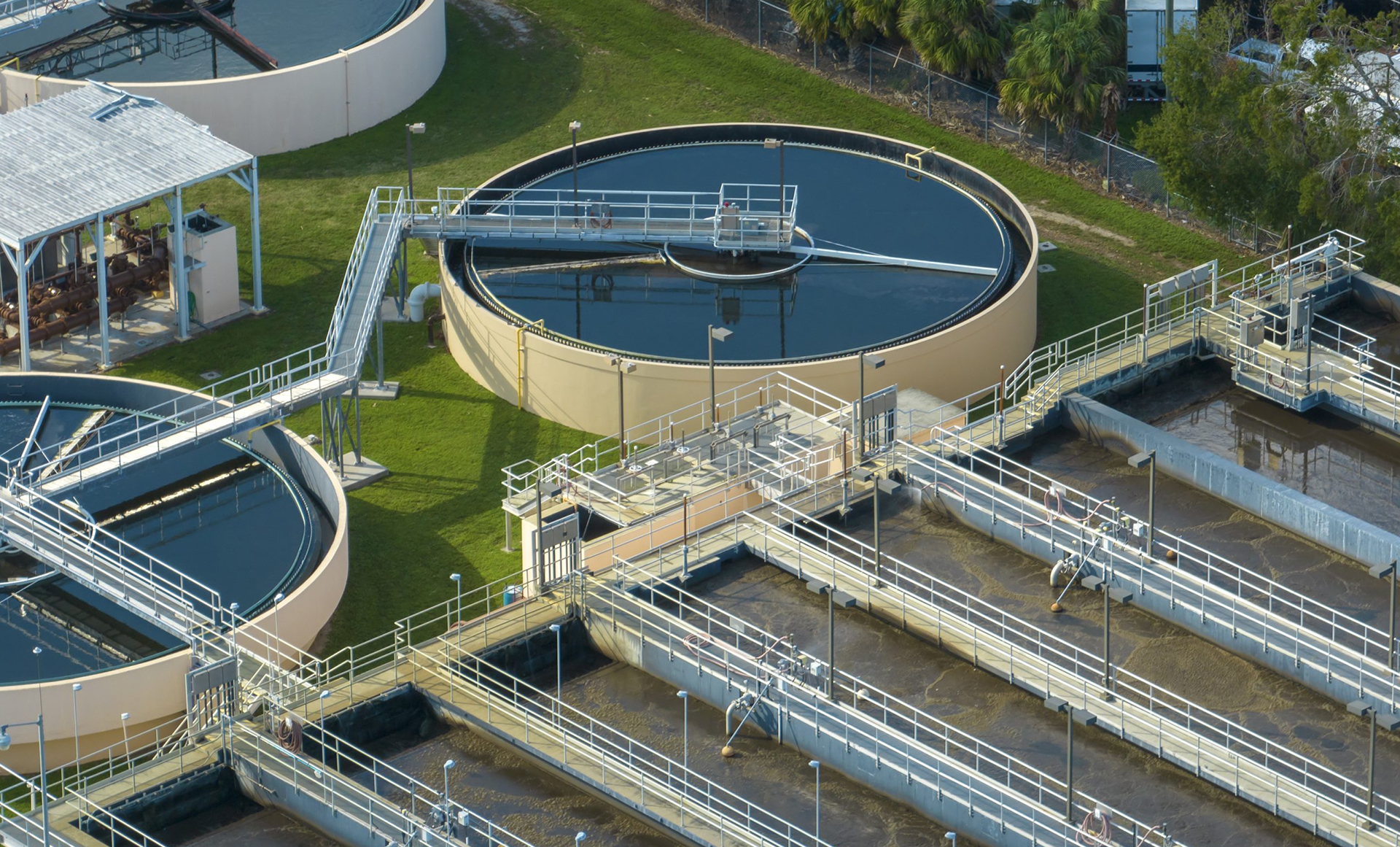

| Wastewater Aeration | Wine Press | Printing & Paper Machine |
 |  |  |

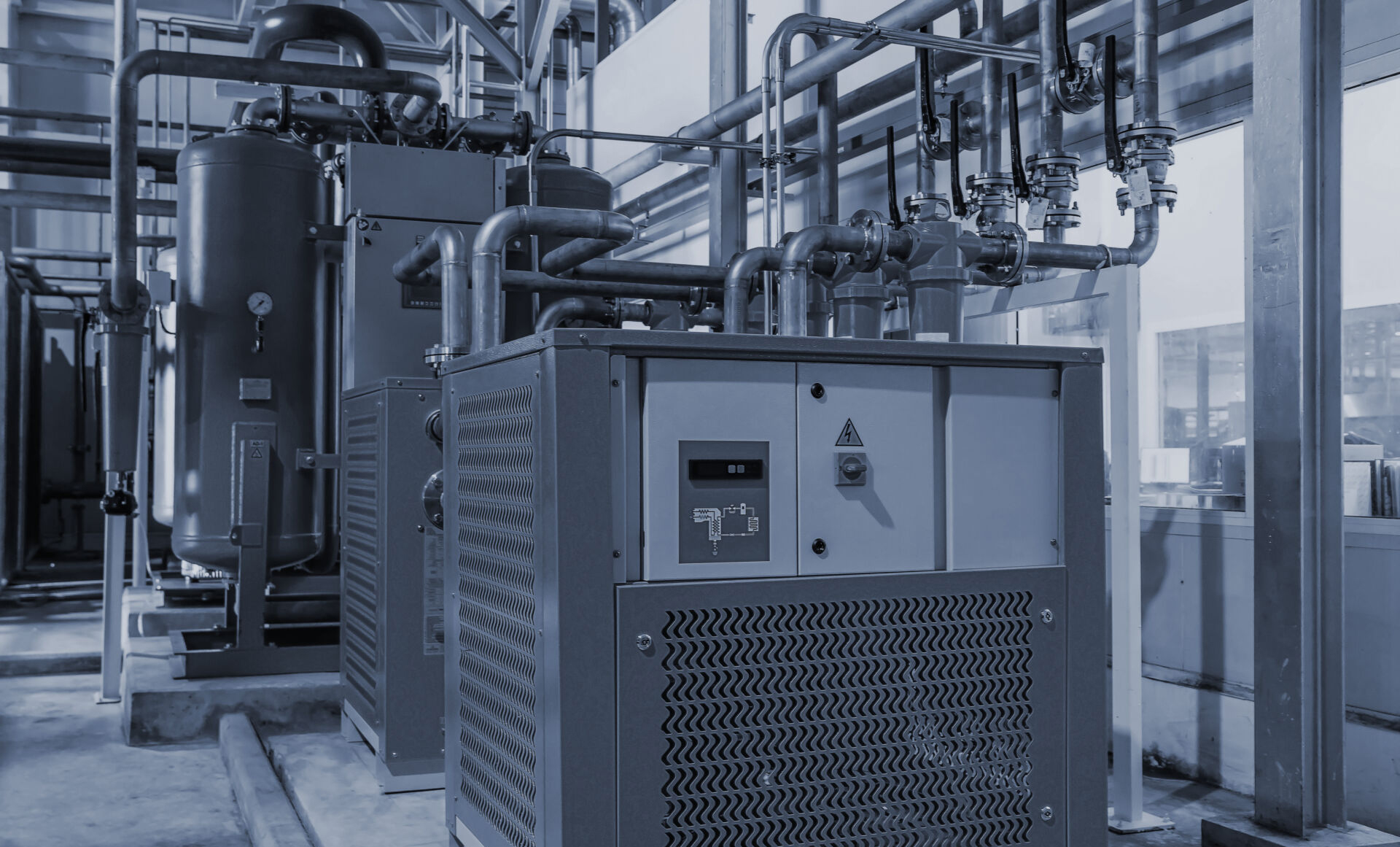

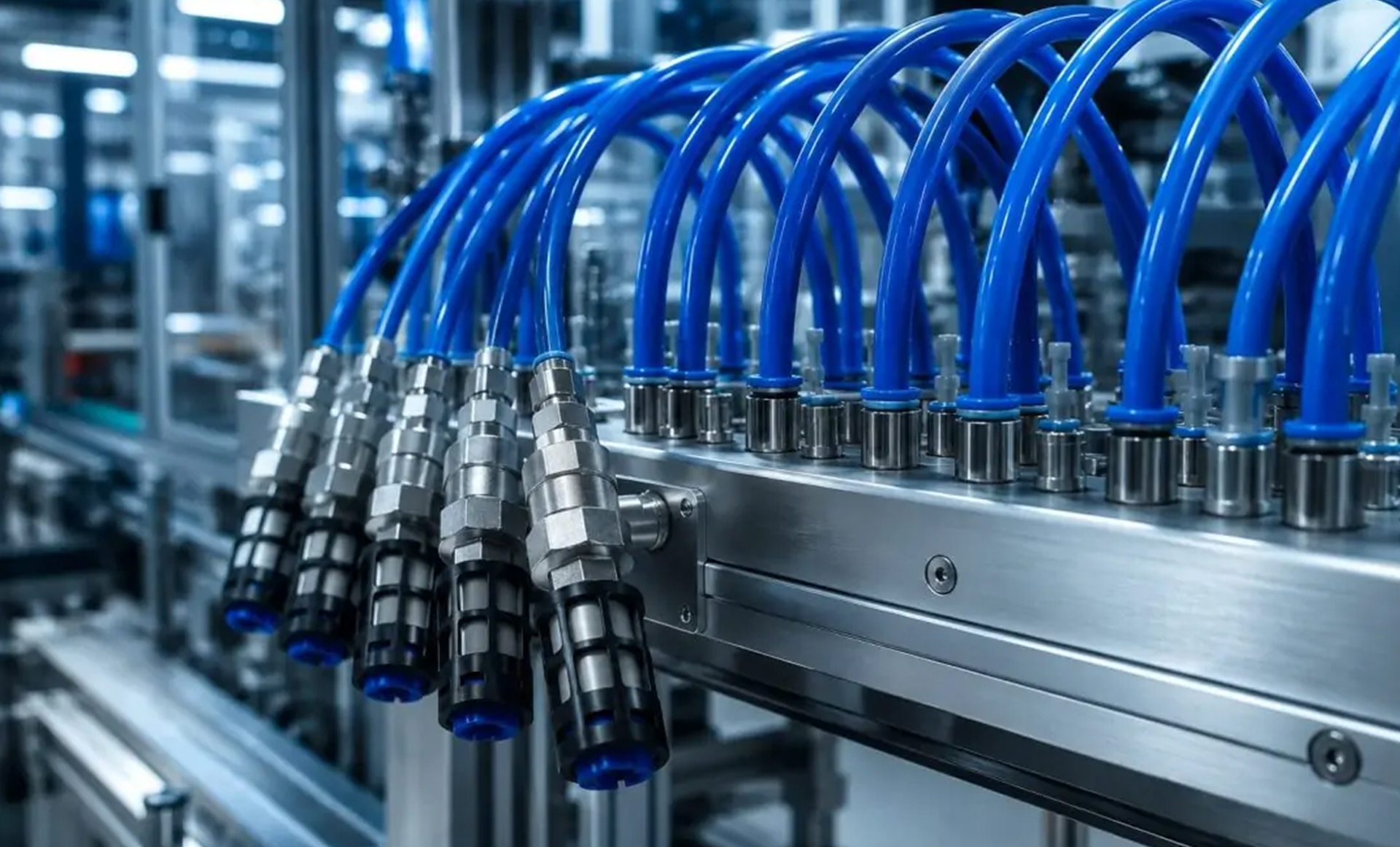

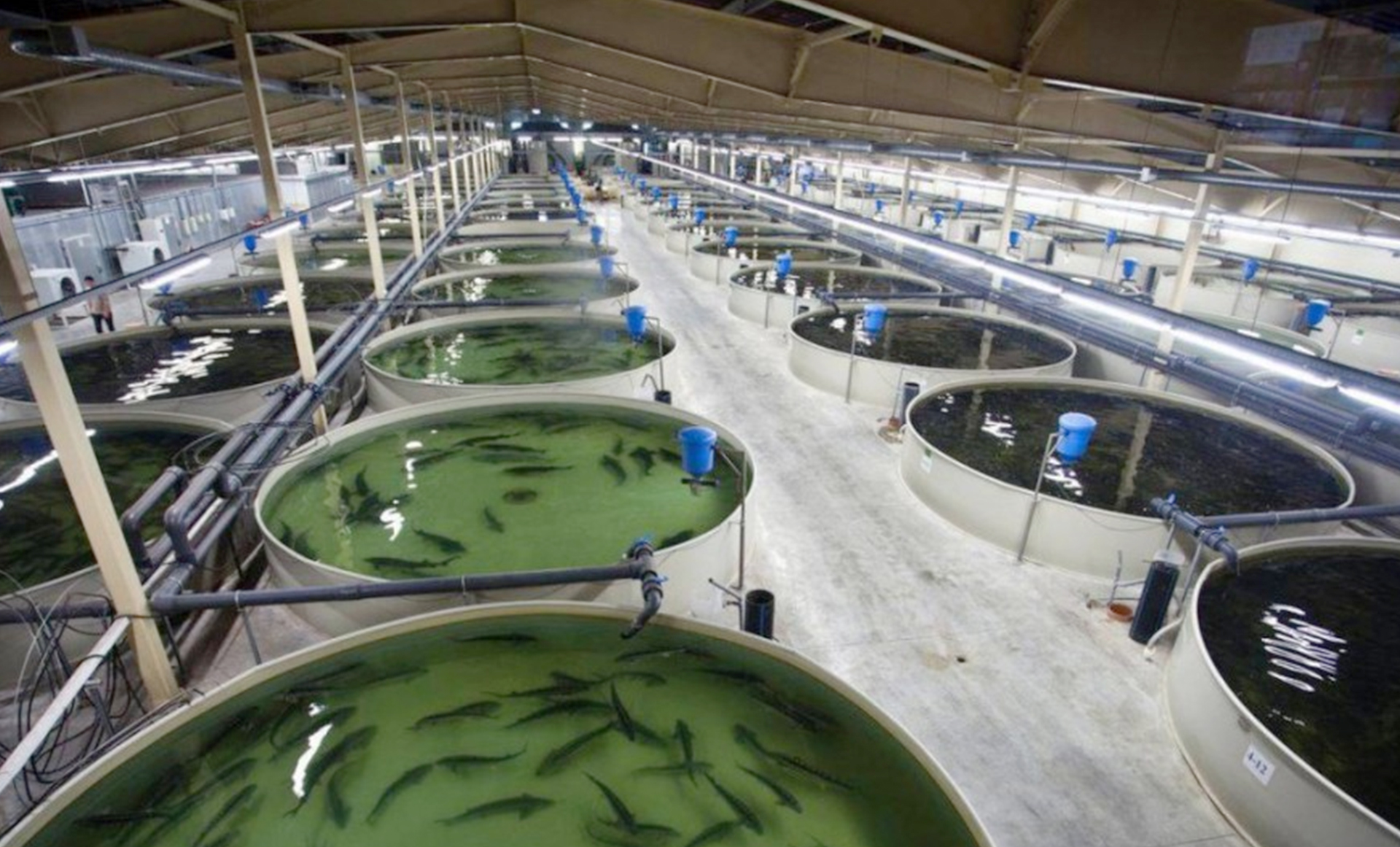

| Pneumatic Controls | Aquaculture & Fish Farming | Central Air System |
