The Wordfik TD25K is a versatile industrial-grade oil-free dry rotary vane compressor engineered for general positive pressure applications. As a direct drop-in replacement for Becker DT4.25K oil-less compressors, it delivers 25 m³/h (14.7 CFM) at 50Hz and 30 m³/h (17.7 CFM) at 60Hz airflow, maintaining a stable +1000 mbar (14.5 PSIG) working pressure.
Featuring a robust single-shaft direct-drive structure and premium self-lubricating carbon vanes, it operates with zero internal metal contact, self-compensates for wear, and delivers consistent performance with minimal maintenance. Its 100% oil-free design eliminates oil pollution, ensuring compliance with environmental and industrial hygiene standards.
Powered by a 1.25 kW (1.7 HP) motor at 50Hz and 1.5 kW (2.0 HP) at 60Hz, the TD25K balances performance and energy efficiency. It supports both single-phase and three-phase wide voltage inputs, comes standard with CE certification, and is widely used in printing, environmental protection, packaging and automation industries.
Features:
100% oil-free dry vane compression, zero pollution, environmental compliant
Direct drop-in replacement for Becker DT 4.25K oil-less compressors
25–30 m³/h (14.7–17.7 CFM) flow, 14.5 PSIG stable pressure
Industrial heavy-duty build, designed for 24/7 continuous operation
Wide single/three-phase voltage, 50/60Hz, CE certified
Low maintenance, long service life, best cost-performance ratio
| TD25K Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 25 m³/h | 30 m³/h |
| Pressure | +1000 mbar | |
| Motor Power | 1.25 kW | 1.5 kW |
| Motor Voltage | Δ 190-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 65 dB(A) | |
| Inlet Connection | ¾ inch | |
| Weight | 36.5 kg | |
| Dimensions | 535*320*295 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

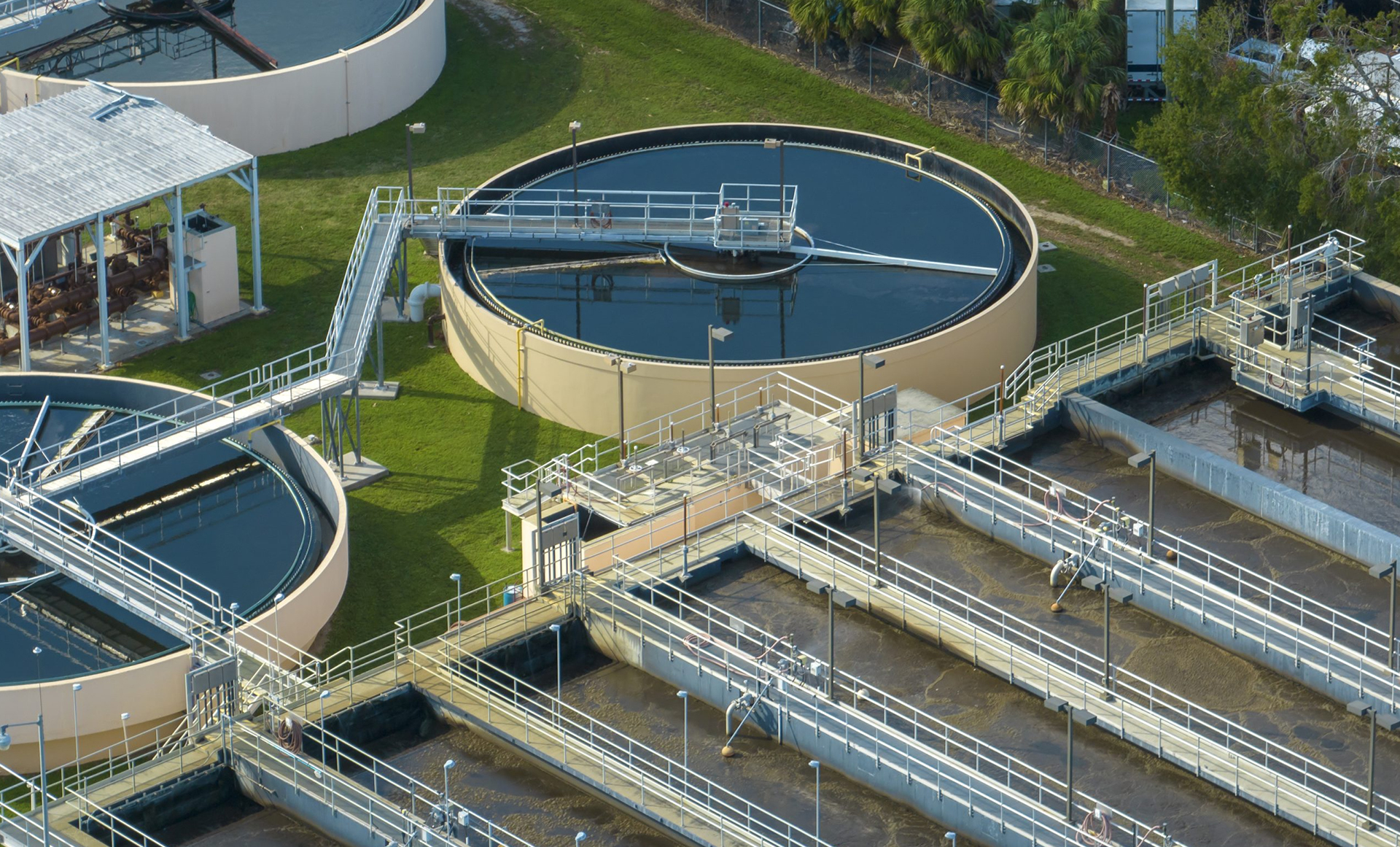

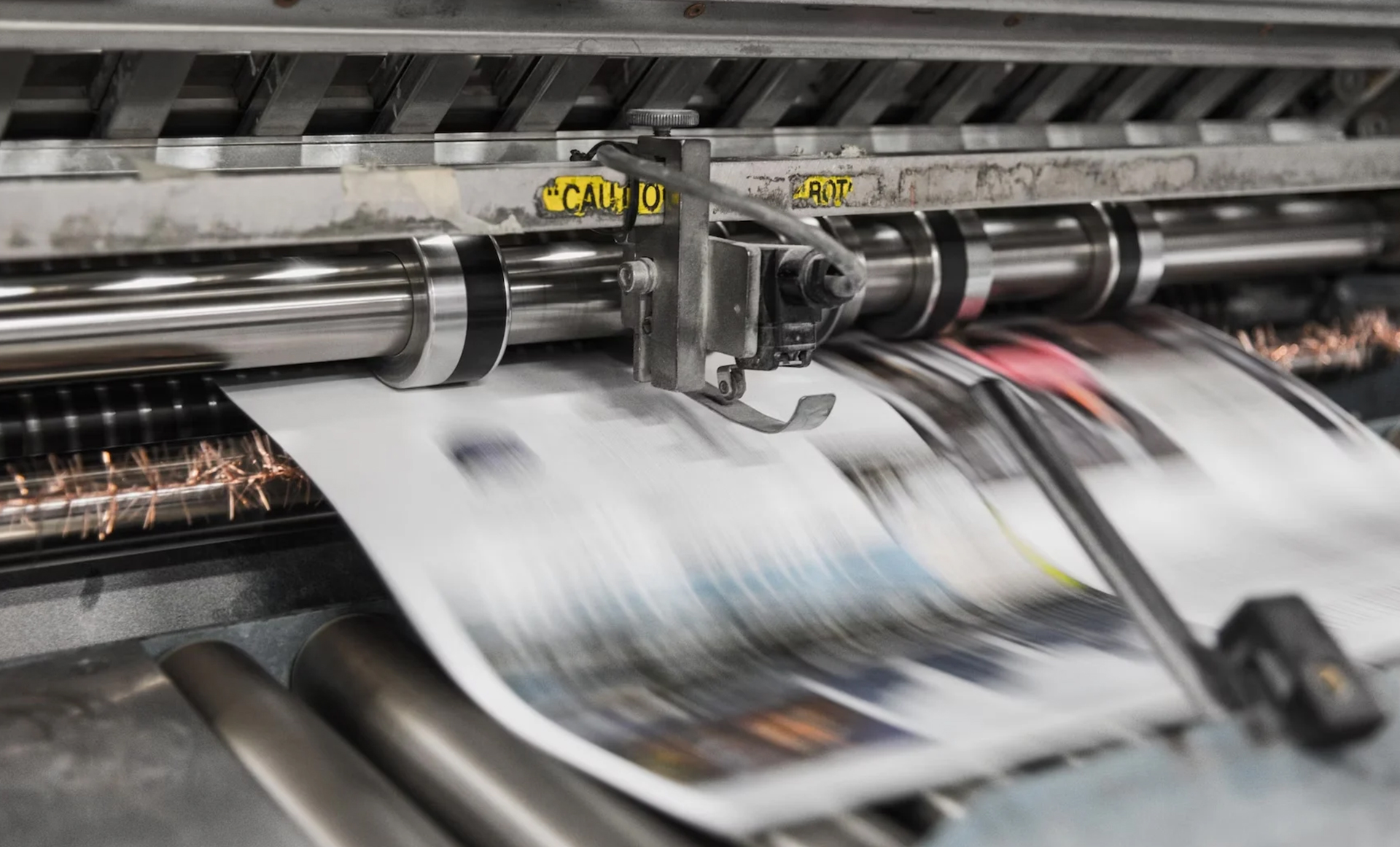

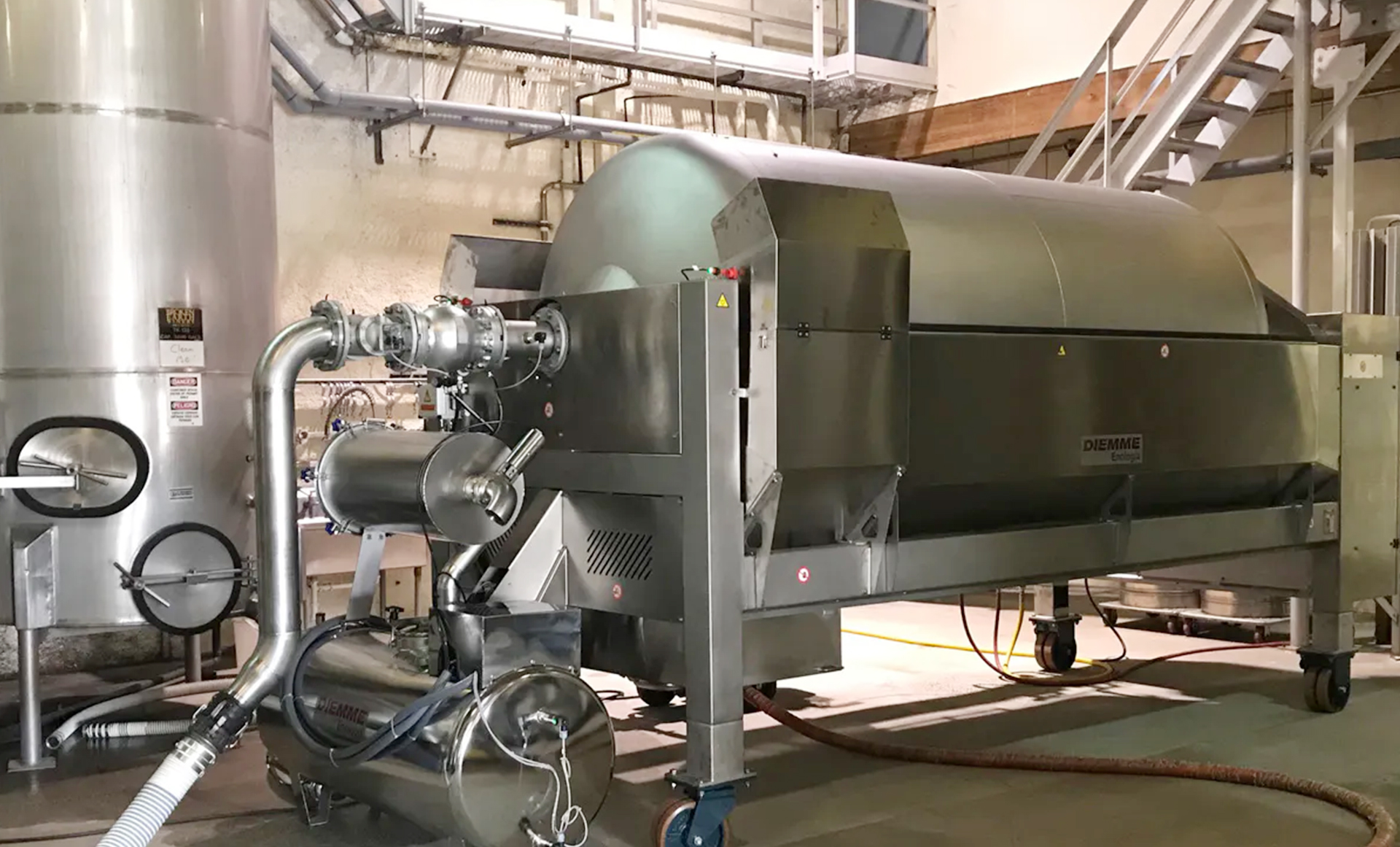

| Wine Press | Wastewater Aeration | Printing & Paper Machine |
 |  |  |

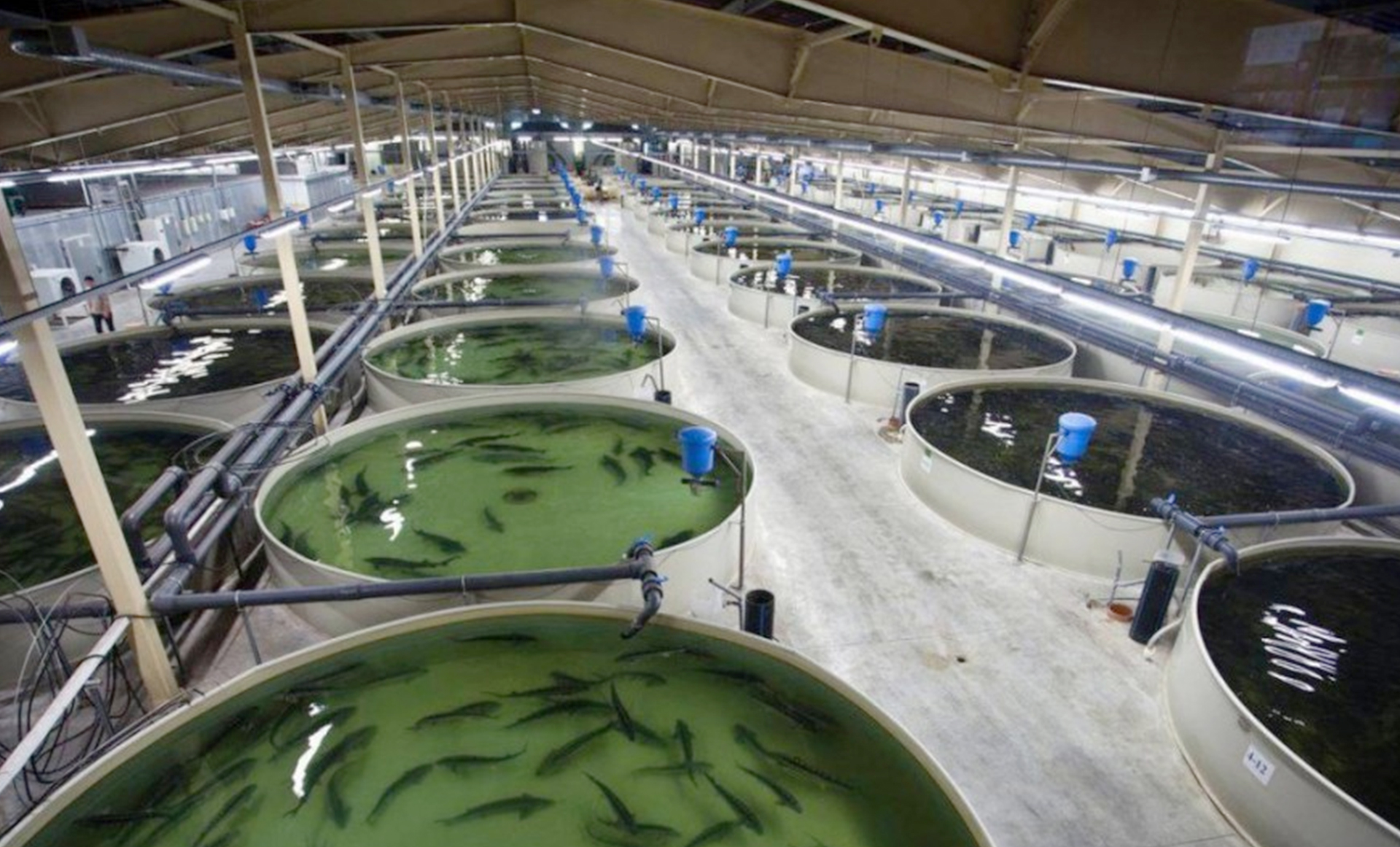

| Pneumatic Controls | Aquaculture & Fish Farming | Coffee Roasting |
| Wordfik TD Series Dry Rotary Vane Compressors ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5-15 kW | 9-18 kW | 250 m³/h | 300 m³/h | +800 / +1500 / +1800 mbar |
