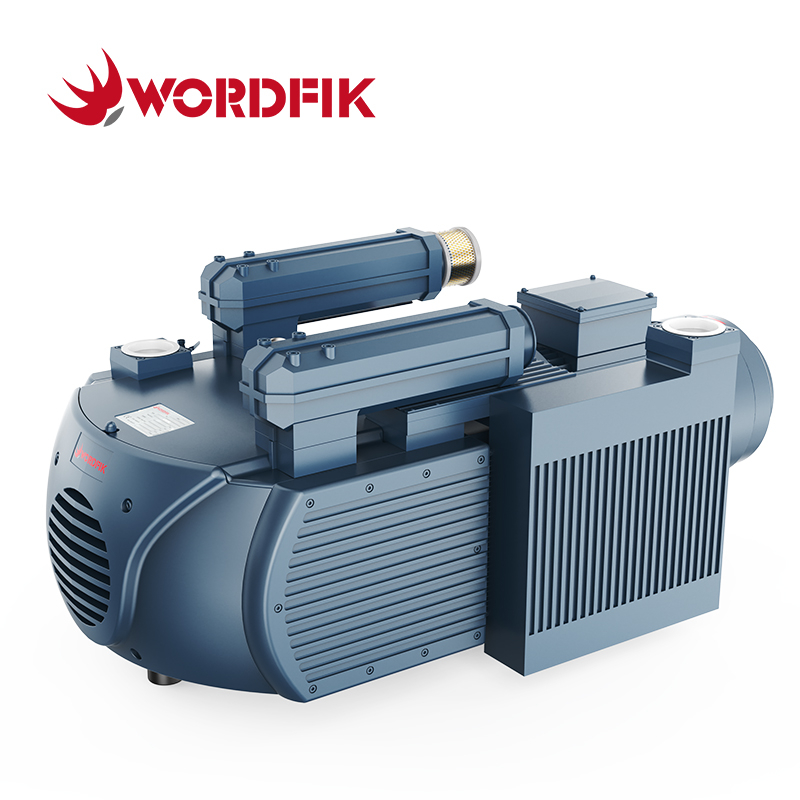

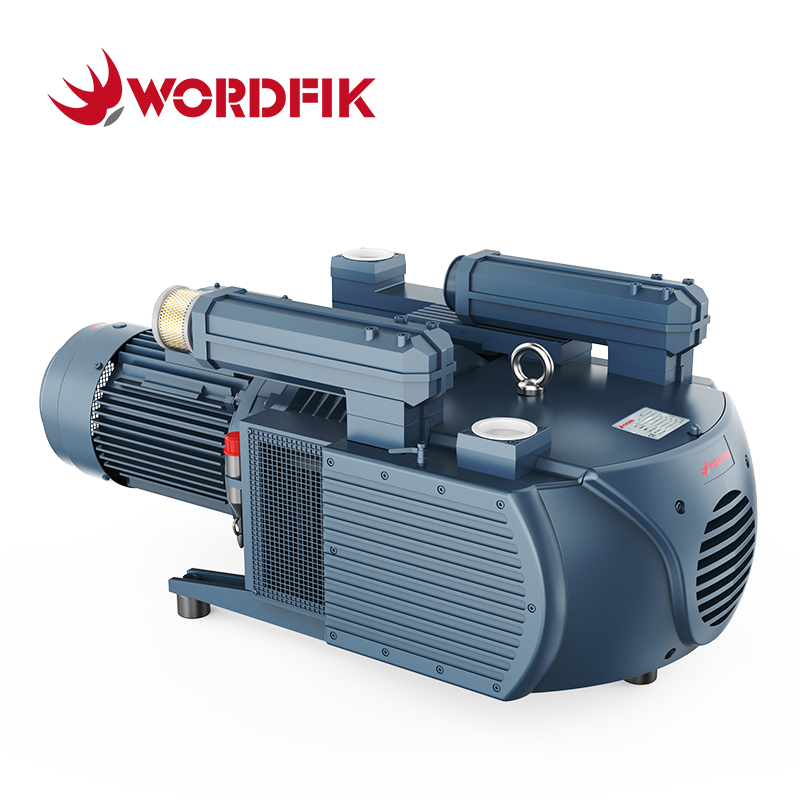

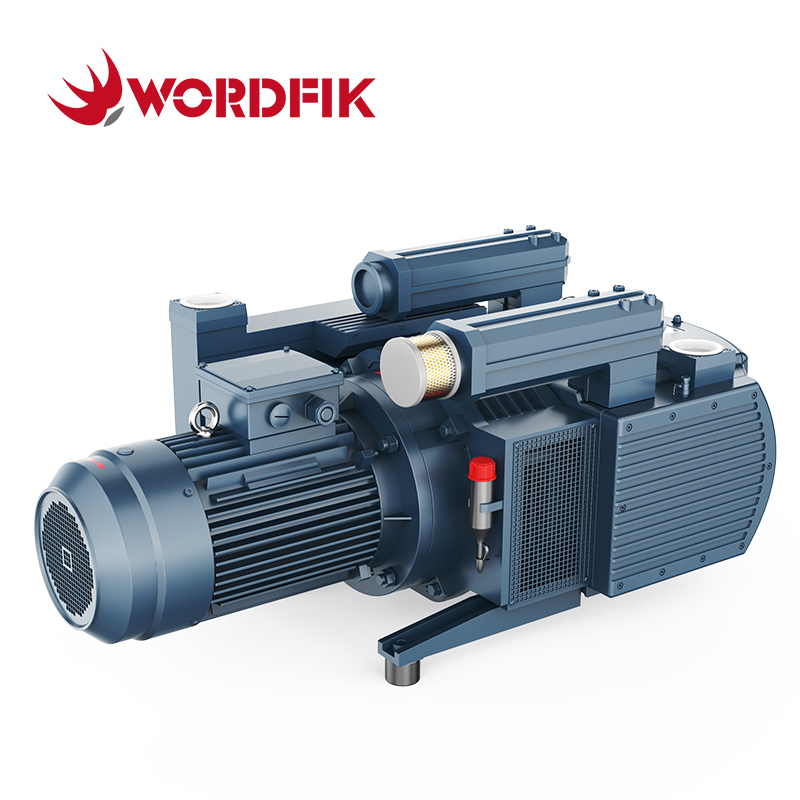

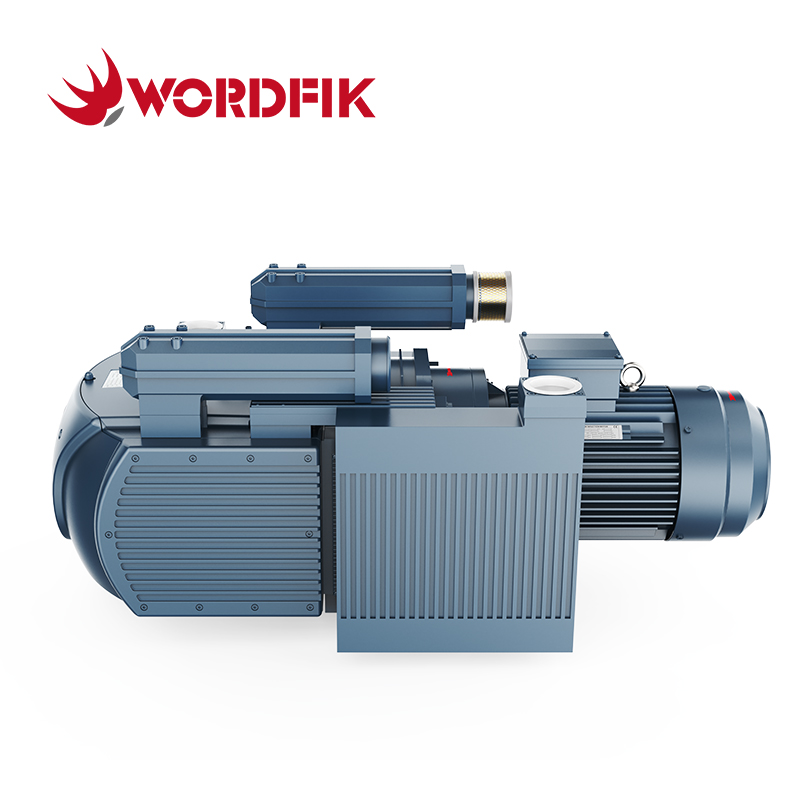

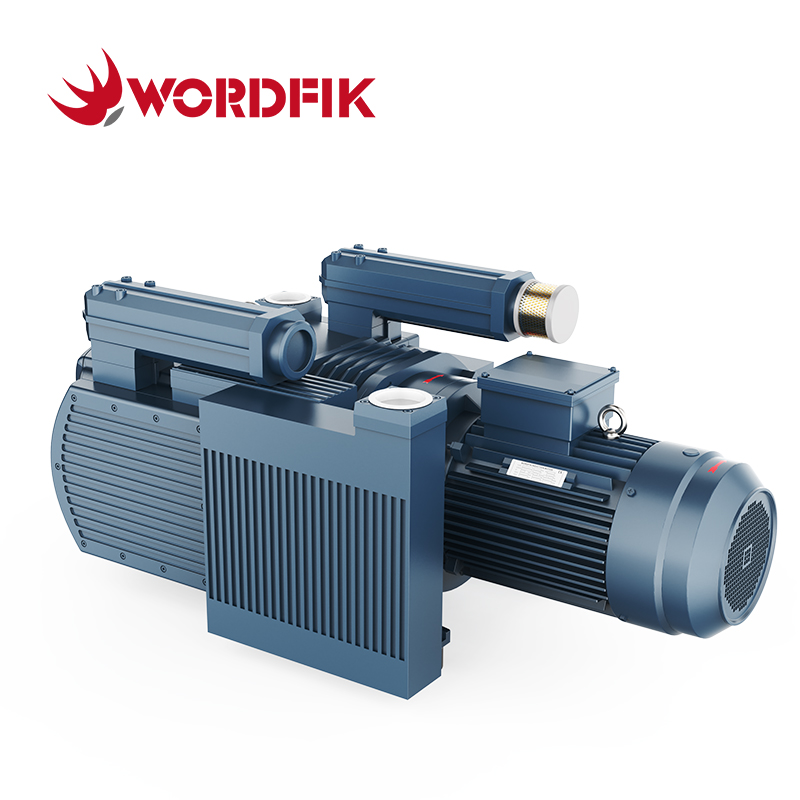

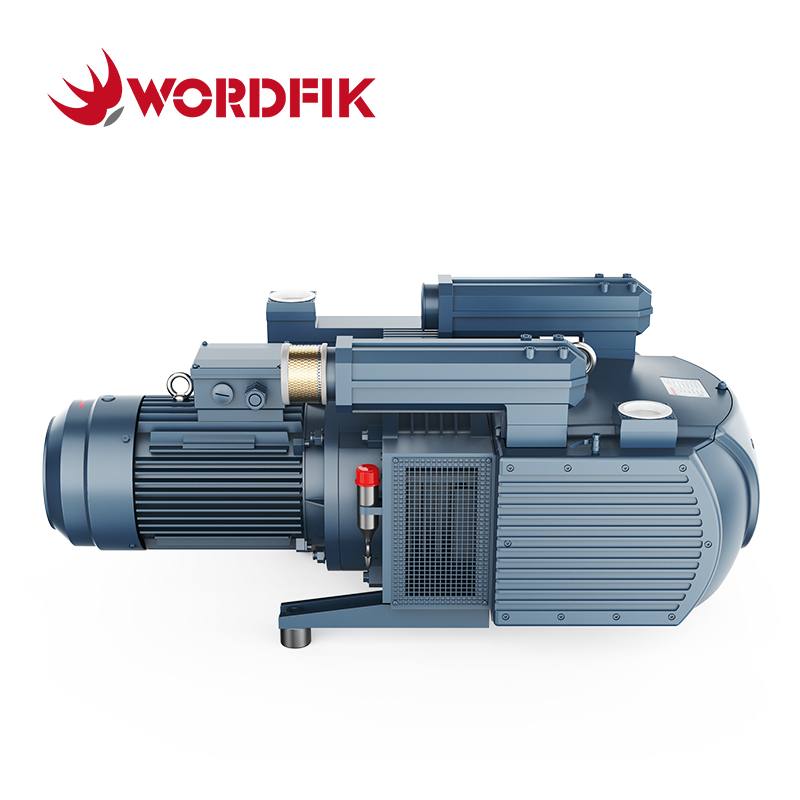

The Wordfik KTD250 is a heavy-duty, wide-adjustable-pressure oil-free dry rotary vane compressor engineered for large-scale industrial systems with varying pressure demands. As a direct drop-in replacement for Becker DTLF 2.250 oil-less compressors, it delivers 250 m³/h (147.1 CFM) at 50Hz and 300 m³/h (176.6 CFM) at 60Hz airflow, with a fully adjustable pressure range from +800 mbar (11.6 PSIG) to +1800 mbar (26.1 PSIG).
Built on a low-speed single-shaft direct-drive architecture with premium self-lubricating graphite vanes, it operates with zero internal metal-to-metal contact, enabling self-wear compensation, minimal maintenance and exceptional service life. Its 100% oil-free design delivers completely clean compressed air with zero contamination, making it ideal for multi-process production lines, central air systems and environmental treatment projects.
Powered by a 7.5 kW (10 HP) motor at 50Hz and 9 kW (12 HP) at 60Hz, the KTD250 features a rugged low-speed design (960/1150rpm) for reduced wear and 24/7 continuous full-load operation. It supports standard three-phase wide voltage inputs, comes standard with CE certification, and is globally deployable across 80+ countries.
Features:
100% oil-free dry vane technology, 800–1800mbar wide adjustable pressure
Direct drop-in replacement for Becker DTLF 2.250 / KDT 3.250 compressors
250–300 m³/h (147–177 CFM) large flow, 7.5–9 kW (10–12 HP) power
Low-speed heavy-duty design, built for 24/7 continuous full-load operation
EK60 carbon vanes + SKF/NSK bearings, low wear, long service life
Wide three-phase voltage, 50/60Hz dual frequency, CE certified
| KTD250 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 250 m³/h | 300 m³/h |
| Pressure | +800 / +1500 / +1800mbar | |
| Motor Power | 7.5-15 kW | 9-18 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 960 rpm | 1150 rpm |
| Noise Level | 81 dB(A) | |
| Inlet Connection | 2½ inch | |
| Weight | 280 kg | |
| Dimensions | 1210*612*527 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

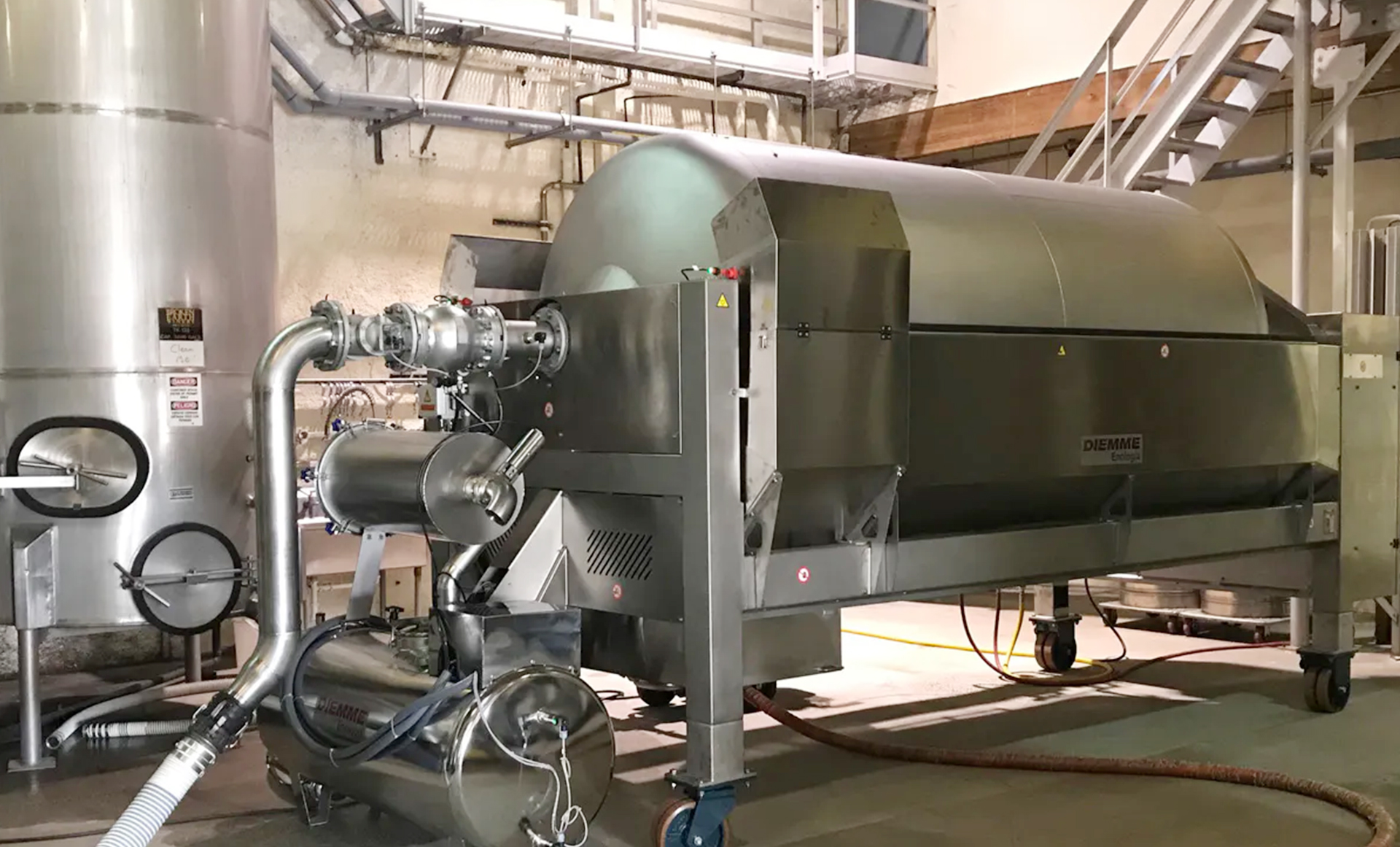

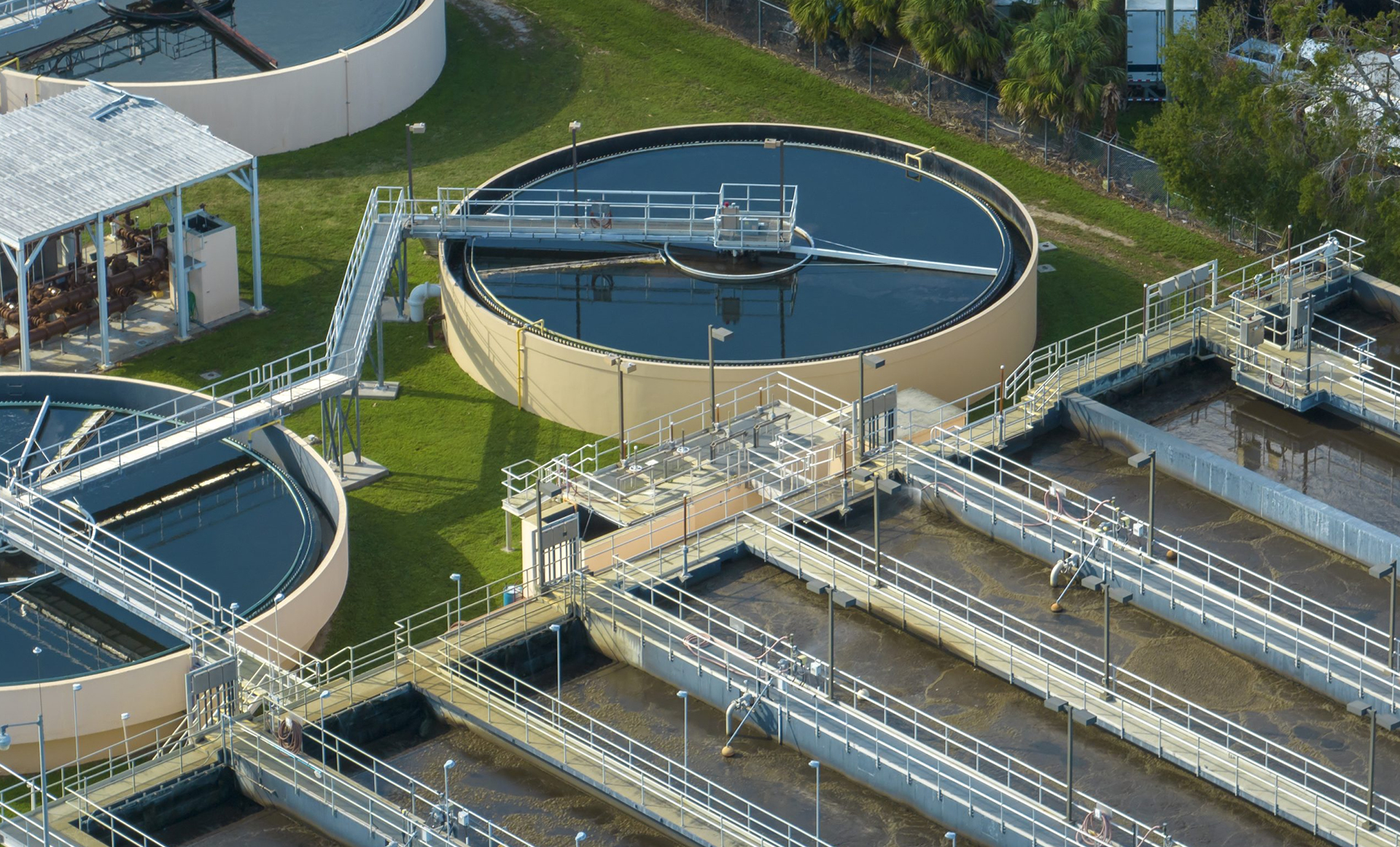

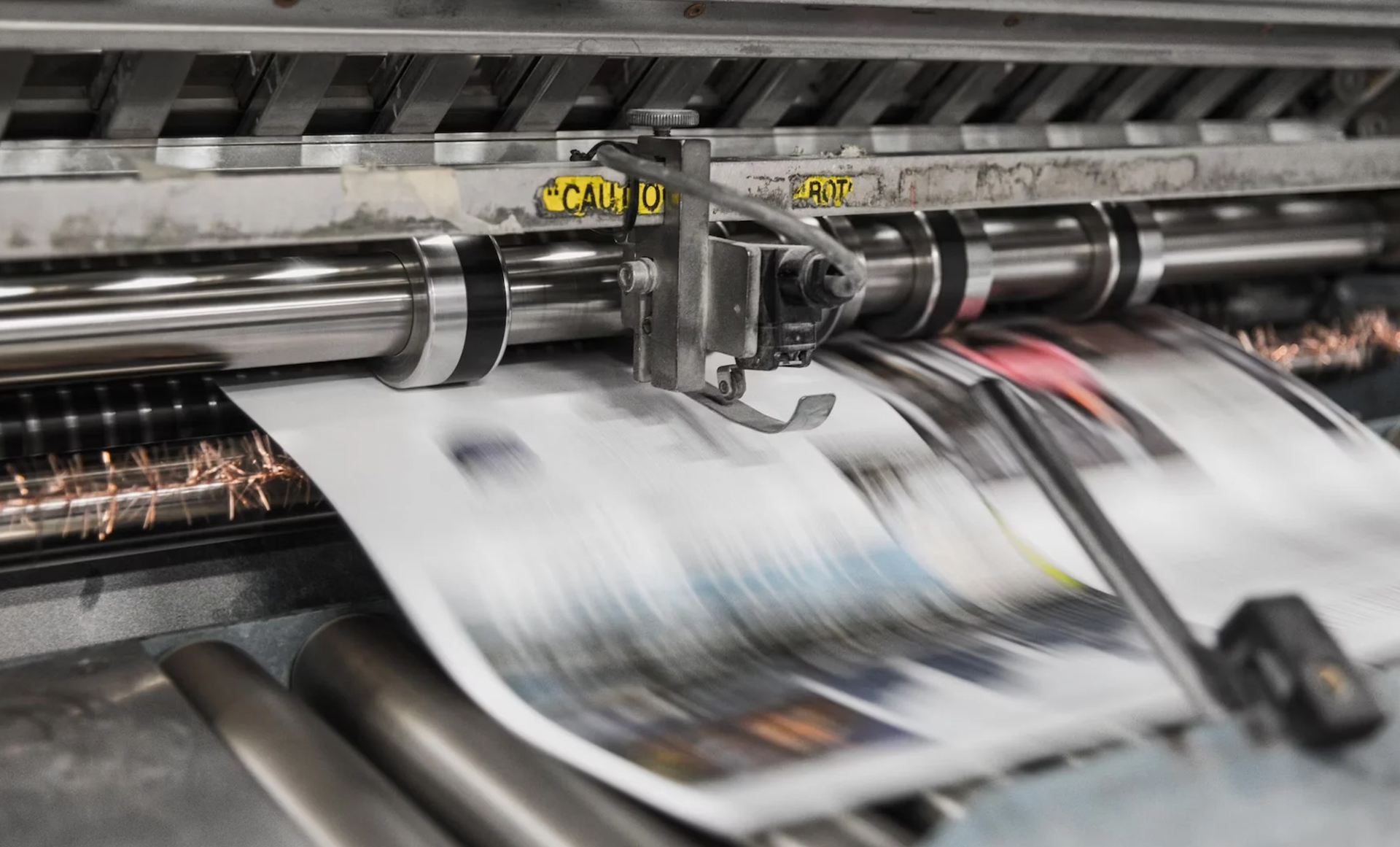

| Wastewater Aeration | Wine Press | Printing & Paper Machine |
 |  |  |

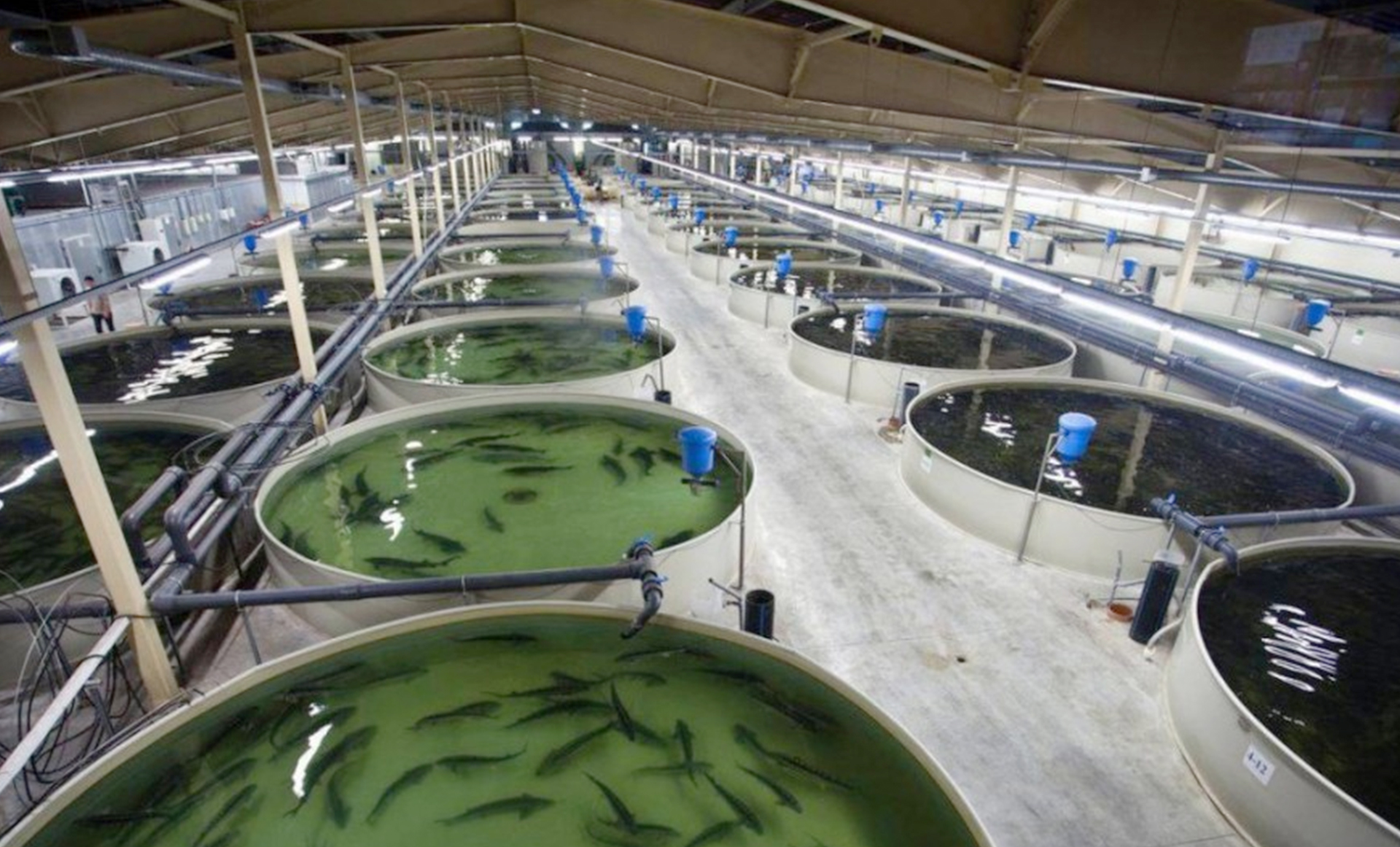

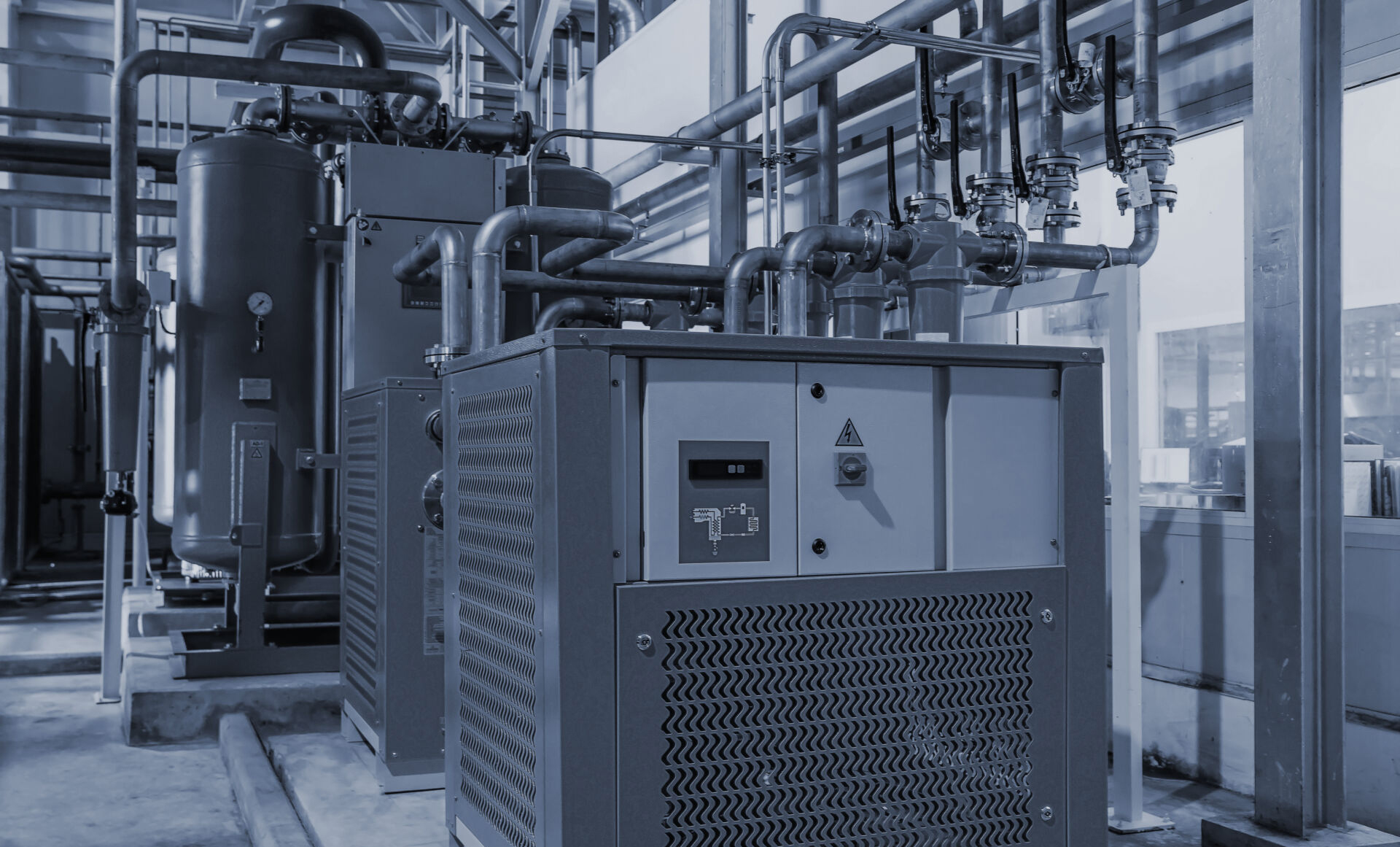

| Pneumatic Controls | Aquaculture & Fish Farming | Central Air System |

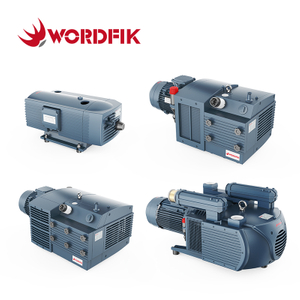

| Wordfik TD Series Dry Rotary Vane Compressors ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5-15 kW | 9-18 kW | 250 m³/h | 300 m³/h | +800 / +1500 / +1800 mbar |
