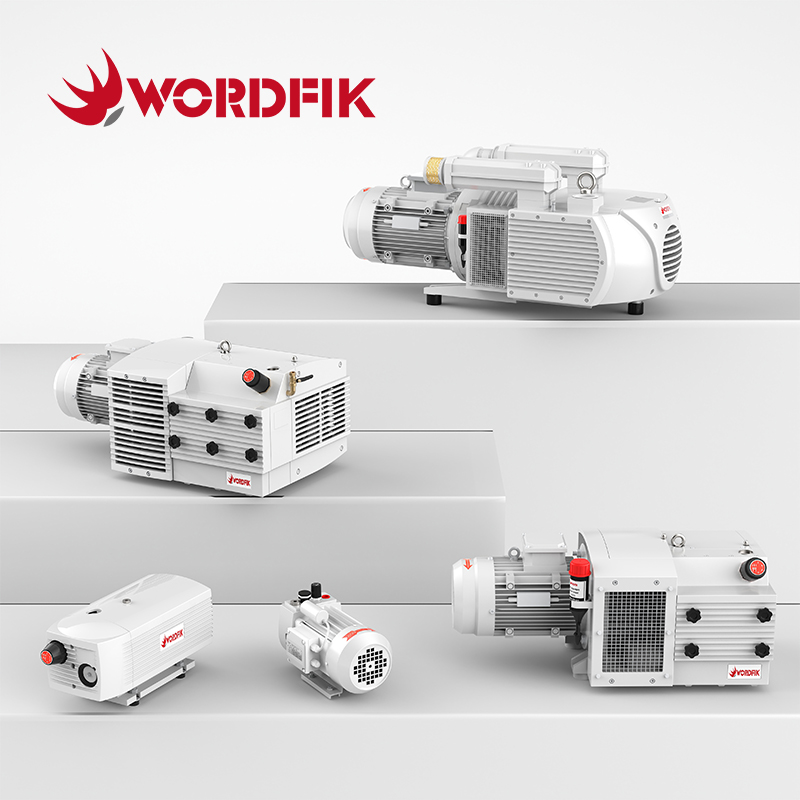

The Wordfk VD series dry rotary vane vacuum pump has a simple structure and adopts single-axis direct drive. ithas low maintenance cost, long service life and is sturdy and durable.The dry rotary vane pump operates 100% oil-free and with low noise. The precise matching of the rotor and thegraphite lubricated blades realizes gas suction and compression. No lubricating oil is required during the wholeprocess, which completely avoids oil mist pollution. The VD series pump has extremely low maintenance cost, longcontinuous operation time, reduces downtime and improves production efficiency.
Features:
• 100% 0il-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| Frequency | Pumping Speed | Ultimate Pressure | Motor Power | Motor Voltage | Motor Speed | Noise Level | Inlet Connection | Weight | Dimensions | |||
| 3ph | 1ph | 3ph | 1ph | |||||||||
| VD8 | 50Hz | 8 m³/h | 150 mbar | 0.37 kW | Δ175-260 V Y300-450 V | 220-240 V | 1420 rpm | 1380 rpm | 58 dB | ⅜ inch | 13 kg | 314*140*177 mm |
| 60Hz | 9.6 m³/h | 0.44 kW | Δ202-300 V Y350-520 V | 1700 rpm | 1630 rpm | |||||||
| VD10 | 50Hz | 10 m³/h | 150 mbar | 0.37 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 60 dB | ½ inch | 15 kg | 430*205*198 mm | |
| 60Hz | 12 m³/h | 0.44 kW | Δ202-300 V Y350-520 V | 1700 rpm | 62 dB | |||||||
| VD16 | 50Hz | 16 m³/h | 150 mbar | 0.55 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 61 dB | ½ inch | 22 kg | 450*225*215 mm | |
| 60Hz | 19.2 m³/h | 0.66 kW | Δ202-300 V Y350-520 V | 1700 rpm | 64 dB | |||||||
| VD25 | 50Hz | 25 m³/h | 150 mbar | 0.75 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 62 dB | ¾ inch | 28 kg | 502*252*292 mm | |
| 60Hz | 30 m³/h | 0.9 kW | Δ190-290 V Y330-500 V | 1700 rpm | 67 dB | |||||||
| VD40 | 50Hz | 40 m³/h | 150 mbar | 1.25 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 67 dB | ¾ inch | 39 kg | 570*270*292 mm | |
| 60Hz | 48 m³/h | 1.5 kW | Δ190-290 V Y330-500 V | 1700 rpm | 72 dB | |||||||
| VD60 | 50Hz | 60 m³/h | 150 mbar | 2.2 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | / | 71 dB | 1 inch | 70 kg | 729*340*340 mm |
| 60Hz | 72 m³/h | 2.6 kW | 1700 rpm | 73 dB | ||||||||
| VD80 | 50Hz | 80 m³/h | 150 mbar | 2.2 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | / | 72 dB | 1 inch | 70 kg | 729*340*340 mm |
| 60Hz | 96 m³/h | 2.6 kW | 1700 rpm | 75 dB | ||||||||
| VD100 | 50Hz | 100 m³/h | 150 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | / | 75 dB | 1½ inch | 105 kg | 870*460*382 mm |
| 60Hz | 120 m³/h | 3.6 kW | 1700 rpm | 76 dB | ||||||||
| VD140 | 50Hz | 140 m³/h | 150 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | / | 77 dB | 1½ inch | 115 kg | 870*460*382 mm |
| 60Hz | 168 m³/h | 4.8 kW | 1700 rpm | 79 dB | ||||||||
| VD160 | 50Hz | 160 m³/h | 150 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | / | 77 dB | 1½ inch | 126 kg | 923*460*382 mm |
| 60Hz | 192 m³/h | 6.6 kW | 1700 rpm | 79 dB | ||||||||
| VD200 | 50Hz | 200 m³/h | 200 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 960 rpm | / | 75 dB | 2½ inch | 258 kg | 1210*612*426 mm |
| 60Hz | 240 m³/h | 4.8 kW | 1150 rpm | 77 dB | ||||||||

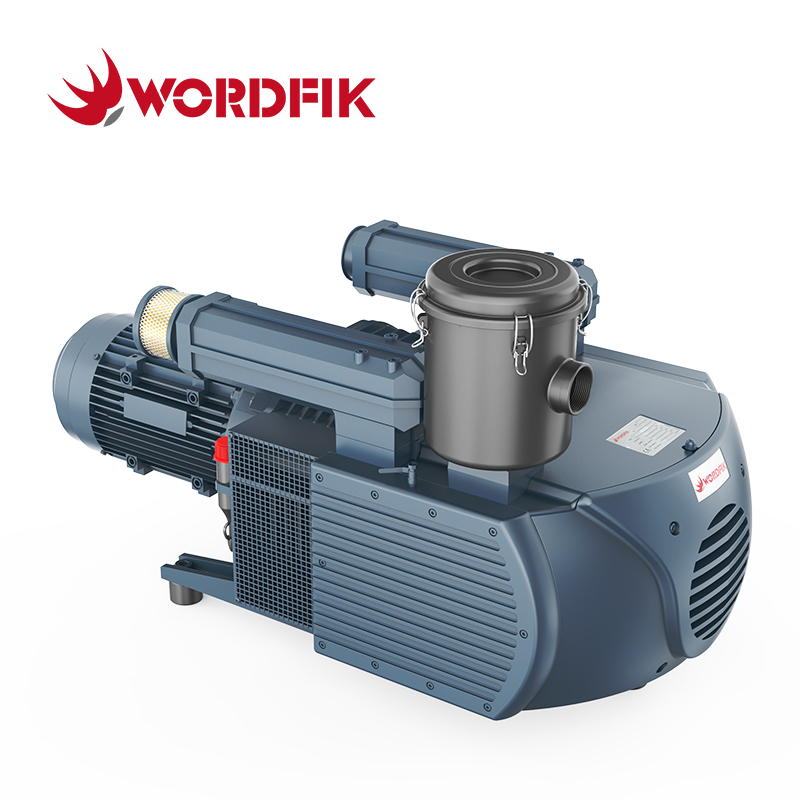

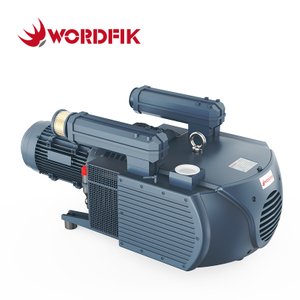

| VD250 | 50Hz | 250 m³/h | 200 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 960 rpm | / | 81 dB | 2½ inch | 280 kg | 1210*612*426 mm |
| 60Hz | 300 m³/h | 6.6 kW | 1150 rpm | |||||||||
| VD360 | 50Hz | 351 m³/h | 250 mbar | 11 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | / | 80.5 dB | 2½ inch | 312 kg | 1210*612*426 mm |
| 60Hz | / | / | / | / | / | / | / | / | ||||
| VD400 | 50Hz | 400 m³/h | 350 mbar | 11 kW | Δ230V±10% Y400V±10% | / | 960 rpm | / | 81 dB | 3 inch | 320 kg | 1210*612*527 mm |
| 60Hz | 480 m³/h | 13.2 kW | 1150 rpm | |||||||||
Application:
 |  |  |
| CNC Router / Woodworking | Printing And Paper Industry | Automation |
 |  |  |
| Vacuum Lifter | Packaging Industry | Plastics Industry |
