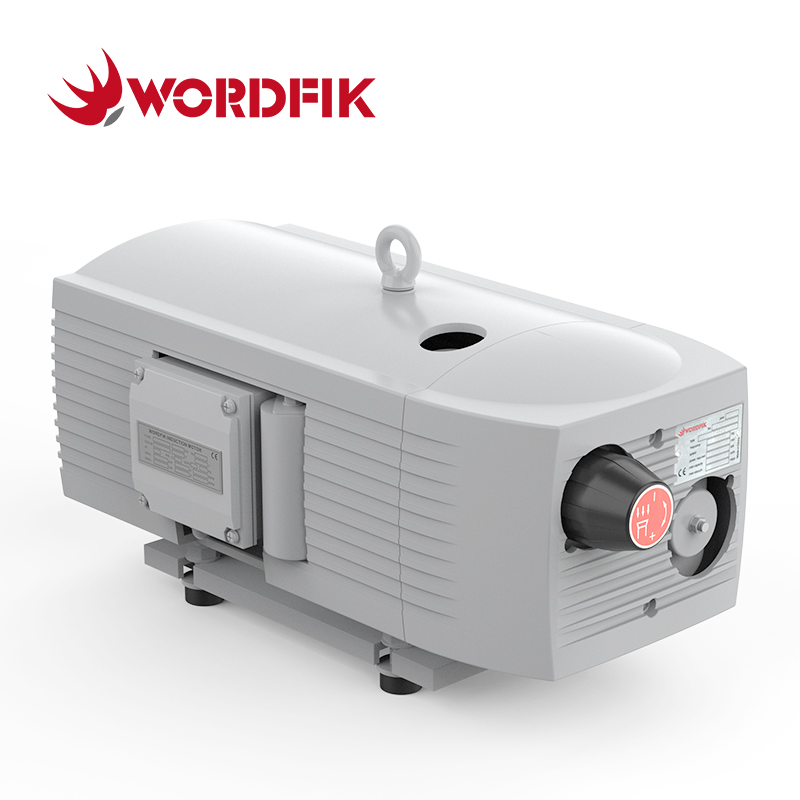

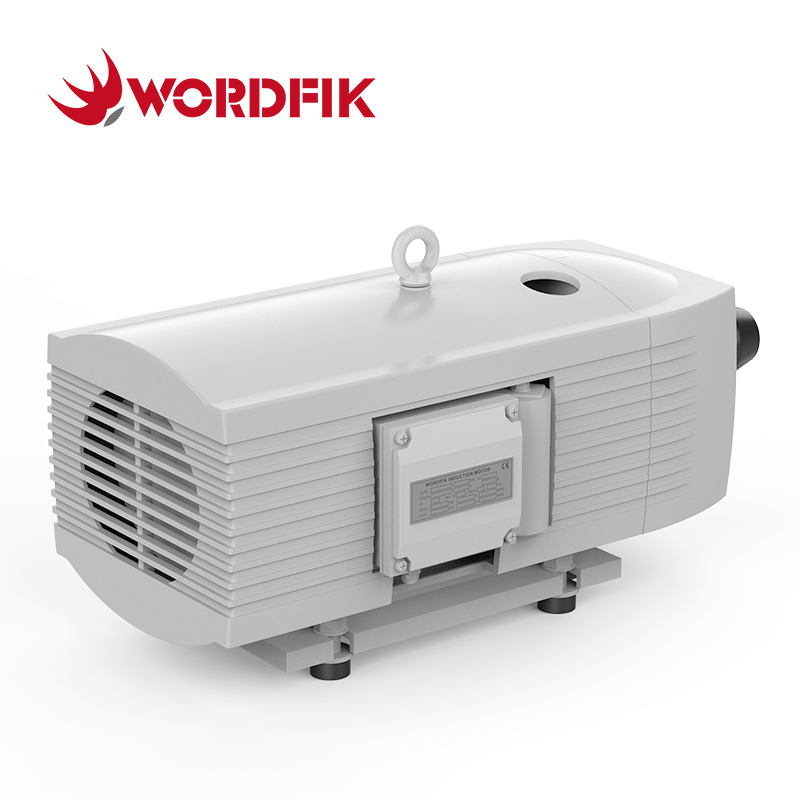

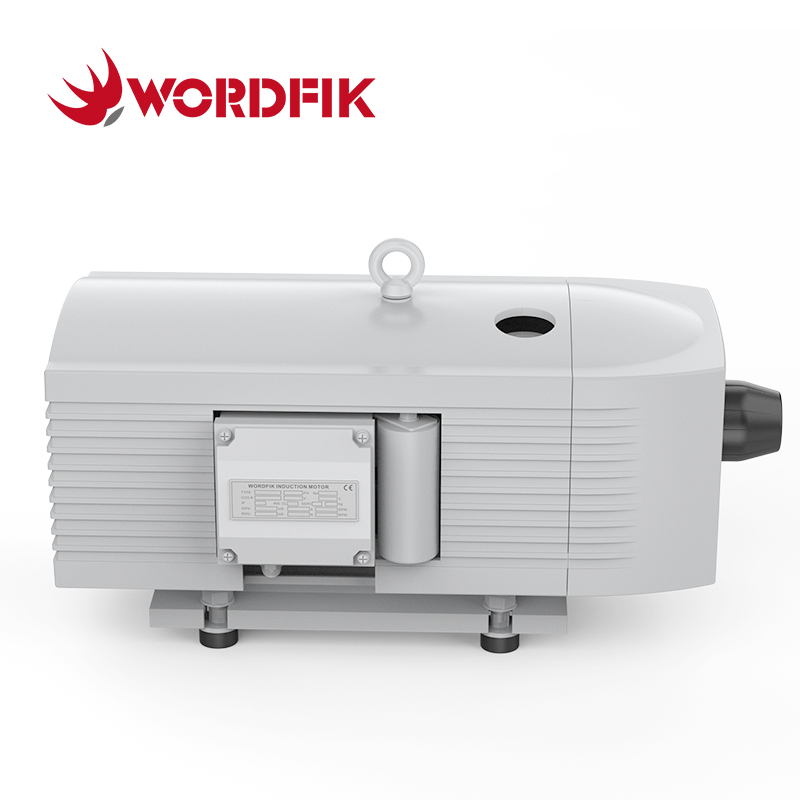

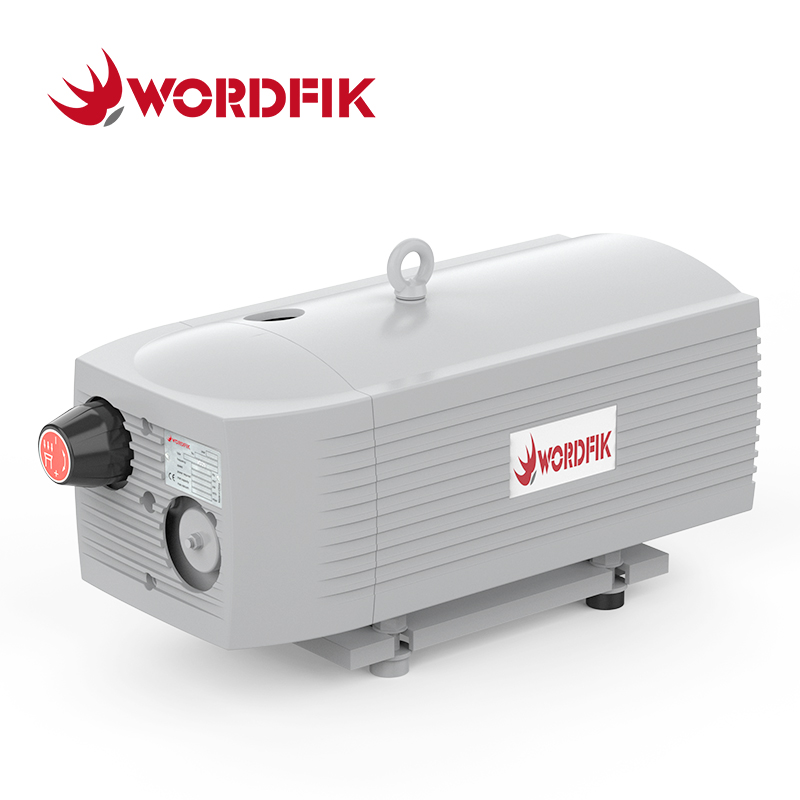

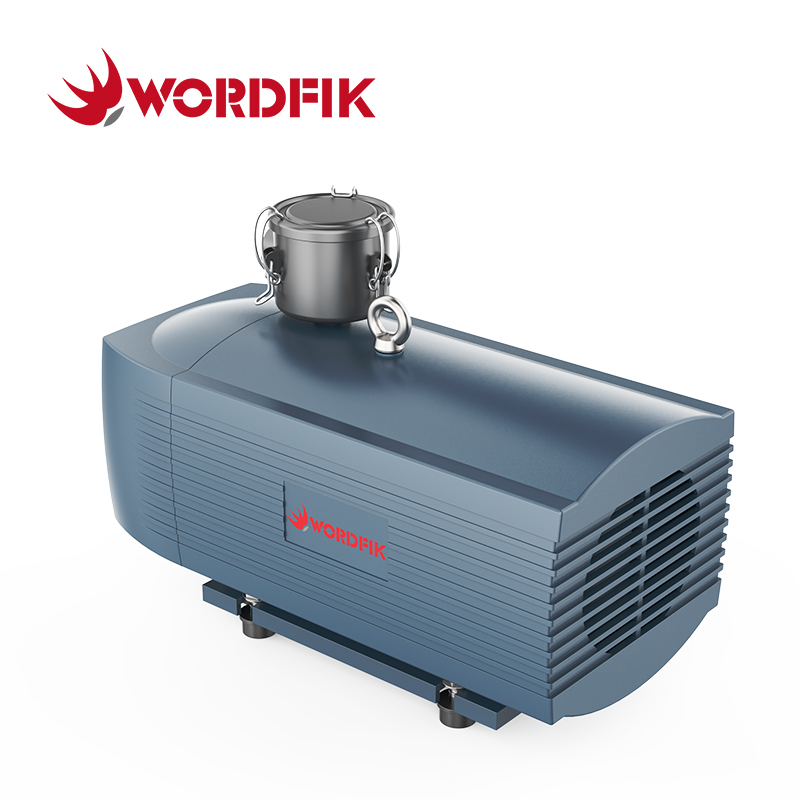

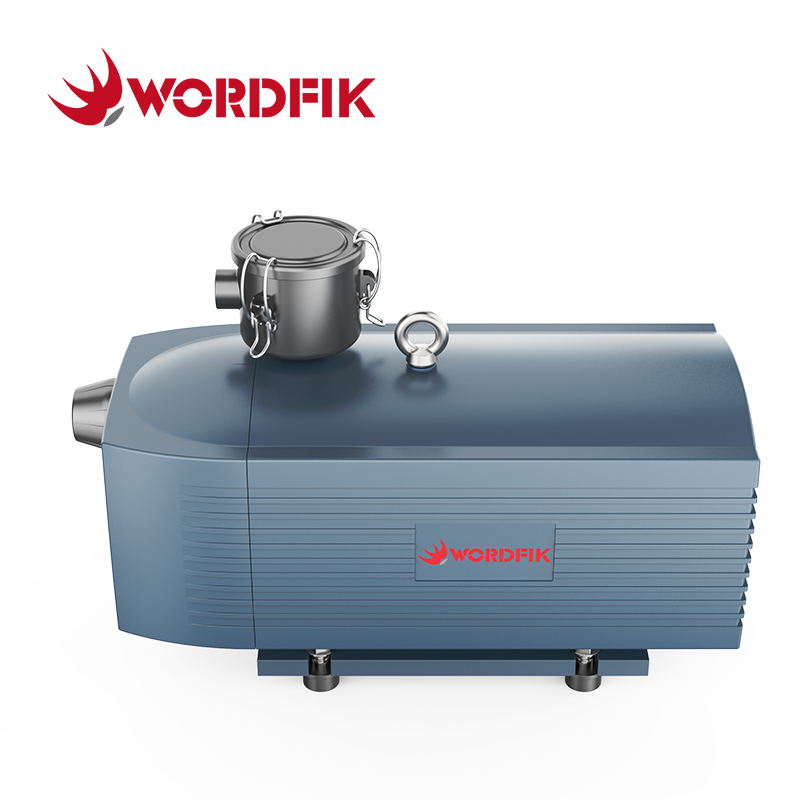

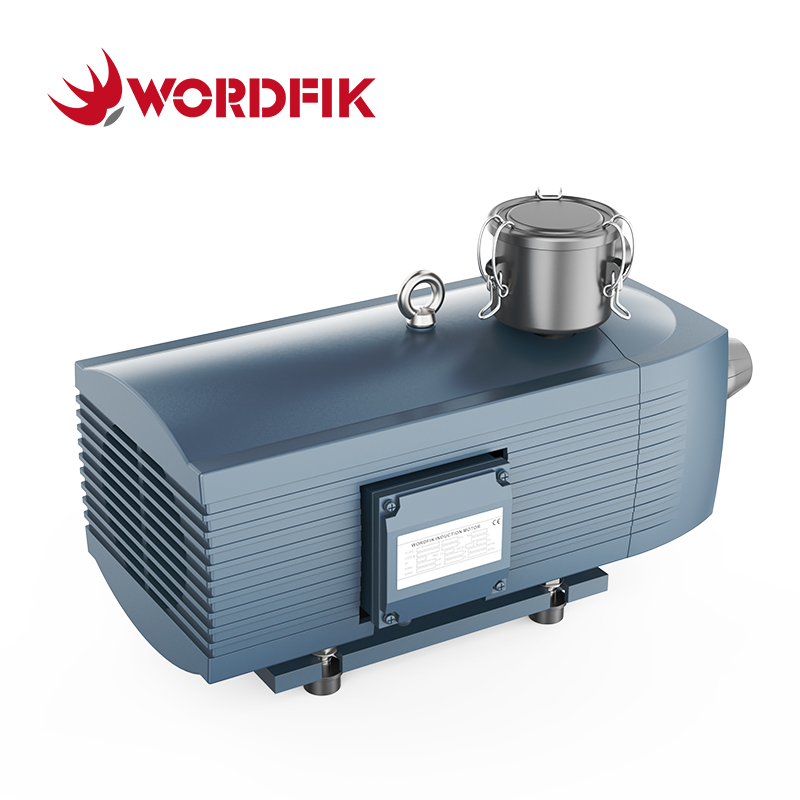

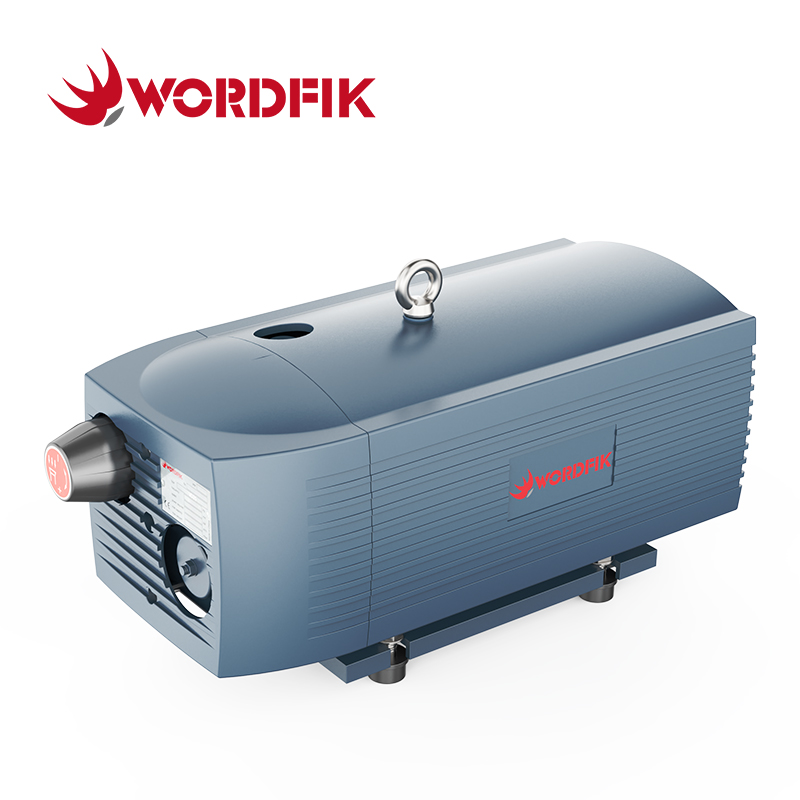

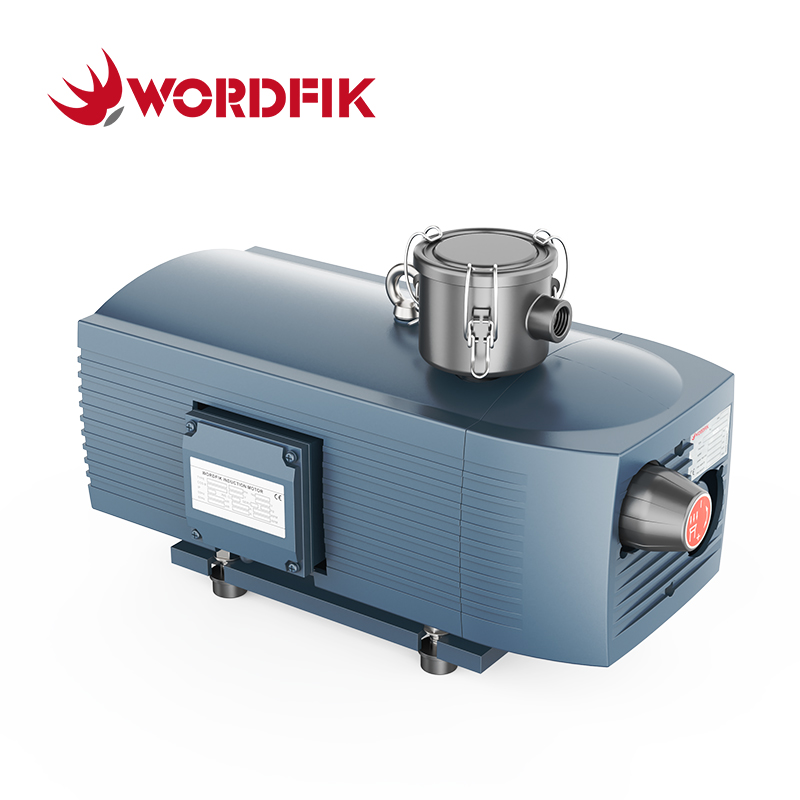

The Wordfik VD25 dry vane vacuum pump offers industrial grade oil-free vacuum performance in a rugged and compact design. With a pumping speed of 25m³/h (50Hz) or 30m³/h (60Hz), it can achieve an ultimate vacuum of 150mbar and optimizes power consumption. The pump uses advanced graphite composite blades for self-lubricating operation, no oil change is required, ensuring zero contamination. Designed for continuous operation, the pump features ultra-low noise, no vibration, and long maintenance intervals, allowing it to run 24 hours a day to reduce downtime. It is widely used in automated production lines, vacuum lifters, industrial packaging machinery, laboratories, as well as in the plastics industry, printing and laminating industries.
Features:
100% Oil-Free Operation
Clean and No Pollution
Minimal Maintenance
Long Service Life
Stable and Continuous Operation
| VD25 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 25 m³/h | 30 m³/h |
| Ultimate Pressure | 150 mbar | |
| Motor Power | 0.75 kW | 0.9 kW |
| Motor Voltage | Δ 190-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 62 dB(A) | 67 dB(A) |
| Inlet Connection | ¾ inch | |
| Weight | 28 kg | |
| Dimensions | 502*252*292 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Lifter | Vacuum Packaging | Plastic Industry |
 |  |  |

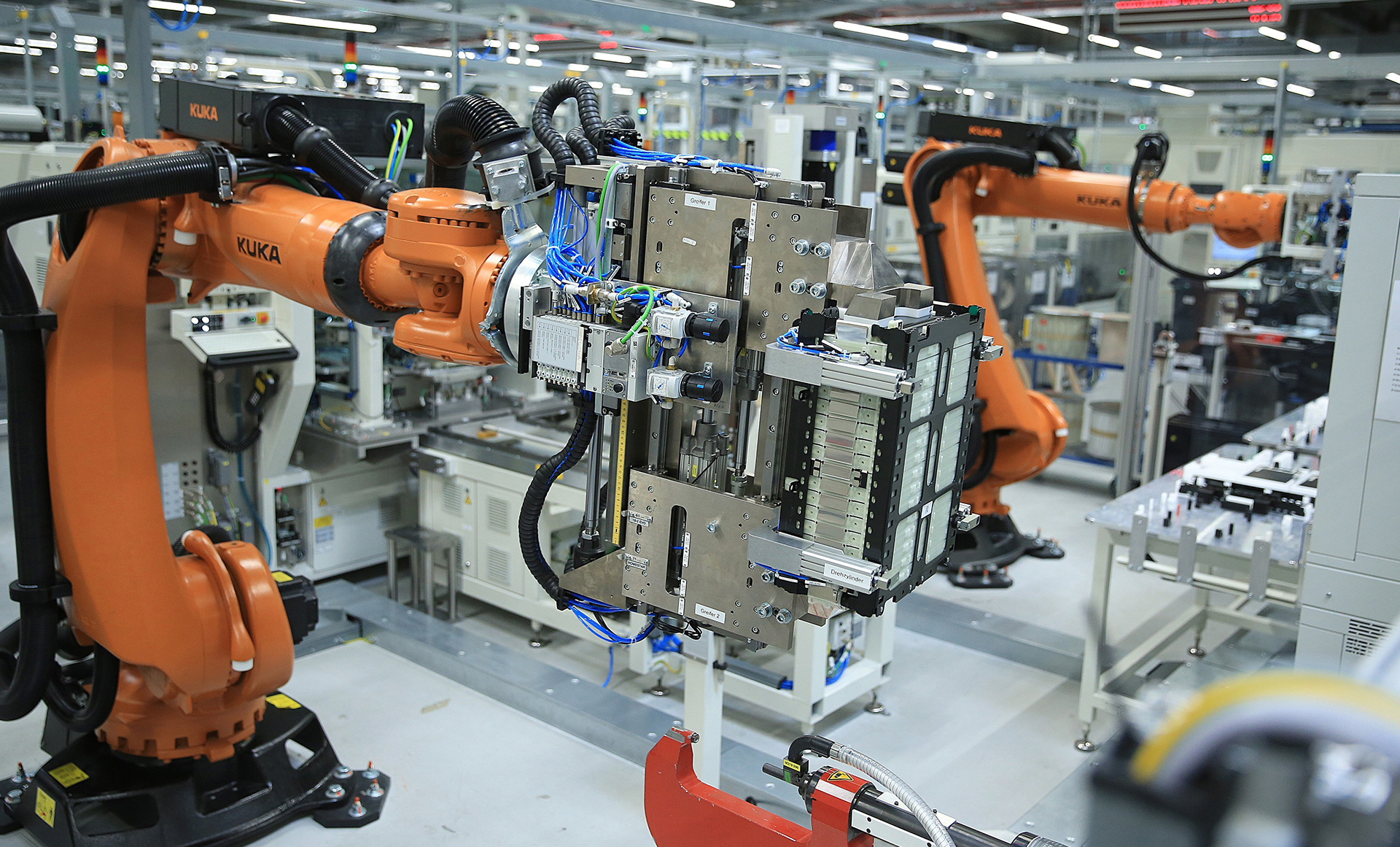

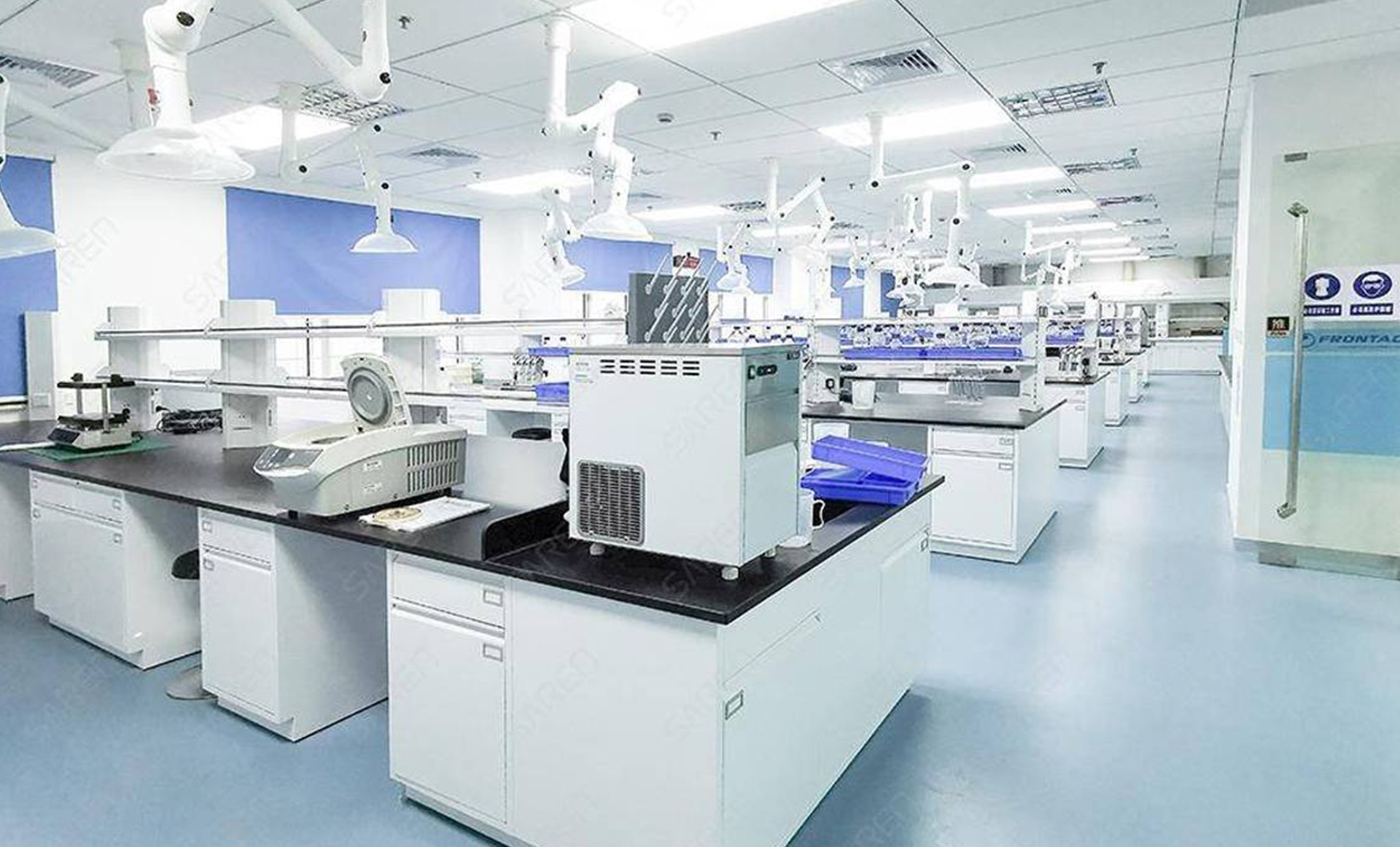

| Lamination & Printing | Automation | Laboratory |
| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||

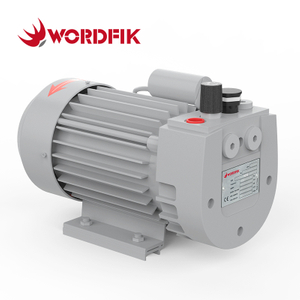

| VD8 | 0.37 kW | 0.44 kW | 8 m³/h | 9.6 m³/h | 150 mbar |

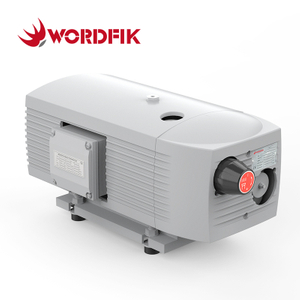

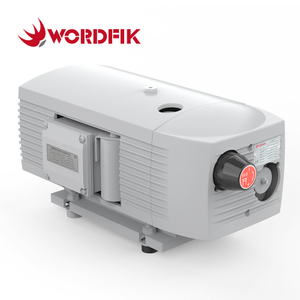

| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |

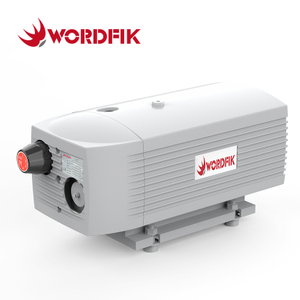

| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |
| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |

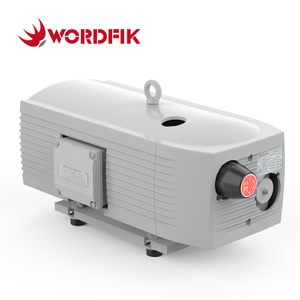

| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |

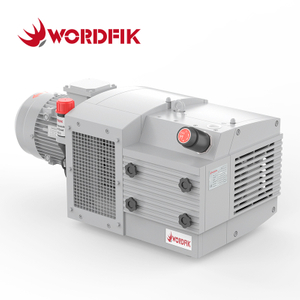

| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |

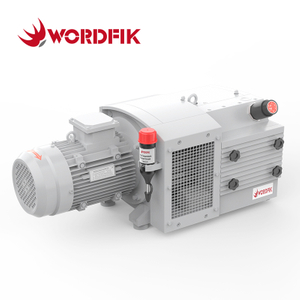

| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |

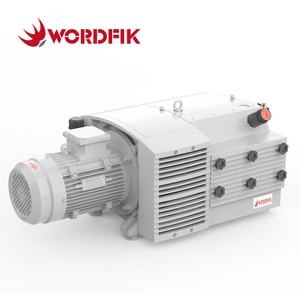

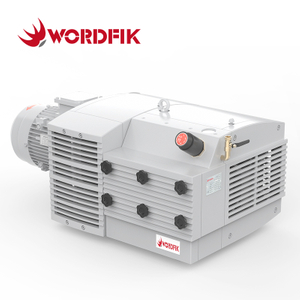

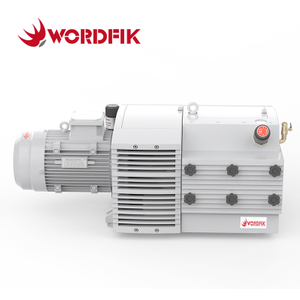

| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |
| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |
| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |

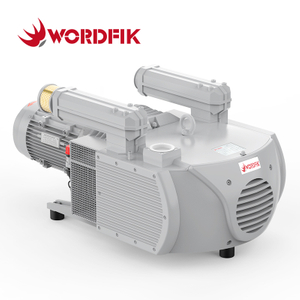

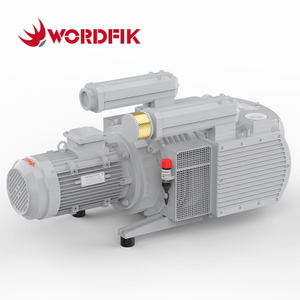

| VD250 | 5.5 kW | 6.6 kW | 250 m³/h | 300 m³/h | |
| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |

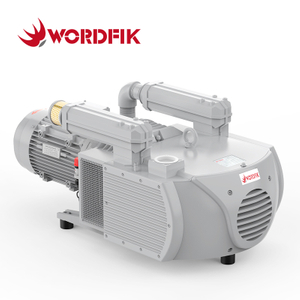

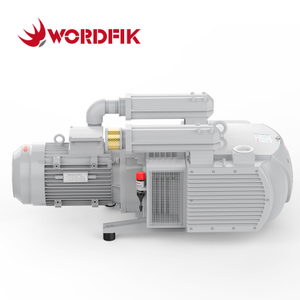

| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
