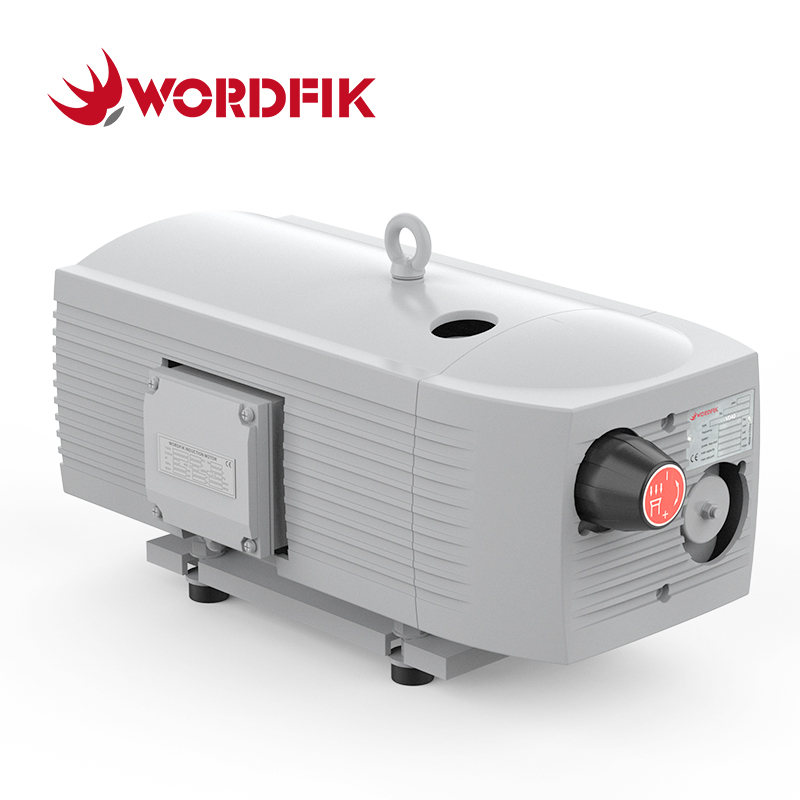

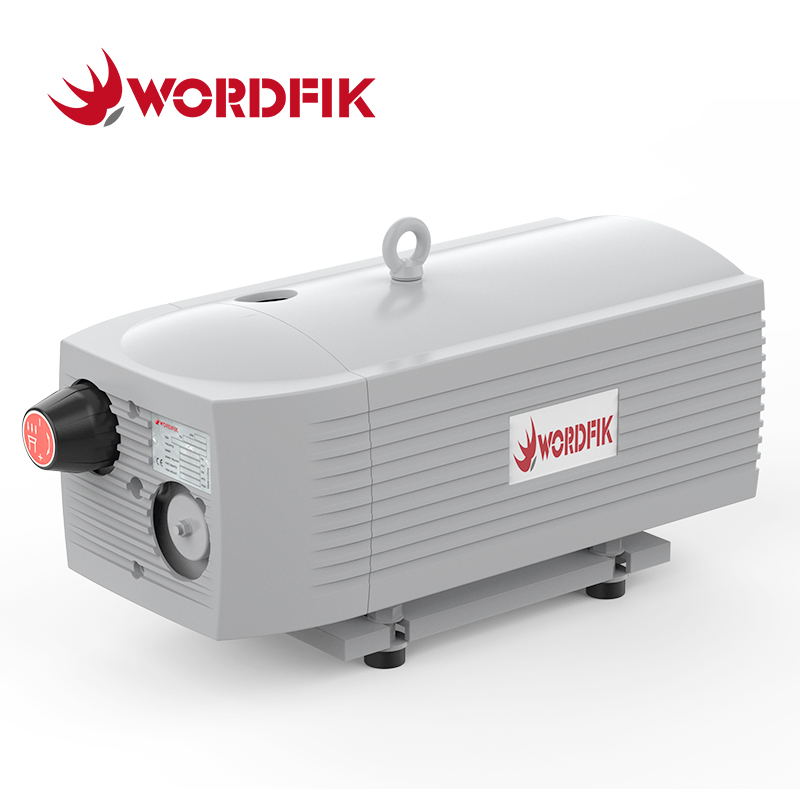

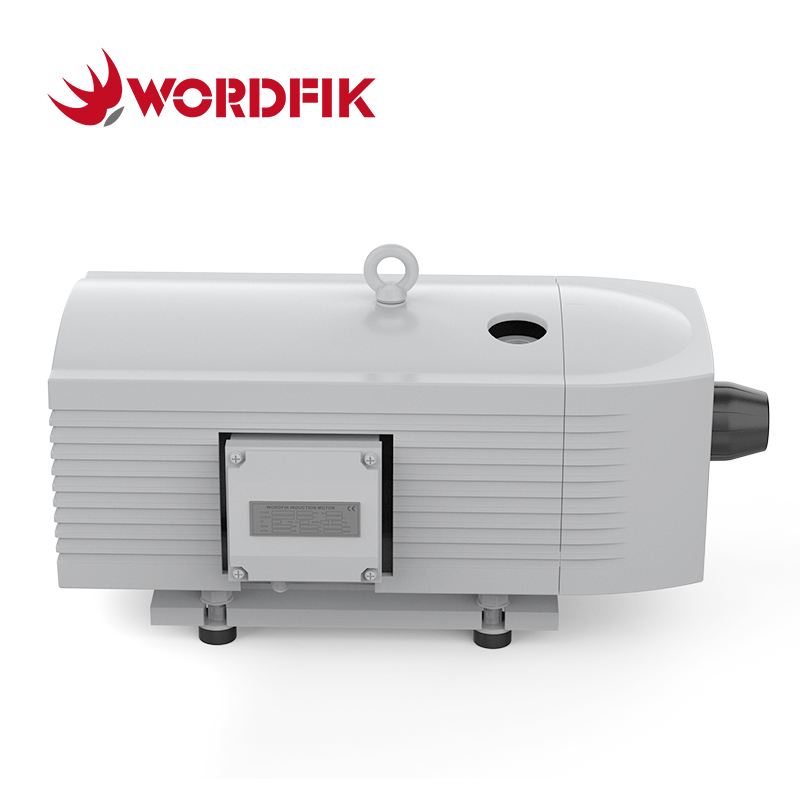

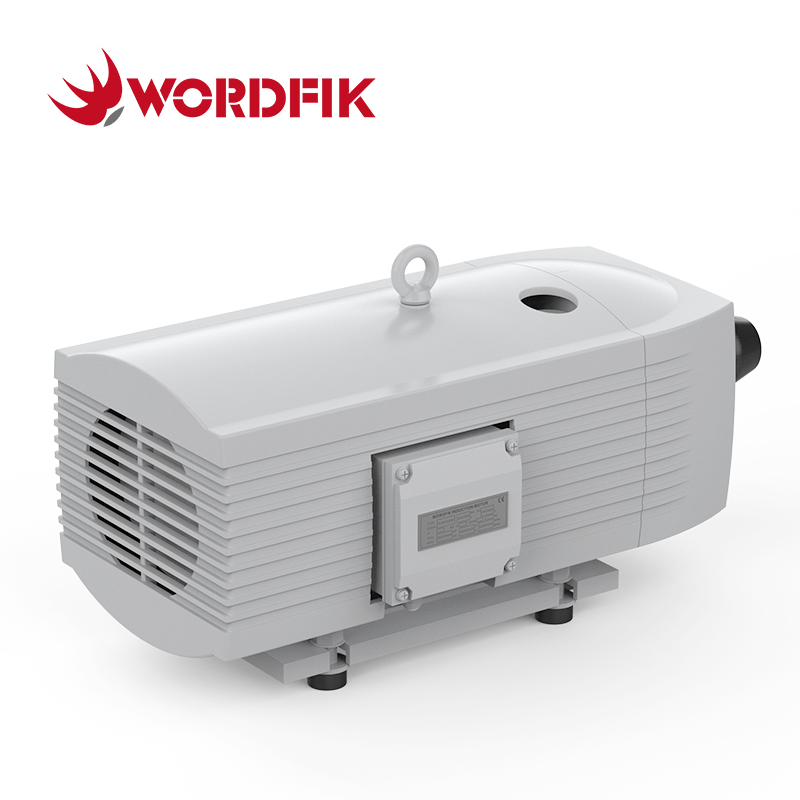

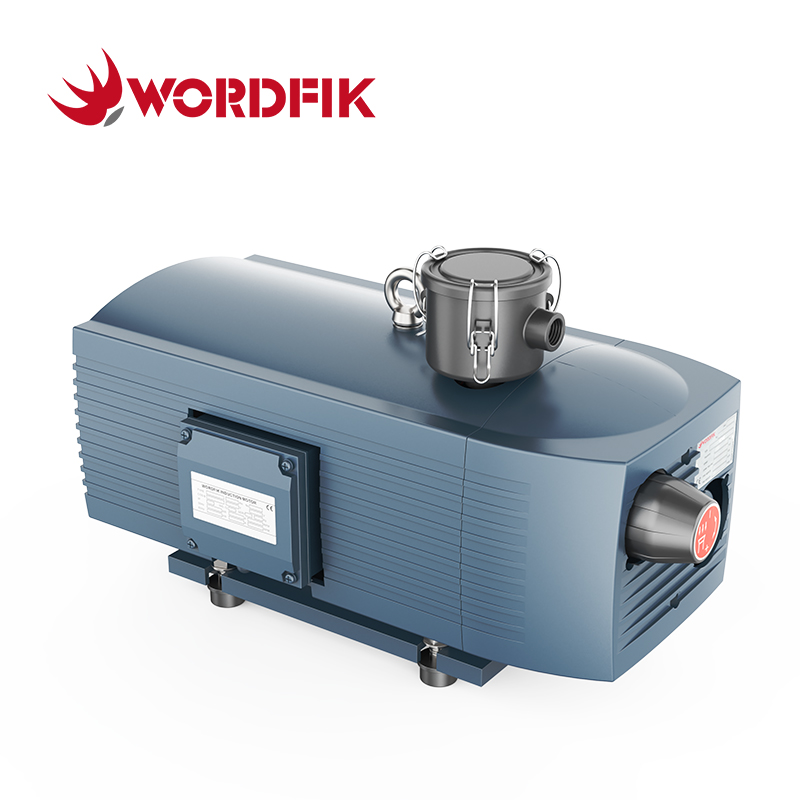

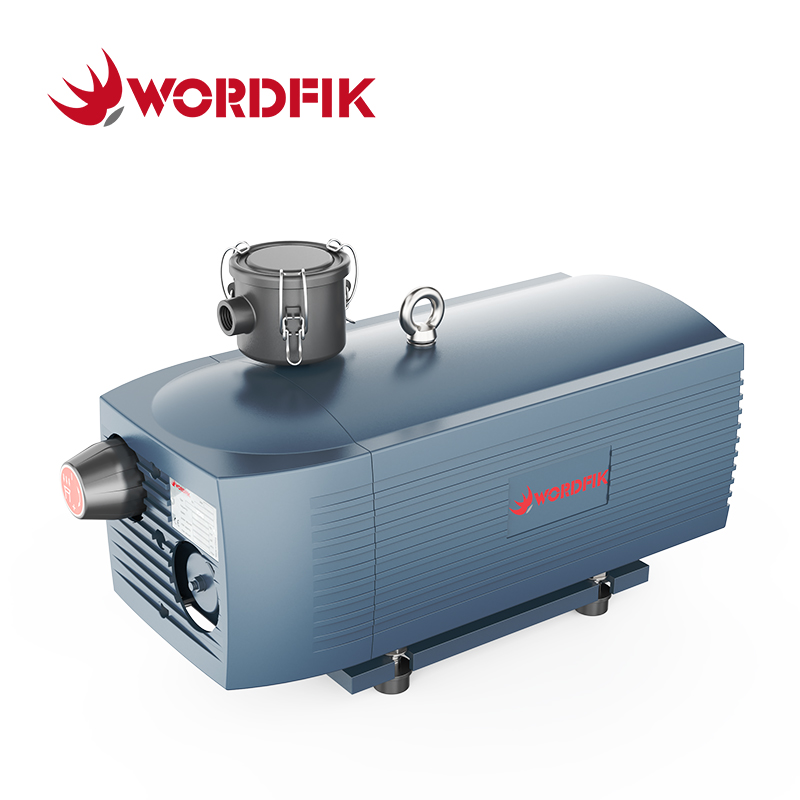

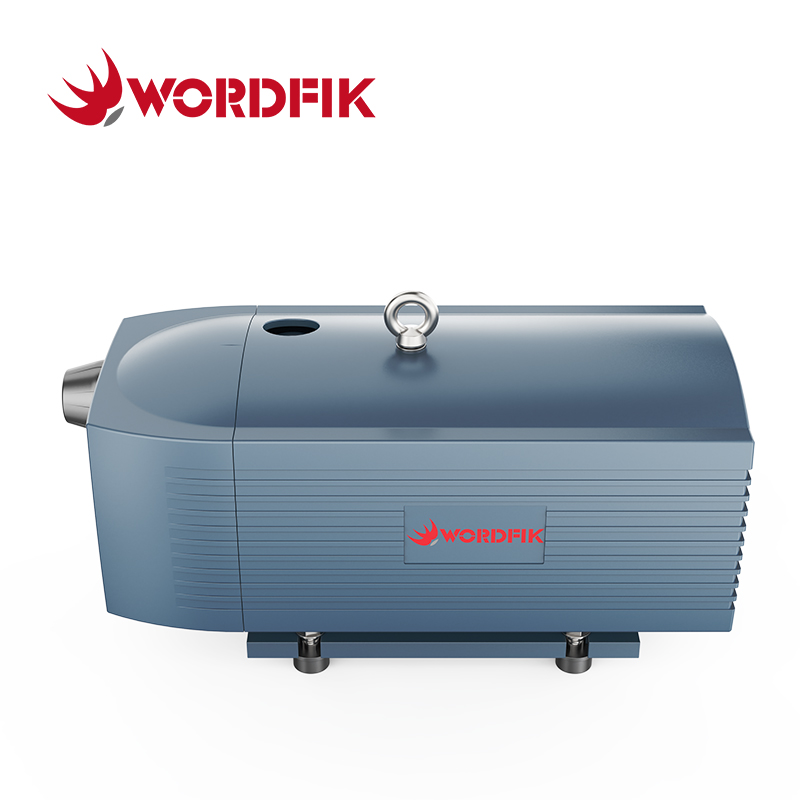

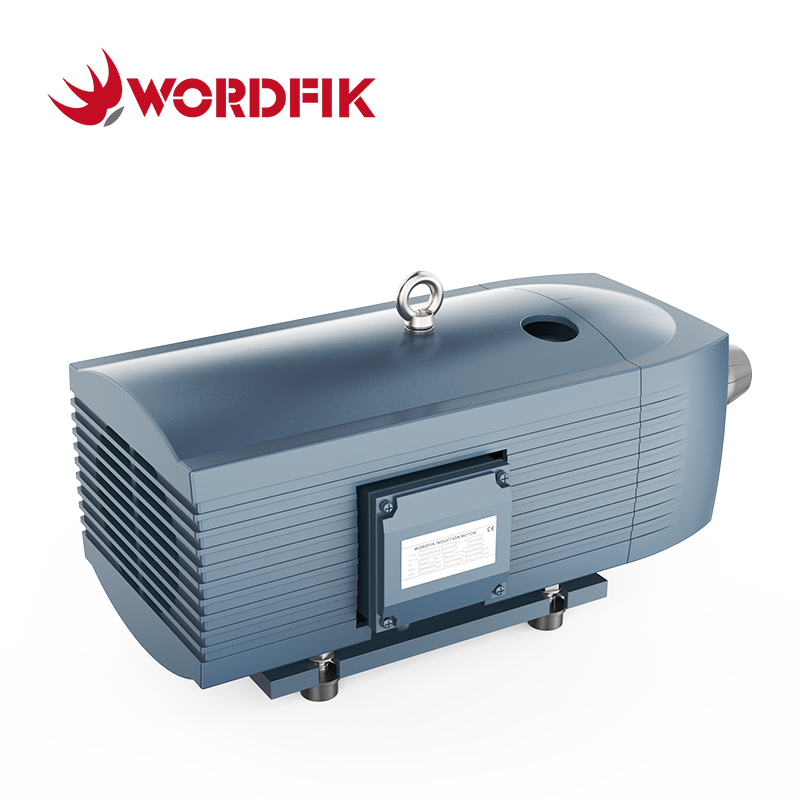

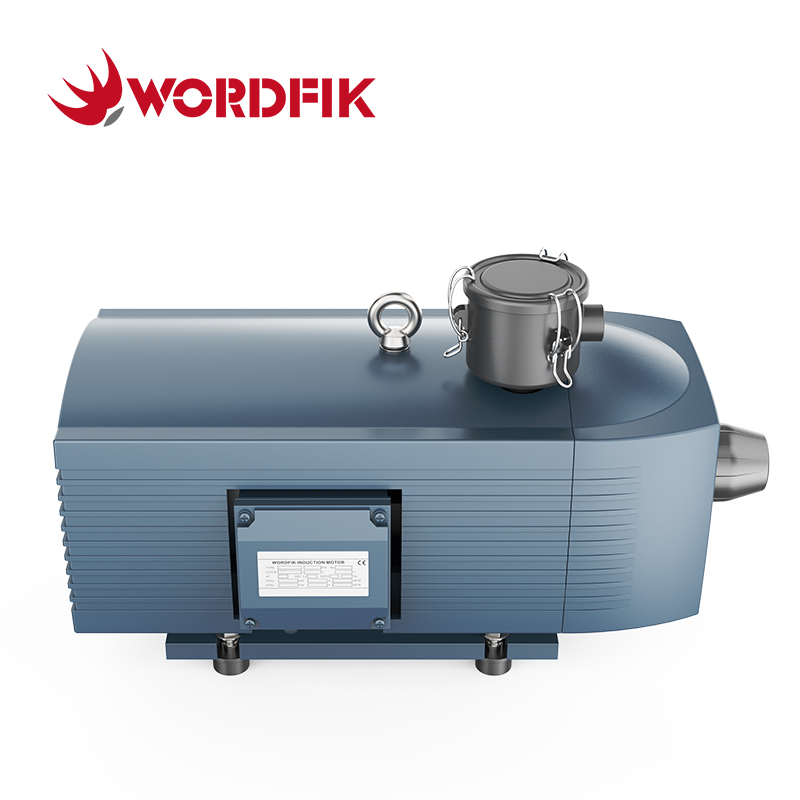

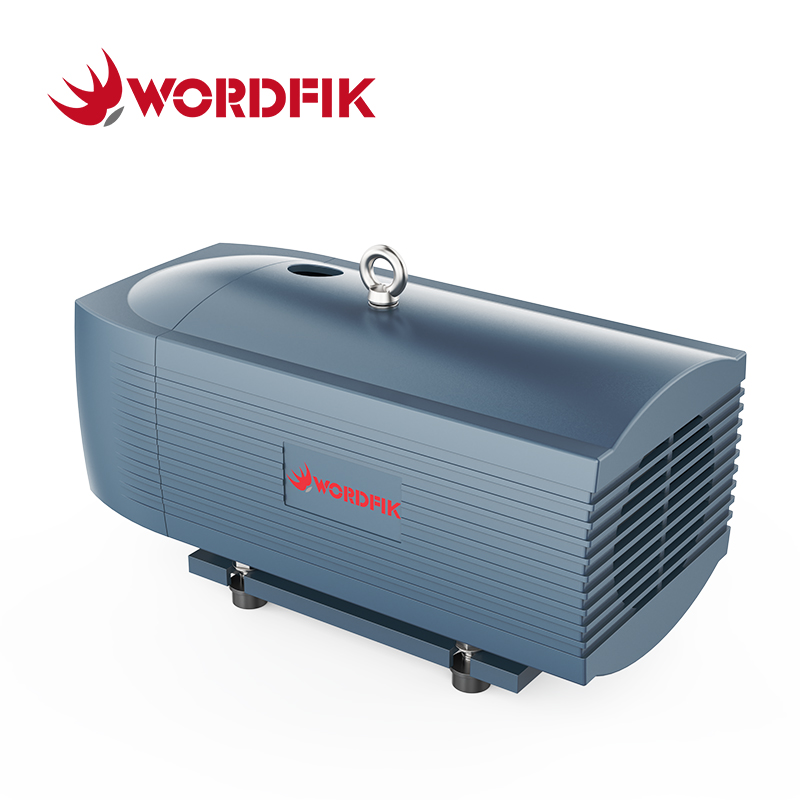

The Wordfik VD40 Dry Rotary Vane Vacuum Pump is a compact, oil-free vacuum solution engineered for robotic handling, vacuum membrane press, SMT placement machines, lamination & printing and CNC vacuum tables. It delivers a pumping speed of 40 m³/h (23.5 CFM) at 50Hz and 48 m³/h (28.2 CFM) at 60Hz, achieving an ultimate pressure of 150 mbar. Power consumption is remarkably low at just 1.25 kW (1.7 HP) at 50Hz and 1.5 kW (2 HP) at 60Hz, making it an energy-efficient choice for continuous production environments.
Its oil-free dry rotary vane structure uses wear-resistant graphite composite vanes, eliminating oil contamination, oil changes and disposal costs. Available in both single-phase and three-phase power configurations, with 50/60Hz dual frequency support, the VD40 integrates easily into a wide range of industrial equipment and automated systems.
Features:
100% Oil-Free Operation, Clean and No Pollution
Single-Phase & Three-Phase Power Options
Minimal Maintenance
High-Precision Rotor & Cylinder, Long Service Life
Premium EK60 Carbon Vanes, Low Noise and Low Heat Generation
Stable and Continuous Operation
Compact & Lightweight
Fast Delivery from Stock
| VD40 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 40 m³/h | 48 m³/h |
| Ultimate Pressure | 150 mbar | |
| Motor Power | 1.25 kW | 1.5 kW |
| Motor Voltage | Δ 190-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 67 dB(A) | 72 dB(A) |
| Inlet Connection | ¾ inch | |
| Weight | 39 kg | |
| Dimensions | 570*270*292 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Lifter | Vacuum Membrane Press | SMT Placement Machine |
 |  |  |
| Lamination & Printing | Automation | CNC Vacuum Table |
| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| VD8 | 0.35 kW | 0.42 kW | 8 m³/h | 9.6 m³/h | 150 mbar |
| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |
| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |

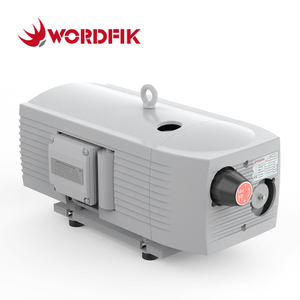

| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |
| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |
| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |
| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |
| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |
| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |
| VD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | |
| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |
| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
