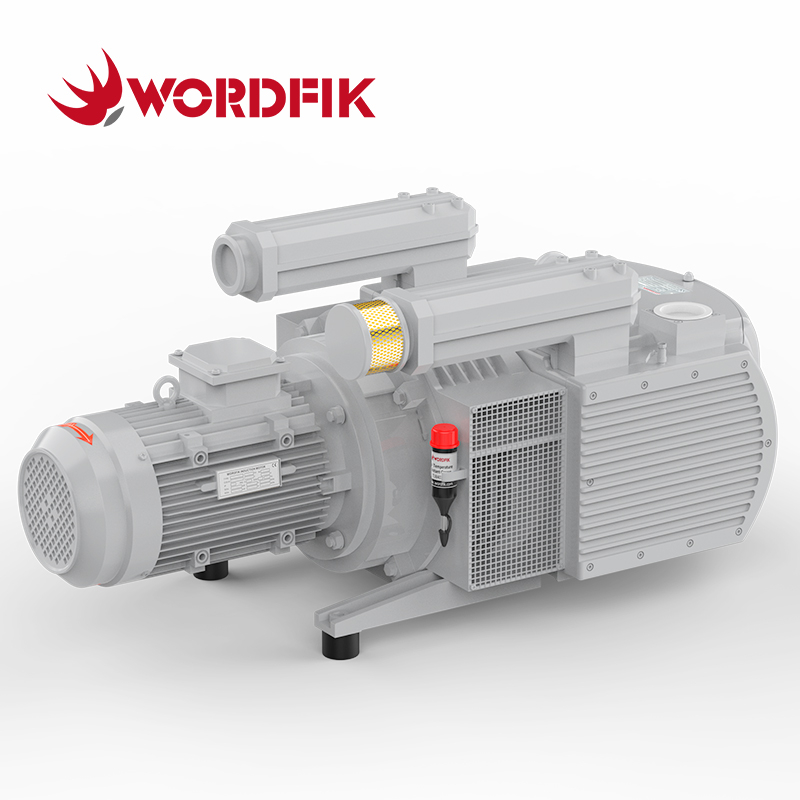

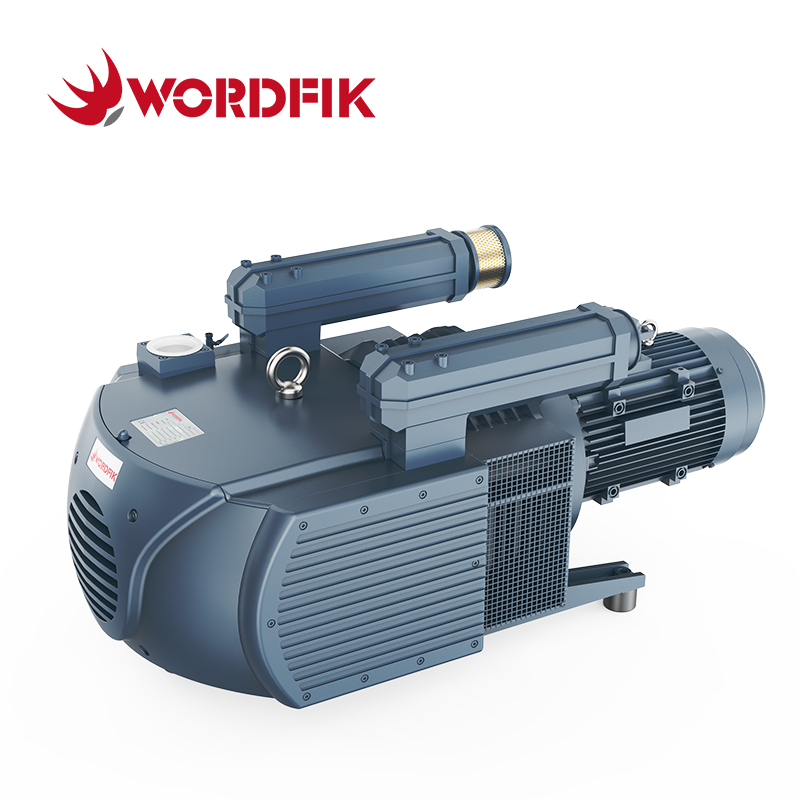

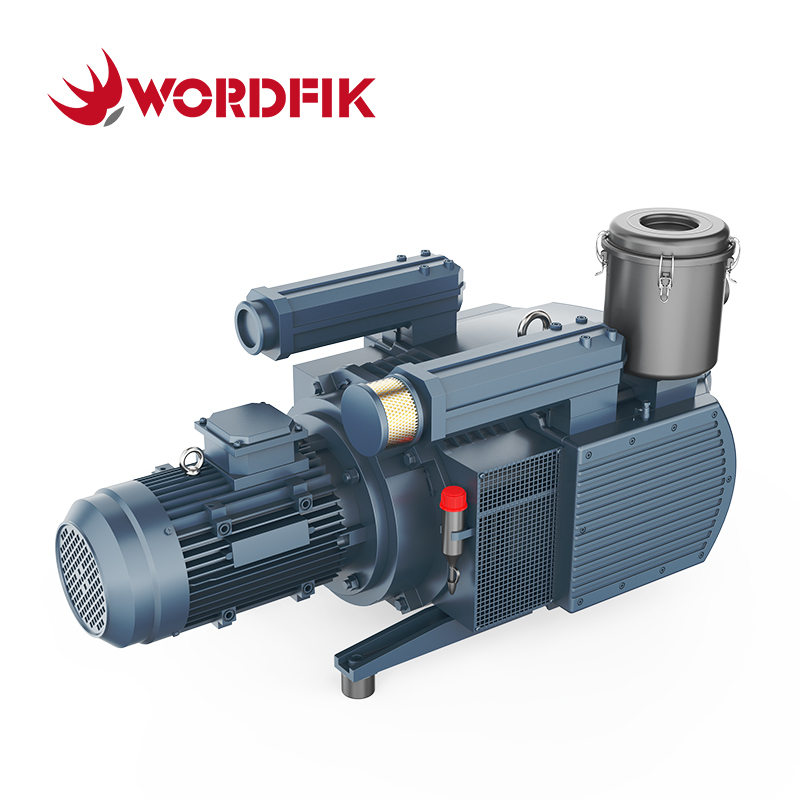

The Wordfik VD200 dry rotary vane vacuum pump is designed for continuous operation. It uses self-lubricating graphite composite blades, does not require oil changes, and requires only minimal maintenance. It has a pumping speed of 200m³/h (50Hz) or 240m³/h (60Hz), can achieve an ultimate vacuum of 200mbar, and has industry-leading energy efficiency.
Features:
100% Oil-Free Operation
Clean and No Pollution
Minimal Maintenance
Long Service Life
Stable and Continuous Operation
| VD200 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 200 m³/h | 240 m³/h |
| Ultimate Pressure | 200 mbar | |
| Motor Power | 4 kW | 4.8 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 960 rpm | 1150 rpm |
| Noise Level | 75 dB(A) | 77 dB(A) |
| Inlet Connection | 2½ inch | |
| Outlet Connection | 2 inch | |
| Weight | 258 kg | |
| Dimensions | 1210*612*535 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| CNC Router / Woodworking | Printing and Paper Industry | Vacuum Packaging |
 |  |  |
| Medical Industry | Glass Pick & Place | Automation |
| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| VD8 | 0.37 kW | 0.44 kW | 8 m³/h | 9.6 m³/h | 150 mbar |
| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |
| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |
| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |
| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |
| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |
| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |
| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |
| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |
| VD250 | 5.5 kW | 6.6 kW | 250 m³/h | 300 m³/h | |
| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |
| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
