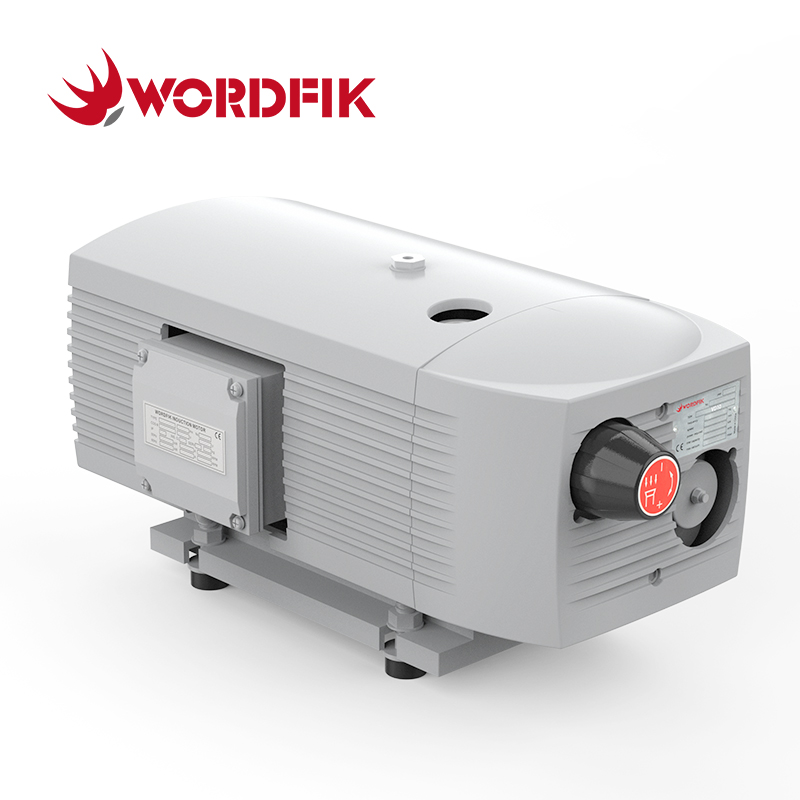

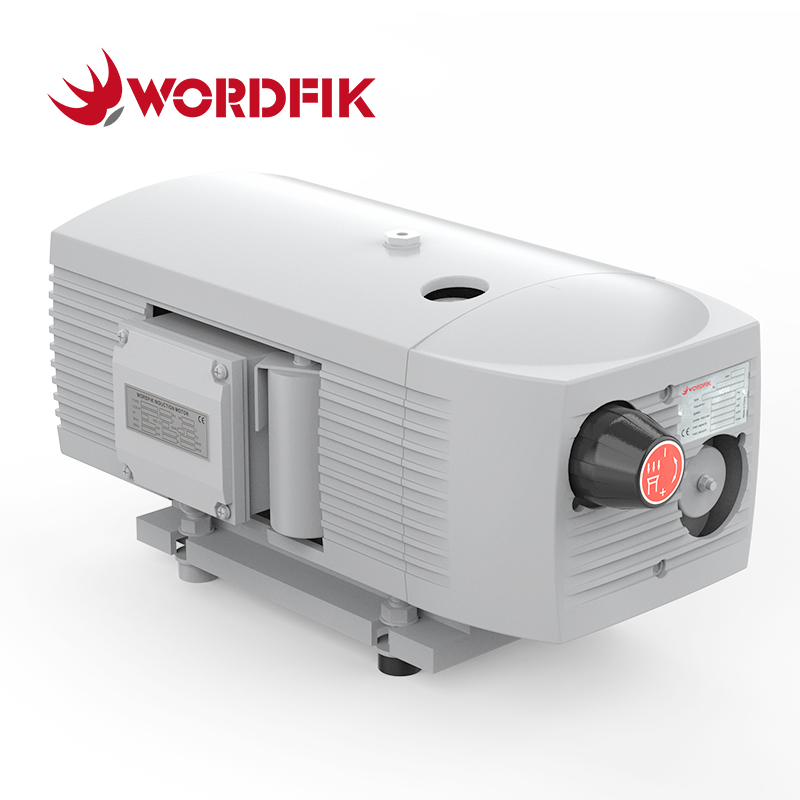

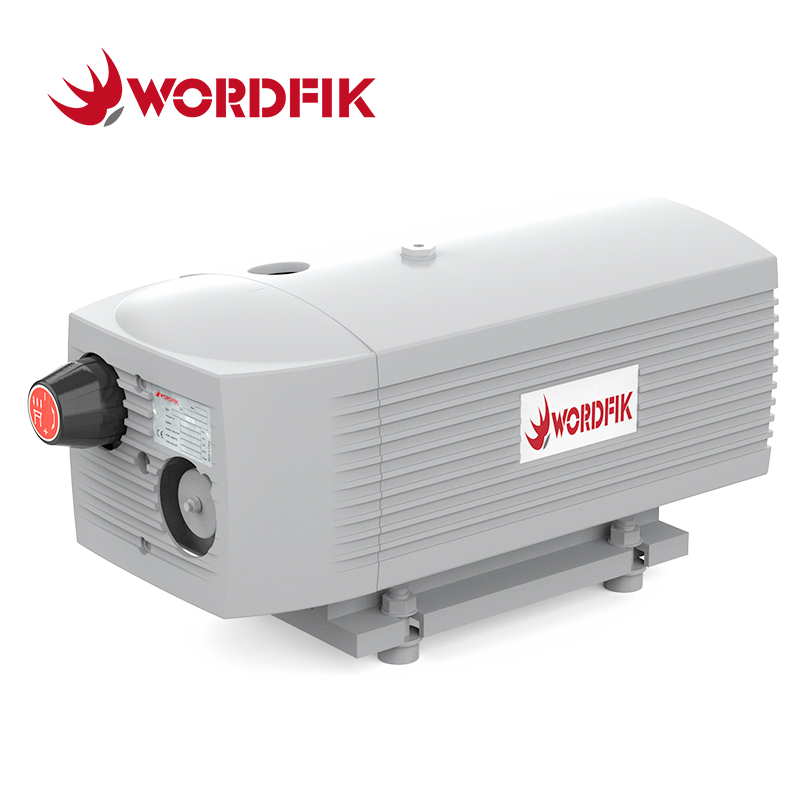

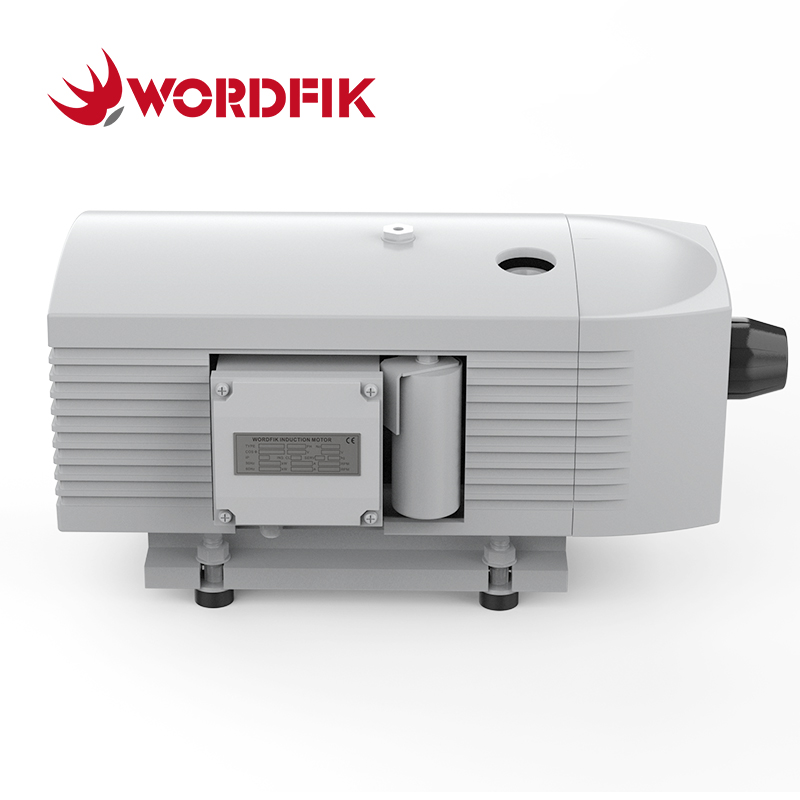

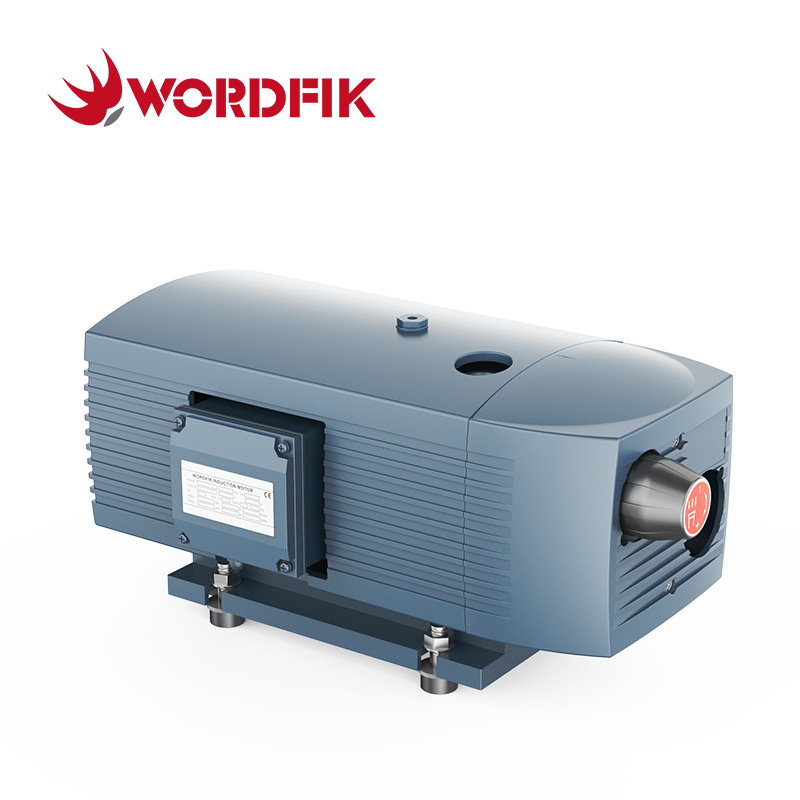

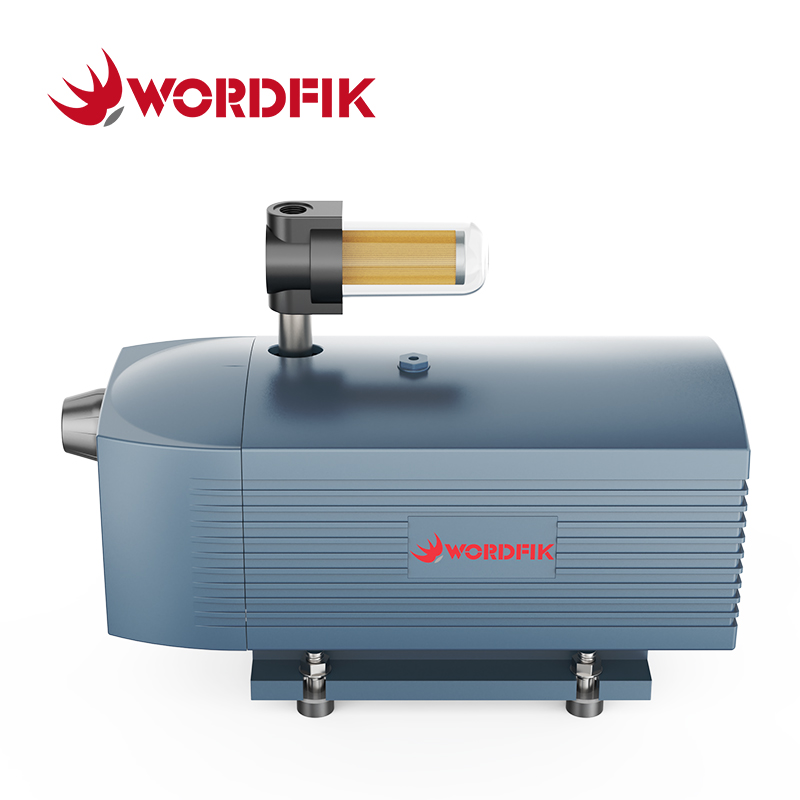

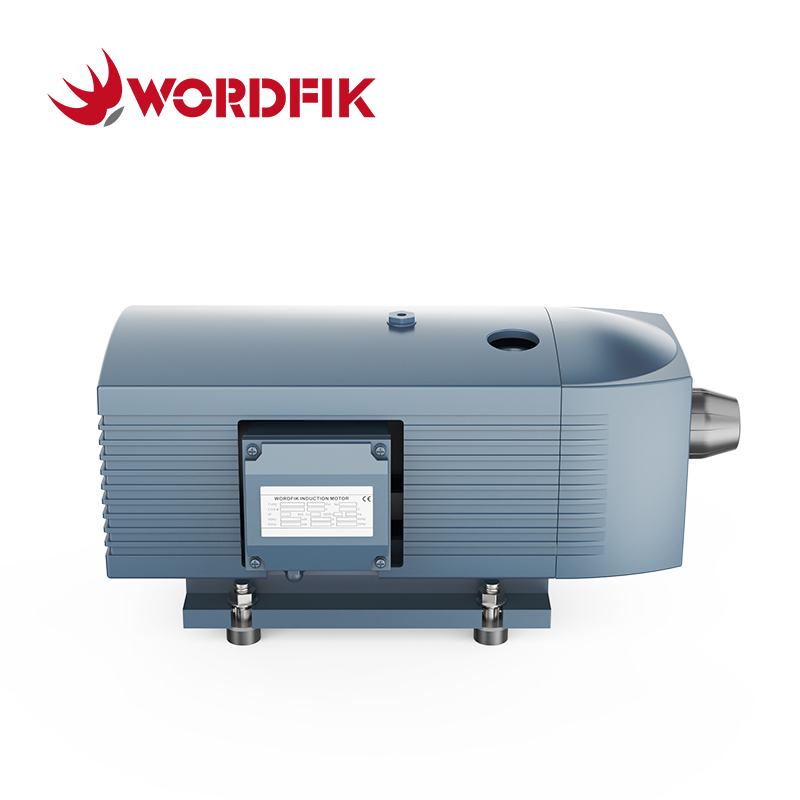

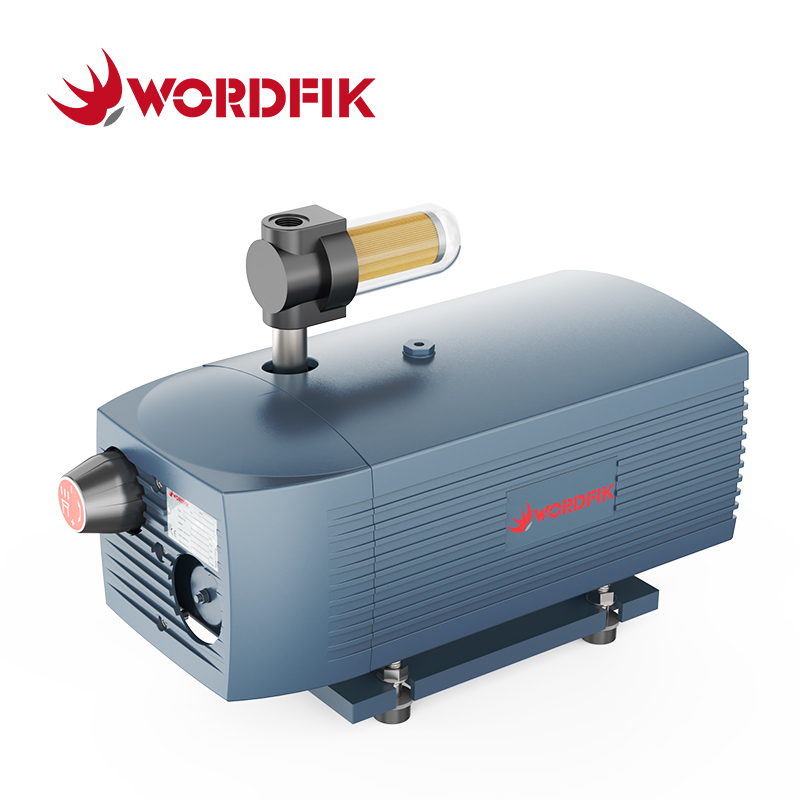

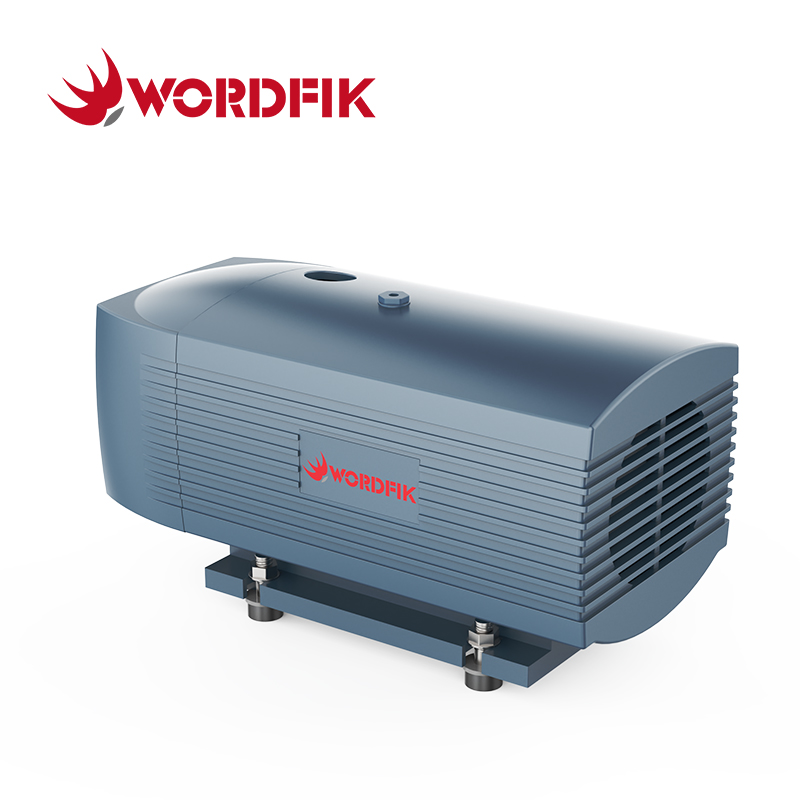

The Wordfik VD10 Dry Rotary Vane Vacuum Pump is a compact, oil-free vacuum solution engineered for vacuum lifters, pick-and-place systems, vacuum fixtures, automation equipment and veneer presses. Delivering 10 m³/h (50Hz) / 12 m³/h (60Hz) pumping speed and 150 mbar ultimate pressure, it provides clean, stable vacuum with a low-speed motor (1420 rpm) for extended service life.
Its oil-free dry rotary vane structure uses self-lubricating graphite composite vanes, eliminating oil contamination, oil changes and disposal costs. Available in both single-phase and three-phase configurations, the VD10 is suitable for a wide range of installation requirements across workshop and laboratory environments.
Features:
100% Oil-Free Operation, Clean and No Pollution
Single-Phase & Three-Phase Power Options
Minimal Maintenance
High-Precision Rotor & Cylinder, Long Service Life
Premium EK60 Carbon Vanes, Low Noise and Low Heat Generation
Stable and Continuous Operation
Compact & Lightweight
Fast Delivery from Stock
| VD10 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 10 m³/h | 12 m³/h |
| Ultimate Pressure | 150 mbar | |
| Motor Power | 0.37 kW | 0.44 kW |
| Motor Voltage | Δ 175-260 V ; Y 300-450 V (3ph) | Δ 202-300 V ; Y 350-520 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 60 dB(A) | 62 dB(A) |
| Inlet Connection | ½ inch | |
| Weight | 15 kg | |
| Dimensions | 430*205*198 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Lifter | Veneer Press | Vacuum Fixtures |
 |  |  |
| Lamination & Printing | Automation | Laboratory |
| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| VD8 | 0.35 kW | 0.42 kW | 8 m³/h | 9.6 m³/h | 150 mbar |
| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |
| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |
| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |
| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |
| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |
| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |
| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |
| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |
| VD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | |
| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |
| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
