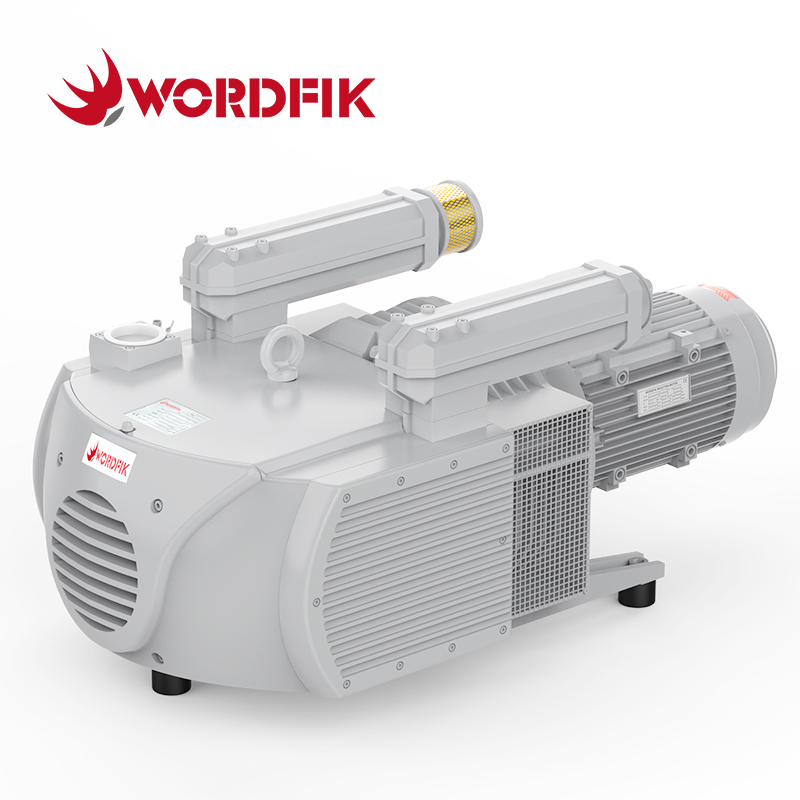

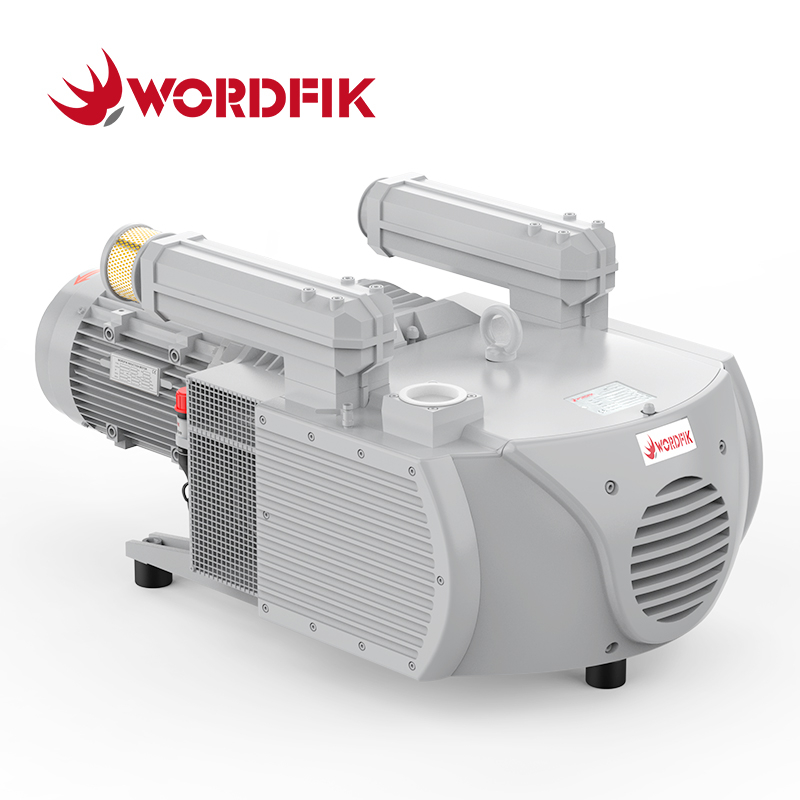

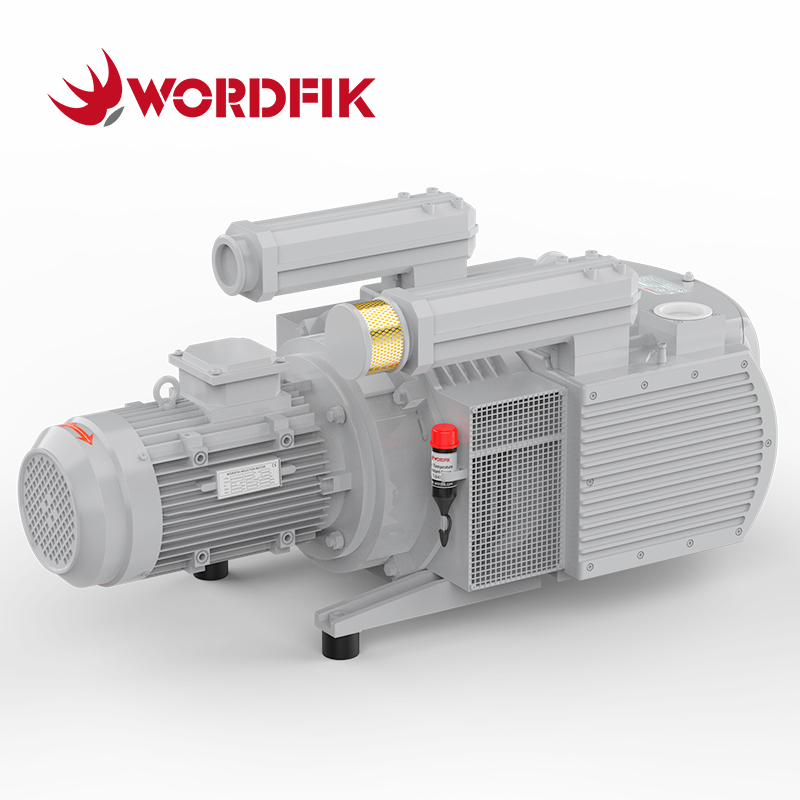

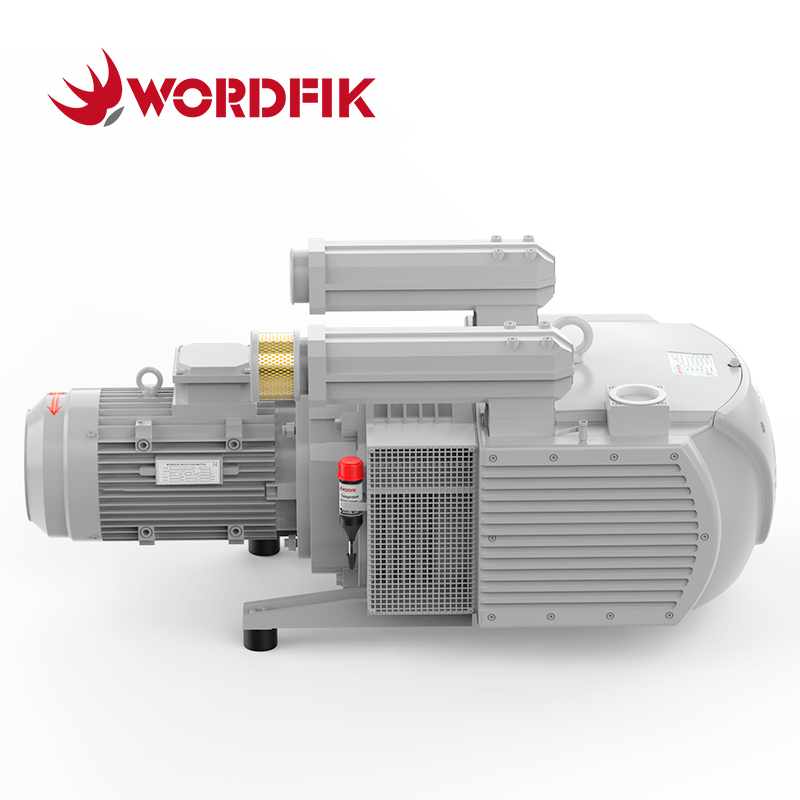

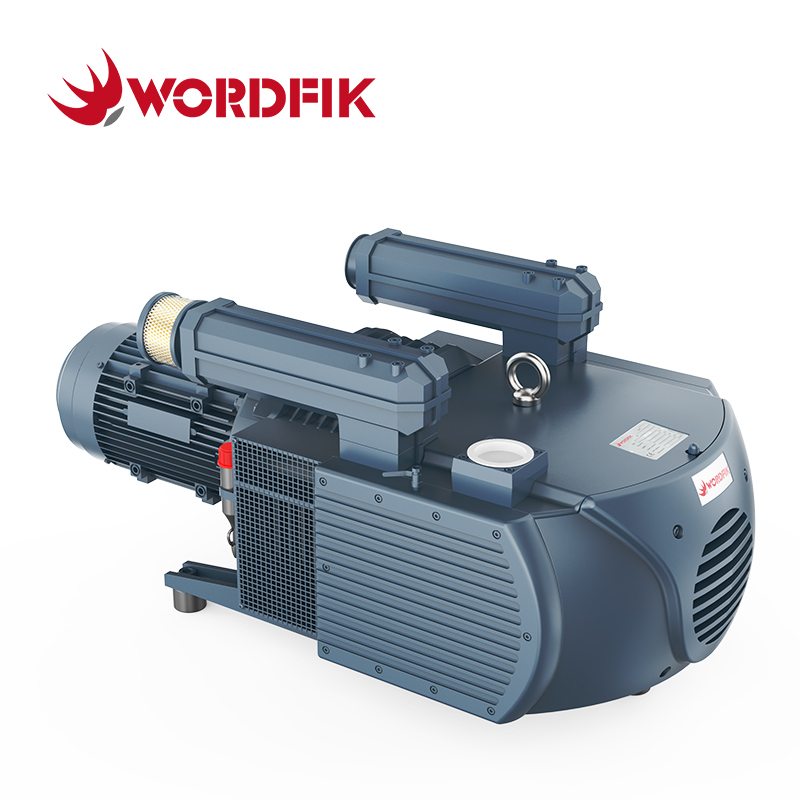

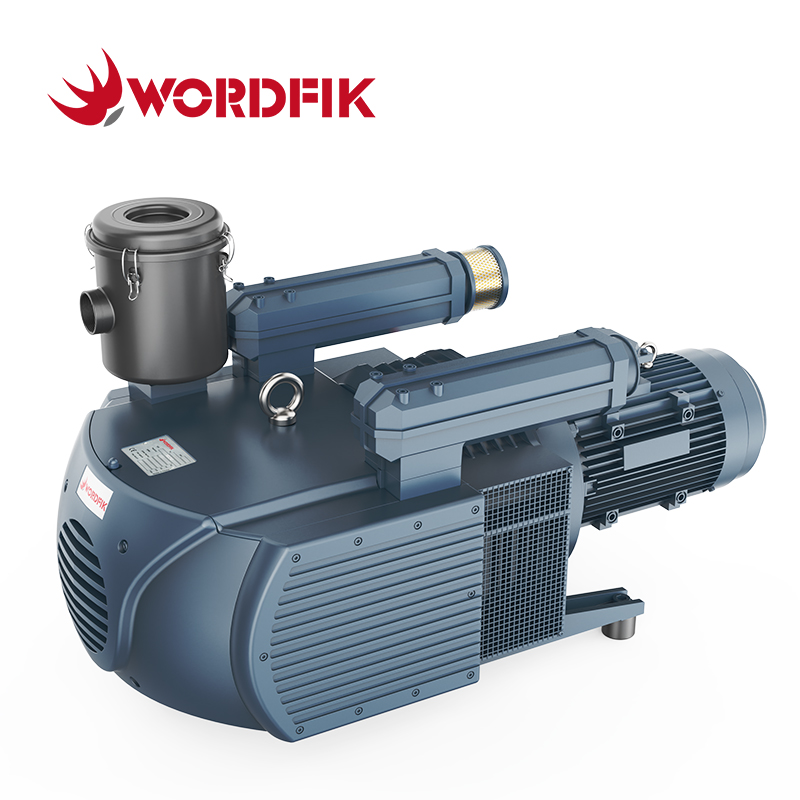

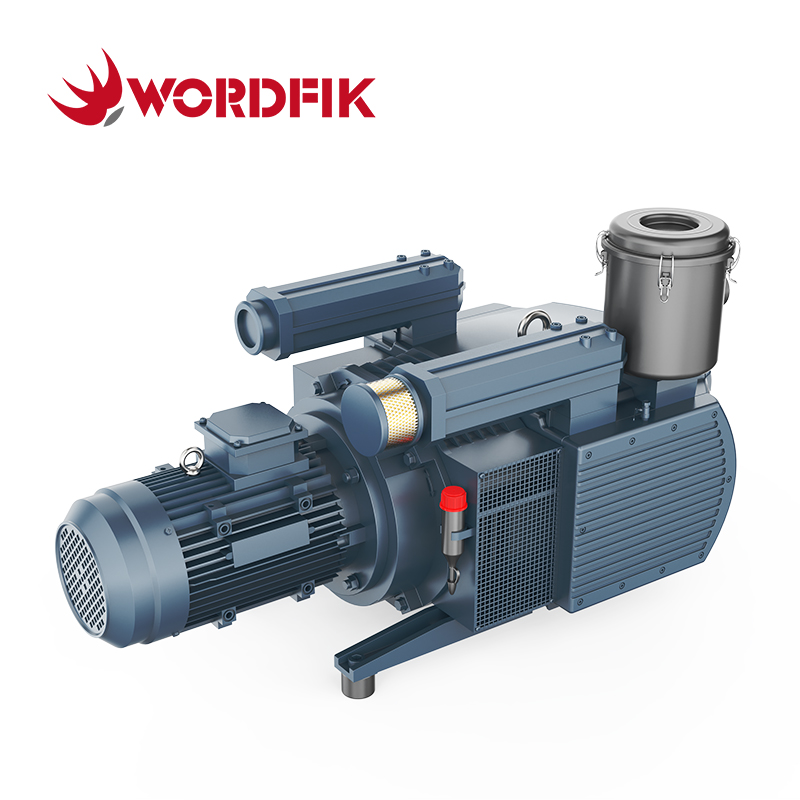

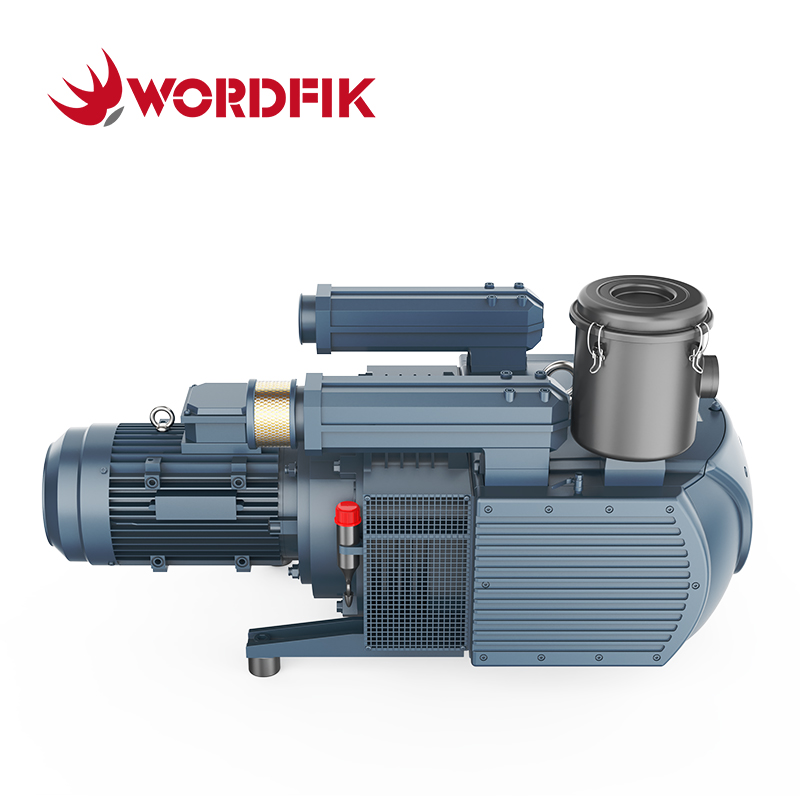

The Wordfik VD250 is a medium-to-high flow oil-free dry rotary vane vacuum pump engineered for round-the-clock industrial operation. As a direct drop-in replacement for Becker VTLF2.250 dry rotary vane vacuum pumps, it delivers 250 m³/h (147 CFM) at 50Hz and 300 m³/h (177 CFM) at 60Hz pumping speed, paired with 200 mbar ultimate vacuum and zero oil contamination in the air stream.
Powered by a 7.5 kW (10HP) motor at 50Hz and 9 kW (12HP) at 60Hz, this pump balances robust performance with energy efficiency. It features precision-machined rotors, premium SKF/NSK bearings and EK60 self-lubricating carbon vanes, ensuring low wear, low noise and minimal maintenance. Standard CE certification and wide three-phase voltage compatibility make it a versatile choice for medium production lines, multi-station workcells and central vacuum systems across 80+ countries.
Features:
100% oil-free dry rotary vane technology, zero oil contamination
Direct drop-in replacement for Becker equivalent dry vacuum pumps
Wide 220–660V three-phase voltage, 50/60Hz dual frequency, CE certified
Premium EK60 carbon vanes + SKF/NSK bearings for extended service life
Low noise & minimal maintenance, 24/7 continuous operation
Ample stock on hand, fast global delivery with 1-year standard warranty
| VD250 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 250 m³/h | 300 m³/h |
| Ultimate Pressure | 200 mbar | |
| Motor Power | 7.5 kW | 9 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 960 rpm | 1150 rpm |
| Noise Level | 81 dB(A) | |
| Inlet Connection | 2½ inch | |
| Outlet Connection | 2 inch | |
| Weight | 280 kg | |
| Dimensions | 1210*612*535 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| CNC Router / Woodworking | Printing and Paper Industry | Vacuum Lifter System |
 |  |  |
| Medical Vacuum System | Glass Pick & Place System | Central Vacuum System |

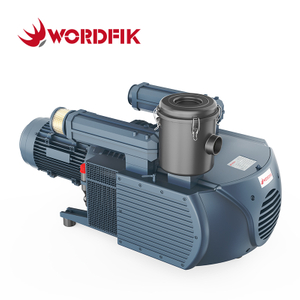

| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||

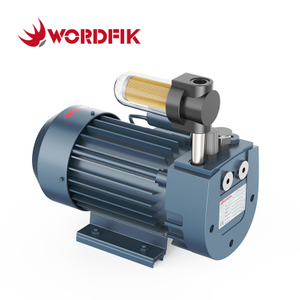

| VD8 | 0.35 kW | 0.42 kW | 8 m³/h | 9.6 m³/h | 150 mbar |

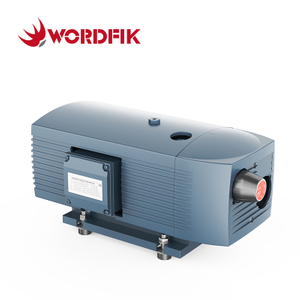

| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |

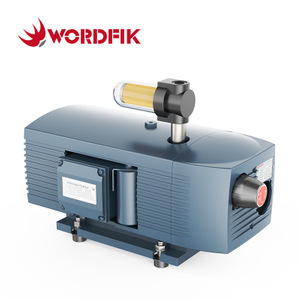

| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |

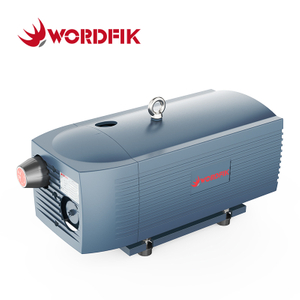

| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |

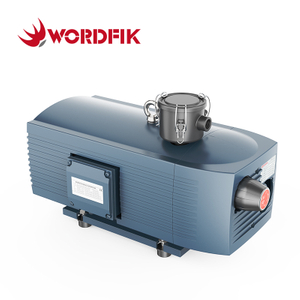

| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |

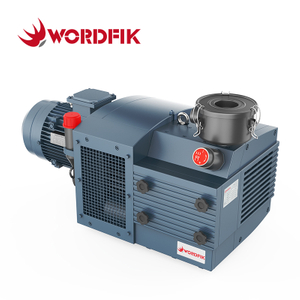

| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |

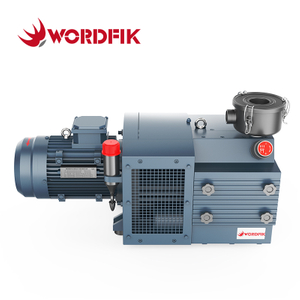

| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |

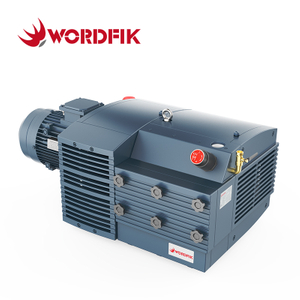

| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |

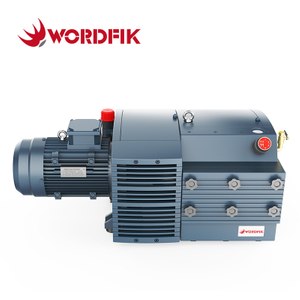

| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |

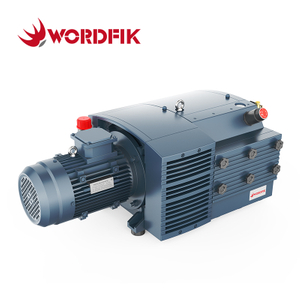

| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |
| VD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | |

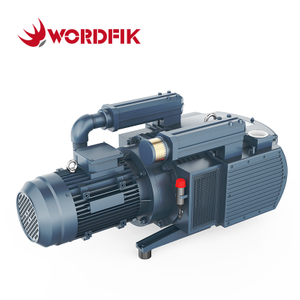

| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |

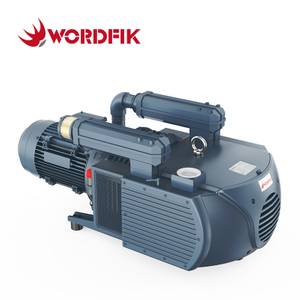

| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
