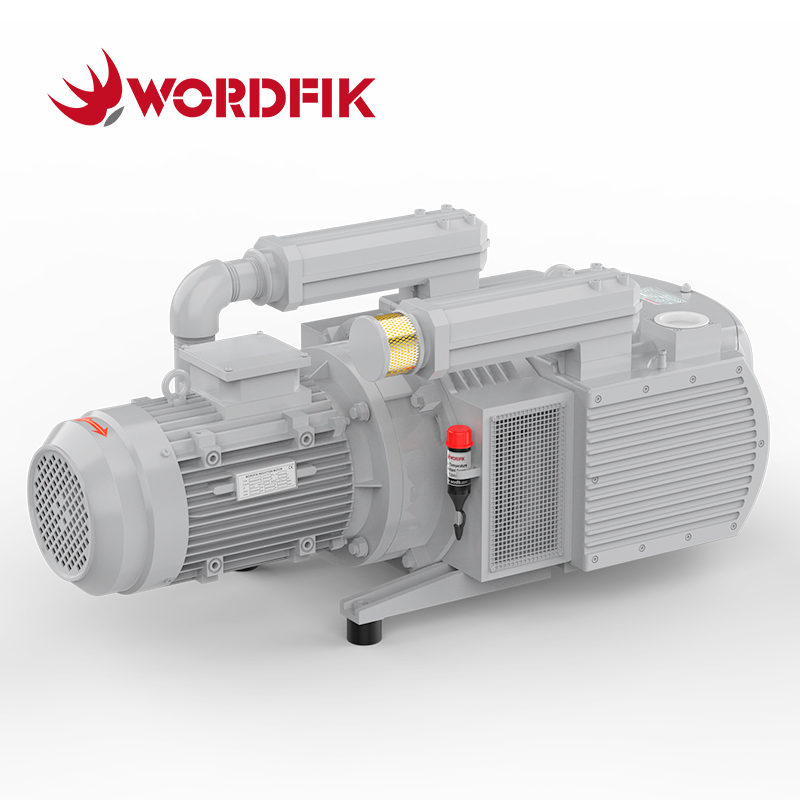

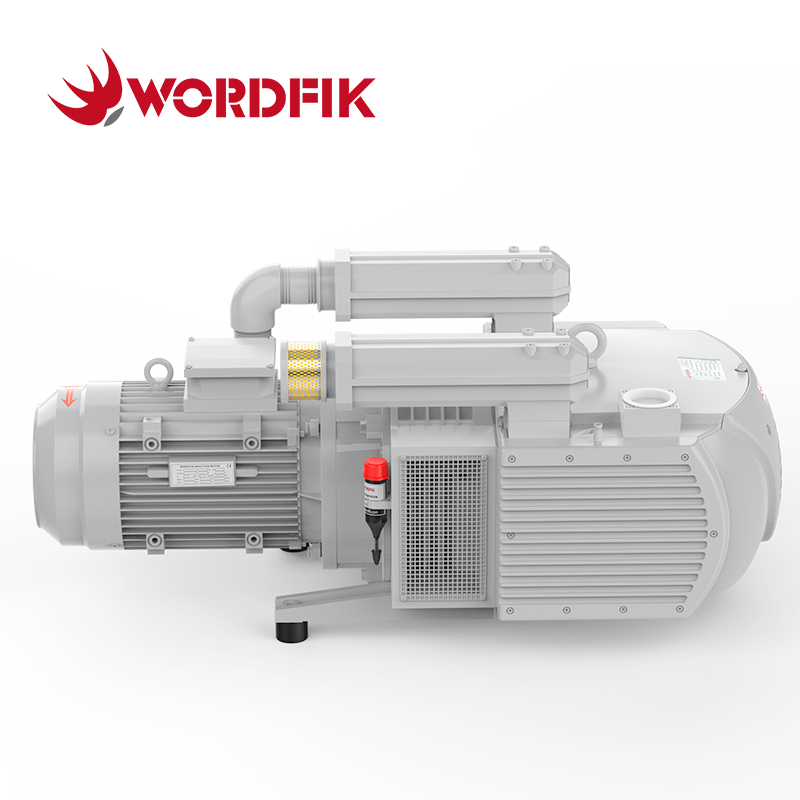

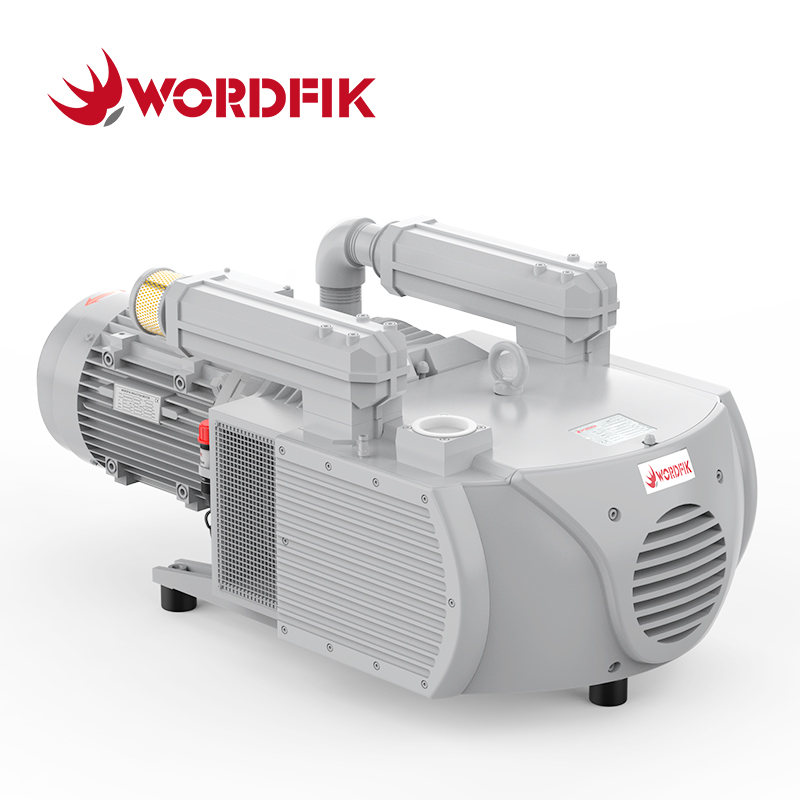

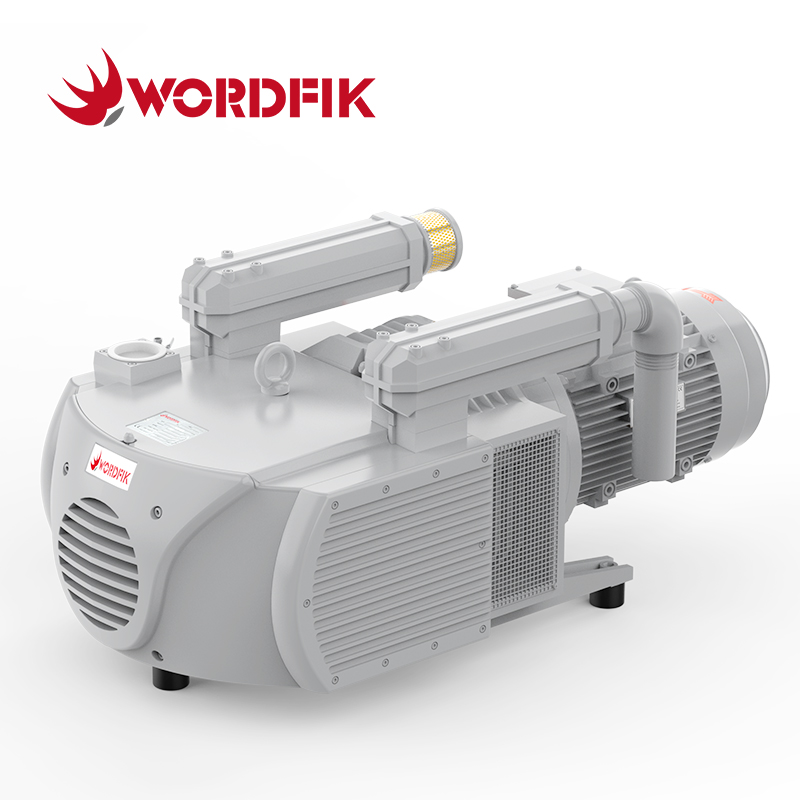

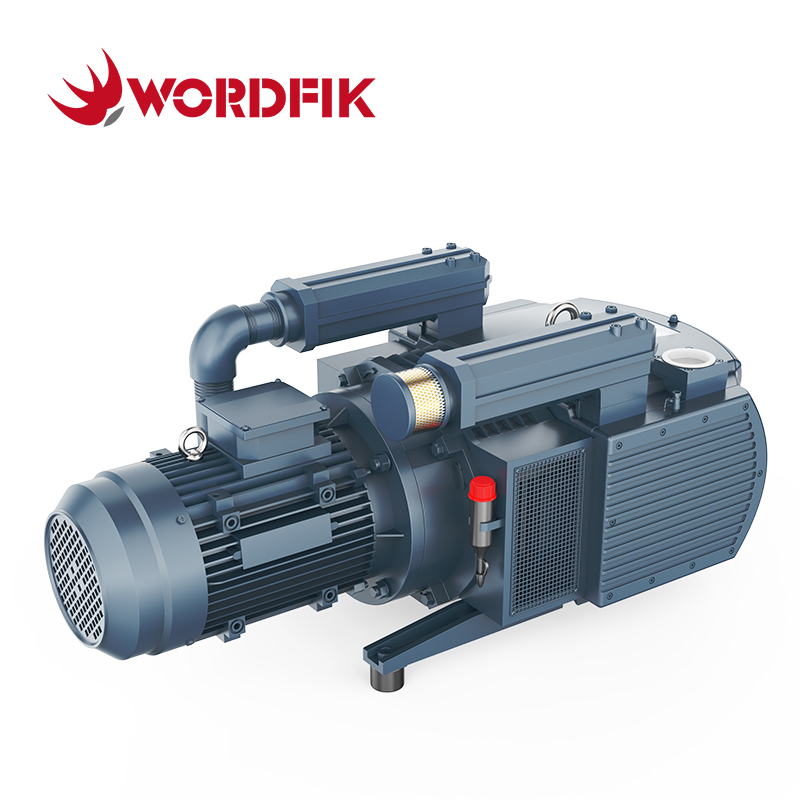

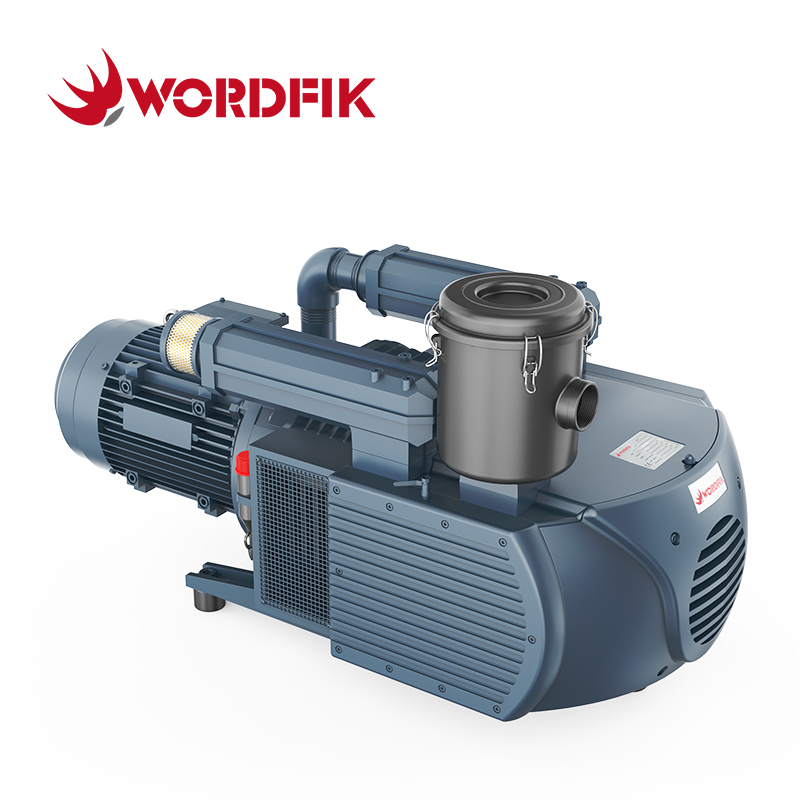

The Wordfik VD360 is a heavy-duty, 50Hz-optimized oil-free dry rotary vane vacuum pump built for high-flow, continuous industrial workloads. As a direct replacement for Becker VTLF2.360 dry vane pumps, it delivers a steady 351 m³/h (207 CFM) pumping speed and 250 mbar ultimate vacuum, with zero oil carryover and consistent performance under sustained load.
Driven by a robust 11 kW (15HP) industrial motor, this pump is engineered for non-stop operation in standard 50Hz power grid regions. It integrates precision-machined core components, heavy-duty SKF/NSK bearings and premium EK60 carbon vanes to minimize wear and maintenance. Standard CE certification and proven rugged construction make it the preferred choice for large-format printing, high-capacity woodworking and continuous process industries.
Features:
50Hz optimized heavy-duty oil-free dry vane pump
351 m³/h (207 CFM) high flow, 11 kW (14.8 HP) industrial motor
Direct drop-in replacement for Becker 360-class dry vacuum pumps
Heavy-duty SKF/NSK bearings + EK60 vanes for 24/7 continuous operation
CE certified, wide voltage adaptability for 50Hz regions
In-stock delivery with 1-year warranty and lifetime technical support
| VD360 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 351 m³/h | / |
| Ultimate Pressure | 250 mbar | / |
| Motor Power | 11 kW | / |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | / |
| Motor Speed | 1430 rpm | / |
| Noise Level | 80.5 dB(A) | / |
| Inlet Connection | 2½ inch | / |
| Outlet Connection | 2 inch | / |
| Weight | 312 kg | / |
| Dimensions | 1210*612*535 mm | / |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |

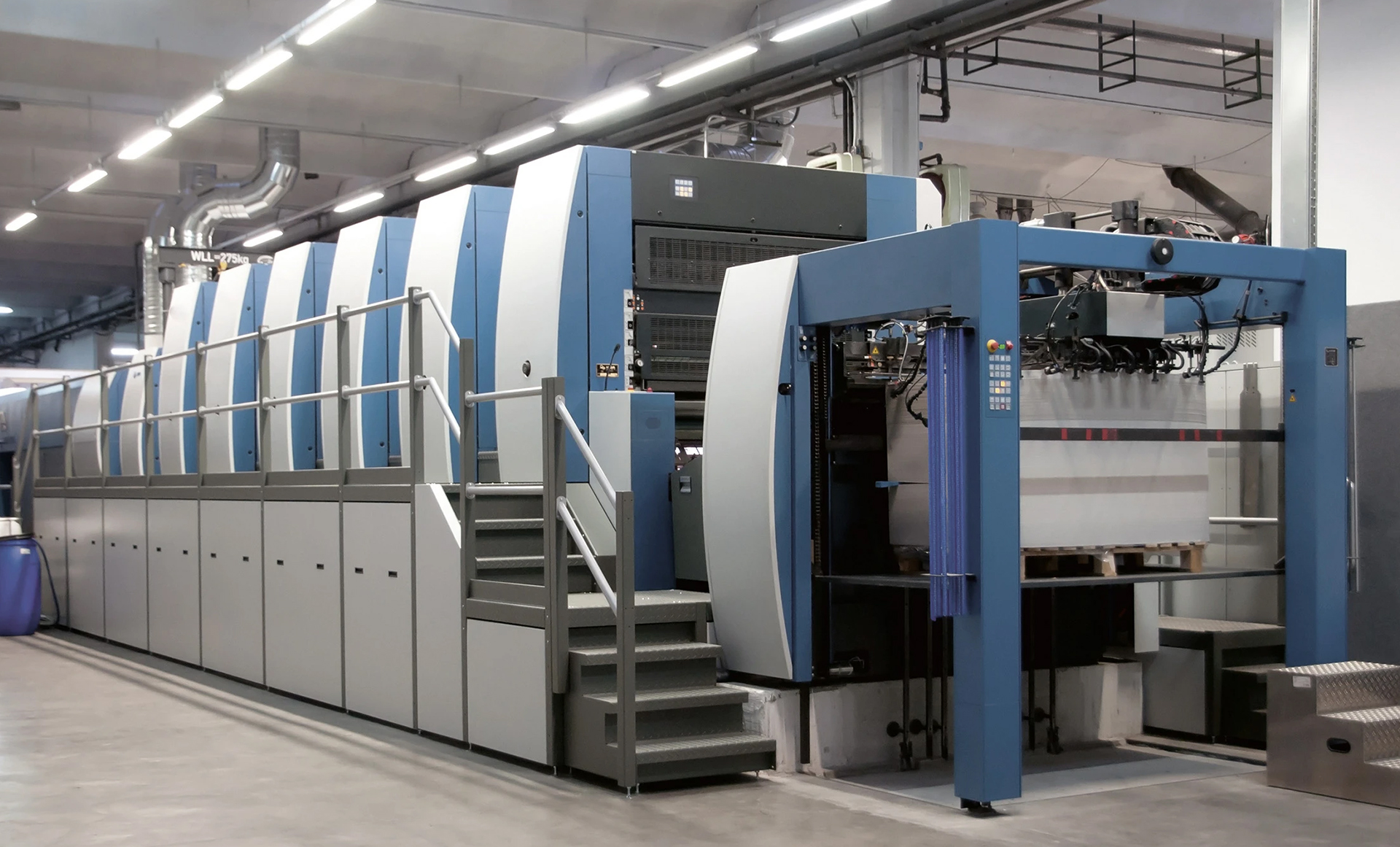

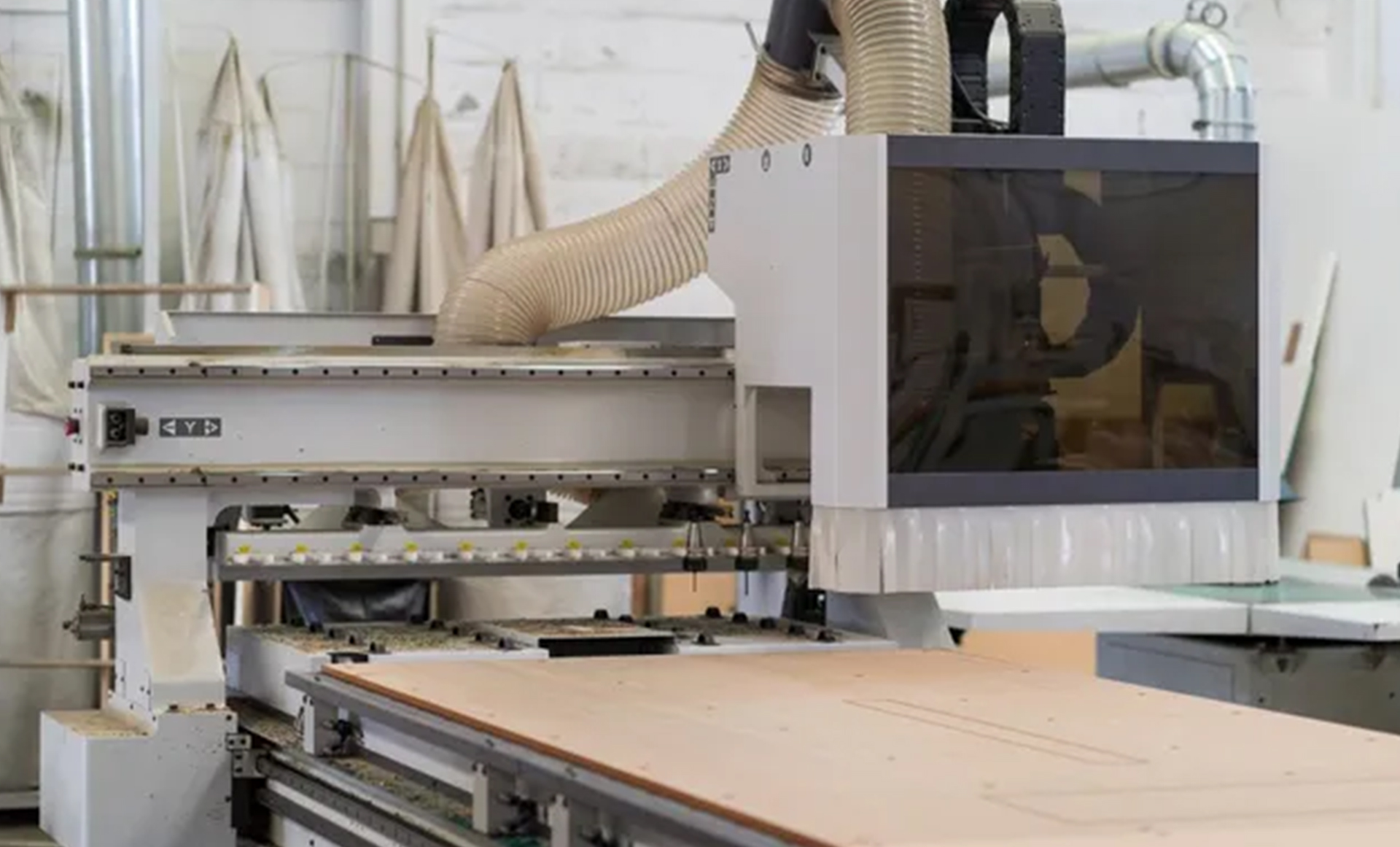

| CNC Router / Woodworking | Printing and Paper Industry | Vacuum Lifter System |
 |  |  |
| Hospital Vacuum System | Glass Pick & Place System | Central Vacuum System |
| Wordfik VD Series Dry Rotary Vane Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| VD8 | 0.35 kW | 0.42 kW | 8 m³/h | 9.6 m³/h | 150 mbar |
| VD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | |
| VD16 | 0.55 kW | 0.66 kW | 16 m³/h | 19.2 m³/h | |
| VD25 | 0.75 kW | 0.9 kW | 25 m³/h | 30 m³/h | |
| VD40 | 1.25 kW | 1.5 kW | 40 m³/h | 48 m³/h | |
| VD60 | 2.2 kW | 2.6 kW | 60 m³/h | 72 m³/h | |
| VD80 | 2.2 kW | 2.6 kW | 80 m³/h | 96 m³/h | |
| VD100 | 3 kW | 3.6 kW | 100 m³/h | 120 m³/h | |
| VD140 | 4 kW | 4.8 kW | 140 m³/h | 168 m³/h | |
| VD160 | 5.5 kW | 6.6 kW | 160 m³/h | 192 m³/h | |
| VD200 | 4 kW | 4.8 kW | 200 m³/h | 240 m³/h | 200 mbar |
| VD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | |
| VD360 | 11 kW | / | 351 m³/h | / | 250 mbar |
| VD400 | 11 kW | 13.2 kW | 400 m³/h | 480 m³/h | 350 mbar |
