In CNC machining, precision is everything. A reliable vacuum pump is the heart of your workpiece holding system, ensuring stability and accuracy throughout the cutting, milling, or routing process. Selecting the right vacuum pump is not a one-size-fits-all decision; it directly impacts your production efficiency, operational costs, and the quality of your finished products. An undersized or inappropriate pump can lead to workpiece slippage, ruined parts, and costly downtime, while an oversized one wastes energy and money. This guide will equip you with the practical knowledge needed to make an informed choice, balancing performance with cost-effectiveness for your specific CNC application.

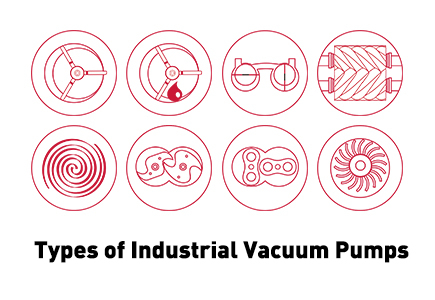

Different CNC operations and materials demand different vacuum solutions. Here's a breakdown of the most common types of vacuum pumps used with CNC machinery:
Dry Rotary Vane Vacuum Pumps: These pumps operate without oil in the compression chamber, using self-lubricating carbon vanes instead. This design guarantees a completely oil-free air supply, making them a popular and cost-effective choice, particularly in the woodworking industry. While they typically do not achieve the very high vacuum levels of some other technologies, they are highly valued for their easy maintenance, long service intervals, and resilience in dusty environments.
Oil-Lubricated Rotary Vane Vacuum Pumps: A traditional and common choice, these pumps use oil for sealing and cooling. They can offer good vacuum performance and are often a cost-effective solution for general-purpose applications. However, they require regular oil changes and filter maintenance, and there is a risk of oil contamination if the pumped media contains certain vapors or particles .
Claw Vacuum Pumps (Dry Vacuum Pumps): As a type of dry pump, claw pumps, such as the dry claw vacuum pumps mentioned in one source, operate without process oil and feature a non-contact claw mechanism . This design contributes to their energy efficiency and allows them to maintain stable performance over their lifespan without the gradual performance drop associated with wear parts like vanes .
Dry Screw Vacuum Vacuum Pumps: These pumps are known for their reliability and low maintenance as they operate without oil in the compression chamber . They are ideal for continuous operation and are well-suited for environments like woodworking or composite machining where dust and debris are concerns, as they are less sensitive to certain contaminants compared to oil-lubricated pumps .
When comparing vacuum pumps, focus on these three critical technical specifications:
Vacuum Level (Ultimate Vacuum): This is a measure of how low a pressure the pump can achieve, typically expressed in Pascals (Pa) or mbar. A higher vacuum level (lower pressure value) translates to a stronger holding force on the workpiece . For CNC hold-down, you need a pump whose vacuum level is sufficient to secure the specific material you are machining.
Flow Rate (Pumping Speed): This indicates the volume of air the pump can move per unit of time, measured in cubic meters per hour (m³/h) or liters per second (L/s) . The flow rate determines how quickly the pump can evacuate air from the vacuum table to achieve the required holding pressure, especially important when there might be slight porosity in the material or small leaks in the fixture. A higher flow rate compensates for these losses and maintains stable vacuum levels.
Motor Power: Expressed in kilowatts (kW) or horsepower (HP), this indicates the power consumption of the pump . While a more powerful motor often supports a higher flow rate, it's crucial to select a pump that is right-sized for your application to avoid unnecessary energy costs. A pump that is too powerful for the needs can lead to "large horse pulling a small cart" inefficiencies, wasting electricity .
Follow this practical process to narrow down your options and find the ideal vacuum pump.
Begin by defining your specific needs, as different materials and machining processes place different demands on the vacuum system.
Material Type: The porosity of your material is a key factor.
Non-porous materials (e.g., metals, plastics, acrylics) primarily require a high vacuum level to create a strong seal.
Porous materials (e.g., MDF, particle board, some types of wood) require a high flow rate to compensate for the air that seeps through the material itself. A pump with insufficient flow will struggle to maintain hold-down force on porous sheets.
Table Size and Number of Zones: The total surface area of your vacuum table and how it is segmented into zones directly influences the volume of air that needs to be evacuated. A larger table or one with multiple simultaneous zones in use will generally require a pump with a higher flow rate.
Machining Forces: Consider the aggressiveness of your CNC operations. Heavy cuts and high feed rates generate significant lateral forces on the workpiece, demanding a higher holding force, which is achieved through a strong vacuum level.
With your application requirements clear, you can match them to the most suitable pump technology.
For machining porous materials like MDF, a pump with a high flow rate is critical. Dry screw vacuum pumps or certain claw pumps are often excellent choices here due to their robustness and ability to handle continuous operation with some resistance to dust .
For non-porous materials, a pump that delivers a high vacuum level is key. Oil-lubricated rotary vane pumps can be a cost-effective solution, but if you want to avoid potential oil mist contamination and reduce maintenance, a dry screw pump or a claw pump is a superior, though often higher initial investment, alternative .
In environments where cleanliness is paramount, such as when machining materials for medical or optical parts, oil-free vacuum pumps are the necessary choice to eliminate any risk of oil contamination .
A simplified calculation can help you estimate the required flow rate.
A basic formula to estimate the required pump flow rate is:S = (V / t) × ln(P1 / P2)
S is the required pumping speed (L/s or m³/h)
V is the volume of the vacuum system (including table plumbing, in liters or m³)
t is the desired time to reach the working vacuum level (in seconds or hours)
P1 is the initial atmospheric pressure
For most CNC applications, a more practical approach is to consider the table size and material porosity. Pump manufacturers often provide guidelines based on these factors (e.g., a certain flow rate per square meter of table area for a specific material type). Consulting these guidelines or speaking directly with a technical sales engineer can be the most reliable path to correct sizing.
The purchase price is just one part of the financial picture.
Energy Consumption: An energy-efficient pump, perhaps with a variable speed drive, can save significant electricity costs over its lifetime .
Maintenance Needs: Evaluate the long-term costs of consumables like filters, oil, and wear parts (e.g., vanes). Dry pumps typically have lower ongoing consumable costs than oil-lubricated pumps .
After-sales Service and Warranty: A reliable pump backed by a strong warranty and responsive local technical support is invaluable in minimizing costly production downtime .
Choosing the right vacuum pump for your CNC machinery is a critical investment in your workshop's productivity and output quality. By systematically assessing your application needs, understanding the different pump technologies and their strengths, and carefully evaluating key specifications and total cost of ownership, you can make a confident decision that balances performance with long-term value.
Ready to find your perfect vacuum solution? Use the knowledge from this guide as a starting point for conversations with technical experts and suppliers. For personalized assistance in selecting a vacuum pump that meets your specific CNC requirements, contact Wordfik's engineering team today for a free consultation.Wordfik will also share more practical cases and insights for CNC vacuum solutions.
