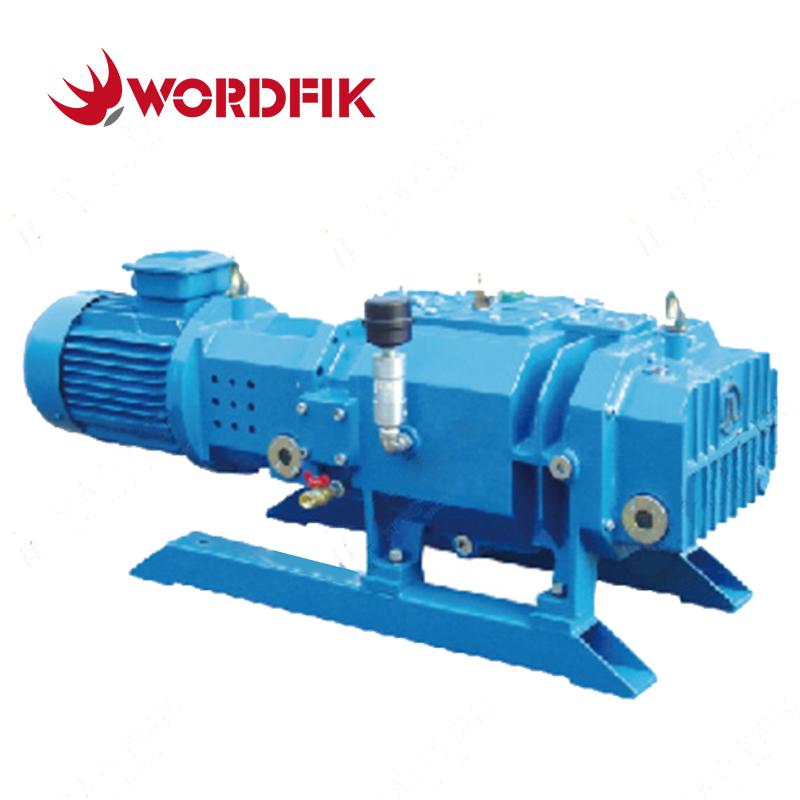

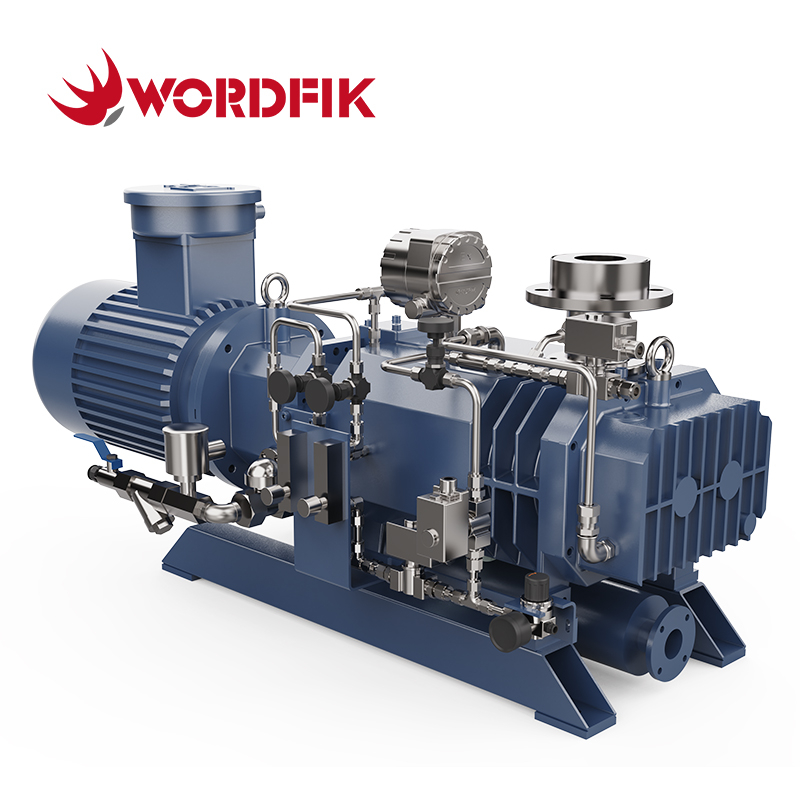

Wordfik DVE series screw pump is an environmentally friendly, energy-saving, oil-free vacuum equipment. Wordfik provides vacuum pump models made of corrosion-resistant materials such as titanium steel and duplex steel to cope with harsh working environments such as toxic gases and corrosive gases.
The DVE series uses twin-screw precision meshing technology to achieve efficient gas compression and transportation through high-speed synchronous reverse rotation. The screw is dynamically balanced and calibrated, with a nano-level gap design, and operates without metal friction throughout the process, and will not generate high temperatures.
Wordfik provides a wide range of pumping rate models from 110m³/h to 1800m³/h to meet the needs of different industries. It is widely used in vacuum metallurgy, vacuum coating, vacuum drying, vacuum distillation, vacuum degassing and other industries.
Features:
• 100% Oil-Free Operation is Environmentally Friendly
• Water Vapor, Dust, Flammable and Explosive, Radioactive Gases
• Anti-corrosion Options : Hastelloy Coating / Duplex Steel / Titanium Steel
• Operation Stable and Low Noise
• No Metal Friction, Low Operating Temperature
• Optional : Air Cooling / Water cooling / Pump Housing / Inverter
| DVE110 | DVE180 | DVE250 | DVE400 | DVE540 | DVE650 | DVE830 | DVE1080 | DVE1300 | DVE1620 | DVE1800 | |
| Pumping Speed (50Hz) | 108 m³/h | 180 m³/h | 250 m³/h | 400 m³/h | 540 m³/h | 650 m³/h | 828 m³/h | 1080 m³/h | 1300 m³/h | 1620 m³/h | 1800 m³/h |
| 30 L/s | 50 L/s | 70 L/s | 110 L/s | 150 L/s | 180 L/s | 230 L/s | 300 L/s | 360 L/s | 400 L/s | 500 L/s | |
| Ultimate Pressure (50Hz) | 5 Pa | ||||||||||
| Max. Exhaust Pressure (50Hz) | 1.2 Bar | ||||||||||
| Motor Power (50Hz) | 4 kW | 4 kW | 7.5 kW | 11 kW | 15 kW | 15 kW | 18.5 kW | 30 kW | 30 kW | 37 kW | 45 kW |
| Motor Speed (50Hz) | 2880 rpm | 2880 rpm | 2900 rpm | 2900 rpm | 2940 rpm | 2940 rpm | 2950 rpm | 2950 rpm | 2950 rpm | 2950 rpm | 2950 rpm |
| Air Inlet Connection | 50 mm | 50 mm | 65 mm | 65 mm | 100 mm | 100 mm | 100 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Exhaust Connection | 40 mm | 40 mm | 65 mm | 65 mm | 80 mm | 80 mm | 80 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Coolant Flow | ≥10 L/min | ≥10 L/min | ≥12 L/min | ≥12 L/min | ≥15 L/min | ≥15 L/min | ≥15 L/min | ≥20 L/min | ≥20 L/min | ≥22 L/min | ≥22 L/min |
| Coolant Pressure | 0.2~0.35 Mpa | ||||||||||
| Coolant Outlet Temperature | ≤40 ℃ | ||||||||||
| Coolant Connection | ⅜ inch | ⅜ inch | ½ inch | ½ inch | ½ inch | ½ inch | ½ inch | ½ inch | ½ inch | ½ inch | ½ inch |
| Noise Level | ≤76 dB | ≤76 dB | ≤76 dB | ≤78 dB | ≤78 dB | ≤78 dB | ≤80 dB | ≤85 dB | ≤85 dB | ≤85 dB | ≤85 dB |
| Inlet Lubrication | 5~40 ℃ | ||||||||||
| Outlet Lubrication | 0.2 L | 0.2 L | 0.3 L | 0.3 L | 0.3 L | 0.3 L | 0.3 L | 0.5 L | 0.5 L | 0.5 L | 0.5 L |
| Operation Temperature | 0.8 L | 0.8 L | 1.2 L | 1.2 L | 1.8 L | 1.8 L | 1.8 L | 3.4 L | 3.4 L | 3.4 L | 3.4 L |
| Nitrogen System Pressure | 0.05 Mpa | 0.05 Mpa | 0.05 Mpa | 0.05 Mpa | 0.06 Mpa | 0.06 Mpa | 0.06 Mpa | 0.07 Mpa | 0.07 Mpa | 0.07 Mpa | 0.07 Mpa |
| Nitrogen System Flow | 25~30 L/min | 25~30 L/min | 30~35 L/min | 30~35 L/min | 35~40 L/min | 35~40 L/min | 35~40 L/min | 40~45 L/min | 40~45 L/min | 40~45 L/min | 40~45 L/min |
| Weight | 310 kg | 310 kg | 450 kg | 540 kg | 800 kg | 800 kg | 880 kg | 1250 kg | 1400 kg | 1400 kg | 1490 kg |
| Dimensions | 1160*400*540 mm | 1160*400*540 mm | 1472*920*870 mm | 1672*920*870 mm | 1749*1050*980 mm | 1749*1050*980 mm | 1820*1060*980 mm | 2123*1240*1150 mm | 2283*1240*1150 mm | 2283*1240*1150 mm | 2395*1240*1000 mm |
Application:
 |  |  |

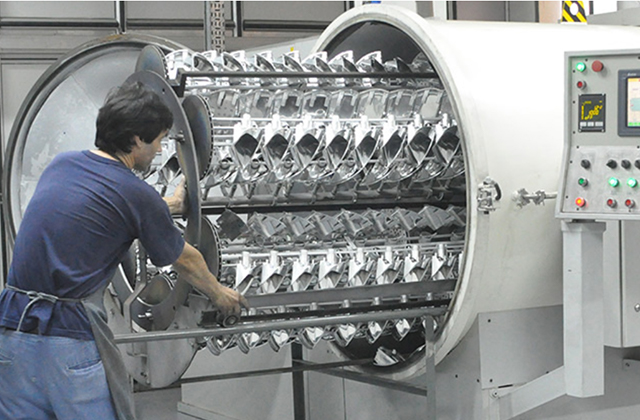

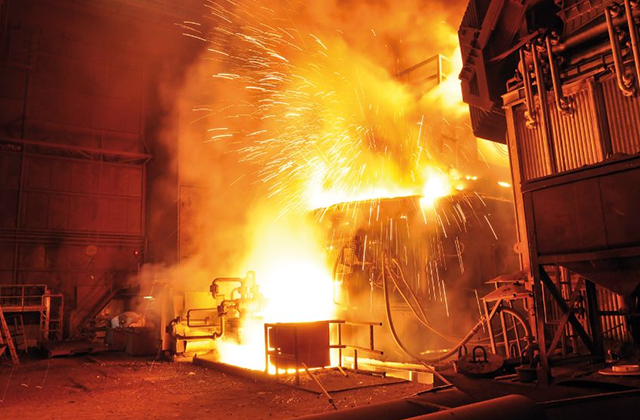

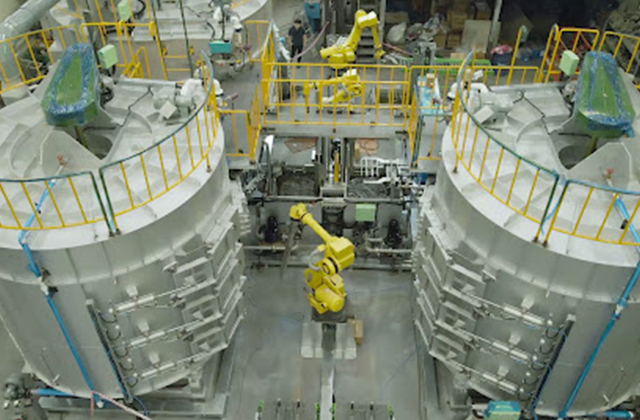

| Industrial Furnace | Vacuum Coating | Vacuum Metallurgy |
 |  |  |

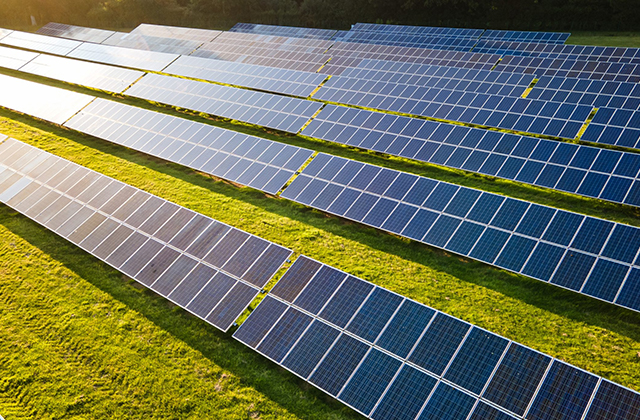

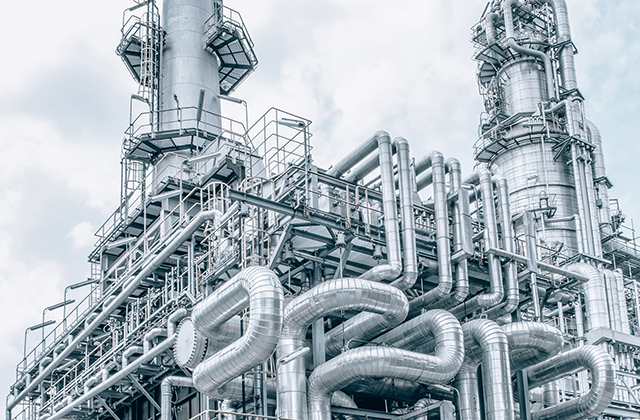

| Vacuum Drying | Vacuum Distillation | Photovoltaic Industry |
