For nearly two decades, we've witnessed firsthand how the heart of many industrial and scientific processes is a reliable vacuum. Choosing the right vacuum pump technology is not just a specification check; it's a critical decision that impacts your process efficiency, product quality, and total cost of ownership.

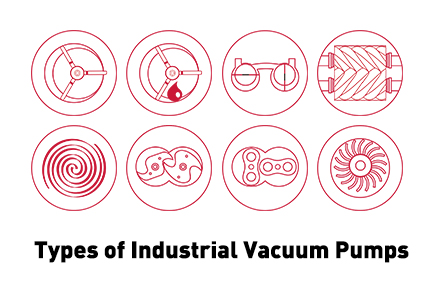

This guide will demystify the major types of vacuum pumps, helping you understand their working principles, strengths, and ideal applications.
Before diving into pump types, it's crucial to understand the vacuum levels we aim to achieve. The spectrum is generally divided into:
Rough/Low Vacuum: (Atmosphere to 1x10⁻³ mbar) Common in packaging, lifting, and degassing.
Fine/Medium Vacuum: (1x10⁻³ mbar to 1x10⁻⁷ mbar) Essential for filtration, drying, and laboratory applications.
High/Ultra-High Vacuum (UHV): (1x10⁻⁷ mbar and below) Critical in semiconductor fabrication, space simulation, and advanced physics research.
Different pumps are designed to operate efficiently in specific parts of this spectrum.
How They Work: A rotating rotor with sliding vanes is mounted eccentrically inside a stator. Centrifugal force pushes the vanes against the stator wall, creating expanding and contracting chambers that draw in, isolate, and exhaust gas. The oil provides lubrication, cooling, and a critical sealing layer.
Pros: Proven technology, cost-effective for rough/low vacuum, relatively quiet.
Cons: Risk of oil contamination in the process, requires regular oil changes and disposal, can be sensitive to particulate and condensable vapors.
Best For: General laboratory work, small industrial ovens, as a backing pump for higher vacuum systems.
How They Work: A multi-bladed impeller rotates eccentrically within a casing filled with a sealing liquid (often water). The liquid forms a moving ring that creates compression chambers, compressing the gas isothermally.
Pros: Extremely robust, handles wet and condensable vapors excellently, isothermal compression is ideal for heat-sensitive gases.
Cons: Lower ultimate vacuum and efficiency compared to other types, requires a continuous supply of sealant liquid and treatment of contaminated water.
Best For: Chemical processing, pharmaceutical distillation, paper dewatering, and roughing applications with high moisture content.
How They Work: Two figure-8 shaped rotors counter-rotate without touching each other or the casing, trapping and mechanically displacing gas from the inlet to the outlet.
Crucial Note: Roots pumps cannot operate against atmospheric pressure alone; they must be backed by a primary pump (like a Rotary Vane or Dry Screw pump). They are boosting pumps that dramatically increase pumping speed and allow the backing pump to operate more efficiently in its preferred pressure range.
Pros: Very high pumping speeds in the medium vacuum range, no internal compression, oil-free.
Cons: Not a standalone pump, requires a backing pump.
Best For: Increasing the throughput and efficiency of vacuum systems in metallurgy, large-scale freeze dryers, and evaporation systems.
The demand for oil-free, clean, and low-maintenance solutions has made dry pumps the industry standard for many demanding applications. Here are the most common types:
Principle: Two claws rotate without contact, trapping gas and compressing it internally before expelling it to the outlet. Often staged in multiple modules for higher compression ratios.
Characteristics: Good tolerance to dust, oil-free, reliable.
Principle: Two intermeshing screw rotors move gas in an axial direction from the inlet to the outlet. The clearances between the screws provide internal compression.
Characteristics: Excellent all-around dry pump technology. Handles a wide range of gases, offers high energy efficiency (especially with VFDs), and is very reliable. Ideal for semiconductor, chemical, and pharmaceutical applications.
Principle: One orbiting scroll moves within a fixed scroll, creating moving gas pockets that are compressed toward the center outlet.
Characteristics: Very quiet, compact, and vibration-free. Perfect for clean environments like analytical laboratories and R&D. Limited capacity for particulate-laden or corrosive processes.
Principle: Similar to their oil-sealed counterparts, these pumps use vanes that slide out from a rotor inside a stator to create compression chambers. However, they operate without any working fluid in the pumping chamber. Key to their operation is the use of special, self-lubricating materials for the vanes and chamber lining, which can withstand the friction and heat generated by dry operation.
Characteristics: They offer a compact and oil-free design which avoids oil contamination and reduces maintenance needs compared to oil-sealed versions. Modern designs focus on efficient cooling systems to manage the heat from dry compression, which is critical for maintaining performance and longevity. They are known for their low noise and vibration levels.
Best For: Applications requiring a clean, oil-free environment in the rough to medium vacuum range. This makes them suitable for metallurgical processes like vacuum melting and degassing, as well as packaging, lifting, and other industrial duties where oil contamination is a concern.
How They Work: A series of bladed rotors spin at extremely high speeds (typically 30,000 - 90,000 RPM). Gas molecules that collide with these blades are statistically more likely to be directed toward the exhaust, creating a "drag" effect. They must be backed by a roughing pump.
Pros: Achieves clean, oil-free high and ultra-high vacuum. No hydrocarbons in the chamber.
Cons: High initial cost, sensitive to physical shock and large particle ingress, requires a backing pump.
Best For: UHV applications like semiconductor thin-film deposition (PVD, CVD), particle accelerators, and surface science.
| Technology | Typical Operating Range | Oil-Free? | Key Strengths | Key Considerations |
| Rotary Vane (Oil-Sealed) | Rough/Medium | No | Cost-effective, reliable | Oil contamination, maintenance |
| Liquid Ring | Rough | Yes (with water) | Handles wet vapors, robust | Low efficiency, water treatment |
| Roots Pump | Medium/High (with backing) | Yes | High pumping speed | Requires backing pump |
| Dry Screw Pump | Rough/Medium | Yes | Handles harsh processes, energy-efficient | Higher initial investment |
| Dry Scroll Pump | Rough/Medium | Yes | Clean, quiet, compact | Sensitive to dust/corrosives |
| Dry Rotary Vane Pump | Rough/Medium | Yes | Compact, low noise, oil-free | Manages heat from dry compression |
| Turbomolecular Pump | High/UHV | Yes | Achieves highest vacuum levels | High cost, sensitive, needs backing |
The "best" pump is the one that most effectively and economically solves your specific problem. Here are the key questions to ask:
What Vacuum Level is Required? This is your starting point.
What is the Process? Is it clean or dirty? Are you pumping condensable vapors, abrasive dust, or corrosive gases?
Is Oil Contamination a Concern? For sensitive applications in food, pharmaceuticals, or analytics, the answer is always "yes," making dry pumps the default choice.
What are the Total Costs? Look beyond the purchase price. Consider energy consumption, maintenance downtime, and consumable costs (oil, filters).
Click to learn more how to choose a vacuum pump for your production.
The journey from rough vacuum with robust Roots pumps to the pristine ultra-high vacuum of Turbomolecular pumps showcases a remarkable evolution in engineering. Today, the trend is unmistakably toward dry, clean, and intelligent pumping solutions that offer superior reliability and lower lifetime costs. Among these, dry rotary vane pumps present a robust, oil-free option for a wide range of industrial applications where contamination must be avoided and compact design is valued.
