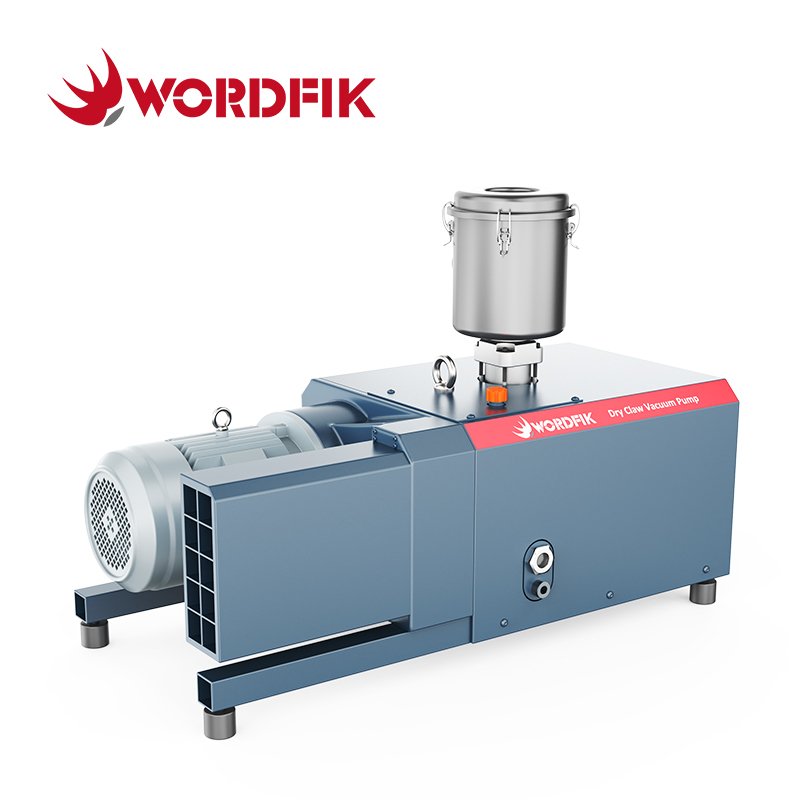

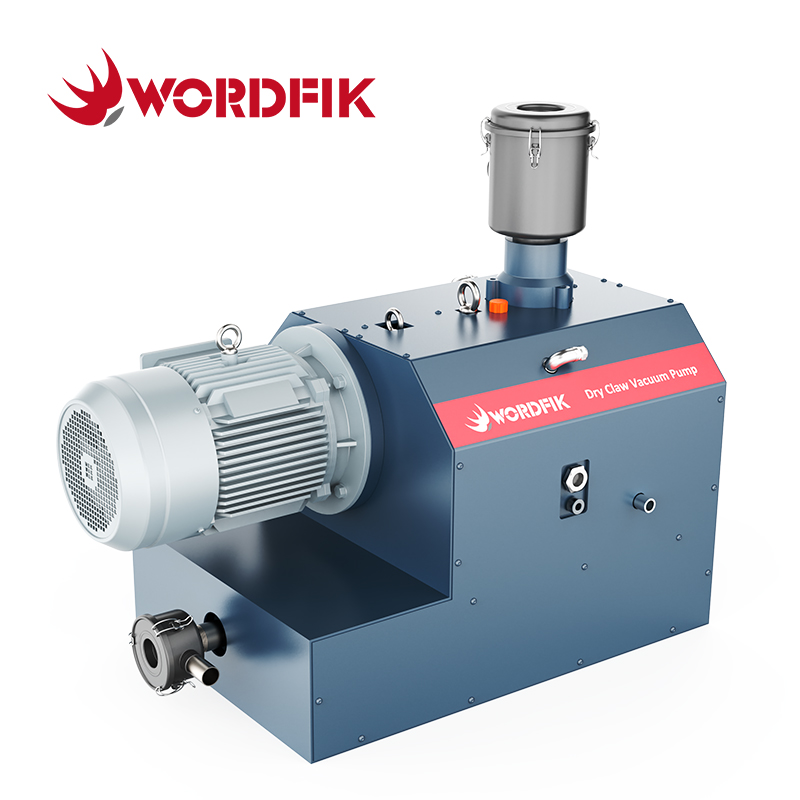

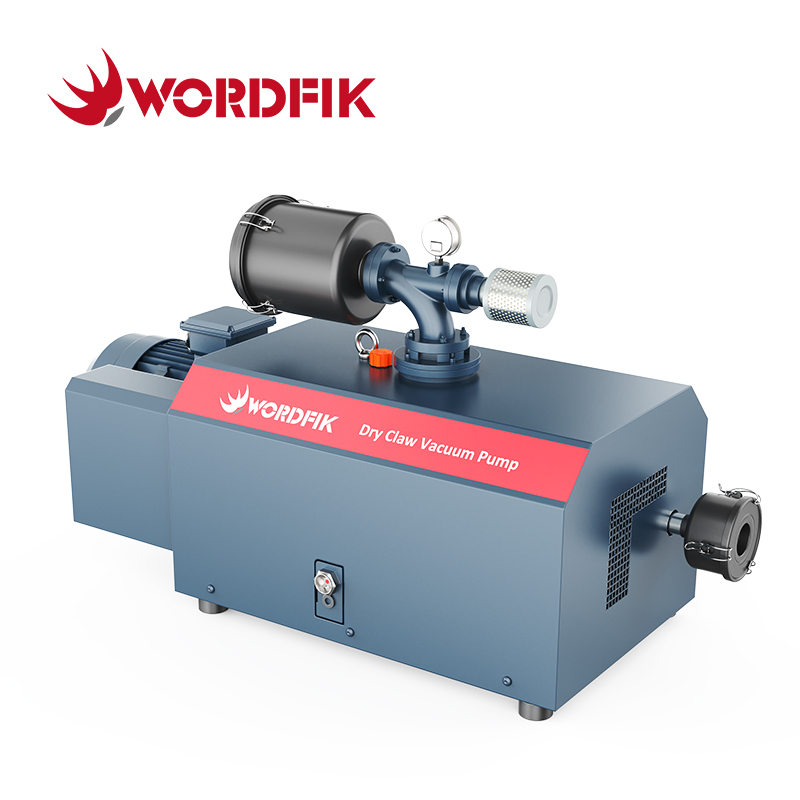

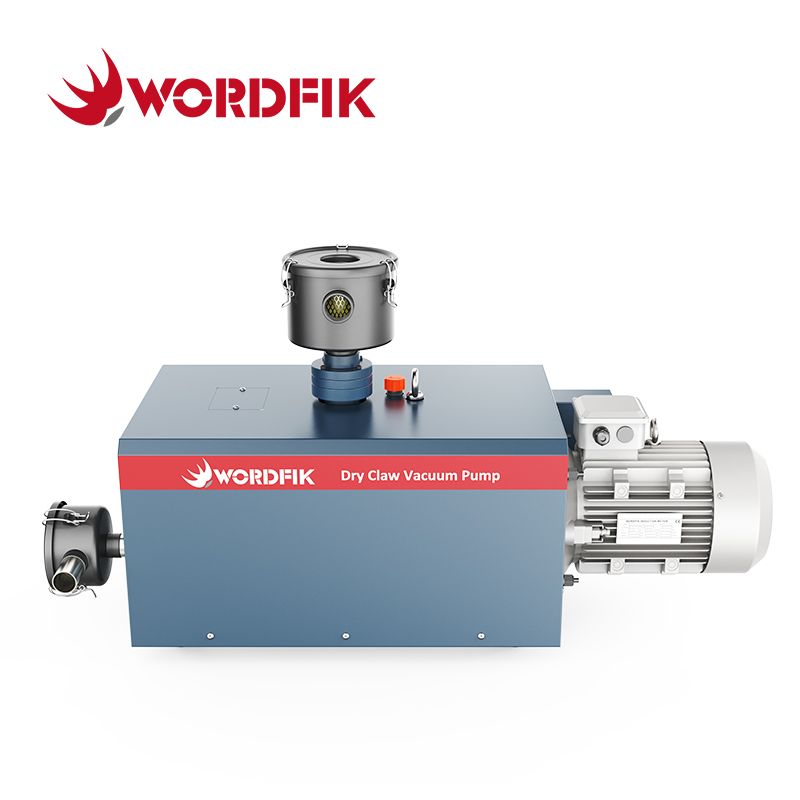

Wordfik ZSV series claw vacuum pump is a rotary volumetric vacuum pump with a claw shaped rotor. The pump housing has two conjugate meshing claw shaped rotors, similar to the Roots vacuum pump. The rotors are driven to rotate and have a fixed phase by a pair of synchronous high-precision gears, and there is no contact between the rotors or between the rotors and the pump housing, leaving a small gap. The inlet and outlet of the gas are both located on the end face of the pump casing, and are periodically opened and closed by two rotor end faces, with a valve regulating effect.
ZSV series vacuum pumps are suitable for low and medium vacuum fields, mainly used to extract air and other dry gases. They can be used alone or in series or parallel (series connection can increase vacuum degree, parallel connection can increase pumping rate), and can also be used as the fore pump of other vacuum pumps. This series of vacuum pumps has the characteristics of reliable operation performance, few wearing parts, low vibration, low noise and high efficiency.
Features:
• 100% Oil-Free Operation is Environmentally Friendly
• Low Noise and Vibration
• Can Absorb Corrosive,Toxic, Radioactive and Dusty gases
• No Need for Regular Maintenance, Saving Costs
• No Metal Friction, Low Operating Temperature
• Long Service Life
| ZSV110 | ZSV140 | ZSV180 | ZSV250 | ZSV360 | ZSV650 | ZSV900 | ||
| Pumping Speed | 50Hz | 108 m³/h | 140 m³/h | 180 m³/h | 252 m³/h | 360 m³/h | 648 m³/h | 900 m³/h |
| 60Hz | 130 m³/h | 165 m³/h | 215 m³/h | 300 m³/h | 430 m³/h | 775 m³/h | 1080 m³/h | |
| Ultimate Pressure | Air Cooled | 60 mbar | 60 mbar | 60 mbar | 200 mbar | 200 mbar | / | / |
| Water Cooled | / | / | / | 80 mbar | 80 mbar | 80 mbar | 80 mbar | |
| Motor Power | 50Hz | 3 kW | 3 kW | 4 kW | 5.5 kW | 7.5 kW | 11 kW | 18.5 kW |
| 60Hz | 3.6 kW | 3.6 kW | 4.8 kW | 6.6 kW | 9 kW | 13.2 kW | 22.2 kW | |
| Motor Speed | 50Hz | 3000 rpm | ||||||
| 60Hz | 3600 rpm | |||||||
| Inlet Connection | 1¼ inch | 1¼ inch | 1¼ inch | 2 inch | 2 inch | 3 inch | 3 inch | |
| Outlet Connection | 1¼ inch | 1 inch | 1¼ inch | 1½ inch | 1½ inch | 3 inch | 3 inch | |
| Weight | 185 kg | 172 kg | 195 kg | 245 kg | 265 kg | 380 kg | 750 kg | |
| Dimensions | 980*412*408 mm | 1035*410*460 mm | 980*412*409 mm | 1209*510*450 mm | 1209*510*450 mm | 1110*580*800 mm | 1340*580*780 mm | |
Application:
 |  |  |
| Vacuum Coating | Semiconductor Industry | Pharmaceutical Industry |
 |  |  |
| Automotive Industry | Industrial Waste Gas Treatment | Vacuum Degassing |
