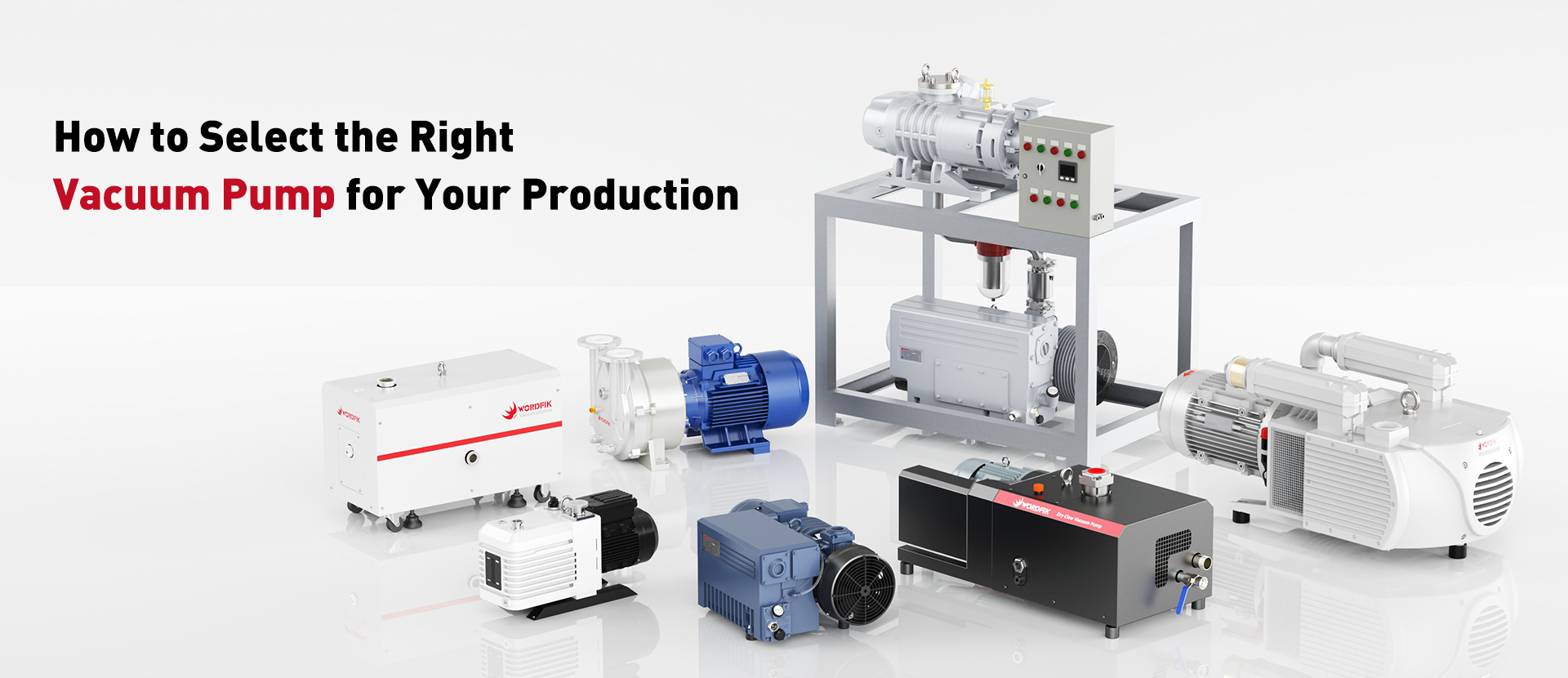

Choose the right vacuum pump to double your production efficiency.
In industrial production, while vacuum pumps may not be the most prominent equipment, they are core to many process flows. A suitable vacuum pump can significantly enhance production efficiency and reduce operational costs, whereas an incorrect choice can lead to unstable product quality, frequent maintenance, or even production shutdowns.
This article provides a comprehensive analysis of the six key factors for vacuum pump selection, helping you choose the most suitable vacuum pump solution for your production needs.
The working pressure of the vacuum pump must meet the ultimate vacuum and working pressure requirements of the vacuum equipment. This is the most basic and important consideration in the selection process.
How to correctly match the vacuum level? Typically, the pump's vacuum level should be half to one order of magnitude higher than the vacuum level required by the equipment. For example, if a vacuum drying process requires a working vacuum of 10mmHg, the ultimate vacuum of the selected pump should be at least 2mmHg, preferably 1mmHg. Vacuum coating requires a higher vacuum level, usually 1×10⁻⁵ mmHg; in this case, the selected pump's vacuum level should be at least 5×10⁻⁶ mmHg.
Each type of pump has a specific working pressure range. For example, single-stage oil-sealed rotary vane vacuum pumps work at 0.01~100 mbar, with a stable working pressure range of 0.1~1mbar. The pump's working point should be selected within this range to ensure efficient and stable operation.
Typical classifications and ranges include:
Rough vacuum (1×10⁵ Pa to 1×10³ Pa): such as rotary vane vacuum pumps and liquid ring vacuum pumps.
Medium vacuum (1×10³ Pa to 1×10⁻¹ Pa): such as Roots vacuum pumps and screw vacuum pumps.
High vacuum (1×10⁻¹ Pa to 1×10⁻⁶ Pa): such as molecular vacuum pumps and diffusion pumps.
Ultra-high vacuum (<1×10⁻⁶ Pa): such as ion pumps and cryopumps.
At its working pressure, the vacuum pump should be able to remove all gases generated during the process of the vacuum equipment. The pumping speed directly determines production efficiency; insufficient speed will prolong cycle times and affect overall capacity.
When selecting the pumping speed, consider:
The total volume of gas generated during the process
The time required to achieve the desired vacuum level
Potential minor leaks in the system
For example, in the food packaging industry, the vacuum pumping speed determines the operating speed of the packaging line. Valentin Traiteur increased production efficiency by adopting a fast-evacuation version of a vacuum pump, allowing them to produce tens of thousands more food packages per year.
Understanding the composition of the gas being pumped is a critical step in selection. Whether the gas contains condensable vapors, particulate dust, corrosive components, etc., will affect the choice and performance of the pump.
Selection strategies for different gas compositions:
Corrosive Gases: Require vacuum pumps made of corrosion-resistant materials, or the installation of scrubbers in the intake pipeline.
Gases Containing Particulate Dust: Dust collectors or filters should be added to prevent wear on internal pump components.
Condensable Vapors: Condensers are needed in the pump's intake pipeline.
Special Gases: For gases like hydrogen or helium, the selective pumping characteristics of the pump need consideration. For instance, titanium sublimation pumps have high pumping speed for hydrogen but cannot pump helium.
In the food and semiconductor industries, gas contamination can have serious consequences. A semiconductor packaging company eliminated the risk of oil backstreaming and significantly improved cleanliness by using oil-free dry Roots vacuum pumps to replace original oil-sealed pumps.
The working environment significantly impacts vacuum pump selection, especially in situations with strict cleanliness requirements.
Oil-Free Requirements: If the equipment strictly requires an oil-free environment, various oil-free vacuum pumps should be selected, such as: water ring vacuum pumps, dry rotary vane vacuum pumps, scroll vacuum pumps, screw vacuum pumps, claw vacuum pumps molecular sieve adsorption pumps, sputter ion pumps, cryopumps, etc. If requirements are less strict, oil-lubricated vacuum pumps can be chosen, and clean vacuum requirements can still be met by adding anti-oil contamination measures like cold traps, baffles, or oil traps.
Vibration and Noise: The vibration generated by a vacuum pump during operation can affect the process and environment. If the process cannot tolerate vibration, vibration-free pumps should be selected, or anti-vibration measures should be taken. For example, after a French food processing plant replaced its original very noisy vacuum pump, it not only improved the comfort of the working environment but also reduced the impact of vibration on packaging quality.
In the total lifecycle cost of a vacuum pump, the purchase price typically accounts for only 20%-30%, while electricity costs, maintenance fees, and replacement costs constitute the bulk. Therefore, energy consumption and maintenance costs are factors that cannot be ignored in the selection process.
Energy Consumption Comparison: Variable Frequency Drive (VFD) vacuum pumps can automatically adjust power according to actual demand, significantly reducing energy consumption. Taking a 7.5kW model as an example, a VFD-controlled pump can operate at 3kW unloaded and 7.5kW fully loaded. Calculating based on 16 hours of operation per day, the annual electricity cost is approximately $4,500 USD; whereas a fixed-frequency pump of the same power would incur about $6,500 USD annually, resulting in an extra expenditure of nearly $6,000 USD over three years.
*Table: 3-Year Operating Cost Comparison for 7.5kW Vacuum Pumps*
| Cost Item | VFD Vacuum Pump | Fixed-Speed Vacuum Pump | Savings |
|---|---|---|---|
| Electricity (3 years) | Approx. $13,500 USD | Approx. $19,500 USD | Approx. $6,000 USD |
| Maintenance (3 years) | Negligible | Approx. $1,300 USD | Approx. $1,300 USD |
| Total | Approx. $13,500 USD | Approx. $20,800 USD | Approx. $7,300 USD |
Maintenance Costs: Dry vacuum pumps designed for "no water, no oil" operation can completely eliminate consumable costs (traditional pumps typically require $200 USD annually for vacuum pump oil + $150 USD for filters). For instance, a medical facility solved pressure instability issues and significantly reduced maintenance costs by replacing oil rotary vane vacuum pumps with claw-type vacuum pumps.
When selecting a vacuum pump, one should not only look at the purchase price but consider the Total Cost of Ownership (TCO), including purchase cost, operating cost, maintenance cost, and replacement cost.
Short Term (1 year): The purchase price of a high-quality vacuum pump might be 2%-5% higher than some brands, but savings on electricity + maintenance can reach 10%-15%, largely offsetting the price difference.
Medium Term (3 years): The advantage in operating costs becomes significant. A 7.5kW model can save $6,000 - $7,000 USD, far exceeding the initial purchase price difference.
Long Term (5 years): The extended design life of high-quality pumps reduces replacement costs, resulting in a total cost 30%-40% lower than standard pumps.
Selecting the right vacuum pump is a decision-making process that requires comprehensive consideration of multiple factors. From vacuum level and pumping speed to gas type, from the working environment to the total lifecycle cost, each aspect relates to the final production efficiency and operational expenses.
The correct selection principle is: Clarify your own process requirements, understand the performance characteristics of various vacuum pumps, comprehensively consider initial investment and long-term operating costs, and choose the most suitable product—not necessarily the most expensive or the cheapest. Where conditions allow, prioritizing high-efficiency, easy-to-maintain modern VFD vacuum pumps and oil-free designs usually yields better long-term returns.
Through scientific selection, a vacuum pump can not only meet production process requirements but also become a powerful tool for enterprises to reduce costs and increase efficiency.
