| Quantity: | |
|---|---|

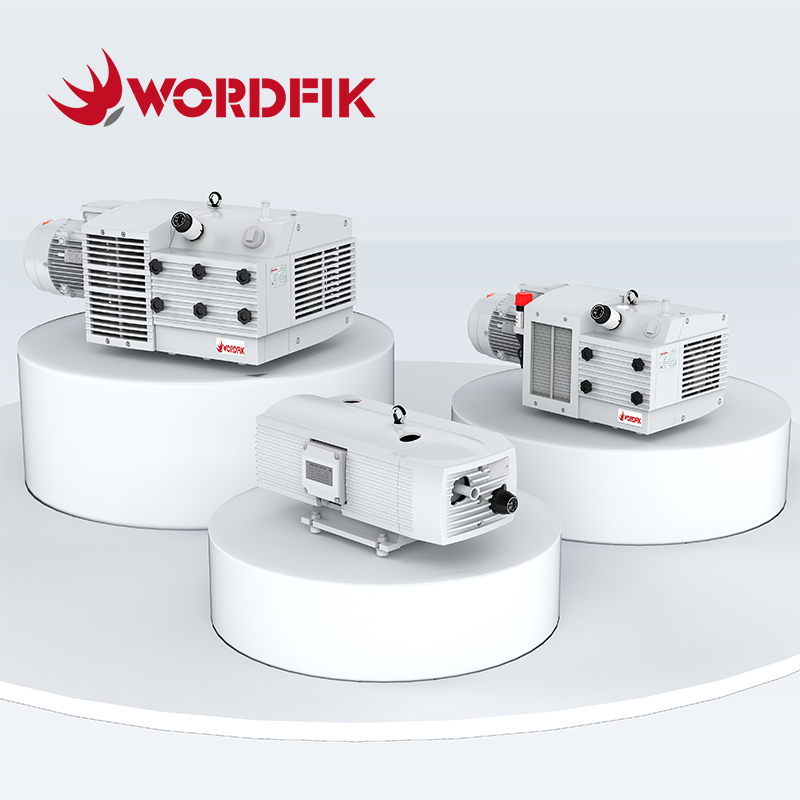

Wordfik TD series dry rotary vane compressor has the same mechanical structure as the dryrotary vane vacuum pump. The simple structure requires only a small amount ofmaintenance but has a long service life.Compared with ordinary compressors, the TD series compressor is compact and occupies asmall area. lt is an oil-free device that achieves gas pressurization through rotating blades.Its core features are oil-free lubrication design, high output pressure, and low pollutionemissions. lt is mainly used in scenarios that require a stable positive pressure gas supply. lthas a wide range of applications in the printing industry, environmental protection industry,mechanical engineering and other industries.
Features:
• 100% 0il-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| Frequency | Pumping Speed | Pressure | Motor Power | Motor Voltage | Motor Speed | Noise Level | Inlet Connection | Weight | Dimensions | ||
| 3ph | 1ph | ||||||||||
| TD10 | 50Hz | 10 m³/h | +1000 mbar | 0.37 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 62 dB | ½ inch | 16 kg | 430*206*215 mm |
| 60Hz | 12 m³/h | 0.44 kW | Δ202-300 V Y350-520 V | 1700 rpm | |||||||
| TD16K | 50Hz | 16 m³/h | +1000 mbar | 0.75 kW | Δ175-260 V Y300-450 V | 230V±10% | 1420 rpm | 64 dB | ½ inch | 23.5 kg | 475*286*230 mm |
| 60Hz | 19.2 m³/h | 0.9 kW | Δ202-300 V Y350-520 V | 1700 rpm | |||||||
| TD25K | 50Hz | 25 m³/h | +1000 mbar | 1.25 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 65 dB | ¾ inch | 36.5 kg | 450*225*215 mm |
| 60Hz | 30 m³/h | 1.5 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||

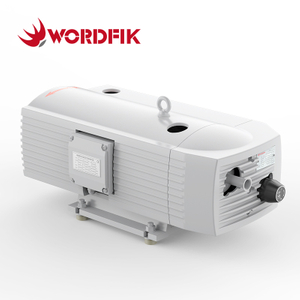

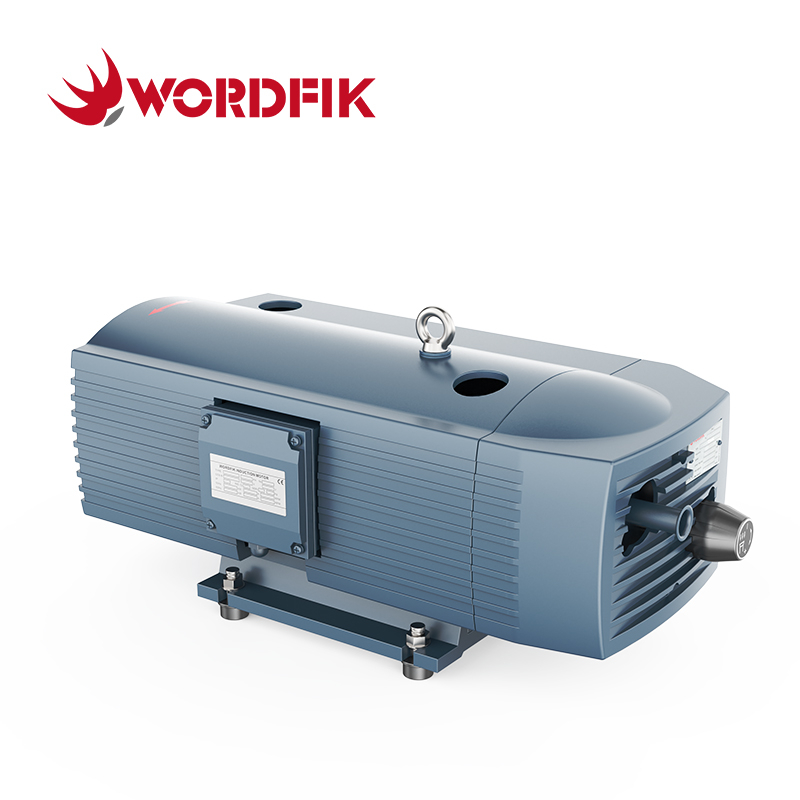

| TD40K | 50Hz | 40 m³/h | +1000 mbar | 1.85 kW | Δ190-255 V Y330-440 V | 230V±10% | 1420 rpm | 67 dB | ¾ inch | 46 kg | 620*320*295 mm |
| 60Hz | 48 m³/h | 2.2 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||

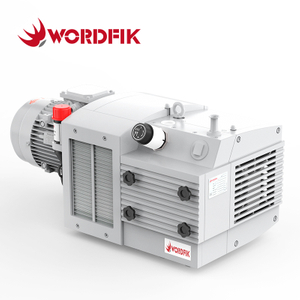

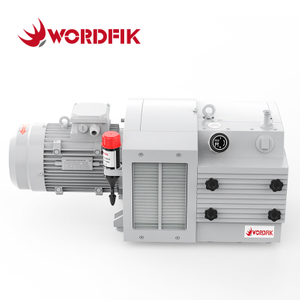

| KTD60 | 50Hz | 60 m³/h | +1500 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 72 dB | 1 inch | 69 kg | 731*340*340 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1740 rpm | ||||||||
| KTD80 | 50Hz | 80 m³/h | +1500 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 74 dB | 1 inch | 77 kg | 731*340*340 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1740 rpm | ||||||||

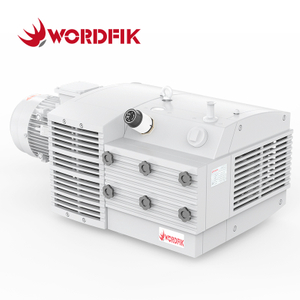

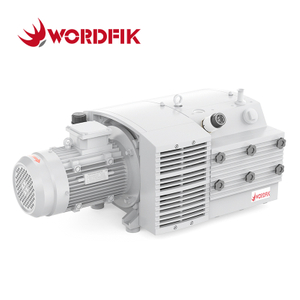

| KTD100 | 50Hz | 100 m³/h | +1500 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 76 dB | 1½ inch | 127 kg | 925*460*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1740 rpm | ||||||||
| KTD140 | 50Hz | 140 m³/h | +1500 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1450 rpm | 82 dB | 1½ inch | 127 kg | 925*460*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1740 rpm | ||||||||
Application:
 |  |  |
| CNC Router / Woodworking | Printing And Paper Industry | Environmental Industry |
 |  |  |
| Medical Industry | Mechanical Engineering | Semiconductor Industry |
