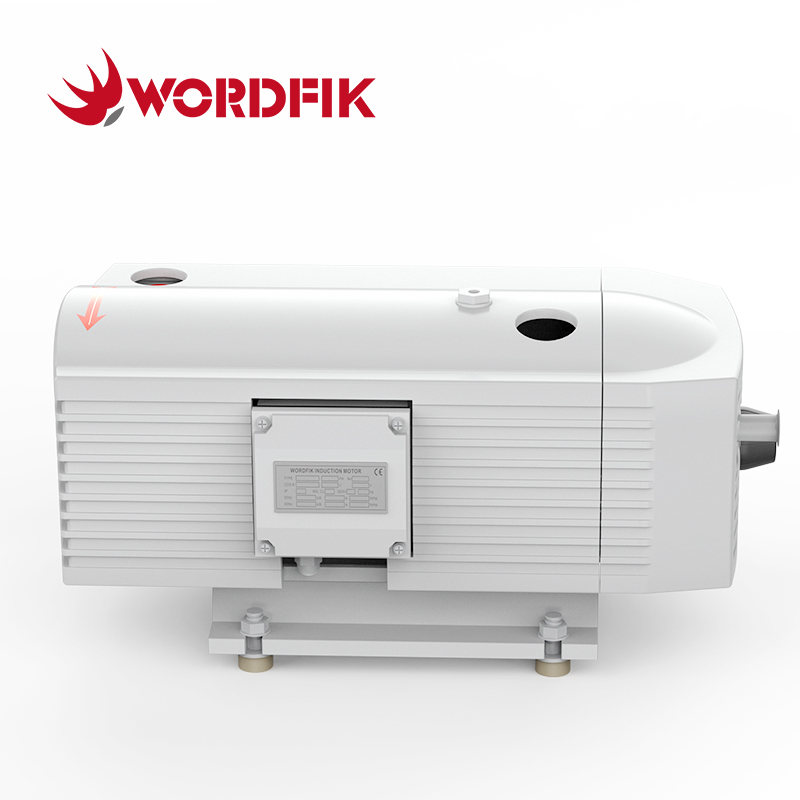

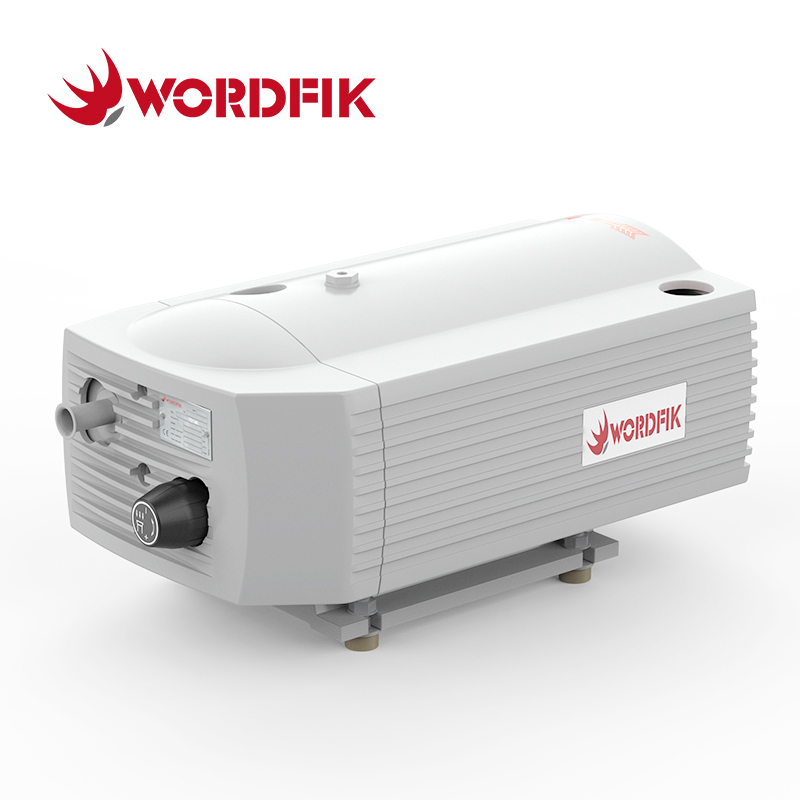

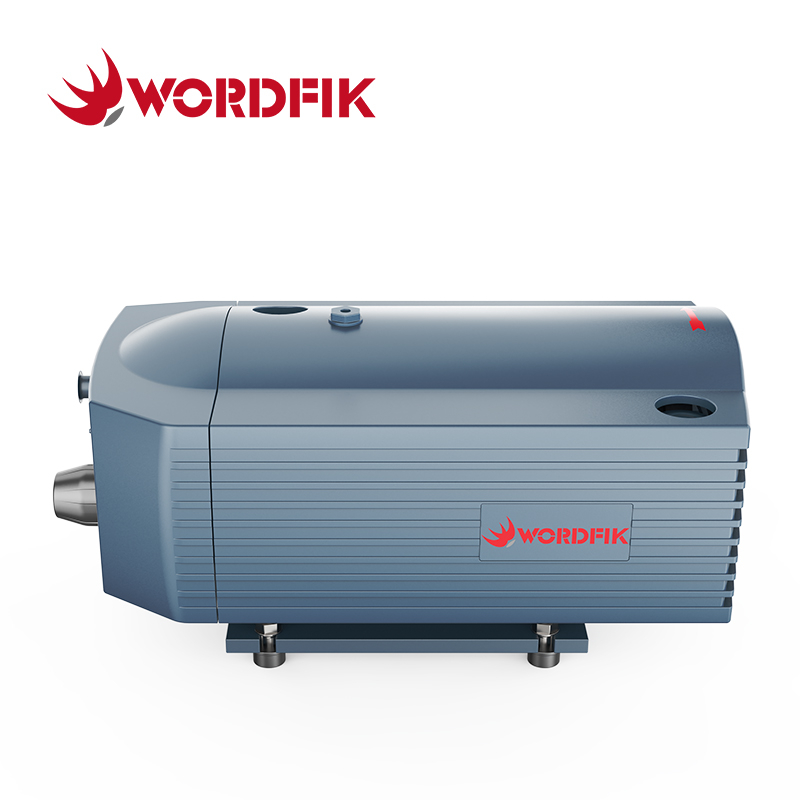

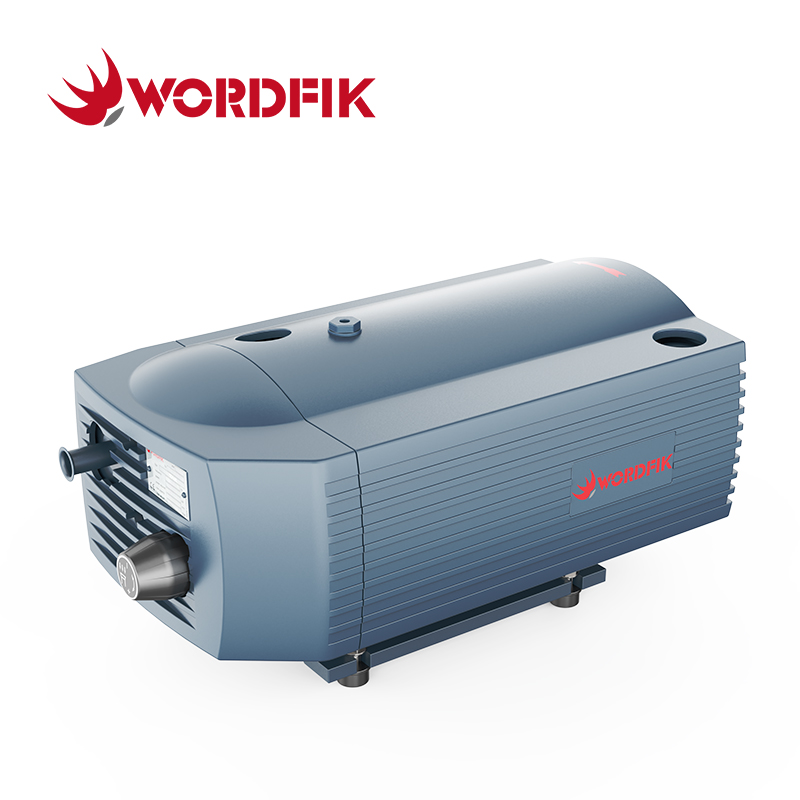

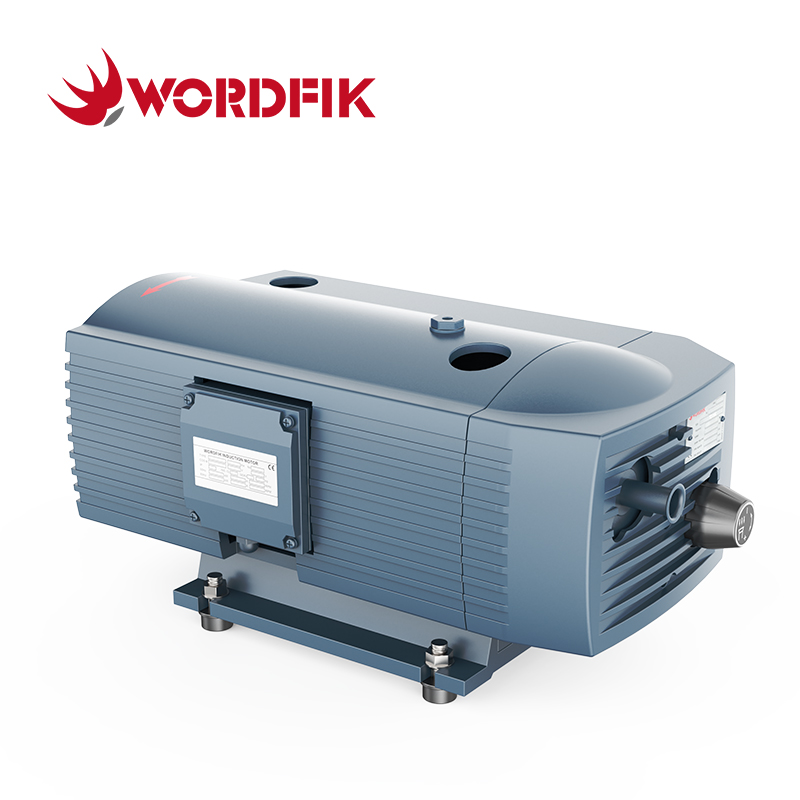

Wordfik TD16K is a dry rotary vane pressure pump featuring a simple structure, low maintenance, and extended service life. Compared to conventional compressors, its compact design minimizes footprint and enables easy system integration. With oil-free operation, it pressurizes gas via rotating vanes, delivering a flow rate of 16m³/h (50Hz) or 19.2m³/h (60Hz) at stable +1000mbar pressure. Key advantages include low noise, energy saving, zero oil contamination, and high output pressure, making it ideal for applications requiring consistent positive pressure. It is widely used in printing machinery, environmental systems, industrial automation, and PV manufacturing.
Features:
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| TD16K Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 16 m³/h | 19.2 m³/h |
| Pressure | +1000 mbar | |
| Motor Power | 0.75 kW | 0.9 kW |
| Motor Voltage | Δ 175-260 V ; Y 300-450 V (3ph) | Δ 202-300 V ; Y 350-520 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 64 dB(A) | |
| Inlet Connection | ½ inch | |
| Weight | 23.5 kg | |
| Dimensions | 475*283*230 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Lamination & Printing | Plastic Industry | Environmental Industry |
 |  |  |
| Medical Industry | Hospital | Semiconductor Industry |
| Wordfik TD Series Dry Rotary Vane Pressure Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | +900 / +1800 mbar |
| KTD400 | 18.5 kW | 22 kW | 365 m³/h | 440 m³/h | |
