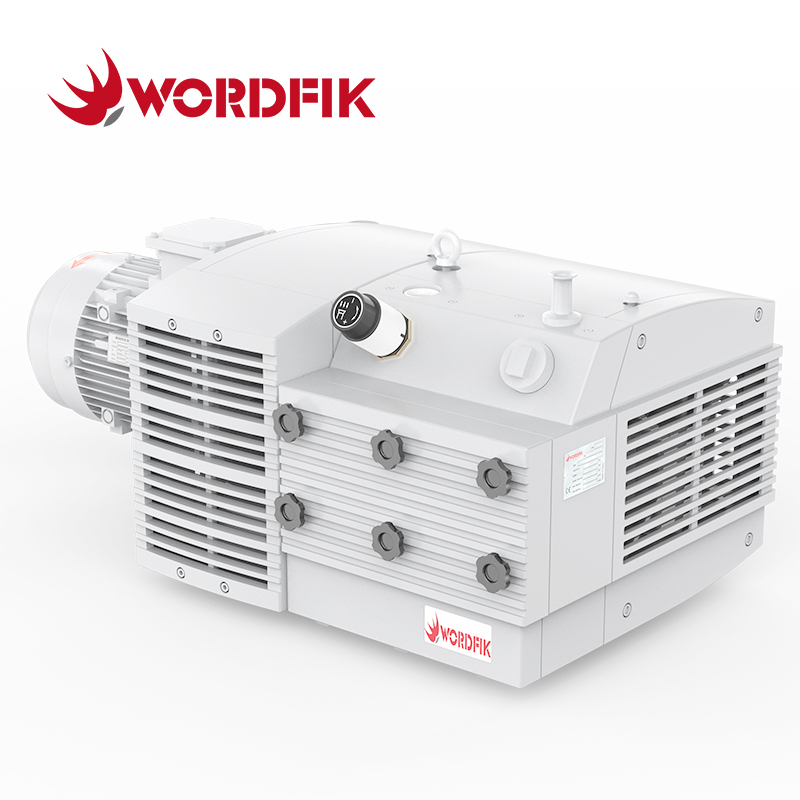

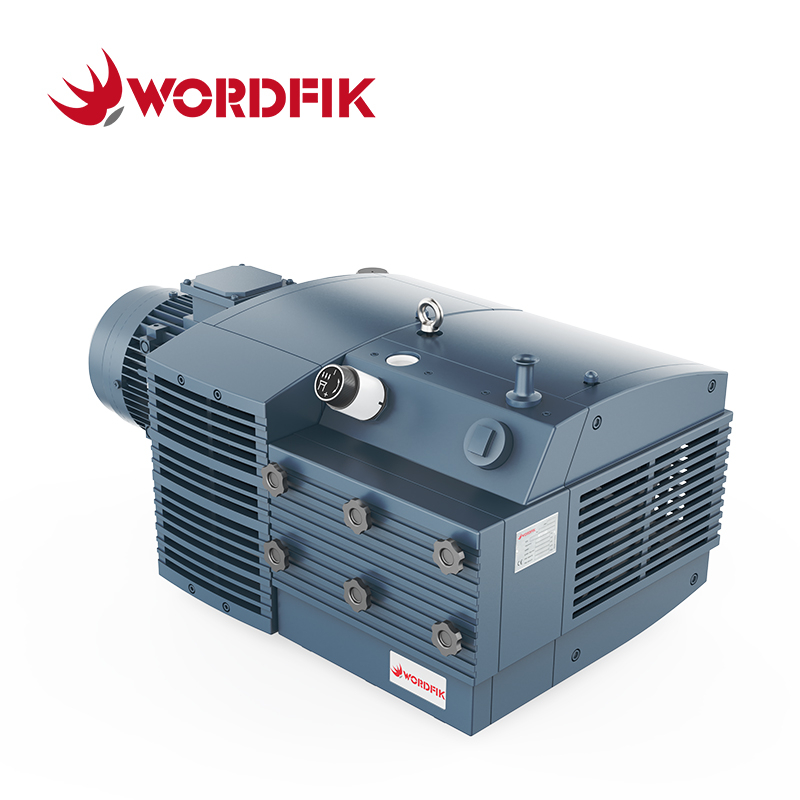

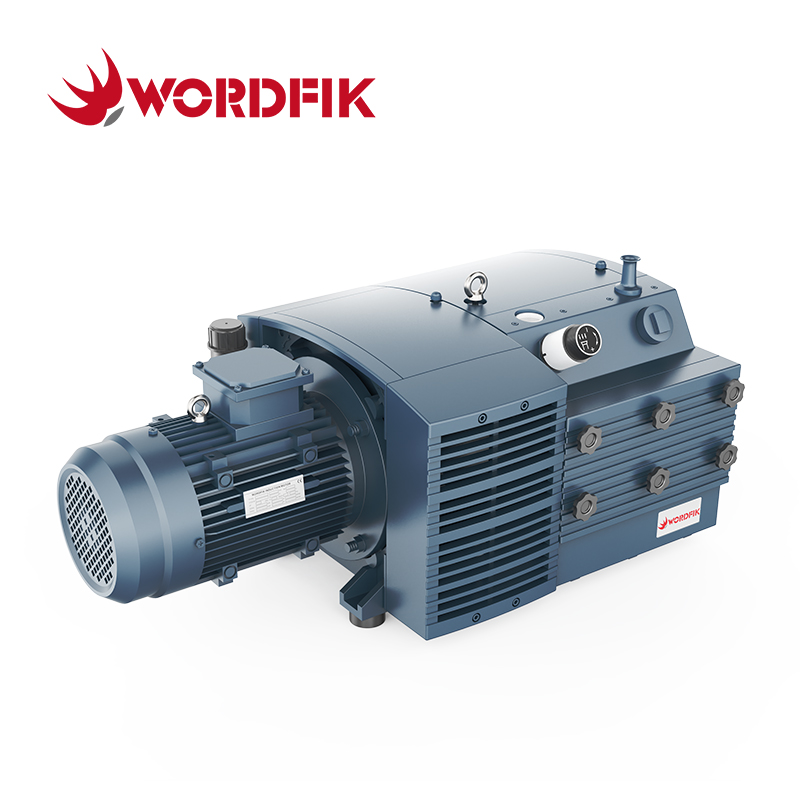

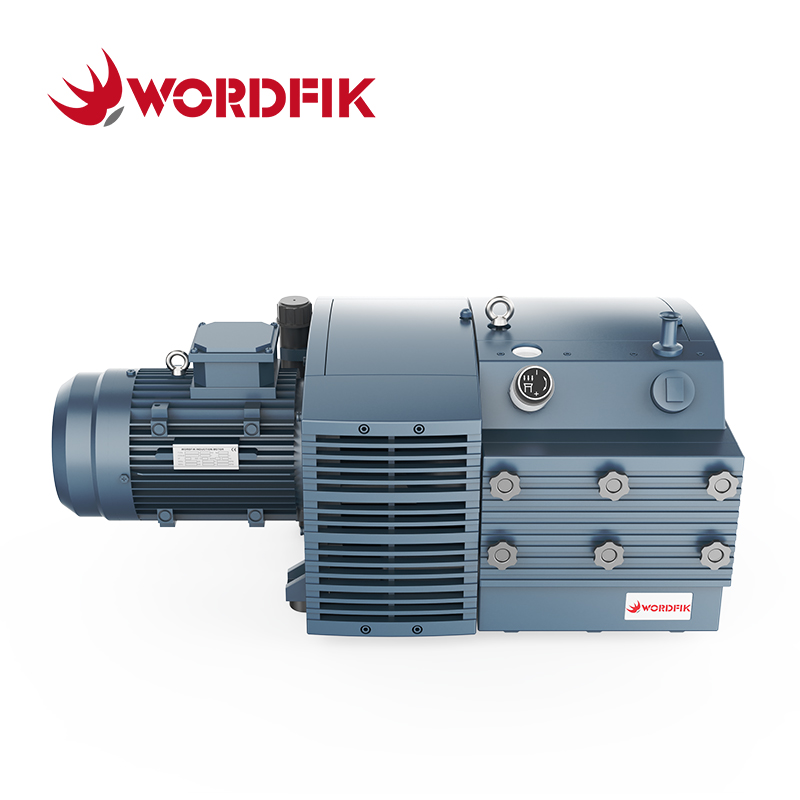

The Wordfik KTD100 can generate 150kPa of atmospheric pressure. Compared to traditional air compressors, the KTD100 dry-type rotary vane pressure pump is compact, occupies a small area, is easy to maintain and has low maintenance costs. It operates 100% oil-free, cleanly, and reduces carbon emissions. It is widely used in positive pressure systems in the printing industry, plastics industry, medical laboratories, and other industries.
Features:
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| KTD100 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 100 m³/h | 120 m³/h |
| Pressure | +1500 mbar | |
| Motor Power | 5.5 kW | 6.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1450 rpm | 1740 rpm |
| Noise Level | 76 dB(A) | |
| Inlet Connection | 1½ inch | |
| Weight | 127 kg | |
| Dimensions | 895*460*382 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Lamination & Printing | Plastic Industry | Environmental Industry |
 |  |  |
| Medical Industry | Hospital | Semiconductor Industry |
| Wordfik TD Series Dry Rotary Vane Pressure Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | +900 / +1800 mbar |
| KTD400 | 18.5 kW | 22 kW | 365 m³/h | 440 m³/h | |
