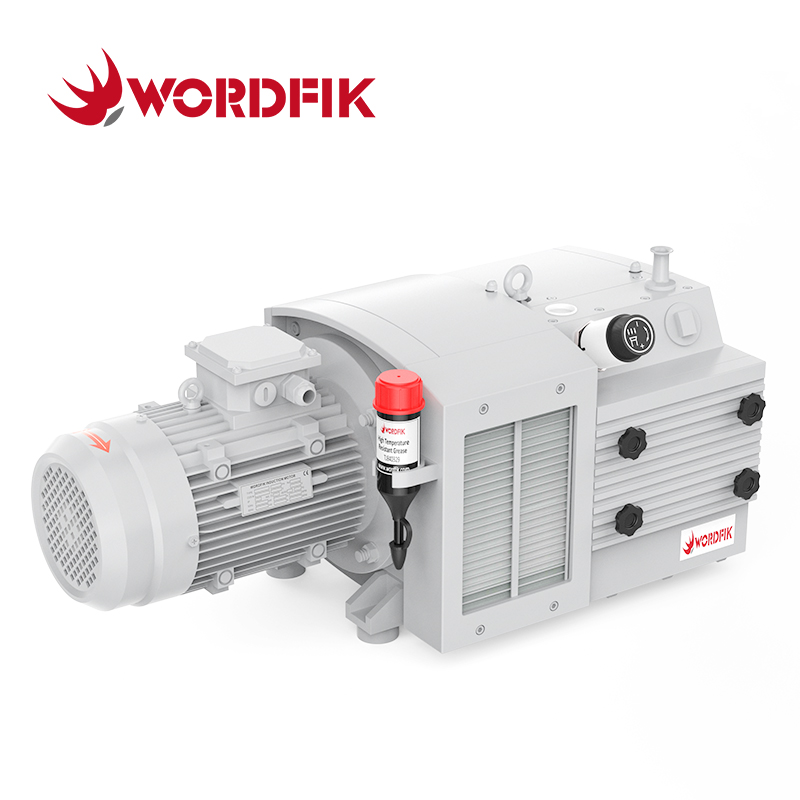

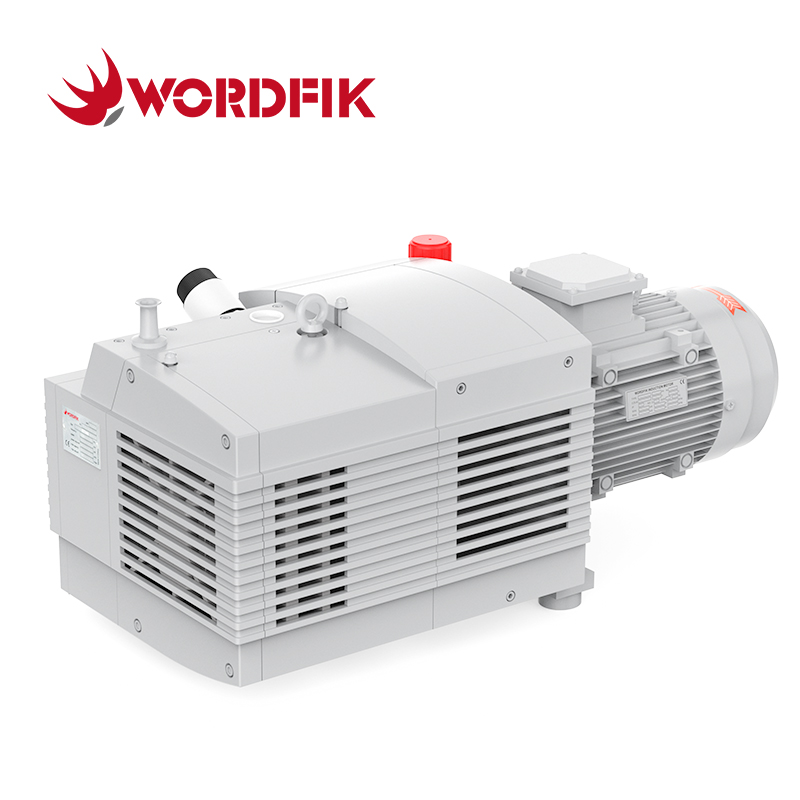

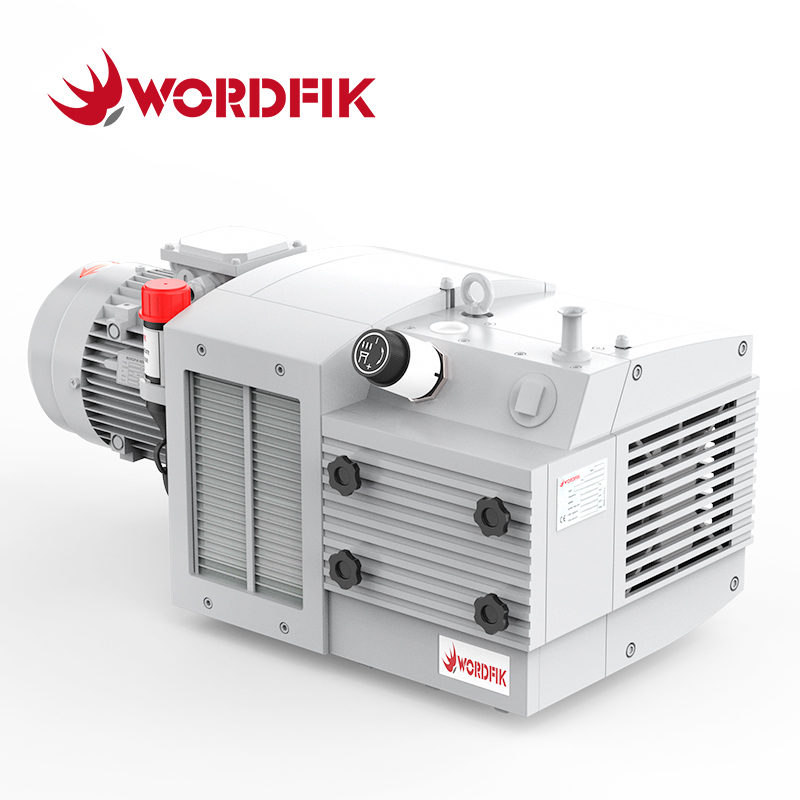

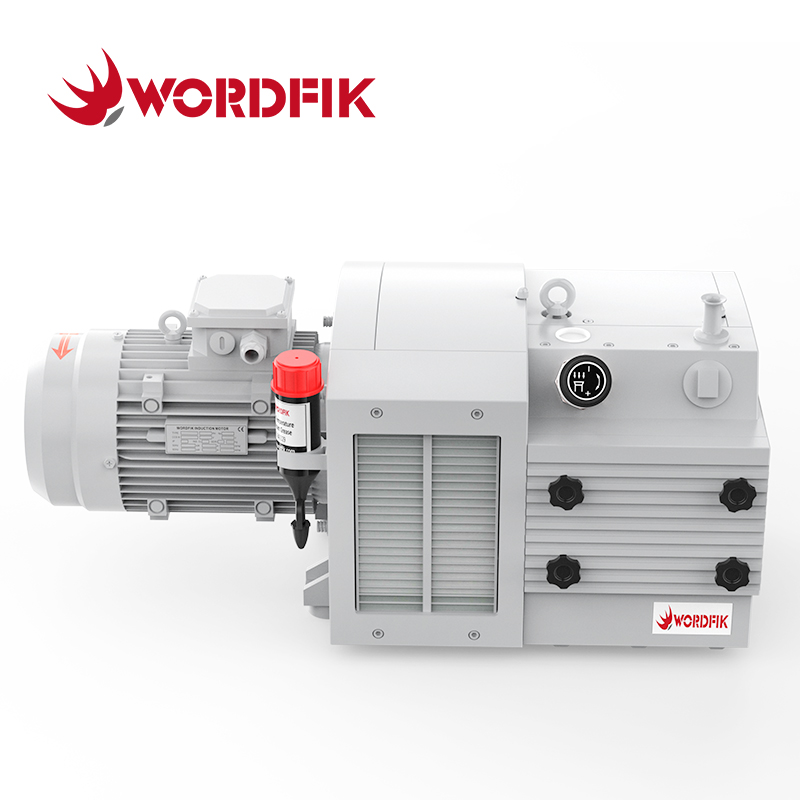

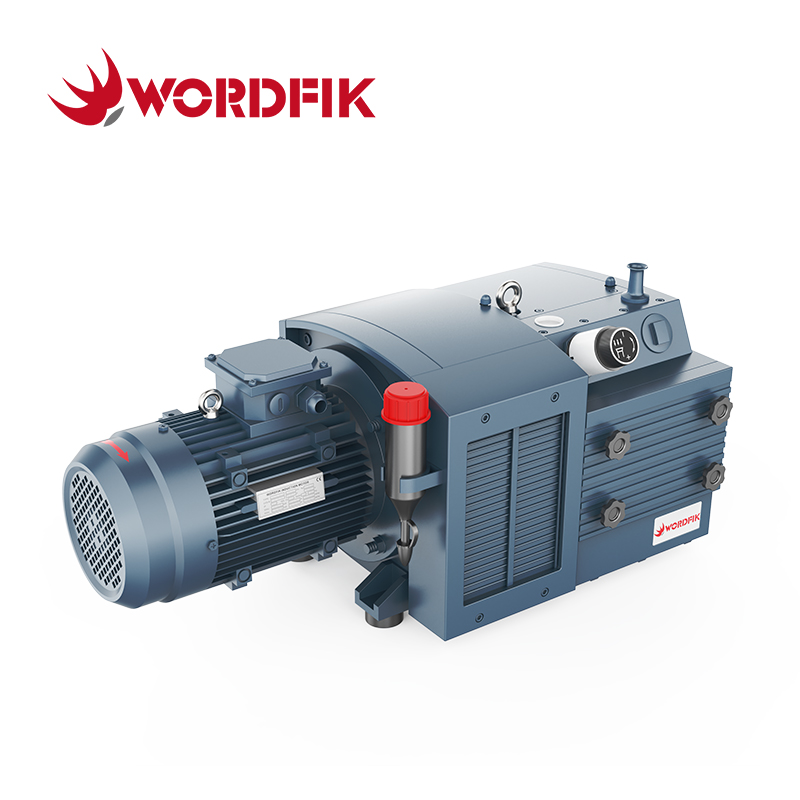

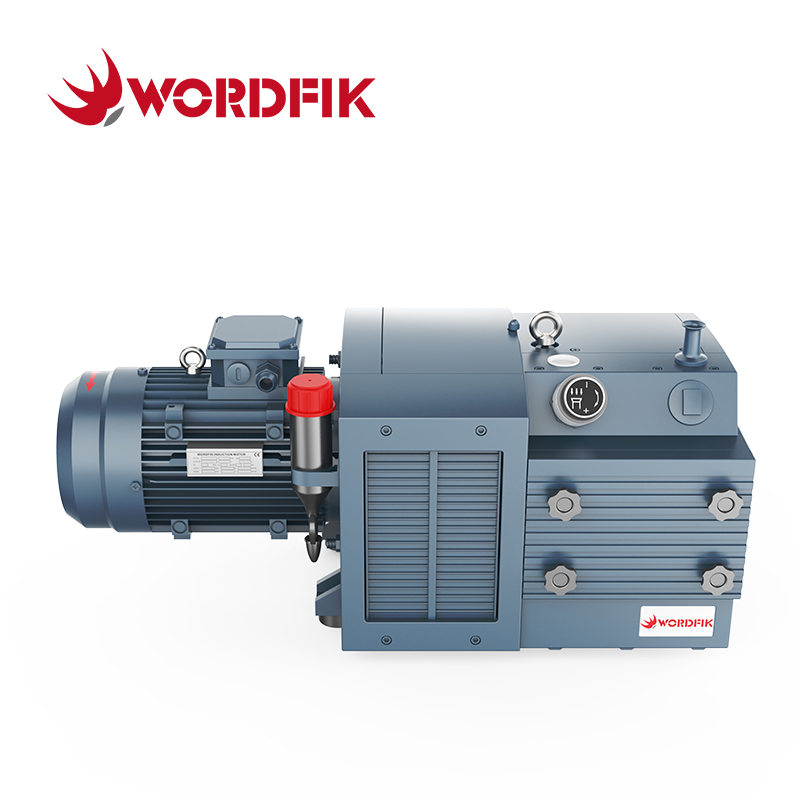

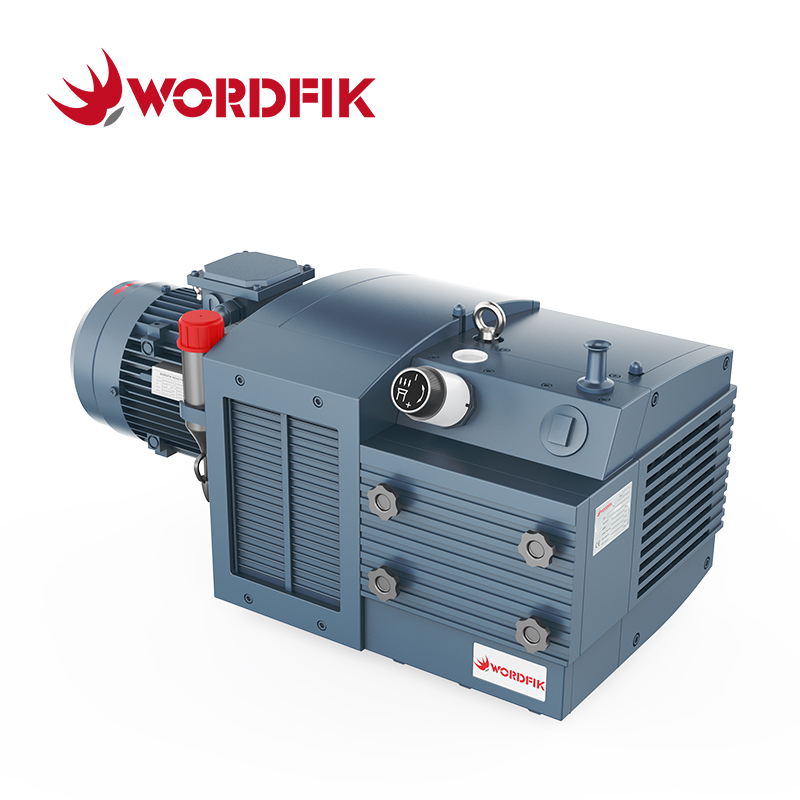

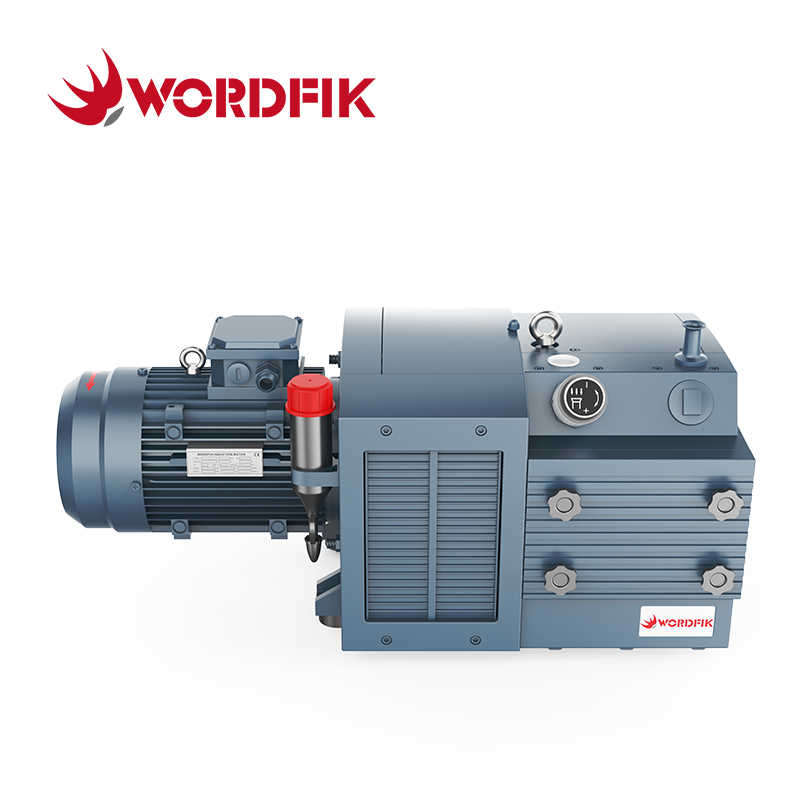

Wordfik KTD60 is a maintenance-free dry rotary vane pressure pump for industrial gas pressurization. It operates 100% oil-free with self-lubricating graphite vanes, delivering +1500mbar pressure at 60m³/h (50Hz) or 72m³/h (60Hz). Key features include 3kW/3.6kW energy efficiency, low noise, and zero oil contamination. It is suitable for demanding positive pressure applications in large-scale printing, exhaust treatment, automated manufacturing, and heavy machinery systems.
Features:
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| KTD60 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 60 m³/h | 72 m³/h |
| Pressure | +1500 mbar | |
| Motor Power | 3 kW | 3.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1450 rpm | 1740 rpm |
| Noise Level | 72 dB(A) | |
| Inlet Connection | 1 inch | |
| Weight | 69 kg | |
| Dimensions | 703*340*340 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Lamination & Printing | Plastic Industry | Environmental Industry |
 |  |  |
| Medical Industry | Hospital | Semiconductor Industry |

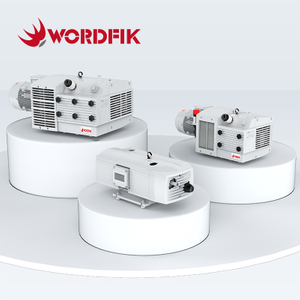

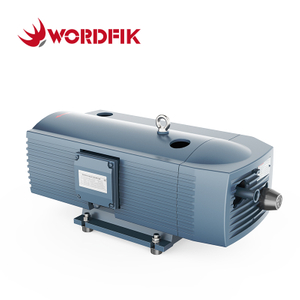

| Wordfik TD Series Dry Rotary Vane Pressure Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||

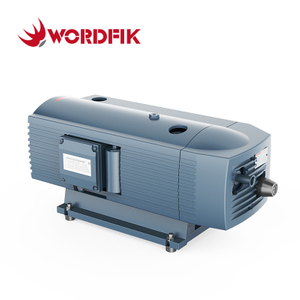

| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |

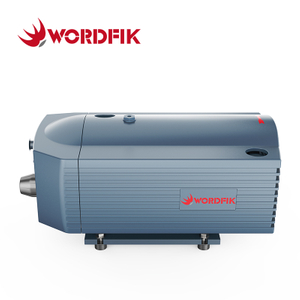

| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |

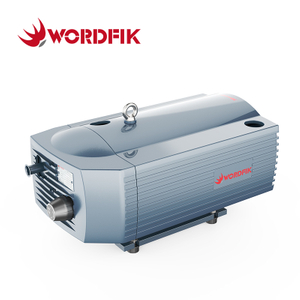

| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |

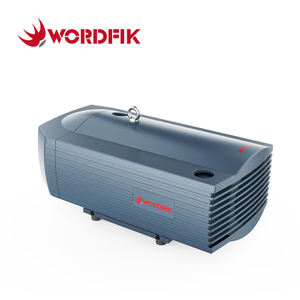

| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |

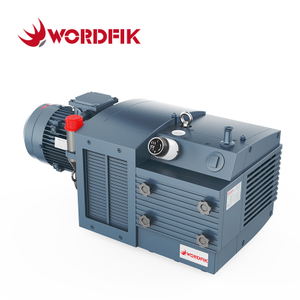

| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |

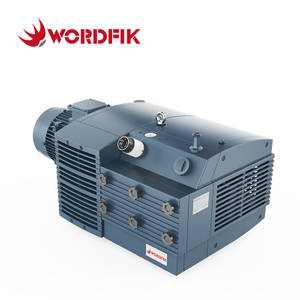

| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |

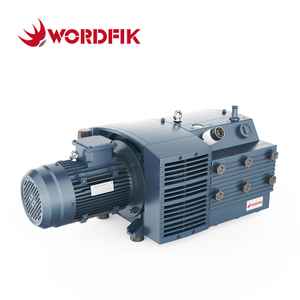

| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | +900 / +1800 mbar |
| KTD400 | 18.5 kW | 22 kW | 365 m³/h | 440 m³/h | |
