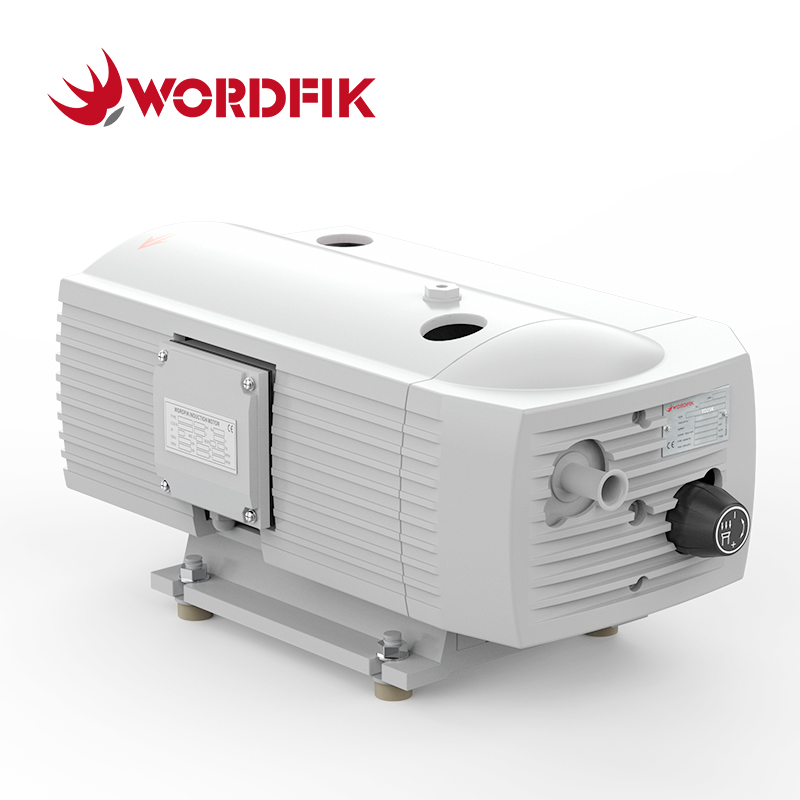

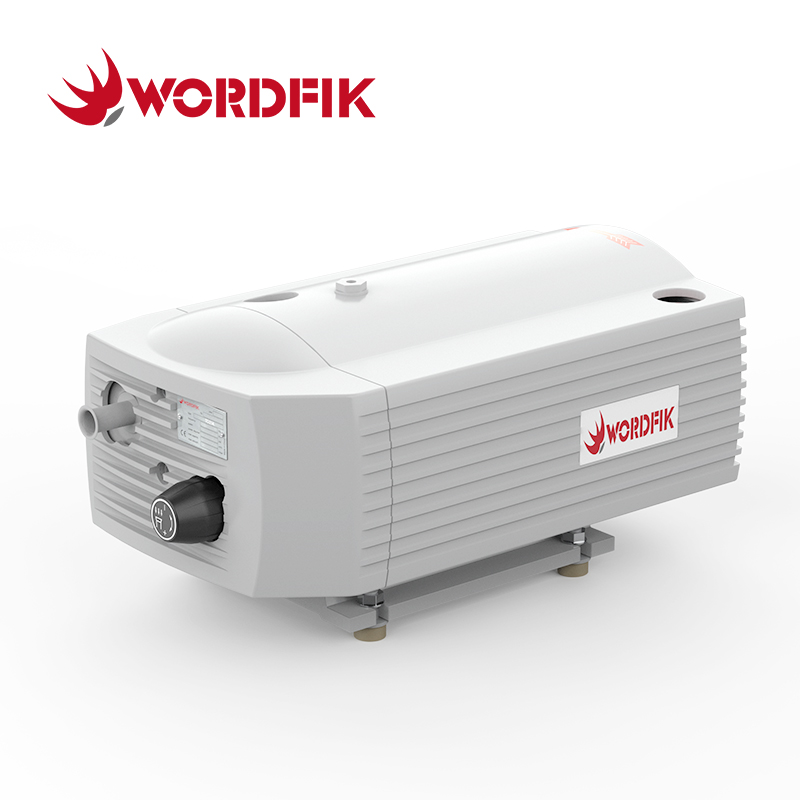

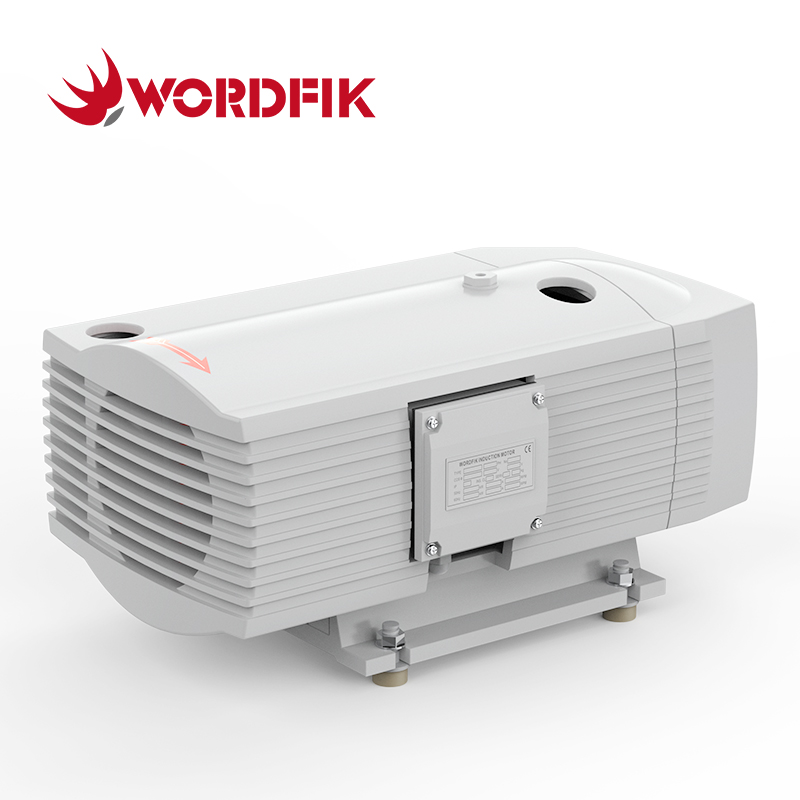

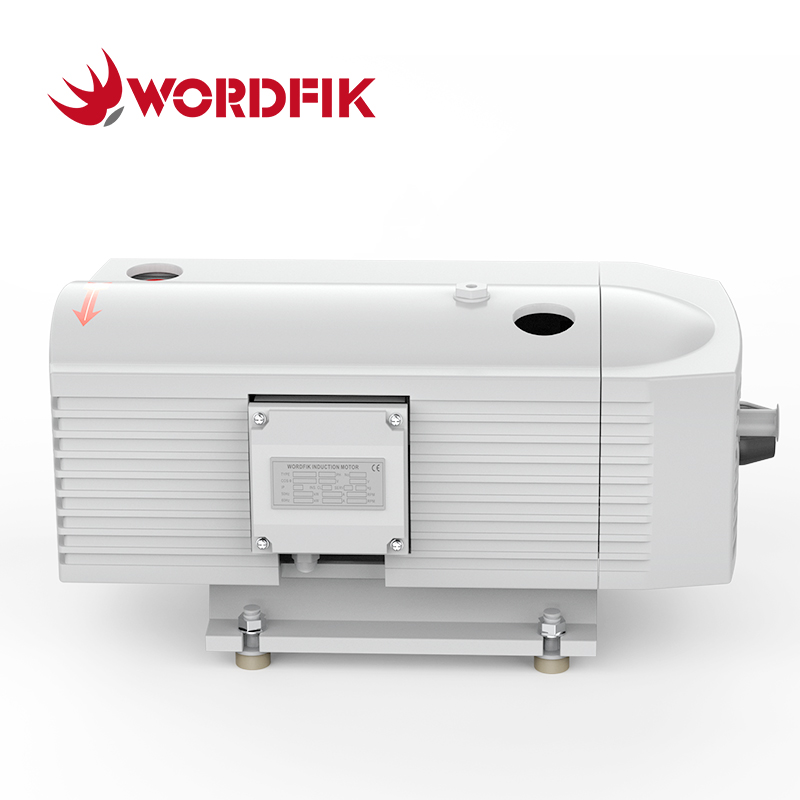

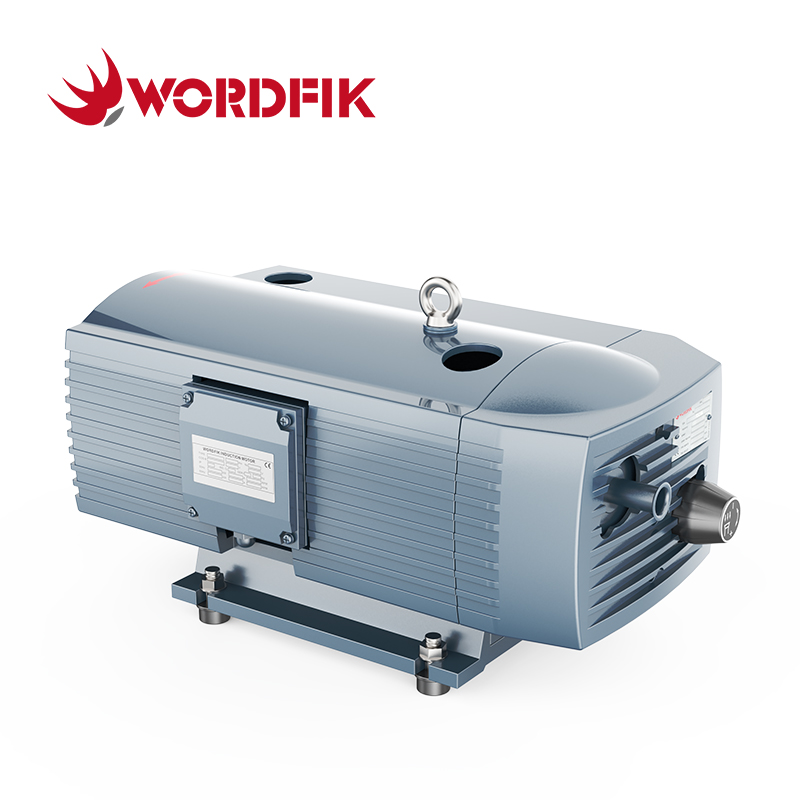

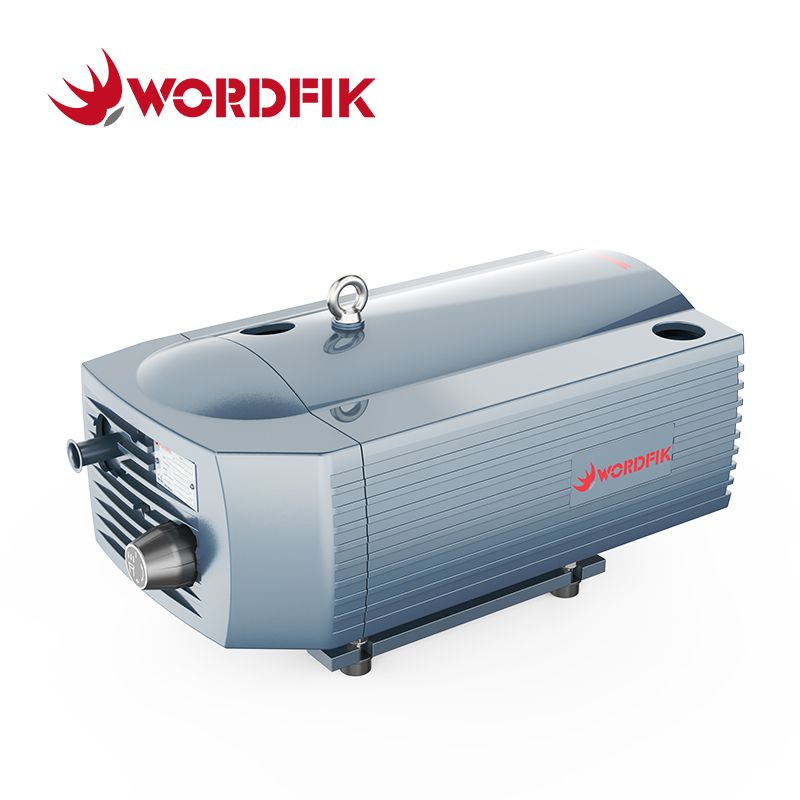

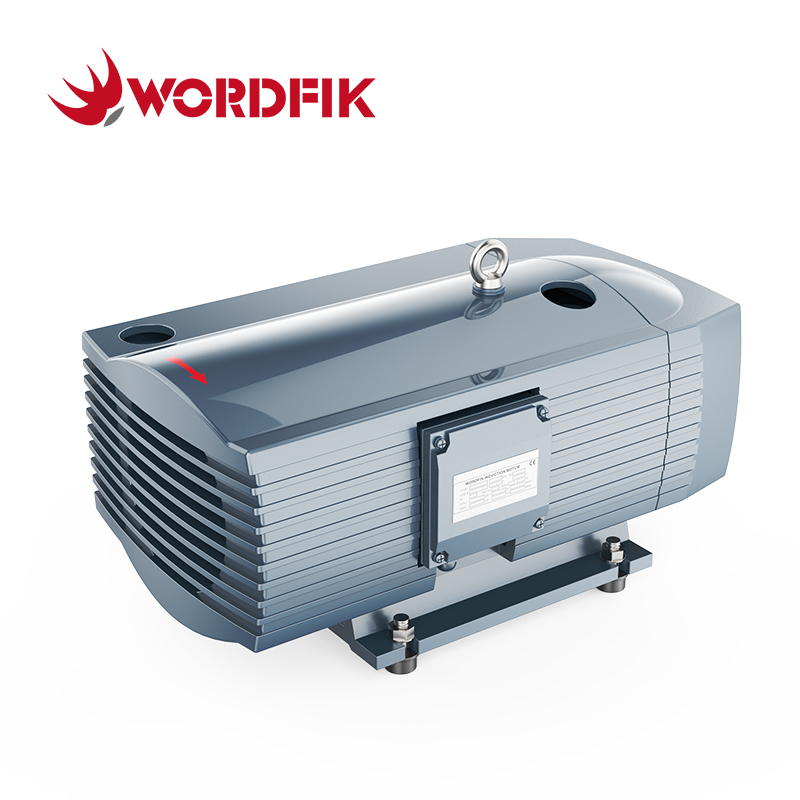

Wordfik TD25K is a dry rotary vane pressure pump engineered for industrial gas pressurization, featuring a maintenance-free design and robust construction. It operates 100% oil-free and provides a constant +1000mbar pressure through self-lubrication of graphite composite vanes. Its main features are low noise, energy-saving and high efficiency, long maintenance cycle, low maintenance cost and zero oil pollution, ensuring economic operation and environmental compliance. It is very suitable for demanding positive pressure applications in large-scale printing, exhaust gas treatment, automated manufacturing and heavy machinery systems.
Features:
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| TD25K Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 25 m³/h | 30 m³/h |
| Pressure | +1000 mbar | |
| Motor Power | 1.25 kW | 1.5 kW |
| Motor Voltage | Δ 190-255 V ; Y 330-440 V (3ph) | Δ 190-290 V ; Y 330-500 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 65 dB(A) | |
| Inlet Connection | ¾ inch | |
| Weight | 36.5 kg | |
| Dimensions | 535*320*295 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Lamination & Printing | Plastic Industry | Environmental Industry |
 |  |  |
| Medical Industry | Hospital | Semiconductor Industry |
| Wordfik TD Series Dry Rotary Vane Pressure Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||

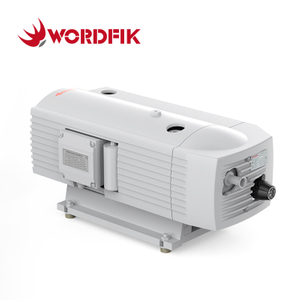

| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |

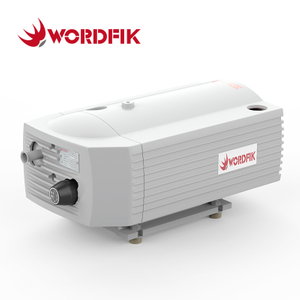

| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |

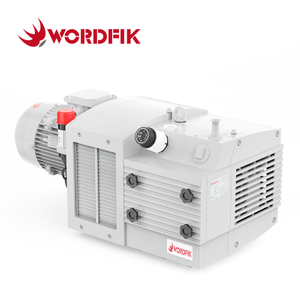

| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | +900 / +1800 mbar |
| KTD400 | 18.5 kW | 22 kW | 365 m³/h | 440 m³/h | |
