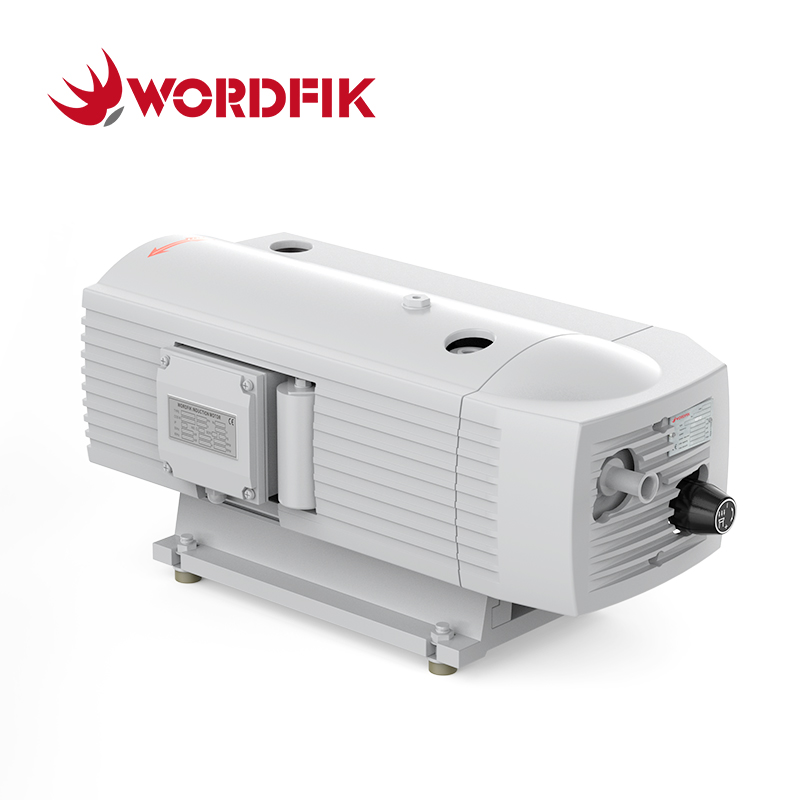

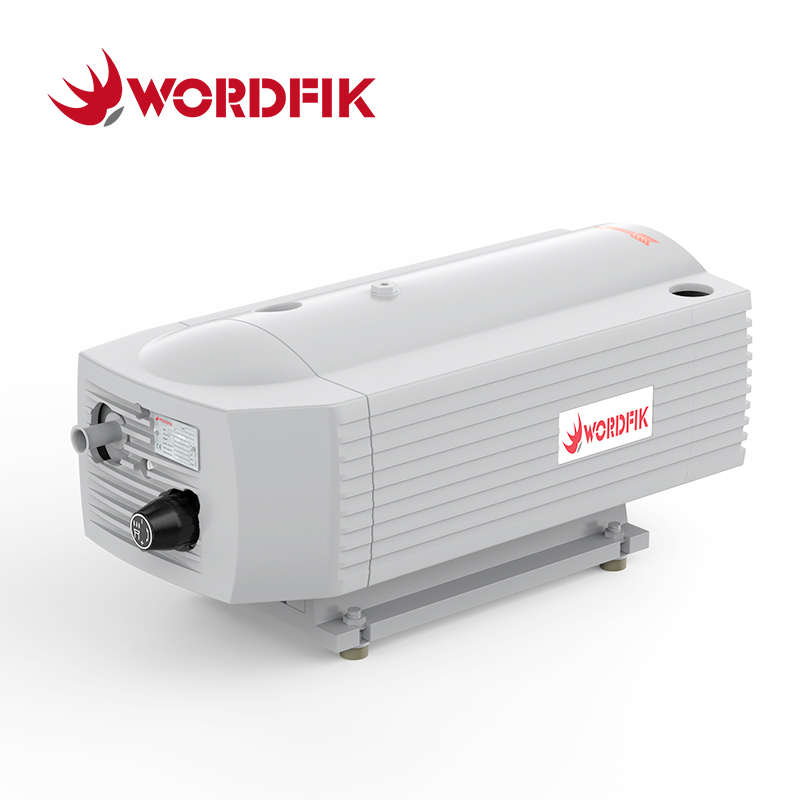

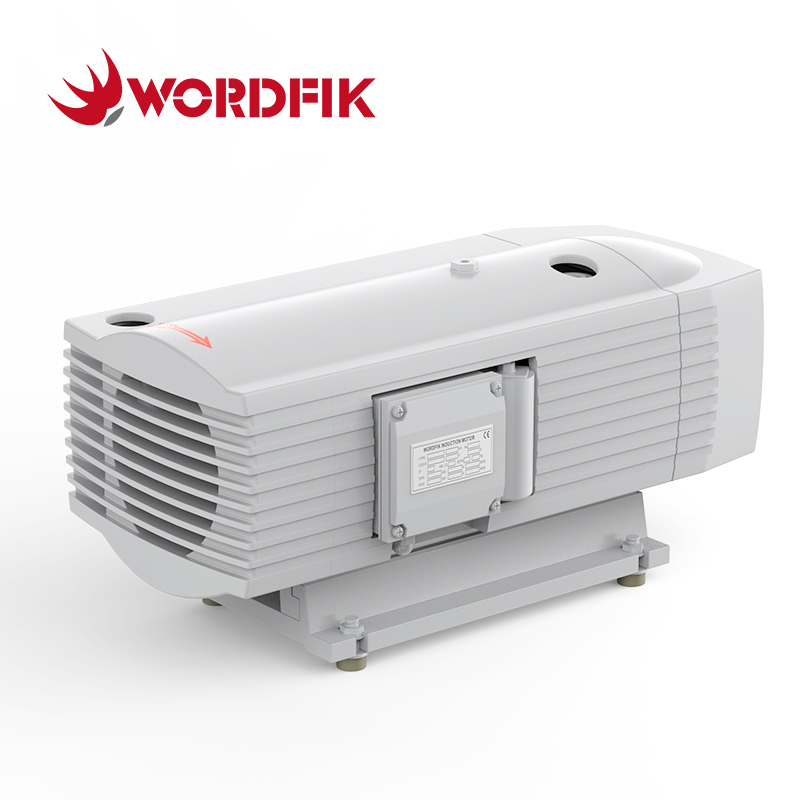

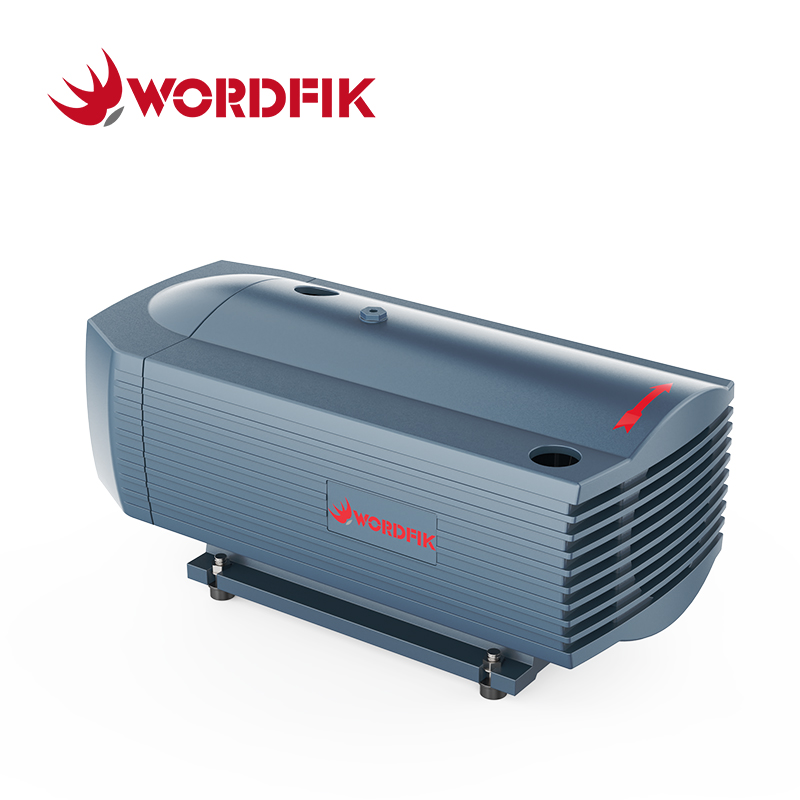

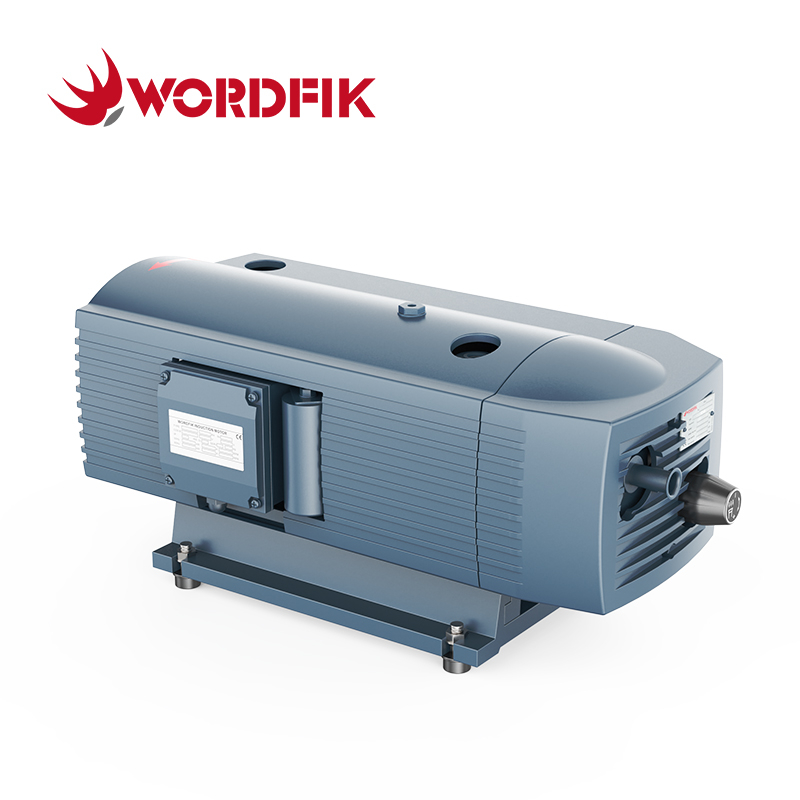

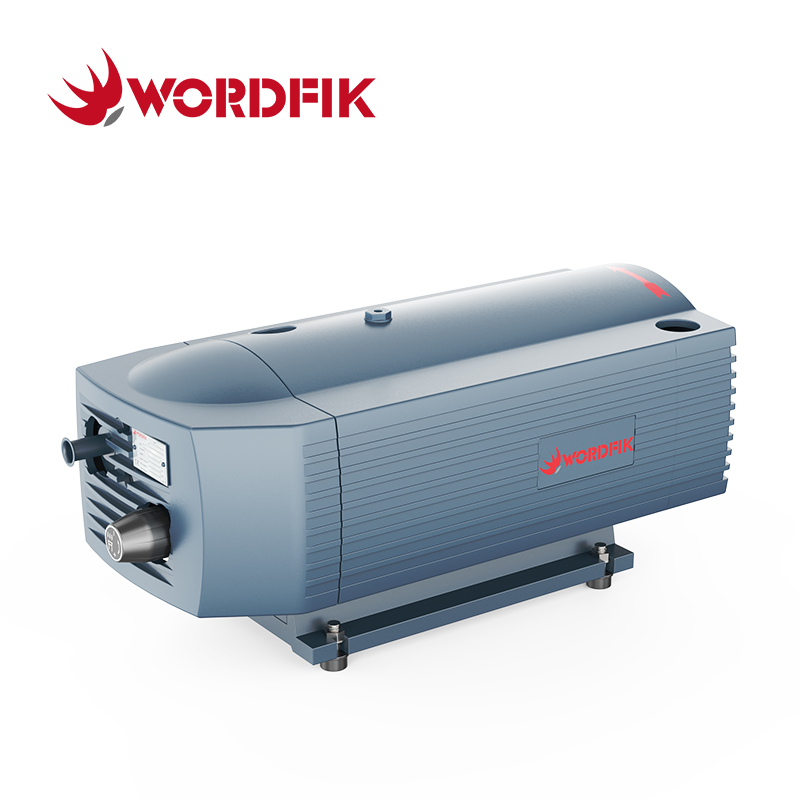

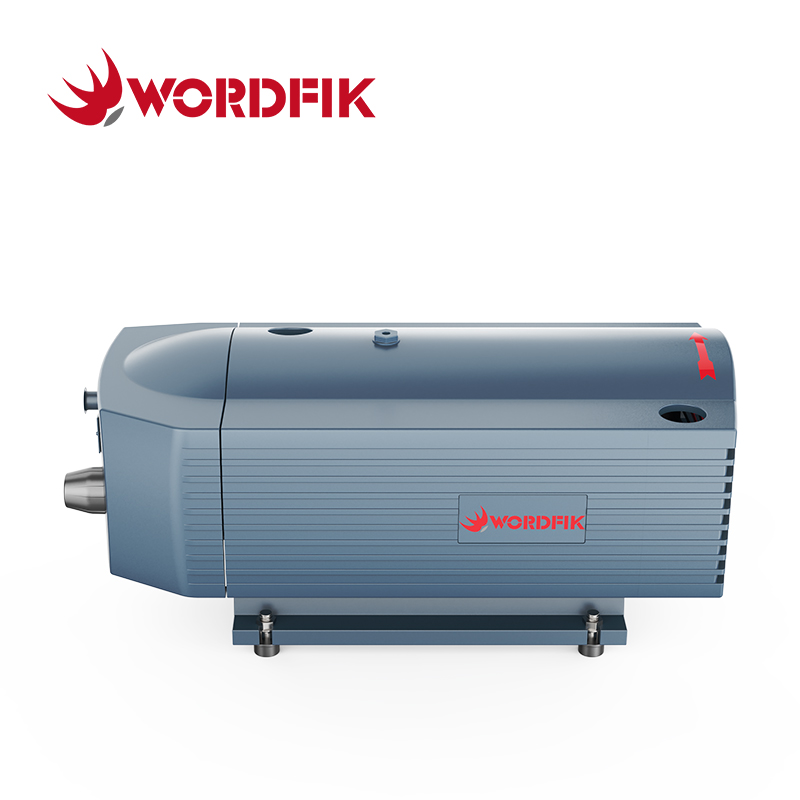

Wordfik TD10 is a dry type rotary vane pressure pump with simple structure, low maintenance and long service life. Compared with ordinary compressors, TD10 is compact and occupies a small area, and can be easily integrated into the equipment. TD10 can generate +1000mbar pressure at a pumping speed of 10m³/h or 12m³/h. It is an oil-free device that achieves gas pressurization through rotating blades. Its core features are oil-free lubrication design, high output pressure and low pollution emissions. It is mainly used in occasions that require stable positive pressure gas supply. It has a wide range of applications in the printing industry, environmental protection industry, mechanical engineering and other industries.
Features:
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| TD10 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 10 m³/h | 12 m³/h |
| Pressure | +1000 mbar | |
| Motor Power | 0.37 kW | 0.44 kW |
| Motor Voltage | Δ 175-260 V ; Y 300-450 V (3ph) | Δ 202-300 V ; Y 350-520 V (3ph) |
| 230V±10% (1ph) | 230V±10% (1ph) | |
| Motor Speed | 1420 rpm | 1700 rpm |
| Noise Level | 62 dB(A) | |
| Inlet Connection | ½ inch | |
| Weight | 16 kg | |
| Dimensions | 430*205*215 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Lamination & Printing | Plastic Industry | Environmental Industry |
 |  |  |
| Medical Industry | Hospital | Semiconductor Industry |
| Wordfik TD Series Dry Rotary Vane Pressure Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| TD10 | 0.37 kW | 0.44 kW | 10 m³/h | 12 m³/h | +1000 mbar |
| TD16K | 0.75 kW | 0.9 kW | 16 m³/h | 19.2 m³/h | |
| TD25K | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | |
| TD40K | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | |
| KTD60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | +1500 mbar |
| KTD80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | |
| KTD100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | |
| KTD140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | |
| KTD250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | +900 / +1800 mbar |
| KTD400 | 18.5 kW | 22 kW | 365 m³/h | 440 m³/h | |
