When selecting an industrial vacuum pump, understanding the key specifications on the datasheet is critical to your project's success. Choosing the wrong pump can lead to insufficient performance, high operating costs, and costly downtime.

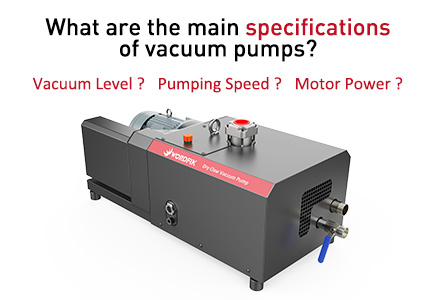

In this guide, we break down the three most critical vacuum pump specifications—Ultimate Vacuum, Flow Rate, and Power Consumption—to help you make an informed decision.
What It Is:
Ultimate Vacuum, often expressed in Pascals (Pa), mbar, or Torr, is the lowest pressure a pump can achieve under ideal conditions with no gas load. It's a measure of the pump's "deep drawing" capability.
Why It Matters:
This specification determines whether the pump can create the vacuum environment your process requires.
Example: A heat treatment furnace may require an ultimate vacuum of 1 x 10⁻² Pa, while a vacuum packaging machine might only need 100 Pa.
Key Takeaway: Don't over-spec! Buying a pump with a much lower ultimate vacuum than needed often means higher initial and operational costs. Match the specification to your process requirements.
What It Is:
Flow Rate (or Pumping Speed), typically measured in cubic meters per hour (m³/h) or liters per second (L/s), is the volume of gas a pump can remove over a given time. It indicates the pump's speed.
Why It Matters:
The flow rate determines how quickly you can achieve your target vacuum level, which directly impacts your cycle time and throughput.
Example: In a large vacuum chamber, a pump with a high flow rate will evacuate the chamber much faster than a small one, leading to faster production cycles.
The Crucial Interplay:
It's vital to check the pumping speed curve in the datasheet. The flow rate is not constant and decreases as the pressure approaches the ultimate vacuum. A pump might have a high flow rate at atmospheric pressure but a very low one in the high-vacuum range you operate in.
What It Is:
Power Consumption, measured in kilowatts (kW), indicates the electrical power the pump motor uses during operation.
Why It Matters:
While the initial purchase price is important, power consumption is a major contributor to the Total Cost of Ownership (TCO). A slightly cheaper pump with poor efficiency can cost significantly more over its lifespan.
Look for Energy-Efficient Designs: Modern pumps like Wordfik's Dry Screw Vacuum Pumps are engineered for high efficiency, often reducing energy usage by up to 30% compared to older models.
Key Takeaway: Evaluate pumps based on their performance-per-watt, not just their price tag.
Imagine you are selecting a vacuum pump for a plastic thermoforming machine.
Ultimate Vacuum Requirement: The process requires a vacuum level of 10 Pa to properly form the plastic sheet.
Flow Rate Requirement: The mold has a large volume and there are small leaks. To achieve a fast 30-second cycle time, you need a high flow rate of 50 m³/h at 10 Pa.
Power Consumption Consideration: You compare two pumps that meet the above specs. Pump A consumes 4.0 kW, while Pump B (a Wordfik model) consumes 3.0 kW. Over 5,000 hours of operation, Pump B will save significant money on your electricity bill.
By analyzing all three specifications in the context of your application, you select the most technically suitable and economically viable pump.
Selecting a vacuum pump based solely on one specification, like ultimate vacuum, is a common mistake. A holistic view of ultimate vacuum, flow rate (across the entire pressure range), and power consumption is essential for optimal performance and cost-effectiveness.
