In the highly competitive plastics industry, manufacturers are constantly seeking an edge to improve output, reduce waste, and maintain consistent quality. While often operating behind the scenes, industrial vacuum pumps are a critical technology that directly impacts all these areas. From deaerating resins to ensuring perfect mold contact, vacuum technology is indispensable for modern, efficient plastic manufacturing. This guide explores the key applications, benefits, and selection criteria for vacuum pumps, demonstrating how they are vital for enhancing both productivity and product quality.
Vacuum technology is utilized across various stages of plastic production. Understanding these applications is the first step in recognizing its value.

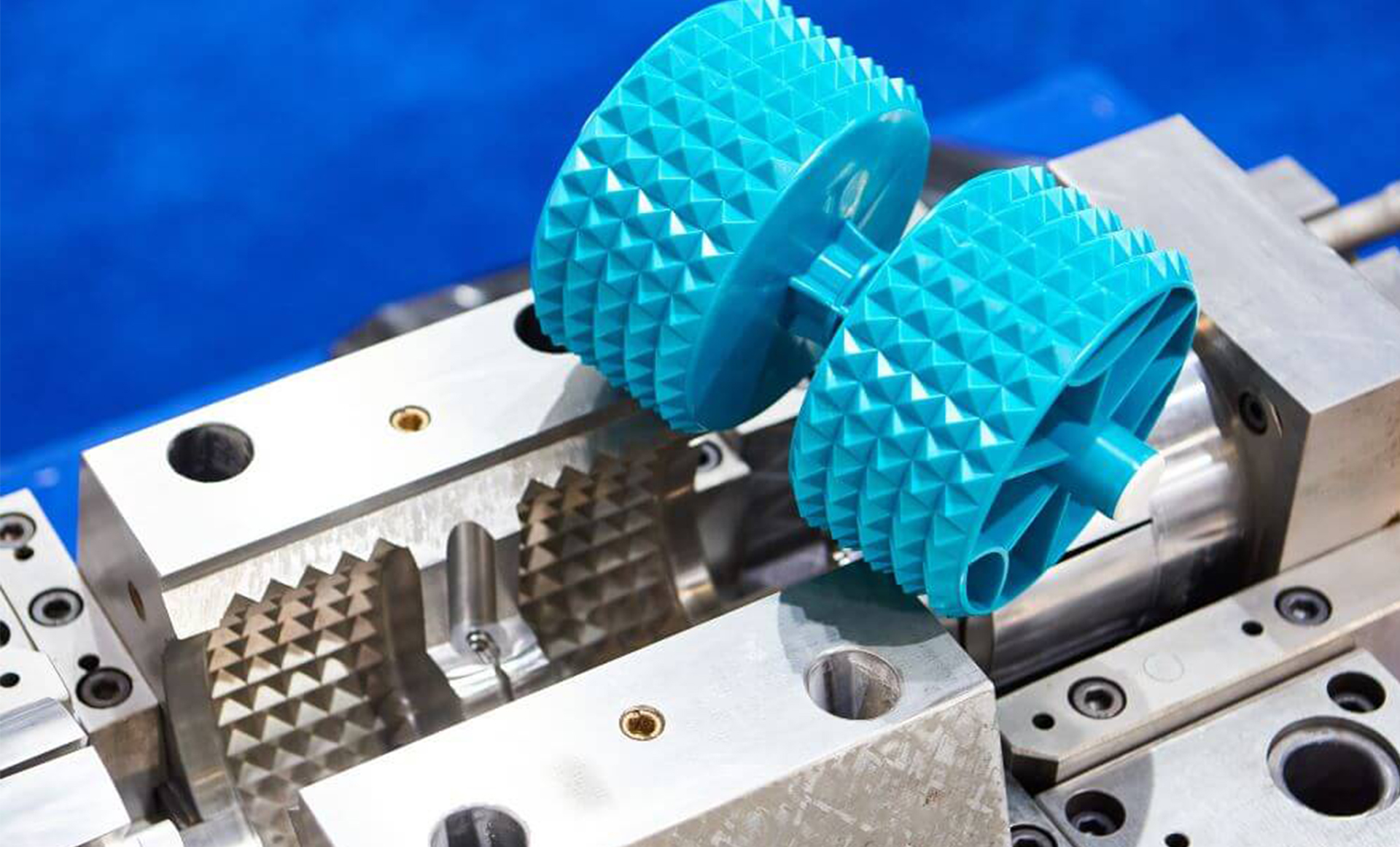

Injection Molding: Vacuum Venting
During the injection phase, air can become trapped in the mold cavity, leading to defects. Vacuum venting systems actively remove this air, allowing the molten plastic to fill the cavity completely. This process significantly reduces short shots, burn marks, and surface blemishes, resulting in higher-quality finished parts with less post-processing.

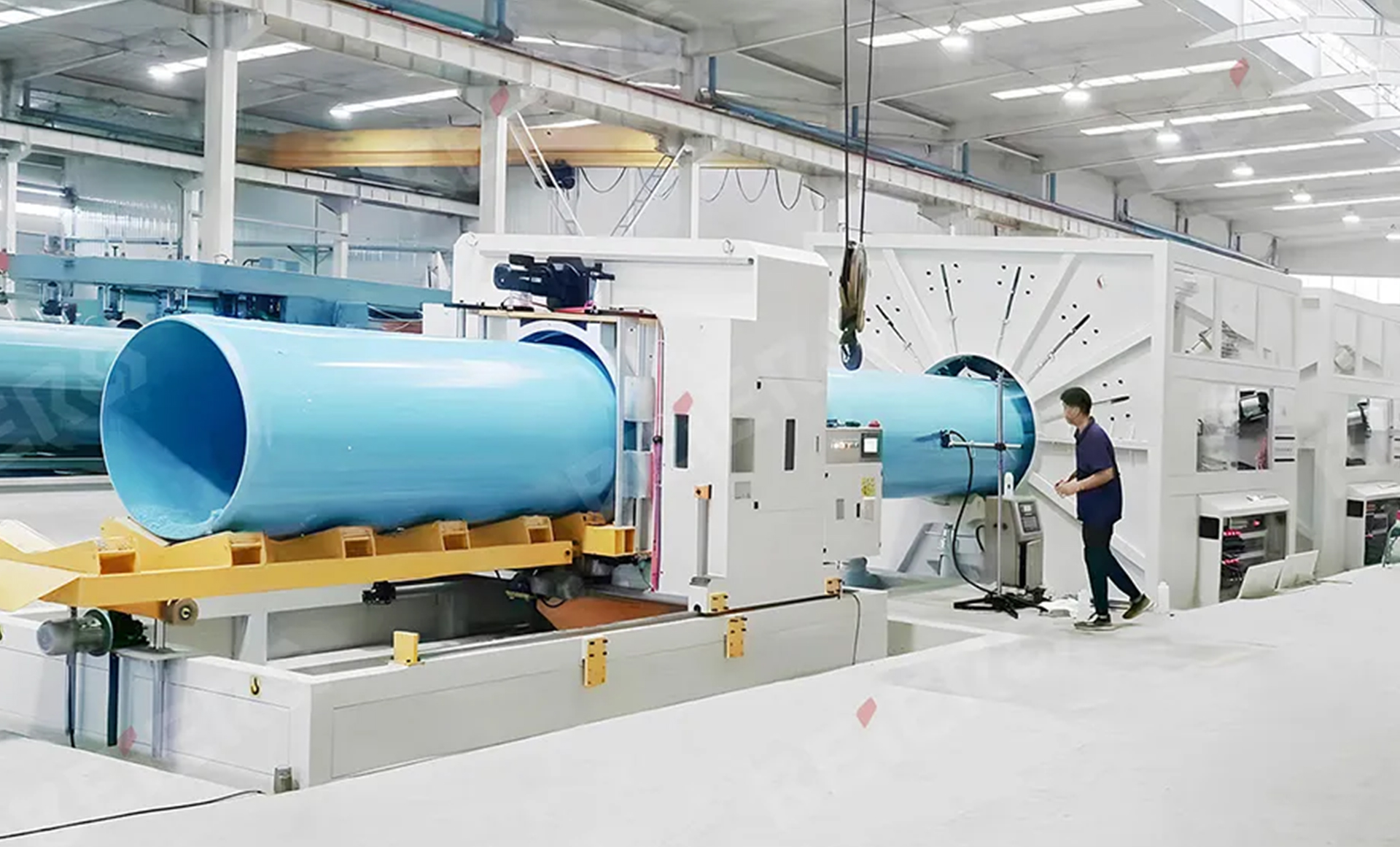

Plastic Extrusion: Vacuum Degassing & Sizing
In extrusion processes, especially for compounded materials, entrapped air and volatile by-products can create voids and weaknesses. Vacuum degassing removes these gases and moisture directly from the polymer melt, ensuring a homogeneous, bubble-free output. Additionally, vacuum sizing tanks are used to precisely calibrate and cool extruded profiles (like pipes and tubes) to their exact dimensional specifications.

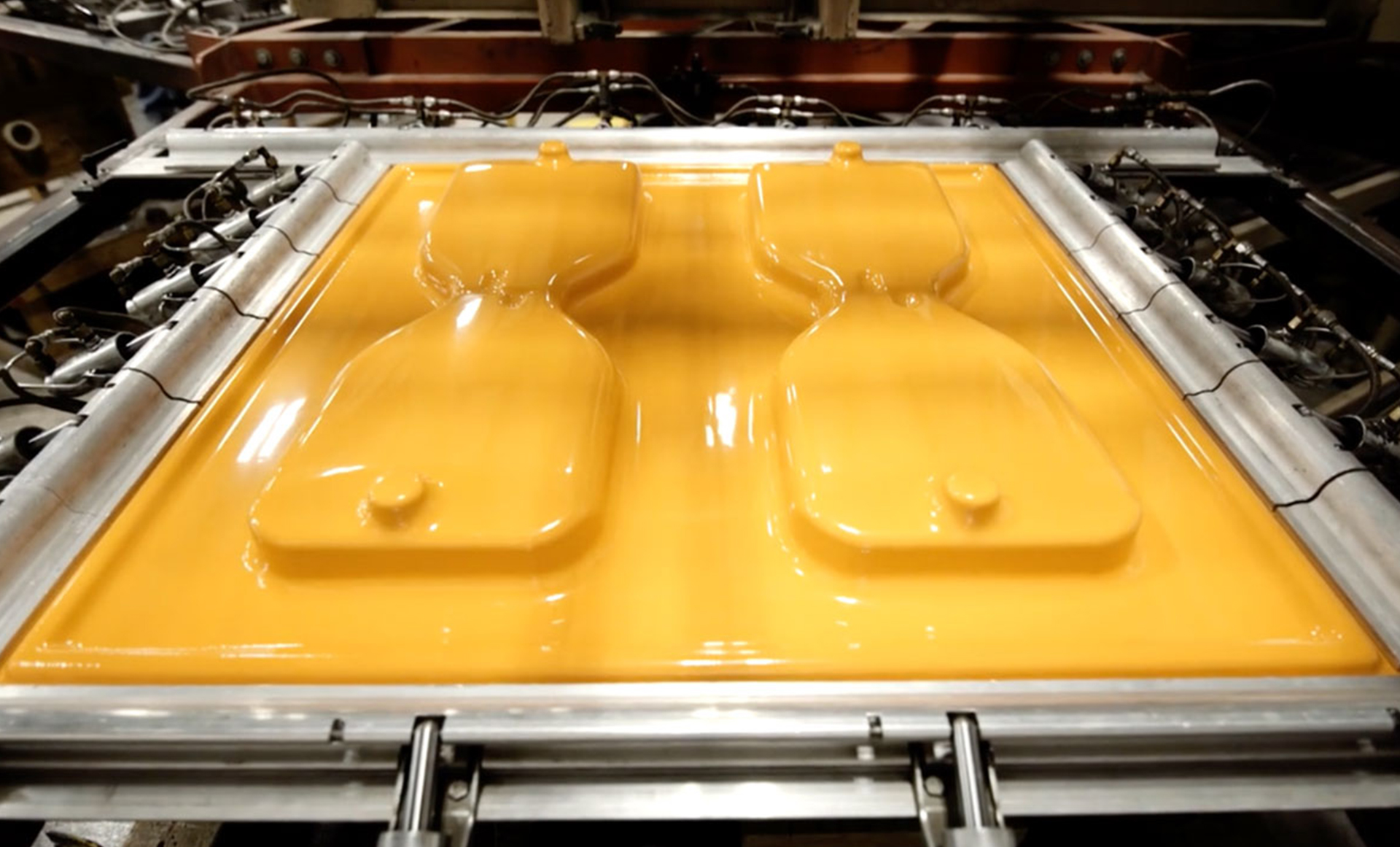

Thermoforming and Vacuum Forming
This is the most direct application of vacuum technology. A heated plastic sheet is placed over a mold, and a vacuum pump evacuates the air between the sheet and the mold, causing the sheet to be drawn into the desired shape. A robust and reliable vacuum pump is essential for achieving sharp detail, consistent wall thickness, and high cycle rates.
Pelletizing and Resin Drying
Vacuum systems are often integrated into resin drying hoppers to lower the boiling point of water, enabling faster and more efficient removal of moisture from hygroscopic plastics. This prevents defects during processing and ensures the material's inherent properties are maintained.

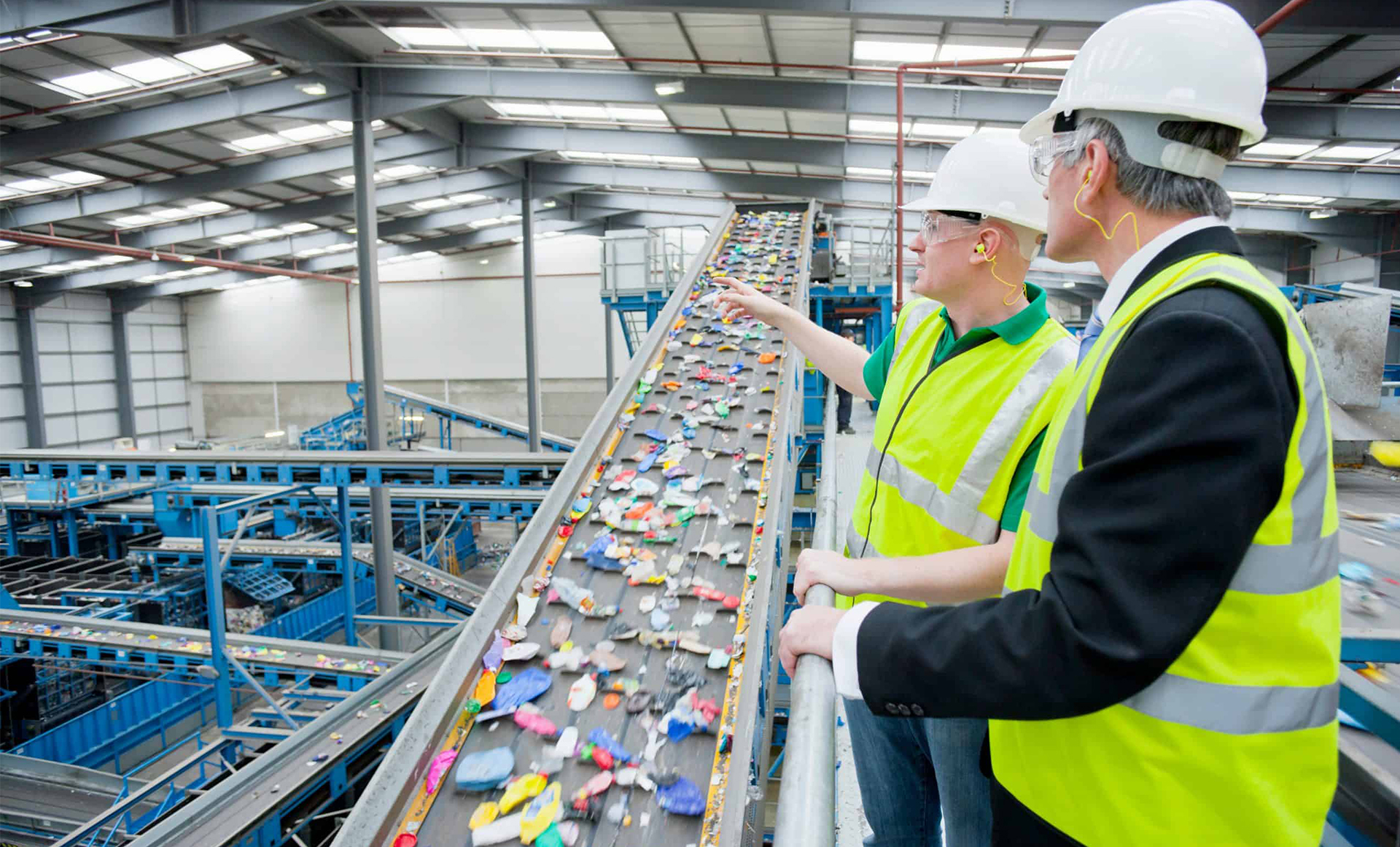

Plastic Recycling: Devolatilization & Purification
In the recycling process, vacuum pumps play a vital role in removing contaminants, moisture, and volatile organic compounds (VOCs) from molten recycled plastics. This step, known as devolatilization or degassing, is essential for purifying the polymer melt. By extracting these undesired elements, vacuum systems help restore the material's properties, enabling the production of higher-quality recycled pellets suitable for manufacturing new, high-value products.
 |  |  |  |  |
| Plastic Injection Molding, Plastic Extrusion, Plastic Thermforming, Plastic Pelletizing, Vacuum Drying, Vacuum Calibration, Vacuum Conveying, Solid State Polycondensation Recyling (SSP Recyling), Plastic Recyling... | ||||
Selecting the appropriate vacuum solution delivers tangible benefits to your bottom line.
Boost Productivity: Faster vacuum draw-down times enable shorter cycle times in injection molding and thermoforming. Pumps with high flow rates maintain stable vacuum levels consistently, allowing for increased throughput.
Improve Product Quality: By eliminating air-related defects like bubbles, voids, and poor surface finish, vacuum pumps ensure higher part consistency and reduced rejection rates. This leads to greater customer satisfaction and less material waste.
Reduce Operating Costs: Modern, energy-efficient vacuum pumps, such as dry screw vacuum pumps, consume less electricity compared to traditional models. Their oil-free operation also eliminates the cost of replacement oil and oil mist filters, reducing the total cost of ownership.
The optimal vacuum pump depends on your specific process and requirements. Key considerations include:
Vacuum Level vs. Flow Rate: Processes like vacuum degassing require a deep vacuum level (low absolute pressure) to pull gases from the melt. In contrast, thermoforming often prioritizes a high flow rate to quickly evacuate a large volume of air from the mold.
Oil-Free vs. Lubricated Pumps: Oil-free vacuum pumps (e.g., Dry Screw, Claw) are highly recommended for plastic manufacturing. They prevent any risk of oil contamination that could ruin products or require extensive line cleaning, ensuring a clean production environment.
Chemical Resistance: Some processes may release plasticizers or other volatile components. It's crucial to select a pump constructed with materials and seals that can resist these chemical attacks.
Energy Efficiency and TCO: Look for pumps designed for low power consumption and minimal maintenance. While the initial investment might be higher, the savings in energy and upkeep often provide a superior return on investment.
At Wordfik, we understand the demanding environment of a plastics plant. Our vacuum solutions are built to deliver reliable performance where it matters most.
Robust Dry Screw Pumps: Our flagship dry screw vacuum pumps offer oil-free operation, exceptional energy efficiency, and high reliability, making them ideal for continuous-duty applications like extrusion degassing and central vacuum systems.
Proven Rotary Vane Pumps: For applications where cost-effectiveness is key, our oil-lubricated rotary vane pumps provide robust performance and are well-suited for individual injection molding machines or vacuum forming stations.
Expert Support from Start to Finish: We provide more than just equipment. Our technical team offers comprehensive support, from initial system design and 3D simulation to after-sales maintenance, ensuring your vacuum system integrates seamlessly and operates at peak efficiency.
Integrating the right vacuum technology is not merely an equipment purchase—it's a strategic investment in the efficiency and quality of your plastic manufacturing operations. By ensuring optimal vacuum performance, you can achieve faster production cycles, superior product quality, and significantly lower operating costs.
Ready to enhance your plastic manufacturing productivity? Contact Wordfik's experts today for a free consultation. We'll help you select the perfect vacuum pump tailored to your specific application and challenges.
