Dry Rotary Vane Vacuum Pumps in the CNC Woodworking Industry: The Ideal Choice for Enhanced Efficiency and Clean Production
In woodworking processes, vacuum adsorption technology is the invisible assistant enabling precision and efficient production. Oil-free dry rotary vane vacuum pumps, with their clean and efficient characteristics, are becoming core equipment in modern woodworking workshops.
In various stages of CNC woodworking production, vacuum pumps play an indispensable role. Whether for fixing materials on CNC engraving machines, vacuum forming, or workpiece handling in woodworking centers, stable vacuum supply is essential. Among various vacuum technology solutions, dry rotary vane vacuum pumps have gained widespread application in the woodworking industry due to their oil-free operation, relatively simple maintenance, and lower investment costs.
In modern CNC woodworking workshops, vacuum pump systems are key to achieving efficient and precise processing. By generating stable negative pressure, vacuum pumps firmly hold sheets on the worktable, ensuring workpieces do not shift during machining.
The application of vacuum technology in the woodworking industry is mainly reflected in two aspects:
Vacuum Clamping: This is the most important and widespread application of vacuum pumps in the woodworking industry. On equipment like CNC milling machines and machining centers, workpieces such as wood boards and panels (like MDF, particle board) are securely fixed to the worktable through vacuum chucks. Dry rotary vane pumps can quickly generate sufficient vacuum levels, ensuring workpieces do not move during high-speed cutting, thereby guaranteeing machining accuracy and quality.
Vacuum Handling and Lifting: Using vacuum chucks integrated on robotic arms or gantries, dry rotary vane vacuum pumps easily enable automatic grasping, moving, stacking, and loading/unloading of panels. This method is particularly suitable for handling large, smooth-surfaced panels, effectively reducing labor intensity and improving production efficiency.
The CNC woodworking industry primarily uses three vacuum technologies: Dry Rotary Vane Vacuum Pumps, Water Ring Vacuum Pumps, and Water Ring Vacuum Systems. Each technology has its specific application scenarios, advantages, and disadvantages.
A dry rotary vane vacuum pump is a positive displacement pump whose operation is based on an eccentrically rotating rotor within the pump chamber. The rotor contains several vanes that slide freely in slots; during operation, centrifugal force throws these vanes outwards into close contact with the pump chamber wall, creating sealed, variable-volume spaces.
Main Advantages:
Clean and Oil-Free: The pump chamber requires no lubricating oil, fundamentally eliminating the risk of oil mist contaminating vacuum lines, chucks, or wood product surfaces.
Compact Structure: The design is typically simple and compact, with a small footprint, facilitating integration into woodworking machinery with limited space.
Smooth Operation: The rotor has good geometric symmetry, resulting in low vibration and relatively low noise during operation.

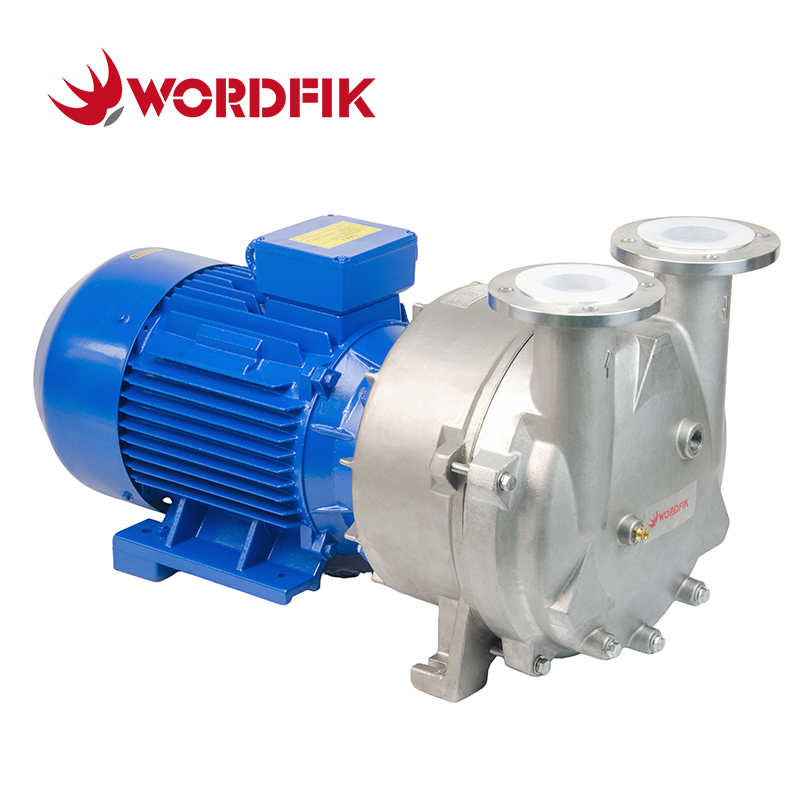

Water ring vacuum pumps use water as the working medium, creating a vacuum by forming a water ring via an impeller's rotation. In the woodworking industry, they are commonly used for adsorption and holding on engraving machines and other equipment.
Main Characteristics:
Simple and compact structure, easy installation.
Low operating cost; no consumables to replace, making running costs significantly lower than oil pumps.
Potential for water waste and may significantly increase humidity in the production area.

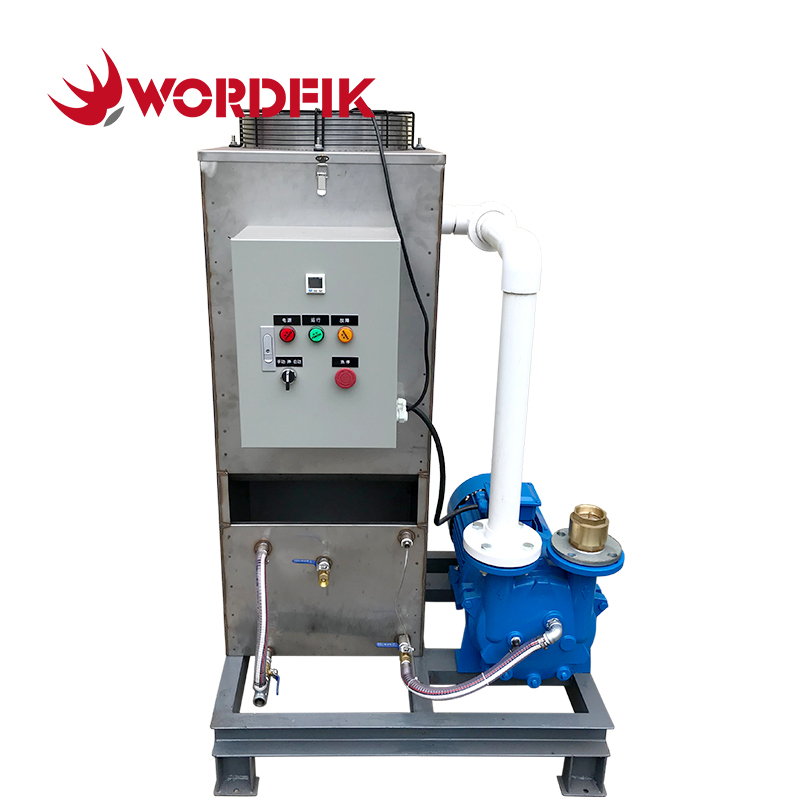

A water ring vacuum system is a complete system based on a water ring vacuum pump, adding components like a water tank and control valves. Such systems typically include the main vacuum source (water ring vacuum pump), PLC controller, circulating water tank, vacuum check valve, silencer/moisture trap, solenoid valve, and other components.
The table below clearly compares the characteristics of the three vacuum pump technologies in CNC woodworking applications:
 |  |  | |
| Features | Dry Rotary Vane Vacuum Pump | Water Ring Vacuum Pump | Water Ring Vacuum System |
| Vacuum Level | 200~350 mbar | 33 mbar | 33 mbar |
| Pumping Speed | 8-480 m³/h | 27-500 m³/h | 27-500 m³/h |
| Working Medium Required? | Completely oil-free and water-free, no pollution risk | Requires water as working fluid | Requires water as working fluid, risk of water contamination |
| Cleanliness | High, ideal for wood processing requiring high cleanliness | Medium, but water temperature affects vacuum level | Medium, risk of water contamination exists |
| Energy Efficiency | High, good efficiency in small/medium applications | Lower efficiency; the pump runs fast to maintain the seal, consuming more energy | Lower efficiency |
| Maintenance Requirements | Medium; vanes need periodic replacement | Regular maintenance of water circuit needed to prevent scaling | Regular maintenance of water circuit needed to prevent scaling |
| Typical Applications | Small/medium/large CNC machines, handling, high-cleanliness requirements | Engraving machines, CNC machines | Large-scale woodworking equipment |
Dry rotary vane vacuum pumps can be up to 30% more energy-efficient than liquid ring vacuum pumps and consume almost no water, as they use cooling jackets for heat removal. Furthermore, the service life of dry rotary vane vacuum pumps is typically 15-20 years, compared to 6-8 years for liquid ring pumps.
Wordfik dry rotary vane vacuum pumps combine advanced technology with practical design, offering significant advantages in the CNC woodworking industry:

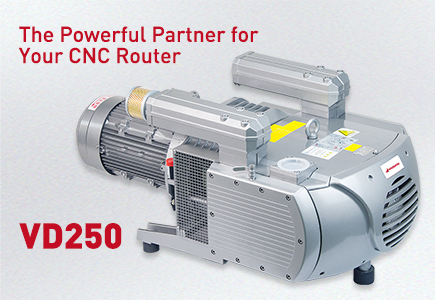

Wordfik dry rotary vane vacuum pumps utilize high-efficiency motors and optimized designs, resulting in significantly lower energy consumption compared to traditional water ring pumps. For example, the Wordfik VD250 model operates at 5.5kW (50Hz) with a pumping speed of 250 m³/h, and 6.6kW (60Hz) with a speed of 300 m³/h. This high-efficiency design directly translates to lower operating costs.
Wordfik dry rotary vane vacuum pumps operate completely without oil or water, eliminating the risk of wood products being contaminated by oil or moisture at the source. This is particularly important for processing light-colored wood, high-end furniture, and precision wood products, ensuring final product quality.
Wordfik dry rotary vane vacuum pumps incorporate noise reduction technology, with noise levels controlled to around 78 dB, significantly improving the working environment in woodworking shops. This is a key advantage for modern woodworking companies focused on employee health and comfort.

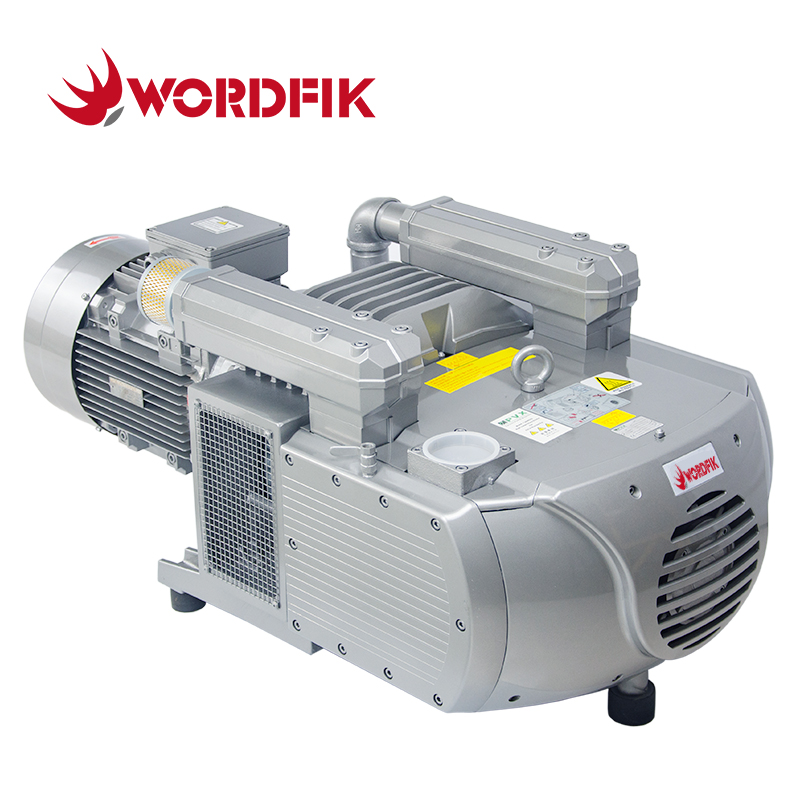

Wordfik dry rotary vane vacuum pumps are compactly designed. For instance, the VD400 model measures 1260 x 612 x 550 mm, making them easy to install and layout within the limited space of a woodworking shop, maximizing production space utilization.
Wordfik dry rotary vane vacuum pumps use durable graphite vanes and high-quality materials, reducing wear and extending service life. This significantly reduces maintenance requirements and downtime compared to water ring pumps, which are prone to rust and scale formation.
When selecting a suitable dry rotary vane vacuum pump for CNC woodworking applications, several key factors need consideration:
Calculate the effective pumping speed required based on the number of chucks, total surface area, potential system leaks, and the required clamping response time. The pump's ultimate vacuum level should be higher than the working vacuum level required by the woodworking process.
Abrasive MDF dust in the woodworking environment can accelerate vane wear. Therefore, installing an efficient dust filter upstream of the pump's intake and regularly cleaning/replacing it is crucial for extending the pump's service life.
For applications with significant load variations, consider models equipped with Variable Frequency Drives (VFD). VFD pumps can automatically adjust speed based on actual demand, significantly reducing energy consumption during partial load operation.
Dry rotary vane vacuum pumps have numerous successful application cases in the CNC woodworking industry. Many well-known domestic and international CNC woodworking machinery manufacturers have adopted dry rotary vane vacuum pumps as the standard configuration or preferred option for their equipment.
As the woodworking industry moves towards automation, intelligence, and green development, requirements for vacuum equipment are also increasing. Future dry rotary vane vacuum pumps may see continuous improvement in several areas:
Higher Energy Efficiency: Optimizing design and motor technology to reduce operating energy consumption, aligning with energy-saving trends.
Longer Vane Life: Developing more wear-resistant materials to extend maintenance cycles and reduce overall maintenance costs.
Enhanced Smart Integration: Integrating sensors and communication interfaces for remote status monitoring and predictive maintenance, better integrating into smart factory systems.
For most CNC woodworking applications, dry rotary vane vacuum pumps offer the best balance between initial investment, cleanliness, and maintenance convenience. They can quickly generate sufficient vacuum levels to ensure workpieces are securely held during processing while avoiding oil contamination that could damage valuable wood.
Wordfik dry rotary vane vacuum pumps, with their high efficiency, energy saving, and cleanliness, have become an ideal choice for the modern CNC woodworking industry. For woodworking enterprises pursuing efficient and clean production, selecting the right dry rotary vane vacuum pump is undoubtedly a strategic investment for enhancing core competitiveness.
