PLWX75
Wordfik
Availability: | |
---|---|
Quantity: | |

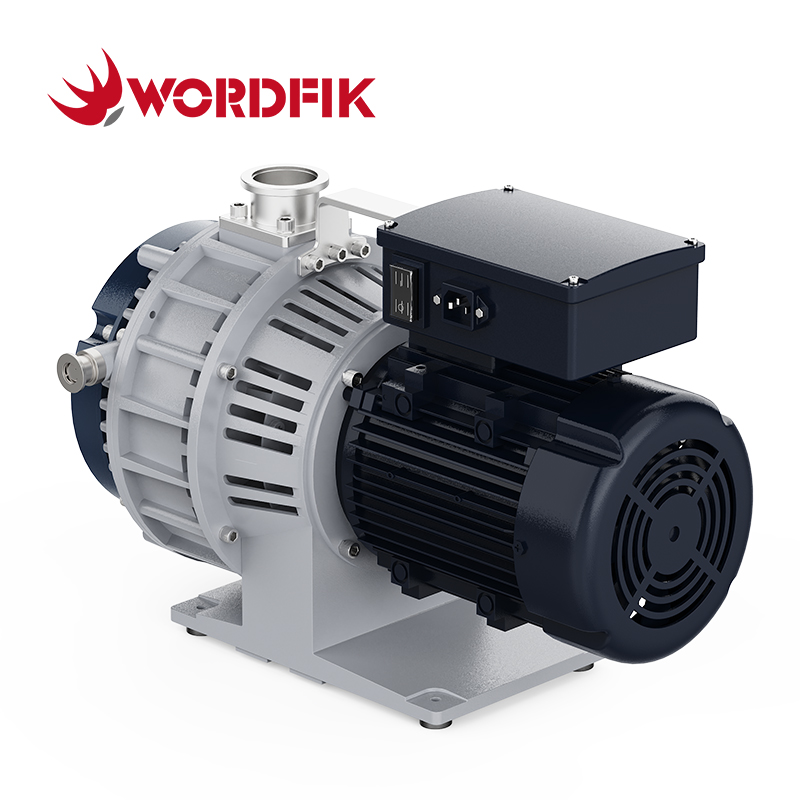

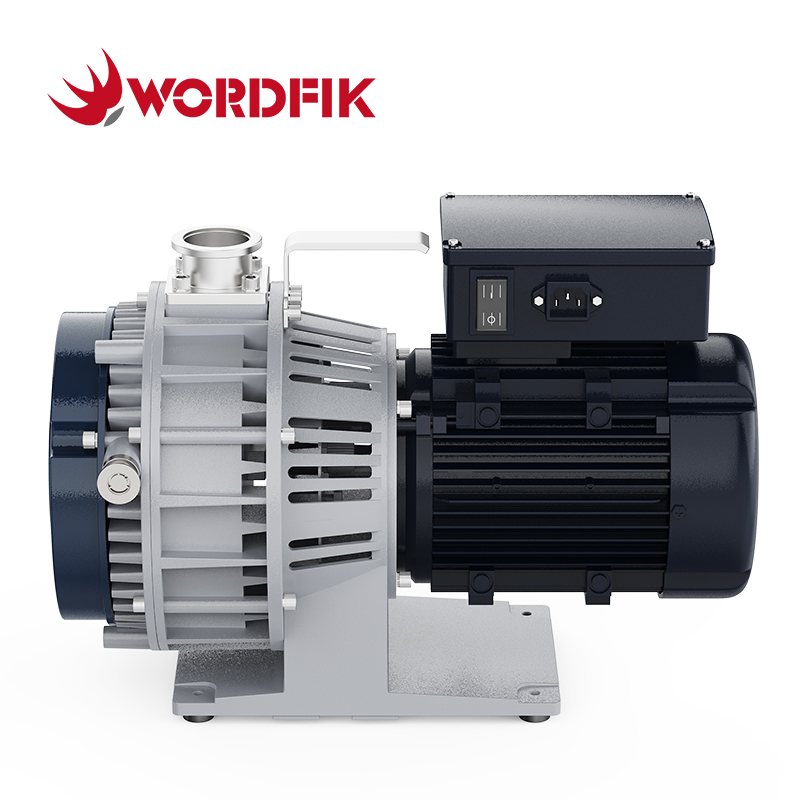

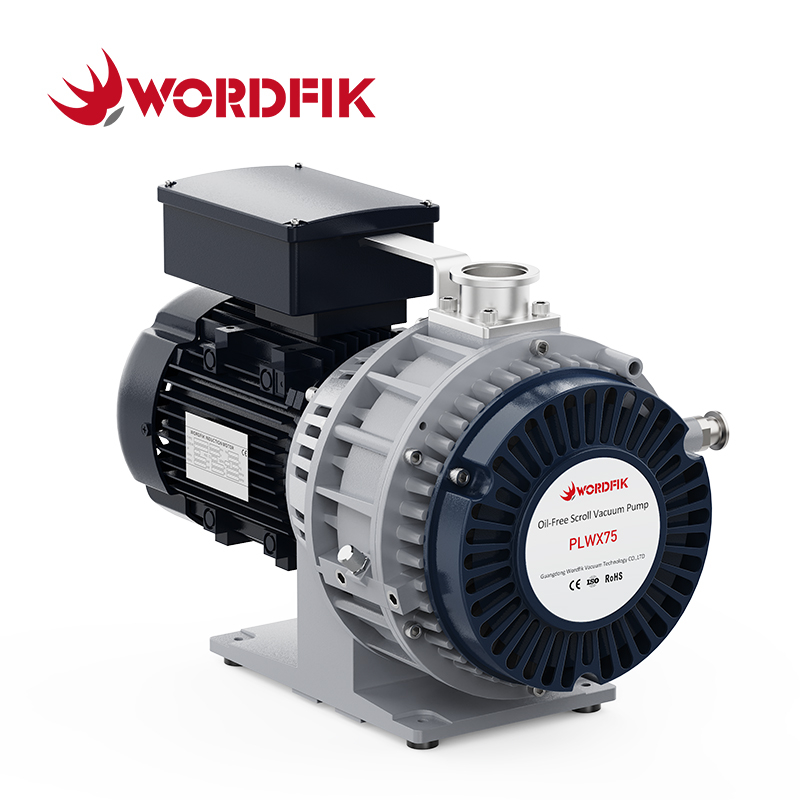

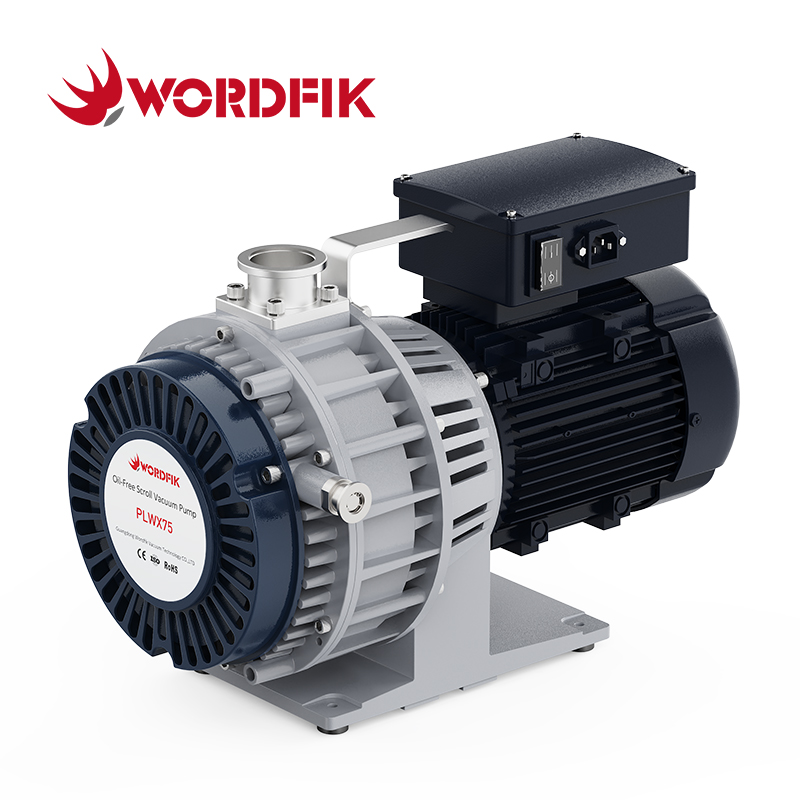

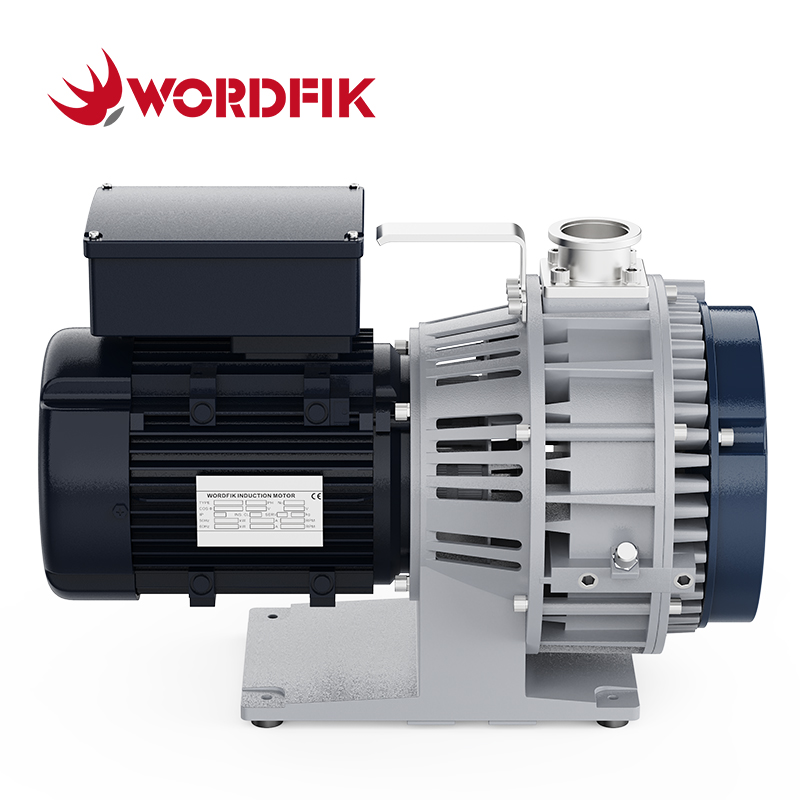

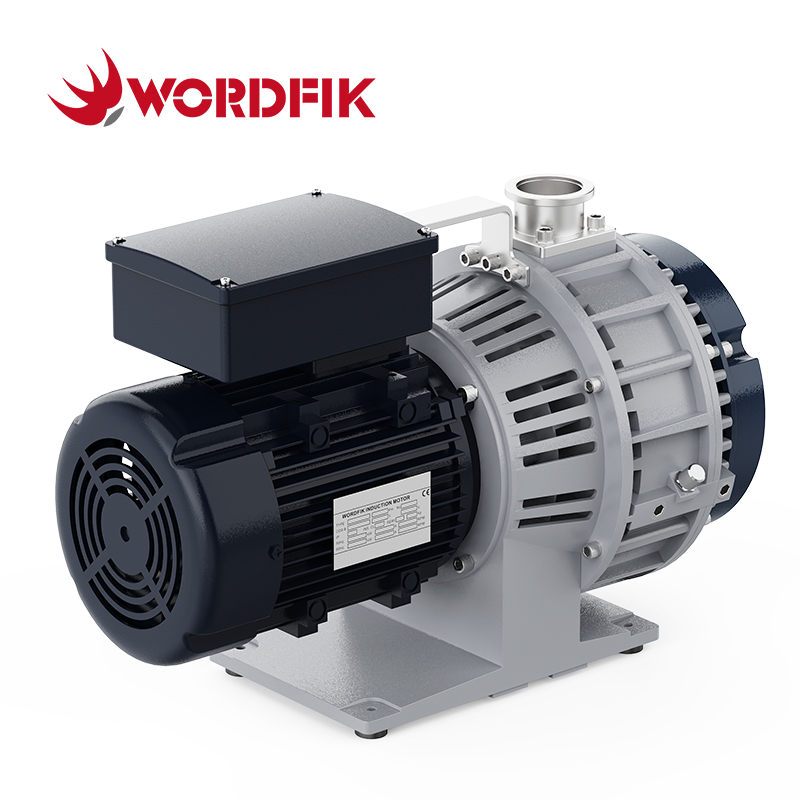

The Wordfik PLWX75 is an advanced oil-free scroll vacuum pump engineered for applications demanding pure, contamination-free vacuum environments. With a pumping speed of 3.6m³/h (50Hz) or 4.3m³/h (60Hz) and an ultimate vacuum of 8Pa, it delivers consistent high performance while operating at a remarkably low noise level of 57dB.
Perfectly suited for laboratory and analytical instruments (e.g., mass spectrometers, freeze dryers), medical and dental equipment, semiconductor and electronics manufacturing, as well as packaging and industrial automation, the PLWX75 complies with international standards and is backed by Wordfik's 1-year warranty and lifetime technical support.
Features:
• 100% Oil-Free Operation
• Stable and Low Noise Operation
• Easy to Maintenance
• High Efficiency and Energy Saving
• High Vacuum
• Long Service Life
PLWX75 Technical Specifications | |||
50Hz | 60Hz | ||
Pumping Speed | 1 L/s | 1.2 L/s | |
3.6 m³/h | 4.3 m³/h | ||
Ultimate Pressure | 8 Pa | ||
8*10-2 mbar | |||
Leakage | 1*10-7 mbar·L/s | ||
Motor (1ph) | Power | 0.25 kW | |
Voltage | 200-230V | 110-115V | |
Speed | 1425 rpm | 1725 rpm | |
Motor (3ph) | Power | 0.37 kW | |
Voltage | 220-230V or 380-415V | 200-230V or 460V | |
Speed | 1425 rpm | 1725 rpm | |
Noise Level | ≤57dB(A) | ||
Max. Inlet / Exhaust Pressure | 1/1.3 atm | ||
Ambient Operation Temperature | 41-104 ℉ | ||
Inlet Flange | KF25 | ||
Outlet Flange | KF16 | ||
Weight | 21 kg | ||
Dimensions | 450*260*296 mm | ||
Cooling Method | Air Cooled | ||
Others | With Gas Ballast |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
![]() | ![]() | ![]() |
Vacuum Glove Box | Pharmaceutical Industry | Vacuum Welding |
![]() | ![]() | ![]() |
Battery Manufacturing | Semiconductor Industry | Aerospace |
Wordfik PLWX Series Oil-Free Scroll Vacuum Pumps ( Quick Model Selector ) | |||||
Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
50Hz | 60Hz | 50Hz | 60Hz | ||
PLWX75 | 0.25 kW | 0.37 kW | 3.6 m³/h | 4.3 m³/h | 8 Pa |
PLWX150 | 0.25 kW | 0.37 kW | 7.2 m³/h | 8.6 m³/h | 6 Pa |
PLWX300 | 0.55 kW | 15.5 m³/h | 18.3 m³/h | 2.6 Pa | |
PLWX600 | 0.75 kW | 31.3 m³/h | 37.4 m³/h | 1 Pa | |
PLWX800 | 0.75 kW | 43.2 m³/h | 51.8 m³/h | ||
PLWX1000 | / | 1.5 kW | 59.8 m³/h | 71.6 m³/h |
