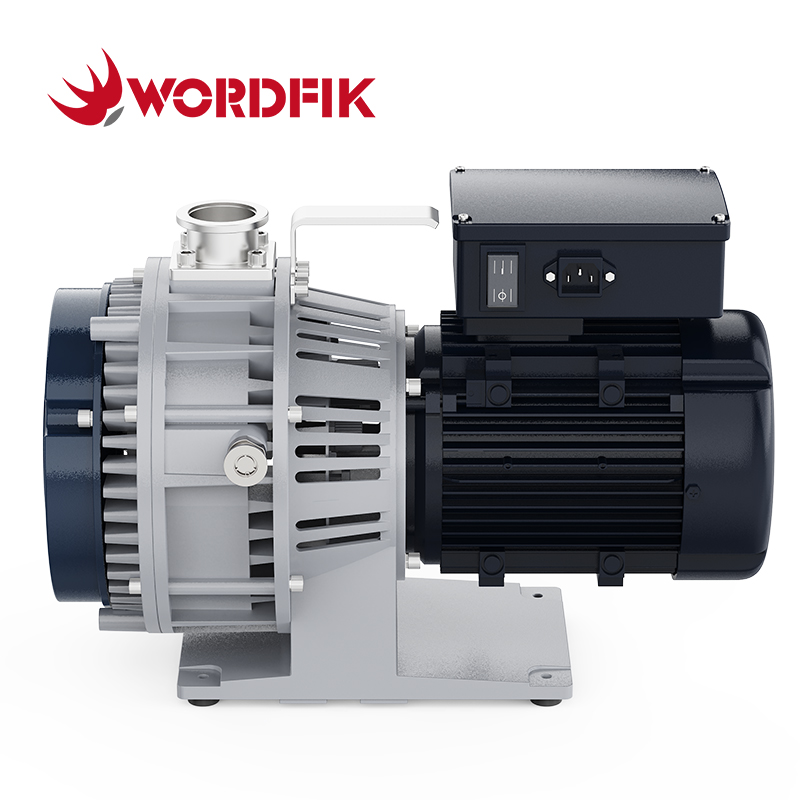

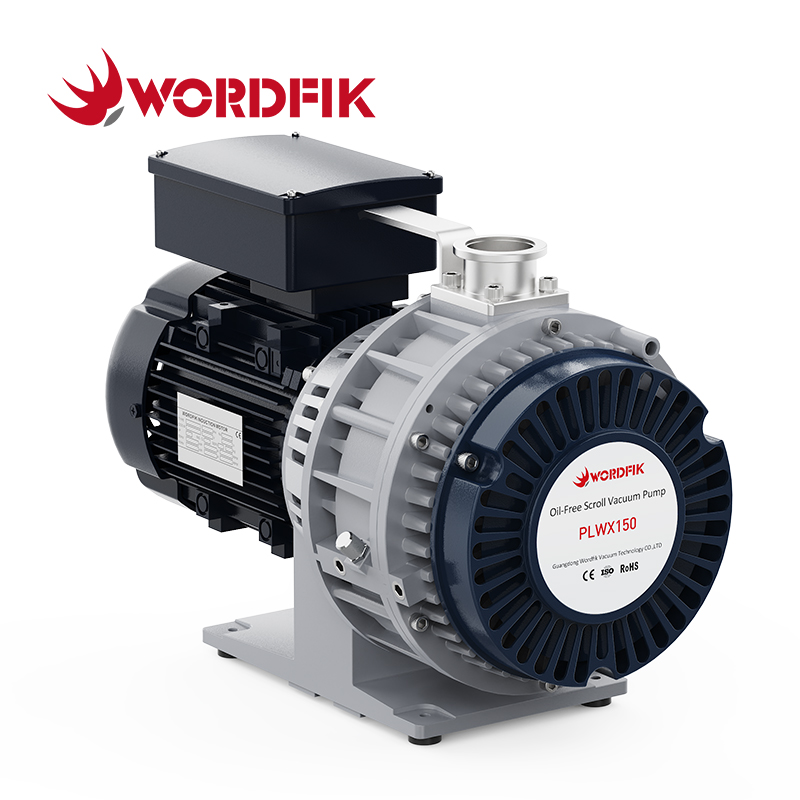

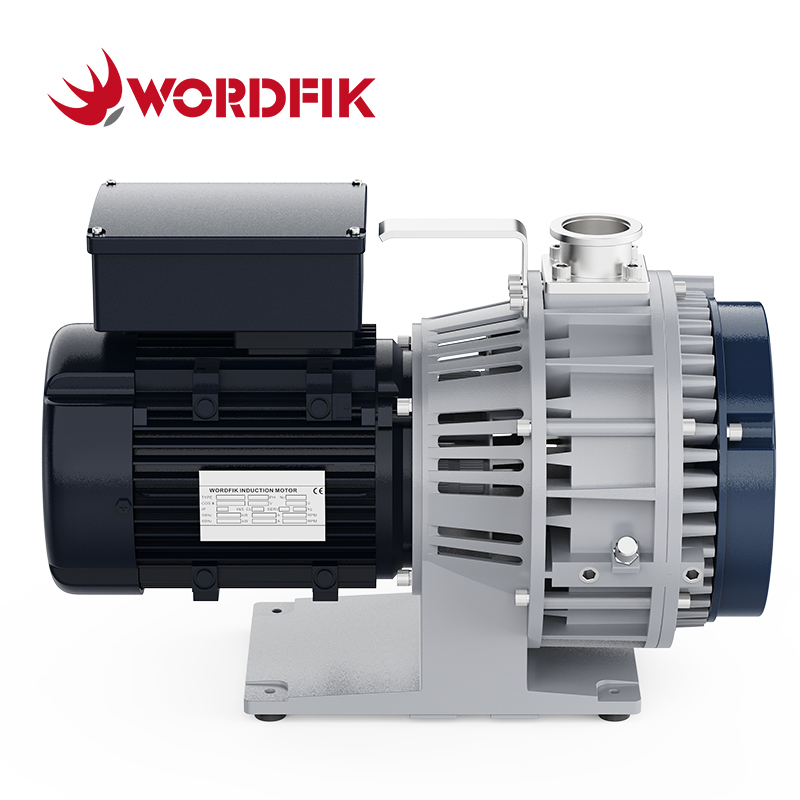

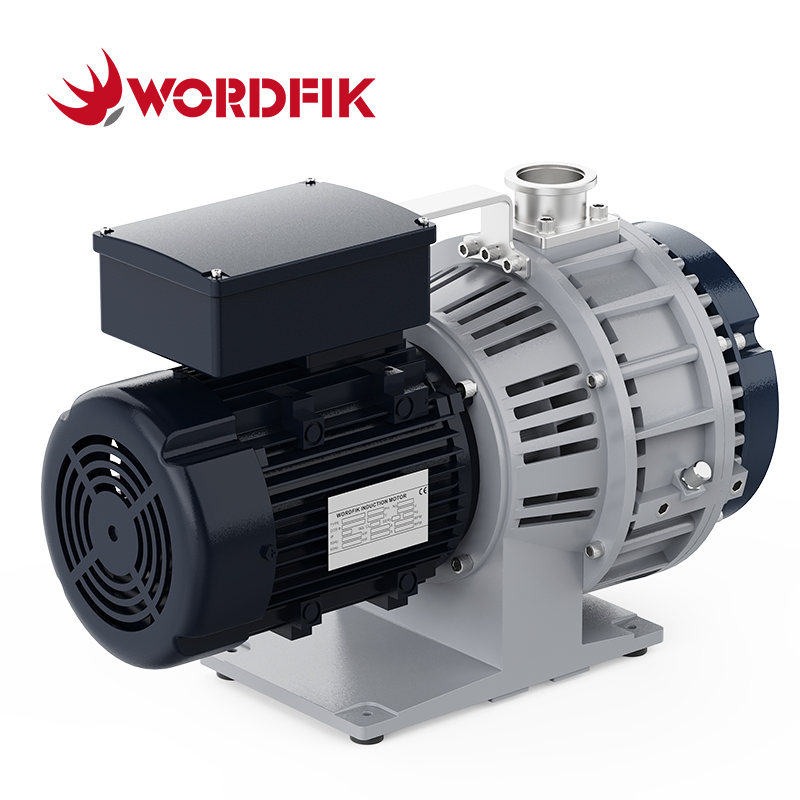

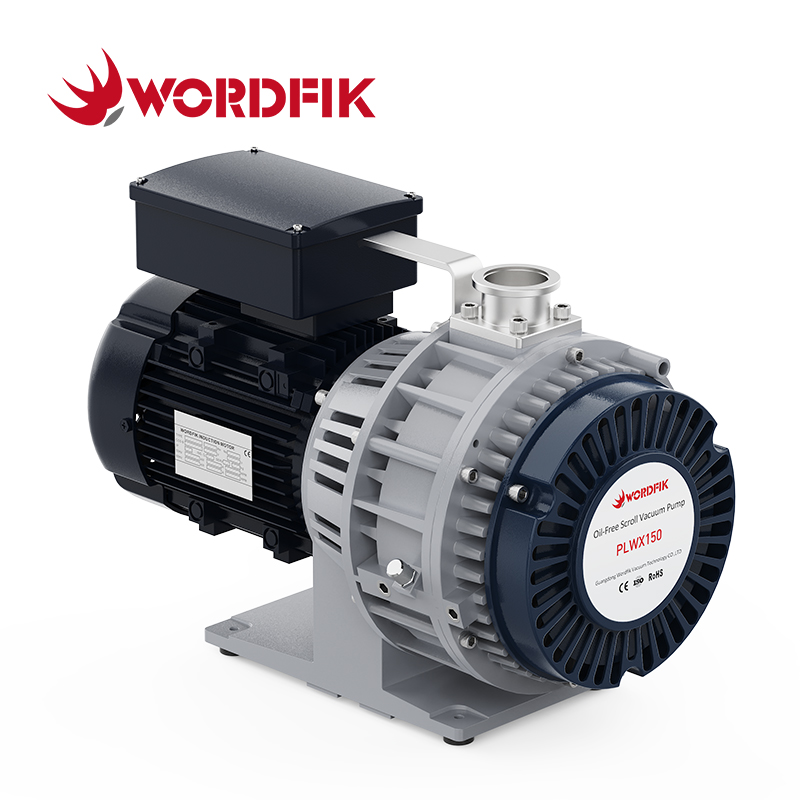

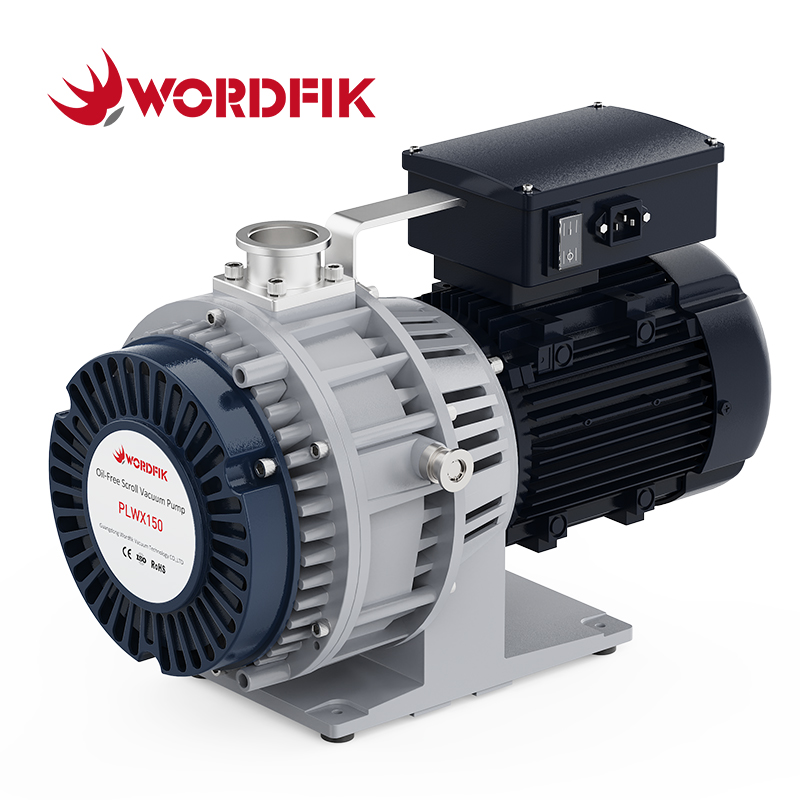

The Wordfik PLWX150 is a high-capacity oil-free scroll vacuum pump engineered for demanding applications requiring pure, contamination-free vacuum environments. With an enhanced pumping speed of 7.2m³/h (50Hz) or 8.6m³/h (60Hz) and an ultimate vacuum of 6Pa, it delivers robust and consistent performance while operating at a low noise level of 57dB.
Perfectly suited for pharmaceutical and medical device manufacturing, laboratory and research equipment (e.g., mass spectrometers, electron microscopes), semiconductor and electronics production, as well as food and beverage packaging, the PLWX150 complies with international standards and is backed by Wordfik's 1-year warranty and lifetime technical support.
Features:
• 100% Oil-Free Operation
• Stable and Low Noise Operation
• Easy to Maintenance
• High Efficiency and Energy Saving
• High Vacuum
• Long Service Life
| PLWX150 Technical Specifications | |||
| 50Hz | 60Hz | ||
| Pumping Speed | 2 L/s | 2.4 L/s | |
| 7.2 m³/h | 8.6 m³/h | ||
| Ultimate Pressure | 6 Pa | ||
| 6*10-2 mbar | |||
| Leakage | 1*10-7 mbar·L/s | ||
| Motor (1ph) | Power | 0.25 kW | |
| Voltage | 200-230V | 110-115V | |
| Speed | 1425 rpm | 1725 rpm | |
| Motor (3ph) | Power | 0.37 kW | |
| Voltage | 220-230V or 380-415V | 200-230V or 460V | |
| Speed | 1425 rpm | 1725 rpm | |
| Noise Level | ≤57dB(A) | ||
| Max. Inlet / Exhaust Pressure | 1/1.3 atm | ||
| Ambient Operation Temperature | 41-104 ℉ | ||
| Inlet Flange | KF25 | ||
| Outlet Flange | KF16 | ||
| Weight | 22 kg | ||
| Dimensions | 455*260*296 mm | ||
| Cooling Method | Air Cooled | ||
| Others | With Gas Ballast | ||
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Glove Box | Pharmaceutical Industry | Vacuum Welding |
 |  |  |
| Battery Manufacturing | Semiconductor Industry | Aerospace |
| Wordfik PLWX Series Oil-Free Scroll Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PLWX75 | 0.25 kW | 0.37 kW | 3.6 m³/h | 4.3 m³/h | 8 Pa |
| PLWX150 | 0.25 kW | 0.37 kW | 7.2 m³/h | 8.6 m³/h | 6 Pa |
| PLWX300 | 0.55 kW | 15.5 m³/h | 18.3 m³/h | 2.6 Pa | |
| PLWX600 | 0.75 kW | 31.3 m³/h | 37.4 m³/h | 1 Pa | |
| PLWX800 | 0.75 kW | 43.2 m³/h | 51.8 m³/h | ||
| PLWX1000 | / | 1.5 kW | 59.8 m³/h | 71.6 m³/h | |
