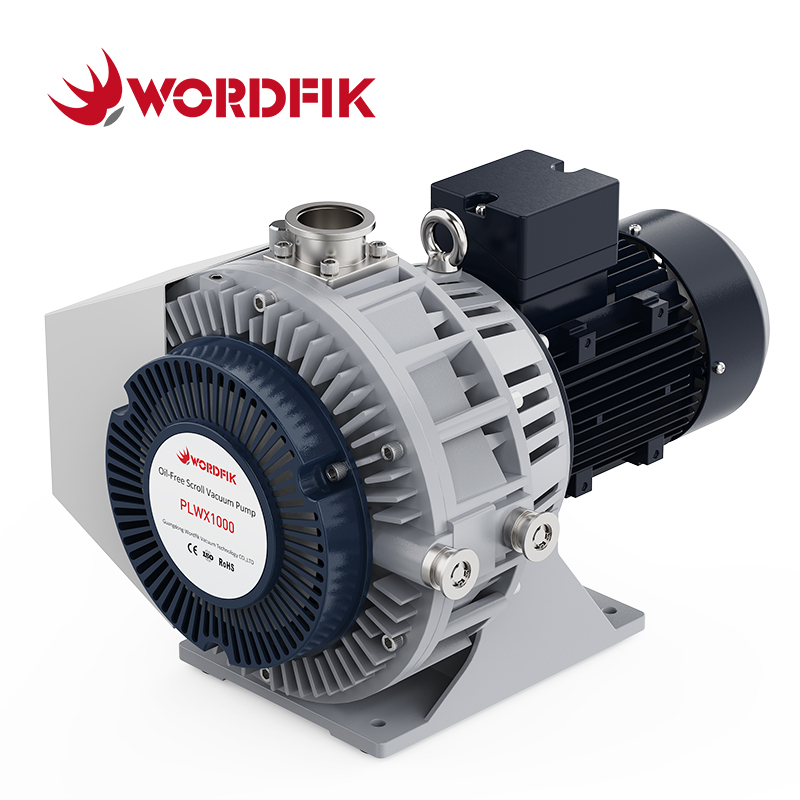

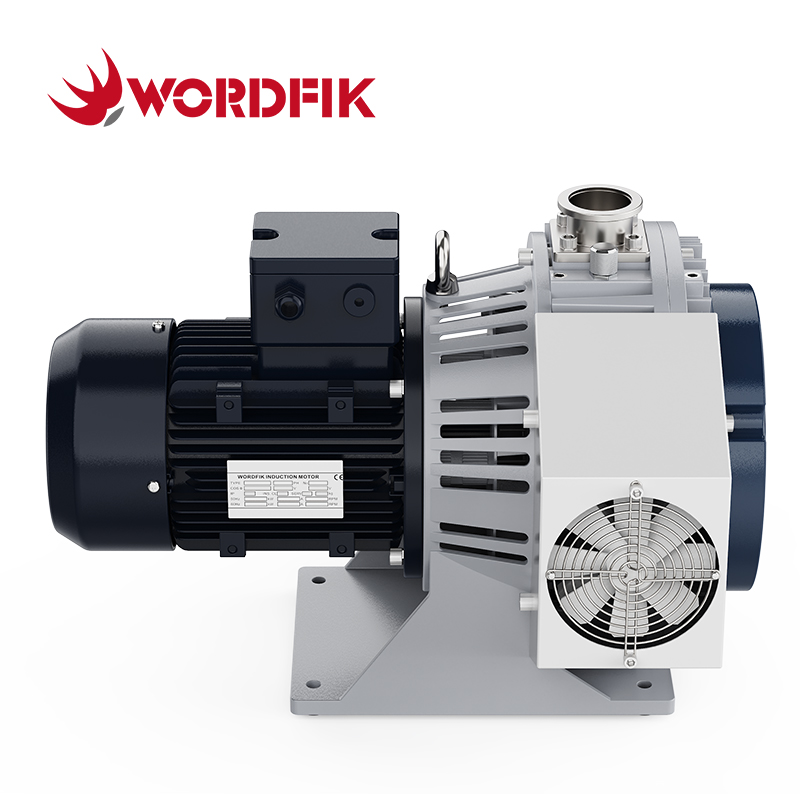

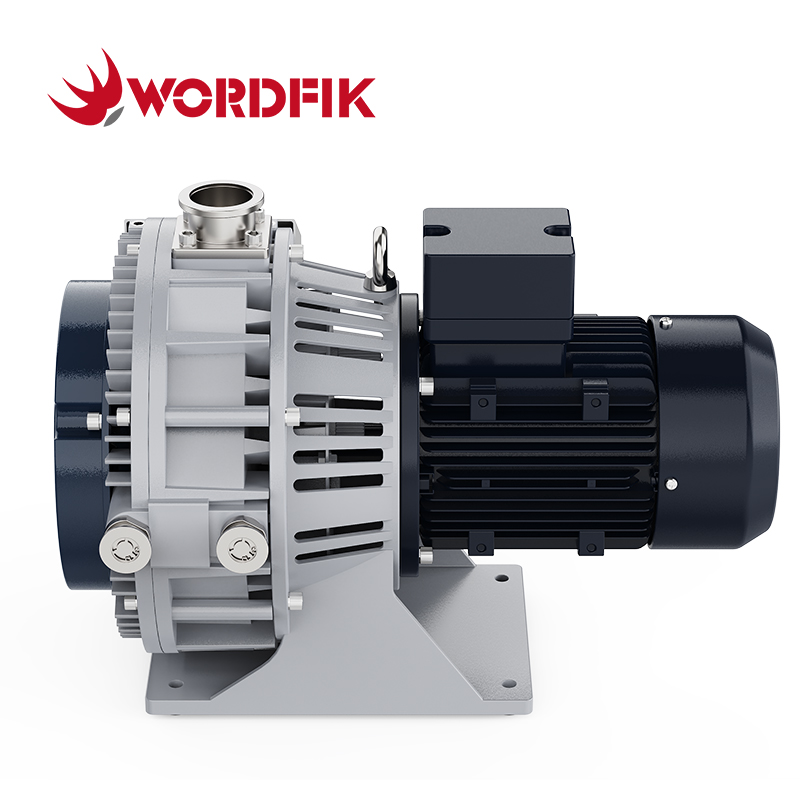

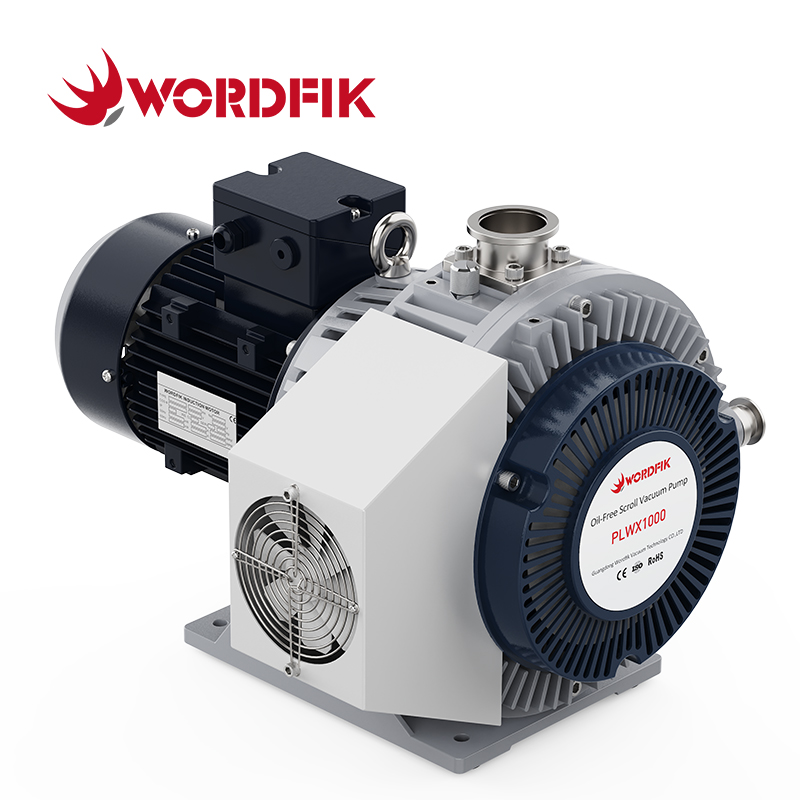

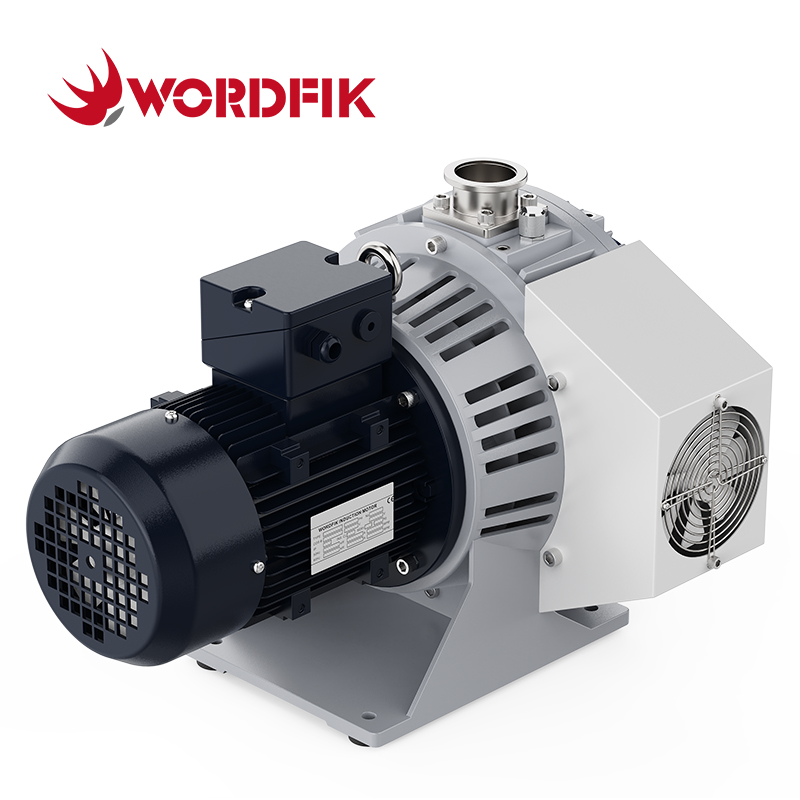

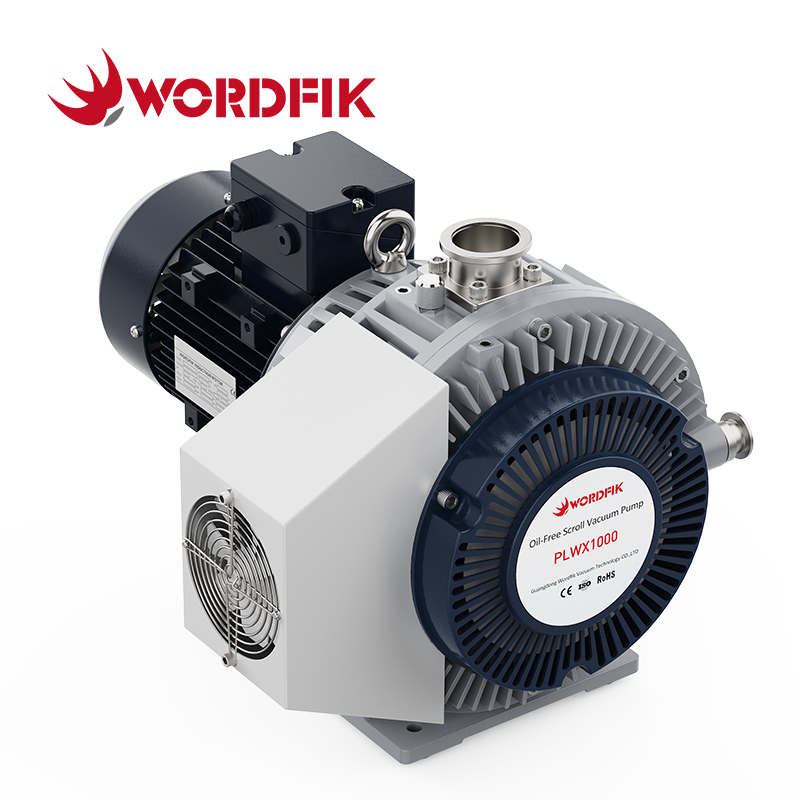

The Wordfik PLWX1000 represents the pinnacle of oil-free vacuum technology, delivering industrial-grade performance with exceptional efficiency. Engineered for the most demanding applications, this high-capacity scroll pump provides an impressive pumping speed of 59.8 m³/h (16.6 L/s) at 50Hz or 71.6 m³/h (20 L/s) at 60Hz, while achieving an ultimate vacuum of 1Pa. With a power consumption of just 1.5kW and operating at only 67dB, the PLWX1000 sets new standards in energy efficiency and quiet operation for large-scale vacuum systems.
Designed for critical applications where reliability and purity are paramount, the PLWX1000 is ideally suited for semiconductor fabrication, pharmaceutical manufacturing, research laboratories, and aerospace testing facilities. The pump meets stringent international standards including CE, RoHS, and ISO certifications, ensuring both superior performance and regulatory compliance worldwide.
Features:
• 100% Oil-Free Operation
• Stable and Low Noise Operation
• Easy to Maintenance
• High Efficiency and Energy Saving
• High Vacuum
• Long Service Life
| PLWX1000 Technical Specifications | |||
| 50Hz | 60Hz | ||
| Pumping Speed | 16.6 L/s | 20 L/s | |
| 59.8 m³/h | 71.6 m³/h | ||
| Ultimate Pressure | 1 Pa | ||
| 1*10-2 mbar | |||
| Leakage | 1*10-7 mbar·L/s | ||
| Motor (3ph) | Power | 1.5 kW | |
| Voltage | 220-230V or 380-415V | 200-230V or 460V | |
| Speed | 1425 rpm | 1725 rpm | |
| Noise Level | ≤67dB(A) | ||
| Max. Inlet / Exhaust Pressure | 1/1.3 atm | ||
| Ambient Operation Temperature | 41-104 ℉ | ||
| Inlet Flange | KF40 | ||
| Outlet Flange | KF16*2 | ||
| Weight | 54 kg | ||
| Dimensions | 576*450*402 mm | ||
| Cooling Method | Air Cooled | ||
| Others | With Gas Ballast | ||
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Glove Box | Pharmaceutical Industry | Vacuum Welding |
 |  |  |
| Battery Manufacturing | Semiconductor Industry | Aerospace |
| Wordfik PLWX Series Oil-Free Scroll Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PLWX75 | 0.25 kW | 0.37 kW | 3.6 m³/h | 4.3 m³/h | 8 Pa |
| PLWX150 | 0.25 kW | 0.37 kW | 7.2 m³/h | 8.6 m³/h | 6 Pa |
| PLWX300 | 0.55 kW | 15.5 m³/h | 18.3 m³/h | 2.6 Pa | |
| PLWX600 | 0.75 kW | 31.3 m³/h | 37.4 m³/h | 1 Pa | |

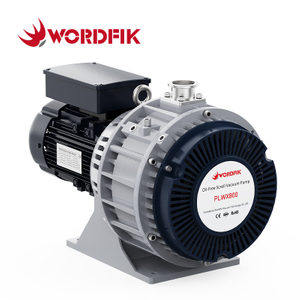

| PLWX800 | 0.75 kW | 43.2 m³/h | 51.8 m³/h | ||
| PLWX1000 | / | 1.5 kW | 59.8 m³/h | 71.6 m³/h | |
