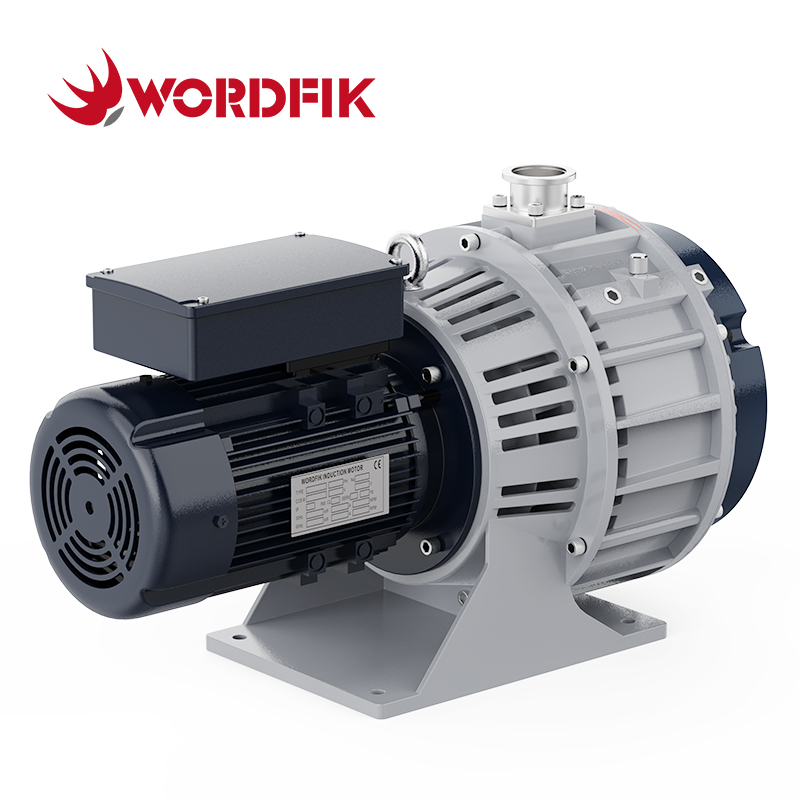

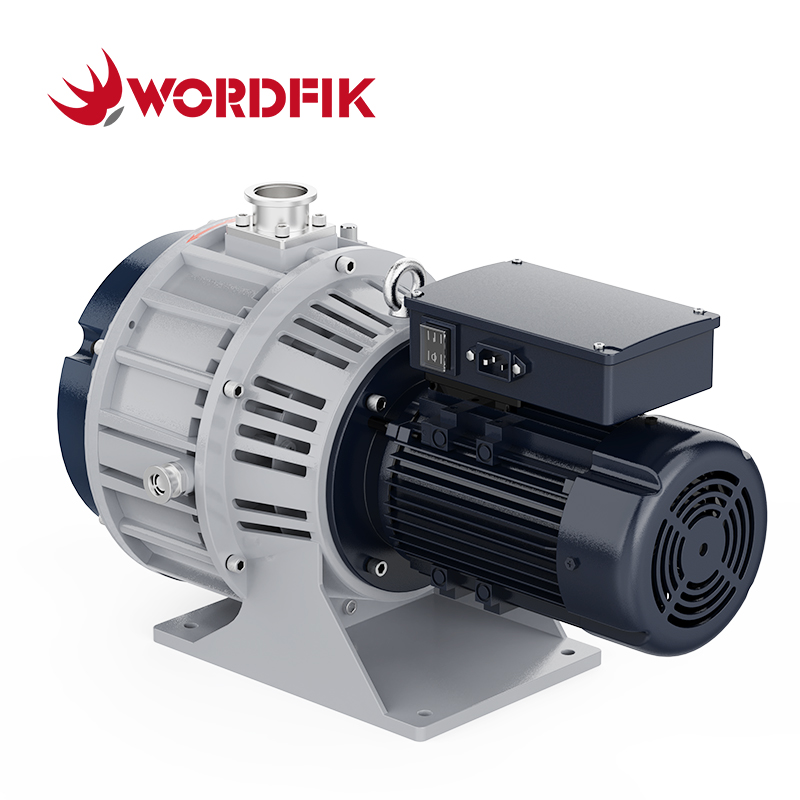

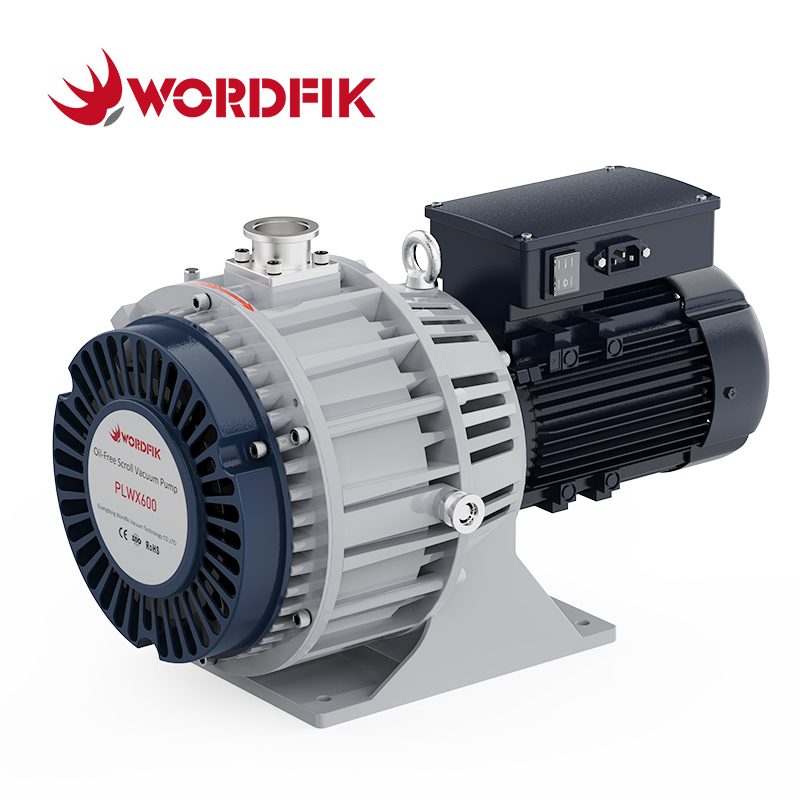

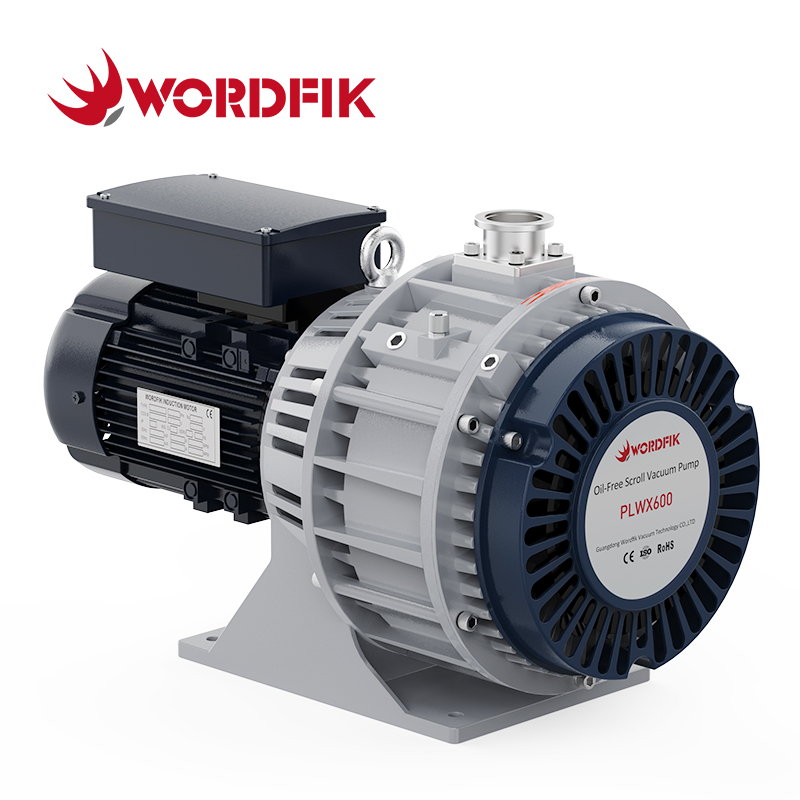

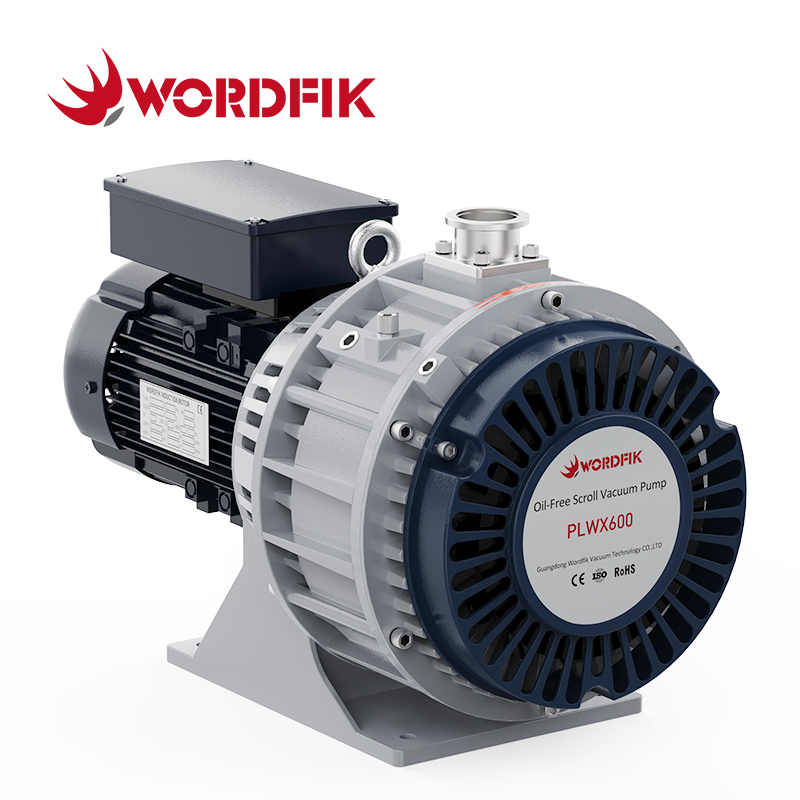

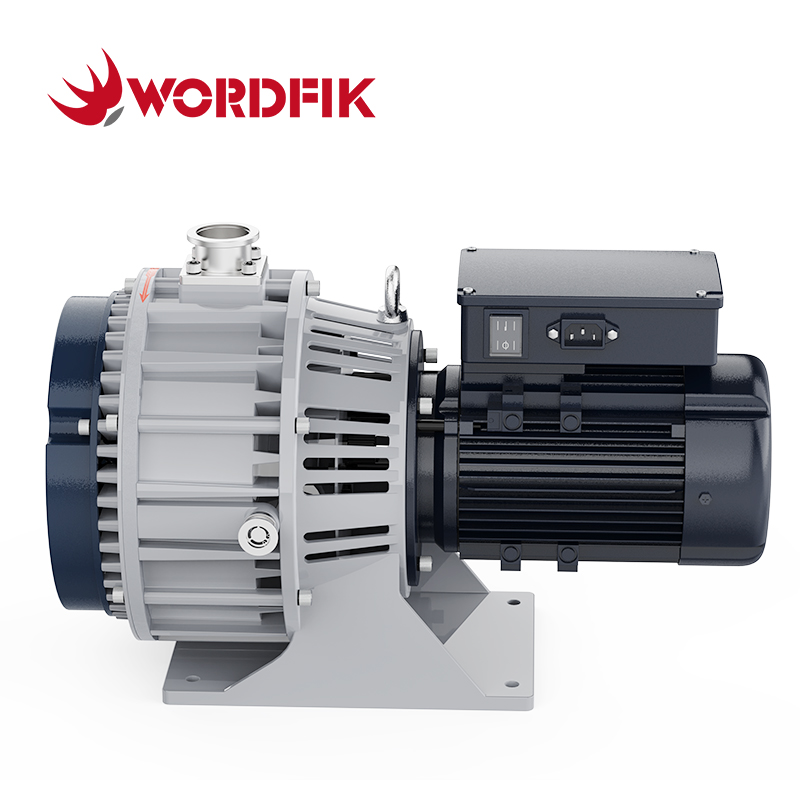

The Wordfik PLWX600 is an industrial-grade oil-free scroll vacuum pump engineered for high-demand applications where extreme vacuum performance and absolute purity are critical. With a powerful pumping speed of 31.3m³/h (50Hz) or 37.4m³/h (60Hz) and an ultimate vacuum of 1Pa, it delivers exceptional stability and efficiency for continuous operation -- all while maintaining a low noise level of just 63dB and energy consumption as low as 0.75kW.
Designed for the most demanding sectors including semiconductor fabrication, pharmaceutical production, aerospace testing, nuclear research, and high-energy physics laboratories, the PLWX600 is manufactured in compliance with international CE, RoHS, and ISO standards, ensuring full regulatory compliance and operational safety. It is backed by Wordfik's 1-year warranty and lifetime technical support.
Features:
• 100% Oil-Free Operation
• Stable and Low Noise Operation
• Easy to Maintenance
• High Efficiency and Energy Saving
• High Vacuum
• Long Service Life
| PLWX600 Technical Specifications | |||
| 50Hz | 60Hz | ||
| Pumping Speed | 8.7 L/s | 10.4 L/s | |
| 31.3 m³/h | 37.4 m³/h | ||
| Ultimate Pressure | 1 Pa | ||
| 1*10-2 mbar | |||
| Leakage | 1*10-7 mbar·L/s | ||
| Motor (1ph) | Power | 0.75 kW | |
| Voltage | 200-230V | 110-115V | |
| Speed | 1425 rpm | 1725 rpm | |
| Motor (3ph) | Power | 0.75 kW | |
| Voltage | 220-230V or 380-415V | 200-230V or 460V | |
| Speed | 1425 rpm | 1725 rpm | |
| Noise Level | ≤63dB(A) | ||
| Max. Inlet / Exhaust Pressure | 1/1.3 atm | ||
| Ambient Operation Temperature | 41-104 ℉ | ||
| Inlet Flange | KF40 | ||
| Outlet Flange | KF16 | ||
| Weight | 36 kg | ||
| Dimensions | 538*315*348 mm | ||
| Cooling Method | Air Cooled | ||
| Others | With Gas Ballast | ||
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| Vacuum Glove Box | Pharmaceutical Industry | Vacuum Welding |
 |  |  |
| Battery Manufacturing | Semiconductor Industry | Aerospace |
| Wordfik PLWX Series Oil-Free Scroll Vacuum Pumps ( Quick Model Selector ) | |||||
| Model | Motor Power | Pumping Speed | Ultimate Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | ||
| PLWX75 | 0.25 kW | 0.37 kW | 3.6 m³/h | 4.3 m³/h | 8 Pa |
| PLWX150 | 0.25 kW | 0.37 kW | 7.2 m³/h | 8.6 m³/h | 6 Pa |
| PLWX300 | 0.55 kW | 15.5 m³/h | 18.3 m³/h | 2.6 Pa | |
| PLWX600 | 0.75 kW | 31.3 m³/h | 37.4 m³/h | 1 Pa | |
| PLWX800 | 0.75 kW | 43.2 m³/h | 51.8 m³/h | ||
| PLWX1000 | / | 1.5 kW | 59.8 m³/h | 71.6 m³/h | |
